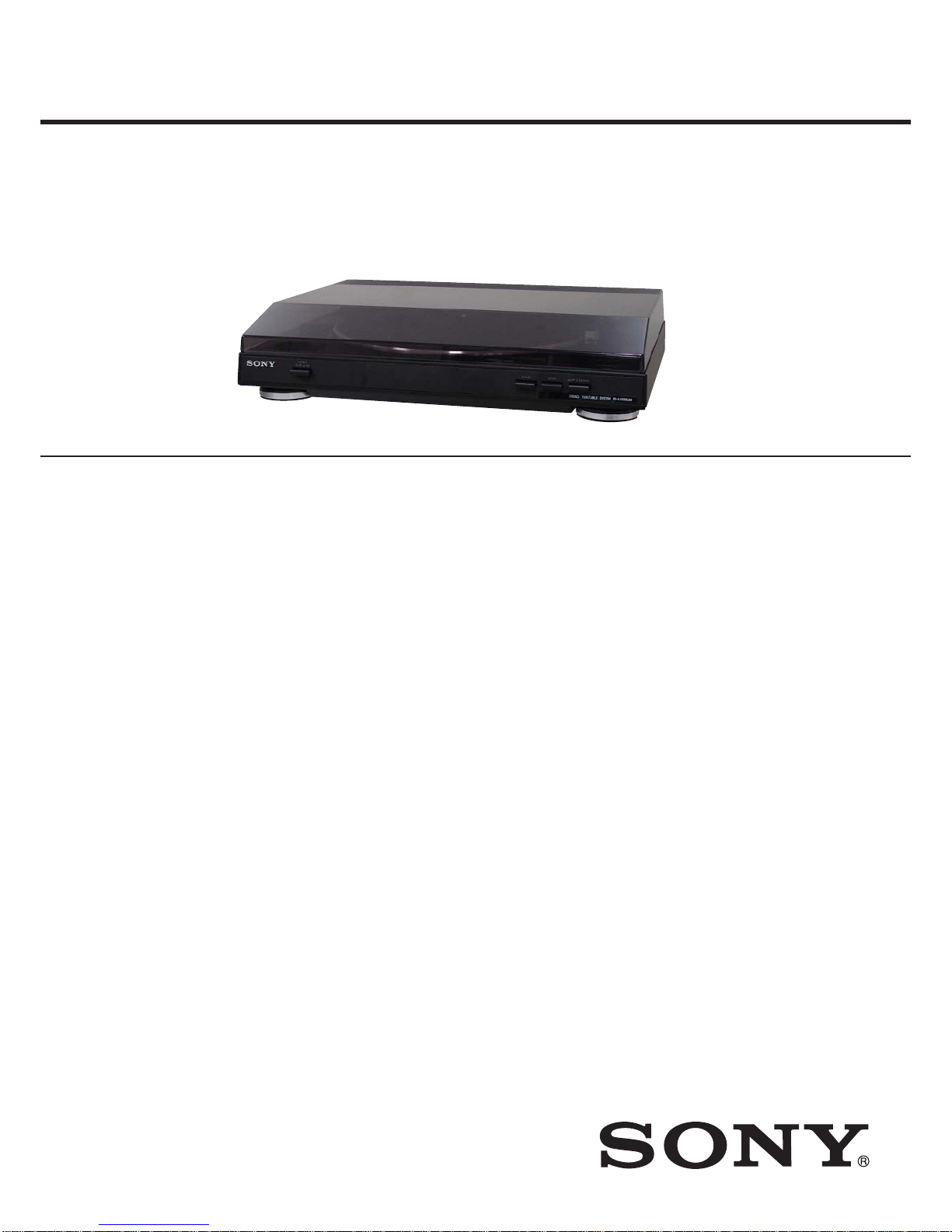

SERVICE MANUAL
Sony Corporation
Audio&Video Business Gourp
Published by Sony Techno Create Corporation
PS-LX300USB
SPECIFICATIONS
STEREO TURNTABLE SYSTEM
9-887-948-03
2008I05-1
© 2008.09
US Model
Canadian Model
AEP Model
UK Model
Australian Model
Ver. 1.2 2008.09
• IBM and PC/AT are registered trademarks of
International Business Machines Corporation.
• Microsoft, Windows and Windows Vista are
either registered trademarks or trademarks of
Microsoft Corporation in the United States and
/ or other countries.
• Sound Forge is a trademark or registered trade-
mark of Sony Creative Software Inc. in the
United States and other countries.
• All other names of systems and products are
trademarks or registered trademarks of their re-
spective owners. TM and ®marks are omitted in
this manual.
Motor and Platter
Drive system:
Belt-drive
Motor:
DC motor
Platter:
295 mm dia. (aluminum die-cast)
Speeds:
33 1/3and 45 r/min, 2 speed
Wow and utter:
Less than 0.25% (WRMS)
Signal to noise ratio:
More than 50 dB (DIN-B)
Tone Arm
Type:
Dynamic balanced straight-shaped with
so damping control
Eective arm length:
195 mm
USB jack
Power supply:
USB bus power compliant (5 V, 100 mA)
(e power is supplied by the PC which is
connected with an attached USB cable)
Output jack:
Plug-in-power system (Dedicated USB
jack)
USB series B connector
USB (full-speed)
General
Power requirements:
North American model:
120 V AC, 60 Hz
Other models:
230 – 240 V AC, 50/60 Hz
Power consumption:
2 W
Dimensions:
Approx. 420 × 95 × 360 mm (16 1/2× 3 5/8×
14 1/4in) (w/h/d)
Mass:
3.3 kg (7 lb 5 oz)
Supplied Accessories:
45 r/min adaptor (1)
Platter (with drive belt) (1)
Rubber mat (1)
USB cable (1)
CD-ROM (1)
Operating Instructions
e installation guide for “Sound Forge
Audio Studio LE”
Design and specications are subject to change
without notice.

PS-LX300USB
2
SECTION 1
SERVICING NOTES
NOTE FOR CHANGING THE CARTRIDGE
Note: When changing the cartridge, be sure to fix by a bond.
SONY BOND SC608LV (Part No. 7-600-000-48)
or equivalent bond.
cartridge
tonearm assy
- bottom view -
REPLACING THE STYLUS
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. Acommercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operatedAC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 VAC range are suitable. (See
Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
1.5 kΩ0.15 μFAC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
e life expectancy of the stylus tip is about
500 hours. To preserve good sound quality and
avoid damage to your records, we recommend
replacing the stylus within this time limit.
For a replacement stylus, consult your nearest
Sony dealer.
To remove the stylus
1 Turn o and unplug the AC power cords of
the turntable and amplier.
2 Protect the stylus with the stylus cover.
Stylus cover
3 Grasp the stylus holder and pull it
downward away from the body of the
cartridge/headshell as shown.
Stylus holder
Cartridge/headshell
To install the stylus
Do this procedure with the stylus protected by
the stylus cover.
1 Grasp both sides of the stylus holder, then
insert the stylus grip into the cartridge/
headshell receptacle.
Stylus holder
Stylus grip
Stylus cover
2 Push up the stylus holder until it clicks so
that it locks completely.
Note
Do not push the stylus cover forcefully. Otherwise,
the exposed stylus from the cover may cause injury, or
damage the stylus.
Do not leave any
space.
Ver. 1.1
SAFETY-RELATED COMPONET WARNING!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC-
TIONNEMENT. NE REMPLACER CES COM- POSANTS QUE
PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON-
NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.

PS-LX300USB
3

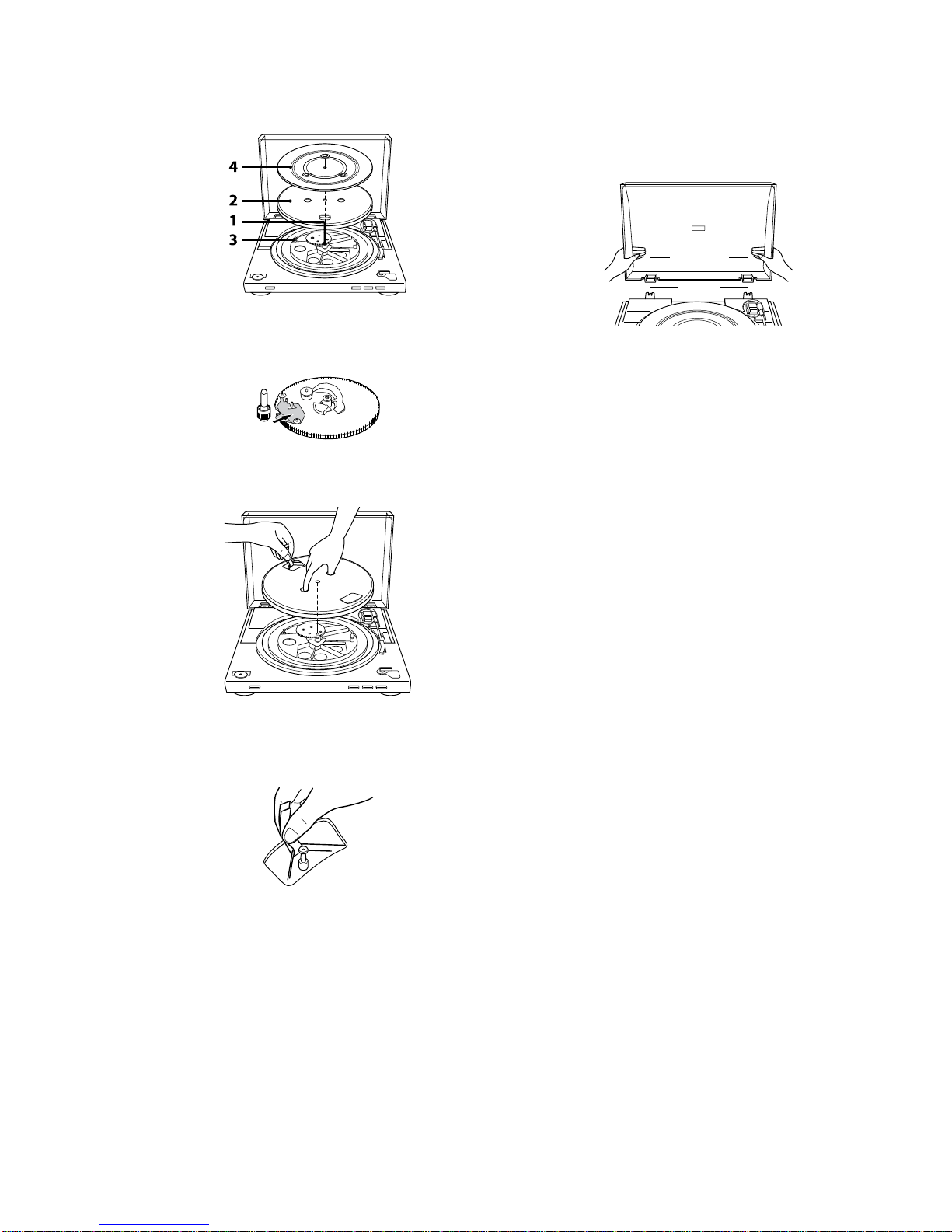

ASSEMBLING THE TURNTABLE
1 Move the metallic parts inside the
larger gear in the direction of the
arrow.
2 Carefully place the platter on the
spindle.
3 Using the ribbon, loop the drive belt
around the motor pully.
Aer looping the belt, do not forget to
remove the ribbon.
4 Place the rubber mat on the platter.
Note
When the AC power cord is plugged aer assembling or
moving the turntable, the turntable sometimes rotates
and the torn arm descends to the platter even if START
is not pressed.
If this occurs, press STOP to return the tone arm to the
arm stand.
To remove the dust cover
With the dust cover fully opened, grasp both
sides of the cover, then remove it carefully.
Tip
You can use the turntable leaving the dust cover removed.
In that case, store the cover correctly.
To install the dust cover
Insert the hinge pockets on the dust cover into
the hinges on the rear of the cabinet.
Hinge pocket
Hinge

PS-LX300USB
4
SECTION 2
GENERAL This section is extracted
from instruction manual.

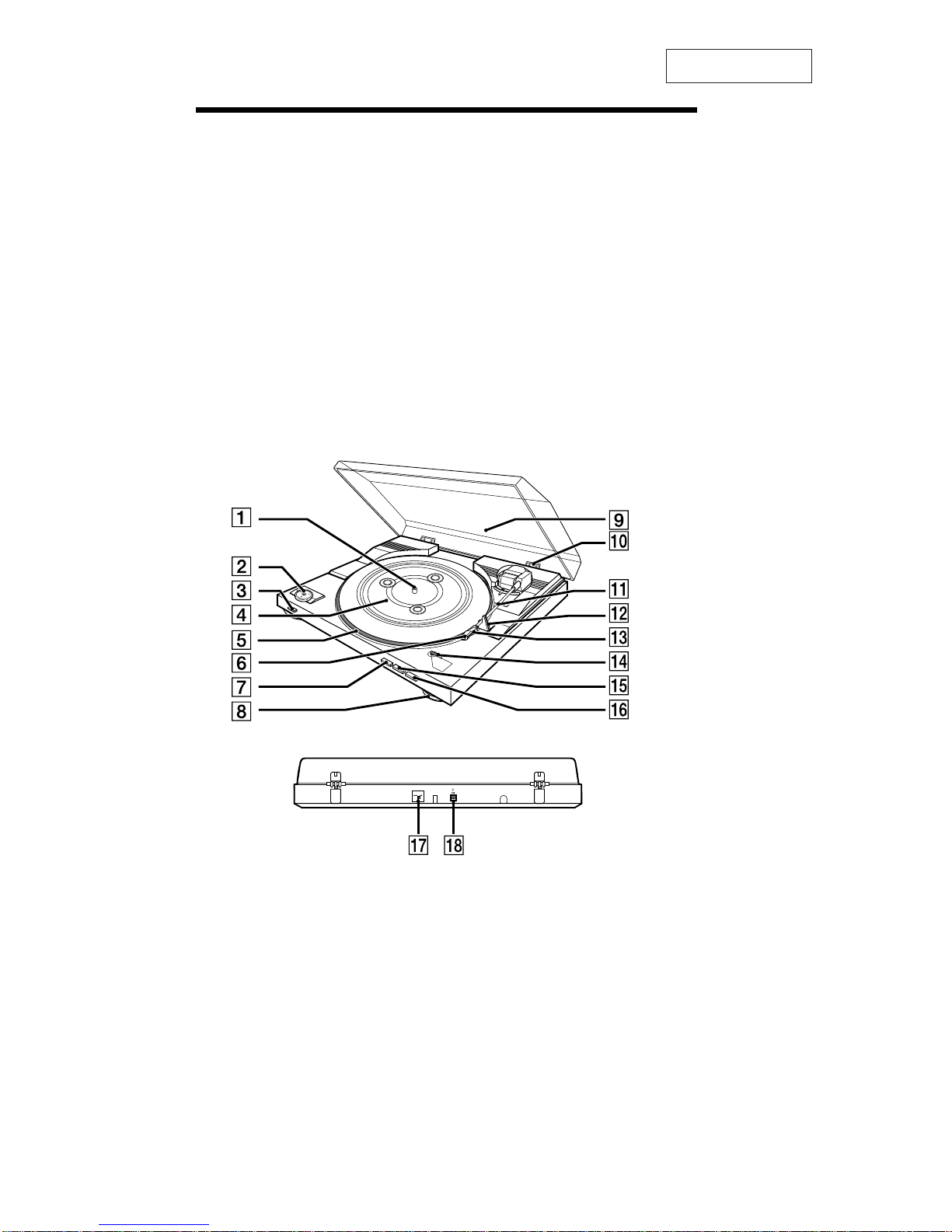

Parts and Controls

Spindle

45 r/min adaptor

Speed select button

Rubber mat

Platter

Cartridge and headshell

START button

Insulator

Dust cover
Front
Rear

Hinge

Tone arm

Arm stand

Finger lift

SIZE SELECTOR

STOP button

UP/DOWN button

PHONO/LINE switch

USB jack

PS-LX300USB
5
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.

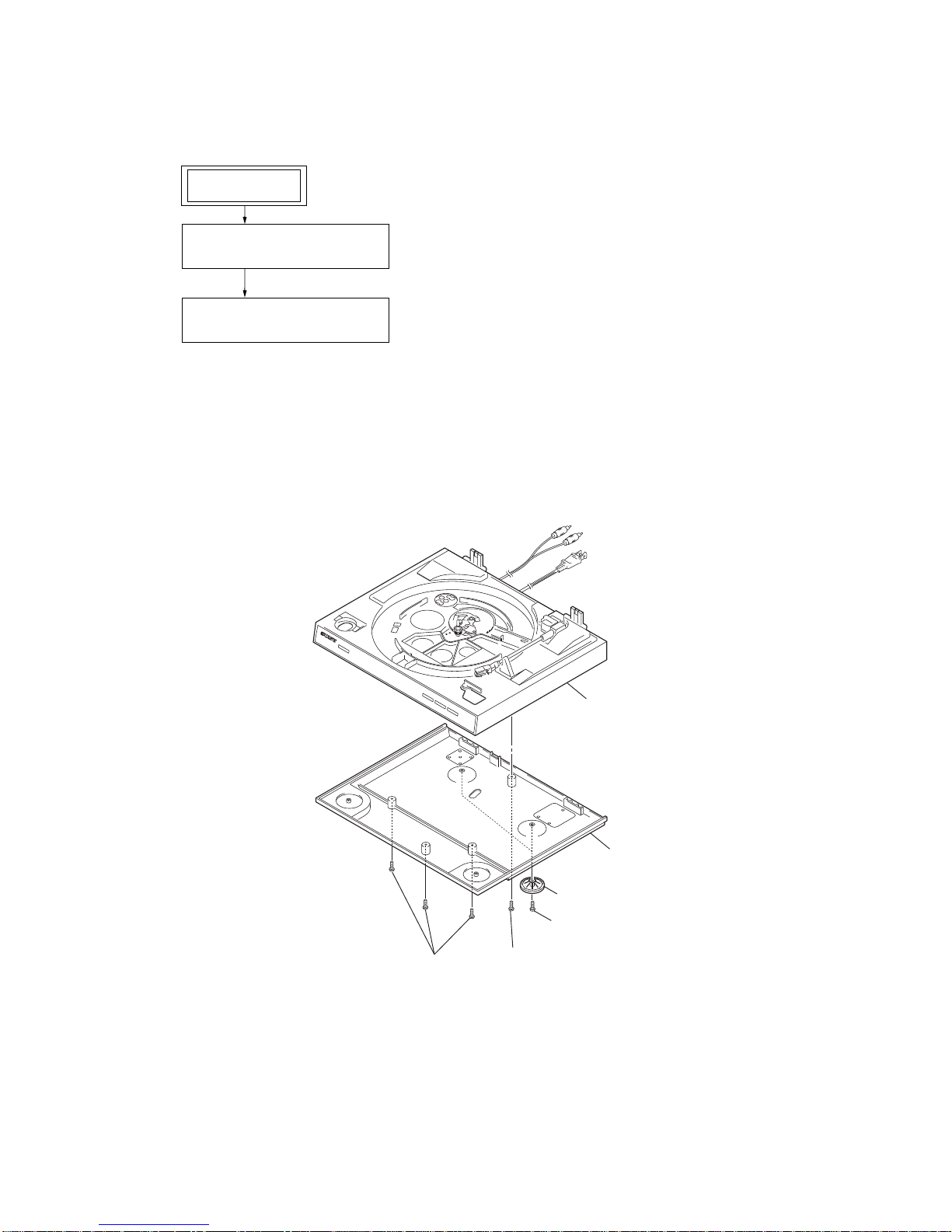

3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. BOTTOM PANEL
3-2. BOTTOM PANEL
(Page 5)
3-3. USB BOARD
(Page 6)
SET
three screws
(BVTP3
×8)
screw
(BVTP3
×8)
two rubbers
bottom panel
panel block
two screws
(PTPWH3
×12)
Ver. 1.1

PS-LX300USB
6
3-3. USB BOARD
Note: This illustration is seeing panel block from the base side.
screw
(PTPWH3
×8)
screw
(PTPWH3
×8)
screw
(PTPWH3
×8)
screw
(PTPWH3
×8)
segregate sheet
harness
harness
connector
(CN602)
panel block
USB board
four solders
red
GND
white
USB board
black
Ver. 1.1

7
PS-LX300USB
SECTION 4
EXPLODED VIEWS AND ACCESSORIES
1 4-215-536-01 SCREW=PTPWH 3X12 W10 STEP
2 9-885-117-64 POWER BOARD, COMPLETE
3 4-215-531-01 SCREW=PTPWH 3X8 W8
04 9-885-117-02 TRANSFORMER (CEL), POWER
(AEP, UK, Australian)
04 9-885-117-66 TRANSFORMER (US), POWER (US, Canadian)
5 9-885-117-69 CENTER & PINIONASSY
6 9-885-117-87 BELT (Drive belt)
7 9-885-117-85 TURN TABLE (Platter)
8 9-885-117-86 PAD, RUBBER (Rubber mat)
9 9-885-117-71 DUSTCOVER
10 9-885-117-82 RUBBER FOOTFOR DUSTCOVER
11 9-885-117-84 45 RPMADAPTER (45 r/min adaptor)
012 9-885-117-93 CORD, POWER (US) (US, Canadian)
012 9-885-117-96 CORD, POWER (CEL) (AEP)
012 9-885-117-97 CORD, POWER (CEK) (UK)
012 9-885-117-98 CORD, POWER (AU) (Australian)
13 9-885-117-92 CORD, CONNECTION
14 4-215-534-01 SCREW=PTPWH 3X16 W8
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
RR
Parts Color Cabinet’s Color

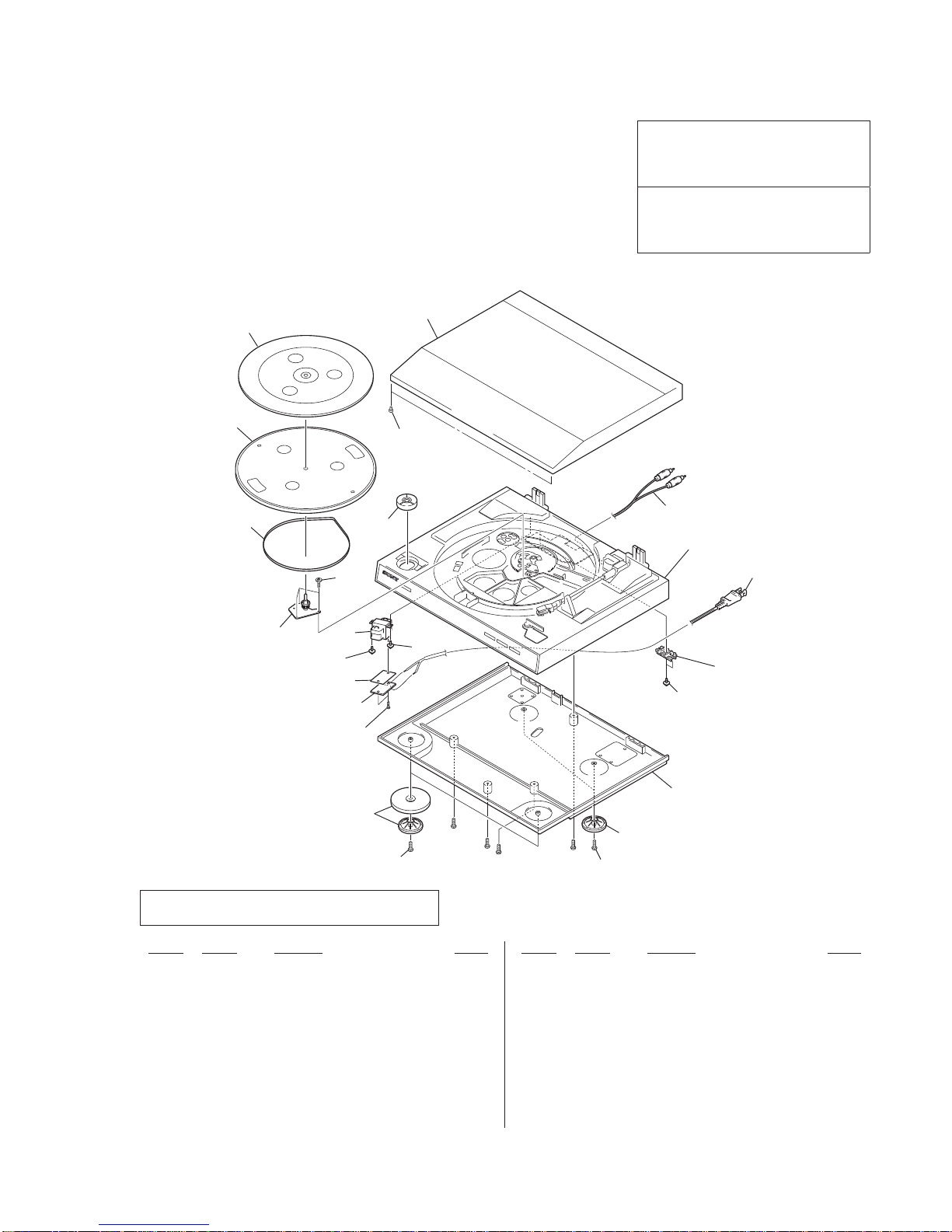

4-1 OVERALL SECTION
9
8
7
6
5
3
4
33
11
10
12
13
14
1
1
2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
USB board section
Note: When POWER board failed, please change the
board entirely.
Ver. 1.1
The components identified by mark 0
or dotted line with mark 0are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

8
PS-LX300USB
51 4-215-538-01 SCREW PS 3X12
52 4-215-530-01 NUT M9 HEX 11
53 4-215-532-01 SCREW=PTPWH 3X8 W10
54 9-885-117-63 USB BOARD, COMPLETE
55 4-215-523-01 COLLAR (D6D8X1.5)
56 9-885-117-68 GEARASSY, CAM
57 9-885-117-75 STYLUS (N-6516)
58 9-885-117-76 CARTRIDGE
59 9-885-117-72 TONEARMASSY
60 4-215-520-01 SCREW BVTT 3X20
61 4-215-539-01 SCREW=PTPWH 3X7 W10
62 4-215-540-01 SCREW=BVTPW 3X10 W13
63 4-215-562-01 WASHER D3.2 W13
64 4-215-576-01 SCREW=PTPWH 3X10 W10
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

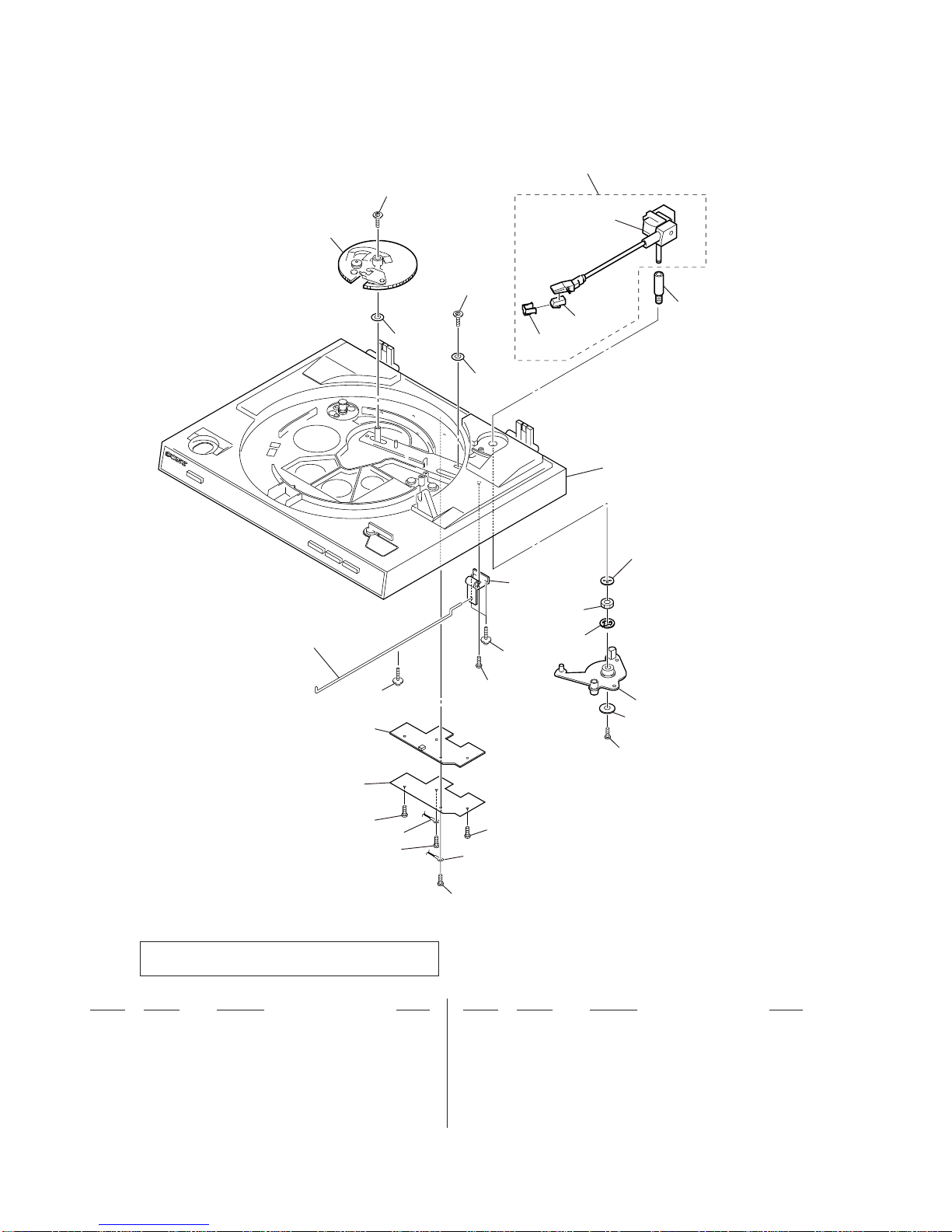

4-2 USB BOARD SECTION
51
63
52
57
58
59
56
61
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
knob section
54
53
53
53
53
55
62
55
60
62
64
Note: When USB board failed, please change the board
entirely.
Ver. 1.1

9
PS-LX300USB
101 9-885-117-78 PENDULUM (L)
102 4-215-533-01 SCREW=PTPWH 3X12 W8
103 4-215-526-01 SPRING
104 9-885-117-67 SETASSY, KNOB SHAFT (&)
105 9-885-117-74 KNOB, PLAY STOP
106 9-885-117-81 LIFTER
107 4-215-535-01 SCREW=PTP 3X8
108 9-885-117-77 FIXING SWITCH SET
109 4-215-537-01 SCREW=PTPWH 3X10 W8
110 9-885-117-70 SHAFTASSY
111 9-885-117-83 CONTROLPLATE
112 9-885-117-79 PENDULUM (M)
113 9-885-117-80 KNOB SET
114 4-215-540-01 SCREW=BVTPW 3X10 W13
115 4-215-541-01 SCREW (F 3X6.5) STEP
116 4-215-542-01 SCREW=PTP 2.6X8
117 9-885-117-03 ADAPTOR BOARD, COMPLETE
118 4-215-532-01 SCREW=PTPWH 3X8 W10
119 4-216-509-01 HINGE
120 4-216-534-01 HINGE PIN
121 4-216-510-01 HINGE SLIDE
122 4-216-536-01 HINGE SPRING
M1 9-885-117-73 MOTOR ASSY (TURN TABLE)
S1 9-885-117-88 SWITCH, LEAF (SPEED SETTING)
S2 9-885-117-88 SWITCH, LEAF (TONE ARM UP/DOWN DETECT)
S3 9-885-117-89 SWITCH, LEAF (TONE ARM TURN DETECT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
4-3 KNOB SECTION
103
103
113
104 102
101
111
112
110
106
107
109
109
108
102
105
115
116
S1
S3
S2
M1
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
116
116
not supplied
not supplied
not
supplied
not
supplied
104
not supplied
113
118
117
121 120
119
122
Ver. 1.2

10
PS-LX300USB
4-4 ACCESSORIES
3-198-123-13 MANUAL, INSTRUCTION (ENGLISH)
3-198-123-22 MANUAL, INSTRUCTION (FRENCH, SPANISH)
(Canadian,AEP)
3-198-123-32 MANUAL, INSTRUCTION
(GERMAN, DUTCH, ITALIAN) (AEP)
3-198-123-42 MANUAL, INSTRUCTION (SWEDISH, POLISH)
(AEP)
3-296-918-01 APPLICATION SOFTWARE (SFAS)
(CD-ROM: Sound ForgeAudio Studio LE)
3-878-582-11 MANUAL, INSTRUCTION (DANISH, FINNISH)
(AEP)
3-878-582-21 MANUAL, INSTRUCTION (PORTUGUESE) (AEP)
3-878-582-31 MANUAL, INSTRUCTION (RUSSIAN) (AEP)
3-878-582-41 MANUAL, INSTRUCTION (GREEK) (AEP)
3-878-582-51 MANUAL, INSTRUCTION (CZECH, HUNGARIAN)
(AEP)
3-878-582-61 MANUAL, INSTRUCTION (TURKISH) (AEP)
3-878-582-71 MANUAL, INSTRUCTION (SLOVAKIAN) (AEP)
9-885-117-84 45 RPMADAPTER (45 r/min adaptor)
9-885-117-85 TURN TABLE (Platter)
9-885-117-86 PAD, RUBBER (Rubber mat)
9-885-117-87 BELT (Drive belt)
9-885-117-95 CABLE, USB
Ref. No. Part No. Description Remark
Ver. 1.1

MEMO
PS-LX300USB
11

PS-LX300USB
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2008.02 New
1.1 2008.06 Addition of Canadian, AEP, UK and Australian models
1.2 2008.09 Addition of Ref. No. 119, 120, 121 and 122 on EXPLODED VIEWS (SMR-08139)
