Front Panel Descriptions
1
2 193
4 75 86 9 10
12
13
14
15161718
11
1) Input Fader
Primary control for adjusting the level of an
input during operation. Ranges from o to +15
dB. Nominal seing is in the middle (0 dB).
2) Gain (Trim)
Coarse input gain control. Sets the initial input
sensitivity level so that the Input Fader can be
used for ne gain adjustments. Range is from
+22 dB to +72 dB. See Input Setup and Control.
3) Highpass Filter Control
Adjusts corner (-3 dB) frequency of high-pass
lter. Full counter-clockwise position (detent-
ed) deactivates the High-Pass Filter. Range is
80-240 Hz, 12 dB/oct to 6 dB/oct. See Input Setup
and Control.
4) PFL / Input Select Switch
Slide le: Pre-Fade Listen. Sends the input’s
pre-fade signal to HP monitor mono mix. The
664 supports simultaneous PFL of multiple
inputs. Does not aect Master Output signal.
Slide the switch le to activate, and again to
deactivate. For momentary action, hold the
switch le for one second or longer. The Input
LED ashes yellow when an input’s PFL is
active. Slide right: Input Seings. Enters the
Input Seings Screen where basic input setup
and input-to-output bus routing is performed.
See Input Setup and Control.
5) Input LED
Indicates input signal activity. Illuminates in
various colors and intensities to show signal
level and activity. Green = signal presence (pre-
fader), yellow = limiter activity (pre- and post-
fade), red = signal overload/clipping (pre- and
post-fade), ashing yellow = input PFL.
6) Input Pan
Controls the Le/Right balance of the input
signal to the Stereo Master Bus.
7) Transport Control
Controls the Integrated Digital Recorder. Slide
up to Record, press in to Pause/Stop, slide
down to Play, slide le to Rewind, slide right to
Fast Forward. See Digital Audio Recorder.
8) Meters Button
Displays the Main Screen which includes me-
tering, lename, time code and other important
information. Toggles to RTN Screen when
pressed from Main Screen. Returns to Main
Screen from any other Screen.
9) LCD
Displays contextual operating information and
user interface.
10) Internal Timecode LED
When the 664 is powered down and timecode
Mode is Freerun or 24-Hour Run, the Internal
Timecode LED will ash blue to indicate that
timecode is being maintained. The 664 will
hold accurate timecode for 2 hours aer being
powered down.
11) Power Switch
Three-position slide switch, selects between AA
baery power or external DC sources, middle
position is o.
12) Power LED
Illuminates green to indicate the 664 is pow-
ered on.
13) Menu Button
Displays the Setup Menu.

664 User Guide and Technical Information
2
v. 1.04 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
14) Headphone Encoder
Meter and Input Seings Screen: Turn to adjust
headphone gain. In MaiPush to select head-
phone monitor source. In Menus turn to navi-
gate. Push to make selection. In Input Seings
Screen push to select input source.
15) Headphone Clipping LED
Illuminates red to indicate headphone output is
approaching clipping level.
16) RTN Switch
Slide Le to activate RTN A, slide Right to acti-
vate RTN B. To access secondary function Press
and hold Select Encoder then slide le for COM
RTN and right for RTN C. Primary and Second-
ary functions of the RTN toggle switch can be
selected in the Setup Menu.
17) Slate / Tone Switch
Slide le to activate the Slate Microphone, slide
again to deactivate. For momentary action
hold for one second or longer. Slide right to
activate the Tone Oscillator. Tone will latch if
held for one second or longer; slide again to
deactivate. Secondary function: press and hold
Select Encoder then slide Mic switch to activate
COM. Primary and Secondary functions can be
switched in the Setup Menu.
18) Slate Mic LED
Illuminates green when Slate Mic or COM is
active.
19) Select Encoder
Multi-function encoder. Selects Tracks and
RTN’s on the Main and RTN Screen. On the
Main Screen, press the Select Encoder and the
Meters buon to arm/disarm record tracks.
With L, R, X1, X2, or any RTN selected, press
then turn to adjust level. Vertical Scroll in ma-
trix windows. Turn to adjust digital trim level
in Input Seings Window. Turn to scroll cursor
and press to insert a space character during
text entry. Acts as shi buon to access second-
ary functions.
Left Panel Connectors and Control
1
4 3 2

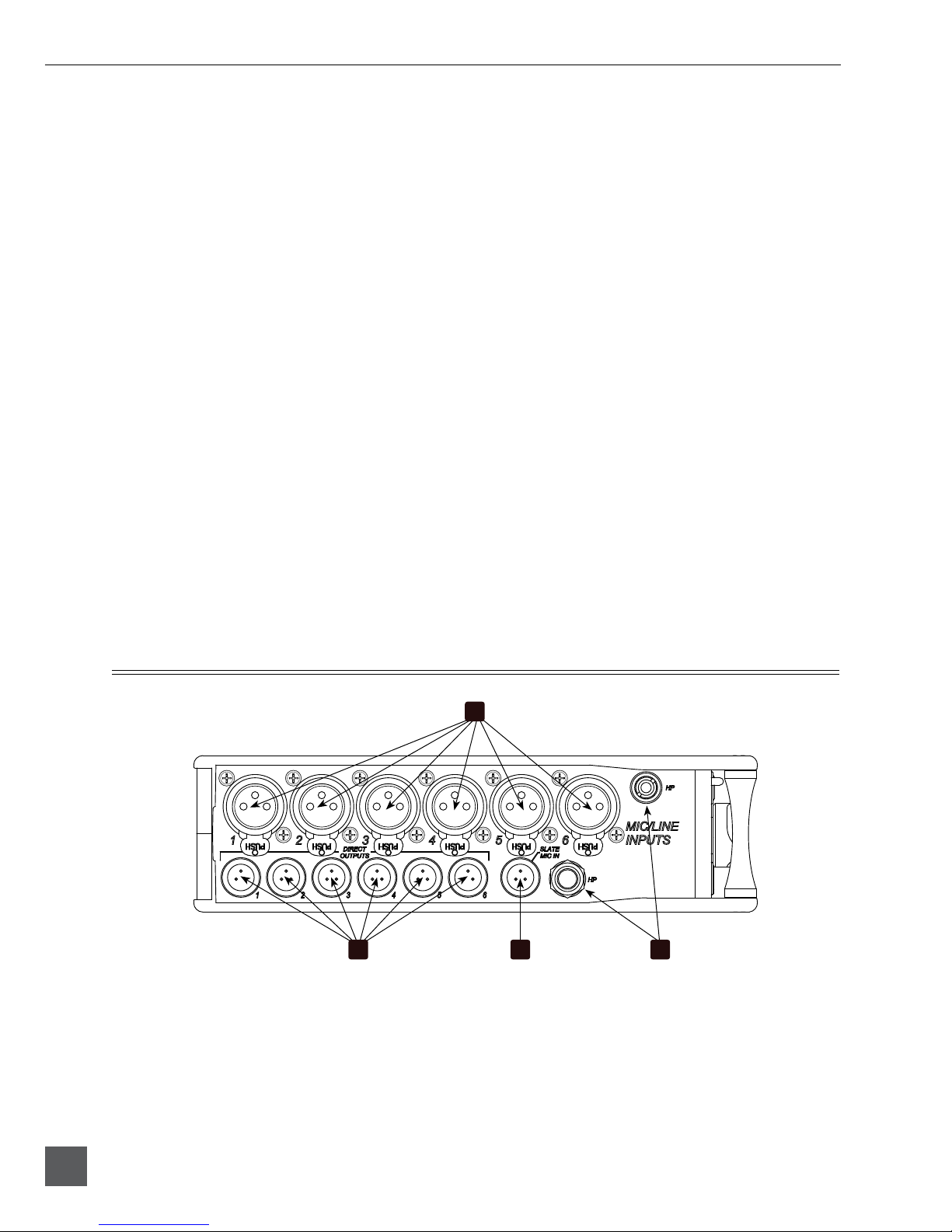

1) XLR Analog Inputs 1-6
Active-balanced analog microphone- or line-
level input for inputs 1-6 on XLR connector. In-
put type is set within the Input Seings Screen.
Inputs 1 and 6 can also accept AES3 or AES42
signal. Pin-1 ground, pin-2 (+), pin-3 (-).
2) Headphone Output
1/4-inch and 3.5 mm TRS stereo headphone
connectors. Can drive headphones from 8 to
1000 ohm impedances to very high levels. Tip =
le, ring = right, sleeve = ground.

664 User Guide and Technical Information
3
3) Slate Mic Input
TA3 input for connecting external slate micro-
phone. Select between internal or external slate
mic (with or without 12V phantom) from the
Setup Menu section COMMS/RETURNS. Pin-1
ground, pin-2 (+), pin-3 (-).
4) TA3 Direct Outputs 1-6 / Inputs 7-12
Balanced direct outputs on TA3 connectors. Di-
rect output signal is pre- or post-fader and level is
selected between Line, -10, and Mic levels in the
Setup Menu section OUTPUTS. Tone signal appears
at the direct outputs. With the CL-6 Input Expander
aached, these connections can be selected as analog
line inputs 7-12. Pin 1 = Ground; pin 2 = Hot (+); pin
3 = Cold (-) oat pin 3 to unbalance.
Right Panel Connectors and Controls
1 2 3 4 5 6 7
8
910111213

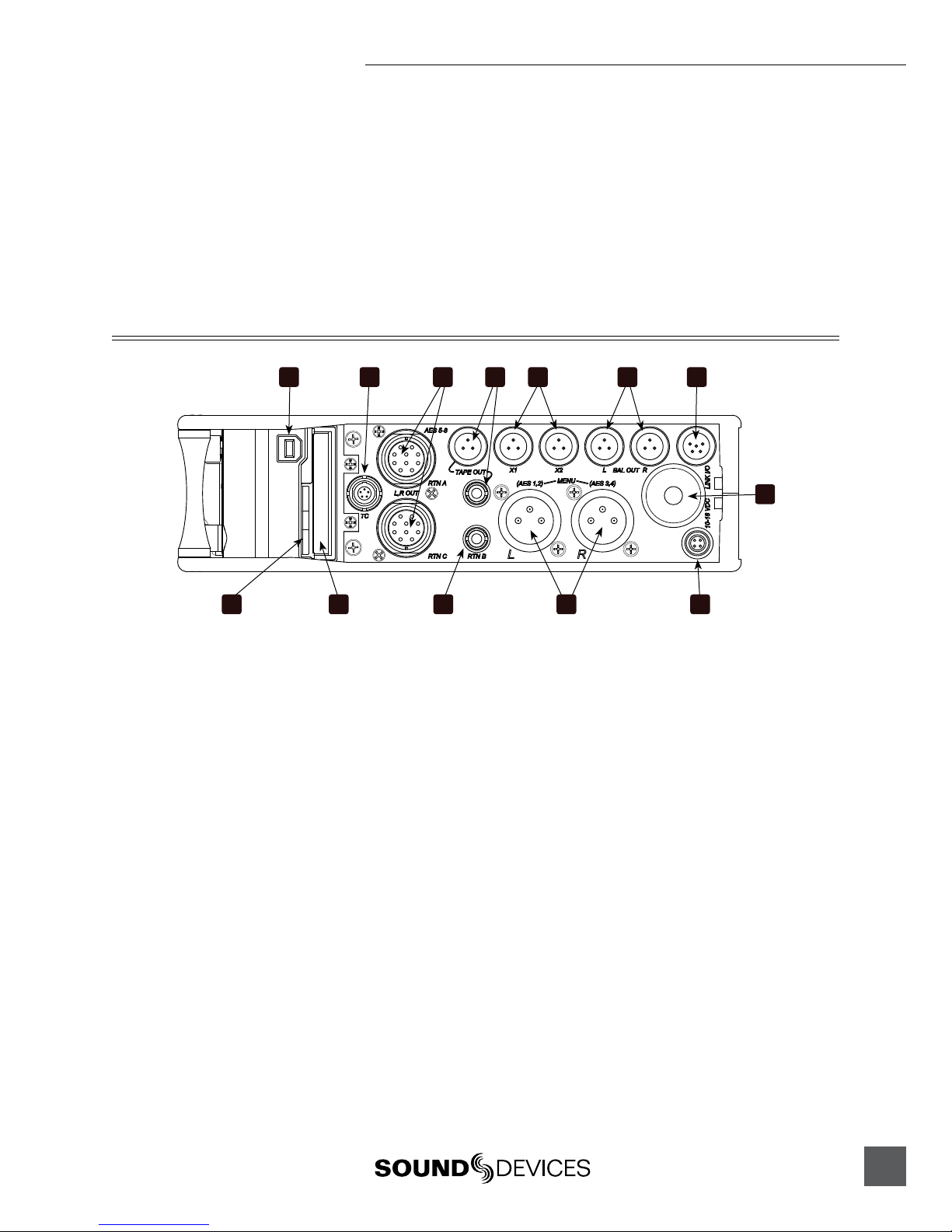

1) USB B Connector
Factory use and keyboard connection (with
adapter).
2) Timecode I/O
Time code input and output on 5-pin LEMO®
connector.
3) 10-pin A and C
Each connection includes a pair of transformer-
isolated Outputs and a stereo unbalanced
Return input. Analog Output levels are selected
between Line, -10, and Mic levels in Setup
Menu section OUTPUTS. 10-pin A outputs can
be set to AES Outputs 5,6 and 7,8 in the Setup
Menu section OUTPUTS.
4) Tape Output
Unbalanced stereo, tape level output on TA3
(Pin 1 = Ground, pin 2 = Le, pin 3 = Right) and
3.5 mm (Sleeve = Ground, Tip = Le, Ring =
Right) connector.
5) X1 and X2 Outputs
Line, -10, or Mic level selected in the Setup
Menu section OUTPUTS. Pin 1 = Ground,
pin 2 = Hot (+), pin 3 = Cold (-) oat pin 3 to
unbalance.
6) TA3 Master Outputs
Line, -10, or Mic level selected in the Setup
Menu section OUTPUTS. Pin 1 = Ground,
pin 2 = Hot (+), pin 3 = Cold (-) oat pin 3 to
unbalance.
7) Link I/O
Used to link additional Sound Devices 664, 552,
302, 442, or MixPre mixers.
8) Battery Compartment
Holds ve AA (LR6) baeries for backup pow-
ering. NiMH rechargeable cells advised.
9) DC Input
Accepts DC voltages from 10–18 V for power-
ing. Pin 1 = Negative (–), pin 4 = Positive (+). Ext
DC is fully isolated (oating) from the rest of
the circuitry.

664 User Guide and Technical Information
4
v. 1.04 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
10) XLR Master Outputs
Transformer-balanced analog outputs on stan-
dard 3-pin XLR connectors. Pin 1 = Ground;
pin 2 = Hot (+); pin 3 = Cold (-). Unbalance by
grounding pin 3 to pin 1. Can be set to send
AES3 digital signals (1,2 and 3,4 on L and R
respectively) in Setup Menu section OUTPUTS.
11) RTN B Input
Unbalanced stereo 3.5 mm female connector for
Return B audio input. Sleeve = Ground, Tip =
Le, Ring = Right.
12) CompactFlash Slot
Accepts approved CompactFlash cards with the
label-side toward the rear of the 664. Compat-
ible with Type I and Type II cards. High-speed
UDMA cards are recommended for higher
track count recording.
13) SD Card Slot
Accepts SD/SDHC/SDXC cards with the
notched corner oriented toward the top of the
664. High speed class 10 cards are recommend-
ed. Insert until it clicks securely in the slot. The
card should glide smoothly into the slot. Push
to eject.
Visit www.sounddevices.com/approved for an up-to-date list of tested and approved cards.
Rear Panel Descriptions
1 2
34

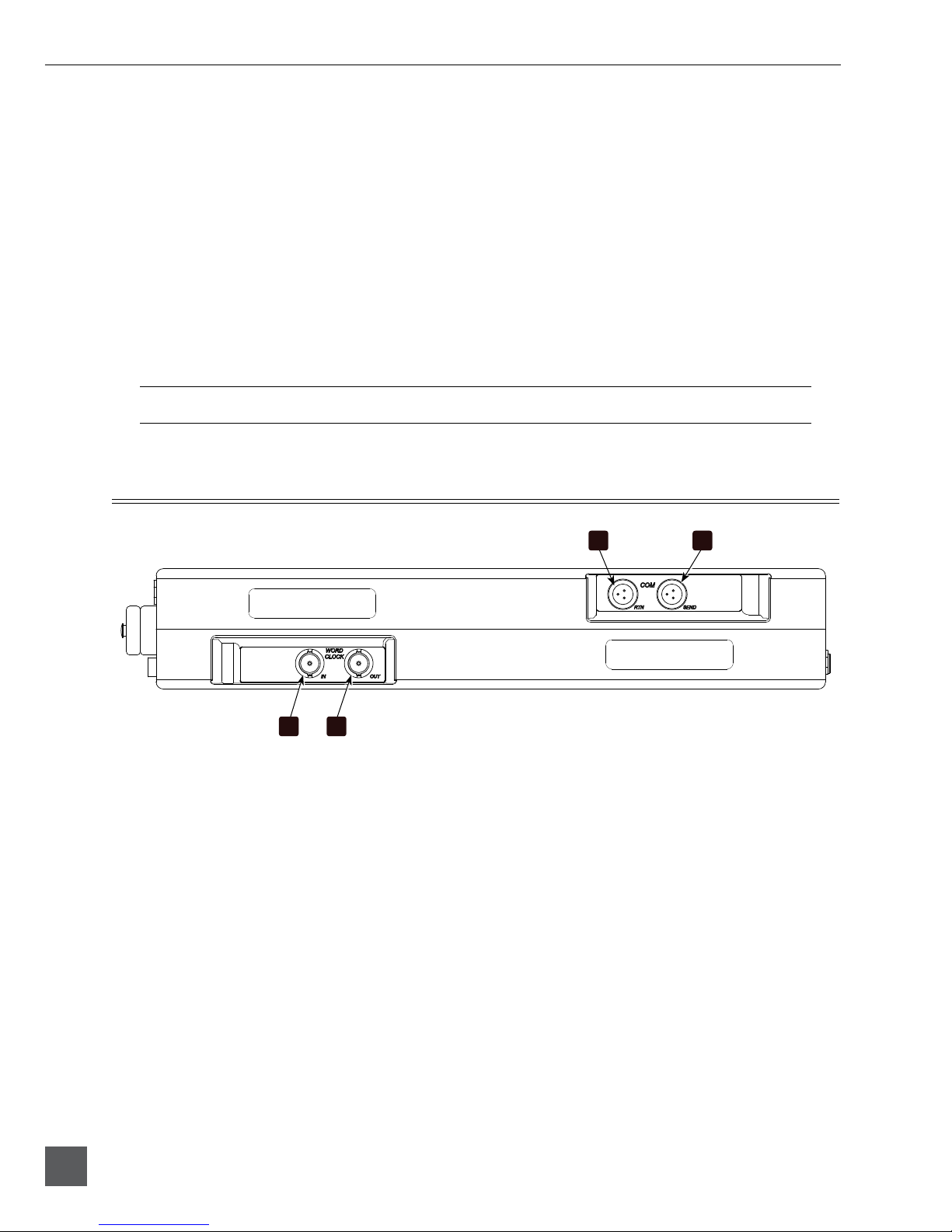

1) BNC Word Clock Input
Accepts word clock rates between 32 kHz and
48.048 kHz for synchronizing the internal re-
corder to external digital audio devices.
2) BNC Word Clock Output
Provides word clock signal to synchronize
external digital audio devices to the 664.
3) TA3 COM Send
Unbalanced, stereo, line-level output. Program
assigned to COM output from Setup Menu.
4) TA3 COM Return
Line-level input for return feed from on-set
communications sources.

664 User Guide and Technical Information
5
Screen Overview
Main Screen
The Main Screen displays important information at-a-glance. The Main Screen can be accessed quickly
from any other screen by pressing the Meters buon.
Display of the sample rate information and timecode frame rate information can be “swapped” by holding the
Meters buon and Sliding the RTN Switch to the le.
Input tracks
Bus tracks
Armed track
Current take Media information
Power source level
Sample rate information RTN levels
Monitor (Headphone) information
SMPTE Timecode
Absolute recording time
Unarmed track
RTN Screen
When the Meters buon is pressed from the Main Screen, the RTN Screen is shown.
Return inputs
Bus tracks
RTN during gain adjustment
Return gain (during adjustment)
SMPTE Timecode
Timecode frame rate Time and dateAbsolute recording time

664 User Guide and Technical Information
6
v. 1.04 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Input Setup and Control
The 664 has six, full-featured audio inputs on XLR connectors (six additional inputs on TA3 connectors
with the optional CL-6 Input Expander aached). Each analog input has a wide gain range to accom-
modate nearly all signal types, from microphones to line-level sources. Inputs can be used as either
balanced or unbalanced connections. To unbalance, tie pin-3 to pin-1 of the XLR connector. There is no
change in gain between unbalanced and balanced connections into the 664.

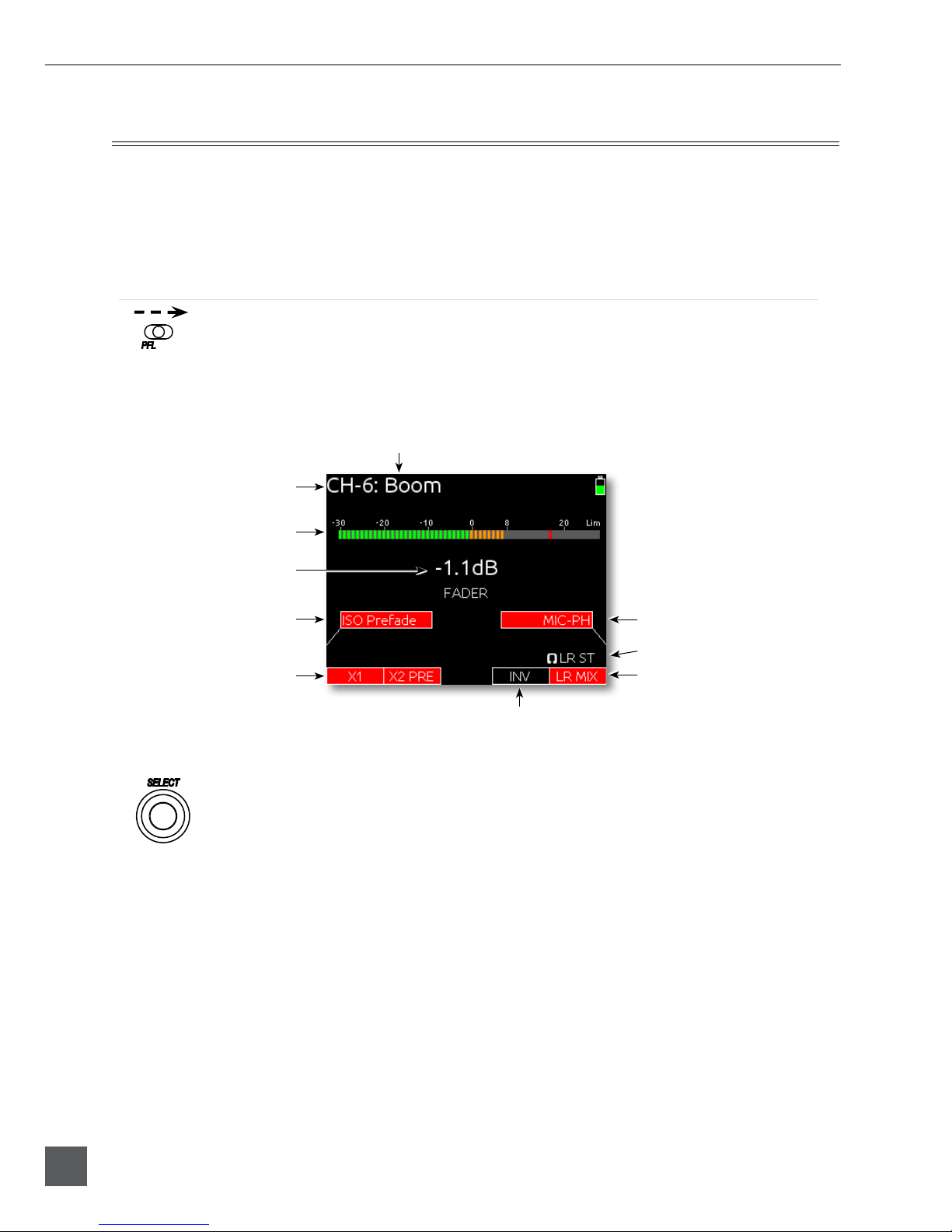

Input Settings Screen
Each input’s seings are accessed through its Input Seings Screen. To access the Input Seings screen
for an input, slide the Input Selector Switch to the right. The LCD will display information pertaining
to the selected input and provide access to.
2) Input Meter
Input/Track Number
input/Track Name
6) Input Polarity
1) ISO Track Status
4) Aux Bus Assignment
3) Input Selection
Headphone Source / Level
5) LR Bus Assignment
Current Fader Gain
1) ISO Track Status
Displays the status of the Input’s dedicated Iso Track on the recorder. Each input is permanently
routed to its Iso track. To select whether an input is routed pre- or post-fade, push the Select Encoder,
turn it to make a selection, and push it again to conrm the selection.
The background color of the Iso Track Status box indicates the status of the Input’s Iso Track. A blue
background indicates that the Iso Track is not active and will not be recorded. A red background indi-
cates the Iso Track is armed for recording.
2) Input Meter
Displays the Input’s signal level and limiting activity. The level displayed is the level to the Iso Track
and will be pre- or post-fade depending on the Iso Track Status. Meter ballistics can be set globally
from VU or Peak+VU in Setup Menu item SYSTEM > Meter Ballistics.

664 User Guide and Technical Information
7
3) Input Selection
Displays the available input types. To change the input type, push the Headphone Encoder, turn it to
make a selection, and push it again to conrm the selection.
Input Type Description
Off Input off.
MIC Use with dynamic microphones or other mic-level signals.
MIC-PH Use with phantom-powered condenser microphones only. Provides 48V or 12V phantom power.
see Phantom Power
LINE For use with any line-level source.
LINE-PH For use with phantom-powered condenser microphones only. Provides 48V or 12V phantom
power, but at a line-level gain range. Useful for recording extremely loud sounds.
AES42 Digital input with power activated for digital microphones, inputs 1, 2, 5, and 6 only.
AES3 Digital input, inputs 1, 2, 5, and 6 only
AES42 and AES3 option only appears in input 2 when selected in input 1, and only appears in input 5 when
selected in input 6. Channel 1 and Channel 6 XLR connectors are used for digital inputs.
4) Aux Bus Assignment
Displays the status of the Input’s assignment to the X1 and X2 Output Buses. Inputs 2 through 5 can
only be routed to X1 and X2 post-fade, while Inputs 1 and 6 can be routed to X1 and X2 pre- or post-
fade. Slide the Slate / Tone Switch le for the X1 Track and right for the X2 Track to cycle through the
available options.
5) LR Bus Assignment
Displays the status of the Input’s assignment to the main Le and Right Output Buses. Inputs routed
to the Le and Right Output Bus are always post-fader and post-pan. To add or remove the Input
from the Le and Right Output Bus, slide the RTN Switch to the right.
6) Input Polarity (Inputs 2, 4, and 6)
Polarity reversal is used to compensate for incorrectly wired balanced cables, to prevent signal cancel-
lation when a source is dual-miked from opposite directions, or to reverse le/right with microphones
in a mid-side (MS) conguration.

664 User Guide and Technical Information
8
v. 1.04 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Phantom Power
Phantom powering is a xed DC voltage of either 12 or 48 Volts. This voltage is resistively applied to
pin 2 and pin 3 of an input’s XLR connector, relative to pin 1. In this conguration, there is no voltage
dierence between signal pins 2 and pin 3.
The phantom voltage is selectable between 12 and 48 Volts from the Setup Menu item
INPUTS > Phantom Voltage. The selected voltage level applies to all inputs with phantom power
enabled. The factory default phantom power voltage is 48 V.
Phantom power can be activated for each input. To enable phantom power, enter the input’s channel
screen, press the Headphone Controller, highlight either MIC-PH or LINE-PH, press Headphone Con-
troller again to make the selection.
Gain/Trim and Fader Relationship
The gain of an input is adjusted by two controls, Input Trim and Input Fader. This two-stage architec-
ture is identical to the topology of large mixing consoles and provides a great deal of control. Input
Trim is oen thought of as a course gain control and the Input Fader as the ne gain control.
Input Trim (Analog)
The 664’s analog input sensitivity is set with the pop-up Trim control
knob. With the Input Fader set to unity gain (0 dB or 12 o’clock), make
the appropriate adjustments using the Trim control. Once the coarse gain
is set to the desired level, push the Trim control to hide it from the 664’s
mixing surface. Analog trim level is adjustable from +22 to +72 dB of gain.
Input Trim (Digital)
The coarse level of a digital input is set by rotating the Select Encoder in
the Input Seings Screen of an input with a digital source. The digital
trim level is displayed on the LCD when adjusted. The digital trim level is
adjustable from -20 to +50 dB.
Input Fader
The Input Fader is the primary control used while mixing and it aects
the level of the Input signal routed to all post-fade destinations. Use the
Input Fader to make ne gain adjustments. The fader can be aenuated
from o (full counter-clockwise position) to +15 dB above the set Trim
level (full clockwise position). To optimize gain structure for the best per-
formance, operate input faders at or near the 0 dB (unity gain) position.

664 User Guide and Technical Information
9
High-Pass Filter
Each input channel has an adjustable high-pass lter controlled by the High-Pass Filter control. High-
pass (or low-cut/low roll-o) lters are useful for removing excess low
frequency energy from audio signals. Wind noise is a common unwanted
low frequency signal that can be reduced with the use of a high-pass lter.
For most audio applications, engaging the high-pass lter is benecial, be-
cause audio information below 100 Hz is rarely used, especially for speech
reproduction.
The 664’s high-pass lter circuit features an adjustable corner (-3 dB) fre-
quency over a range from 80 to 240 Hz. Below 80 Hz, the lter’s slope is 12
dB/octave. At higher corner frequency seings, the slope is 6 dB/octave. The
purpose for this compound slope is to give additional roll-o at the 80 Hz
seing to reduce wind noise and low frequency rumble. The higher seings
can be used to counteract the proximity eect of directional microphones where a more gentle slope is
desired.
The 664’s high-pass lter circuit is unique because of its placement before any electronic amplication.
Most mixers’ high-pass lter circuits are placed aer the microphone preamplier, such that all of the
low-frequency signals get amplied. By virtue of the 664’s circuit cuing the low-frequency signals
before amplication, higher headroom is achieved in the presence of signals with signicant low-
frequency energy.
When possible, aempt to equalize at the sound source with microphone selection, placement, wind-
screens, and onboard microphone ltering. Many microphones have on-board high pass lters. Use
the high-pass lters on the 664 in conjunction with the microphone’s lter to increase the lter’s slope.
The lter can be removed from the circuit completely by rotating the high-pass lter control to the full
counter-clockwise (detented) position. The high-pass lter potentiometer can be adjusted easily and
then recessed to hide it from the mixing surface.
Pan Control
The pop-up Pan Control routes inputs to the le (L) and right (R)
channels of the stereo Master Bus. The pan pot has a detent in the
center position. Aer seing the pan, the pan control can be recessed
to hide it from the mixing surface during normal operation.
Input Linking
Input pairs 1-2, 3-4, and 5-6 can be linked as stereo pairs. When a pair of inputs is linked:
•Each channels’ Trim Control and High-Pass Filter Control work as normal, controlling coarse gain
and high-pass ltering for their respective inputs.
•The odd channel’s Input Fader controls the post-fade level of both inputs.
•The odd channel’s Pan Control controls the balance of the stereo signal to the Master Bus. When
linked MS, the odd channel’s Pan Control functions as a le/right balance control for the matrixed
MS signal.

664 User Guide and Technical Information
10
v. 1.04 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
•The even channel’s Fader Control and Pan Control are disabled.
•The limiters of both inputs are linked.
•The background label of both inputs is connected on the Main Screen.
Linked
Unlinked
M/S Matrixing
When input pairs are linked MS, the odd channel is used for the Mid signal and the even channel is
used for the Side signal. To produce a stereo signal from an M/S conguration, the signal from both
microphones must be processed.
Mid-side (MS) matrixing is a method for processing audio signal from a cardioid microphone and a bi-
directional microphone into a stereo signal. The cardioid microphone is the “mid” signal and connects
to the odd Input, and the bidirectional microphone is the “side” signal and connects to even Input.
The cardioid microphone is pointed at the sound source, and the bidirectional microphone is oriented
sideways (positioned with its capsule as near as possible to the cardioid microphone’s capsule). The

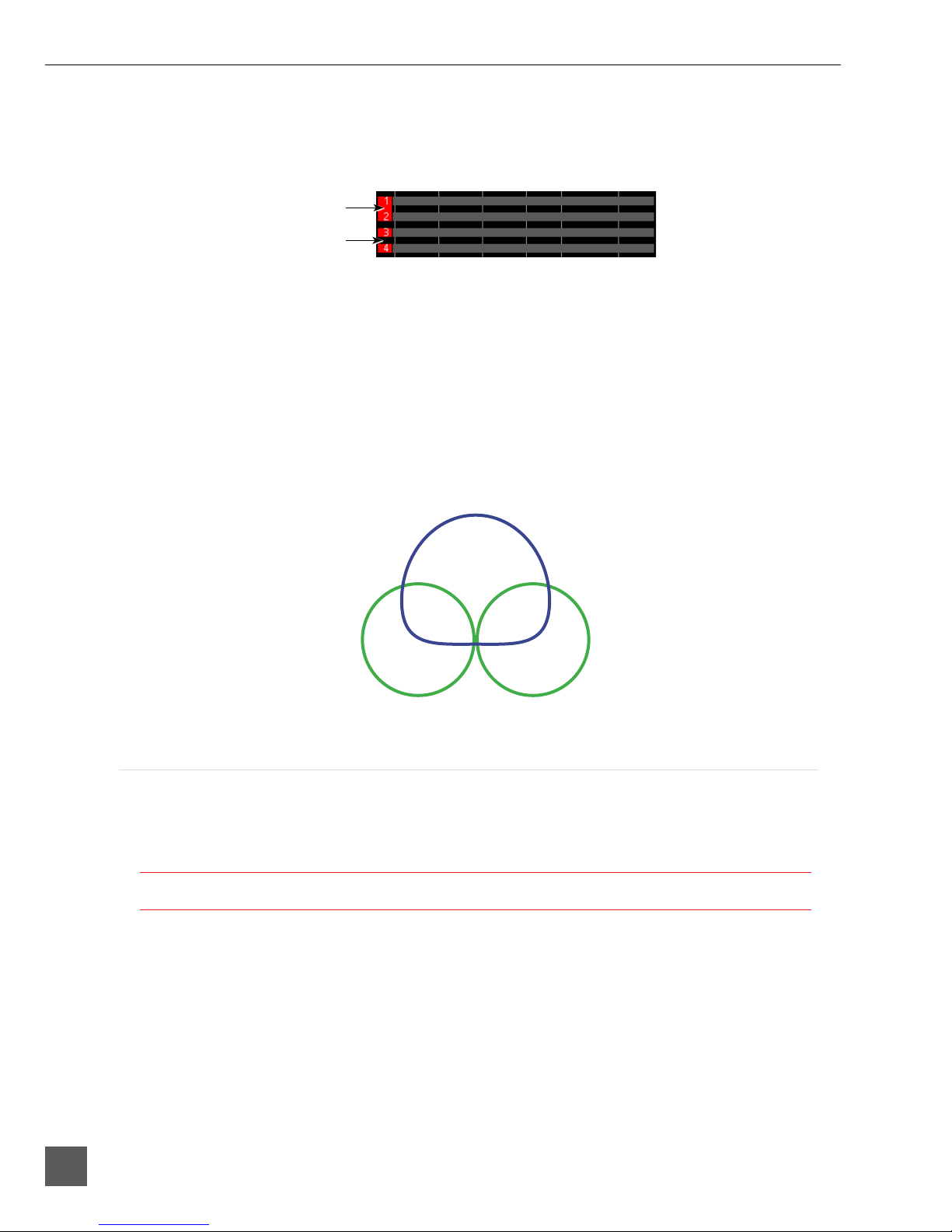

following diagram shows the relative polar paerns of microphones in an M/S conguration.
Mid Signal
Side Signal
Digital Inputs
The 664 accepts AES3 (AES/EBU) balanced, AES42 (digital microphone) balanced, and AES3id unbal-
anced digital signals on the Input 1 and Input 6 XLR connectors. The 664 auto-detects between AES3
and AES3id digital signals and adjust accordingly. Digital input gain is controlled from the front panel
faders.
Never aach unbalanced connections to an input set for AES42. This can result in damage to the hardware.
To use a digital input, slide the Input 1 or Input 6 Input Selector Switch to the right to enter the Input
Seings Screen. Press the Headphone Encoder to display the list of available input sources. Turn
the Headphone Encoder to select AES3 or AES42, and press the Headphone Encoder to conrm the
selection.

664 User Guide and Technical Information
11
Each connector carries two channels of digital audio. Alternate channels of digital audio sent to Input
1 or Input 6 are available on adjacent inputs, according to the following table.
AES Input Channel: Available to 664 Input:
XLR Input 1, Left Channel Input 1
XLR Input 1, Right Channel Input 2 (Available when Input 1 source is set to AES)
XLR Input 6, Left Channel Input 5 (Available when Input 6 source is set to AES)
XLR Input 6, Right Channel Input 6
The 664’s digital inputs are sample rate converted to the internal recorder’s sample rate. To sync the
sample rate of the 664’s internal recorder to external digital audio devices, see Sampling Rate.
Things to consider when using AES digital inputs:
•When using an unbalanced AES3 (SPDIF) input, the other available digital input should not be
used with an AES42 microphone.
•Signal from digital inputs is not available on direct outputs.
Limiters
Limiters prevent clipping by aenuating signals that surpass a set threshold. The amount of aenua-
tion is dened by the “ratio” of the limiter and expressed as two numbers. All 664 limiters use a 20:1
compression ratio. This means that signal that exceeds the threshold by 20 dB will exit the limiting
stage at only 1 dB above the threshold.
The time it takes for limiting to begin once signal has exceeded the threshold is referred to as the “at-
tack time” and the time it takes for limiting to cease once signal has fallen back below the threshold is
referred to as “release time”. Signals that exceed the threshold faster than the limiter’s aack time can
still cause clipping. The 664 limiters have a 1 ms aack time and a 500 ms release time.
The limiters are globally activated when the Setup Menu item LIMITERS > Limiters is set to On. This
activates both the input limiters (Inputs 1 through 6) and all output limiters. Sound Devices recom-
mends using the limiters at all times. Limiters are present on both mic and line-level inputs as well as
the Master L,R tracks and the X1,X2 tracks. The 664 input limiters have a threshold of +16 dBu (4 dB
below clipping), while the limiters for the L, R, X1, and X2 tracks are adjustable from the Setup Menu
item OUTPUTS > L,R Limiter Thresh and OUTPUTS > X1,X2 Limiter Thresh.
In normal operation, with a properly set gain structure, the threshold of the Input Limiter is rarely
reached. Without Input Limiters, high signal conditions can overload a channel and cause distortion.
The Input limiter is working when the respective input’s Input Activity LED illuminates yellow. If the

664 User Guide and Technical Information
12
v. 1.04 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Activity LED is regularly in the yellow, reduce the amount of gain applied to the channel by turning
down the Trim control. See Input Activity LED for additional information.
When Inputs are linked as a stereo pair, the Input Limiters are also linked and perform the same gain
reduction equally to both inputs.
The Output Limiters prevent the L,R and X1,X2 signal from exceeding the user-set limiter threshold.
Setup Menu options LIMITERS > L,R Limiter Thresh and LIMITERS > X1,X2 Limiter Thresh allow
limiter thresholds to be set set in 1 dB increments from +4 dBu to +20 dBu.
Metering
All track levels are displayed on the LCD in the Main Screen. RTN input levels are displayed on the
RTN Screen (Press the Meters buon to toggle between the RTN Screen and the Main Screen). Each
segment of the meter represents 1 dB. A larger red square under the 20 dBU marker indicates clipping
on the track. A large yellow square indicates limiting activity on the track.
Input clipping
Limiter active
Meter Ballistics
VU
VU (volume units) meter ballistics correspond closely to how the human ear perceives loudness. This
provides a good visual indication of how loud a signal will be. In VU mode, the aack and decay of
the meter signal is 300 mS. VU meters provide good visual indication of how loud a signal will be, but
provide poor information of actual signal peaks.
Peak + VU
The 664 can simultaneously display VU and Peak level information. In this mode the perceived loud-
ness (VU) is displayed as a standard bar, and the Peak signal as a single, independent segment above
the VU.
Peak Only
Peak-reading ballistics (PPM) correspond to actual signal peaks, but don’t necessarily correspond to
perceived signal loudness. Peak meters have an instantaneous aack and a slow decay to allow visual
monitoring of peak activity. Peak metering is useful when interconnecting to audio inputs on digital
equipment. In the digital realm, signal overload can cause immediate distortion.
Peak Hold
When Peak Metering is enabled (Peak Only or Peak + VU), peak hold displays the last highest peak
value on the meter as a separate, individual meter segment. By default this meter segment will remain
visible for 1 second. This time can be adjusted to 1, 2, 3, 4, or 5 seconds. The Innity option will display
the last highest peak indenitely until a higher peak is reached. The O option will disable peak hold.
The Peak Hold seing applies to meters on the Main Screen and in all Input Seings windows.

664 User Guide and Technical Information
13
Input Activity LED
Each Input has its own Input Activity LED located just above the Input Fader.
The LED illuminates in various colors and intensities to represent the signal
level appearing at its respective input. Green = pre-fade signal activity, yellow
= pre- and post-fader limiter activity, red = pre- and post-fader signal overload
(peaking). Reduce the trim level control if the LEDs continuously illuminate
yellow or red. The Input Activity LED will ash yellow when the Input PFL is
latched. see PFL.
Headphone Peak LED
The Headphone Peak LED is located just le of the Headphone Encoder.
This LED will illuminate red to indicate clipping in the headphone amplier.
Monitoring without a visual indication of headphone clipping can mislead the
sound mixer into thinking that the output or return feeds are distorted.
Headphone Monitoring
Headphone Gain
Headphone output level is controlled by turning the Headphone Encoder while viewing the Main
Screen or Input Seings Screen. When adjusting the headphone gain, the gain value (in dB) is dis-
played in the lower right corner of the LCD (Near the Headphone Encoder). This space displays the
currently selected headphone source when the headphone gain is not being adjusted.
Headphone Encoder
Headphone gain during adjustment
The 664 can drive headphones to dangerously high volumes. Turn down the headphone gain before
selecting a headphone source to prevent accidental signal extremes.
Headphone Source Selection
To select the monitor source, push the Headphone Encoder while viewing the Main Screen to display
the Monitor Source List. This will display a list of available monitor sources. Turn the Headphone

664 User Guide and Technical Information
14
v. 1.04 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Encoder to highlight a source, and press the Headphone Encoder to select that source. The signal to
the headphone outputs will immediately change to the selected program.
Monitor Source Description
LR ST Master Bus in stereo.
LR Mono Master Bus summed mono to both ears.
L Mono Left channel of Master Bus sent to both ears.
R Mono Right channel of Master Bus sent to both ears.
LR MS ST Mid-Side Stereo - Master Bus decoded MS stereo to headphones, this is not to be used if the inputs
are already linked as an MS pair.
X1X2 Aux Bus in stereo.
HP Preset HP Presets 1-10 are customizable monitor sources. See Headphone Presets
Headphone Presets
Ten custom monitor sources are available. These headphone presets can be edited, named and saved.
To edit a custom headphone preset, press the Headphone Encoder to access the Monitor Source List,
highlight the desired preset, then slide the Slate/Tone Switch. This displays the Headphone Preset
Screen:
Highlighter
Assigned source Unassigned source
HP Preset name
MS decoding Mono summing
Available sources are displayed for each monitor channel (le and right). Sources with a blue back-
ground are assigned to that channel of the headphones, and sources with a black background are not
assigned to the headphone channel. To toggle the assignment of a source, turn the Headphone Encod-
er to highlight the source and press the Headphone Encoder to toggle the assignment.
Slide the RTN Switch le to toggle MS decoding for the preset. MS decoding will decode the entire
preset and should not be used if inputs are already linked MS. Slide the RTN Switch right to toggle-
mono summing of the preset. Mono summing will ignore le and right assignment and put all active
sources in both channels of the preset.
When the Headphone Preset is edited, it can be named so it can be easily identied in the Monitor
Source List. To name a Headphone Preset, slide the Slate / Tone Switch either le or right while view-
ing the Headphone Preset Screen.
Headphone Tones
The start of a recording is indicated audibly by a single 440 Hz tone sent to headphones. When
recording is stopped two 220 Hz tones are sent to the headphones. The Record/Stop Bell can
be enabled from the Setup Menu item SYSTEM > Record/Stop Bell. The Setup Menu option
SYSTEM > Warning Bell Level allows adjustment of the level of the Record/Stop Bell.

664 User Guide and Technical Information
15
PFL (Channel Solo Monitor)
Slide the PFL switch le to activate, and again to deactivate. For momen-
tary action, hold the switch le for one second or longer.
PFL stands for “Pre-Fade Listen”. When any input’s PFL is activated, the
currently selected Monitor Source is replaced with the PFL mix program.
The PFL mix program is a mono mix of the pre-fade level of all inputs
with PFL enabled. PFL monitoring only aects the headphone monitor, it
does not aect audio sent to the outputs.
The selected input’s Activity LED ashes yellow when the input’s PFL is
engaged. When one input PFL is engaged, that input’s name will appear
in the lower right corner of the Main Screen. When multiple input PFL’s
are engaged, PFL MULT will appear in the lower right corner of the Main
Screen.
RTN and COMM Monitoring
RTN A, RTN B, RTN C, and COM RTN inputs can be monitored quickly using the RTN Switch.
Primary Monitor Sources are monitored by sliding the RTN Switch le or right while Alternate
Monitor Sources are monitored by holding the Select Encoder then sliding the RTN Switch le or
right. The Primary and Alternate Monitor Sources can be changed from the Setup Menu options
COMMS/RETURNS > RTN Toggle Left and COMMS/RETURNS > RTN Toggle Right. To return to the
previous monitor selection, Slide the RTN Switch in the same direction of the active RTN.
RTN A, RTN B, and RTN C input levels can be metered and adjusted from the RTN Screen. To access
the RTN Screen, press the Meters Buon when viewing the Main Screen. To adjust the gain of a RTN
input:
1. Access the RTN Screen by pressing the Meters buon.
2. Turn the Select Encoder to highlight the RTN to be adjusted.
3. Press the Select Encoder to access gain adjustment mode for the selected RTN. The back-
ground color of the RTN label will become orange, and the input gain value (in dB) will ap-
pear in the lower le corner of the LCD.
4. Turn the Select Encoder to adjust the gain. RTN gain adjustment mode will exit automatically
aer 3 seconds.
RTN during level adjustment
Input gain of RTN A (during adjustment)
RTN monitoring will cancel the PFL mix program when activated.

664 User Guide and Technical Information
16
v. 1.04 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Output Setup and Control
The 664 features a host of analog and digital outputs to accommodate for complex, multi-camera set-
ups. The 664 has 2 stereo output busses: The Master Bus (LR), and the Aux Bus (X1/X2).
Master and Aux Outputs
There are 4 pairs of balanced analog output connections for the Master Bus (XLR, TA3, and 2 Hirose
10-pin), and one pair of balanced analog output for the Aux Bus (TA3). Additionally, there are two
stereo unbalanced outputs for the Master Bus (TA3 and 3.5mm Tape Outputs).
The XLR and both Hirose 10-pin outputs are transformer-balanced, each driven from their own trans-
former windings for excellent isolation. Each output can be independently set to Line (+4 dBu nomi-
nal), -10, or Mic level (40 dB of attenuation versus Line) from the Setup Menu section OUTPUTS. The
master outputs are capable of driving long cable runs.
XLR
By default the XLR outputs send a balanced analog signal. These connections can be independently
congured to send AES3 signal. see AES Digital Outputs for details. When set to analog output, the L
and R XLR connections always carry the Le and Right Master Bus program.
TA3 (Master L, R, X1, and X2)
The TA3 outputs send a balanced analog signal. The X1 and X2 TA3 connections always carry X1
and X2 Aux bus program. The L and R TA3 connections always carry the Le and Right Master Bus
program.
Hirose 10-pin
Each Hirose 10-pin connection has a balanced pair of outputs that carry the Le and Right Master bus
program. By default, each of the balanced outputs on the Hirose 10-pin connections sends a balanced
analog signal. Each of the balanced outputs on the 10-pin A connections can be independently config-
ured to send AES3 signal. see AES Digital Outputs for details.
Each Hirose 10-pin also includes an unbalanced stereo return input for headphone monitoring. The
Sound Devices XL-10 Breakout Cable is an available accessory that provides easy access to the bal-
anced outputs and stereo returns of the 10-pin Hirose connections.
Direct Outputs
Inputs 1-6 have corresponding direct outputs on balanced TA3 connections. By default, these out-
puts are pre-fade and line level. The direct outputs can be set to post-fade from the Setup Menu item
OUTPUTS > Direct Out Pre/Post. The direct outputs can be set to Line (+4 dBu nominal), -10, or Mic
level (40 dB of attenuation versus Line) from the Setup Menu item OUTPUTS > Direct Out Levels.
AES digital input signals are not available on direct outputs.
Tape Output
The 664 includes two unbalanced tape level outputs, a TA3 connector and a 3.5 mm jack. These two
connectors are resistively in parallel and are isolated from the balanced outputs.
Tape Outputs, by default, send the Le and Right stereo program. The Tape outputs can be used to
send the incoming RTN A, RTN B, or RTN C signals directly to receiving devices from Setup Menu
