Sound Sation OMEGA-330 TEXT User manual

Please read this manual carefully and proper take care of this manual.
USER MANUAL
OMEGA-330 TEXT
330mW Text Laser System
with RGB Graphic Effects

TABLE OF CONTENTS
1. 1. INTRODUCTION ....................................................................................................6
2. OVERVIEW..................................................................................................................7
3. MAIN FEATURES........................................................................................................7
4. OVERHEAD RIGGING ................................................................................................7
5. MAINS CONNECTIONS .............................................................................................8
6. DMX CONNECTION...................................................................................................9
7. FRONT/REAR PANELS .............................................................................................10
8. MENU OPERATING INSTRUCTION ........................................................................12

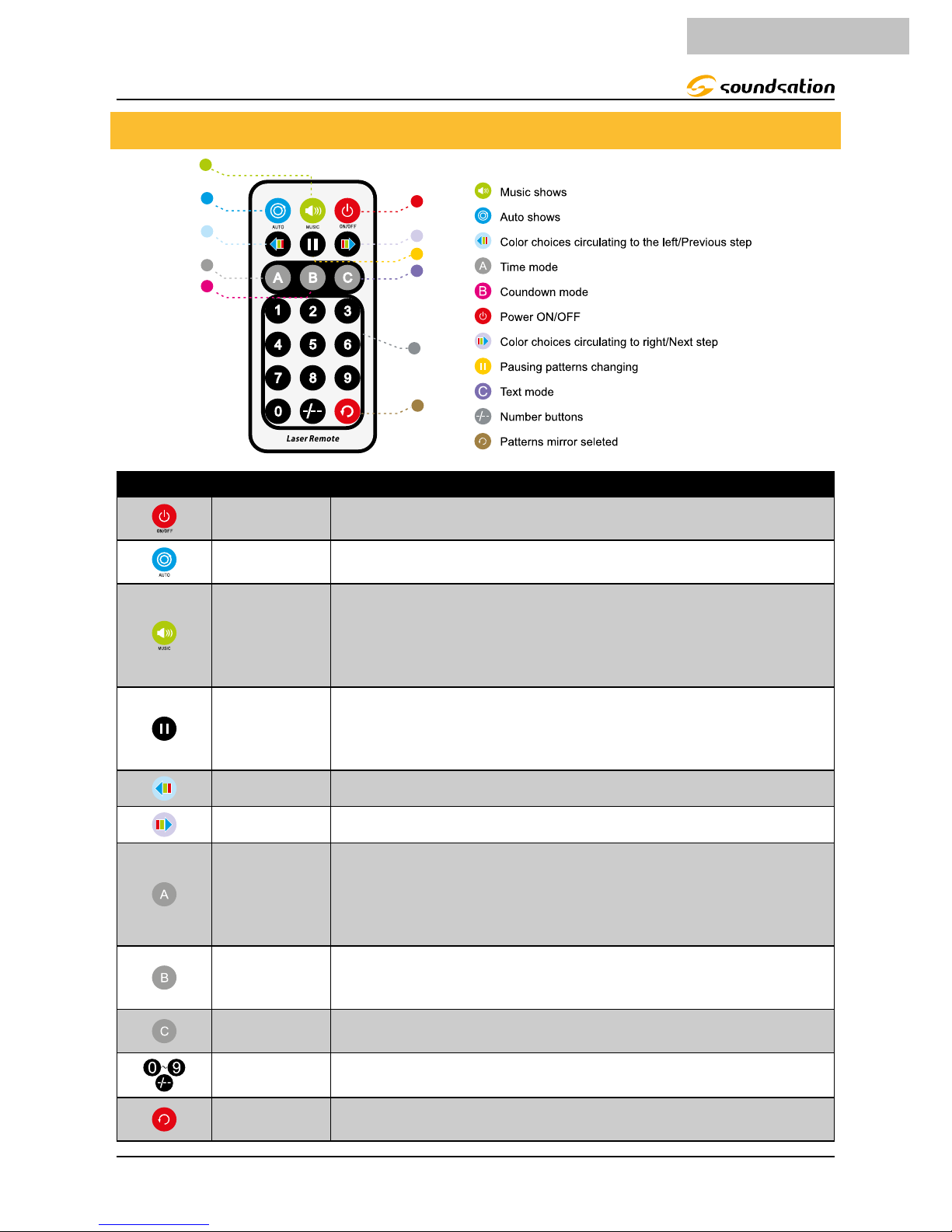

9. REMOTE CONTROLLER............................................................................................15
10. KEYBOARD OPERATION .........................................................................................16
11. DMX Channel Chart ................................................................................................19
12. SPECIFICATIONS ......................................................................................................21
13. WARRANTY AND SERVICE .....................................................................................22
14. WARNING.................................................................................................................22
Dear customer,
First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument, professional audio and lighting users offering
a wide range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are
looking for a feedback from you about the operation of the product and possible im-
provements to introduce in the next future. Go to our website www.soundsationmusic.
com and send an e-mail with your opinion, this will help us to build instruments ever
closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team

IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating con-
ditions, which may be sufcient to constitute the risk of electric shock
or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.

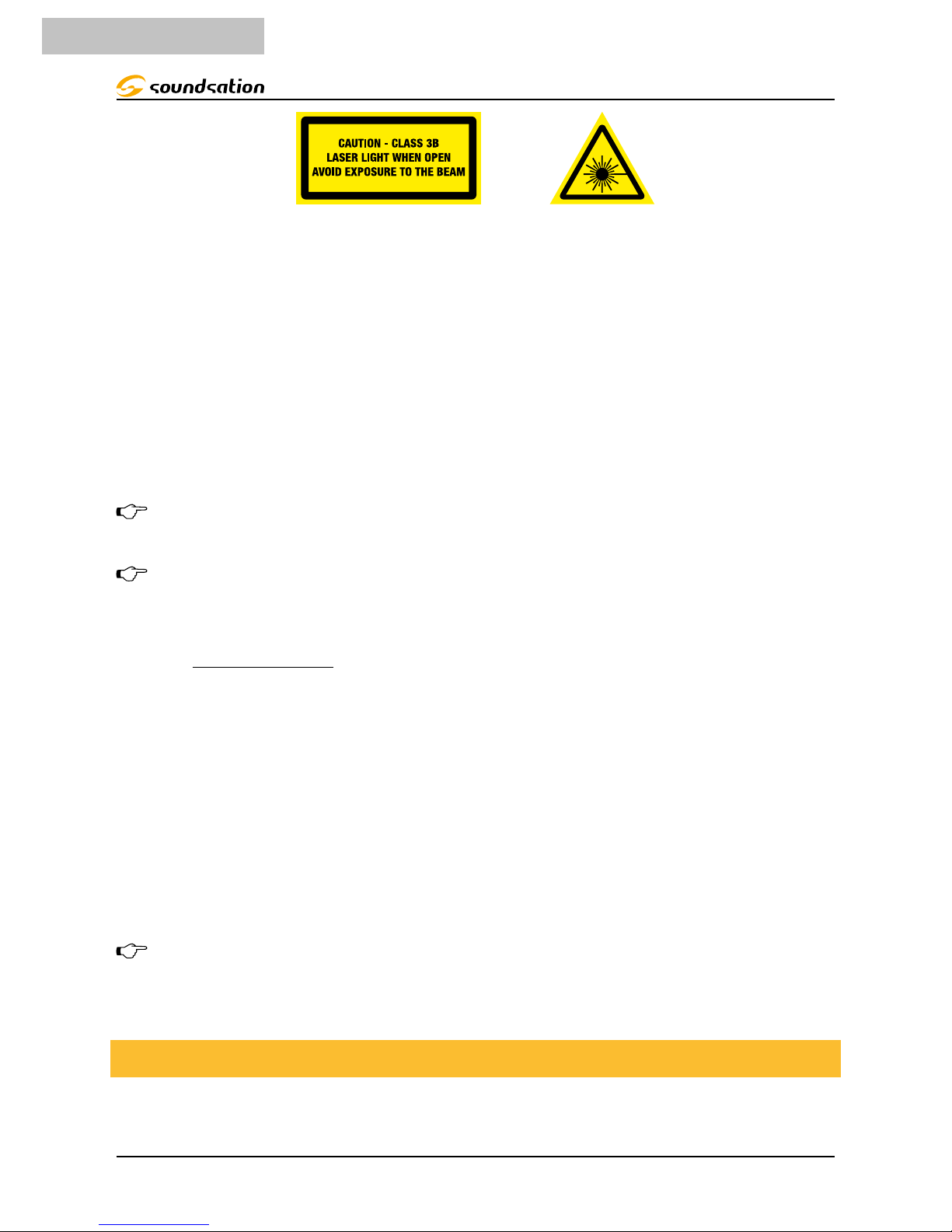

Laser safety warning labels
To protect the environment, please try to recycle the packing material
as much as possible
The projector is for indoor use only, IP20. Use only in dry locations.
Keep this device away from rain and moisture, excessive heat, humid-
ity and dust. Do not allow contact with water or any other uids, or
metallic objects.
Don’t throw this product away just as general trash, please deal with
the product follow the abandon electronic product regulation in your
country.
0.5m
Locate the xture in a well ventilated spot, away from any ammable
materials and/or liquids. The xture must be xed at least 50cm from
surrounding walls
LASER SAFETY WARNINGS
According to the EN 60825-1:2007 regulation, this product belongs to Class 3B. Direct
eye contact may cause injury.
3
ENGLISH
OMEGA-330 TEXT User manual

fThis product is for laser show only. The class 3B laser light should be operated by
professional operator only.
fThis is so-called show laser, emitting radiation with a wavelength spectrum between
400 and 700nm and producing lighting effects for shows.
fInternational laser safety regulations require that the vertical height from installment
to ground is more than 3 meters, horizontal distance is 2.5 meters from audience.
fNever direct the laser beam to people or animals and never leave this device running
unattended.
fThe legal requirements for using laser entertainment products vary from country to
country. The user is responsible for the legal requirements at the location/country
of use.
Warning! Avoid direct eye contact with laser beams during operation, espe-
cially when the laser beams stay still, or injury to eyes may occur.
Caution! Laser security measures are designed according to the specic terms
of the relevant international laser safety standards and has the following
laser safety protection means:
• Laser key switch: laser is available only when the key is turned on.
• Laser Remote Emergency switch: remote connecting switch, it will cut off the
laser light path emergently once the device in potential hazard.
• Laser indication : laser indication on the front panel of the laser light for
indicating “laser-ready”.
• Laser safety label: The labels of according with European standard are sticked
on the device body.
• Laser modulation closed: When laser scanning pattern is less than ± 1 de-
gree, built-in single chip will close the light after comparison operation.
• Laser shutter protection: When laser scanning pattern is less than ± 1 de-
gree, shutter protection will cut off light path.
Remark: When the device work with ILDA or DMX program, there has the
status of shutter protection, and the pattern is less than ± 1 degree, it’s nor-
mal protection.
TAKING CARE OF YOUR PRODUCT
fRead these instructions
fKeep these instructions
4
ENGLISH
OMEGA-330 TEXT User manual

fHeed all warning
fFollow all instructions
Water / Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
Condensation
To avoid condensation to be formed inside, allow this unit to adapt to the surrounding
temperatures when bringing it into a warm room after transport. Condense sometimes
prevents the unit from working at full performance or may even cause damages.
Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat. Don not use it when maximum ambient tempera-
ture is higher than 40°C.
Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer’s instructions.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
Power Cord and Plug
Protect power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus. Do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug has two poles; a
grounding-type plug has two poles and a third grounding terminal. The third prong is
provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement. Unplug the unit when it is not used for a longer time.
Power Supply
In case of external power supply, the apparatus should be connected to the power sup-
ply only of the type as marked on the apparatus or described in the manual. Failure to
do could result in damage to the product and possibly the user. Unplug this apparatus
during lightning storms or when unused for long periods of time.
Electrical Connection
Always disconnect from the power source before servicing or replacing fuse and be
sure to replace with same fuse size and type. Cut off power before moving, repairing
5
ENGLISH
OMEGA-330 TEXT User manual

and cleaning the unit. Improper electrical wiring may invalidate the product warranty.
To avoid electric shock, all xtures must be connected to circuits with a suitable ground.
Do not power on and power off the xture in a short time.
DMX connection
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source).
Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.
1. 1. INTRODUCTION
Thank you for purchasing our OMEGA-330 TEXT graphic laser. Enjoy your new equip-
ment and make sure to read this manual carefully before operation!
This user manual is made to provide both an overview of controls, as well as informa-
tion on how to use them. In order to help you to understand the connections between
the various controls, we have gathered in groups according to their functions.
1.1. UNPACKING
Your OMEGA-330 TEXT was carefully packed to ensure safe transport. Despite this, we
recommend you to carefully examine the package and its contents for any signs of
physical damage, which can occur during transport. It is composed by following parts:
fLaser light
fSwitch KEYs (2pcs)
fPower Cord
fInterlock Connector
fKeyboard
fUser manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
6
ENGLISH
OMEGA-330 TEXT User manual

1.2. ACCESSORIES
SOUNDSATION can supply a wide range of quality accessories that you can use with
your OMEGA-330 TEXT laser, like Cables, Splitters, DMX controllers, and a wide range of
xtures.
All products in our catalogue has been long tested with this device, so we recommend
you to use Genuine SOUNDSATION Accessories and Parts.
Ask your SOUNDSATION dealer or check out our website www.soundsationmusic.com
for any accessories you could need to ensure best performance of the product.
2. OVERVIEW
SOUNDSATION OMEGA-330 TEXT is a new professional laser projector based on
state-of-the-art technology. It features high-quality LED RGB laser emitters and 10K
professional optical scanner, which produces bright laser beams and smooth patterns.
LED panel menu, PS/2 QWERTY keyboard, and the handy remote control make this
xture extremely easy to program and convenient to use. Besides the built-in traditional
patterns, there’s many operation modes that can be edited. It is the right choice for
all those musicians, DJs and small rental companies who need a reliable and versatile
instrument for graphic and text-based effects.
3. MAIN FEATURES
f300mW RGB graphic laser (150mW Red, 80mW Green, 100mW Blue)
f10K scanner speed
fOperation Modes: Auto, Sound, DMX, Master/Slave, Keyboard modes
f9 Auto Programs, 9 Sound Programs, 9 Text Programs, 9 Time Mode Programs,
Countdown Mode
fDMX: 20CH mode
fQWERTY keyboard for quick text typing and unit control
fIR Remote Controller for quick control
fLED Display for easy navigation and programming
fWired Remote Control Connector for hard-blackout
fKey switch and safety eye for maximum safety of use and installation

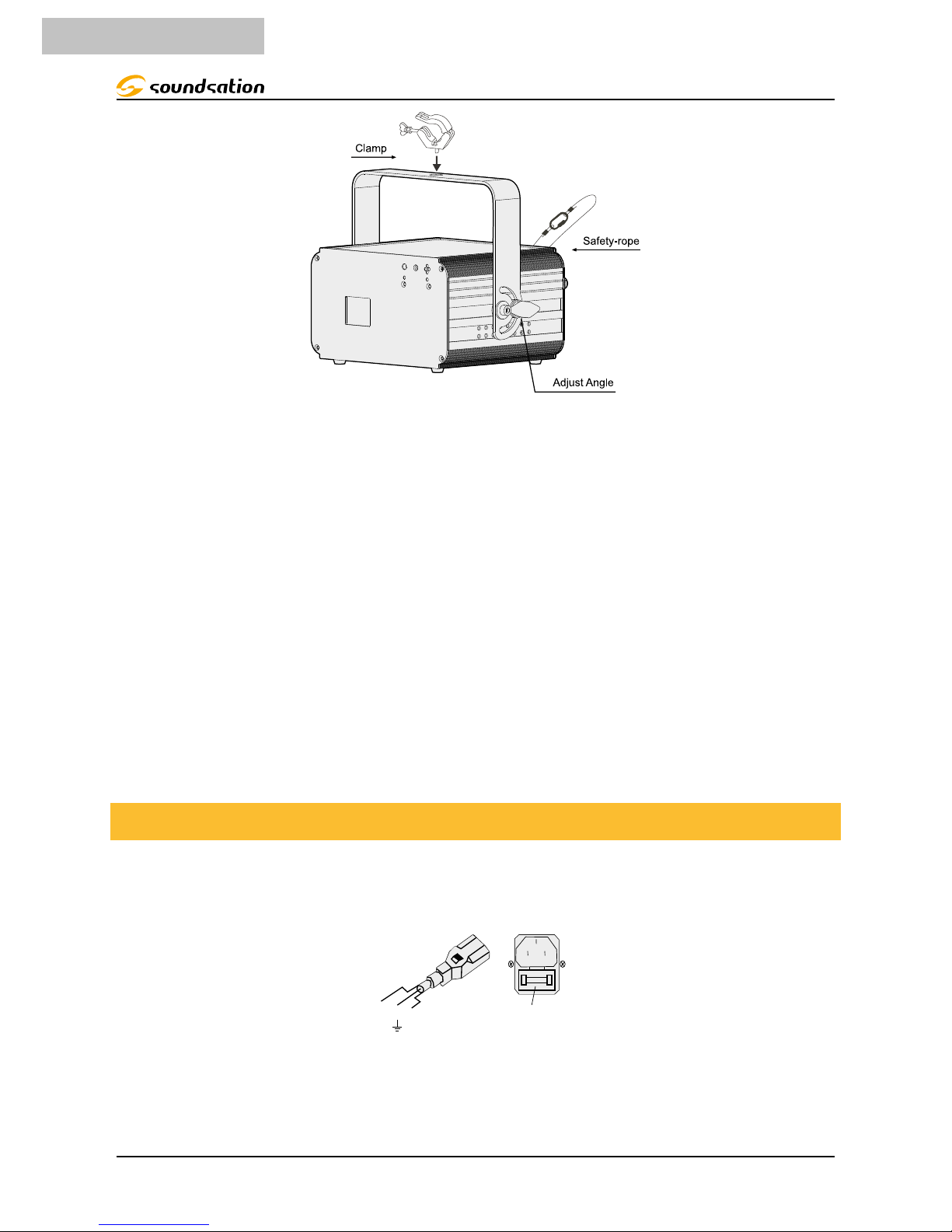

4. OVERHEAD RIGGING
WARNING: The installation must be carried out by qualied service personal
only. Improper installation can result in serious injuries and /or damage to
property. Overhead rigging required extensive experience! Working load
limits should be respected, Certied installation materials should be used,
the installed device should be inspected regularly for safety.
7
ENGLISH
OMEGA-330 TEXT User manual

• Make sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
• Locate the xture in a well ventilated spot, far away from any ammable materials
and/or liquids. The xture must be xed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where
persons may walk by or be seated.
• Before rigging, make sure that the installation area can hold minimum point load
of 10 times the device”s weight. The device should be well xed; a free swinging
mounting is dangerous and may not be considered!
• Do not cover any ventilation opening as this may result in overheating
• Before the rst time use, it must be inspected by professional staff to make sure
safety, inspection regularly every year.
5. MAINS CONNECTIONS
Connect the device to the mains with the supplied power cable. Please note that power
voltage and frequency are the same as the marked voltage and frequency of device
when connecting power.
L
E N
FUSE: 5×20mm
250V 1.0A slow
Every device’s power should be connected separately, so that device can be controlled
individually. To prevent the risk of re and damaging the unit, please use only of the
recommended fuse type as described above. Before replacing the fuse, make sure the
unit turned off and disconnected from the AC outlet.
8
ENGLISH
OMEGA-330 TEXT User manual

Wire correspondence is as follow:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking
into operation for the rst time, the installation has to be approved by an
expert.

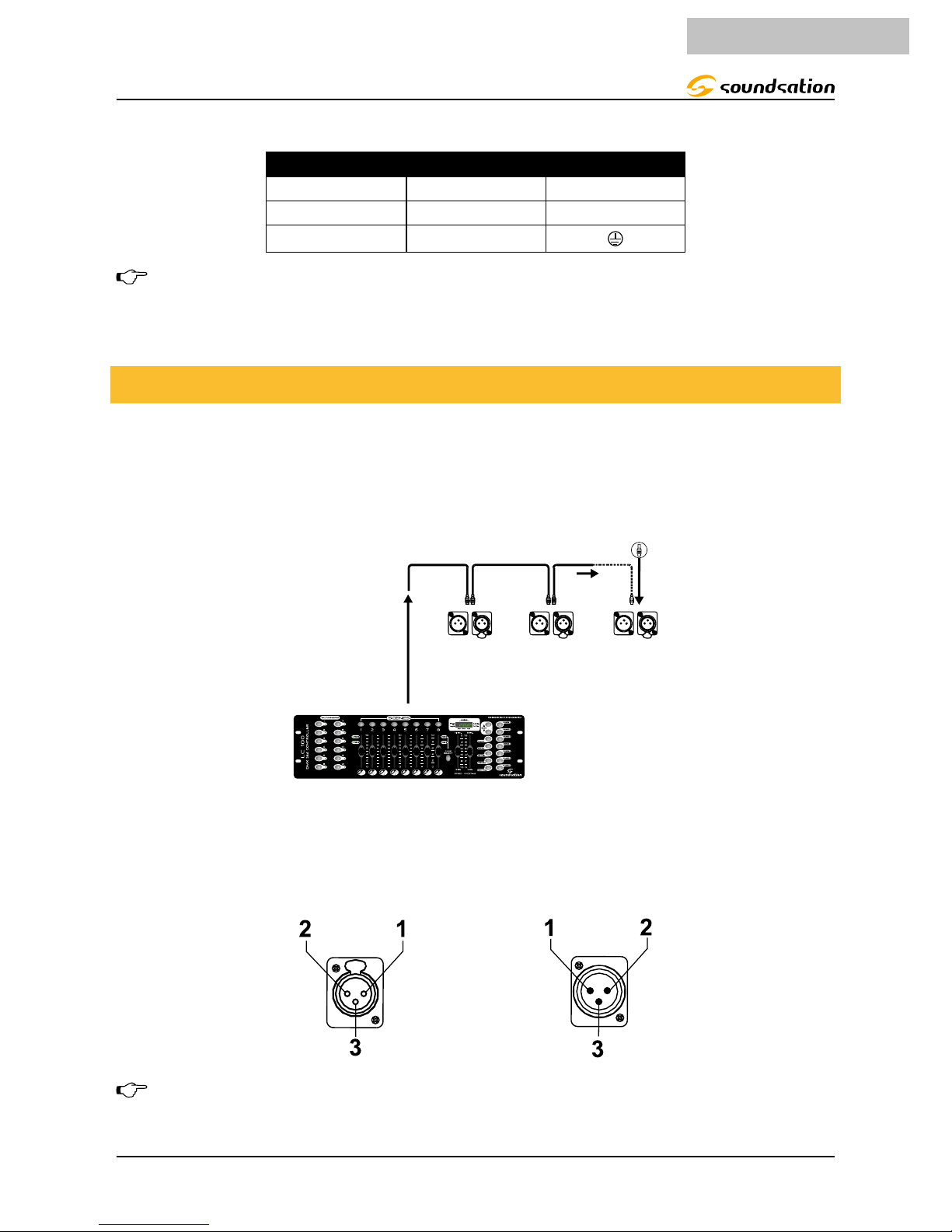

6. DMX CONNECTION
DMX xtures are designed to receive data through a serial Daisy Chain. A Daisy Chain
connection is where the DATA OUT of one xture connects to the DATA IN of the next
xture. The order in which the xtures are connected is not important and has no effect
on how a controller communicates to each xture. Use an order that provides for the
easiest and most direct cabling.
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect xtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to
female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and
pin 3 is Data positive (S+).
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
CAUTION: Wires must not come into contact with each other; otherwise the
xtures will not work at all, or will not work properly.
9
ENGLISH
OMEGA-330 TEXT User manual

6.1. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control
signals, a good habit is to connect DMX output of last xture in the chain to a DMX
terminator, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω (ohm),
1/4 Watt resistor connected across Signal (-) and Signal (+), respective-
ly, pins 2 and 3, which is then plugged into the output socket on last
projector in the chain. The connections are illustrated below.
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
6.2.3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and xtures manufacturers are not stan-
dardized around the world. However, two are the most common standards: 5-Pin XLR
and 3-Pin XLR system. If you wish to connect SCENESPLIT 8 RACK to a 5-Pin XLR input
xture, you need to use an adapter-cable or make it by yourself.
Following the wiring correspondence between 3-Pin and 5-Pin plug and socket stan-
dards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
7. FRONT/REAR PANELS
1. Laser Aperture: The laser effect output aperture. Never look inside the xture
through this aperture while the xture is operating.
2. Remote: Infrared remote receiver.
3. POWER: Main power indicating LED. Red is ON.
4. Sensitivity: Turn the knob to adjust sound activated sensitivity.
120ohm, 1/4W
resistor
DMX Terminator
10
ENGLISH
OMEGA-330 TEXT User manual

5. MIC: Receiving sound signal.
6. Music LED: Indicated light of music signal when detected.
7. Handle: Used for hanging the light.
OMEGA-300 TEXT
POWER
330mw Text Laser System with RGB Graphic Effects
MUSIC
IR MIC
SENSITIVITY
Min Max
8. Key switch: Make sure the professional person use.
9. Urgent and safe switch: Switch off the laser manually if error occurs
10. DMX output: 3PIN Female XLR port, using for DMX
11. DMX input: 3PIN Male XLR port, using for DMX
12. LED display: For setting mode
13. Laser Indicator: Indicated light of laser. Red is on.
14. Power Indicator: Indicated light of power. White is on.
15. PS/2 interface: Connecting PS/2 keyboard, or PS/2 USB keyboard of adapter
16. Safety Eye: Used to attach a safety cable when the xture is rigged. Check more
details in Rigging
17. Cooling fan: Cooling and never cover this fan outlet
18. Power Switch: Power ON/OFF.
19. Power input: Power input socket, built- in protective tube and spare tube
11
ENGLISH
OMEGA-330 TEXT User manual

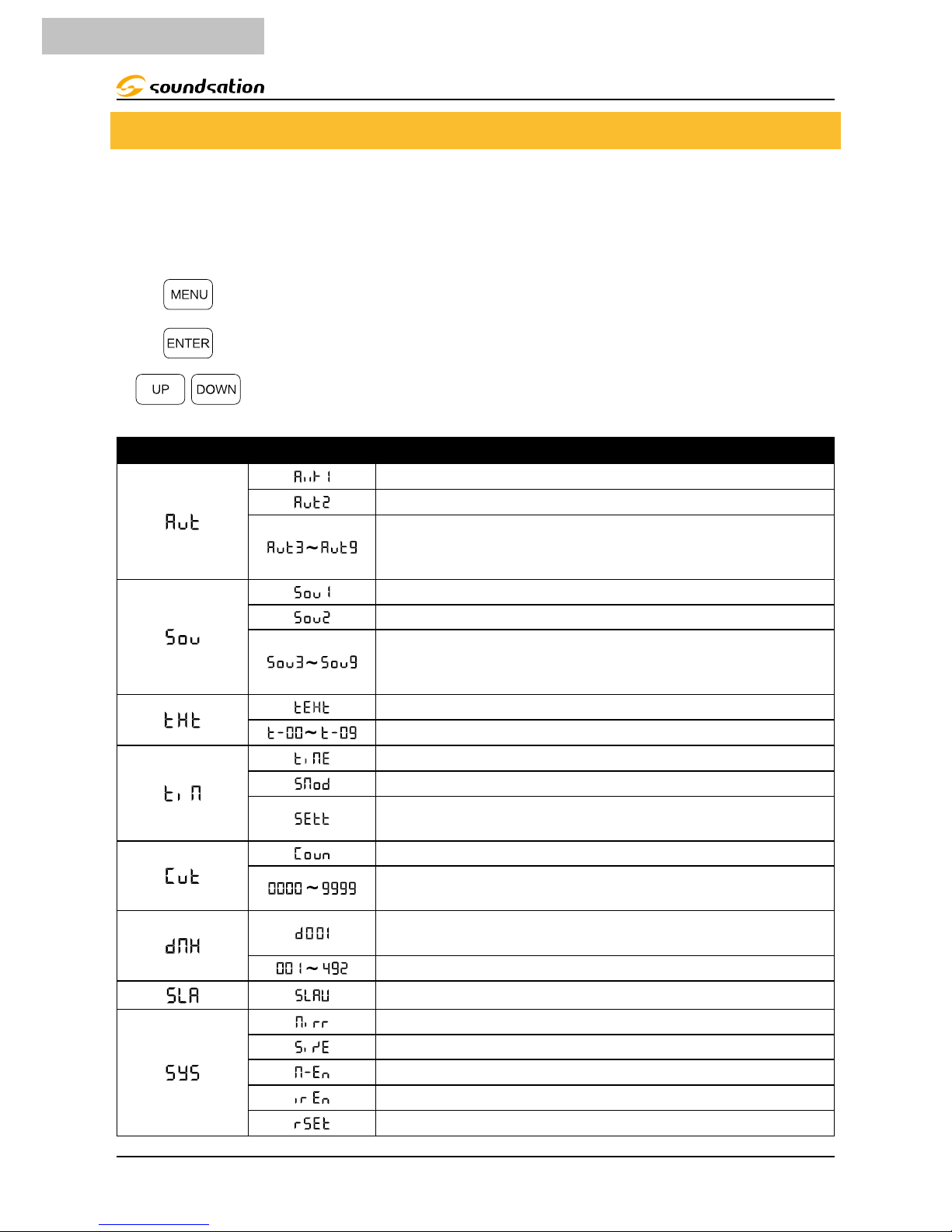

8. MENU OPERATING INSTRUCTION
When laser is powered on, LED display on rear panel shows the current operating
standalone mode or DMX address of DMX mode. With help of LED control panel, is
very easy to set and change the operating mode of laser. After every resetting and sav-
ing, the new mode information will be shown on the LED display at next power on.
Mode Option, to choose the operating mode of laser or return to
previous menu.
Confirmation, to confirm the laser to show the present mode at the
next operation or go into the selected menu.
UP/DOWN, to change operating mode, parameter or DMX address.
LED Display Functional Description
Auto Mode 1
Auto Mode 2
Built-in holiday programs:
3. New Year, 4. Christmas, 5. Love, 6. Birthday, 7. Party, 8.
Halloween, 9. Music
Sound Mode1
Sound Mode 2
Built-in holiday programs:
3. New Year, 4. Christmas, 5. Love, 6. Birthday, 7. Party, 8.
Halloween, 9. Music
Loop playback of built-in TEX0-9.
Text program saved in 0-9.
Time Mode.
Time display mode: Time & Date or Only Time.
Time setting: Year / Month / Date / Week / Hour / Min /
Second / 12 or 24h
Countdown Mode.
Setting countdown time. ENTER to conrm. UP to start,
DOWN to stop.
Signal reception menu. When DMX is not connected, LED
letters will twinkle
Channel addresses setting.
Slave Mode.
Mirror setting: N-PP / PN / NP / NN
Image size setting: SH01 - SH16; SY01 - SY16
Master Mode.
IR Mode.
Restore the factory initial setup.
12
ENGLISH
OMEGA-330 TEXT User manual

13
ENGLISH
OMEGA-330 TEXT User manual

8.1. Initial Setting
Auto/
Sound
Programs
Auto1-Auto9
Sound1-
Sound9
To choose program effect through UP/DOWN, ENTER to
conrm
Text
Editing
Mode
TEXT Loop playback of saved TEX0-9
TEXTO-TEXT9 Text program 0-9, ENTER to play
Time
Mode
Smod
(SHOW MODE)
To choose time
display mode
d-dt (DATE &
TIME)
Time & Date
Mode
d--t (ONLY TIME) Only Time Mode
SETT
(SETTING)
Time Setting
Mode
year: **** hour:
h-** month: n **
minute: N-** date:
d** second: S-**
12/24h
ENTER to conrm
and back to previ-
ous step
Count-
down
Mode
COUN ENTER into Count-
down Mode
0000-9999
ENTER to conrm.
UP to start, DOWN
to stop.
TEX0- TEX9
(LINK TO 0-9)
Directly link to
TEX0-9 after
countdown
DMX
Mode d001
To check DMX
signal. When DMX
is not connected,
LED letters will
twinkle
001-492 Setting DMX value
SLAVE
Mode slav ENTER into Slave Mode, When there is no signal, LED letters will twinkle
System
setting
MIRR
(SET MIRROR)
Setting pattern
direction
N-PP / PN / NP
/ NN
ENTER to conrm
and back to previ-
ous step
Zoom (SET SIZE) Setting pattern
size
SH01-SH16
SY01-SY16
N-En Master Mode ON/OFF
lrem
(SET REMOTE) IR Mode ON/OFF
REST ENTER to restore the factory initial setup
14
ENGLISH
OMEGA-330 TEXT User manual

9. REMOTE CONTROLLER
BUTTON FUNCTION DESCRIPTION
ON/OFF Power ON/OFF and black out. When it is pressed, enable laser light
output, press again to blackout the laser, and circle as it.
Auto Press AUTO to enter Auto mode, it will play Auto show randomly.
Press to change different programs.
Sound
• Press MUSIC to enter Sound mode, it will play Auto show ran-
domly. Press to change different programs.
• Press MUSIC for 2 seconds to enter into sound sensitivity
adjustment. Then choose N. 1-9: 9 is the most sensitive; 1 is the
slowest.
Pause
When press, program and color change will be paused. Press again
to continue playing.
Between the choice of 12R and 24R, press to choose 12R, press
again to choose 24R
Left Color choices circulating to the Left / Previous step
Right Color choices circulating to Right / Next step
Time mode
Press A to enter into time mode.
Press A again, circle play among YEAR, MONTH,DAY,WEEK,TIME
Press A for 2 seconds, enter into time adjust mode. The adjusted
number flicker, press numeric key to choose the right value, press
color choice key0/o to choose last or next, then press A to save.
Countdown
mode
Press B, enter into countdown mode.
Press B for 2 seconds, adjust the value by 1-9, press B to count
down, press 4D t o stop.
Pattern rota-
tion Press C enter text model, then by choose (i}--0 to save text.
Numeric key Single number and double number setting.
Mirror func-
tion
Every press,pattern changes in 4 kinds of mirror direction, after
getting the right pattern direction, stop press.
15
ENGLISH
OMEGA-330 TEXT User manual

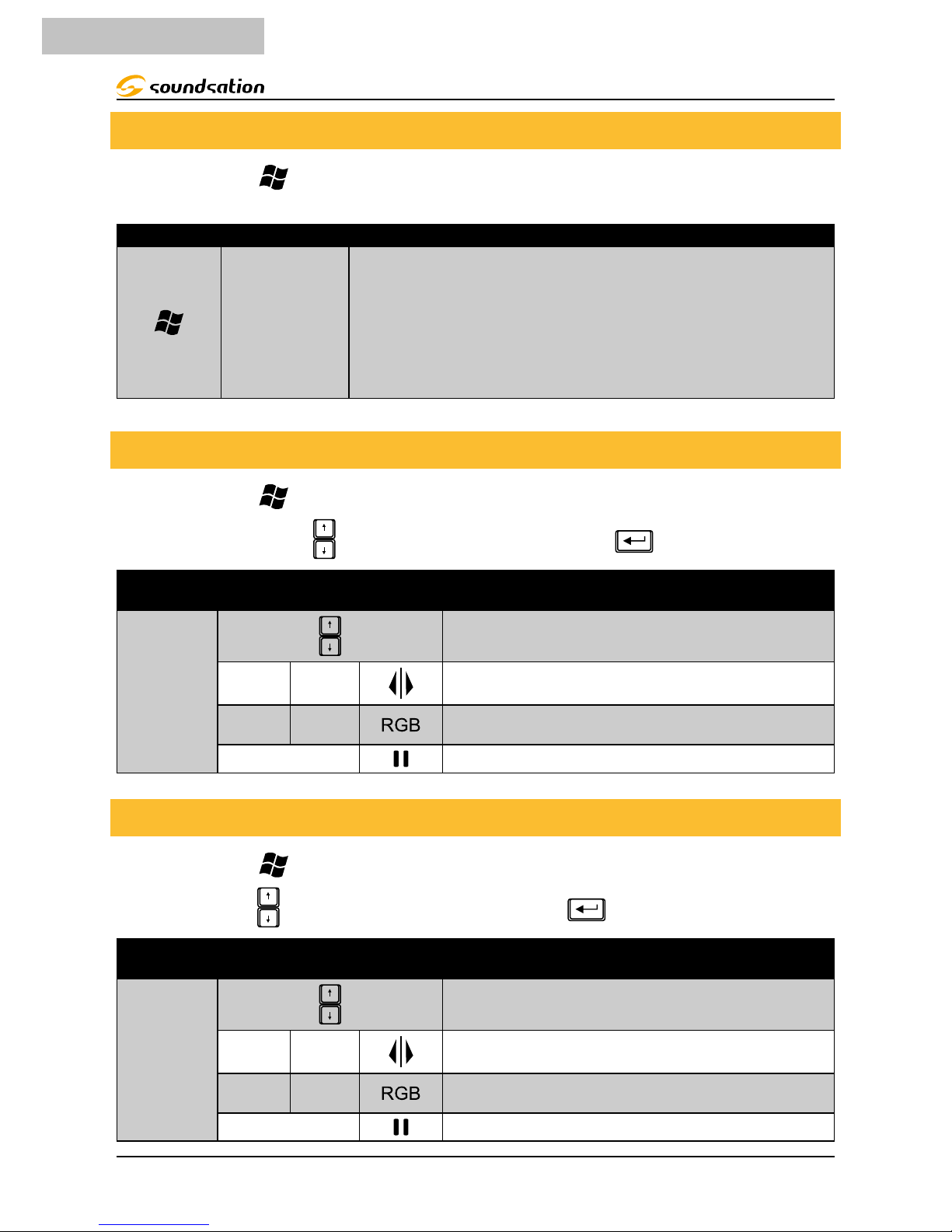

10. KEYBOARD OPERATION
Press WINDOWS button on the keyboard to enter menu option. Laser will show
corresponding menu
BUTTON FUNCTION DESCRIPTION
Menu option
Laser will show corresponding menu, press UP/DOWN to change below
mode. Then save by pressing ENTER.
1 - AUTO 2 - MUSIC
3 - TEXT 4 - CLOCK
5 - COUNT DOWN 6 - DMX
7 - SLAVE 8 - SYSTEM
10.1. Keyboard operation instruction of AUTO mode
Press WINDOWS button to enter menu. OMEGA-330 TEXT will show corresponding
menu. Press UP/DOWN to choose 1 (AUTO). Press ENTER to run AUTO mode.
Keyboard
Operation Old New Pattern Instruction
AUTO
In Auto Mode, press UP/DOWN to choose auto shows.
TAB MIRROR Display repeat setting, from saved text.
F2 COLOR Choose last edited text, if one key without text, it will not
display.
PAUSE Press to stop, press again to continue.
10.2. Keyboard operation instruction in MUSIC mode
Press WINDOWS button to enter menu. The unit will show corresponding menu.
Press UP/DOWN to choose 2 (MUSIC). Press ENTER to run MUSIC mode.
Keyboard
Operation Old New Pattern Instruction
SOUND
In Sound Mode, press UP/DOWN to choose sound shows.
TAB MIRROR Mirror, pattern cycle change at 4 kinds mirror direction,
when arrive favor pattern, press stop key.
F2 COLOR Choose last edited text, if one key without text, it will not
display.
PAUSE Press to stop, press again to continue.
16
ENGLISH
OMEGA-330 TEXT User manual

10.3. Keyboard operation instruction in TEXT mode
Press WINDOWS button to enter menu. The OMEGA-330 TEXT will show corre-
sponding menu. Press UP/DOWN to choose 3 (TEXT). Press ENTER to run TEXT
mode.
Keyboard
Operation Old New Pattern Instruction
TEXT EDIT
F1 Flow Text flow setting, FLOW/STOP, press UP/DOWN to set flow
speed.
F2 Color Color setting, to choose different color.
F3 Draw Draw setting, press UP/DOWN to set speed.
F4 Zoom Zoom setting, zoom in /zoom out/in and out, press UP/
DOWN to set speed.
F5 X Mode X axis move right or left, STOP / MOVE AHEAD / MOVE
OPPOSITE. Press UP/DOWN to set speed.
F6 Y Mode Y axis move Up or Down, STOP / MOVE AHEAD / MOVE
OPPOSITE. Press UP/DOWN to set speed.
F7 Y Roll Y axis roll, STOP / ROTATION / REVERSE, press UP/DOWN to
set speed.
F8 X Roll X axis roll, STOP / ROTATION / REVERSE, press UP/DOWN to
set speed.
F9 Z Roll Z axis roll, STOP / ROTATION / REVERSE, press UP/DOWN to
set speed.
F10 Wave Wave effect. Wave Range / Wave Quantity / Wave Frequency.
Press UP/DOWN to set speed.
F11 Text Only Display character quantity, 12. 10. 8. 6. 4
F12 Play Time Setting display time. Follow the cue to set by Number keys.
TAB Mirror Mirror pattern. Pattern cyclic change at 4 kinds of mirror
pattern direction.
DEL Clears cache area
BACK SPACE Deletes one character
HOME Text head
END Text End
Goes ahead/back
Ctrl + Alt + Del Deletes all text and task on every Number key.
Keyboard
Operation Old New Pattern Instruction
TEXT SAVING CTRL
+ NO.
SAVE +
NO.
Save text and text parameter. No. KEY means that contents
are saved on it.
17
ENGLISH

Keyboard
Operation Old New Pattern Instruction
TEXT DISPLAY
ALT +
NO. Play + No. Save text and text parameter, No. KEY means content saved on it.
INS Loop Play-
back Display repeat setting, from the saved text.
Pg Up Choose last edited text, if one key without text, it will not
display.
Pg Dn Choose next edited text, if one key without text, it will not
display
Pause Display paused
10.4. Keyboard operation instruction of CLOCK
Press WINDOWS button to enter menu. The unit will show corresponding menu.
Press UP/DOWN to choose 4 (CLOCK). Press ENTER to run CLOCK mode.
Keyboard
Operation Old New Pattern Instruction
CLOCK
SETTING
ENTER Enters CLOCK mode
SHOW MODE DATE & TIME Time & Date Mode
ONLY TIME Only Time Mode
SETTING Time Setting
**** YY
**.** M D
**:** TIME
Press UP/DOWN choose setting value, or press 0-9 to
set. ENTER to confirm.
12/24R Press UP/DOWN to choose 12R Mode or 24R Mode.
PRESS ENTER Save setting, back to time setting mode.
ESC Give up save, withdrawn from time setting mode. To
clock time mode.
TAB MIRROR Mirror, pattern cycle change at 4 kinds mirror direc-
tion, when arrive to chosen pattern, press stop key.
F2 COLOR Choose different color effect.
10.5. Keyboard operation instruction of COUNTDOWN
Press WINDOWS button to enter menu. The unit will show corresponding menu.
Press UP/DOWN to choose 5 (COUNTDOWN). Press ENTER to run COUNT-
DOWN mode.
18
ENGLISH

COUNT-
DOWN
SETTING
ENTER
Enters countdown mode. NO. is flicker, press 0-9 to
set countdown second. 4 number countdown time is
maximum, press ENTER to confirm.
BACKSPACE Delete previous character.
SPACE KEY Press SPACE KEY or PAUSE, timing and timing pause
switch.
PAUSE
ESC Timing again
TAB MIRROR Mirror, pattern cycle change at 4 kinds mirror direc-
tion, when arrive to chosen pattern, press stop key.
F2 COLOR Choose different color effect.
11. DMX Channel Chart
Channel Value Description
CH1 MODE
CHOICE
000-009 Blackout
010-079 Auto Mode
080-149 Sound Mode
150-200 The first pattern
200-255 The second pattern
AUTO MODE
Channel Value Description
CH2
000-029 AUTO1
030-059 AUTO2
060-089 AUTO3
090-119 AUTO4
120-149 AUTO5
150-179 AUTO6
180-209 AUTO7
210-239 AUTO8
240-255 AUTO9
MUSIC MODE
Channel Value Description
CH2
000-029 MUSIC1
030-059 MUSIC2
060-089 MUSIC3
090-119 MUSIC4
120-149 MUSIC5
150-179 MUSICS
180-209 MUSIC?
210-239 MUSICS
240-255 MUSIC9
19
ENGLISH
OMEGA-330 TEXT User manual

PATTER GROUPS
Channel Value Description
CH2
000-031 First pattern group
032-063 Second pattern group
064-095 Third pattern group
096-127 Fourth pattern group
128-159 Fifth pattern group
160-191 Sixth pattern group
192-223 Seventh pattern group
224-255 Eighth pattern group
Channel Value Description
CH3 Pattern 000-255 Every 16 values for a pattern, total for 128 patterns
CH4 COLOR
000-007 Built-in colors
008-015 R
016-023 G
024-031 R+G
032-039 B
040-047 R+B
048-057 G+B
058-063 R+G+B
064-111 Single color conversion
112-159 Multi-color moving up and down
160-207 Multi-color moving left to right
208-255 Strobe
CH 5
Clipping
000 Whole pattern
001-127 0%-99% clipping fixed pattern
128-255 Clipping speed (slow to fast)
CH6 Zoom
000-127 100%-5% pattern zooming
128-169 Zoom in
170-209 Zoom out
210-255 Loop zooming in/out
CH7 Zoom Speed 000-255 Fast to slow
CH8 Y Rotation
000-127 Fixed position after rotating 0-359’
128-191 Clockwise rotation
192-255 Anticlockwise rotation
CH9 Rotation Speed 000-255 Fast to slow
CH10 X Rotation
000-127 Fixed position after rotating 0-359’
128-191 Clockwise rotation
192-255 Anticlockwise rotation
CH 11 Rotation Speed 000-255 Fast to slow
CH12 Z Rotation
000-127 Fixed position after rotating 0-359’
128-191 Clockwise rotation
192-255 Anticlockwise rotation
CH13 Rotation Speed 000-255 Fast to slow
20
ENGLISH
OMEGA-330 TEXT User manual
