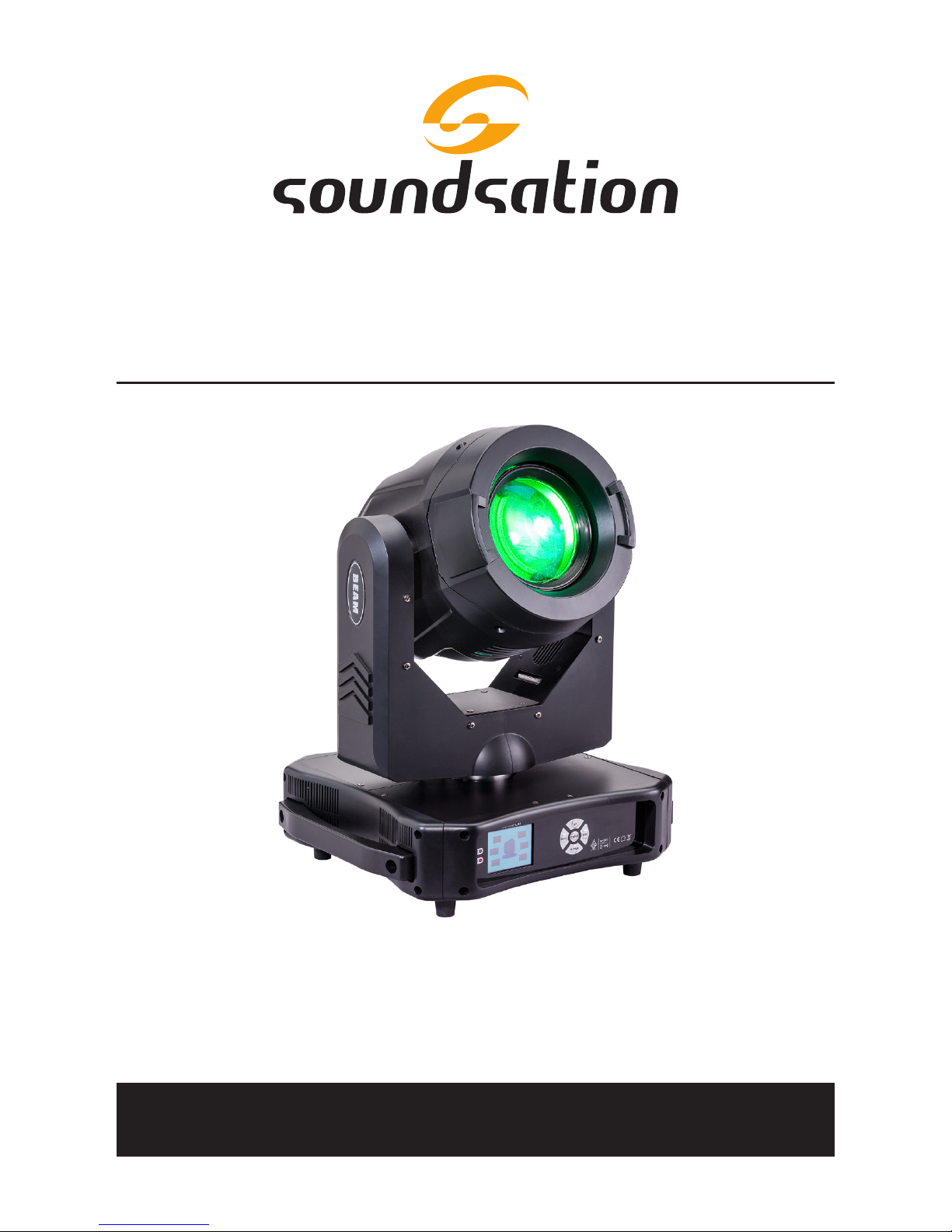

Sound Sation SPIRE 200 BEAM User manual

SPIRE BEAM SERIES
PROFESSIONAL BEAM MOVING HEADS
Please read this manual carefully and properly take care of it
USER MANUAL
Leggete questo manuale e conservatelo per future consultazioni
MANUALE UTENTE

Dear customer,
First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument and professional audio users offering a wide
range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are
looking for a feedback from you about the operation of the product and possible
improvements to introduce in the next future. Go to our website www.soundsation-
music.com and send an e-mail with your opinion, this will help us to build instruments
ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team
Gentile Cliente,
Grazie per aver scelto un prodotto SOUNDSATION®. La nostra missione è quella di
offrire ai nostri utenti una vasta gamma di strumenti musicali ed apparecchiature audio
e lighting con tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, saremmo
lieti di ricevere un vostro feedback sulla qualità del prodotto al ne di migliorare co-
stantemente la nostra produzione. Visitate il nostro sito www.soundsationmusic.com ed
inviateci una mail con la vostra opinione, questo ci aiuterà a sviluppare nuovi prodotti
quanto più vicini alle vostre esigenze.
Un’ultima cosa, leggete il presente manuale al ne di evitare danni alla persona ed al
prodotto, derivanti da un utilizzo non corretto.
Il Team SOUNDSATION

3
ENGLISH
TABLE OF CONTENTS
1. INTRODUCTION.........................................................................................................6
1.1. UNPACKING .............................................................................................................................................................6
1.2. Accessories...............................................................................................................................................................7
2. OVERVIEW..................................................................................................................7
3. PRODUCT SPECIFICATION........................................................................................7
4. MAINS CONNECTIONS .............................................................................................8
5. DMX CONNECTION...................................................................................................8
5.1. DMX Terminator .....................................................................................................................................................9
5.2. 3-Pin vs 5-Pin DMX cables.................................................................................................................................9
6. INSTALLATION.........................................................................................................10
7. FRONT PANEL DESCRIPTION .................................................................................12
8. REAR PANEL DESCRIPTION....................................................................................12
9. LCD TOUCH-SCREEN OPERATION .........................................................................13
9.1. Address Menu.......................................................................................................................................................13
9.2. Work Mode Menu ...............................................................................................................................................14
9.3. Display Menu.........................................................................................................................................................15
9.4. Test Menu................................................................................................................................................................16
9.5. Advanced Menu ...................................................................................................................................................16
9.6. Statistics Menu......................................................................................................................................................17
9.7. Escape Function....................................................................................................................................................17
10. TROUBLESHOOTING ...............................................................................................18
11. LUMINANCE DIAGRAMS ........................................................................................19
12. CHANNEL MODES ...................................................................................................20
12.1. 16CH MODE...........................................................................................................................................................20
12.2. 20CH MODE...........................................................................................................................................................21
13. SPECIFICATIONS ......................................................................................................23
14. COLOR WHEEL .........................................................................................................24
15. GOBO WHEEL...........................................................................................................24
16. WARRANTY AND SERVICE .....................................................................................25
17. WARNING.................................................................................................................25

4
ENGLISH
SPIRE SERIES User manual
IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating con-
ditions, which may be sufcient to constitute the risk of electric shock
or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
To protect the environment, please try to recycle the packing material
as much as possible
The projector is for indoor use only, IP20. Use only in dry locations.
Keep this device away from rain and moisture, excessive heat, humid-
ity and dust. Do not allow contact with water or any other uids, or
metallic objects.
Don’t throw this product away just as general trash, please deal with
the product follow the abandon electronic product regulation in your
country.
0.5m
Locate the xture in a well ventilated spot, away from any ammable
materials and/or liquids. The xture must be xed at least 50cm from
surrounding walls
TAKING CARE OF YOUR PRODUCT
fRead these instructions
fKeep these instructions
fHeed all warning

5
ENGLISH
SPIRE SERIES User manual
fFollow all instructions
1) Water / Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
2) Condensation
To avoid condensation to be formed inside, allow this unit to adapt to the surrounding
temperatures when bringing it into a warm room after transport. Condense sometimes
prevents the unit from working at full performance or may even cause damages.
3) Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat. Don not use it when maximum ambient tempera-
ture is higher than 40°C.
4) Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer’s instructions.
5) Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
6) Power Cord and Plug
Protect power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus. Do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug has two poles; a
grounding-type plug has two poles and a third grounding terminal. The third prong is
provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement. Unplug the unit when it is not used for a longer time.
7) Power Supply
In case of external power supply, the apparatus should be connected to the power sup-
ply only of the type as marked on the apparatus or described in the manual. Failure to
do could result in damage to the product and possibly the user. Unplug this apparatus
during lightning storms or when unused for long periods of time.
8) Electrical Connection
Always disconnect from the power source before servicing or replacing fuse and be
sure to replace with same fuse size and type. Cut off power before moving, repairing
and cleaning the unit. Improper electrical wiring may invalidate the product warranty.

6
ENGLISH
SPIRE SERIES User manual
To avoid electric shock, all xtures must be connected to circuits with a suitable ground.
Do not power on and power off the xture in a short time.
9) DMX connection
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source).
10) Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
11) Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.
1. INTRODUCTION
Thank you for purchasing our SPIRE beam moving head. Enjoy your new equipment
and make sure to read this manual carefully before operation!
This user manual is made to provide both an overview of controls, as well as informa-
tion on how to use them. In order to help you to understand the connections between
the various controls, we have gathered in groups according to their functions.
1.1. UNPACKING
Your SPIRE BEAM moving head was carefully packed to ensure safe transport. Despite
this, we recommend you to carefully examine the package and its contents for any
signs of physical damage, which can occur during transport. Each unit has the following
parts:
fMoving Head
fPower Cord
f2 x Clamps
fUser manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
If anything damaged during transport, notify the shipper immediately and keep the
packing material for inspection. Again, please save the carton and all packing materi-
als. If the xture must be returned to manufacturer, it is important that the xture be
returned in the original manufacturer box and packing. Please do not take any action
without rst contacting us.

7
ENGLISH
SPIRE SERIES User manual
1.2. Accessories
SOUNDSATION can supply a wide range of quality accessories that you can use with
your SPIRE Series moving head, like Cables, Splitters, DMX controllers, and a wide range
of other xtures.
All products in our catalogue has been long tested with this device, so we recommend
you to use Genuine SOUNDSATION Accessories and Parts.
Ask your SOUNDSATION dealer or check out our website www.soundsationmusic.com
for any accessories you could need to ensure best performance of the product.
2. OVERVIEW
SPIRE series is a new line of professional beam moving heads designed to meet the
needs of show lighting in rental and xed installations contexts. The lineup consists of
three models with standard 5R (200W), 7R (230W) and 10R (280W) metal-halide lamps,
and a color temperature of 8000K.
Ideal for medium-large environments, the emission angle of the light beam is 4 ° with
a maximum luminance that in the model with 10R lamp reaches 38,000 Lux @ 20m
(288,000 Lux @ 1m), with diameters ranging from 1.5m to 0.35m. PAN and TILT move-
ments are driven by three-step motors and give greater accuracy and silence. SPIRE
Series is equipped with 0° - 4° linear electronic focus which determines a powerful and
well-dened beam, even at long distances.
All models mount wheels-colors with 14 dichroic + white with rainbow effect, and a
xed gobo wheel with 17 gobos + white (6 colors + 11 neutral). There are an 8-facet
prism and a 16-facet prism (which can be overlap) with self-rotation and shaking effect.
The shutter creates strobe effects at a maximum of 13 Hz; the dimmer is linear from 0%
to 100%. The DMX512 control is at 16 and 20 channels.
3. PRODUCT SPECIFICATION
fStandard 5R (200W), 7R (230W) and 10R (280W) metal-halide lamps
fPan 540° / Tilt 265° indexing, high precision Pan/Tilt movement, with 16bit auto-
matic error correction, extra speed movements
f3-phase motor for both PAN and TILT with faster moving speed and low-noise
fLuminous Flux: up to 205.000 Lux @1m (5R model), 217.500 Lux @1m (7R model),
288.000 Lux @1m (10R model)
f14+open color wheel with color correction devices. 2 CTO lters (3200 K and 2500
K) + 1 CTB lter, two-way rainbow effect, half color effects
fGobo wheel: 11+open stamped xed variable rotating metal gobos combine with
6 HQ dichroic / indexing / overlapping glass gobos; 3 beam diameter reducer

8
ENGLISH
SPIRE SERIES User manual
lters on the xed gobo wheel
fGobo-Shaking function
fGobo motorized focusing
fFrost lter for soft-edge projections
fTwo indexing / superimposed /rotating prisms (16-facet circular prism and 8-facet
circular prism), which is able to superimposed on all the gobos, both in and out of
focus.
fFull Color, touch-sensible, 180° Reversible LCD Menu Display with Battery backup
(setup operable by end user without connecting the unit to power)
4. MAINS CONNECTIONS
Connect the device to the mains with the supplied power cable. Please note that power
voltage and frequency are the same as the marked voltage and frequency of device
when connecting power. Wire correspondence is as follows:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking
into operation for the rst time, the installation has to be approved by an
expert.
5. DMX CONNECTION
DMX xtures are designed to receive data through a serial Daisy Chain. A Daisy Chain
connection is where the DATA OUT of one xture connects to the DATA IN of the next
xture. The order in which the xtures are connected is not important and has no effect
on how a controller communicates to each xture. Use an order that provides for the
easiest and most direct cabling.
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512

9
ENGLISH
SPIRE SERIES User manual
Connect xtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to
female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and
pin 3 is Data positive (S+).
CAUTION: Wires must not come into contact with each other; otherwise the
xtures will not work at all, or will not work properly.

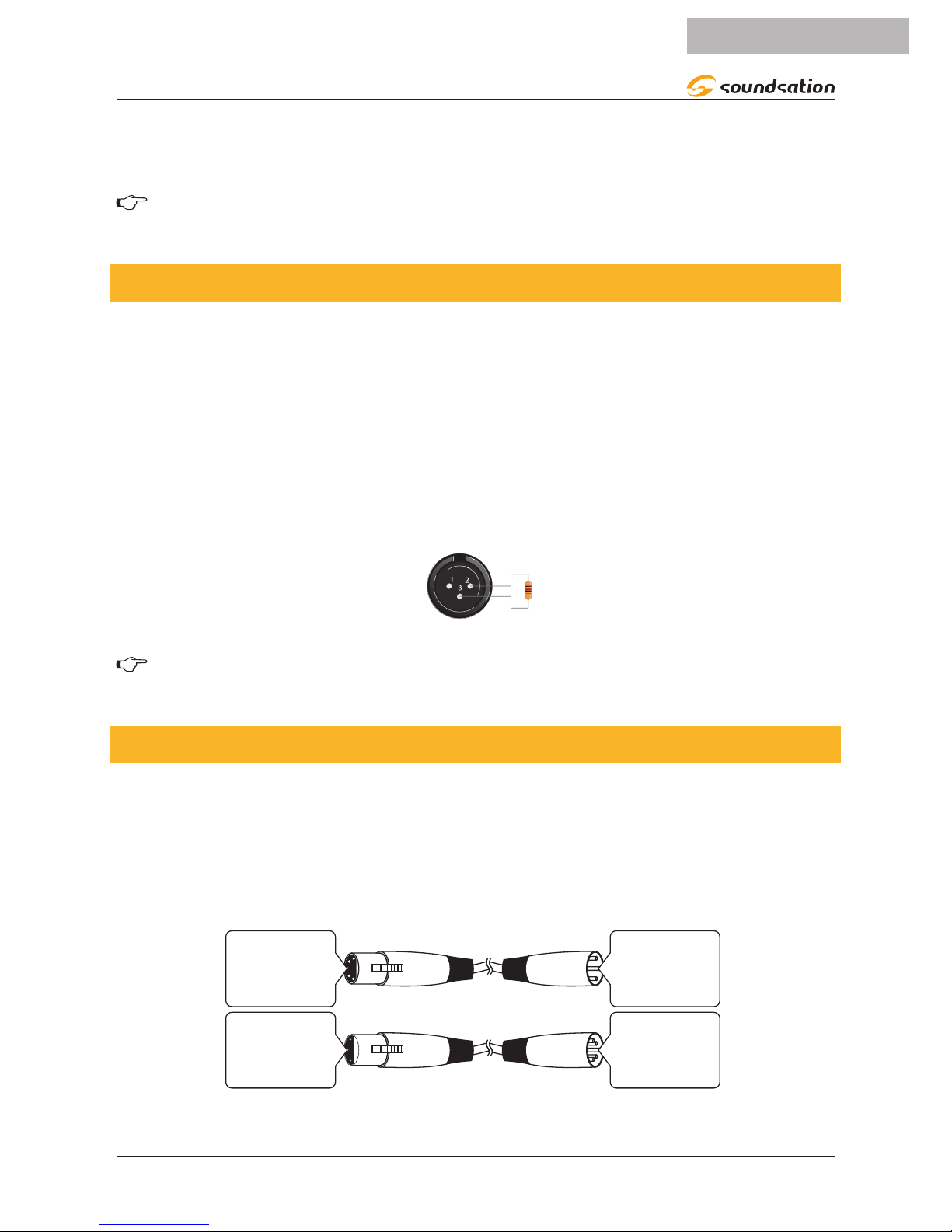

5.1. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control
signals, a good habit is to connect DMX output of last xture in the chain to a DMX
terminator, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω (ohm), 1/4 Watt resistor
connected across Signal (-) and Signal (+), respectively, pins 2 and 3, which is then
plugged into the output socket on last projector in the chain. The connections are
illustrated below.
120ohm, 1/4W
resistor
DMX Terminator
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
5.2.3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and xtures manufacturers are not stan-
dardized around the world. However, two are the most common standards: 5-Pin XLR
and 3-Pin XLR system. If you wish to connect MOOD 185 WASH to a 5-Pin XLR input
xture, you need to use an adapter-cable or make it by yourself.
Following the wiring correspondence between 3-Pin and 5-Pin plug and socket stan-
dards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)

10
ENGLISH
SPIRE SERIES User manual
6. INSTALLATION
Pay attention to safety! Please respectively consider the EN 60598-2-17 and
the national standard during the installation. The authorized dealer must
only carry out the installation.
The installation of the xture has to be built and constructed in a way that it can hold
10 times the weight for 1 hour without any harming demolition. The installation must
always be secured with a secondary safety attachment, e.g. an appropriate catch net.
This secondary safety attachment must be constructed in a way that no part of the
installation can fall down if the main attachment fails.
When rigging, de-rigging or servicing the xture staying in the area below the instal-
lation place, on bridges, under high working places and other endangered areas is
forbidden. The operator has to make sure that the safety measure and the machine’s
technical installation is approved by an expert before taking into operation for the rst
time and after changes before taking into operation anther time. He has also to make
sure that an expert approves safety measure and the machine’s technical installation
once a years.
WARNING: The xture should be installed outside areas where persons may
walk by or be seated.
IMPORTANT: Overhead rigging requires extensive experience, including (but
not limited to) calculating working load limits, installation material being
used, and periodic safety inspection of all installation material and the pro-
jector. If you lack these qualications, do not attempt the installation your-
self, but instead use a professional structural rigger. Improper installation can
result in bodily injury or property loss.
If the xture shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The xture must never be xed swinging freely in the room.
Before rigging make sure that the installation area can hold a minimum point load of 10
times the projector’s weight.
CAUTION: Fixture may cause severe injuries when crashing down. If you have
doubts concerning the safety of a possible installation, do not install the
xture!
CAUTION: Use two appropriate clamps to rig the xture on the truss. Follow
the instructions mentioned at the bottom of the base. Make sure that the
device is xed properly! Ensure that the structure (truss) to which you are
attaching the xtures is secure.
DANGER OF FIRE! When installing the device, make sure there is no highly
inammable material (decoration articles, etc.) within a distance of minimum
0.5 meter.

11
ENGLISH
SPIRE SERIES User manual
The moving head can be placed directly on the oor or rigged in any orientation on a
truss, without altering its operation characteristics. Please refer to the picture below and
strictly follow the instructions.
5
1
2
3
55
4
90°
2
6
fUse clamps suitable for the section of the truss on which you want to x the mov-
ing head.
fInsert the screw in the central hole of the bracket n.2, and tighten the nut supplied
with the clamp (and any washers always supplied with the clamp).
fPlace the plugs with wings n.3 in the direction of the holes n.5 placed under the
base of the moving head. Screw them clockwise for about 90°, until you hear a click
that indicates the achievement of the correct and safe position.
fHook the moving head to the truss through the two clamps now perfectly xed to
the base, and screw the wing-screw n.4 so as to tighten the moving head and avoid
as much as possible vibrations during the use of the xture.
fFor overhead use, always install a safety rope that can hold at least 10 times the
weight of the xture. Hook the safety cable to the hole n.6 located under the base
of the moving head.

12
ENGLISH
SPIRE SERIES User manual
7. FRONT PANEL DESCRIPTION
Esc
UP
Menu
Down
Enter
SPIRE 280 BEAM
2 3 4
6 7
1
5
N. Name Function
1 MIC LED Flashes when the internal microphone receives sounds under Sound Active
function
2 MENU Button Enters menus or comes back to previous menu after having nished editing
3 UP Button Moves Up during function scrolling, or increases value during parameter
adjustment
4 ESC Button Exits menu or parameter adjustment in case you do not wish to conrm the
parameter variation
5 SIG LED Flashes when the unit receives DMX signals under DMX control
6 ENTER Button
Enters the selected function, or conrms the parameter modication.
When the machine is off, by holding down this button for a few seconds,
it activates the display so as to allow the moving head to be set up even
without connection to the mains
7 DOWN Moves Down during function scrolling, or deceases value during parameter
adjustment
8. REAR PANEL DESCRIPTION
SPIRE 280 BEAM
MADE IN CHINA
DMX IN DMX OUT POWER FUSE OFF
ON
2 3 41 5
1. DMX Input 3-poles XLR Male connector for DMX512 protocol communication.
2. DMX Output 3-poles XLR Female connector for DMX512 protocol communication.

13
ENGLISH
SPIRE SERIES User manual
3. Power Input connector. Connect here the supplied power cord.
4. Fuse Holder: In case of fuse-burn, unscrew the holder cap and replace the fuse with
same size and type (F5A/250V - 20x5mm).
5. Power On/Off switch.
9. LCD TOUCH-SCREEN OPERATION
At machine power-on, the display rst shows software revision numbers (gure below
on the left), then resets all the electrical and mechanical parts (center gure). Once the
start-up procedure is nished and the start bar turns completely blue, the main MENU
appears. It provides six sub-menus (right gure): ADDR, MODE, DISP, TEST, ADVA, and
STAT.
Press the orange keys on the display or use the UP / DOWN keys to navigate the vari-
ous menus and the ENTER key to access the desired one.
9.1. Address Menu
The ADDR menu allows you to set the DMX channel of the machine between 1 and 512.
To change it, touch the display on current value area (gure below on the left); a win-
dow will open with UP / DOWN keys and cursor through which to increase or decrease
the channel number. Use the “ ” key to conrm, or MENU to exit without conrming.

14
ENGLISH
SPIRE SERIES User manual
9.2.Work Mode Menu
This menu allows you to choose the operating mode.
DMX Ctrl / Auto Run / Sound Ctrl: They are, respectively, the DMX control mode, the
automatic mode, and the sound control, thought which the machine is controlled by
the sound present in the surrounding environment.
Choose the desired mode by tapping it on the display. The selected one is indicated by
a tick ( ).
M/S Choose: When ON, the xture operates as MASTER unit; when OFF, the xture is
SLAVE. Of course this requires that two or more machines are used together.
Connect them in series, where the DMX OUT of one xture connects to the DMX IN of
the next xture. The rst light controls the others in auto show, sound control show,
and so on. This mode is specically intended for instant show setup. First light must be
set as master light.
Light Switch: Allows you to turn the lamp on or off. This command is useful when
you want to reduce the consumption of the lamps, making sure that it is always off at
moving head power-on. It will then be possible to switch it on via DMX command only
when the light show starts.
Channel Qty: Allows to select between simple DMX (16CH) and expanded (20CH) mod-
els. For further details see “12. CHANNEL MODES” on page 20.

15
ENGLISH
SPIRE SERIES User manual

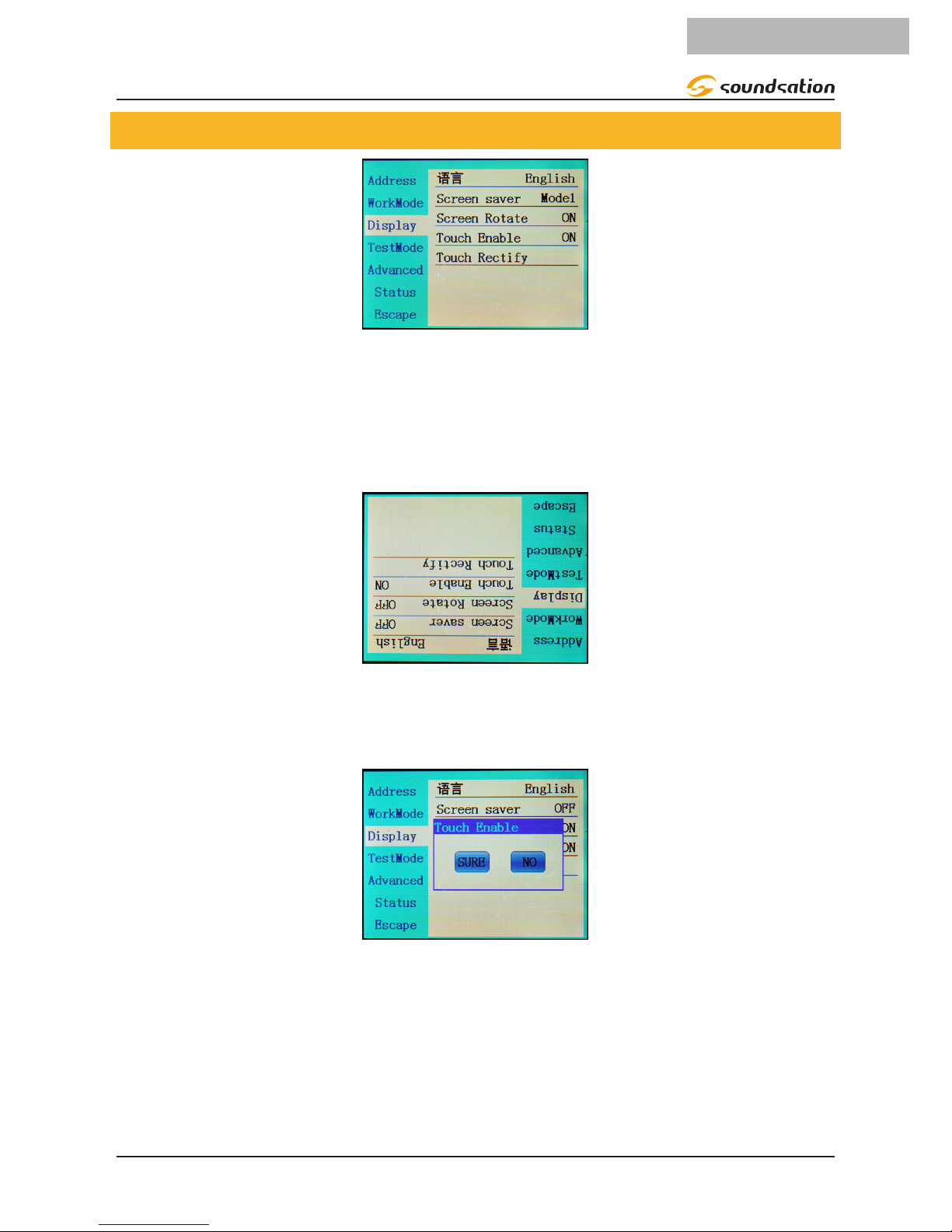

9.3.Display Menu
Language: selects the display language between English and Chinese.
Screen Saver: activates the screen saver and chooses among three modes (OFF,
Mode1, Mode2, Mode3).
Screen Rotate: when in ON position, the display is at 0 °; when in OFF it is at 180°.
Touch Enable: Normally it is set to ON. By changing to OFF, the display touch can be
deactivated. In this case, you have to use front panel buttons only to set up the ma-
chine.
Touch Rectify: it runs a touch-calibration procedure. The display will ask you to press in
succession the four display corners. Once nished, it returns to Display Menu.

16
ENGLISH
SPIRE SERIES User manual

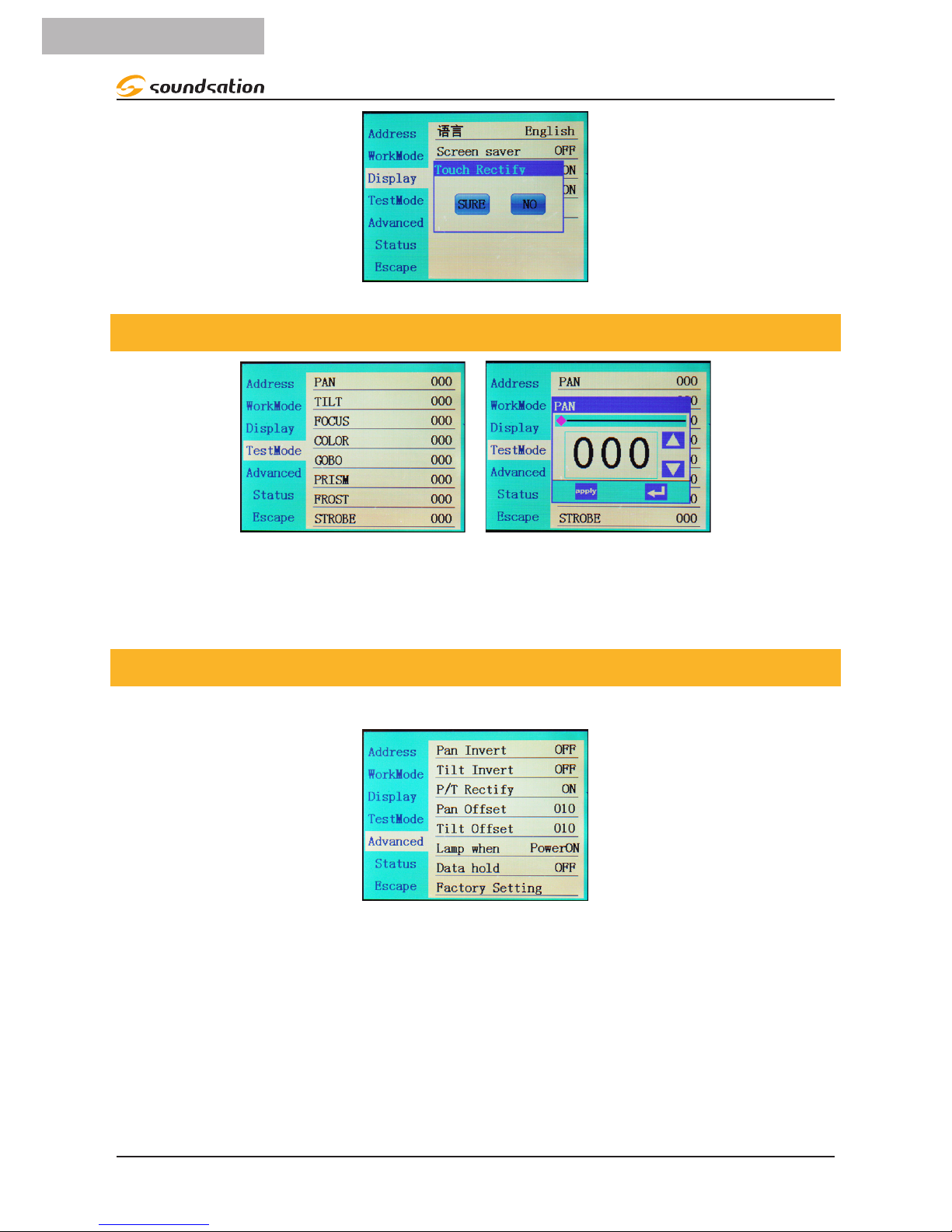

9.4.Test Menu
This menu allows you to test all the main functions of the machine, that is PAN, TILT,
FOCUS, COLOR Wheel, GOBO wheel, PRISMs, FROST, and STROBE. Each function ac-
cesses a sub-window through which to change the value between 0 and 255.
9.5.Advanced Menu
This menu accesses to advanced options as follow:
Pan Invert: It can be OFF (normal) or ON (inverted).
Tilt Invert: It can be OFF (normal) or ON (inverted).
P/T Rectify: It can be OFF or ON. This function allows both PAN and TILT movements
to be electronically corrected in case of positioning errors.
Tilt Offset and Pan Offset: They adjust, respectively, PAN/TILT offset position. Value
ranges from 000 to 150, depending on motor characteristics.

17
ENGLISH
SPIRE SERIES User manual
Data hold: It can be ON / OFF. During the control from the DMX control unit, if the
function is OFF, by switching off the control unit, the moving head returns to the rest
position DMX. When the control unit is ON and the control unit is switched off, the
moving head keeps all the last values of the received DMX controls.
Factory Setting: It resets the unit to factory settings.
9.6.Statistics Menu
It shows some current parameters values, like work mode, DMX channel, software ver-
sion, elapsed time from last power on cycle, machine total elapsed time.
9.7. Escape Function
This function brings back to the previous menu.

18
ENGLISH
SPIRE SERIES User manual
10. TROUBLESHOOTING
Problem Probable cause(s) Remedy
No response from xture
when power is applied
No power to xture Check power cables
Primary fuse blown Replace fuse
Secondary fuse blown Replace fuse
Fixture resets but does not
respond correctly to control-
ler (DMX mode operation)
Controller not connected Connect controller
Incorrect addressing of the
xtures
Check address setting on xture
and controller
Bad data link connection Inspect cables and correct poor
connections and/or broken cables
Conict between tracking
and vector control
Eliminate scene cross-fade on
controller
Data link not terminated Insert termination plug in output
of last xture
Defective xture or 2 devices
transmitting on link
Bypass xtures one at a time until
normal operation is regained: un-
plug both connectors and connect
them directly together
Colors cannot be mixed Random color mixing is on Turn off random color mixing
Fixture does not reset cor-
rectly
Electronic or mechanical
failure Contact service technician
No light, lamp cuts out
intermittently, or burns out
too quickly
Lamp missing or blown Disconnect xture and replace
lamp
Fixture or lamp is too hot Allow xture to cool. If problem
persists, contact service technician

19
ENGLISH
SPIRE SERIES User manual

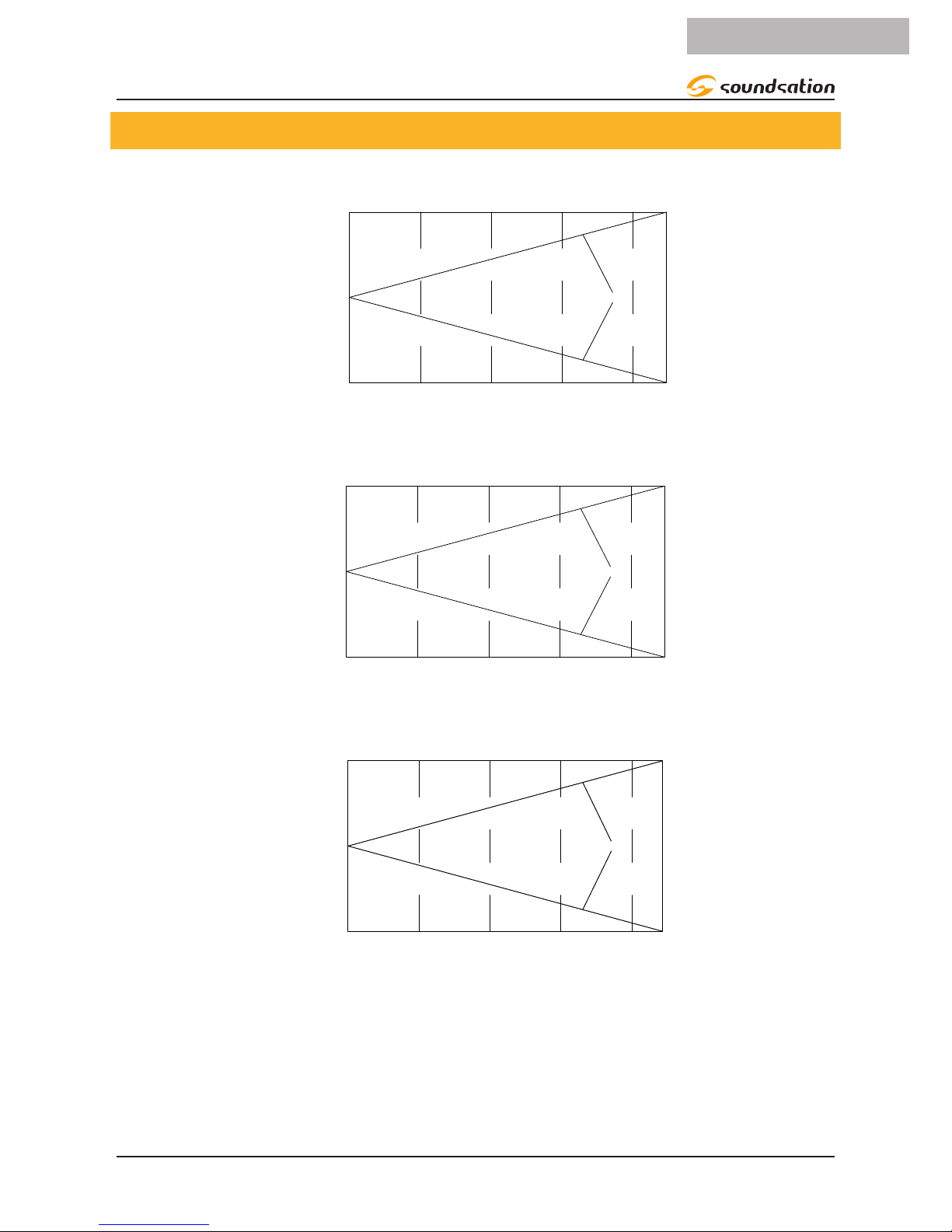

11. LUMINANCE DIAGRAMS
SPIRE 200 BEAM
Distance (m)
0510 15 20
4o
(Lux) 205000 90000 37600 21700
Diameter (m) 00.37 0.73 1.10 1.47
SPIRE 230 BEAM
D
istance(m) 0510 15 20
4o
(Lux) 217500
87000
39900 20000
D
iameter(m)
0
0.37 0.73 1.10
1.47
SPIRE 280 BEAM
Distance(m)
0510 15 20
4o
(Lux) 288000 124000 65000 38000
Diameter(m)00.35 0.75 1.13 1.50

20
ENGLISH
SPIRE SERIES User manual
12.CHANNEL MODES
12.1. 16CH MODE
Channel Function Effect
1 X 0-255, 0°-540°
2 Y 0-255, 0°-265°
3 X 16 Bit 0-255
4 Y 16 Bit 0-255
5 X/Y speed 0-255, from fast to slow
6 Frost 0-255
7 Strobe 1-50 LAMP on; 51-240 from slow to fast; 241-255 off
8 Dimmer 0-255, from dark to bright
9 Color
0-7 - Open
8-15 - Red
16-23 - Yellow
24-31 - Blue
32-39 - Green
40-47 - Orange-Red
48-55 - Rose-Red
56-63 - Amaranth
64-71 - Fluorescence
72-79 - Orange
80-87 - Light Blue
88-95 - Olive
96-103 - Light Blue-Purple
104-111 - Brown (Cold White)
112-127 - CTO
128-191 - Anti-clockwise Slow to Fast
192-255 - Clockwise Slow to Fast
10 Half color 0-127, Off
128-255, On
11 Gobo Wheel
0-6, Open
7-13, Gobo 1
14-20, Gobo 2
21-27, Gobo 3
28-34, Gobo 4
35-41, Gobo 5
42-48, Gobo 6
49-55, Gobo 7
56-62, Gobo 8
63-69, Gobo 9
70-76, Gobo 10
77-83, Gobo 11
84-90, Gobo 12
91-97, Gobo 13
98-104, Gobo 14
105-111 Gobo 15
112-118, Gobo 16
119-127, Gobo 17
128-191 - Anti-clockwise Slow to Fast
192-255 - Clockwise Slow to Fast
