Spirit Xe795 User manual

XE795 ELLIPTICAL TRAINER

OWNER’S MANUAL

TABLE OF CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS

4 IMPORTANT ELECTRICAL INSTRUCTIONS

5 PRODUCT REGISTRATION

5 IMPORTANT OPERATION INSTRUCTIONS

6 XE795 ASSEMBLY INSTRUCTIONS

14 CONSOLE OPERATION

21 PROGRAMMABLE FEATURES

34 USING HEART RATE TRANSMITTER

37 GENERAL MAINTENANCE

38 MANUFACTURER’S LIMITED WARRANTY

Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing,

adjustments, repair or maintenance that is not described in this manual.

Congratulations on your new elliptical trainer and welcome to the Spirit Fitness family!

Thank you for your purchase of this quality elliptical trainer from Spirit Fitness.Your new elliptical trainer was manufactured by

one of the leading tness manufacturers in the world and is backed by one of the most comprehensive warranties available.

Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many

years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased this elliptical trainer is your

administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical knowledge

and service personnel to make your experience more informed and any difculties easier to remedy.

Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase below to

make any future, needed contact easy.We appreciate your support and we will always remember that you are the reason that

we are in business.

Yours in Health,

Spirit Fitness

NAME OF DEALER ___________________________________________

DEALER PHONE # ___________________________________________

PURCHASE DATE ___________________________________________

Important Saftey Instructions

IWARNING

• Read all instructions before using this appliance.

• Do not operate elliptical trainer on deeply padded, plush

or shag carpet. Damage to both carpet and elliptical

trainer may result.

• Keep children away from the elliptical trainer.There are

obvious pinch points and other caution areas that can

cause harm.

• Keep hands away from all moving parts.

• Never operate the elliptical trainer if any of the parts are

damaged. If the elliptical trainer is not working properly,

call your dealer.

• Do not operate where aerosol spray products are being

used or where oxygen is being administered. Sparks from

the motor may ignite a highly gaseous environment.

• Never drop or insert any object into any openings.

• Do not use outdoors.

• Do not attempt to use your elliptical trainer for any

purpose other than for the purpose it is intended.

• The hand pulse sensors are not medical devices.

Their purpose is to provide you with an approximate

measurement in relation to your target heart rate. Use of

a chest transmitter strap is a much more accurate method

of heart rate analysis .Various factors, including the

user’s movement, may affect the a ccuracy of heart rate

readings.The pulse sensors are intended only as exercise

aids in determining heart rate trends in general.

• Wear proper shoes. High heels, dress shoes, sandals or

bare feet are not suitable for use on your elliptical trainer.

Quality athletic shoes are recommended to avoid leg

fatigue.

• Maximum User Weight: 400 lbs

SAVE THESE INSTRUCTIONS - THINK SAFETY!

Important Electrical Instructions

IWARNING

Be aware that the generator is producing A.C. power while

the elliptical trainer is being used. Do not service the elliptical

trainer while the generator is spinning; serious electric shock

could occur.

NEVER expose this elliptical trainer to rain or moisture.This

product is NOT designed for use outdoors, near a pool or

spa, or in any other high humidity environment.The operating

temperature specication is 40 to 120 degrees Fahrenheit, and

humidity is 95% non-condensing (no water drops forming on

surfaces).

Important Operation Instructions

• NEVER operate this elliptical trainer without reading and completely understanding the results of any operational change

you request from the computer.

• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer console

and release the adjustment key.The computer will obey the command gradually.

• Use caution while participating in other activities while pedaling on your elliptical trainer; such as watching television, reading,

etc.These distractions may cause you to lose balance which may result in serious injury.

• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger

pressure.

Record Your Serial Number

Please record the serial number of this tness product in the space provided

below.

Serial Number:

The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You

can also go to https://www.spirittness.com/residentialwarrantyregistration.html under the Support tab to

Serial Number Location

XE795 PRE ASSEMBLY

UNPACKING

1. Cut the straps, then lift the box over the unit and unpack.

2. Carefully remove all parts from the carton and inspect for any damage or missing parts. If

parts are damaged or missing, contact your dealer immediately.

3. Locate the hardware package. Remove the tools rst. Remove the hardware for each step as

needed to avoid confusion.The numbers in the instructions that are in parenthesis (#) are the

item number from the assembly drawing for reference.

TOOLS INCLUDED:

14/15mm Wrench

12/14mm Wrench

Phillips Screwdriver

5mm L Allen Wrench

8mm L Allen Wrench

PARTS INCLUDED:

1 Main Frame

1 Console Mast

1 Console Mast Cover

2 Swing Arms

2 Connecting Arms

6 Levelers

1 Console

2 Foot Pedals

1 Power Cord

1 Audio Cable

2 Transport Wheels

1 Hardware Kit

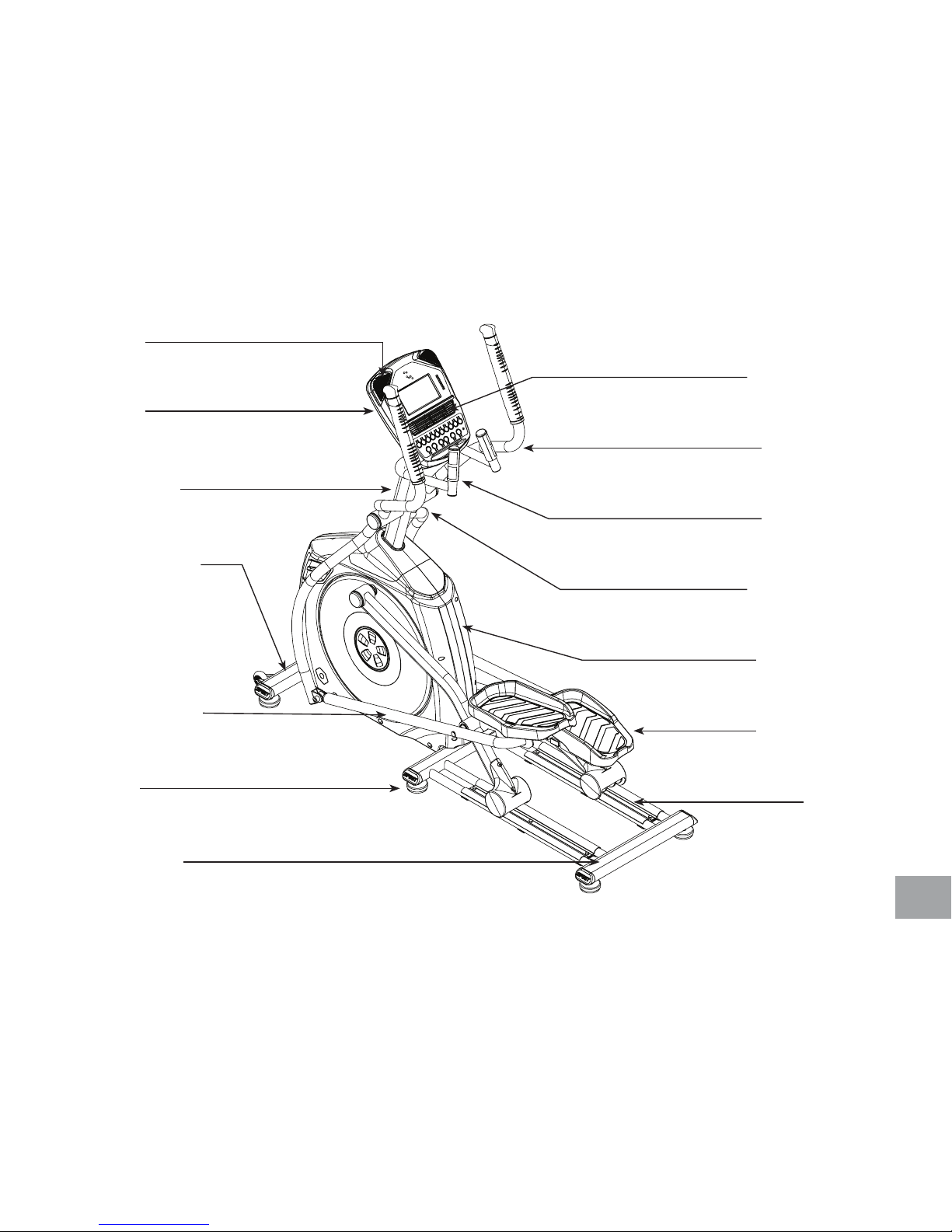

SPEAKERS

CONSOLE

CONSOLE MAST

CONNECTING ARM

LEVELERS

FRONT STABILIZER

REAR STABILIZER

FOOT PEDALS

MAIN FRAME

RAILS

WATER BOTTLE

HOLDER

PULSE GRIPS

SWING ARM

CONSOLE FAN

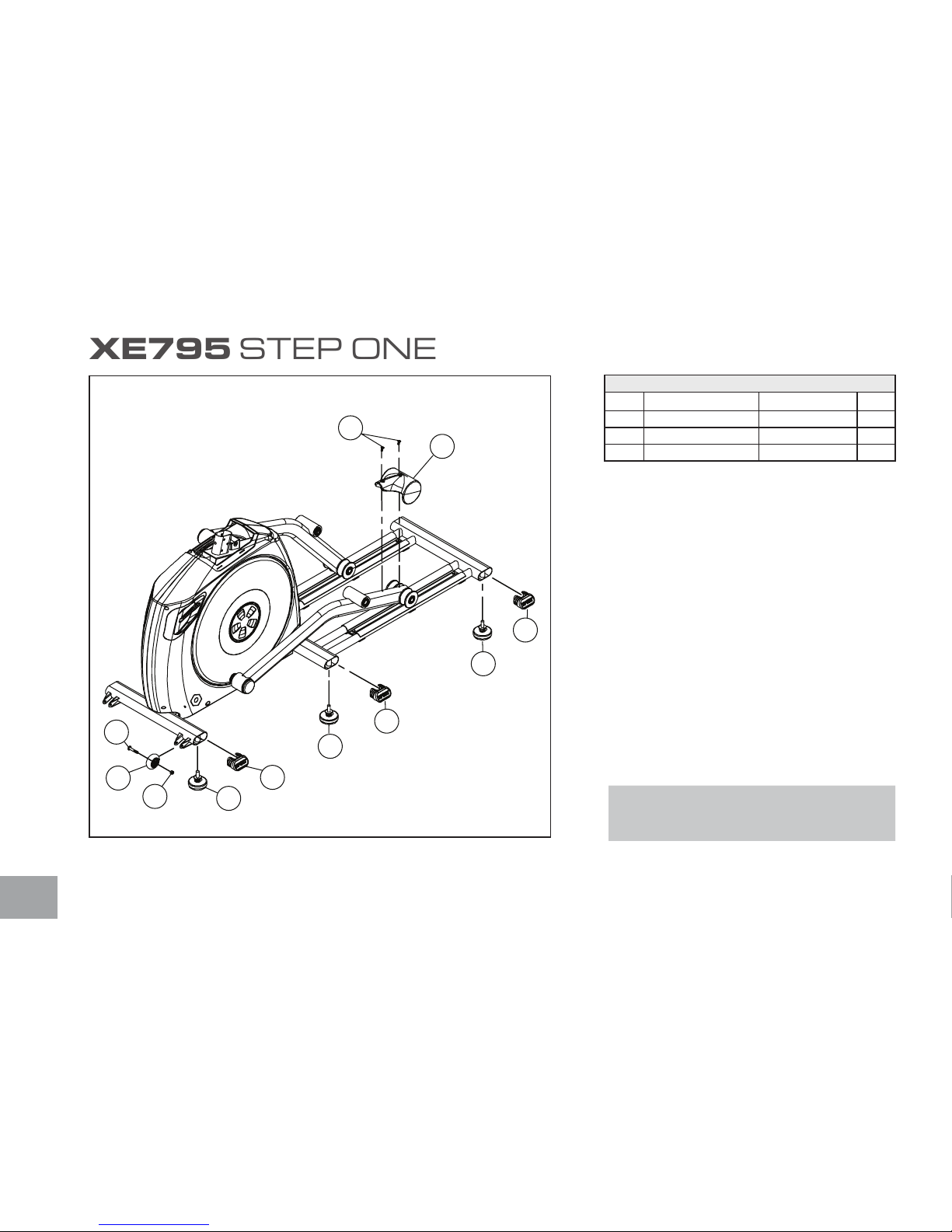

XE795 STEP ONE

HARDWARE FOR STEP 1

PART TYPE DESCRIPTION QTY

55 SCREW M5X10M/M 4

92 BOLT 5/16”X1-3/4” 2

99 NUT 5/16” 2

1. Gather HARDWARE FOR STEP 1.

2. Tilt the elliptical trainer to one side (you may want

to place a piece of Styrofoam or a block under the

unit for support). Install the 3 LEVELERS (81)

to the underside of the unit. Repeat this lever

assembly on opposite side of the unit.

3. Press the 6 END CAPS (82) into the oval

stabilizer tubes.

4. Attach the TRANSPORT WHEELS (80) to each

bracket with 2 BOLTS (92) and 2 NUTS (99).

Partially tighten with the 13/14mm WRENCH

and 5mm L WRENCH. Over tightening the

hardware will prevent the wheels from rotating.

5. Attach the ROLLER WHEEL COVERS (45)

with 4 SCREWS (55).Tighten with the screw

driver..

NOTE: When assembly is complete, the transport

wheels can be engaged by lifting the rear of the

elliptical trainer.

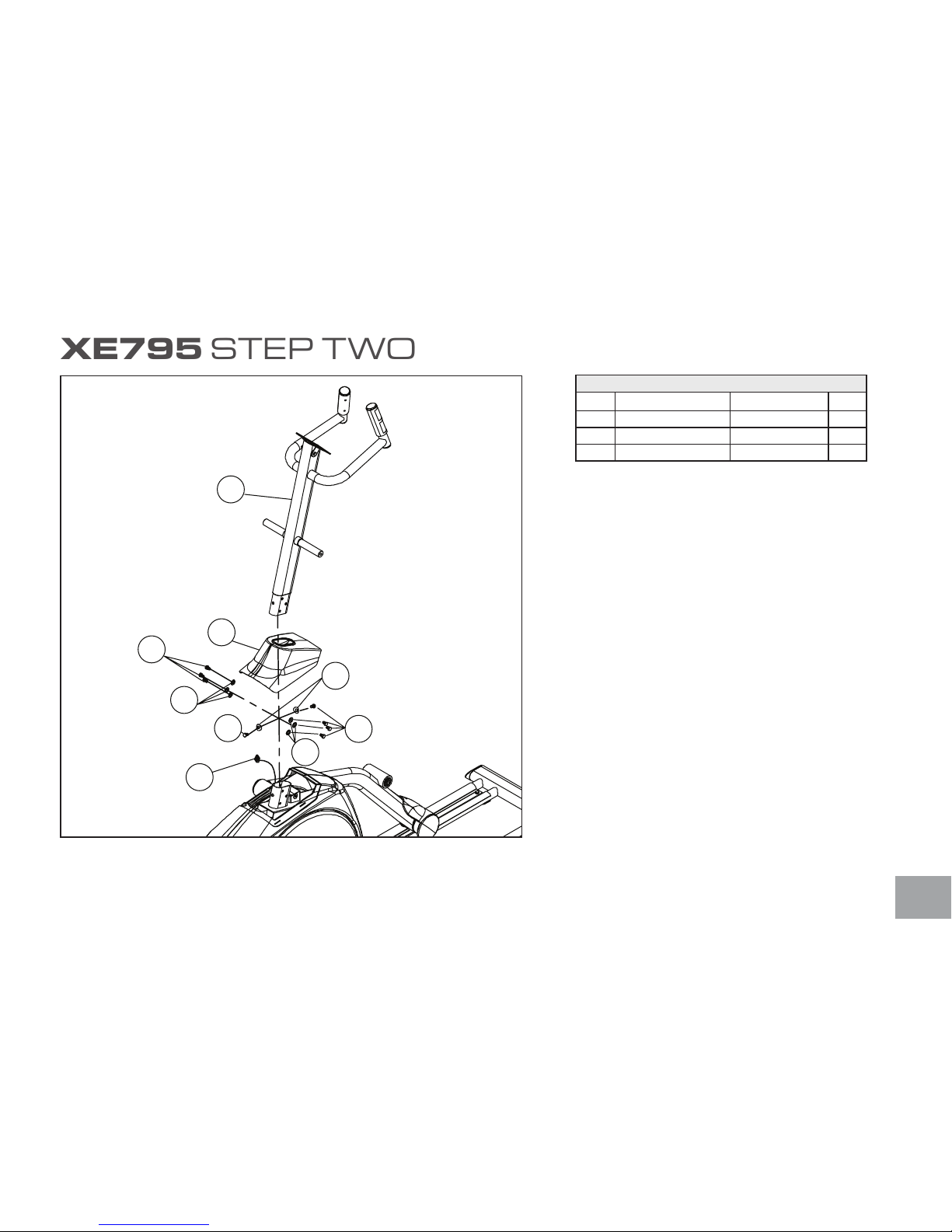

XE795 STEP TWO

HARDWARE FOR STEP 1

PART TYPE DESCRIPTION QTY

84 FLAT WASHER 3/8”X25X1.5T” 6

85 BOLT M8X15L” 8

86 CURVED WASHER 3/8”X23X2T 2

1. Gather HARDWARE FOR STEP 2.

2. Unwind the COMPUTER CABLE (27) from the

frame bracket and run it through the CONSOLE

MAST COVER (38). Use the twist tie at the

bottom of the CONSOLE MAST TUBE (2)

and wrap around the computer cable. Feed the

computer cable up through the MAST (2) and

pull through the top of the mast.

3. Insert the bottom of the CONSOLE MAST (2)

into the frame bracket. Be sure not to pinch the

computer cable between the mast and the frame

during this step.

4. Slide the CONSOLE MAST COVER (38) up

the CONSOLE MAST (2) and secure the mast

to the frame with 3 BOLTS (85) and 3 FLAT

WASHERS (84) to each side of the mast. Secure

with a BOLT (85) and CURVED WASHER (86)

to both the front and back of the mast.Tighten all

bolts with the 13/14 WRENCH.

5. Snap the CONSOLE MAST COVER (38) in

place over the frame covers.

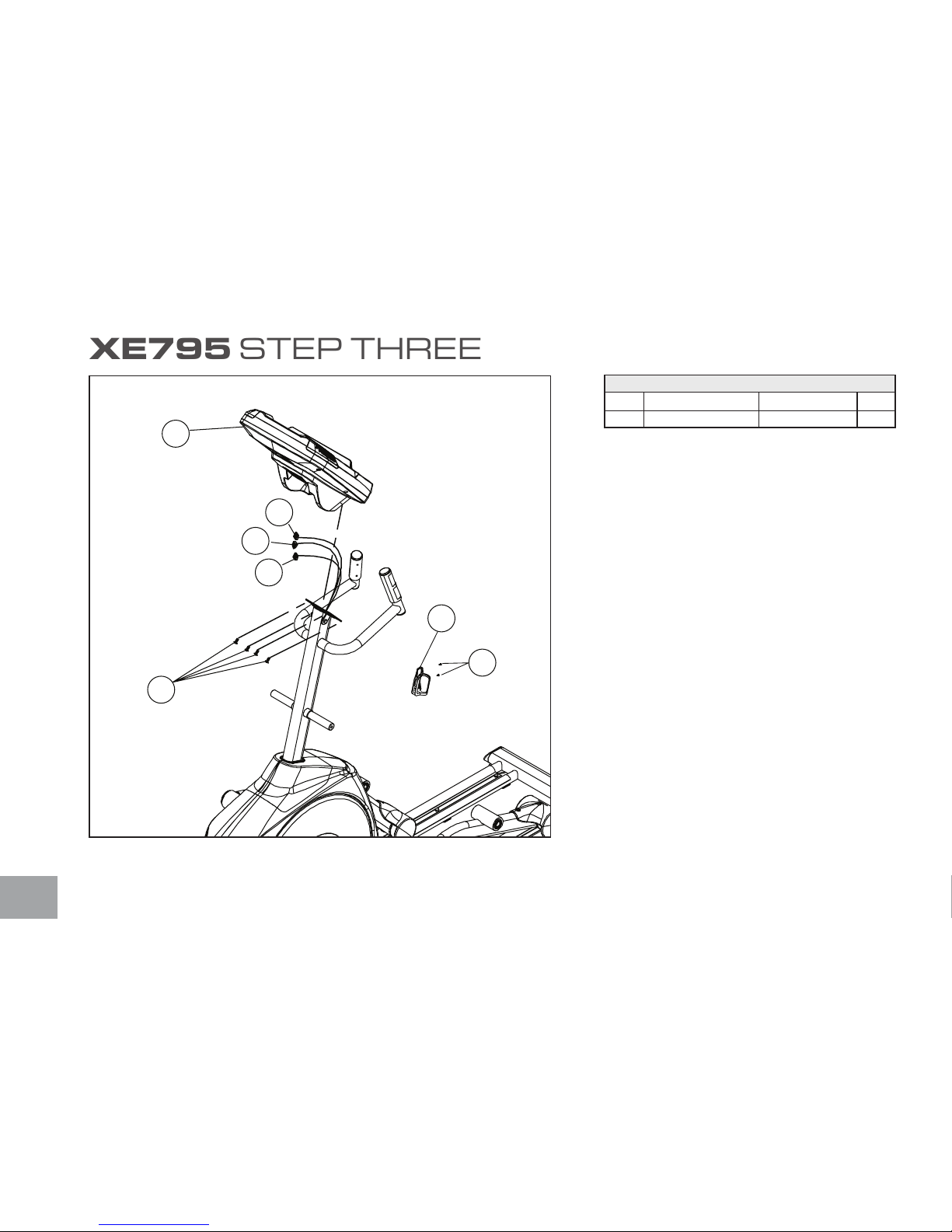

XE795 STEP THREE

HARDWARE FOR STEP 3

PART TYPE DESCRIPTION QTY

55 SCREW M5X10M/M” 6

1. Gather HARDWARE FOR STEP 3.

2. Plug the CONSOLE CABLE (27) and PULSE

GRIP CABLES (29 ) into the backside of the

console.

3. Secure the CONSOLE (26) to the CONSOLE

MAST with 4 SCREWS (55). Tighten with the

SCREW DRIVER.

4. Secure the WATER BOTTLE CAGE (83) to

the CONSOLE MAST with 2 SCREWS (55).

Tighten with the SCREW DRIVER.

XE795 STEP FOUR

HARDWARE FOR STEP 4

PART TYPE DESCRIPTION QTY

51 CUP WASHER M10 2

89 BOLT M10X1.5X20M/M 2

1. Gather HARDWARE FOR STEP 4.

2. Remove the foam from the console mast axles

and the plastic ties from the swing arm tube.

3. The swing arms will be labeled “L” for left and

“R” for right. Slide the LEFT SWING ARM (5)

onto the left console mast axle. The swing arms

have been preassembled at the factory to assure a

proper t. The t will be snug. Please do not force

the arm on the axle or use a hammer, as damage

to the bearings could occur.

4. Secure the swing arm to the mast with the CUP

WASHER (88) and the SOCKET HEAD CAP

BOLT (89).Tighten with the 8mm L WRENCH.

5. Snap on the decorative BUSHING

COVER (79).

6. Repeat these steps on the right side.

XE795 STEP FIVE

106

HARDWARE FOR STEP 5

PART TYPE DESCRIPTION QTY

91 BOLT M8X1.25X15L 6

90 BOLT 5/16X1-1/4” 2

87 NYLOC NUT 5/16” 2

106 WASHER 5/16X20X1.5T 2

1. Gather HARDWARE FOR STEP 5.

2. Take the LEFT CONNECTING ARM (9) and

slide the axle through the rotation tube on the left

pedal arm.

3. Secure the LEFT CONNECTION ARM

(9) in place with the LEFT CONNECTION

BRACKET (15) and 3 KEY HEAD SOCKET

BOLTS (91).Tighten with the 5mm L WRENCH.

4. Line up the socket joint at the end of the pedal

arm to the bracket on the bottom of the swing

arm. Secure together with the BOLT (90)

WASHER (106) and NUT (87). Tighten with the

13/14 WRENCH and the 12/14 WRENCH.

5. Repeat these steps on the right side.

XE795 STEP SIX

HARDWARE FOR STEP 6

PART TYPE DESCRIPTION QTY

55 SCREW M5X10M/M 8

1. Gather HARDWARE FOR STEP 6.

2. Install the FOOT PEDALS (L 47) (R 48) with

8 PHILIPS HEAD SCREWS (55). Tighten with

the SCREW DRIVER.

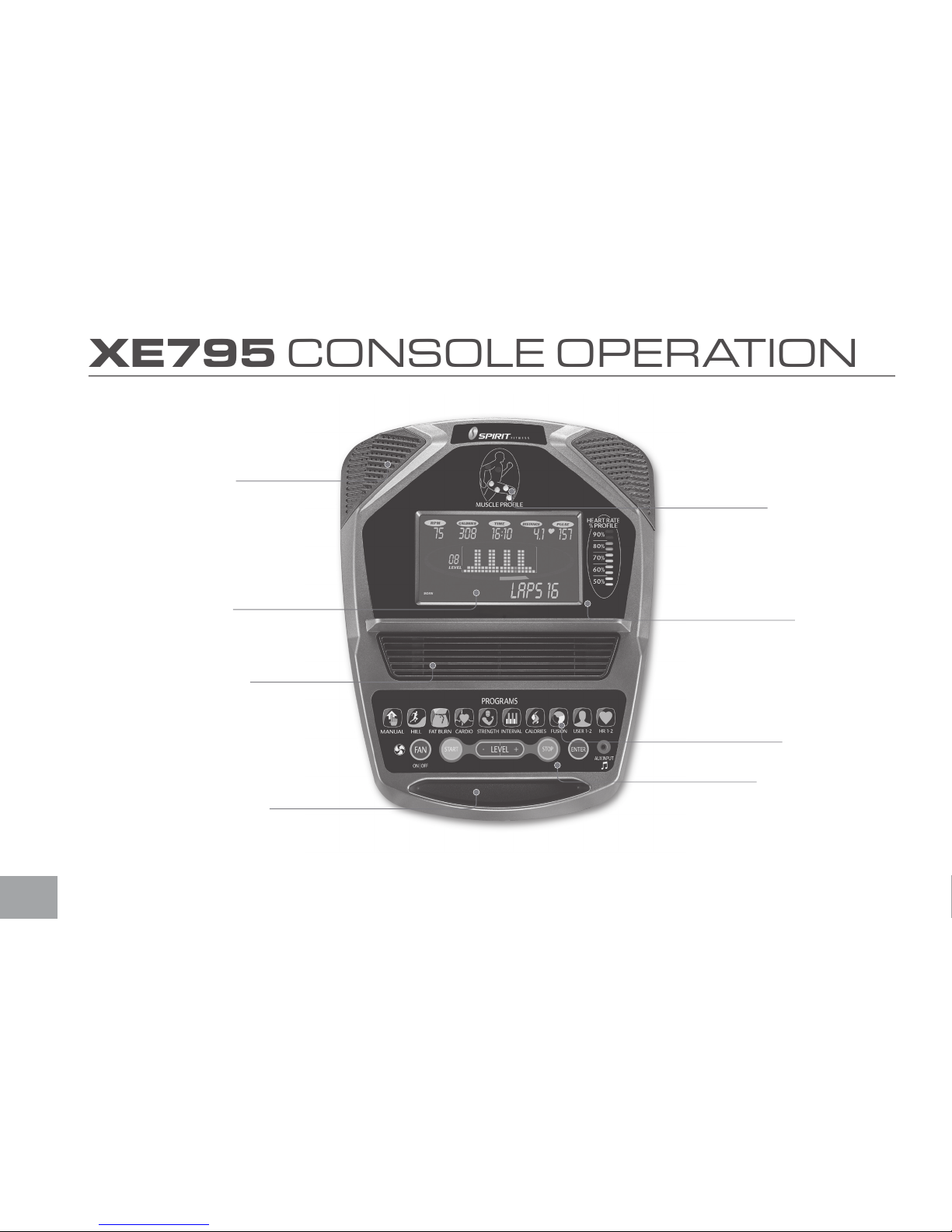

XE795 CONSOLE OPERATION

Ten innovative

programs offer a

variety of work-outs

Heart Rate % Proﬁle

Easy-Touch

Control Keys

Muscle

Activation Proﬁle

Swivel Fan to

keep you cool

Integrated Speakers

for MP3 Player

Convenient cargo

compartment for

keys, phone, or

MP3 player

Large LCD with

scrolling feedback

and scrolling

message center

POWER

The console power is created by a built in generator.When you begin pedaling the Elliptical trainer, the

console will automatically power up. If there is no movement at the ywheel, the console will go to stand-

by mode. In stand-by mode the console display will turn off. To turn the console on, begin pedaling.

When initially powered on the console will perform an internal self-test. During this time all the lights will

turn on. When the lights go off, the Message Center will show the software version (i.e.: VER 1.0). The

distance window shows the distance in miles and the time window shows the total hours of use.

The odometer will remain displayed for only a few seconds then the console will go to the start up display.

The dot matrix display will be scrolling through the different proles of the programs and the Message

Center will be scrolling the start up message. You may now begin to use the console.

Dot Matrix Center Display

Twenty columns of boxes (8 high) indicate each segment of a workout.The boxes only show an

approximate level (resistance) of effort. They do not necessarily indicate a specic value - only an

approximate percent to compare levels of intensity. In Manual Operation the resistance dot matrix window

will build a prole “picture” as values are changed during a workout.

The resistance proles will display half of the program at one time (9 columns). They will both scroll right

to left.The Lap track will move in a counterclockwise direction.

1/4 Mile Track

The 1/4-mile track (one lap) will be displayed around the dot matrix window. The ashing segment

indicates your progress. Once the 1/4-mile (Metric - 0.4k) is complete this feature will begin again. There is

a lap counter in the message window for monitoring your distance.

Pulse Grip Feature

The Pulse (Heart Rate) window will display your current heart rate in beats per minute during the

workout. You must use both stainless steel sensors on the stationary grips or the heart rate transmitter

chest strap to display your pulse. Pulse value displays anytime the upper display is receiving a Pulse signal.

You may not use the Grip Pulse feature while in Heart Rate Programs.

Note: Refer to Important Safety Instructions (page 2) concerning Pulse Grip operation.

Calorie Display

Displays the cumulative calories burned at any given time during your workout.

Note:This is only a rough guide used for comparison of different exercise sessions, which cannot be used for

medical purposes.

Speakers

The console has built-in Speakers. You may plug an Audio Source (CD player, MP3, Computer, etc.) into

the Jack on the console.There is no volume control on the console.The volume must be controlled on the

Audio Source.

Muscle Activation Figure

There is an anatomical gure located at the top of the console. This gure will light all areas that are activated

when using the elliptical trainer. These will light up during any of the programs. You can control which muscles

are activated by customizing the resistance prole during the set up phase of console programming. If you

accept the default program prole, the selected program will determine which muscles will be activated by

automatically adjusting the resistance. Generally the following guidelines hold true:

• The upper body LED’s will not light

• The lower body lights will activate in three degrees of engagement: Green represents mini-

mal muscle involvement, yellow represents medium involvement, and red represents full or

heavy activation.

• These are the different scenarios for lower body muscle activation:

• Levels 1-20: Green – Hamstrings & Gluteals light up; Yellow –

Quadriceps & Calves light up

• Levels 21-40: Yellow – Hamstrings & Gluteals light up; Red –

Quadriceps & Calves light up

Heart Rate % Proﬁle

The console LCD screen will display your current heart rate anytime a pulse is detected.

The Bar Graph, located to the right of the LCD screen, will show your current heart rate %

in relation to your projected maximum heart rate, which is determined by your age that you

entered during the programming phase of any of the 10 programs. The signicance of the bar

graph colors are as follows:

• 50-60% of maximum is Amber

• 65-80% of maximum is Amber and Green

• 85-90% or more is Amber, Green, and Red

Quick Start

This is the quickest way to start a workout. After the console powers up you

just press the Start key to begin, this will initiate the Quick Start mode. In Quick

Start the Time will count up from zero and the workload may be adjusted

manually by pressing the Level Up/Down keys.The dot matrix display will have

only the bottom row lit at rst. As you increase the work load more rows will

light indicating a harder workout.The elliptical trainer will get harder to pedal as

the rows increase.

There are 40 levels of resistance available for plenty of variety. The rst 10 levels are very easy workloads

and the changes between levels are set to a good progression for de-conditioned users. Levels 6-10 are

more challenging, but the increases in resistance from one level to the next remain small. Levels 11-15 start

getting tough as the levels jump more dramatically. Levels 30-40 are extremely difcult and are good for

short interval peaks and elite athletic training.

Basic Information

The Message Center will initially be displaying the Program name.When in scan

mode during a program, speed will be displayed for four seconds, then move

on and display Watts (indication of workload). If 100 watts is displayed, you are

doing enough work to keep a 100-watt light bulb lit. The data changes to Laps

completed, Segment time, Max level. Pressing the Enter key again will bring you

back to the beginning.

The Stop key actually has several functions. Pressing the Stop key once during a

program will pause the program for 5 minutes. If you need to get a drink, answer

the phone or any of the many things that could interrupt your workout, this is

a great feature.To resume your workout during Pause, just press the Start key.

If the Stop key is pressed twice during a workout, the program will end and

the console will display your Workout Summary (Total time, Avg. Speed, Avg.

Watts, Avg. HR, total Laps). If the Stop key is held down for 3 seconds or a third time during the program,

the console will perform a complete Reset. During data entry for a program the Stop key performs a

previous screen or segment function.This allows you to go back to change programming data.

Program Keys

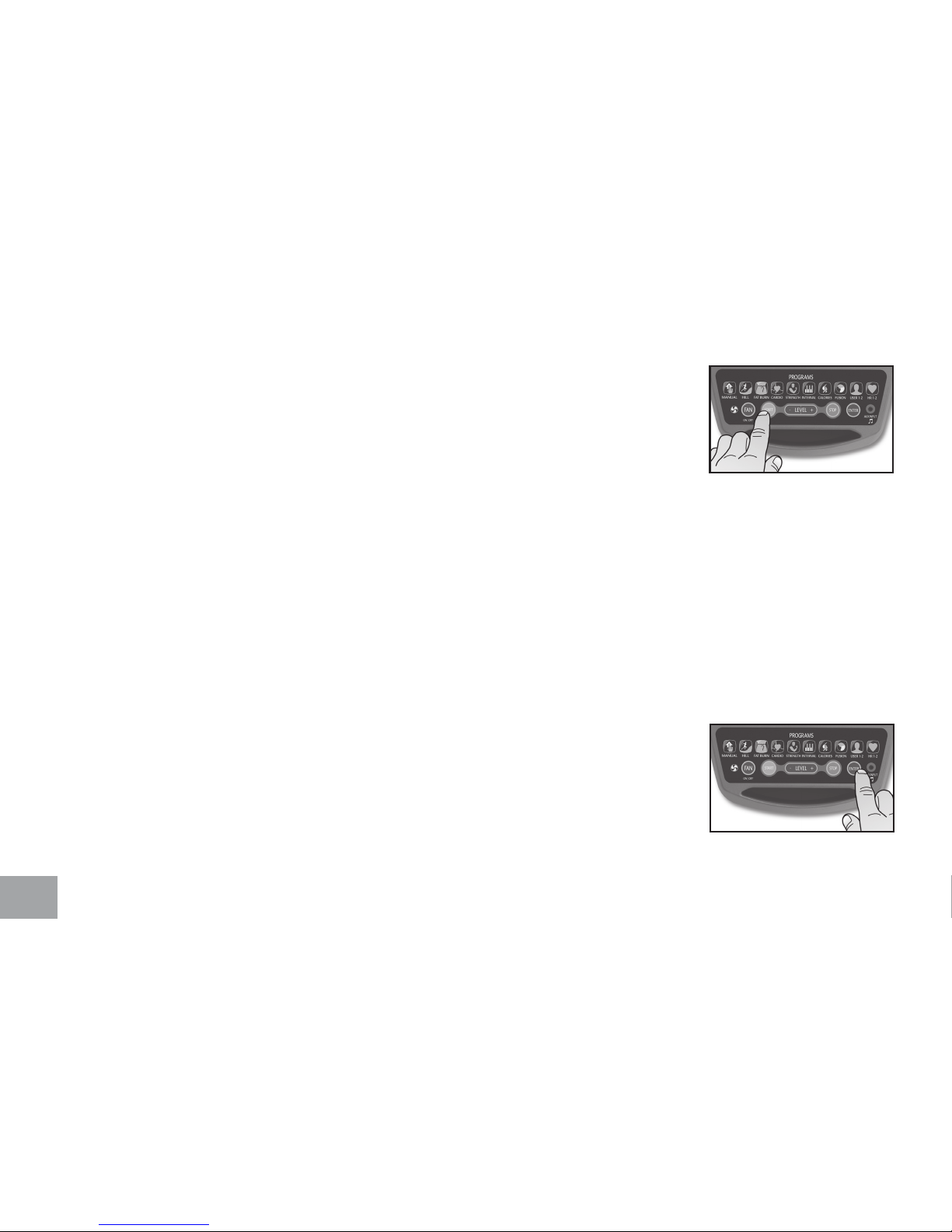

The program keys are used to preview each program. When you rst turn the console on you may press

each program key to preview what the program prole looks like. If you decide that you want to try a

program, press the corresponding program key and then press the Enter key to select the program and

enter into the data-setting mode.

The elliptical trainer has a built in heart rate monitoring system. Simply grasping the hand pulse sensors on

the stationary handle bars or wearing the heart rate transmitter (see Using Heart Rate Transmitter section)

will start the Heart Icon blinking (this may take a few seconds).The Pulse Display Window will display your

heart rate, or Pulse in beats per minute.

The console includes a built-in fan to help keep you cool.To turn the fan on, press the key on the left side

of the console.

Programming The Console

Each of the programs can be customized with your personal information and changed to suit your needs.

Some of the information is necessary to ensure the readouts are correct. You will be asked for your

Age and Weight. Entering your Age is necessary during the Heart Rate programs to ensure the correct

predicted target heart rate zone. Entering your Weight aides in calculating a more correct Calorie reading.

Although we cannot provide an exact calorie count, we do want to be as close as possible.

CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at

home, are only an estimate and tend to vary widely.They are meant only as a guide to monitor your

progress from workout to workout.

Entering A Program And Changing Settings

When you enter a program, by pressing a program key, then Enter key, you have the option of entering

your own personal settings. If you want to workout without entering new settings, then just press the Start

key.This will bypass the programming of data and take you directly to the start of your workout. If you

want to change the personal settings then just follow the instructions in the Message Center. If you start a

program without changing the settings, the default or saved settings will be used.

NOTE: Age and Weight default settings will change when you enter a new number. So the last Age and Weight entered will be saved as the new default settings.

If you enter your Age and Weight the rst time you use the elliptical trainer, you will not have to enter it every time you work out unless either your Age or
