Spirit CSD-LPSR User manual

CSD-LPSR LAT PULLDOWN /
SEATED ROW
Scan to quickly and easily
register your new Spirit
Fitness unit.
If you require assistance or
are experiencing issues with
your Spirit Unit, please contact
customer care for additional help.
1-800-258-8511
questions@spirittness.com
Online Support
Warranty Registration
CSD-LPSR_657773_OM_20231026
Available At IRON COMPANY

1

2
Table of Contents
Product Registration.........................................................3
Warning / Safety Instructions
Product Labels .....................................................................4
Safety Instructions .............................................................5
Facility Safety...................................................................... 6
Precautions...........................................................................7
Safety Guidelines ............................................................... 8
Safeguards............................................................................ 9
Assembly
Parts of Your Unit ............................................................. 11
Assembly..............................................................................12
Cable Routing Diagram ...................................................18
Maintenance
Maintenance & Care.........................................................21
Exploded View Diagram ................................................ 22
Warranty & Troubleshooting
Warranty ............................................................................ 24
Troubleshooting............................................................... 27

3
PRODUCT REGISTRATION
WARRANTY REGISTRATION
Use your smartphone to scan the QR code
above to quickly and easily register your
new Spirit Fitness unit.
You can also go to spirittness.com/
warranty under the Support tab to
register online.
Congratulations on your new unit, and welcome to the Spirit Fitness
family!
Thank you for your purchase of this quality unit from Spirit Fitness.
Your new unit was manufactured by one of the leading tness
manufacturers in the world and is backed by one of the most
comprehensive warranties available. Through your dealer, Spirit Fitness
will do all we can to make your ownership experience as pleasant as
possible for many years to come.
If not purchased direct from Spirit Fitness, the local dealership where
you purchased this unit is your administrator for all Spirit Fitness
warranty and service needs. Their responsibility is to provide you
with the technical knowledge and service personnel to make your
experience more informed and any diculties easier to remedy.
Please take a moment at this time to record the name of the dealer,
their telephone number, and the date of purchase below to make any
future, needed contact easy. We appreciate your support and we will
always remember that you are the reason that we are in business.
Serial
Number
Date of
Purchase
Dealer /
Place of
Purchase
Date of
Installation
Version: 2.0
Revision: 10/26/23

4

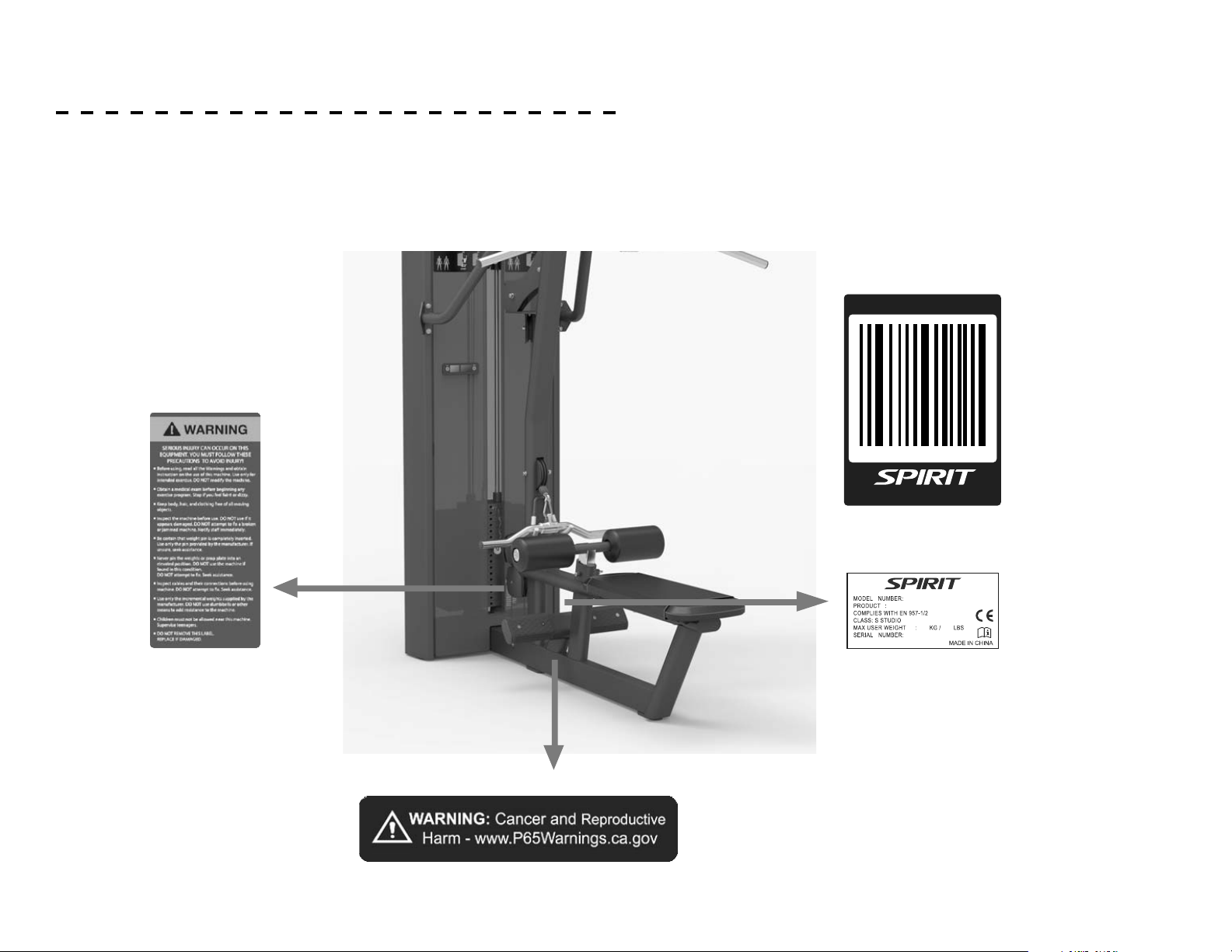

PRODUCT LABELS
The following pages show examples of Spirit® Fitness warning labels and communication stickers placed on the equipment as part of
the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers. If you nd any stickers miss-
ing or damaged contact your local dealer or distributor for a replacement.
If any instructions or information are not clear, and please contact to SPIRIT FITNESS customer service right away.
NOTE: STICKERS AND LABELS ARE NOT SHOWN TO SCALE
7
Warning Labels and Communication Stickers

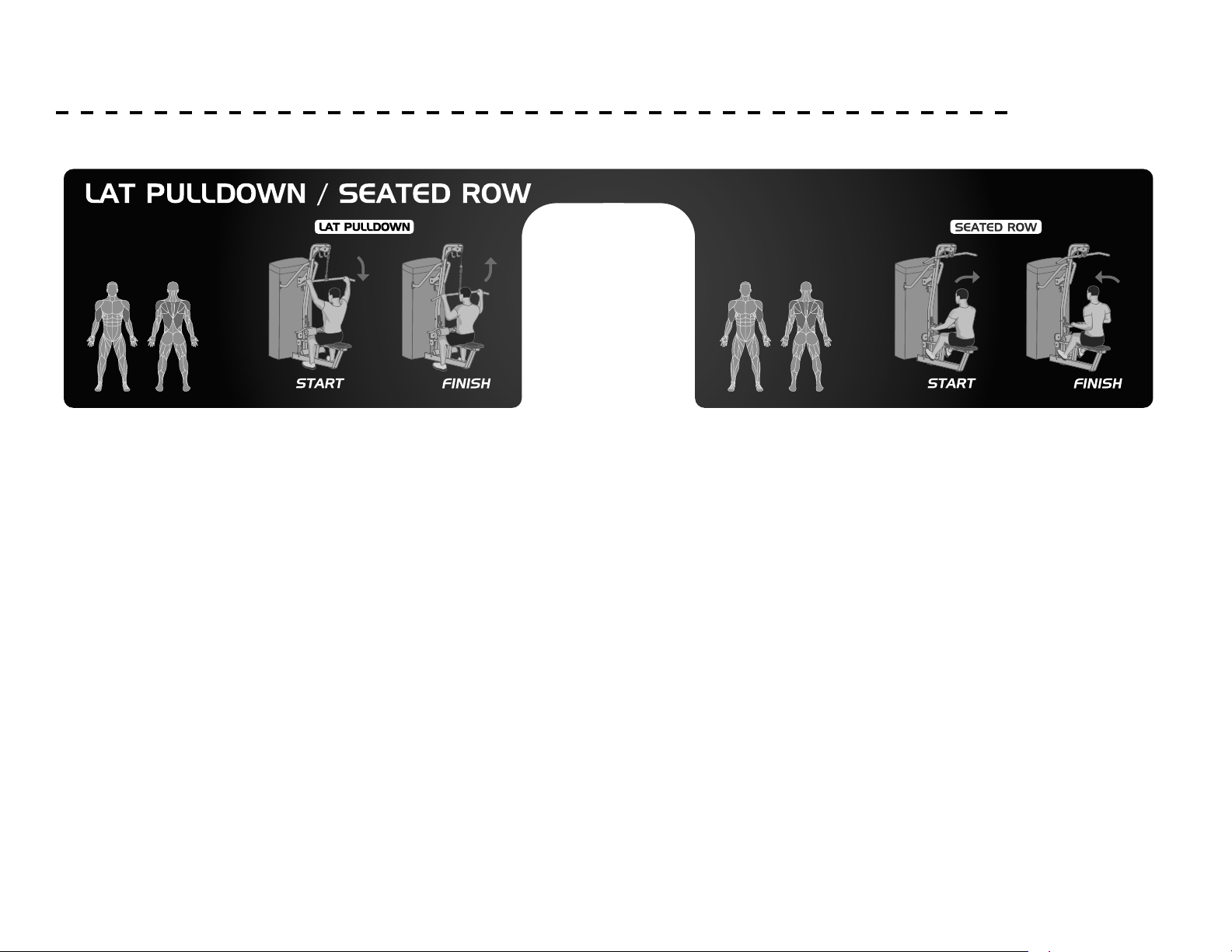

The following pages show examples of Spirit®Fitness warning labels and communication stickers placed on the equipment as part
of the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers
missing or damaged contact your local dealer or distributor for a replacement.
If any instructions or information are not clear, and please contact to SPIRIT FITNESS customer service right away.
NOTE: STICKERS AND LABELS ARE NOT SHOWN TO SCALE
California Prop 65 Warning Decal(For US model only)
Warning Decal
Serial Number Decal
Lat Pulldown/ Seated Row
180 360
CSD-LPSR
SERIAL NUMBER
[phone]
1234 5678 9876

5
SAFETY INSTRUCTIONS
Read the Owner’s Manual carefully before assembling, servicing or
using the equipment. It is the responsibility of the facility owner and/
or owner of the equipment to instruct users on proper operation of the
equipment and review all labels.
WARNING - Serious injury could occur if these safety
precautions are not observed:
1. Obtain a medical exam before beginning any exercise program .
2. Stop exercising if feeling faint, dizzy or experiencing pain and consult
your physician .
3. Obtain instructions before using .
4. Read and understand the owner’s manual and all warnings posted on
the unit before using .
5. Keep all children (12 and under) away. Teenagers (13 and over) and
disabled must be supervised .
6. Keep body and clothing free from and clear of all moving parts .
7. Use the unit only for the intended use. DO NOT modify the unit .
8. Inspect unit prior to use. DO NOT use if it appears damaged or inop-
erable .
9. Inspect all cables and connections prior to use. DO NOT use if any
components are worn, frayed or damaged.
10. DO NOT attempt to x a broken or jammed unit. Notify oor sta .
11. DO NOT use if guards are missing or damaged .
12. Be sure that the weight pin is completely inserted. Use only the pin
provided by the manufacturer .
13. If unsure seek assistance.
14. Never pin the weights in an elevated position. DO NOT use this unit if
found in this condition .
15. Seek assistance from oor sta.
16. DO NOT use dumbbells or other incremental weights, except those
provided by the manufacturer .
17. Report any malfunctions, damage or repairs to the facility .
18. Replace any warning labels if damaged, worn or illegible .
19. DO NOT use this unit outdoors .
20. User Weight Limit: 360 lbs.
!
Please ensure that you review and adhere to the user
weight restrictions of your new unit. Failure to do so
may result in serious injury or damage to your unit.
!

6
FACILITY SAFETY PRECAUTIONS
WARNING!
Read the Owner’s Manual carefully before assembling,
servicing or using the equipment.
Make sure that each unit is set up and operated on a solid
level surface.
Make sure that all users are properly trained on how to
use the equipment.
Make sure there is enough room for safe access and
operation of the equipment.
Perform regular maintenance checks on the equipment.
Also pay close attention to all areas most susceptible to
wear, including (but not limited to) cables, pulleys, belts
and grips.
Immediately replace worn or damaged components.
If unable to immediately replace worn or damaged
components then remove from service until the repair is
made.
Use only Spirit Fitness supplied components to maintain/
repair the equipment.
Keep a repair log of all maintenance activities.
Inspect all cables and belts and connections prior to
use. DO NOT use if any components are worn, frayed or
damaged.
!
NOTE: It is the sole responsibility of the user/owner or facility
operator to ensure that regular maintenance is performed.

7
PRECAUTIONS
These safety notes are directed to you as the owner of the
Strength Equipment manufactured by Spirit Fitness. Please
train all your users and tness sta to follow these safety
instructions.
DO
• Do encourage each of your users to discuss their
health program or tness regimen with a healthcare
professional.
• Do stop operating your Strength Equipment if you feel
dizzy or faint.
• Do perform regular preventative maintenance.
• Do exercise slowly until you reach a level of comfort.
DO NOT
• Do not let unsupervised children operate the Strength
Equipment.
• Do not use without proper athletic shoes.
• Do not use in rainy weather outdoors, or in an enclosed
pool environment.
• Do not drop or insert any object, hands, or feet into any
opening or within the area of the product.
• Do not attempt to remove any shrouds or modify the
Strength Equipment.
• Your Strength Equipment manufactured by Spirit Fitness
is designed for the exercise in a commercial or consumer
environment.
• Please check with your physician prior to beginning any
exercise program.
• Do not push yourself to excess. Stop if you are feeling faint,
dizzy, or exhausted. Use common sense during workout.
• Read the owner's manual in its entirety before operating the
Strength Equipment.
• Failure to obey this warning can result in injury or death.
WARNING
!

8
SAFETY GUIDELINES AND PRACTICE
Spirit Fitness recommends that all tness equipment be used in a supervised area. It is
recommended that the equipment be located in an access controlled area. Control is
the responsibility of the owner. The extent of control is at the discretion of the owner.
It is the responsibility of the purchaser/user of Spirit Fitness products to read and
understand the owner's manual, and warning labels; as well as instruct all individuals,
whether end users or supervising personnel, on proper usage of the equipment.
• Use machine only as described in the manual. Failing to follow proper instructions
may result in injury.
• Do not lean against or pull on the framework or any component, whether machine
is at rest or in use.
• Inappropriate or improper use may result in injury to users or third parties
(bystanders).
• Do not use machine if it is not located on a solid level surface or is improperly
installed.
• Provide an adequate safety perimeter between the machine, walls and other
equipment to ensure that the facility has the proper clearance for usage and
training.
The live area shall be not less than 600mm (23.62") greater than the training area in the
directions from which the equipment is accessed. The live area must also include the
area for emergency dismount.
Live Area and Training Area

9
SAFEGUARDS
The following tness safeguards and operating precautions are
directed to purchasers and users of the Strength Equipment.
Management should ensure that users and sta are trained
to follow these same instructions. Failure to follow these
safeguards may result in injury or serious health risk.
Proper Usage
• DO NOT use any equipment in any way other than designed
or intended by the manufacturer. It is imperative that SPIRIT
FITNESS equipment is used properly to avoid injury.
• Injuries may result if exercising improperly or excessively. It
is recommended that all individuals consult a physician prior
to commencing an exercise program. If at any time during
exercise you feel faint, dizzy or experience pain,
• STOP EXERCISING and consult your physician.
• Keep body parts (hands, feet, hair, etc.), clothing and jewelry
away from moving parts to avoid injury.
• Follow instructions provided in this manual for correct foot
position and basic techniques.
• The maximum weight for individuals using the Strength
Equipment should not exceed 360 pounds (163 kilograms).
Inspection
• DO NOT use or permit use of any equipment that is damaged
and/or has worn or broken parts. For all SPIRIT FITNESS
equipment use only replacement parts supplied by SPIRIT
FITNESS .
• Cables and belts pose an extreme liability if used when
frayed. Always replace any cable or belt at rst sign of wear
(consult SPIRIT FITNESS if uncertain).
• EQUIPMENT MAINTENANCE - Preventative maintenance
is the key to smooth operating equipment as well as to keep
your liability to a minimum. Equipment needs to be inspected
at regular intervals.
• Ensure that any person(s) making adjustments or performing
maintenance or repair of any kind is qualied to do so.
• DO NOT ATTEMPT TO USE OR REPAIR ANY ACCESSORY
APPROVED FOR USE WITH THE SPIRIT FITNESS
EQUIPMENT WHICH APPEARS TO BE DAMAGED OR
WORN.
• Check all belts, pulleys and bungee cords regularly for signs
of wear, and replace if needed.
• Check regularly and follow all instructions for maintenance
as specied in this manual.
• Replace immediately any defective parts and do not operate
unit until all repairs are complete.
Operating Warnings
• Keep children away from the equipment. Parents or others
supervising children must provide close supervision of
children if the equipment is used in the presence of children.
• Do not allow users to wear loose tting clothing or jewelry
while using equipment. It is also recommended to have users’
secure long hair back and up to avoid contact with moving
parts.
• All bystanders must stay clear of all users, moving parts and
attached accessories and components while machine is in
operation.

10
ASSEMBLY & SETUP
Use the following procedures to unpack and assemble your
Strength Equipment manufactured by Spirit Fitness.
Unpacking &Parts
1. Cut the straps then lift the box over the unit and unpack.
Remove all parts from the shipping carton and foam inserts,
and verify that all parts are included in your shipment:
2. Locate the hardware package. The hardware is separated
into four steps. Remove the tools rst. Remove the hardware
for each step as needed to avoid confusion. The numbers
in the instructions that are in parenthesis (#) are the item
number from the assembly drawing for reference.
NOTE: All tools required to assemble the Strength Equipment
are included within the packaging. If you are missing any of the
parts listed above, inspect the packing material and the box for
items that may have been overlooked.
If parts are missing, or if you have any operational questions,
please call your local Spirit Fitness’s Service department or the
distributor who sold you the product. Have your serial number
ready.
CAUTION: Damage to the Strength Equipment during assembly
is not covered as part of the limited Spirit Fitness warranty.
Take care not to drop or lean the Strength Equipment on its
side. Carefully stand the Strength Equipment up in the normal
upright position on a stable surface so it will not tip over during
assembly.
Protect the environment by not disposing of this product with
household waste. Check your local authority or approved waste
center for recycling advice and facilities.
Maximum User Weight 360 lbs / 163 kgs
Weight 551 lbs / 250 kgs
Overall Dimensions 71” x 47.8” x 89.4”
1808 x 1213 x 2270 mm
Product Specications

11
PARTS OF YOUR UNIT
Accessory Tray
Shroud
Guide Rods
Rep & Time Counter
Workout Diagrams
Weight Stack
Foot Brace
Weight Selector Pin
Lat Bar Holder
Extension Chain
Lat Pulldown Bar
Leg Hold Down Pads
Seat Pad
Row Handle

12
ASSEMBLY
15
STEP 1
1cm 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Assembly Instructions
No. Description Specifications Qty
001 Doorframe 1
020 Inner Hexagon Socket Head Bolt M10*35 4
024 Spring washer M10 4
027 Flat washer Φ20*Φ10.5*2 4
040 Ground frame 1
045 Cable 1 1
047 Foot rack 1
070 Pulley set 1
076 Socket cap screw M10*25 2
077 Socket cap screw M10*50 1
080 Spring washer M10 4
082 Flat washer Φ20*Φ10.5*2 2
084 Rivet nut with small countersunk head M8*18 1
15
STEP 1
1cm 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Assembly Instructions
No. Description Specifications Qty
001 Doorframe 1
020 Inner Hexagon Socket Head Bolt M10*35 4
024 Spring washer M10 4
027 Flat washer Φ20*Φ10.5*2 4
040 Ground frame 1
045 Cable 1 1
047 Foot rack 1
070 Pulley set 1
076 Socket cap screw M10*25 2
077 Socket cap screw M10*50 1
080 Spring washer M10 4
082 Flat washer Φ20*Φ10.5*2 2
084 Rivet nut with small countersunk head M8*18 1
1

13
16
1cm 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
STEP 2
Assembly Instructions
82
No. Description Specifications Qty
042 Left connection frame 1
043 Right connection frame 1
045 Cable 1 1
048 Stand frame 1
076 Socket cap screw M10*25 10
080 Spring washer M10 10
082 Flat washer Φ20*Φ10.5*2 10
16
1cm 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
STEP 2
Assembly Instructions
82
No. Description Specifications Qty
042 Left connection frame 1
043 Right connection frame 1
045 Cable 1 1
048 Stand frame 1
076 Socket cap screw M10*25 10
080 Spring washer M10 10
082 Flat washer Φ20*Φ10.5*2 10
ASSEMBLY - CONTINUED
2

14
Assembly Instructions STEP 3
17
1cm 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
No. Description Specifications Qty
041 Adjustment frame 1
049 Aluminum cover 2
052 Stop screw 1
057 High pull handle set 1
058 Low pull handle set 1
072 Semi-sliding sleeve group 2
073 Countersunk head hexagon socket screw M8*25 2
075 Socket cap screw M8*75 2
079 Spring washer M8 2
080 Spring washer M10 1
081 Flat washer Φ16*Φ8.4*1.6 2
086 Back pad 2
087 Protect plate 1
ASSEMBLY - CONTINUED
Assembly Instructions STEP 3
17
1cm 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
No. Description Specifications Qty
041 Adjustment frame 1
049 Aluminum cover 2
052 Stop screw 1
057 High pull handle set 1
058 Low pull handle set 1
072 Semi-sliding sleeve group 2
073 Countersunk head hexagon socket screw M8*25 2
075 Socket cap screw M8*75 2
079 Spring washer M8 2
080 Spring washer M10 1
081 Flat washer Φ16*Φ8.4*1.6 2
086 Back pad 2
087 Protect plate 1
3

15
ASSEMBLY - CONTINUED
15
Assembl y Instructions STEP 4
No. Description Specifications Qty
004 Guide rod 2
005 Guide rod fixed plate 1
009 Rubber bumper φ64*φ32*φ20*35 2
010 Rubber bumper φ38*φ21*10 2
012 Rod end cover 4
013 Pulley sets φ89*32 2
014 Selector pin 1
019 Inner Hexagon Socket Head Bolt M8*20 2
021 Inner Hexagon Socket Head Bolt M10*55 30 2
023 Spring washer M8 2
026 Flat washer Φ16*Φ8.4*1.6 2
027 Flat washer Φ20*Φ10.5*2 2
028 Nylon nut M10 2
045 Cable 1 1
059 10lb weight plate 10
08815lb weight plate 6
060 10lb top weight plate 1
88
4

16
ASSEMBLY - CONTINUED
16
028 Nylon nut M10 2
045 Cable 1 1
059 10lb weight stack 8
088 20lb weight stack 8
060 10lb top weight stack 1
88

17
ASSEMBLY - CONTINUED
Assembly Instructions STEP 5
19
1cm 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
No. Description Specifications Qty
002 Upper shield 1
003 Shield fixed plate 4
006 Fixed bushing 12
007 Front shield 1
008 Back shield 1
015 Cross recessed countersunk head screw M5*10 8
016 Countersunk head hexagon socket screw M6*16 12
018 Inner Hexagon Socket Head Bolt M6*16 2
022 Spring washer M6 2
025 Flat washer Φ12*Φ6.4*1.6 2
Assembly Instructions STEP 5
19
1cm 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
No. Description Specifications Qty
002 Upper shield 1
003 Shield fixed plate 4
006 Fixed bushing 12
007 Front shield 1
008 Back shield 1
015 Cross recessed countersunk head screw M5*10 8
016 Countersunk head hexagon socket screw M6*16 12
018 Inner Hexagon Socket Head Bolt M6*16 2
022 Spring washer M6 2
025 Flat washer Φ12*Φ6.4*1.6 2
5

18
CABLE ROUTING DIAGRAM
y t Qc e p Snoi tpi rcseD. oN
ADry Reed Pipe Connection Wire 1
e n i L r ewoPB
1
B
A
23

19
START WORKOUT
