TABLEOFCONTENTS
1.INTRODUCTION..................................................................................................
2.IMPORTANTSAFETYPRECAUTIONS...............................................................
3.ASSEMBLINGYOURTREADMILL......................................................................
ListofParts...........................................................................................................
4.TREADMILLASSEMBLY.......................................................................................
PedestalandHandleAssemblySteps.................................................................
DisplayInstallationSteps......................................................................................
ConnecttoPower.................................................................................................
TVSystemCableConnections............................................................................
5.T680DISPLAY.....................................................................................................
DisplayFeatures..................................................................................................
DisplayFunctions................................................................................................
ButtonFunctions..................................................................................................
SafetyKey............................................................................................................
6.HOWTOUSEYOURT680TREADMILL............................................................
QuickStart...........................................................................................................
WorkoutSetup.....................................................................................................
OperatingProcedureWhileWorking...................................................................
CoolDown...........................................................................................................
7.PROGRAMS.......................................................................................................
UserParameterSetting.......................................................................................
Automaticchannelscan......................................................................................
8.GUIDELINESFOREXERCISE...........................................................................
9.ADJUSTTHEWALKBELT..................................................................................
10.FLOORLEVELADJUSTMENT.........................................................................
11.MAINTENANCE.................................................................................................
12.MAINFUSEFAILURE......................................................................................
13.ERRORMESSAGE..........................................................................................
14.WIRINGSCHEMATIC.......................................................................................
TVSystemCableConnections

SPORTSARTT680COMMERCIALTREADMILL
INTRODUCTION
Congratulationsonpurchasingoneofthefinestpiecesofcommercialexercise
equipmentonthemarkettoday,theSportsArtT680CommercialTreadmill.TheT680
isdesignedwiththeend-userinmindandconstructedofhighqualitymaterialsand
designedforyearsoftrouble-freeuse.
BeforeusingyourSportsArtT680Treadmill,werecommendthatyoufamiliarize
yourselfwiththisOwner'sManual.Whetheryouareafirsttimeuserofatreadmillor
aseasoned"PRO",understandingthecorrectuseoftheequipmentwillenhance
yourabilitytoachieveyourexercisegoalssafelyandsuccessfully.
1
treme
series
Display
BookHolder
Fan
HRContact
Handle
HandleCap
SafetyKey
LandingStrip
Non-slipStrip
WalkBelt
CupHolder
Pedestal
MotorEnclosure
WaterproofRing
InclineRoller
Wheel
Leveler
BeltAdjustmentBolt
MotorSideCover

2
YourSportsArttreadmillwasdesignedandbuiltforoptimumsafety.However,certain
precautionsapplywheneveryouuseyourtreadmill.
Pleasereadtheentiremanualbeforeassemblyandoperation.Also,pleasenotethe
followingsafetyprecautions:
Pleasereadtheinstructioncarefullyandinstallthetreadmillasinstructed.
Assembleandoperatethetreadmillonasolid,levelsurface.DONOTuse
outdoorsornearwater.
Neverallowchildrenonornearthetreadmillatalltimes.
Checkthetreadmillbeforeeveryuse.Makesureallpartsareassembled,and
allfastenersaretightened.DONOTusethetreadmilliftheunitisdisassembled
inanyway.
Keepyourhandsawayfrommovingparts.
Wearproperworkoutclothing:DONOTwearlooseclothing.DONOTwear
shoeswithleathersolesorhighheels.Tiealllonghairback.
Becarefulwhenmountinganddismountingtheunit.
DONOTuseanyaccessoriesthataren'tspecificallyrecommendedbythe
manufacturer.Thesemightcauseinjuriesorcausetheunittofail.
Unplugfromoutletbeforeservicingorremovalofanyparts.
Closesupervisionisnecessarywhenthistreadmillisusedby,on,ornear
children,invalids,ordisabledpersons.
IMPORTANTSAFETYPRECAUTIONS
Thewalkbeltwillnotstopimmediatelyifanyobjectbecomescaughtinthebelts
orrollers.
Usethistreadmillonlyforitsintendeduseasdescribedinthismanual.
Neveroperatethistreadmillifithasbeendamagedinanyway.Ifitisnot
workingproperly,beendroppedordamaged,contactyourdealer.
DONOTcarrythistreadmillbypowercordorusecordasahandle.
Keepthepowercordawayfromheatedsurfaces.

3
Keepallairventilationareasfreeofblockage.
Neverdroporinsertanyobjectintoanyopening.
DONOToperatewhereaerosol(spray)productsarebeingusedorwhere
oxygenisbeingadministered.
Theweightlimitforthistreadmillis227KGS(550LBS).
Ifyoufeelanypainorabnormal,STOPYOURWORKOUTandconsultyour
physicianimmediately.Workwithinyourrecommendedexerciselevel.DONOTwork
toexhaustion.
Beforebeginninganyexerciseprogram,youshouldconsultwithyourdoctor.Itis
recommendedthatyouundergoacompletephysicalexamination.
DONOTstandonthebeltwhenstarting.Straddlethebeltwithyourfeetontheright
andleftlandingstrips.
-Toreducetheriskofelectricshock,alwaysunplugthistreadmillfrom
theelectricaloutletimmediatelyafterusingandbeforecleaning.
Improperconnectionoftheequipment-groundingconnectorcanresultinariskof
electricshock.Checkwithaqualifiedelectricalorservicepersonifyouareindoubt
astowhetherthetreadmillisproperlygrounded.DONOTmodifytheplugprovided
withT680treadmill,ifitdoesn'tfittheoutlet;gettheproperoutletinstalledbya
qualifiedtechnician.
CAUTION
DANGER
Alwaysusethesafetycordwhenoperatingthetreadmill.
Productperformancedependsonadequatepowersupply.Eachcommercial
treadmillrequiresone20Amp(for110varea)orone10Amp(for220varea)
dedicatedcircuitforproperoperation.

4
ASSEMBLINGYOURTREADMILL
Thankyouforpurchasingourproduct.Eventhoughwegotogreateffortstoensure
thequalityofeachproduct,occasionalerrorsand/oromissionsdooccur.Inany
eventshouldyoufindtheproducttobedefectiveormissingapart,pleasecontact
yourlocaldealer.
Pleasereadthisowner'smanualandfollowtheinstructions.
Twopeoplearerecommendedtoassemblethetreadmill.Toavoidback
strainandtoensuresafetytotheunitandyourself,wesuggestyouavoid
liftingtherunningbedassemblyfrombox.Insteaddropthesidesofthebox
andslidethetreadmillfromthecontainerratherthanliftingit.
Thepackagingisspeciallydesignedforthemachinedelivery,please
haveitproperlykept,incasethemachineneedstobeshippedinthe
future.
Beforeassemblingthetreadmill,pleasemakesureallpartsbelowarepresent.
1.Onesafetykey(Attachedonhandle)
2.Onedisplay
3.Onesetofhandles
4.Oneaccessorytray(left)
5.Oneaccessorytray(right)
6.Twowaterproofrings(onthepedestals)
7.Oneleftpedestal
8.Onerightpedestal
9.Onehexallenwrench(M6)withThandle(Invacuum-packedcontainer)
10.Onehexallenwrench(M4)withThandle(Invacuum-packedcontainer)
11.Onehexallenwrench(M6)withLhandle(Invacuum-packedcontainer)
12.Onescrewdriver(Invacuum-packedcontainer)
13.Onecablewrench(Invacuum-packedcontainer)
Caution:
IMPORTANT:
ListofParts

14.Onedoubleopenwrench(22/24)(Invacuum-packedcontainer)
15.Onefuse15A(110V)/10A(220V)(Invacuum-packedcontainer)
16.SixM8*L18socket-headscrews(Forpedestals-onthetreadmill)
17.SixM8springwashers(Forpedestals-onthetreadmill)
18.FourD18*d8.5*t2-mmserratedwashers(Forpedestals-onthetreadmill)
19.FourM8*L15socket-headscrews(Forhandlebars-onthetreadmill)
20.FourD17*d8.3*t2-mmflatwashers(Forhandlebars-onthetreadmill)
21.FourM6*L12hexheadscrews(Foruseondisplay-onthetreadmill)
22.Twocableextension
23.OneNTSCtoPAL/SECAMconnector(220Vonly)
24.Fourbottlesofsiliconeoil
Somepartsmaygetmixedamongstpackagingmaterialduringshipping.Please
locateallthepartsbeforeyoudiscardthepackagingmaterial.Thoroughlyreadthe
assemblyinstructionsbeforeyoubegin.
Additionally,thepackagingisdesignedtoprotecttheproductduringshipping.
Pleasesavethepackaging,ifyouintendtoshiptheproductinthefuture.
5

TREADMILLASSEMBLY
PEDESTALANDHANDLEASSEMBLYSTEPS
Whenyouremovethetreadmillfromitsbox,firstchecktomakesurealloftheparts
arepresent.Then,readthroughtheassemblyinstructionsbeforeyoubegin.
.Usethetoremovethescrews(3pcs)
fromthesideplatesofthemotorcover(bothleftandright)andremove
bothsideplates,thenusethe
toremovethescrewsandwashers(6sets)fromthe
pedestalbracketarea.(SeeFig.1.)
First,threadthedatacablethroughtherightpedestal.Thenholdtheright
pedestalontothesupportbracketontherightsideofthetreadmill.Secure
therightpedestalbyfasteningtheboltswithwashersasshown.Holdthe
leftpedestalontothesupportbracketontheleftsideofthetreadmill.
Secureitbyfasteningtheboltswithwashersasshown.Atthispoint,do
NOTtightentheseboltssecurely.Leavethemslightlyloosesothatthe
displaycanfitsnugly.Tightentheseboltsfirmlyafterthedisplayisattached.
Then,usethetotakedownthescrewsand
washersonthetopofthepedestal(C).(SeeFig.2.)
STEP1
STEP2.
PHILLIPS-HEADSCREWDRIVER
ALLENWRENCHWITHTHEL-SHAPED
HANDLE(6mm)
HEXALLENWRENCH(M6)
Fig.1
Fig.2
6

Fig.3
Fig.4
7
STEP3.
STEP4.
Usethetoremoveleftandrightcup
holders.(SeeFig.3.)
Holdthehandlebarsontothebracketonthepedestals.Thenpullthedata
cableontherightpedestalthroughtherighthandle(CDE).Removethe
tieonthedatacableset.Usethe
totightentheboltswithwashers,fixingthehandlebarsin
placeonthebracket.Finally,puttheleftandrightcupholdersinplaceand
securethemwiththescrews.(SeeFig.4.)
PHILLIPS-HEADSCREWDRIVER
ALLENWRENCHWITHTHET-SHAPED
HANDLE(6mm)
→→

Fig.5
8
STEP5. Usetheto
securelytightenthepedestalscrewsinplace;thenputthesidecovers
(bothleftandright)inplace(FG)andsecurethemwiththePhillips-head
screws.Finally,setthewaterproofringsinplacenearthehood.(SeeFig.5.)
ALLENWRENCHWITHTHEL-SHAPEDHANDLE(6mm)

9
Fig.6-1
Fig.6-2 Fig.6-3
DISPLAYINSTALLATIONSTEPS
STEP1.Usetheto
removethefourboltsfromlocation(A)shownbelow.Holdthedisplayinto
positionandconnectdatacablesandDTVcables.(SeeFig.6-1~6-3.)Use
thetosecurethecable.
ALLENWRENCHWITHTHET-SHAPEDHANDLE(4mm)
CABLEWRENCH

10
Fig.7
Fig.8-1
Fig.8-2 Fig.8-3

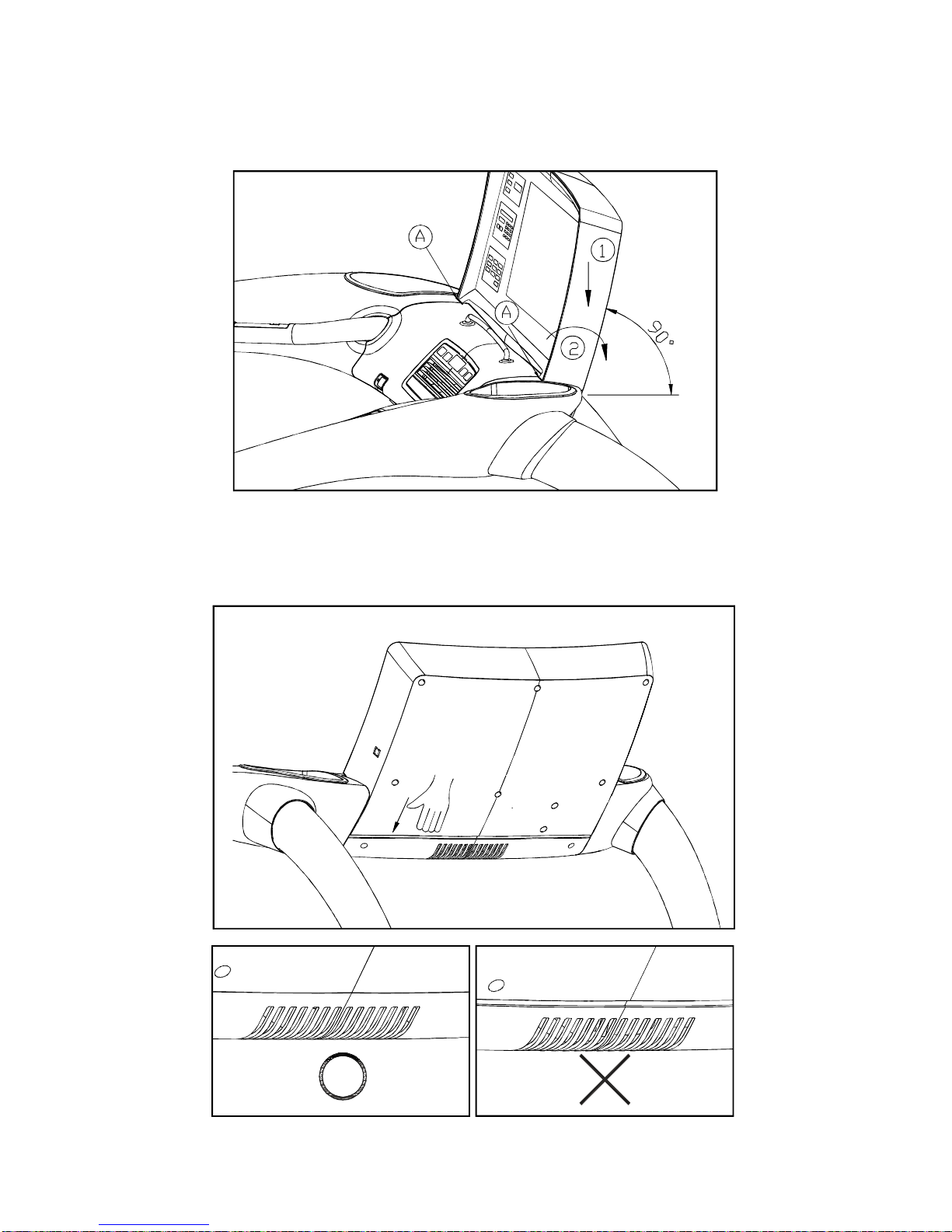

STEP2.
STEP3.
Rotatethedisplayupwardandfititontothehandlebars.Usingpoints(A),
pivotthedisplaybackwithoutpinchingthewires.(SeeFig.7.)
Withonehandbehindthedisplayforsupport,pushthedisplaydowngently
untilitconnectssecurely.Ifitdoesnotconnectsecurely,pleasetryagain.
Proceedtothenextsteponlyafterthedisplayconnectssecurely.(SeeFig.
8-1~8-3.)

STEP4. Usetheto
securethedisplaywiththeboltsasshownbelow.(SeeFig.9.)
ConnectthepowercableasindicatedinFig.10,andsecureitbytighteningthe
screws.
HEXALLENWRENCHWITHTHET-SHAPEDHANDLE(4mm)
CONNECTTOPOWER
11
Fig.9
Fig.10

TVSystemCableConnections
TheT680treadmillisdesignedtoreceiveTVsignalsinanaloganddigitalformats.Analog
(CATV)systemsincludeNTSC,PAL,andSECAM.Digital(DTV)functionalityallowsfor
receptionofover-the-airdigitalTVsignals.DeterminethetypeofanalogTVsignal(NTSCor
PAL/SECAM)usedinyourarea.Also,noteCATVandDTVlabelsontheTVcableconnector
plateonthefrontofthetreadmill.Bymakingproperconnections,T680canreceiveboth
analoganddigitalsignals.
NTSCsystem:SeeFig.11-2.Locatetheappropriateconnectorprovidedwiththeproduct.
ConnecttotheCATVsystemsideasshowninFig.11-1.
PAL/SECAMsystem:SeeFig.11-3.Locatetheappropriateconnectorprovidedwiththe
product.ConnecttotheCATVsystemsideasshowninFig.11-1.
DTVsystem:SeeFig.11-4.Usetheappropriateconnector(NTSCsystemtype,notprovided).
ConnecttotheDTVsystemsideasshowninFig.11-1.
RecommendedCableConnectionMethods
Thefollowingcableconnectionmethodsarerecommendedforvarioustypes
ofTVsignalreception.
1.AnaloganddigitalTVsignalconnections
12
Fig.12
Fig.11
Fig.11-1 Fig.11-2
Fig.11-3

2.AnalogcableCATVanddigitalover-the-airsignalswithantenna
3.AnaloganddigitalTVreceptionviaacommonexternalantennaand2-waysplitter
or"Tconnector"
CATV(Analog)SystemSetUp
TheCATVsystemsetupisusuallyprogrammedintotheproductatthefactory.IftheCATV
systemoftheproductwasnotsetatthefactory,itmaybenecessarytoactivatetheCATV
systemontheproduct.HoldtheChannelUpkey.ThenpresstheFull/Splitscreenkey.The
displaywillshowtheproductCATVsystemsetting.Tochangethesetting,presstheChannel
UpkeyorChannelDownkey.Turnoffthetreadmillpowerafterthenameofyourpreferred
systemappears.
A
n
t
e
n
n
a
Fig.14
Antenna
CableTV
Fig.13
13

AutomaticChannelScan(Analog)
DisplayBrightnessAdjustment(Analog)
DisplayContrastAdjustment(Analog)
AfterconnectingcablesandprovidingTVsignal,performanautomaticchannelscanto
locatechannelsasfollows:1.Turnthetreadmillon.2.PresstheSourcekeytoentertheTV
mode.3.Simultaneously,pressVolumeDownandChannelUp.Theautomaticchannelscan
functionbegins.SCrepresentsCAN?ThenumbersthatappearrepresentsTVchannels.
Oncethescanprogramends,youcanselectchannelsinTVmodebypressingchannelup
ordownkeys.
Toadjustbrightness,simultaneouslypresstheFull/SplitScreenkeyandtheVolumeUpkey.
Atriangleandppears.PressVolumeUporVolume Downkeystoadjustbrightness.
Toadjustcontrast,simultaneouslypresstheFull/SplitScreenkeyandtheVolumeDownkey.
Atriangleandppears.PressVolumeUporVolumeDownkeystoadjustcontrast.
14

T680DISPLAY
A.Displayfeatures
15
WorkoutGoal
PercentageCompleted Multimedia Selection
MessageRow
CardioAdvisor
Information
Window
DotMatrix
Display

B.Displayfunctions
1.SPEED:0.1to15.0MPHor0.2to24.0KPHin0.1increments
2.INCLINE:0to15%in0.5%increments
3.TIME:0:00to99:59
4.DISTANCE:0.01to9999Km/Mile
5.CALORIES:Totalcaloriesburnt,0.0to9999KCAL
16
GoalSettingKeys
SettingWindow
NumericKeypad
Programs

17
6.CAL/Hr:Caloriesburntperhour,0.0to999.9KCAL
7.METS(Metabolicburnrate):0.0to99.0
8.PROGRAM:Track,Random,Glute,Interval(1:1,1:2,2:2),5K(Flat,Hill),10K
(Flat,Hill),WtLoss,Cardio,CustomHRandFitTest(BruceorGerkin)
9.DotMatrixDisplay:Displaysprogramprofilesandinformation
1.QUICKSTART
QuickstartwillbypassUser,Age,WeightinputsandProgramselection.Time
willcountup.
2.TIME
Pressthisbuttontosetupworkouttime.
3.DISTANCE
Pressthisbuttontosetupworkoutdistance.
4.CALORIES
Pressthisbuttontosetupworkoutcalories.
5.ENTER
Afterenteringallparameters,pressENTERtoconfirmyourchoice.
6.NumericKeypad(0to9)
Thenumerickeypadcanreplacethefunctionof/buttons.Simplyenter
numbers(0to9)onthenumerickeypadratherthanpressing/buttons.
7.DecimalPointKeypad(.)
Usethiskeytoenterthedecimalpointofasetupvalue.
8./
Pressthesebuttonstoadjustfunctionsupordown.Toincreaseordecrease
adjustmentsrapidly,holdeitherbuttondown.
9.CLEAR
a.Pressingthisbuttonclearsinputteddata.
b.The7-segmentdisplaywillautomaticallyscantheinformationwindow
(TIMEDISTANCESPEEDCALORIESTIME)every6seconds.
Pressthisbuttontolockthesetting(ThecorrespondingLEDwillflash.
Pressthisbuttonagaintounlockthesetting.).
10.TRACK
Onelapisequalto0.4Km/0.25Mile.Thecenterofthetrackdisplaysthelap
count.
C.Buttonfunctions
＞
▲▼
＞
▲▼
▲▼
→→→→……

11.RANDOM
PressRANDOMtogeneratedifferentcourses.
12.GLUTE
Thisprogramisspecificallydesignedtoexercisethegluteusmusclegroupof
thebody;30and45minutedurationsareavailableintheseincline-based
programs.
13.INTERVAL
TherearethreekindsofINTERVALs(1:1,1:2and2:2).
Forexample,in1:2,1=oneminuteofrest;2=twominutesofwork.
14.5K
Thisprogrammodeisdesignedspecificallywith5Kmastheworkoutdistance
goal.
15.10K
Thisprogrammodeisdesignedspecificallywith10Kmastheworkout
distancegoal.
16.WTLOSS
Theweightlossprogramkeepstheuser'sheartrateat65%ofmaximum(i.e.
(220-AGE)*0.65)toprovideanoptimalweightlossworkout.
17.CARDIO
Thecardioprogramkeepstheuser'sheartrateat80%ofmaximum(i.e.(220-
AGE)*0.8)toprovideanoptimalcardioworkout.
18.CUSTOMHR
TheHeartRateControl(HRC)programallowsuserstokeyinthedesired
HRCtarget.
19.FITTEST
FITTESTprogram(BodyFitnessTest)offerstwooptionaltestprotocols:Bruce
andGerkin.
20.INCLINE/:
PressINCLINE/toincreaseordecreaseinclinein0.5%increments.Keep
thebuttonpressedtoenablemorerapidadjustments.
21.SPEED/
PressSPEED/toincreaseordecreasethewalkbeltspeed.Speed
adjusts/in0.1MPH/KPHincrements.Toincreaseordecrease
adjustmentsrapidly,holdeitherbuttondown.
▲▼
▲▼
▲▼
▲▼
▲▼
18

22.STOP/HOLDTORESET
a.Whileexercising:
(1)IfyoupressedQUICKSTARTtostartexercising,pressSTOPtostop.
(2)Ifyouentereduserinformationtostartexercising,pressSTOPtostop
thetreadmillandenterpausemode.
b.Underanystatus:
Holdthisbuttontoresettothebannerdisplay.
23.FAN
Pressthefancontrolbuttontoselectoneofthreespeeds.
24.SOURCE
PressSOURCEtotogglebetweendifferentTVmodes:TV+WORKOUT
AV+WORKOUTDTV+WORKOUTWORKOUTSCREENTV+WORKOUT.
25.SPLIT/FULL
a.InTV,AV,DTVmodes,pressthiskeytoseeasplitorfullscreen.
b.InWORKOUTSCREEN,pressthisbuttontostoptheautomatic6-second
scan.IntheTFT-LCDinformationwindow(CAL/HRMETSTIMEINCLINE%
CALORIESSPEEDTIMEDISTANCE),pressthisbuttonagainto
returntoautomaticscan.
26.VOL+,VOL-
AdjusttheTV,AV,DTVvolume.
27.CH+,CH-
SelectTV,DTVchannels.
1.Thesafetykeymustbeinplaceforthetreadmilltooperate.Thissafetydevice
isintendedtostopthetreadmillshouldauserstumbleandfall.
2.Ifthesafetykeyisnotinplace,themessage"SAFETYKEY"appearsonthe
displaytoremindtheusertoputthesafetykeyinplace.
D.SafetyKey
<--->
19
←
