STA-RITE S477 User manual

Large Underwater Light Niche
O W N E R’ S M A N U A L
INSTALLATION, OPERATION & PARTS
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
International: 262-728-5551, FAX: [phone]
www.starite.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
©2005, Sta-Rite Industries Printed in U.S.A. S477 (Rev. 1/25/05)
This manual should be furnished to
the end user of this niche; its use will
reduce service calls and chance of
injury and will lengthen niche life.

2
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see this
symbol in this manual, look for one of the follow-
ing signal words and be alert to the potential for personal
injury.
warns about hazards that will cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that can cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that will or can cause
minor personal injury or property damage if ignored.
The label NOTICE indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in this
manual and on equipment.
Use equipment only in a pool or spa installation.
GENERAL SAFETY!
Hazardous voltage. Incorrectly installed or
tested equipment may fail, causing severe injury or prop-
erty damage. Read and follow instructions in owner's
manual when installing and operating equipment.
Installation, maintenance, testing, and approval of this
circuit, the light, light niche, and any other accessories
attached to the circuit, must be performed by a licensed
electrician.
The complete electrical system must be installed, tested,
and approved by a licensed electrician before it is placed
in operation.
Always follow basic safety precautions with this equip-
ment, including the following.
To reduce the risk of injury, do not permit
children to use this product unless they are closely
supervised at all times.
Risk of electrical shock. Before removing
fixture from pool wall, ALWAYS TURN OFF THE POWER
at the breaker.
This light niche must be installed in accordance with
Article 680 of the National Electrical Code (NEC), in the
United States, or Section 68 of the Canadian Electrical
Code (CEC), as applicable, and all local code requirements.
Install an approved Ground Fault Circuit Interrupter
(GFCI) in the electrical circuit for this light.
Burn hazard. Never operate this light fix-
ture for more than 10 seconds unless it is completely
submerged in water. This fixture requires total submer-
sion for cooling.
The improper use of Ozone generators, Chlorine genera-
tors, Copper/Silver Ion generators or certain chemicals
for water purification may cause damage to the fixture.
When such water purification methods are used, be sure
to monitor the water conditions. Subjecting the fixture to
extreme conditions or harsh environments may cause
corrosion and premature failure of the fixture or its
components.
Glass breakage hazard. Install fixture in a
vertical pool or spa wall – not in floor. Failure to install
the fixture properly could result in personal injury and/or
property damage. Do not push off from the poolside
against the light.
Install fixture at least 18" below normal water level.
Locate junction box at least 8" above maximum water
level and not less than 4 feet from the perimeter of the
pool.
The junction box must be located:
•at least 4’ from the perimeter of the pool (unless sepa-
rated from the pool by a solid fence, wall or other per-
manent structure,
•at least 8" above maximum water level,
•at least 4" above the deck or ground level.
Junction boxes should be located off the walkway
around the pool and given additional protection by
installing them next to a fence, building, or other perma-
nent structure. Make sure that the installation is in
compliance with local codes, the NEC, and the CEC, as
applicable. See Figure 1, Page 3.

3
SPECIFICATIONS
NOTICE: Models 05161-2352, 05161-2354,
05151-2356, 05161-2360, and 05161-2362 have rear
conduit opening. Models 05161-2353, 05161-2355,
05161-2357, 05161-2361 and 05161-2363 have side
conduit opening.
INSTALLATION
Risk of electrical shock. Before removing
fixture from pool wall, ALWAYS TURN OFF THE POWER
at the breaker.
“Except when the fixture is installed in an area of the
swimming pool that is not used for swimming and the
lens is adequately guarded to keep any person from con-
tacting it, the fixture shall be installed in or on a wall of
the pool with the top of the lens opening not less than 18
inches below the normal water level of the pool.”
Installation In Vinyl Liner Pool
(Refer to Figures 2 & 5 For Model Numbers 05161-2358
through 2369, 05163-2395, and 05163-2396)
1. Mark the location of the top of the hole to be cut in
the pool wall (be sure that the topmost part of the lens
will be more than 18" below the water level). Then
mark the diameter of the hole (12-1⁄4" to 12-1⁄2"). Cut
along the circle you marked on the pool wall.
NOTICE: If your pool uses American Standard pre-
punched steel panels, please go to step 4. Otherwise,
please proceed with Step 2, below.
2. Insert the niche into the pool wall from the inside of
the pool. Make sure that the odd spaced holes are at
the top and bottom and that the niche is aligned so
that the alignment notch for the lamp housing is at the
bottom of the niche (threaded hole at the top).
3. There are four countersunk through-holes in the niche
flange (Key No.1, Figure 5). Mark the location of these
holes on the pool wall and then drill them with a
7/32" bit. Fasten the niche in place with four
#10-24 x 1" flat head screws (Key No. 4) and nuts
(provided, Key No. 3). Do not overtighten. Please go
to step 7 (Bonding).
For American Standard pre-punched steel panels only: If
you are using American Standard pre-punched steel pan-
els, the niche can be installed on the outside of the pool
wall as follows:
4. Slide the channel gasket (Key No. 8) into place on the
inside of the niche opening in the pool wall, with the
thick side of the gasket inside the pool (See Figure 3).
5. Leave liner gasket (Key No. 6) in place against the
face of the niche and fasten the niche to the wall with
two #10-24 x 7/8" pan head screws (provided, Key
No. 7). Do not overtighten.
6. Connect conduit to the back of the niche.
Model Pool Liner Conduit Trim Ring
No. Type Size Material
PVC Niche
Material
05163-2394 Gunite 1" N/A
05163-2395 Vinyl 1" Stainless Steel
Stainless
Steel Niche
Material
05161-2352 Concrete 1/2" N/A
05161-2353 Concrete 1/2" N/A
05161-2354 Concrete 3/4" N/A
05161-2355 Concrete 3/4" N/A
05161-2356 Concrete 1" N/A
05161-2357 Concrete 1" N/A
05161-2360 Vinyl 3/4" Stainless Steel
05161-2361 Vinyl 3/4" Stainless Steel
05161-2362 Vinyl 1" Stainless Steel
05161-2363 Vinyl 1" Stainless Steel
Large Underwater Light Niche
Fixture
Fixture removed
for relamping
4 Ft. Min.
Min. Hgt. 8" above max.
water level (but at
least 4" above deck)
18" Min.
Pool wall
To
service
Junction box
Fence or other
permanent
structure
Edge of
Decking
Sufficient cord to allow fixture to
be put on deck for relamping
Conduit

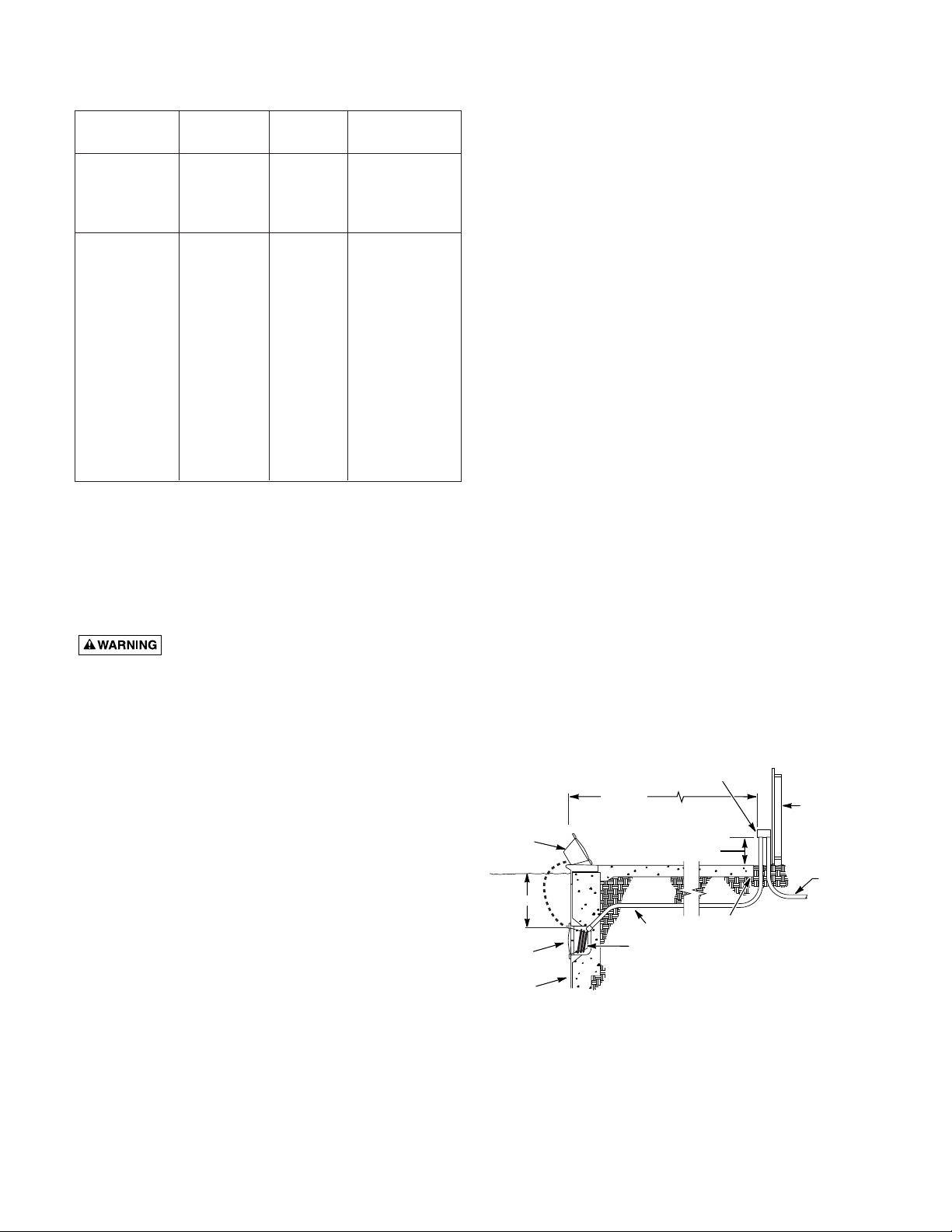

Figure 1: Lamp Niche Installation

ALL NICHES:
7. Bonding:
A. If rigid non-metallic conduit is used, run a #8 solid
or stranded copper wire inside the conduit from the
bonding lug inside the niche to the junction box.
Tighten the bonding lug to 25 in-lbs. of torque.
Completely encapsulate the bonding lug inside the
niche with an approved encapsulating material as
required by the NEC and CEC.
B. If red brass conduit is used, connect a #8 solid cop-
per wire from the bonding lug on the back of the
niche to both the steel in the pool structure and to
the red brass conduit. Tighten the bonding lug to 25
in-lbs. of torque. Use an approved direct burial cold
water clamp to connect the wire to the conduit.
8. Lay vinyl in place over the niche.
9. Gasket installation: Place gasket and trim ring over the
vinyl liner and fasten them with the ten #10-24 x 1-1⁄2"
stainless steel flat head screws provided. Stainless steel
trim ring requires a gasket (Key No.10). ABS plastic trim
ring requires a gasket (Key No. 9).
Installation In Gunite Pool
(Refer to Figure 4 For Model Numbers, 05163-2352
through 2357, and 05163-2394).
1. Wire the niche to the re-bar in the desired location
(be sure that the topmost part of the lens will be
more than 18" below the water level). Make sure that
the odd spaced holes are at the top and bottom and
that the niche is aligned so that the alignment notch
for the lamp housing is at the bottom of the niche
(threaded hole at the top - Figure 4).
2. Connect conduit to the back of the niche. If 1" or 3/4"
rigid non-metallic conduit is used, then an adapter
bushing will be required. If red brass conduit is used,
then a threaded bushing will be required.
3. Bonding:
A. If rigid non-metallic conduit is used, run a #8 solid
or stranded copper wire inside the conduit from the
bonding lug inside the niche to the junction box.
Tighten the bonding lug to 25 in-lbs. of torque.
Completely encapsulate the bonding lug inside the
niche with an approved encapsulating material as
required by the NEC.
B. If red brass conduit is used, connect a #8 solid cop-
per wire from the bonding lug on the back of the
niche to both the steel in the pool structure and to
the red brass conduit. Tighten the bonding lug to 25
in-lbs. of torque. Use an approved direct burial cold
water clamp to connect the water to the conduit.
4
Liner gasket p.n. 05161-0006 if
the trim ring is ABS plastic. If
the niche is mounted to the
outside of the pool wall, use
gasket p.n. 05101-0008
between niche and wall.
Trim ring screws
Stainless #10-24X1-1/2"
flat head counter sunk
phillips
Fixture locator notch
#10-24X7/8" pan head stainless screws (2).
Liner gasket p.n. 05101-0008
Vinyl pool liner
Plug unused entry
Pool wall panel
Fixture mounting nut
1" hubs for rigid
non-metallic conduit
(require bushings to
adapt to other sizes
or types of conduit)
Trim ring (stainless
contains an integral
gasket, while plastic
does not)
#10-24 Stainless Steel Nuts
Figure 2:Vinyl Liner Niche Installation
Channel gasket p.n. 05161-0004.
The thick side faces the water.
Liner gasket p.n. 05161-0006 if
the trim ring is ABS plastic. If
the niche is mounted to the
outside of the pool wall, use
gasket p.n. 05101-0008
between niche and wall.
Trim ring screws
Stainless #10-24X1
1/2" flat head counter
sunk phillips
Fixture locator notch
#10-24X7/8" pan head stainless screws (2). Use
the two #10 stainless flat washers if the niche
is to be mounted in a Fort Wayne Pool wall panel.
Liner gasket p.n. 05101-0008
Vinyl pool liner
Plug unused entry
Pool wall panel
Fixture mounting nut
1" hubs for rigid non-metallic
conduit (require bushings to
adapt to other sizes or types
of conduit)
Trim ring (stainless
contains an integral
gasket, while plastic
does not)
Figure 3:Vinyl Liner Niche Installation with American
Standard Pre-punched steel panels
Wire ties hold niche to
re-bar via tabs located
about the periphery of
the niche in four places
3259 0598 WG
Plug the unused
conduit entry
Bond the niche to the re-bar
with an approved clamp;
use #8 solid copper wire
If non metallic conduit is used then
pull #8 solid or standard copper wire
through the conduit. Completely cover
the bonding lug with encapsulating
material as required by National
Electrical Code.
Self tapping screws
Bring the plaster
surface flush with the
edge of the niche
NOTE: The PVC niche internal bonding
system can be rotated as necessary.
Do this by loosening the two self
tapping screws and the jam nut on
the inside of the niche in the back.
Rotate the bonding system until the
locator notch is at the bottom of the
niche and the fixture mounting nut
is at the top. Replace the two self
tapping screws in the nearest bosses.
Retighten the nut to 20 ft./lb.
Figure 4: Gunite Pool Niche Installation

5
1
5
4
7
9
10
6
2
3
3
2
1
8
GUNITE
05161-2352 VINYL/SS
05161-2353 TRIM RING
05161-2354 05161-2360
05161-2355 05161-2361
Key 05161-2356 05161-2362
No. Part Description Qty. 05161-2357 05161-2363
1Niche 1 † †
2#10-24 Stainless Steel Hex Nut 4 †† 35407-0031
3#10-24 x 1" Stainless Steel Pan Head Screw 4 †† 37057-0612
4Washer, #10 Flat Stainless Steel 2 †† 38907-0020
5Liner Gasket 1 †† 05101-0008
6#10-24 x 7/8" Stainless Steel Pan Head Screw 2 †† 37337-0099
7Channel Gasket 1 †† 05161-0004
8Integral Gasket for Stainless Steel Trim Ring 1 †† 05161-0001
9Stainless Steel Trim Ring with Gasket Kit 1 †† 05161-0002
10 #10-24 x 1-1/2" Stainless Steel Flat Head Screw 10 †† 37057-0615
REPAIR PARTS LIST – LARGE STAINLESS STEEL LIGHT NICHES
VINYL/SS
Key GUNITE TRIM RING
No. Part Description Qty. 05163-2394 05163-2395
1Niche 1 † †
2Hex Nut, #10-24 Stainless Steel 4 †† 35407-0031
3#10-24 x 1" Stainless Steel Pan Head Screw 4 †† 37057-0612
4Washer, #10 Flat Stainless Steel 2 †† 38907-0020
5Liner Gasket 1 †† 05101-0008
6#10-24 x 7/8" Stainless Steel Pan Head Screw 2 †† 37337-0099
7Channel Gasket 1 †† 05161-0004
8Integral Gasket for Stainless Steel Trim Ring 1 †† 05161-0001
9Stainless Steel Trim Ring with Gasket 1 †† 05161-0002
10 #10-24 x 1-1/2" Stainless Steel Flat Head Screw 10 †† 37057-0615
REPAIR PARTS LIST – LARGE PVC LIGHT NICHES
† Not sold separately.
†† Does not apply.
Figure 5 – Large Light Niche Exploded View

6

7

CREATE A RECORD OF YOUR WARRANTY AT STA-RITE:
• Complete a warranty registration at www.staritepool.com by clicking on “Register Products” and selecting Sta-Rite Pool OR
• Complete bottom portion completely and mail within 10 days of installation to Sta-Rite, Attn.: Pool Warranty Dept., 293 Wright St., Delavan , WI 53115
Warranty Registration Card
Name
Address
City State Zip
Installation (or Purchase) Date
Product Purchased
Model Number
■■New installation ■■Replacement
Years pool has been in service ■■less than 1 ■■1-3 ■■3-5 ■■5-10
This product was purchased from:
Company name
Address
City State Zip
STA-RITE LIMITED WARRANTY
For technical information about this product, contact the installer or call Sta-Rite at 262-728-9181.
Visit www.staritepool.com
• for more information about Sta-Rite products listed above
• to locate a Sta-Rite dealer near you
Product Specific Warranties (from date of installation)
Product Limited
Family Warranty Exceptions
Filters 1 Year System 3 Tank Bodies - 10 Yrs
Filter Valves 1 Year
Pumps 1 Year
Heaters 2 Years *Commercial Application - 1 Yr
Controls 1 Year
Above Ground Systems 1 Year
Lights and Niches 1 Year Lamps and Bulbs - 90 Days
White Goods 1 Year
Maintenance Equipment 90 Days
Drainer/Utility Pumps 90 Days
Replacement Parts 90 Days
Cleaners: Lil Shark 1 Year
Cleaners: Calypso 1 Year
Cleaners: Pool Shark 2 Years Footpad and Seal Flaps - 1 Yr
Cleaners: Great White 2 Years
* Commercial and multi-family application.
Retain this warranty certificate in a
safe and convenient location for your records.
Pumps, filters, skimmers, underwater lights (excluding bulbs),
accessories and fittings manufactured by Sta-Rite are warranted
to be free of defects in material and/or workmanship for one (1)
year from the original date of installation.
The foregoing warranties relate to the original consumer purchas-
er (“Purchaser”) only. Sta-Rite Industries shall have the option to
repair or replace the defective product, at its sole discretion.
Purchasers must pay all labor and shipping charges necessary to
replace the product covered by this warranty. Requests for war-
ranty service must be made through the installing dealer. This
warranty shall not apply to any product that has been subject to
negligence, misapplication, improper installation or maintenance,
or other circumstances which are not in Sta-Rite’s direct control.
Failure to have product installed by a professional in compliance
with local codes will void any and all manufacturer’s warranties.
This warranty sets forth Sta-Rite’s obligation and Purchaser’s
exclusive remedy for defective products.
STA-RITE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL,
INCIDENTAL OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WAR-
RANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE
DURATION OF THE APPLICABLE EXPRESS WARRANTIES
PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental
or consequential damages or limitations on how long an implied
warranty lasts, so the above limitations or exclusion may not
apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state.
Supersedes all previous publications.
S4877PS (Rev. 7/21/04)
