Stamina 55-1537C User manual

55-1537C
STAMINA PRODUCTS
MADE IN CHINA
Product May Vary Slightly
From Pictured.
Owner's Manual
CAUTION:
! WARNING !
Exercise can present a health
risk. Consult a physician
beforebeginningany exercise
program with this equipment.
If you feel faint or dizzy,
immediately discontinue use
of this equipment. Serious
bodily injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur if
all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
tightened prior to each use.
Followallsafetyinstructionsin
this manual.
When calling for parts or
service, please specify the
following number.
Weight on this product should not exceed 300 lbs.
Class H equipment: This equipment is for home
use only. It is not for commercial use.
1.
2.
2006, 11
2040 N. Alliance, Springfield, MO 65803
Customer Service Number
1 [phone]
www.staminaproducts.com
This Product is Produced Exclusively by
2006 Stamina Products, Inc.

SAFETY INSTRUCTIONS
2
WARNING:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
Read all warnings posted on the Elite Inversion System.
The Elite Inversion System should only be used after a thorough review of the Owner's Manual.
We recommend that two people be available for assembly of this product.
Do not use the Elite Inversion System alone. Always have a helper available in case assistance is needed in recovering
from the decline position.
Make sure that the PivotArms are assembled using the same hole on both PivotArms. Pay close attention to Steps 3 and
4 on page 7.
Make sure that the Pivot Arms are always secured to the pegs on the Main Frame with the Quick Releases.
Make sure that the Pad Tubes are assembled with the ends pointed down as directed in STEP 9 on page 9.The ends must
be pointed downward to properly secure the users feet in place during inversion. Improper assembly will allow the users
feet to come loose allowing the user to fall from the inversion table.
Do not use the Elite Inversion System until you have verified your height setting. Failure to use the proper height setting
can result in difficulty recovering from the decline position. See HEIGHT ADJUSTMENT instructions on page 11.
Always make sure that your feet are properly secured in the heel Holder mechanism when using the Elite Inversion
System.
Insert the Ball Pins in the lowest adjustment holes in theAngleAdjustment Tubes to restrict the movement of the inversion
bed to the least amount of inversion angle. Use this setting until you have verified your height setting and become familiar
with the Elite Inversion System.
Both PivotArms must always be adjusted to the same hole.

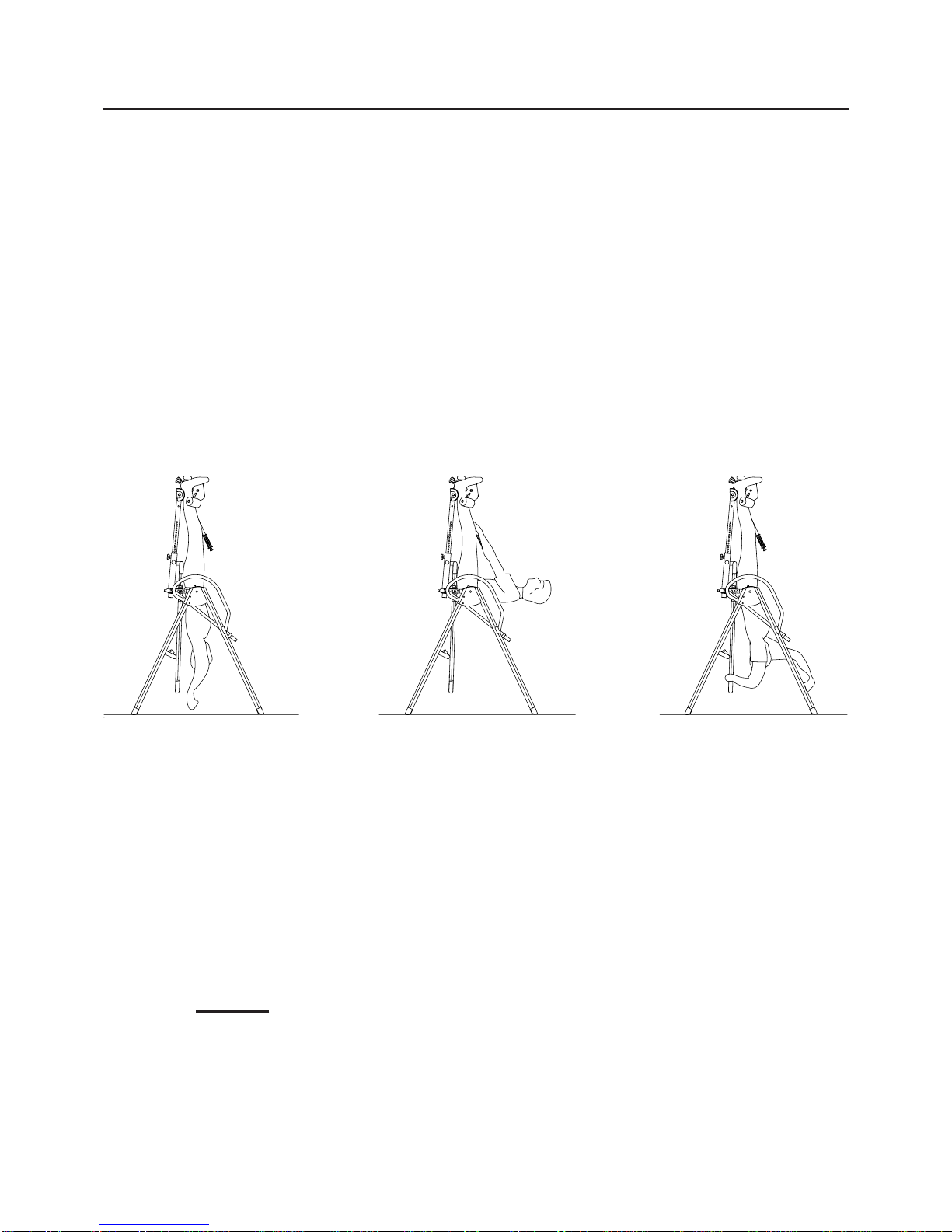

You must understand how to recover from the fully inverted position before using the fully inverted position. Read the
RECOVERY FROM LOCKED POSITION section at the bottom of page 14 BEFORE using the fully inverted position.
Always insert the Ball Pins into the same adjustment hole on both sides of the Elite Inversion System.
Do not allow children to use or play on the Elite Inversion System.
Keep small children and pets away from the Elite Inversion System at all times.
The Elite Inversion System should not be used by persons weighing more than 300 lbs.
The Elite Inversion System should not be used by persons over 6 feet 6 inches tall.
It is recommended that you place this exercise equipment on an equipment mat.
Use the Elite Inversion System only on a level surface.
Wear appropriate clothing when exercising; do not wear loose clothing that could become caught in the Elite Inversion
System.
Be sure that there is enough room for the bed to rotate completely.
Use the Elite Inversion System only as described in the manual.
The safety level of the Elite Inversion System can be maintained only if it is examined regularly for damage and wear.
This equipment is for home use only. It is not for commercial use.
Maintenance Instructions 15

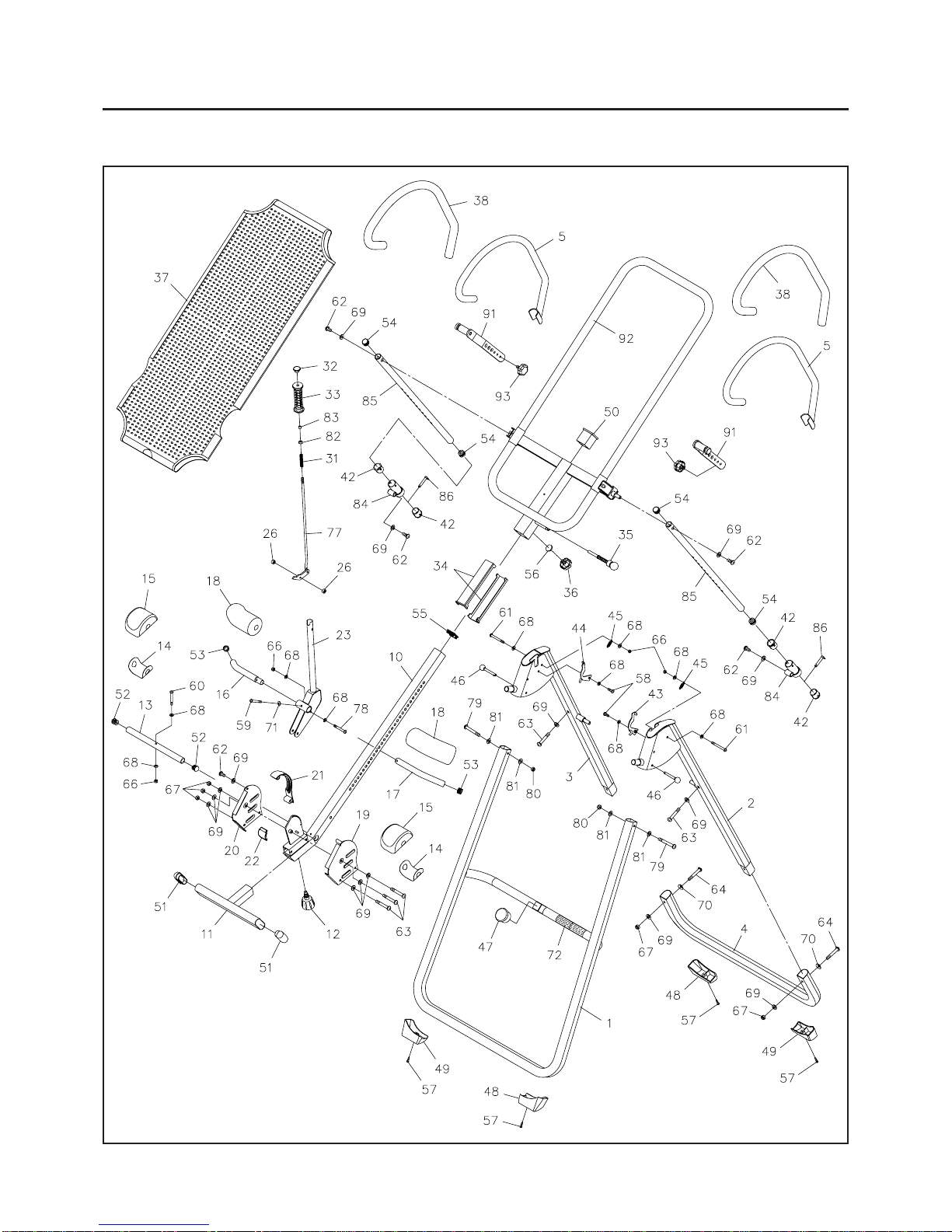

Product Parts Drawing 16
Parts List 17
Warranty 19
Notes 20
Fax/Mail Ordering Form 22
Safety Instructions 2
Before You Begin 4
Hardware Identification Chart 5
Assembly Instructions 6
Operational Instructions 11
Storage 15
TABLE OF CONTENTS Page Page
WARNING: Before using this equipment you should consult with your personal physician to see if inversion
equipment is appropriate for you. Do not use this equipment without your physician's approval. Do not use
this equipment if you have any of the following conditions or ailments:
To reduce the risk of serious injury, read the following safety instructions before using the
Elite Inversion System.
Extreme obesity
Glaucoma, retinal detachment or conjunctivitis
Pregnancy
Spinal injury, Cerebral Sclerosis, or acutely swollen joints
Middle ear infection
High blood pressure, Hypertension, Recent stroke or Transient ischemic attack
Heart or circulatory disorders for which you are being treated
Hiatus hernia or Ventral hernia
Bone weaknesses including Osteoporosis, Unhealed fractures, Medullary pins, or Surgically
implanted orthopedic supports.
Use of anti-coagulants including Aspirin in high doses.

CALL US FIRST
3
THANK YOU FOR PURCHASING THE
Elite Inversion System
To help you get started, we have pre-assembled most of your
Elite Inversion System at the factory with the exception
of those parts left unassembled for shipping purposes.
Simply follow the few assembly instructions set forth in this manual.
Within a few minutes you will be getting your body into shape and on your
way to achieving a happier and healthier lifestyle.
Should you have any questions,
please call our Customer Service Department toll-free number,
1 [phone]
Monday - Friday, 8:00 A.M. - 5:00 P.M., Central Time.

BEFORE YOU BEGIN
Thank you for choosing the Elite Inversion
System. We take great pride in producing this
quality product and hope it will provide many hours
ofqualityexercisetomakeyoufeelbetter,lookbetter
and enjoy life to its fullest.
Yes, it's a proven fact that a regular exercise
program can improve your physical and mental
health. Too often, our busy lifestyles limit our time
and opportunity to exercise. The Elite Inversion
System provides a convenient and simple method
to begin your assault on getting your body in shape
and achieving a happier and healthier lifestyle.

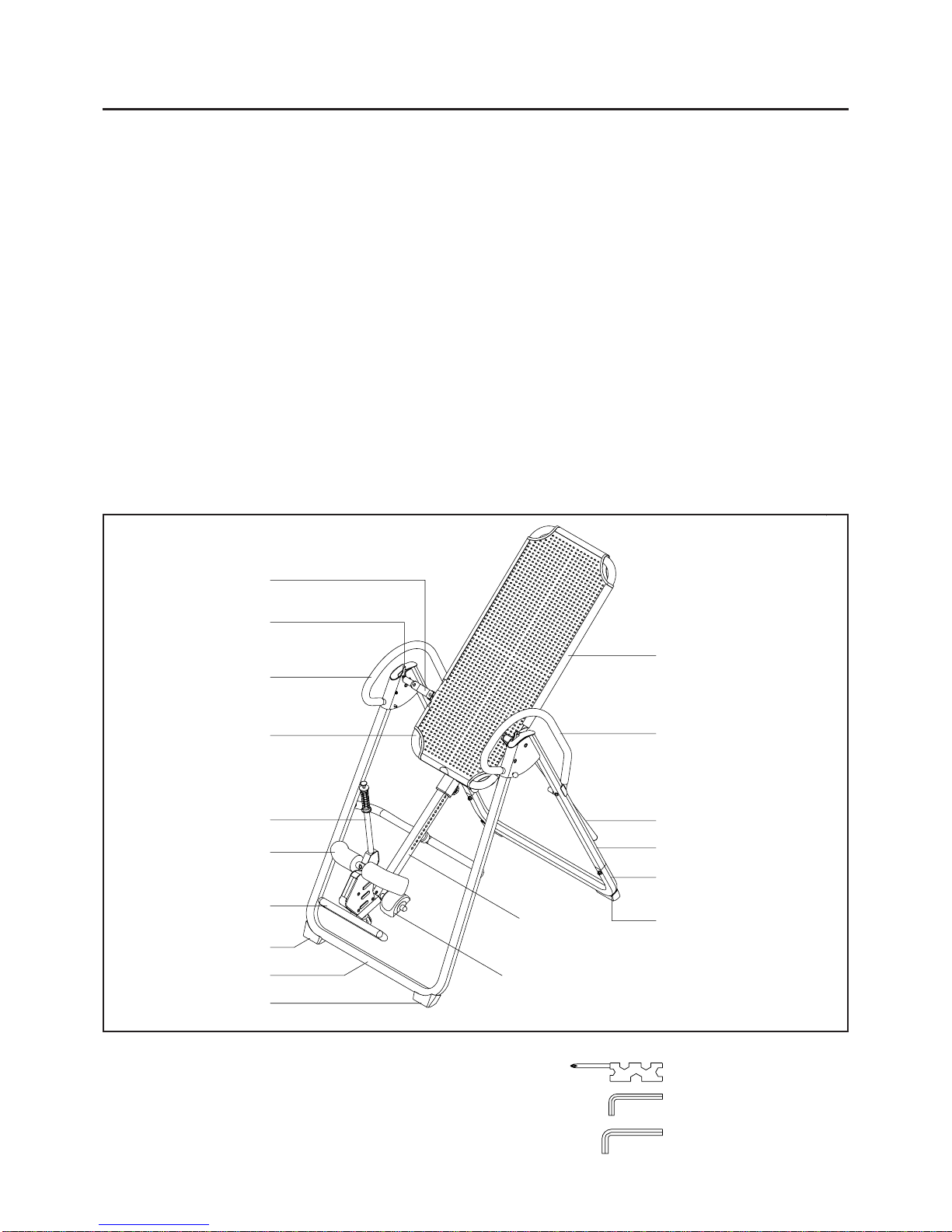

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Read this manual carefully before using the Elite
Inversion System.
Although Stamina tries to manufacture its products
with the finest materials and uses the highest
standards of manufacturing, occasionally a part that
does not fit, is the incorrect size, or is otherwise
inappropriate is found. Even with the highest
inspection and quality controls in place these things
will happen occasionally. Please do not return the
product. For your convenience, Stamina has a
Customer Service Department with a toll-free
number. If a part is missing, does not fit, is the
incorrect size, or is otherwise inappropriate, please
call1(800)375-7520 (in the U.S.)between8:00A.M.
and 5:00 P.M. CentralTime, Monday through Friday.
Our operators will be able to assist you with your
problem and the parts will be mailed directly to your
house.
4
Footrest
Stand B Height
Adjustment Beam
Pivot Arm
Nylon Bed
Handrail
Left Rear Frame
Foam Pad
Lever
Base Frame
Angle Adjustment Bar
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Combination Wrench
Allen Wrench (4mm)
Allen Wrench (6mm)
Stand B
Handrail
Front Frame
Main Frame
Heel Holder
Right Shaft Clip
Stand A

5
Part No. and Description Qty
59 Bolt, Button Head (M6 x 1 x 35mm) 1
60 Bolt, Button Head (M6 x 1 x 47mm) 1
62 Bolt, Button Head (M8 x 1.25 x 15mm) 4
63 Bolt, Button Head (M8 x 1.25 x 50mm) 2
64 Bolt, Button Head (M8 x 1.25 x 55mm) 2
79 Bolt, Button Head (M10 x 1.5 x 60mm) 2
66 Nylock Nut (M6 x 1) 1
67 Nylock Nut (M8 x 1.25) 2
80 Nylock Nut (M10 x 1.5) 2
70 Arc Washer (M8) 2
71 Arc Washer (M6) 1
68 Washer (M6 x ø16 x 1.5mm Thick) 2
69 Washer (M8) 8
81 Washer (M10) 4

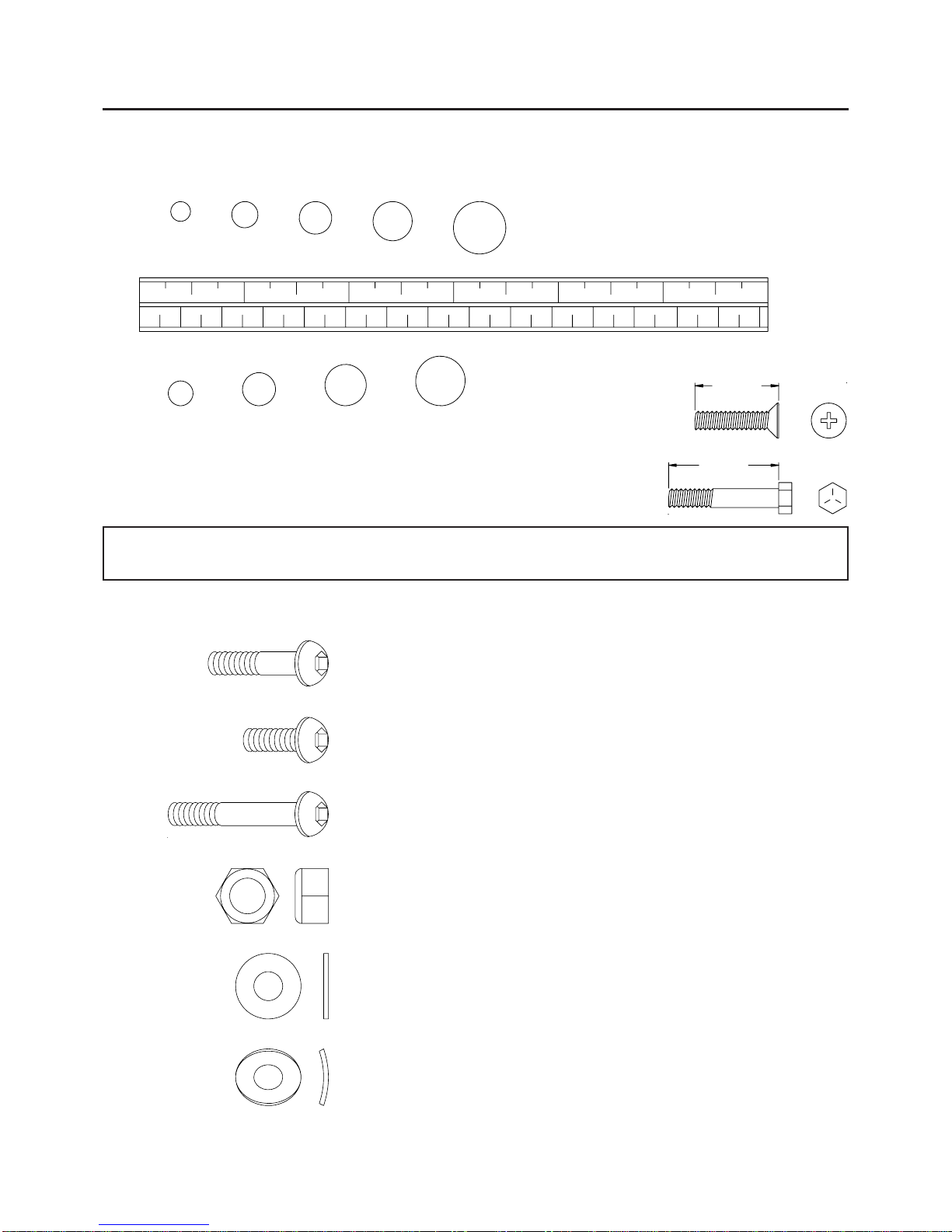

HARDWARE IDENTIFICATION CHART
This chart is provided to help identify the hardware used in the assembly process. Place the washers, the
end of the bolts, or screws on the circles to check for the correct diameter. Use the small scale to check the
length of the bolts and screws.
NOTICE: The length of all bolts and screws except those with flat heads is
measured from below the head to the end of the bolt or screw.
Flat head bolts and screws are measured from the top of the
head to the end of the bolt or screw.
mm.
in.
INCHES
MILLIMETERS
11/2021/2 31/2 41/2 51/2 61/2
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
6 8 10 12
3/16" 5/16" 1/2"3/8"1/4"
length
length
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.

ASSEMBLY INSTRUCTIONS
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please
call our toll-free number for assistance 1 [phone] or e-mail us at:
[e-mail]
6

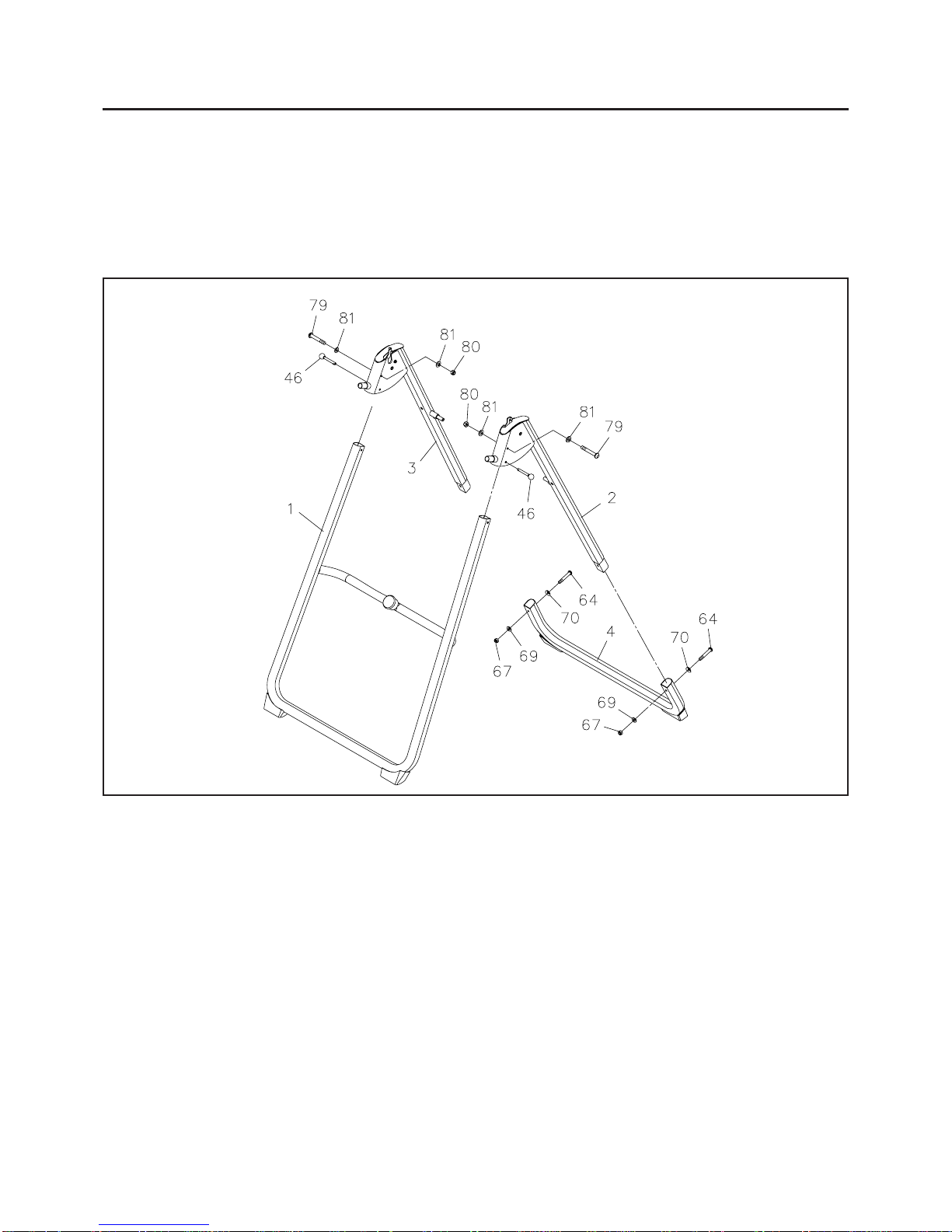

STEP 1
Insert the LEFT and RIGHT REAR FRAMES(2, 3) into the BASE FRAME(4) and secure with
BOLTS(M8 x 55mm)(64), ARC WASHERS(M8)(70), WASHERS(M8)(69), and NYLOCK
NUTS(M8)(67).
STEP 2
Slide the upper ends of the FRONT FRAME(1) into the Brackets on the LEFT and RIGHT REAR
FRAMES(2, 3) and secure with BOLTS(M10 x 60mm)(79), WASHERS(M10)(81), and NYLOCK
NUTS(M10)(80). LocktheFRONT FRAME(1) inthe unfoldedposition with the LONG BALL PINS(46).

ASSEMBLY INSTRUCTIONS
7
B
A
C

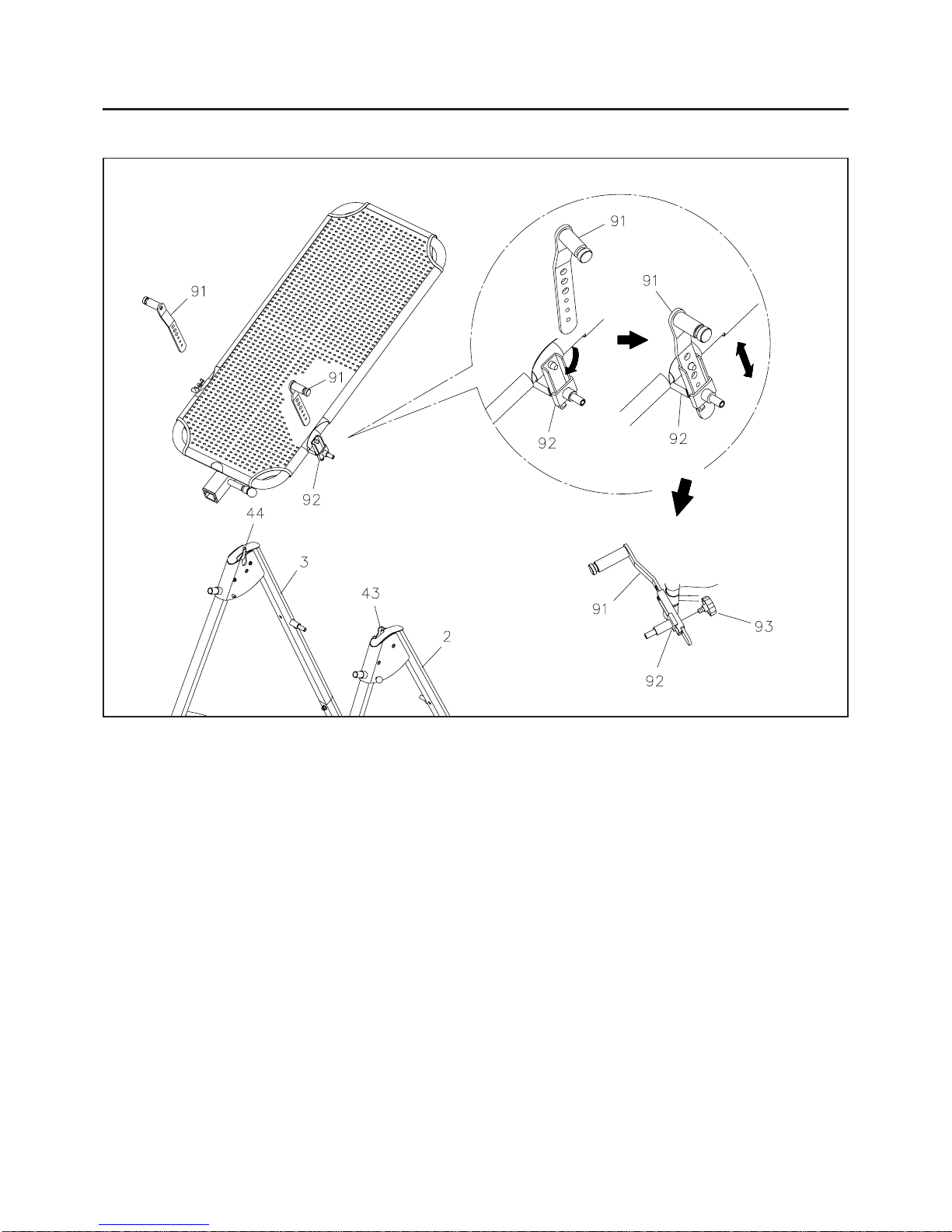

STEP 3
Slide the bottom of the two PIVOTARMS(91)into the brackets located at each side of the MAIN FRAME
(92). Align the desired hole on the arm with the peg on the bracket, then insert the peg into the hole to lock
the PIVOT ARMS(91) in position. Secure the PIVOT ARMS(91) with the SECURING KNOBS
(3/8"-16 x 1/2")(93) on the inner side of the brackets.
Use the lowest holes in the PIVOT ARMS(91) until you become familiar with the Elite
Inversion System
Both PIVOT ARMS(91) must be adjusted to the same hole. Trying to adjust the PIVOT
ARMS(91)to different positions could cause damage to the machine, and injury to the user.
1.
2.
STEP 4
Attach the MAIN FRAME(92) onto the REAR FRAMES(2, 3) by sliding the slots in the ends of the two
PIVOT ARMS(91) into the slots on the REAR FRAMES(2, 3) and secure with the SHAFT CLIPS
(43, 44).
CAUTION:
PIVOT ARM ADJUSTMENT:
TherearethreeadjustmentholesonthePIVOTARMS(91)allowingyoutopositiontheMAIN FRAME(92)
at three different heights. The lowest hole will allow the least amount of inversion angle. The top hole will
allow the greatest amount of inversion angle.

ASSEMBLY INSTRUCTIONS
8

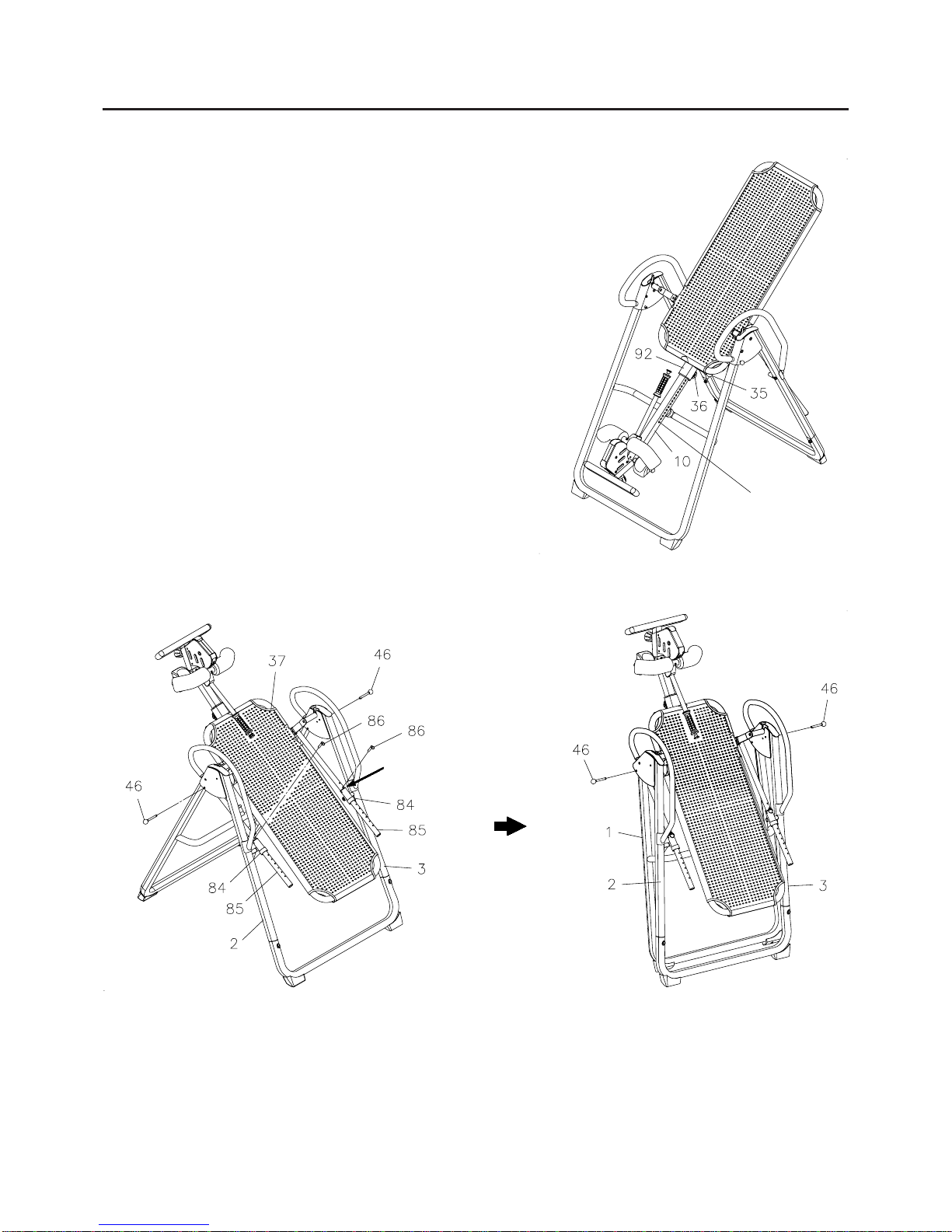

STEP 5
Attach the ANGLE ADJUSTMENT BARS(85) onto the shafts on both sides of the MAIN FRAME(92)
with BOLTS(M8 x 15mm)(62) and WASHERS(M8)(69). Do not tighten the bolts until STEP 6.
STEP 6
Slide one of the SUPPORT SLEEVES(84) onto the left ANGLE ADJUSTMENT BARS(85). Install
theSUPPORT SLEEVES(84)ontothe shaft on theLEFT FRAME(2) withthe SUPPORT SLEEVE(84)
abovethe shaft as shown in the illustration, andsecurewithaBOLT(M8 x 15mm)(62) andWASHER(M8)
(69). Insert the PULL PIN(86) into one of theAdjustment Holes in ANGLE ADJUSTMENT BAR(85).
Repeat on the other side. Tighten all the bolts.

STEP 7: Attach the FOOTREST(11)ontotheHEIGHTADJUSTMENT BEAM(10) withtheadjustment
holes facing down. Secure the FOOTREST(11) in place with the ADJUSTMENT KNOB(12).
NOTE:
ASSEMBLY INSTRUCTIONS
9
The four adjustment holes in the FOOTREST(11) allow the FOOTREST(11) to be attached in
four different positions. Start with one of the center positions and adjust if necessary. Use the outer
position if users are taller than average. Use the inner position if users are shorter than average.
STEP 8
Insert the HEEL HOLDER TUBE(13) through the hole on the HEIGHT ADJUSTMENT BEAM(10)
and secure with BOLT(M6 x 47mm)(60), WASHERS(M6 x ø16 x 1.5mm Thick)(68), and NYLOCK
NUT(M6)(66). Place a HEEL HOLDER BRACKET(14) onto a HEEL HOLDER(15), then slide them
onto the HEEL HOLDER TUBE(13) together. Repeat on other side.
STEP 9
InserttheOUTER PAD TUBE(17) throughthe holeon the HEIGHTADJUSTMENT BEAM(10). Insert
the INNER PAD TUBE(16) into the OUTER PAD TUBE(17). Align the holes on the INNER PAD
TUBE(16),OUTER PAD TUBE(17),and HEIGHT ADJUSTMENT BEAM(10),then bolt them together
with BOLT(M6 x 35mm)(59) and ARC WASHER(M6)(71).
WARNING: The PAD TUBES(16, 17) must be assembled with the ends pointed downward as shown.
Theendsmustbe pointed downwardtoproperlysecuretheusers feet inplace during inversion.
Improper assembly will allow the user's feet to come loose and the user will fall from the Elite
Inversion System.

ASSEMBLY INSTRUCTIONS
10
STEP 10
Installthe HEIGHTADJUSTMENT BEAM(10)into MAIN FRAME(92)by pulling theSPRING PIN(35)
on the MAIN FRAME(92) and inserting the HEIGHT ADJUSTMENT BEAM(10) as shown. For added
safety, thread the LOCKING KNOB(3/8"-16 x 3/4")(36) into back side of the MAIN FRAME(92).
WARNING: Do not use the Elite Inversion System until you have verified your height setting. Failure
to use the proper height setting can result in difficulty recovering from the decline position.
See HEIGHT ADJUSTMENT instructions on page 11.
STEP 11
Insert the front ends of the HANDRAILS(5) onto the short tubes on REAR FRAMES(2, 3). Then attach
the back ends of the HANDRAILS(5) with BOLTS(M8 x 50mm)(63) and WASHERS(M8)(69).

11
OPERATIONAL INSTRUCTIONS
GENERAL PRECAUTIONS
Use the lowest holes in the PIVOT ARMS(91)until you become familiar with the Elite Inversion
System.
Do not use the Elite Inversion System alone. Always have a helper available in case assistance is
needed in recovering from the decline position.
Make sure that the FOAM PADS(18) and HEEL HOLDERS(15) are holding your feet securely.
Make sure that the HEIGHT ADJUSTMENT BEAM(10) is properly set for your height.
Makesurethatthe HEIGHTADJUSTMENT BEAM(10)is heldsecurelyby both the SPRING PIN(35)
and the LOCKING KNOB(36).
Make sure that there is enough room for the bed to rotate completely.
1.
2.
3.
4.
5.
6.

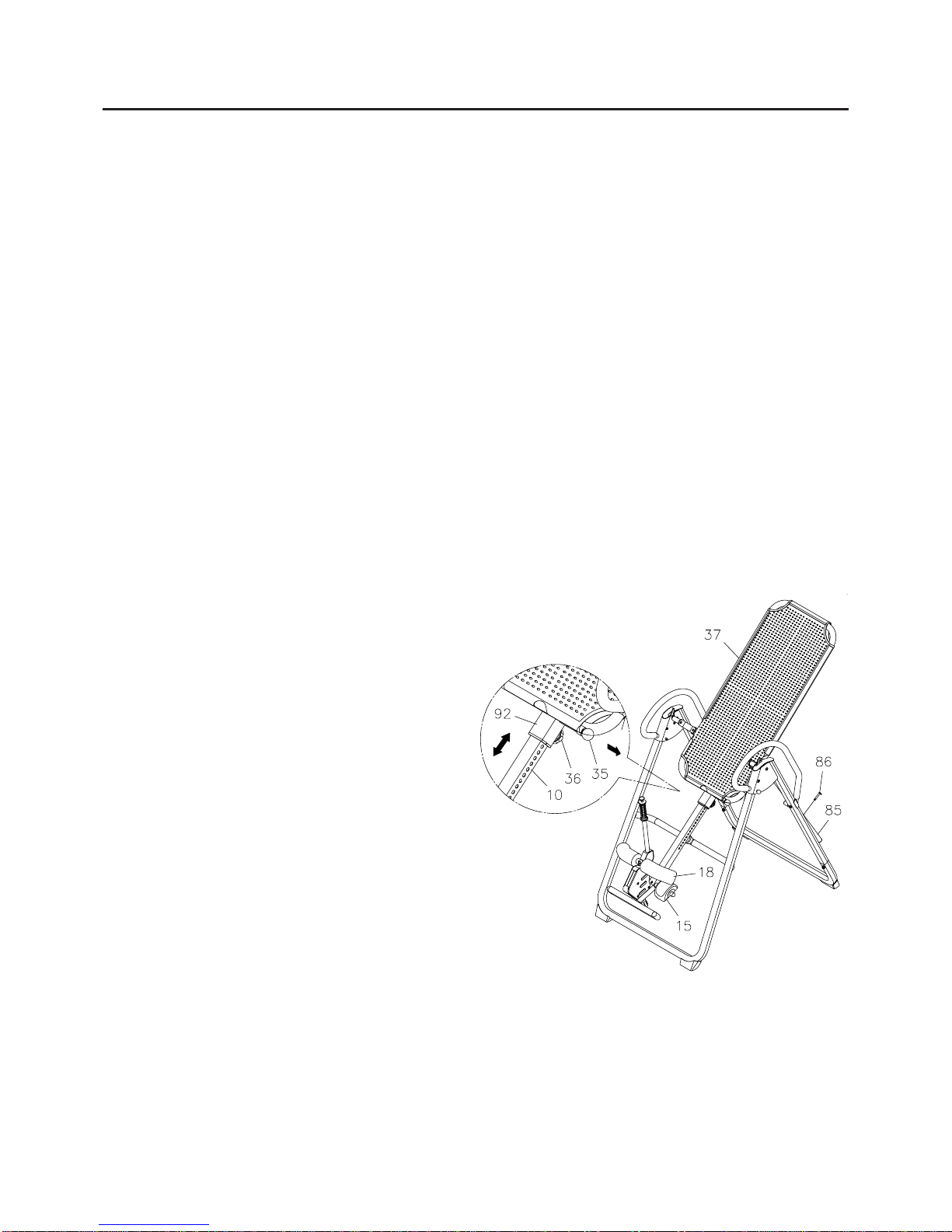

HEIGHT ADJUSTMENT
The Elite Inversion System is a very sensitive balance device. It responds to very slight changes in
weight distribution. It is very important to make sure that the height adjustment is adjusted properly. Use
the following procedure to set the height adjustment and balance the Elite Inversion System.
Insert the PULL PINS(86) into the second
adjustment holes from the top in the ANGLE
ADJUSTMENT BARS(85) to restrict the
movement of the NYLON BED(37) to the least
amount of inversion angle. The PULL PINS(86)
shouldnot be inserted into thelowest adjustment
holes in the ANGLE ADJUSTMENT
BARS(85),ortheElite Inversion Systemmay
go into the full inversion position while you are
setting the height adjustment.
Loosen the LOCKING KNOB(36) under the
MAIN FRAME(92).
Pull the SPRING PIN(35) and use the SCALE
INDICATIONtosettheHEIGHTADJUSTMENT
BEAM(10).
Tighten the LOCKING KNOB(36).
Mount the machine.
Lock your ankles into the FOAM PADS(18) and
HEEL HOLDERS(15).
Lie back with your hands at your sides.
Slowly raise your hands to your chest.
If your feet are higher than your head, dismount
and try a taller setting. If you do not rotate to a
position close to level, dismount and try a shorter
setting.
1.
2.
3.
4.
5.
6.
7.
8.
9.
NOTE: The Elite Inversion System should return to the upright position when your hands are below
your waist. If it does not, use a taller setting.

OPERATIONAL INSTRUCTIONS
HEEL HOLDER USE AND ADJUSTMENT
Place your feet on the FOOTREST(11) with your ankles between the
HEEL HOLDERS(15) and FOAM PADS(18).
The HEIGHT ADJUSTMENT BEAM(10) includes a LEVER(23) to
grip and release your feet. Pull the LEVER(23) toward you until your
ankles are securely held between the HEEL HOLDERS(15) and
FOAM PADS(18).
To release your feet or relax the grip, pull the LEVER(23) toward you
slightly and press the button on the end of the lever.
1.
2.
3.
Button
THE HANDRAILS
INVERSION ANGLE ADJUSTMENT
There are 11 adjustment holes in the ANGLE
ADJUSTMENT BARS(85) allowing you restrict the
movement of the NYLON BED(37) to different angles
by inserting the PULL PINS(86) into different
adjustment holes.
The top holes will allow the least amount of inversion
angle. The lowest hole will allow the greatest amount of
inversion angle and the Elite Inversion System will
go into the full inversion position.
1.
2.
Use the holes near the top in the ANGLE
ADJUSTMENT BARS(85) until you become
familiar with the Elite Inversion System.
BothPULLPINS(86)mustbeinsertedintothesame
hole in the ANGLE ADJUSTMENT BARS(85).
Trying to insert the PULL PINS(86) into different
positions could cause damage to the machine, and
injury to the user.
CAUTION:
Foraddedconvenience,andsafety,asetofHANDRAILShas beenaddedtothe Elite Inversion System.
These HANDRAILS are located at both sides of the frame. The HANDRAILS are to help you return to
the upright position from any degree of inversion. If you wish to return to the upright position, and the bed
is moving too slowly, or not moving at all, simply grab the HANDRAILS and pull on them until you return to
the upright position.
12

Start by lying fully back on the bed with your hands at your side, or resting on your thighs.
Keeping your hands close to your body begin to raise your arms slowly allowing the table to rotate
backward. Stop, or lower your arms to control the downward rotation of the table.
Raise your arms until they are over your head. At this point, the inversion table will be as far back as it
can go.
As you get more comfortable with the use, rock the bed slowly by moving your arms up and down
slowly.
Agentle swinging motion will alternately put your spine in traction and compression. This rhythmic type
of traction is used by many hospitals and doctors to treat certain back problems.
It is recommended that the inversion table be used for five or ten minutes each morning, and again each
evening.
Return to the upright position by slowly moving your hands back down to your thighs.
USING THE PRO INVERSION SYSTEM
1.
2.
3.
4.
5.
6.
7.
1. 3.
4.2.
13
OPERATIONAL INSTRUCTIONS

OPERATIONAL INSTRUCTIONS
SUGGESTIONS FOR USE
Begin slowly: invert with the least amount of inversion angle to begin with. Stay inverted only as long as
you are comfortable. Return upright slowly.
Makegradualchanges: increase theangleonlyif it iscomfortable. Increasetheangleonlyone adjustment
hole at a time. Increase the time of use 1-2 minutes up to ten over a period of weeks. Add stretching and
light exercise only after you are comfortable with inversion.
Watch your body: come up slowly, dizziness after a session means you came up to fast. Wait a while
after eating before using table. If you get nauseous, do not fight it, come up as soon as you feel queasy.
Keep moving: movement while inverted encourages blood, lymph, and spinal fluid circulation and aids
in alignment of bones and organs. Movement may be accomplished by either rhythmic traction or light
exercise. Donot exercise strenuously while inverted. Limitpartialinversion withoutmovementto one or
two minutes. Limit full inversion with no movement to only a few seconds.
Invert regularly: we recommend two or three times a day depending upon your current condition. Try to
schedule it for the same times each day.
1.
2.
3.
4.
5.
A. B. C.
RECOVERY FROM LOCKED POSITION
To recover from the locked position, simply grab the HANDRAILS and pull on them while pushing back on
the HEEL HOLDERS(15) with your legs. If you can not reach the HANDRAILS, then you can still
recover by grabbing the back of the bed with one hand, the REAR FRAME with the other, and pulling your
hands together, as shown in illustration C.
14
LOCKING THE BED
When the inversion table rotates past the vertical inverted position the bed becomes locked, and will not
return to the upright position in the usual way. The locked position allows you to hang straight upside-down
completely free of the bed. This position allows you to enjoy all of the benefits of a handstand, with none of
the discomforts, as shown in illustration A. It also allows you to do exercises such as the waistband, as
shown in illustration B.
To get into the locked position, use the top hole in the PIVOT ARMS(6) as described in STEP 3.
If necessary, adjust the HEIGHT ADJUSTMENT BEAM(10) shorter, and then mount and use normally.
When your arms are completely extended above your head, the bed will rotate all the way to the locked
position.
CAUTION: You must understand how to recover from the fully inverted position before using the fully
inverted position. Read the RECOVERY FROM LOCKED POSITION section below
BEFORE using the fully inverted position.

15
STORAGE
MAINTENANCE
Check the angle adjustment tube, traction bars, ball pins, pivot arms, cushion bed, heel holders, foam
pads, spring pin, and warning label fordamage and wear.
Replace damaged and worn components immediately and/or keep the equipment out of use until repairs
are complete.
1.
2.
The safety level of the Elite Inversion System can be maintained only if it is examined regularly for
damage and wear.
The Elite Inversion System is designed to fold for easy storage. You can store
your Elite Inversion System as illustrated. Please follow the following process:
When folding and unfolding the Elite Inversion System, keep all children away from the
Elite Inversion System and make sure your hands are clear of any folding or pinch point.
Lowest
Adjustment Hole
1.
WARNING:
3.2.
STEP 1: Loosen LOCKING KNOB(36) and pull out the
SPRING PIN(35). Now, slide the HEIGHT ADJUSTMENT
BEAM(10)into the MAIN FRAME(92)and lock in the lowest
adjustment hole. Refer to illustration 1.
STEP 2: Remove the PULL PINS(86) from the ANGLE
ADJUSTMENT BARS(85). Swing the NYLON BED(37)
down to about the same place as the Rear Frame and lock in
position by inserting the PULL PINS(86) into the second
adjustment holes in the ANGELADJUSTMENT BARS(85)
above the SUPPORT SLEEVE(84). Refer to illustration 2.
STEP 3: Remove the LONG BALL PINS(46) from the
REAR FRAMES(2, 3). Fold the Front Frame close to the
Rear Frame as Illustration 3 shows. Insert the LONG BALL
PINS(46) back into the REAR FRAMES(2, 3) to lock the
Elite Inversion System in the folded position.
Insert the PULL PINS(86)
into the second
adjustment holes.

PRODUCT PARTS DRAWING
BACK
FRONT
16

17
1 Front Frame 1
2 Left Rear Frame 1
3 Right Rear Frame 1
4 Base Frame 1
5 Handrail 2
10 Height Adjustment Beam 1
11 Footrest 1
12 Adjustment Knob 1
13 Heel Holder Tube 1
14 Heel Holder Bracket 2
15 Heel Holder 2
16 Inner Pad Tube 1
17 Outer Pad Tube 1
18 Foam Pad 2
19 Left Lever Cover 1
20 Right Lever Cover 1
21 Rear Lever Cover 1
22 Corner cap 1
23 Lever 1
26 Claw Spacer 2
31 Spring 1
32 Button 1
33 Hand Grip 1
34 Bushing 2
35 Spring Pin 1
36 Locking Knob (3/8"-16 x 3/4") 1
37 Nylon Bed 1
38 Foam Grip 2
42 Selection Tube Bushing 4
43 Left Shaft Clip 1
44 Right Shaft Clip 1
45 Tension Spring 2
46 Long Ball Pin (ø8 x 55mm) 2
47 Bumper 1
48 Stand A (front left) 2
49 Stand B (front right) 2
50 Hollow Cap 1
51 Oval Plug (20mm x 60mm) 2
52 Dome Plug (22mm) 2
53 Round Plug (22mm) 2
54 Round Plug (25mm) 4
55 Square Plug (38mm x 38mm) 1
56 Support Washer 1
57 Screw, Round Head (M4 x 20mm) 4
58 Bolt, Button Head (M6 x 1 x 15mm) 2
59 Bolt, Button Head (M6 x 1 x 35mm) 1
PARTS LIST
DIAGRAM# PART NAME QTY

PARTS LIST
DIAGRAM# PART NAME QTY
60 Bolt, Button Head (M6 x 1 x 47mm) 1
61 Bolt, Button Head (M6 x 1 x 55mm) 2
62 Bolt, Button Head (M8 x 1.25 x 15mm) 5
63 Bolt, Button Head (M8 x 1.25 x 50mm) 5
64 Bolt, Button Head (M8 x 1.25 x 55mm) 2
66 Nylock Nut (M6 x 1) 4
67 Nylock Nut (M8 x 1.25) 5
68 Washer (M6 x ø16 x 1.5mm Thick) 10
69 Washer (M8) 15
70 Arc Washer (M8) 2
71 Arc Washer (M6) 1
72 Warning Label 1
73 Combination Wrench 1
74 Allen Wrench (4mm) 1
75 Allen Wrench (6mm) 1
76 Manual 1
77 Claw/Pressing Bar Assembly 1
78 Bolt, Button Head (M6 x 1 x 42mm) 1
79 Bolt, Button Head (M10 x 1.5 x 60mm) 2
80 Nylock Nut (M10 x 1.5) 2
81 Washer (M10) 4
82 Nut (M8 x 1.25) 1
83 Pressing Bar Spacer 1
84 Support Sleeve 2
85 Angle Adjustment Bar 2
86 Pull Pin (ø6 x 40mm) 2
87 Instruction Video (DVD) 1
91 PivotArm 2
92 Main Frame 1
93 Securing Knob (3/8"-16 x 1/2") 2
18

LIMITED WARRANTY MODEL 55-1537C
WARRANTY
19
Stamina Products, Inc. warrants that this product will be free from defects in materials and workmanship
under normal use, service and proper operation for a period of 90 days on the parts and 5 years on the
frame from the date of the original purchase from an authorized retailer. THIS WARRANTY SHALL NOT
APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE, ABUSE, MISUSE,
ALTERATION OF ANY TYPE OR CAUSE OR TO ANY DEFECT OR DAMAGE CAUSED BY REPAIR,
REPLACEMENT,SUBSTITUTION ORUSEWITH PARTS OTHER THANPARTS PROVIDEDBYSTAMINA
PRODUCTS, INC. Commercial use includes use of the product in athletic clubs, health clubs, spas,
gymnasiums, exercise facilities, and other public or semipublic facilities whether or not the product's use is
in furtherance of a profit making enterprise, and all other use which is not for personal, family, or household
purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase and
abriefdescriptionofthedefectalongwithyourreceiptto StaminaProducts, Inc. P.O.Box1071, Springfield
Missouri, USA, 65801-1071 or call us at 1 [phone]. If the defect is covered under this limited
warranty, you will be requested to return the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE THAN ONE
(1) YEARAFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE BEEN DISCOVERED.
NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY MAY BE COMMENCED MORE THAN ONE
(1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. This limited warranty is not
transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY AVAILABLE TO YOU. In the event that the purchaser makes any claim under this
limitedwarrantyorany impliedwarranty,theWarrantorreservestherighttorequiretheproducttobereturned
for inspection, at the purchaser's expense, to the Warrantor's premises in Springfield, Missouri. Return of
the enclosed warranty registration card is not required for warranty coverage, but is merely a way of
establishing the date and place of purchase.
Stamina Products, Inc. SHALLNOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF
TIME, INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL,
SPECIALOR INCIDENTALDAMAGESDUETOBREACH OFTHEABOVEWARRANTYORANYIMPLIED
WARRANTY.
This limited warranty is the only written or express warranty given by Stamina Products, Inc. This warranty
gives you specific legal rights, and you may also have other legal rights which vary from state to state.
ANY OTHER RIGHT WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OR
MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE, IS LIMITED INDURATION TO THE
DURATION OF THIS WARRANTY.
The laws in some jurisdictions restrict the rights of manufacturers and distributors of consumer goods to
disclaim or limit implied warranties and consequential and incidental damages with respect thereto. If any
suchlaw is foundto be applicable,theforegoingdisclaimersand limitationsofand on implied warrantiesand
consequential and incidental damages with respect thereto shall be disregarded and shall be deemed not to
have been made to the extent necessary to comply with such legal restriction.

NOTES
20
