Stanley ST-52-231-E User manual

821000183-14
Turbo Electric Heater
ST-52-231-E /ST-52-241-E / ST-53-231-E / ST-53-241-E
ST-533-401-E / ST-55-401-E / ST-59-401-E

© 2014, Pinnacle Products International, Inc. 1
ENGLISH ..........................................................................................................1-10
Read The Instruction manual: When this symbol is marked on a product, it means that the
instruction manual must be read.
In order to avoid overheating, do not cover the heater.
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY
BEFORE USING THE APPLIANCE.
- Children of less than 3 years should be kept away unless continuously supervised. Children aged
from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position and they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.
- The heater must not be located immediately below a socket-outlet.
- Do not use the appliance for other than its intended use. For domestic indoor use only.
- Place the appliance on a at, stable, heat-resistant surface. Operating the product in any other
position could cause a hazard.
- There may be trace of odour during the rst few minutes of initial use. This is normal and will
quickly disappear.
- Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable
parts inside.

© 2014, Pinnacle Products International, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
are trademarks of Stanley Black & Decker, Inc or its affiliates and are used under
license by Pinnacle Products International, Inc.
STANLEY and
2
Safety Information
IMPORTANT: Read and understand all of the safety information and instructions in this
manual before operating your heater.
RISK OF EXPLOSION! Do Not operate this heater where there are harmful,
explosive or flammable gasses, fumes or hazardous substances.
DANGER
RISK OF FIRE! Do Not operate this heater near combustible materials.
WARNING
ELECTRIC SHOCK HAZARD! Do not use this heater in the immediate
surroundings of a bath, a shower, or a swimming pool.
WARNING
BURN HAZARD! Do Not touch the front of heater while it is operating. This
heater is hot while operating.
WARNING
RISK OF INJURY! DO NOT MOVE HEATER WHILE IT IS OPERATING.
WARNING
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Children should be supervised so they do not play
with the appliance.
ALWAYS use only the electrical power (voltage
and frequency) specied on the model plate of
the heater.
ALWAYS use an extension cord properly rated for
this appliance.
ALWAYS ensure that all cords are protected
against short circuit and overload.
ALWAYS keep power cord away from hot air outlet.
ALWAYS disconnect heater from power source
when not in use.
NEVER place the heater on a small, uneven or
unstable surface that may cause the heater to fall.
NEVER connect other appliances to the same
electrical outlet as the fan heater.
NEVER operate heater with heater guards removed.
NEVER block hot air outlet while heater is operating.
NEVER cover or obstruct heater.
NEVER use ducting with heater.
NEVER pull or carry heater by the power cord.
NEVER use heater with an external switching
device: such as a timer.
If heater is damaged, do not use it. The heater must
be serviced by a qualified person or service agent.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Do not use this heater in the immediate
surroundings of a bath, a shower or a swimming
pool.
The heater must not be located immediately
below a socket outlet.
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
CAUTION

© 2014, Pinnacle Products International, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
Assembly (See Page 5-6)
1. Align holes in heater leg frame with lower
inner bracket.
2. Attach lower outer bracket to lower inner
bracket using screws.
3. Align lower inner bracket with side support.
4. Attach side supports to heater using tilt
adjustment knob.
5. Slide side supports into upper brackets, align
holes and insert screws to tighten.
6. Slide upper handle brackets onto front
handle, align holes and insert screws to
tighten.
7. Slide rear handle into upper handle brackets,
align holes and insert screws to tighten.
Operation
1. Position the fan heater so that it stands
upright on a firm, level surface and at a
safe distance from wet environments and
flammable objects.
2. Connect the fan heater to the proper electrical
power.
3. Set the thermostat dial to the maximum
temperature.
4. The fan heater will switch on when the
function selector dial is set to one of the three
power settings.
5. Once the room reaches the desired
temperature, turn the thermostat dial back
until heating element turns off.
Automatic Overheat Safety Control
– This heater is equipped with safety internal
heat limiting thermostat and overheat
protection circuit. When a potential overheat
temperature is reached, the system will
automatically shut the heater off.
Thermostat Instructions
– At first, set the thermostat to “+” and let the
heater operate with full power input. When
the room temperature reaches the required
value, turn the thermostat to the left until it
switches off.
– The thermostat will then switch on and off
automatically to control the room temperature
according to the preset value and keep the
room temperature constant.
– When using the heater for the first time, you
may notice a slight emission of smoke. This
is quite normal and it stops after a short
time. The heating element is made of steel
and was coated with a layer of protective oil
during production. The smoke is caused by
the leftover oil as it is heated.
Cleaning and Maintenance
– Before cleaning the appliance, disconnect it
from the outlet and let it cool down.
– The enclosure is easy to get dirty. Wipe it
often with a soft sponge. For very dirty parts,
wipe with a sponge dipped in < 50°C water
and mild detergent, then dry the heater
enclosure with a clean cloth. Be careful not to
let the water enter the inside of the appliance
– Clean the coupler, dry and pack it in a plastic
bag.
– In order to protect the enclosure, don’t
splash water onto the heater, and never
use a solvent like gasoline, isoamyl acetate,
toluene, etc. to clean the heater.
– When you store the heater, let it cool down
first and, keep it dry. Then cover it with a
plastic bag, put it in the packing box and
store it in a dry, ventilated place.
3

© 2014, Pinnacle Products International, Inc. 4
ST-52-231-E / ST-52-241-E/
ST-53-231-E / ST-53-241-E / ST-533-401-E
ST-55-401-E / ST-59-401-E
5
1
2
3
6
7
8
1
2
3
4
6
7
8
5
1. Front Guard
2. Fan
3. Heat Coil
4. Power Light
5. Function Selector
6. Handle
7. Thermostat
8. Adjustment Knob
SPECIFICATIONS
Specications subject to change without notice
ST-52-231-E
ST-52-241-E
ST-53-231-E
ST-53-241-E
THERMAL POWER (kW) 2.0 3.0 3.3 5.0 9.0
THERMAL POWER (BTU) 6,820 10,250 11,250 17,060 30,710
AIR FLOW (m3/H) 156 540 305 388 980
HEATING AREA (m3) 20 30 33 50 90
POWER (Volt / Hz) (ST-231-E)
POWER (Volt / Hz) (ST-241-E)
HEAT SETTINGS 1 1122
INGRESS PROTECTION RATING (IP) X4 X4 X4 X4 X4
FUNCTIONS / SETTINGS
Unit is Off
Fan Runs - No Heating
Fan Runs - Half Power Heating
Fan Runs - Full Power Heating
NOTE: The fan will run continuously while the heater is operating.
230V~50Hz 230V~50Hz 220-240V~50Hz 380-400V~50Hz 380-400V~50Hz
220-240V~50Hz 220-240V~50Hz
ST-533-401-E ST-55-401-E ST-59-401-E

© 2014, Pinnacle Products International, Inc. 5
1
2 3

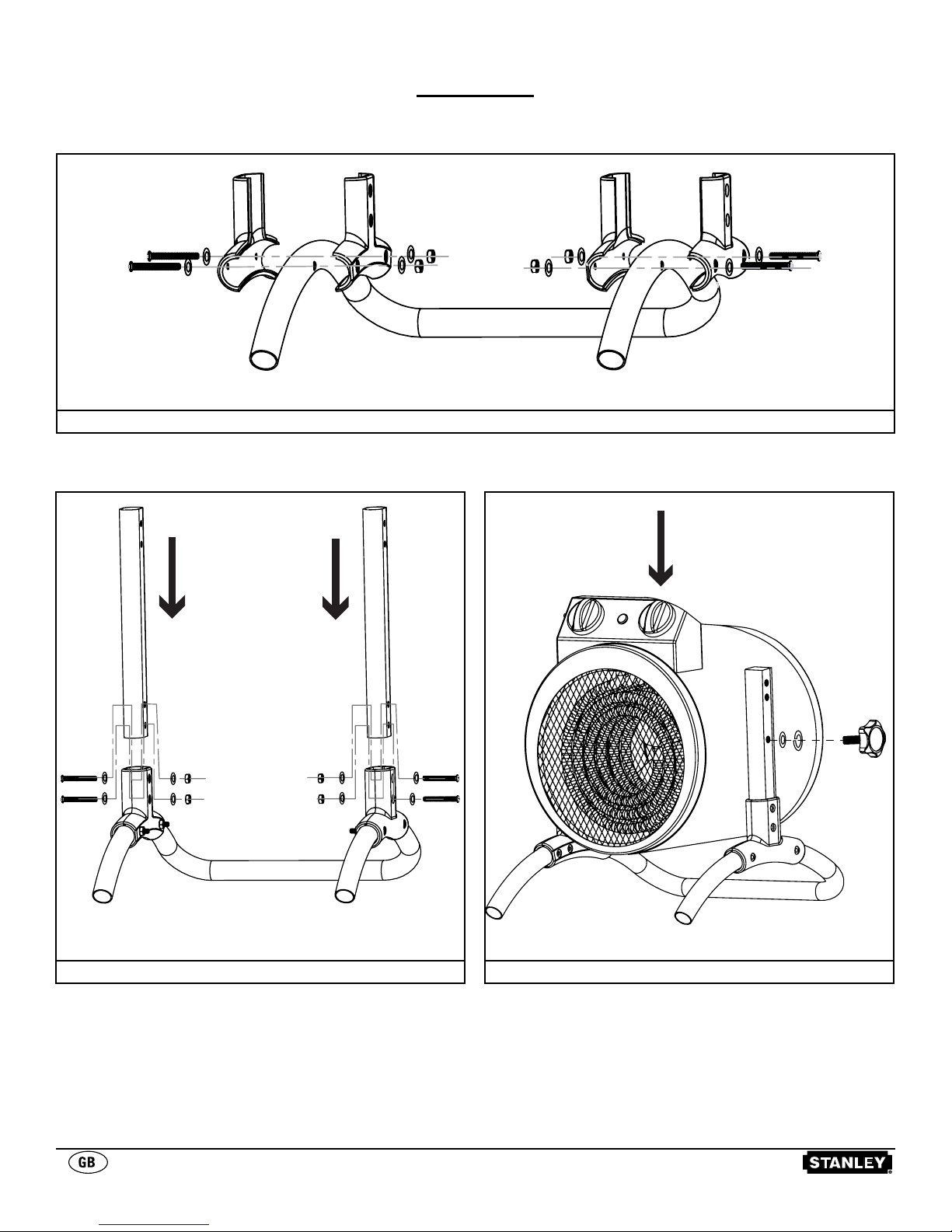

Assembly

© 2014, Pinnacle Products International, Inc.
4 5
6
6
Assembly

© 2014, Pinnacle Products International, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
RISK OF ELECTRIC SHOCK! DISCONNECT FROM POWER BEFORE MAINTENANCE.
WARNING
Plug Replacement
NOTE: This section only applies to heaters sold or used in Great Britain.
This appliance is supplied with a BS1363A3 pin
plug tted with a fuse. Should the fuse require
replacement, it must be replaced with a fuse
with the proper amp rating. (see Technical
Specications page 2) and approved to BS1362.
In the event the mains plug has to be removed/
replaced for any reason, please note:
IMPORTANT: The wires in the mains lead are
colored in accordance with the following code:
Blue – Neutral Brown – Live
Green/Yellow – Earth
As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows:
The blue wire must be connected to the terminal
marked with an N or colored black. The brown
wire must be connected to the terminal marked
with an L or colored red. The green/ yellow wire
must be connected to the earthing terminal which
is marked with an E or with the earth symbol.
NOTE: If a moulded plug is tted and has to
be removed take great care in disposing of the
plug and severed cable, it must be destroyed to
prevent engaging into a socket.
Never connect live or neutral
wires to the earth terminal of
the plug.
WARNING
GREEN / YELLOW
Earth
BROWN
Live
FUSE
13 Amps
CORD CLAMP
BLUE
Neutral

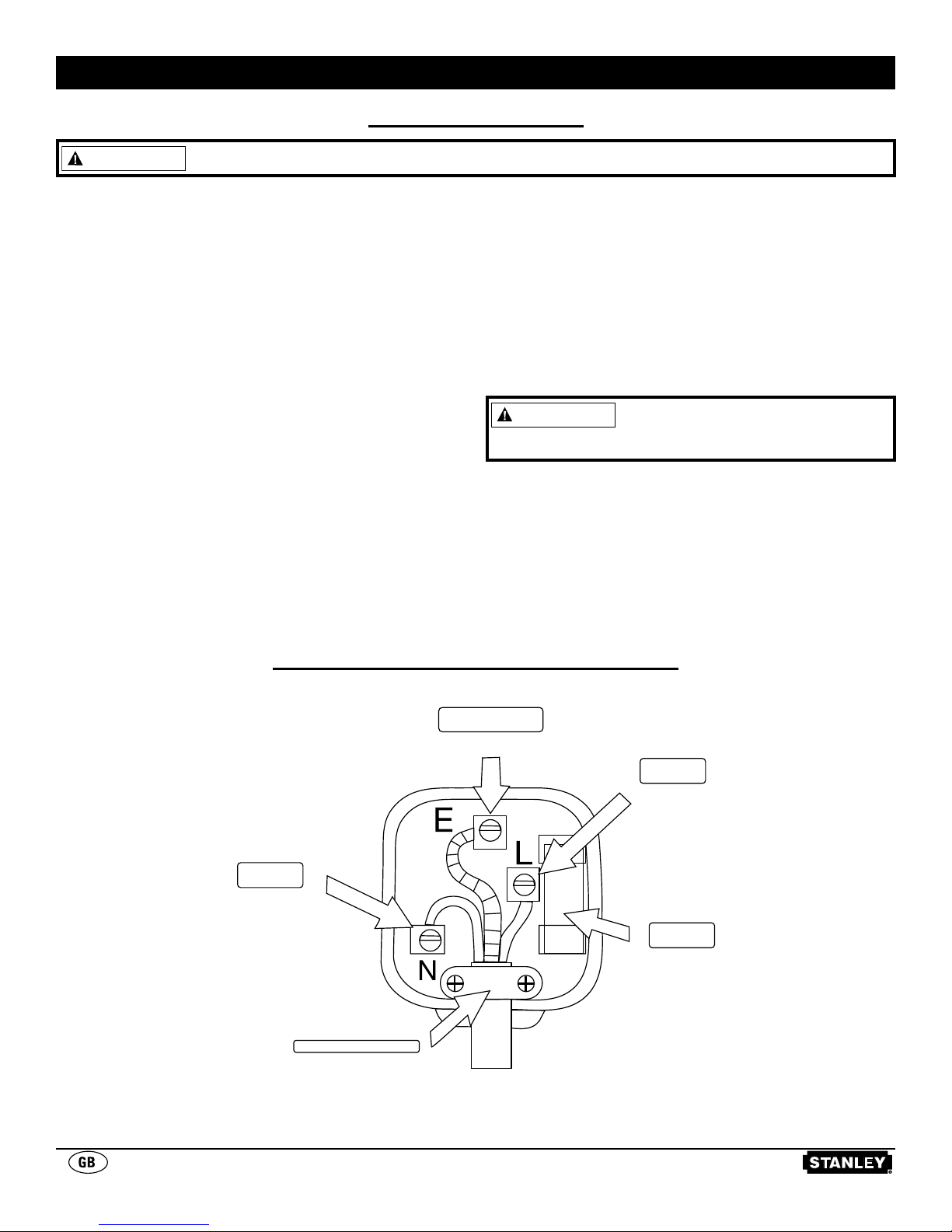

Plug Replacement Wiring Diagram
7

© 2014, Pinnacle Products International, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
Problem Cause Solution
Fan stays on when heat shuts
off.
1. Fan runs continuously while
the heater is operating.
1. Heater is operating correctly.
Fan speed stays the same
when changing settings.
1. Fan speed stays constant.
Setting changes amount of
heat output only.
1. Heater is operating correctly.
Heating element does not glow
red.
1. Heating element is made of
stainless steel and will not
glow red to produce heat.
1. Heater is operating correctly.
Do not feel heat or air ow.
1. No power to heater.
2. Desired room temperature
reached.
3. Heater does not heat area
in front of heater, it will
disperse heat throughout
room to heat entire space.
1. Check power connections
/ connect heater to power
supply.
2. Thermostat will shut off once
desired room temperature is
reached. Heater is operating
correctly.
3. Heater is operating correctly.
8
Troubleshooting

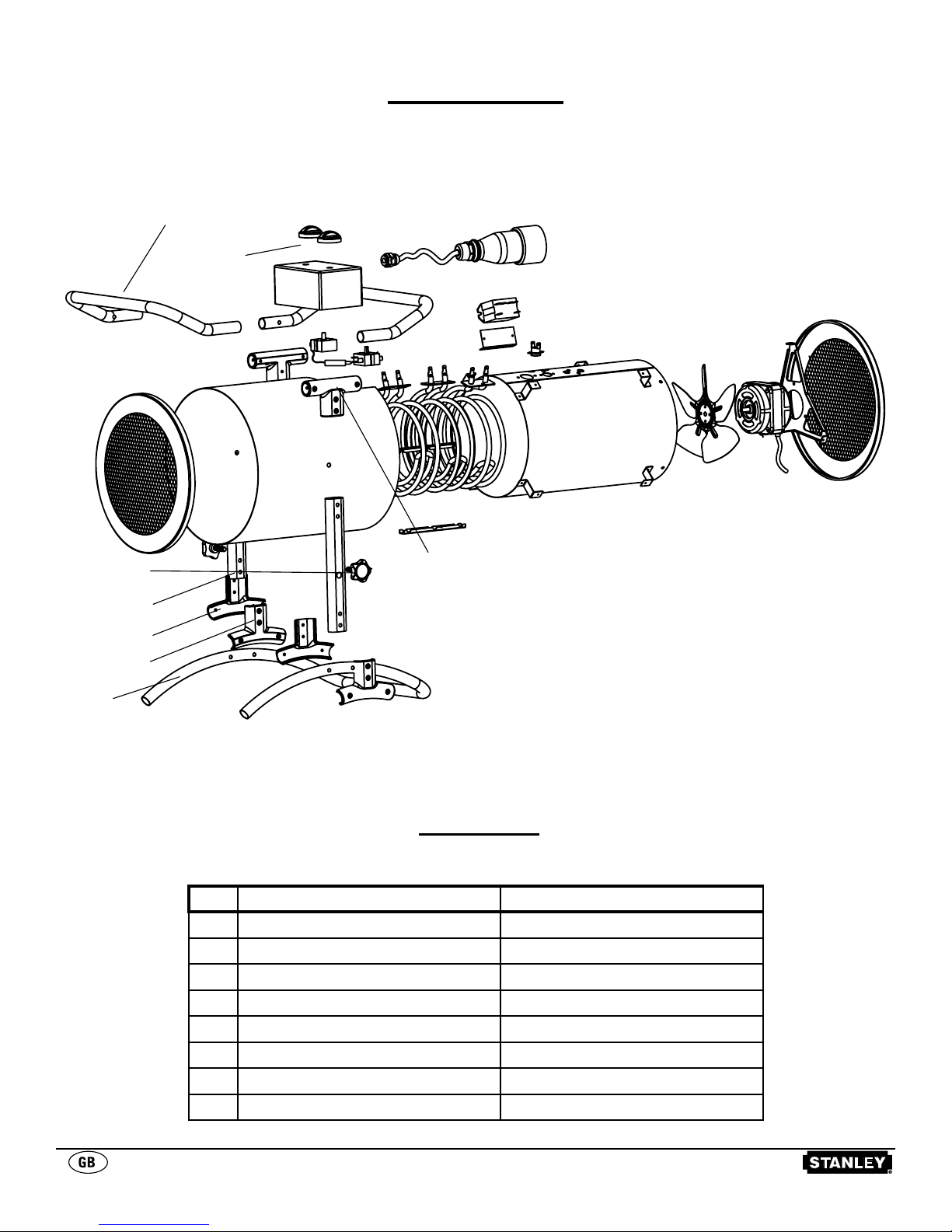

© 2014, Pinnacle Products International, Inc. 9
1
2
3
4
5
6
7
8
#ST-52-231-E
ST-52-241-E
ST-53-231-E
ST-53-241-E ST-533-401-E
1 82-015-0266 82-015-0266 82-015-0266
2 82-015-0386 82-015-0386 82-015-0386
3 82-015-0376 82-015-0376 82-015-0376
4 82-015-0331 82-015-0331 82-015-0331
5 82-017-0400 82-017-0400 82-017-0400
6 82-017-0300 82-017-0300 82-017-0300
7 82-015-0176 82-015-0176 82-015-0176
8 82-015-0366 82-015-0366 82-015-0366
Parts List
ST-52-231-E / ST-52-241-E / ST-53-231-E / ST-53-241-E / ST-533-401-E
Exploded View

© 2014, Pinnacle Products International, Inc. 10
8
1
2
3
4
5
7
6
# ST-55-401-E ST-59-401-E
1 82-015-0270 82-015-0270
2 82-015-0386 82-015-0386
3 82-015-0376 82-015-0376
4 82-015-0332 82-015-0332
5 82-017-0400 82-017-0400
6 82-017-0300 82-017-0300
7 80-015-0177 80-015-0177
8 82-015-0366 82-015-0366
ST-55-401-E / ST-59-401-E
Exploded View
Parts List

Stanley and are registered trademarks of the Stanley Black and Decker,
Inc. or its afliates and are used under license by Pinnacle Products International, Inc.
Pinnacle Products International, Inc.
Yardley, PA USA
www.pinnacleint.com
© 2014 Stanley Black & Decker, Inc.
DO NOT RETURN THIS UNIT TO THE STORE!
If you are having problems with your new Stanley Heater,
Please call our Technical Service at:
0845 076 6158
Technicians are standing by to help you
Monday – Friday from 8am –5:30pm.
To expedite your call, please have your Model Number and Serial Number available
