Stannah Stratum Homelift User manual

Stratum Homelift
User Manual
ENG Original instructions

3
CONTENTS
Description 4
General Dos and Don’ts 5
Controls and Operation 7
Smoke Alarms 9
Emergency Procedures 11
Fault Finding 14
Changing Call Station Batteries 16
Lift Disassembly / Safe Disposal of Hazardous
Materials
18
Service History Record 19
Declaration of Conformity 20
Lift Specication 21

4
DESCRIPTION
The Stratum Homelift is an inter floor lift that is designed for use
by persons with impaired mobility travelling between fixed floor
levels in private dwellings.
With a maximum carrying capacity of one person, with or
without a wheelchair (or 250kg), this lift is not intended for use
as a means of transporting goods.
The lift is designed to operate without a lift shaft and is provided
with an automatic in fill panel which makes the ceiling aperture
safe when the lift is parked downstairs.
Two way communication system should be specified for
emergency communication.
A standard feature is the provision of half hour fire rated panels
in both the aperture in fill and the car underpan.
The lift car panels are made from powder coated steel which can
easily be cleaned using normal household cleaners. Upholstery is
made from PVC and can be cleaned in the same way.
A smoke detection system has been installed on your lift. It has
been designed to provide adherence to British Standard BS5900
2012 Section 9.13 “Behaviour of homelift in the event of fire”.

5
GENERAL DOS AND DON’TS
• Never switch off the power supply to the lift, even when you go
away. The lift control circuits are fed by a battery, which must be
kept on constant charge.
• The lift should always be returned to the lower level when not in
use. If it is left upstairs for prolonged periods, it will occasionally
re-level itself depending on conditions. The lift must be left at
the lower level if the mains is turned off.
• If your lift is fitted with a manual door always close it after use.
Powered door units have a self closer. Do not pull or push the
automatic door.
• Never allow children to play in, under or around the lift. If
children are in the house, isolate the lift using the optional
remote isolate fob, (page 7).
• Ensure that the area under the lift is kept clear. The underpan
safe surface is fitted with sensors, which automatically stop the
lift if it strikes an object (page 6).
• Always keep your emergency door release key and optional
remote isolate fob in the lift or in a safe place near the lift.
• Do not place any object on the aperture infill panel safe edge
or stand on it when the lift is in operation. Ensure that as far as
practical, the area around the travelling infill panel safe edge
is clear of persons (particularly children) when the lift is being
operated. This is to ensure there is no danger of them falling
into the car when the lift is in use. The infill panel safe edge
is fitted with sensors that automatically stop the lift if the infill
panel is obstructed (page 6)
• Do not use this lift for anything other than transporting those
with impaired mobility between fixed floor levels
• Do not lean over the car sides or door. These are fitted with
safety edges which will stop the lift if activated.
• Always treat your lift with respect that should be shown to
electrical and mechanical equipment.

6
• Users with wheelchairs should apply the brakes on their
chair and all other users should ensure they are using the seat
provided before moving the lift. Do not travel in the lift unless
seated.
• Safety related components should only be adjusted and reset by
a competent person.
• Proceed with caution when exiting the carriage backwards.

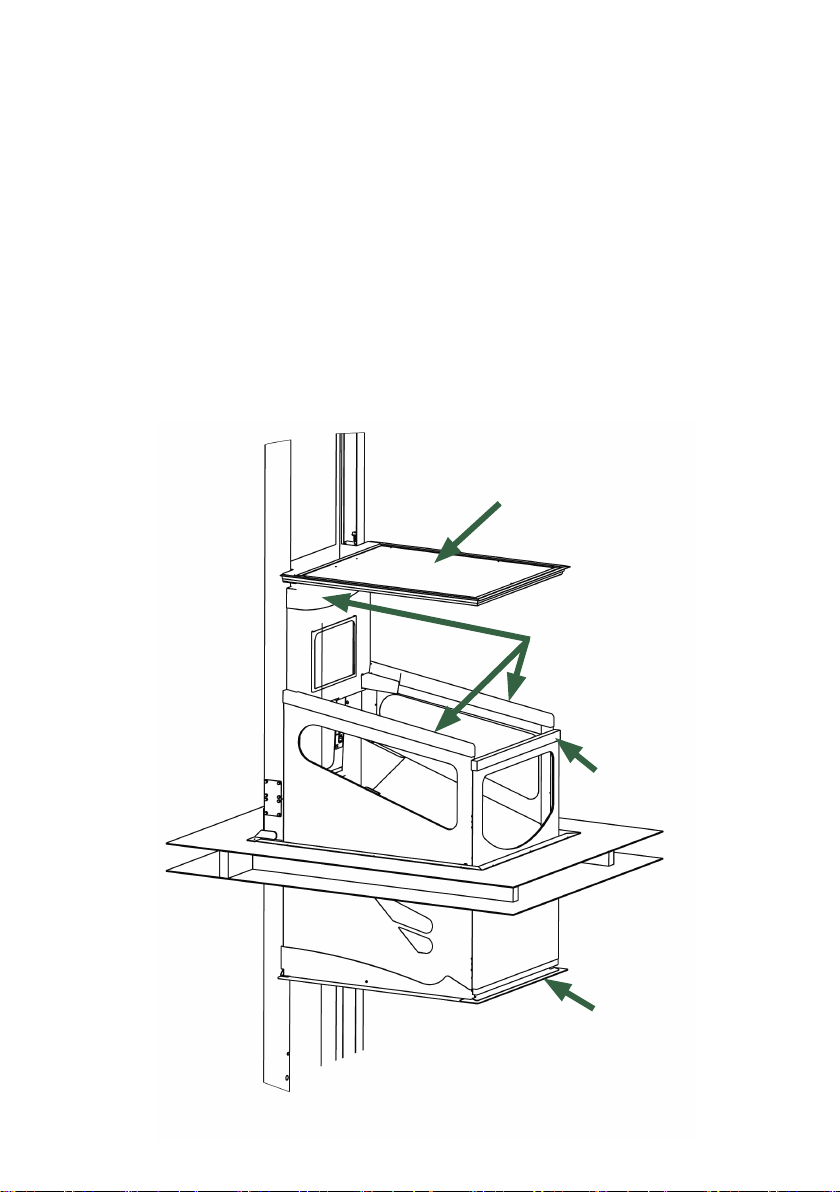

The diagram below (Figure 1) shows the position of all the
sensors on the lift, designed to prevent injury or damage if the
movement of the carriage is obstructed.
Infil panel safe edge
(sensors on upper and
lower surfaces)
Safe edges
Door safe edge
Underpan safe edge (sensor
on lower and upper surface)
Figure 1. lift shown part-way through aperture

7
CONTROLS AND OPERATION
There are two wall mounted call stations, one at each level
(Figure 2) and a similar control station fitted in the lift car. The lift
can be isolated by using the optional remote isolate fob (Figure
3). When the lift is isolated, none of the control stations will
function. The call and control stations can only be activated by
using the optional remote isolate fob. When the lift is activated,
the coloured indicator lights in the car will illuminate. The lights
in the car will switch on automatically when any call or control
button is pressed and will automatically turn off after a few
minutes.
Once the lift has been stopped it cannot be restarted for 3
seconds.

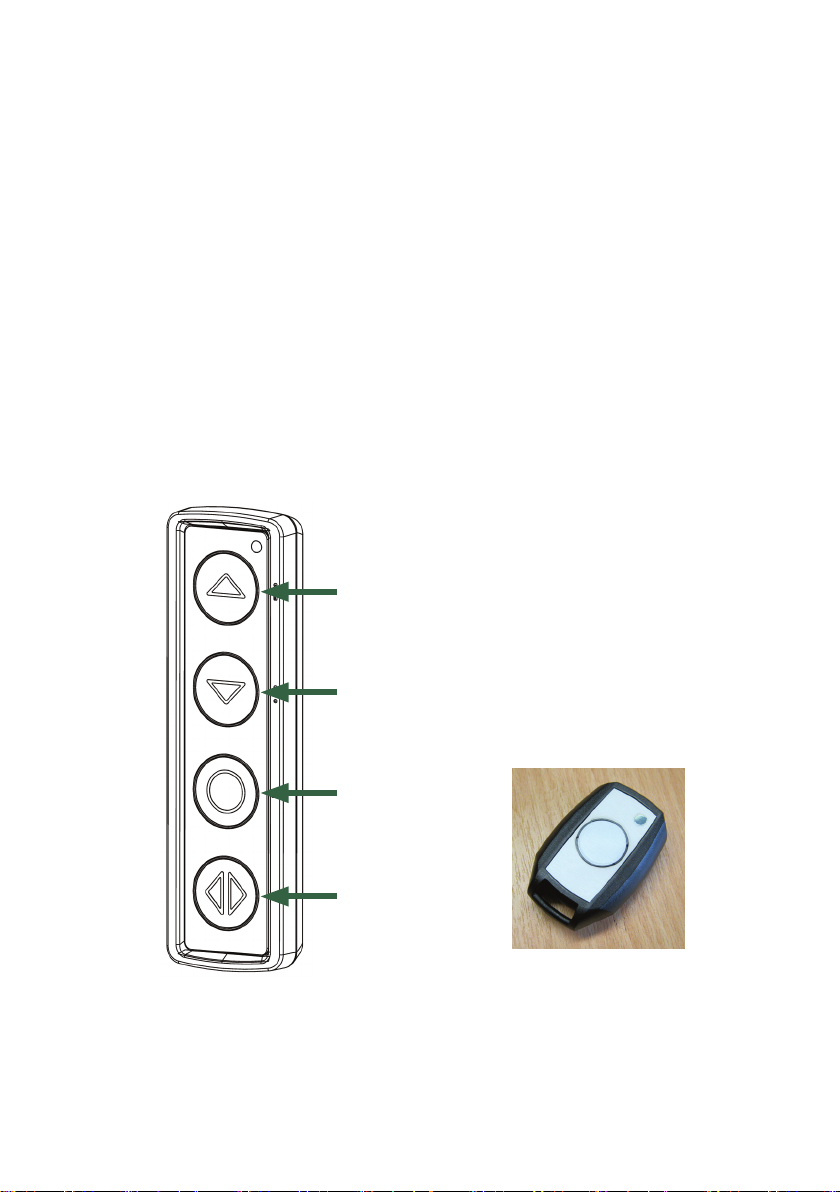

Figure 2. Wall mounted call station Figure 3. Optional remote isolate fob
Users with wheelchairs should apply the brakes on their chair
and all other users should ensure they are using the seat
provided before starting the lift.
DOWN
STOP
DOOR
UP

8
General operation
Call the lift by pressing the up arrow or down arrow button
on either call station and wait for it to stop. The door will
automatically open. Enter the lift and press and release the
door button to close it. Then press and release UP or DOWN on
the control station. The lift will travel uninterrupted to the next
floor. If the lift does not start, check that the door is properly
closed and try again. Always close the door after using the lift by
pressing the door button on the wall mounted call station. Leave
the lift downstairs whenever possible.
In the event that the normal controls fail to work, emergency
controls can be found under the flap above the mirror. Green is
‘UP’, red is ‘STOP’, black is ‘DOWN’ and white is ‘DOOR’ (Figure
4).
Figure 4. Wall mounted call station Figure 5. Optional remote isolate fob
When outside the car, in an emergency the door can be opened
by pressing the front end of the side safe edge, on the corner
where the door opens (Figure 5).

9
SMOKE ALARM
A smoke detection system has been installed on your lift. It has
been designed to provide adherence to British Standard BS5900
2012 Section 9.13 “Behaviour of homelift in the event of fire”.
The system utilises two smoke alarms one upper level, one lower
level, which are wirelessly connected to the main circuit board on
the lift (Figure 6).
Figure 6.
The Smoke Alarm unit comprises two parts, the first (TOP PART)
being a Smoke alarm unit. This is the Smoke detection unit and
contains an integral battery with a 10 year life span. This is not
replaceable.
The second part (BASE UNIT) contains the radio transmitter
receiver unit. Power to this unit is supplied by single 10 year life
span lithium battery.
Radio smoke alarm operation
When installed on a Harmony Lift, the smoke alarm system will
cause the lift to deactivate safely once the alarm is triggered.
When the lift is deactivated, the door will continue to operate as
normal.
Mute/test button
Smoke Alarm (TOP PART)
Radio Transmitter/receiver Unit
(BASE UNIT)

10
When the Lift is stationary at either level
If smoke is detected, the alarm will sound. After a period of time,
all other smoke alarms connected to the system will then start to
sound and the lift deactivates.
When the Lift is travelling between levels
If smoke is detected, the alarm will sound. After a period of time,
all other smoke alarms connected to the system will then start to
sound.
The lift will continue to its requested level, it will remain possible
(until that level is reached) to change the direction of the lift.
Once at the desired level, the lift will deactivate.
Reactivation of Lift
The lift will automatically reactivate when the smoke alarm no
longer detects smoke and a period of two minutes has expired.
Silencing the Smoke Alarms
The alarms can be silenced by pressing the mute button on
the sensor that initiated the alarm. The initiating sensor can be
identified by a Red light flashing every second.
When the alarms are deactivated, the lift will automatically
reactivate when a period of two minutes has expired.If the source
of the smoke alarm is not removed, the smoke alarms will begin
to sound again and the lift will be disabled.

11
EMERGENCY PROCEDURES
In the event of a mains failure during travel, the battery backed
control system of the lift will only allow normal operation in the
down direction without loss of any safety features. This allows
the user to exit the car at the lower level in the normal way.
Emergency Manual Lowering
IMPORTANT:
During emergency manual lowering, the normal safety features
will not function, so the lift will not stop if a person, pet or object
is under the lift.
• The exact lowering procedure must be observed, because the
normal safety features will not function during manual lowering.
• The emergency lowering procedures should never be used if the
lift is fully up or no one is trapped in it.
• The emergency lowering procedures should never be used as
the normal down travel function until an engineer attends.
PLEASE NOTE:
If the lift is fully upstairs and a person is trapped inside, please
see the section Emergency unlocking on pages 12-13
If the lift has stopped mid level and the customer is unable to get
the lift up or down then the only time it should be lowered by the
emergency valve is if:
• There is a second person (B) around the lift area at the lower
level to ensure that nothing goes under the lift during the
lowering by the first person (A)
• OR the person lowering the lift has sight of the area under the
lift
Person A
• Ensure the door is fully closed
• Turn the mains supply to the lift off.
• Locate the hydraulic power unit, normally outside the property
(Figure 7)

12
• Swivel the metal cover plate on the front face of the housing to
reveal an access hole (Figure 7)
• The red cord revealed in the access hole now needs to be
pulled continuously to lower the lift car slowly.
• After 5 seconds release cord and check with person B that the
aperture infill panel is following the carriage. If so, resume
pulling the cord as before.
• Once the lift is at the lower level turn the mains supply back on
and secure metal cover plate.
Figure 7.
Person B
Remains in the house by the lift and communicates with Person
A to ensure the safe lowering of the lift.
• Ensure that no object, person or pet are in the path of the lift
travel
• Confirms that the trap door follows the lift during descent
and locates fully in the floor to guard against the possibility of
anyone falling down the lift way.
Emergency unlocking
WARNING: RISK OF FALLING – Emergency unlocking must
only be undertaken when the lift is at the upper or lower
landing level.
The lift car door is designed so that it will only open when the lift
is at or within 25mm of each floor served. If for any reason the
door cannot be opened, the door lock can be over-ridden from the
inside using the following steps:

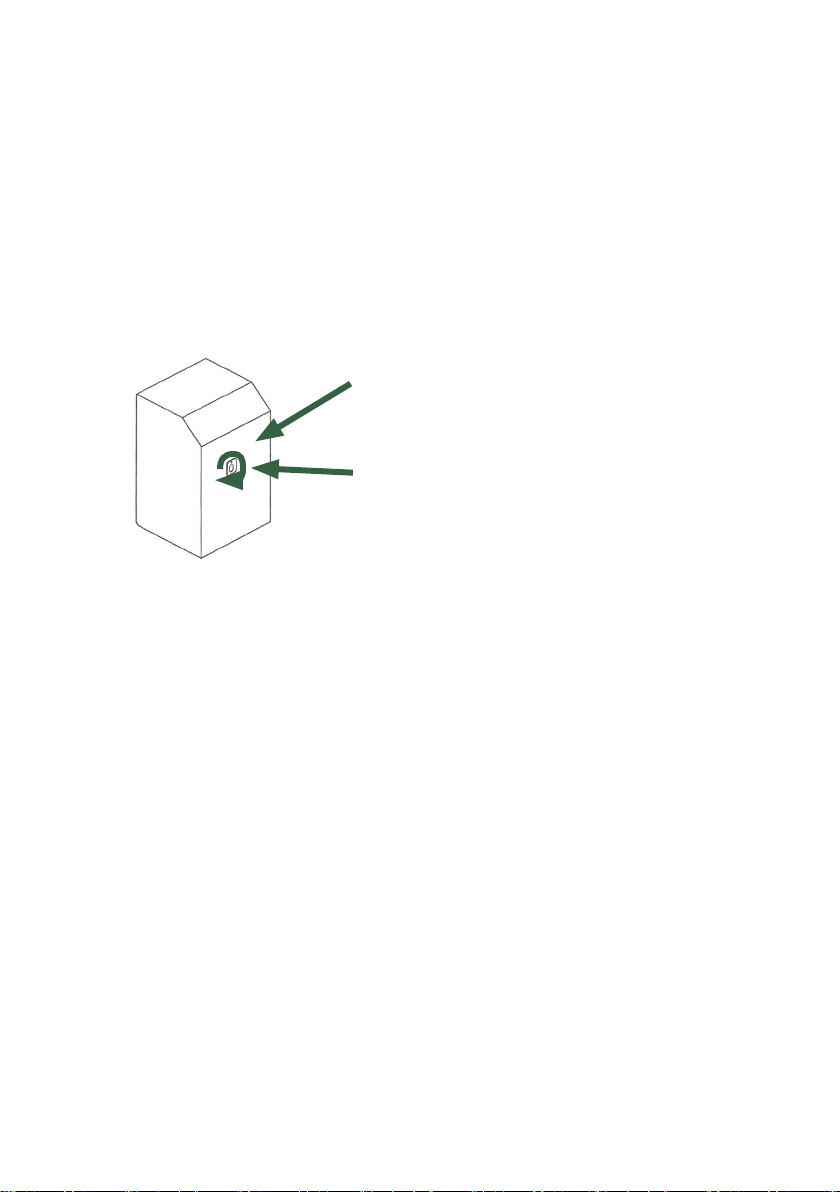

Remove the screw using the
screwdriver provided at installation.
Swivel this metal cover plate to one
side in order to gain access to the
lowering cord behind the plate.

13
a Remove the black rubber grommet by the door
b Insert the black emergency door release key into the square
hole behind the grommet
c Turn the key to release the mechanism
This should release the catch. The door can be opened from the
outside in the same way.
The electrically operated door on the wheelchair model can be
forced open or closed manually. This will disengage the door
from the opening mechanism and require re-setting of the door.
Re-setting of the door can be done as follows:
a Manually close the door as far as possible
b Press and release the door button
c Move the door back and forth until it clicks
d Press and release the door button again
The door should now operate normally, otherwise repeat the
above process.

14
Battery warning (red)
This is normally off,
but may be on during
operation.
This is OK providing it
extinguishes eventually
when lift is at either level.
DOWN CAR (yellow
light). Means safe edge
car OK. Will be off when
ascending and when at
lower level.
UP CAR (green light)
Means safe edge car
OK. Will be off when
descending.
DOWN TRAP (yellow
light). Means safe edge in
fill panel OK. Will be off
when ascending.
UP TRAP (green light)
Means safe edge infill
panel OK. Will be off
when descending.
FAULT FINDING
The most likely causes of your lift failing to operate are:
• The door not being fully closed
• Something obstructing the travel of the car or infill panel safe
edge causing one or more of the sensors or safe edges (Figure
1) to operate and therefore preventing travel in the appropriate
direction.

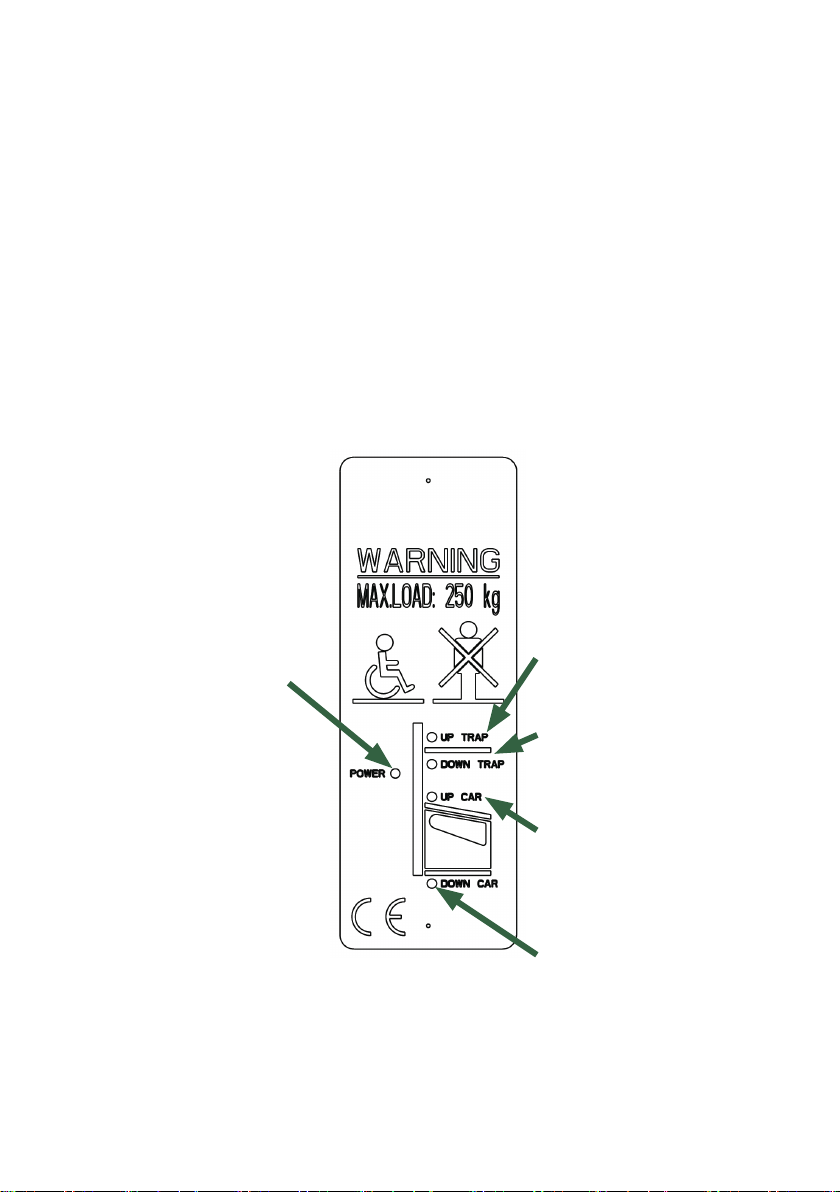

To assist in identifying the cause the car is fitted with a simple
system of coloured indicator lights on the rear panel, one red, two
yellow and two green, (Figure 8).
Figure 8.

15
Lift Malfunction
Fault Indication Cause Remedy
Lift will not travel in
either direction
No lights on car
panel
Door not shut or
remote fob o
Press door button
Press a button on
fob
Flat batteries in
smoke alarms
Replace smoke
alarm batteries
Lift will not go up One green o on
car panel
Car safe edge
obstruction
Remove obstruction
or free safe edge
Both greens o on
car panel
Inll panel
obstructed on upper
surface
Remove obstruction
from upper surface
Lift will not go down One yellow o on
car panel
Car underpan
obstruction
Remove obstruction
from beneath
surface
Both yellow o on
car panel
In ll panel
obstructed on lower
surface
Remove obstruction
from lower surface
Powered door will not
close fully
Can be moved
easily by hand
Door has disengaged
from drive
mechanism
See page 12-
13 Emergency
unlocking
Smoke Alarm Malfunction
Indication Cause Remedy
Alarm beeps every 11
minutes
Test Button Jammed Remove from ceiling and
release button
Alarm beeps twice every
minute
Unit Malfunction Call an engineer
Low Battery Warning
Indication Cause Remedy
Single short beep on lift car
every 2 minutes
Low Handset battery Replace CR2450
batteries in handset
Smoke Alarm beeps every
minute
Low Smoke Alarm
Battery
Replace unit

16
CHANGING CALL STATION BATTERIES
1. The call station can be
removed from the wall by
sliding the case upwards.
2. Remove the four screws in
the back with a posi-drive
screwdriver.
Figure 9. 3. Using a screw driver, gently
push the battery out a short
way and then pull using
fingers.
NOTE: It is critical that all
three batteries are replaced
with new ones of the same
type, manufacture and age,
that they are fitted at the
same time and that they are
correctly oriented.
Figure 10. 4. Refit back cover and re-
attach to wall.
NOTE: If recessed controls
are fitted, remove module
by undoing two wall
fixing screws then follow
instructions above. Care
must be taken not to damage
protruding aerial during this
process.
Figure 11.

17
LIFT DISASSEMBLY/SAFE DISPOSAL OF
HAZARDOUS MATERIALS
This lift must be disassembled by a competent person who has
been fully trained in the installation of this lift and is qualified to
provide safe disconnection of the lift to the mains terminal.
Batteries & Printed Circuit Boards (PCB)
The batteries and PCB’s within this product should not be
disposed of with other household waste at the end of their
working life. Where batteries are marked with the chemical
symbols Hg, Cd or Pb, it indicates that the battery contains
mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these
substances can cause harm to human health or the environment.
Batteries and PCB’s that are no longer required for this lift, at the
end of their working life, can be returned either to an approved
waste disposal facility or to Terry Group Ltd for safe disposal.
Oil
Oil from this lift should be disposed of via an authorised waste
disposal contractor, to an approved waste disposal facility.

18
SERVICE HISTORY RECORD
An entry should be added to the following table every time the lift
is serviced
Date Engineer Company Comments

19
DECLARATION OF CONFORMITY
Machinery Description: Stratum Homelift
This lift was manufactured by TERRY GROUP Ltd., who declare that this lift
fulfils all the relevant provisions of the following Directives:
2014/30/EU Electromagnetic Compatibility Directive
2006/42/EC Machinery Directive
This lift also fulfils all the relevant provisions of the following Standards:
BSEN 12015:2014 Electromagnetic compatibility. Product family
standard for lifts, escalators and moving walks.
Emission.
BSEN 12016:2013 Electromagnetic compatibility. Product family
standard for lifts, escalators and moving walks.
Immunity.
BS5900:2012 Powered homelifts with partially enclosed
carriers and no liftway enclosures – Specication
This Declaration of Conformity covers all lifts with serial numbers starting
with L, H and R.
Person authorised to compile Technical File:
Greg Gnyp, Terry Group Ltd., Longridge Trading Est, Knutsford, Cheshire,
WA16 8PR
EC examination carried out by: Bureau Veritas UK Ltd., Parklands, Wilmslow
Road, Didsbury, Manchester, M20 2RE.
Notified Body Reference Number:0041
EC examination certificate number: CE-0041-MD-TER004-18-GBR
This declaration was completed at Terry Group Ltd., Longridge Trading
Estate, Knutsford, Cheshire, WA16 8PR, in April 2018.
This compliance is only valid if the installation test Certificate has been
completed and signed by a competent lift engineer trained to install this
product to the latest installation instructions.
TERRY GROUP Ltd.
P.Morrey (Managing Director)

20
LIFT SPECIFICATION
Address of manufacturer:-
Terry Group Ltd.
Unit 1 Longridge Trading
Estate
Knutsford
Cheshire
England
WA16 8PR
Lift serial No: Year of manufacture:
Safe working load 250kg
Maximum travel 3.6 metres
Duty cycle 10 cycles per hr with max load
Average noise level 65 dBA
Power supply Dedicated 240V ~ 50/60 Hz
single phase supply
Control voltage 12V DC
Hydraulic pump power
consumption
750W maximum
Hydraulic oil grade T22
Hydraulic pump enclosure IP54
Test specication Manufactured and tested to
BS5900:2012
Fire specication Load-bearing capacity
30 minutes, integrity and
insulation 15 minutes.
Assessed by Warrington Fire
Research Centre.
