Stannah 260 Siena User manual

Model: 260 Siena
Looking
after your
stairlift

3
Ask any one in our team
and they’ll say they’re
committed to providing
the best stairlifts. And
they’re true to their word.
Here at Stannah, our people are at the heart of everything we do.
No matter what their role, they share our passion for making world
class stairlifts.
Whether they are responsible for fitting a particular part or checking
each finished stairlift as it glides off the production line, each one
takes enormous care to ensure that every small detail is perfect.
This commitment and pride is inspired by the way they see our
customers - as individuals. Each employee understands that you
need to have complete faith that your stairlift will work exactly as it
should, so it can be everything you hope for.
It’s this personal involvement, along with our policy of making every
stairlift to order in our own Stannah facilities, that ensures that every
model that leaves our premises is as good as it can possibly be.
And there’s one vision that drives all these principles - the Stannah
pledge to be true to our word.
Everyone who works for us believes in what we stand for and is
committed to fulfilling our promise to you - to provide you with a
stairlift that offers all the quality, reliability and performance you
need to stay comfortable, safe and independent in your home.

It is important to us that our stairlifts always help you travel up and
down your stairs in the safest possible way. With this in mind, we
recommend our stairlifts are serviced every year by a Stannah
trained service engineer.
Installed by on / /
Position of wall switch
Date Service details Service Engineer
A stairlift is a device to transport a seated person up and down the stairs safely
4
Service Log

5
Contents
Getting to know your stairlift 6-9
Using your stairlift 10
Power key 10
emote calling control 11
Unfolding the chair 12
Hinged rail 13
Seatbelt 14
Arm control 15
Swivelling the seat 16
Getting off the stairlift 17
Cleaning your stairlift 18
Certification 19
Changing the batteries 20
Technical and Safety 22
HELP 24
Serial No:
You will find important safety
information wherever you see
the SAFETY OTICE symbol
shown above.
Important:
Your stairlift is not designed
to operate in the event of
a fire and should not be
depended on as a means
of escape.
To help you get the most from your new stairlift,
please take a few minutes to read this guide.
Then, please keep this guide in a safe place in
case you need to check any details in the future.
If you feel unsure about any aspect of
your stairlift, please do not hesitate to
get in touch with your stairlift supplier,
details on the back page.
Thank you for choosing Stannah Siena
Welcome to your Siena
User Guide.

Getting to know your stairlift
Siena stairlift
shown in travelling position
6
2
5
13
4
FUSE
6
7
8

On/Off switch & power light
The power light comes on when
the switch is in the on position.
Power key
The keyhole is on the front of the
chair. The key must be inserted
and turned to the on position
before the stairlift will work –
see page 10.
Please note t at you can remove
t e power key to stop ot ers from
using your stairlift.
Arm Control
The arm control moves the
stairlift in the direction you want
to travel. If your chair has an
automatic swivel seat, you can
also use the control to swivel
the seat.
Swivel levers
These are on both sides of the
seat. The seat will swivel outwards
at the top of the stairs to help you
get on or off the stairlift.
Safety edges
The safety edges are there to
stop the stairlift if they come
into contact with any obstacles.
This stops anything from
becoming trapped while the
stairlift is being used. See page
24 for more information.
Battery charger
Charges the batteries so the
stairlift is always ready to travel.
This may be positioned at
either the top or bottom of your
staircase.
Rail
Wall switch
This should normally be left
switched on. See page 9 for
more information.
For the ‘HELP’section see page 24
7
Getting to know your stairlift Using your stairlift Help
Changing the batteries Technical
Cleaning your stairlift
1 5
6
7
8
2
3
4

Getting to know your stairlift
Remote calling controls
Positioned at the top and bottom of the staircase, the remote calling controls
let you call the stairlift if it is at the opposite end of the staircase to you.
T e controls will not work unless t e power key is turned to t e on position.
The controls are battery powered. You will find information on how to change
the battery on page 20.
8
SAFETY OTICE
Make sure no one else is using the stairlift before you call it
using the wall mounted calling controls. Multi-users, see Page 25.
If you ave a inged rail, your
remote calling controls will look
like t is. You will also ave an
additional control for your inge.
All controls ave clear labels on
t e front so you can distinguis
t em from eac ot er.

Master power switch
and wall switch
The master power switch is on
the front of the chair and should
normally be left switched on.
The stairlift will not work
if this switch is off.
If you are going away for a longer
time – perhaps if you go away
on holiday – you can switch off
the master power switch and the
wall switch.
Make sure t at you switc off
both t e master power switc
and t e wall switc – t is will
ensure t at t e batteries will still
be c arged w en you return.
OFF
ON
FUSE
FUSE
Master power switch
Wall switch
For the ‘HELP’section see page 24
9
Getting to know your stairlift Using your stairlift Help
Changing the batteries Technical
Cleaning your stairlift
Options
You may have chosen from the
range of options we provide for
the Siena stairlift.
The options we’ve listed below
are all covered in this guide, but
if you need more information
about any options that are not
covered, please contact your
local Stannah supplier.
Swivel seats
Manual swivel seat.
Automatic swivel seat.
Hinged rail
Powered hinged rail.
Seatbelt
Immobiliser seatbelt.

Using your stairlift
SAFETY OTICE
You can remove the power key to stop others from
using your stairlift
1. Turn on the power key
To turn on the power
Insert the key into the keyhole on
the front of the chair.
Switch the on/off switch to the N position.
T e stairlift and t e remote controls
will not work unless you ave inserted
t e power key.
W en t e key and t e on/off switc are
in t e on position, t e lig t on t e on/off
switc will come on.
To switch off the power
Turn the on/off switch to the FF position.
T e lig t will go off.
If you do not want to remove t e key,
it can be left inserted as s own.
10
OFF
ON
OFF
ON
OFF
ON
OFF
ON

Using your stairlift
Using the remote calling controls
Use these when you want to move the stairlift to the opposite
end of the stairs.
To move the stairlift along the rail

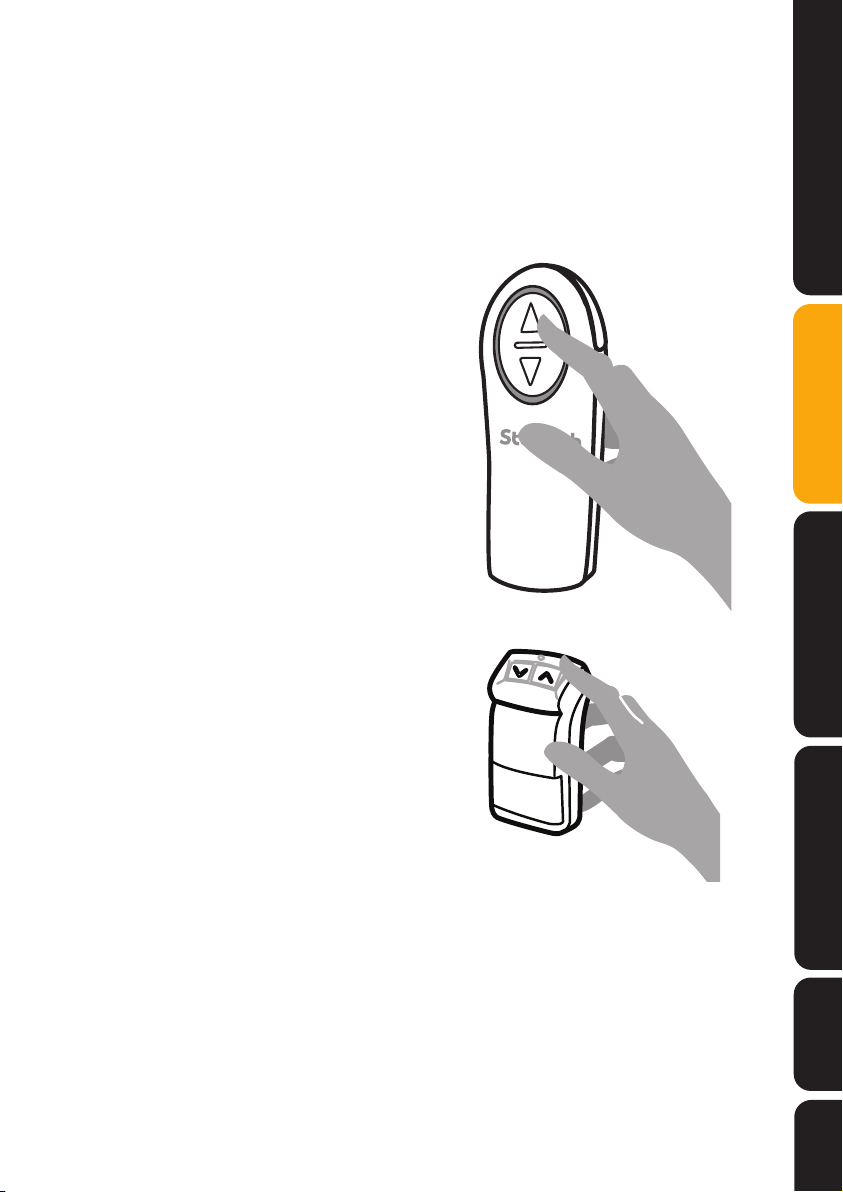

Press and hold the arrow button on
the remote calling control to move
the stairlift in the direction you want.
You can move the stairlift whether
the chair is folded or unfolded.
T ere is information on ow to unfold
t e c air on page 12.
If you release the arrow button,
the stairlift will stop and will not
start again for a few seconds.
Wait for a few seconds before
starting the stairlift again.
Battery status
When you press one of the arrow buttons,
the light on the control shows how much
power is in the battery.
The batteries will last about one year with
average usage.
You will find information on ow to c eck
and c ange t e batteries on page 20.
For the ‘HELP’section see page 24
11
Getting to know your stairlift Using your stairlift Help
Changing the batteries Technical
Cleaning your stairlift
If you ave a inged rail,
your remote calling controls
will look like t is.

Using your stairlift
SAFETY OTICE
Stand with your feet clear of the footrest when you
lower the seat.
2. Unfold the chair
Your chair can be folded away when it is not in use to give you more
space around the top and bottom of your stairs.
To unfold the chair
To lower the footrest,
use the lever on the
side of the chair.
Then lower both
armrests and the seat.
Footrest fold button ( ptional)
If you have a footrest fold button
you can use this to lower the
footrest on its own.
12

Using your stairlift
Using the hinged rail (optional)
Your stairlift may be fitted with a hinged rail that you can raise so the rail
does not obstruct any doorways or passageways.
Note that the stairlift will not work until the hinged rail is fully lowered.
To use the powered hinged rail
Always make sure the chair is at the top of the stairs.
Press and hold the arrow button on the hinged rail
remote calling control until the hinge is fully raised or
lowered.
Please note that a light will flash and you will hear a
series of beeps to warn you and others that the hinged
rail is moving.
When you are at the bottom of the stairs, you will need
to move the stairlift back up the stairs so that the hinged
rail does not obstruct any doorway or passageways.
This will also make sure that the stairlift is on charge.
Press and hold the ‘up’ arrow on the hinged rail remote
calling control until the hinged rail is fully raised.
Please note that if you leave the stairlift at the bottom of
the stairs, it will start to beep. This is to warn you that
your stairlift may cause an obstruction and that it is not
on charge.
SAFETY OTICE
Take care when raising or lowering the hinged rail
13
Getting to know your stairlift Using your stairlift Help
Changing the batteries Technical
Cleaning your stairlift

3. Settle into the seat and start the stairlift
Make sure the on/off switch is in the off position and the power light
is off. Then, settle yourself into the seat, and put your seatbelt on.
When you are ready to travel up or down the stairs, switch the on/off
switch to the on position, and use the arm control to start the stairlift.

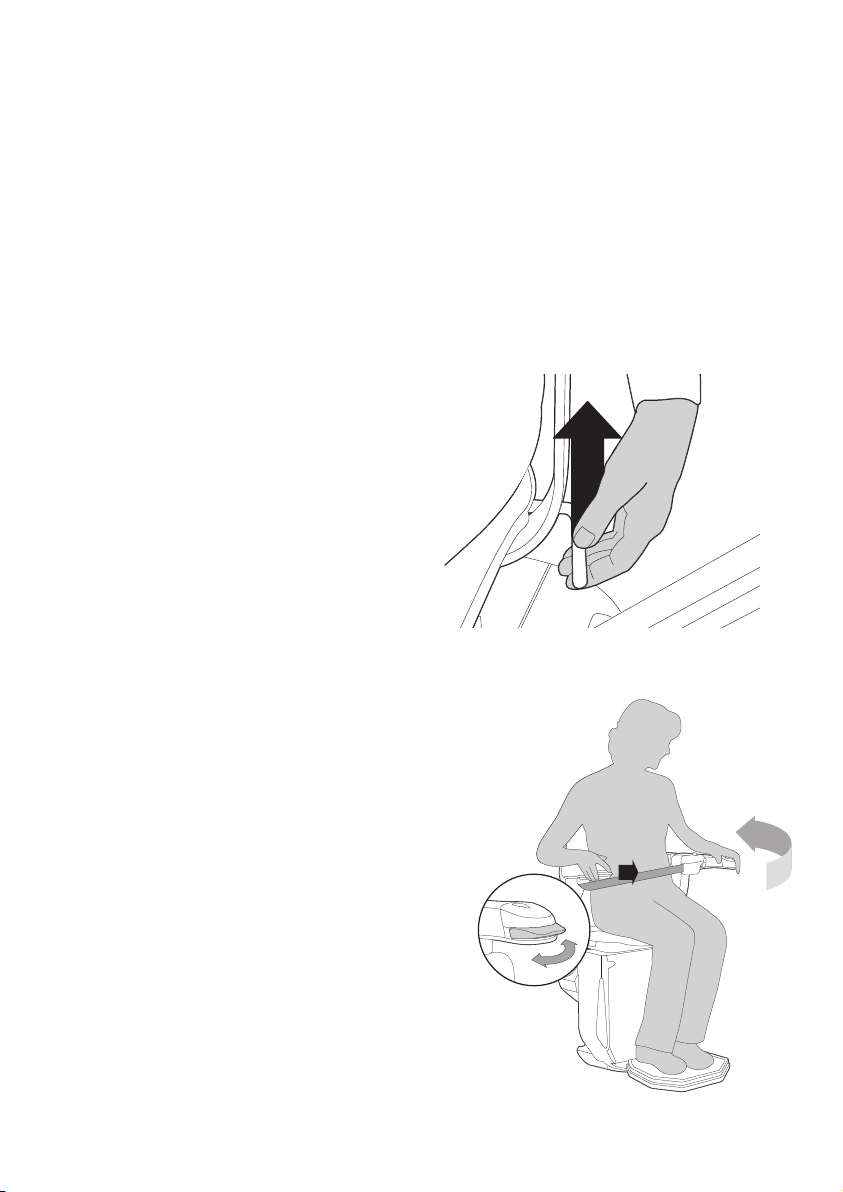

To use the seatbelt

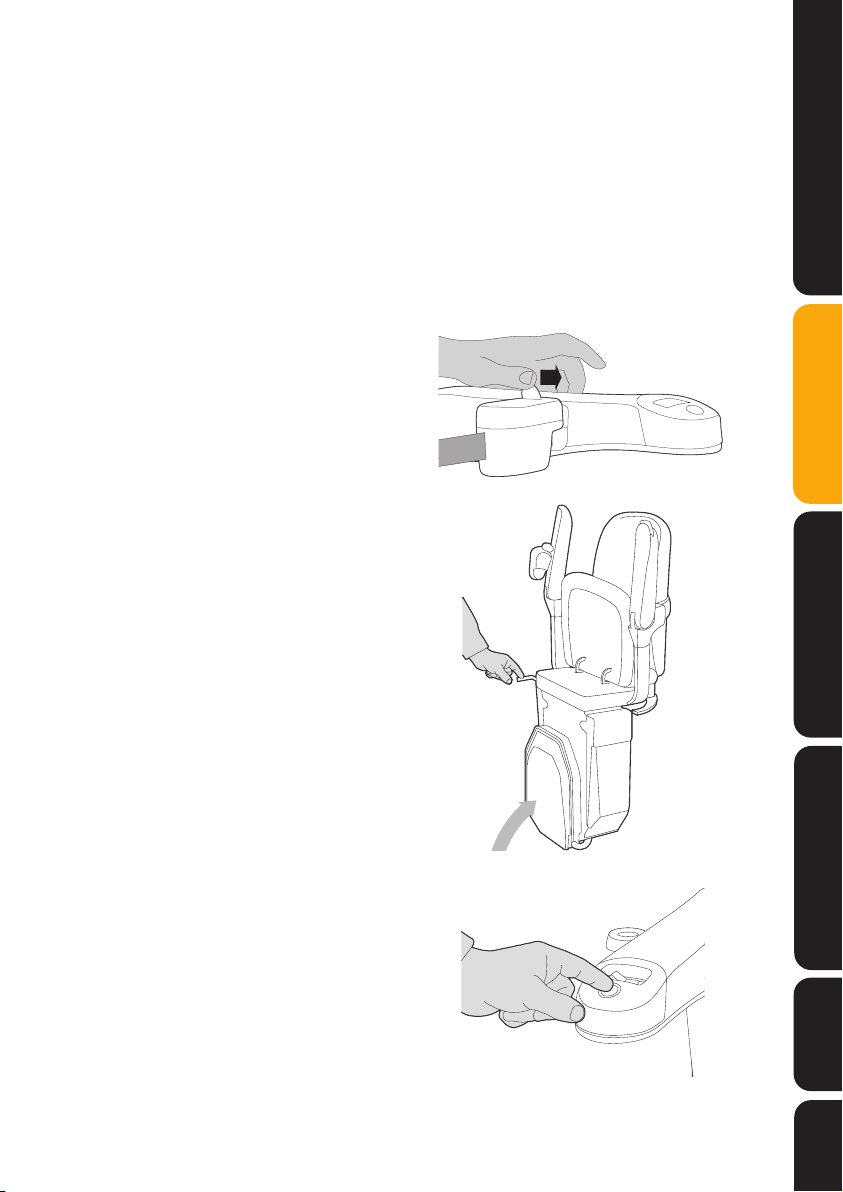

Pull the seatbelt across your
lap and click into the holder.
Immobiliser seatbelt ( ptional)
If you ave an immobiliser seatbelt,
your stairlift will not start until you
ave put your seatbelt on.
Using your stairlift
SAFETY OTICE
Always use the seatbelt. Only undo it when you have reached the top
or bottom of the stairs and are ready to get off. Keep your elbows
tucked in close to your body when using the stairlift.
14

Using your stairlift
To use the arm control
Move and hold the arm control in the direction you want to travel – after
a few seconds the stairlift will start. The delayed start is a safety feature.
SAFETY OTICE
Only one person should ever use the stairlift at one time.
15
Getting to know your stairlift Using your stairlift Help
Changing the batteries Technical
Cleaning your stairlift
When the stairlift has reached the top or bottom
of the stairs, it will stop. If you release
the arm control at any point,
the stairlift will stop.
Automatic swivel seat (optional)
If you ave an automatic swivel seat, you can continue to old t e arm
control w en you ave come to t e end of your journey and t e seat will
automatically swivel to t e side. See page 16.
Please note t at after t e stairlift as stopped, t ere will be a few seconds’ delay
until t e seat swivels.

4. Swivel the seat
At the top of the stairs you can swivel the seat to the side to help you get
off the stairlift.
You can also swivel the seat to make it easier to get on the stairlift when
you want to go back down.
To swivel the chair using the
manual swivel seat
Lift the swivel levers on the side
of the seat and swivel the seat
to the side.
You can only do t is in t e direction
of t e top of t e stairs – t is is a
safety feature.
To swivel the chair using the
automatic swivel seat
Push and hold the arm control in the
direction you want to swivel the seat.
Two-way automatic swivel seat
If you have a two-way automatic swivel,
you can swivel the seat at the top and
bottom of the stairs.
Please note t at if you ave selected a two-way
swivel seat, t e stairlift will only swivel in t e
downwards direction w en it is at t e bottom
of t e stairs.
Using your stairlift
16

Using your stairlift
5. Get off the stairlift
Make sure the on/off switch is in the off position and the power light is
off. Carefully, get off the stairlift and swivel the seat back to its travelling
position. You can fold the chair away if you wish.
To get off
Unfasten the seatbelt.
Slide the button towards the armrest
and lift the clip out of the holder.
Carefully, get off the stairlift.
Swivel the seat back to its travelling
position using either the manual
swivel levers or, if you have an
automatic swivel, the remote calling
controls. You can fold the chair away
if you wish.
Footrest fold button ( ptional)
If you have a footrest fold button
you can use this to raise the footrest
on its own.
17
Getting to know your stairlift Using your stairlift Help
Changing the batteries Technical
Cleaning your stairlift
For the ‘HELP’section see page 24

If there are any aspects
of cleaning your stairlift
that you are unsure
about, please call your
Stannah supplier.
To clean the rail
Use a damp cloth to remove
any dust or dirt.
To clean the upholstery
Use a damp cloth to remove
any dust or dirt.
Cleaning your stairlift
18
Do not use any solvent cleaners, bleaches, abrasives, synthetic
detergents, wax silicone polishes or aerosol sprays without
checking with your stairlift supplier first.
ecycling and disposal of your stairlift
Do not dispose of any part of this product as everyday rubbish.
For more information about recycling and disposal of your
stairlift, please contact your Stannah supplier, details on the
back page.
Further Information
Angle Weight limit
Up to 52º 135kg (approx 21 stone)
Maximum sound emissions 70dB
Battery charger input: 100 - 240V AC 50/60 Hz utput to stairlift:
24V DC 750mA. utput to hinged rail: 12V DC 140 mA

19
Getting to know your stairlift Using your stairlift Help
Changing the batteries Technical
Cleaning your stairlift
EC DECLARATI N F INC RP RATI N
Stannah Stairlifts Limited
Watt Close, East Portway, Andover,
Hampshire, England SP10 3SD
We hereby declare that the machinery listed below complies with all the applicable
essential health and safety requirements with Annex I of the Machinery
directive 2006/42/EC and the relevant technical documentation is compiled in
accordance with part B of Annex VII of this directive:-
The machinery also complies with the following directives
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
Stannah Stairlift Model 260
Incorporating the following manual or powered swivelling chairs
(Siena, Sadler, Starla, Solus, Sofia, Sarum, Saxon) and
the powered hinged rail
“To conform with the provisions of the Machinery directive the machinery must not
be put into service until the product has been installed and commission tested in
accordance with Stannah Stairlifts Ltd installation instructions”
The Technical Documentation has been compiled by
Steve Leathley (Engineering Director)
Where required in response to a reasoned request by national authorities,
relevant information on this machinery can be provided
Signed: Date: 30th April 2012 Place: Stannah Stairlifts, Andover
Tim Eagles
(Joint Managing Director)
Being the person empowered to draw up the declaration on behalf of the manufacturer

Changing the battery on the
remote calling control
20
The remote calling control batteries
will last about one year with average use.
When you press one of the arrow buttons, the
light around the buttons will tell you how much
power is in the battery.
Lights rotating Batteries OK
Lights on constantly Batteries low on power
– c ange batteries as
soon as possible
No light Batteries ave no power
If you have a hinged rail, the light on your remote
calling control will work differently as follows:
Green light on Batteries OK
Green light flashing Batteries low on power
– c ange batteries as
soon as possible
No light Batteries ave no power
T e lig ts are on
constantly w en t e
battery is low.
T e green lig t is
flas ing w en t e
battery is low.
