Replacing the interface board
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.”
Federal Communications Commission Radio Frequency Interference Statement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonable
protectionagainst harmfulinterference whenthe equipmentis operatedin acommercial environment.This equipmentgenerates, usesand canradiate radiofrequency energyand,
if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
For compliance with the Federal Noise Interference Standard, this equipment requires a shielded cable.
This statement will be applied only for the printers marketed in U.S.A.
Statement of The Canadian Department of Communications Radio Interference Regulations
Thisdigitalapparatusdoesnotexceed theClassA limitsforradio noiseemissionsfrom digitalapparatussetoutin theRadioInterference RegulationsoftheCanadianDepartment
of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Règlement sur
le brouillage radioélectrique édicté par le ministère des Communications du Canada.
The above statement applies only to printers marketed in Canada.
TheinterfaceboardisanoptionfortheprinterTSP
700
/
800seriesandreader/writerTCP300series.
Refer to the User’s Manual that accompanied the main unit for directions to replace the interface
board on the TCP300 series.
The following describe the procedures to replace the board for the TSP700/TSP800 series printers.
Interface Board Applicable printer
IFBD
-
HU03 ...................................... USB TSP
700
/
800 Series
Replacement

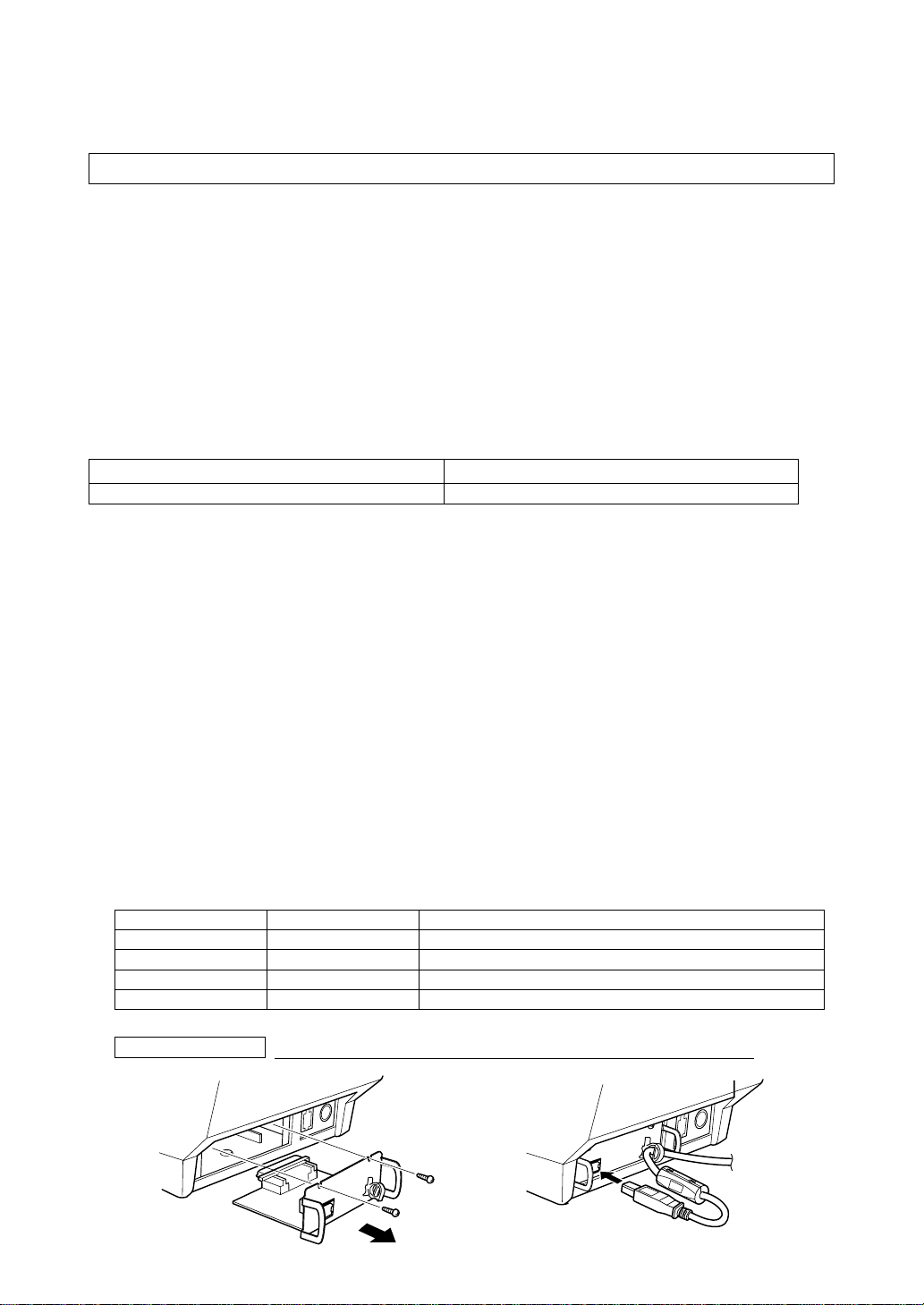

1. Make sure that the power cord is unplugged.
2. Remove the 2 screws.
3. Remove the interface board unit in the direction of the arrow.
4. Slide the new interface board in until it is firmly seated.
Note: Insert the interface board so that it connects with the connector.
5. Secure the interface board using the two screws.
6. Oncetheinterfaceboardhasbeenconnected,performaself-printtestbeforeconnectingtheUSBcable.
Also make sure that the printer recognizes the interface board.
Recognized: Prints “Interface: USB”.
7. Note that the USB cable is not provided. Please use a cable that matches the specifications. Affix the
ferritecoreontotheUSBcableasshownintheillustrationbelowandmakesuretopassthecablethrough
the cable support as shown in the illustration.
8. A STAR USB Printer Driver Set is needed for using the USB interface on Windows 98 or 98SE .
You can download the STAR USB Printer Driver Set from the following website.
9. Thereare two selectableUSB modes forTSP700 Ver. 3.2or later andTSP800 Ver. 4.3or later. Set the
DIP switches on the printer according to the USB mode you use. Refer to the table below to make your
settings.
DIP SW 1-5 DIP SW 1-6 USB Mode
ON ON Mode 0 (Printer class)
OFF ON Mode 2 (Vendor class)
ON OFF (Reserved)
OFF OFF (Reserved)
Download the vendor class driver set from the following website for use.
Printer Driver URL
http://www.star-micronics.co.jp/service/frame_sp_spr_e.htm
80871171 IFTBD-USB
