StarTech.com TB3DKDPMAW User manual

Manual Revision: 04/15/2019
User Manual
For the latest information and specications visit
www.startech.com/TB3DKDPMAW
www.startech.com/TB3DKDMAWUE
Thunderbolt 3 Dual - 4K Docking
Station for Laptops | Mac | Windows
Actual product may vary from photos
SKU#: TB3DKDPMAW/TB3DKDPMAWUE

1
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Compliance Statements
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du
Canada.
CAN ICES-3 (B)/NMB-3(B)
Use of Trademarks, Registered Trademarks, and other
Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and
other protected names and/or symbols of third-party companies not related in
any way to StarTech.com. Where they occur these references are for illustrative
purposes only and do not represent an endorsement of a product or service
by StarTech.com, or an endorsement of the product(s) to which this manual
applies by the third-party company in question. Regardless of any direct
acknowledgement elsewhere in the body of this document, StarTech.com
hereby acknowledges that all trademarks, registered trademarks, service marks,
and other protected names and/or symbols contained in this manual and
related documents are the property of their respective holders.

2
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Safety Statements
Safety Measures
• Wiring terminations should not be made with the product and/or electric
lines under power.
• Cables (including power and charging cables) should be placed and routed
to avoid creating electric, tripping or safety hazards.
Mesures de sécurité
• Les terminaisons de câblâge ne doivent pas être eectuées lorsque le produit
et/ou les câbles électriques sont sous tension.
• Les câbles (y compris les câbles d’alimentation et de chargement) doivent
être placés et acheminés de façon à éviter tout risque électrique, de chute ou
de sécurité
安全対策
• 電源が入っている状態の製品または電線の終端処理を行わないでくださ
い。
• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し
を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう
にしてください。
Misure di sicurezza
• I terminiali dei li elettrici non devono essere realizzate con il prodotto e/o le
linee elettriche sotto tensione.
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati
e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o
pericoli per la sicurezza.
Säkerhetsåtgärder
• Montering av kabelavslutningar får inte göras när produkten och/eller
elledningarna är strömförda.
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så
sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.

3
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Table of Contents
Compliance Statements........................................................................1
Safety Statements..................................................................................2
Product Diagram....................................................................................4
Front View.................................................................................................................................................... 4
Back View ..................................................................................................................................................... 5
Product Information..............................................................................6
Package Content ....................................................................................................................................... 6
Requirements ............................................................................................................................................. 6
Powering the Docking Station ............................................................................................................. 7
Connecting the Docking Station......................................................................................................... 8
Installing the Remaining Drivers ......................................................................................................... 9
Charging a Device..................................................................................9
Conguring a Display Device...............................................................10
Connect a display to the DisplayPort port....................................................................................... 11
Connect a display to the Thunderbolt 3 USB-C port.................................................................... 11
Connect multiple Thunderbolt 3 displays in a daisy chain........................................................ 12
Supported Video Resolutions ..............................................................13
Bandwidth Allocation............................................................................14
Troubleshooting.....................................................................................16

4
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Product Diagram

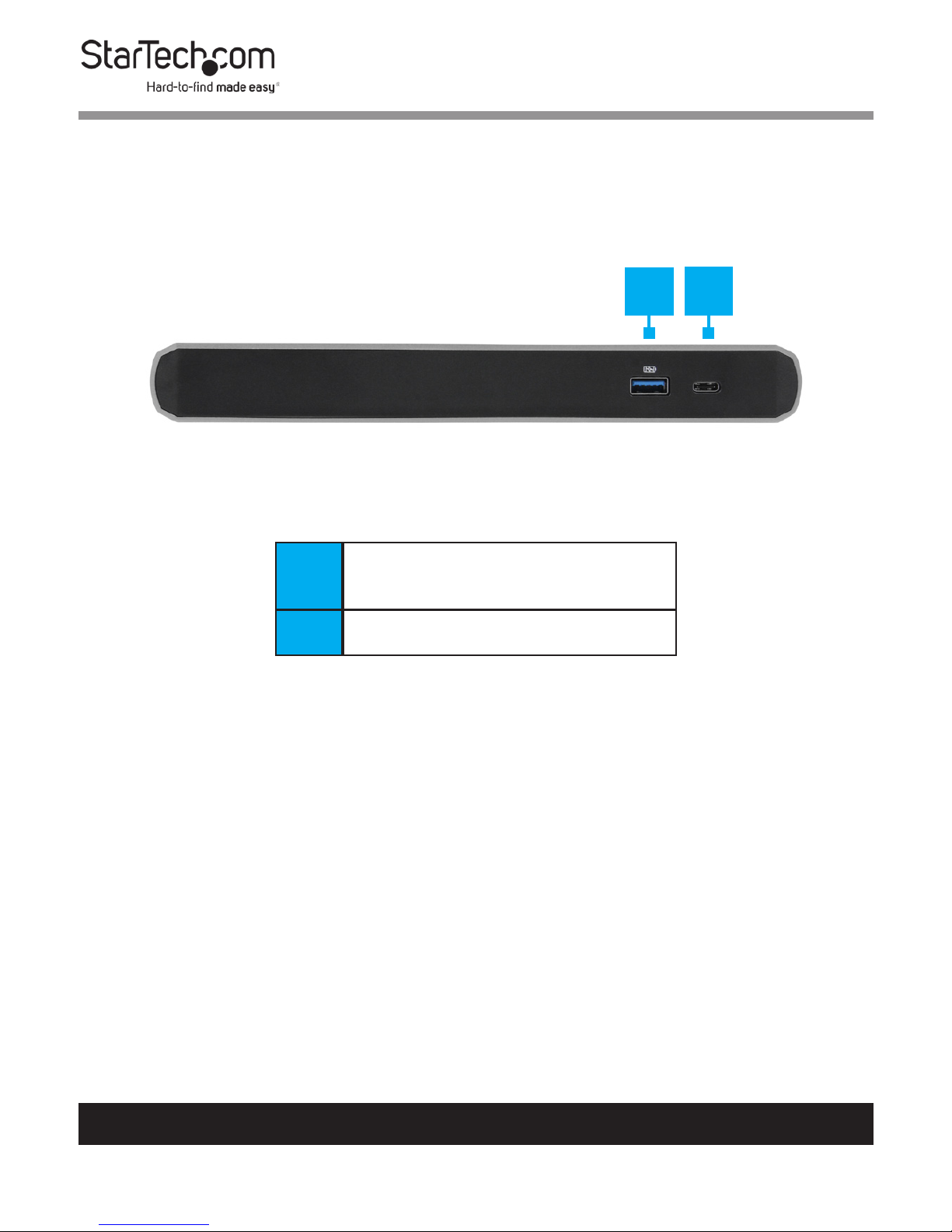

Front View
1USB-A Port (Fast Charge and
Sync)
2USB-C Port
12

5
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

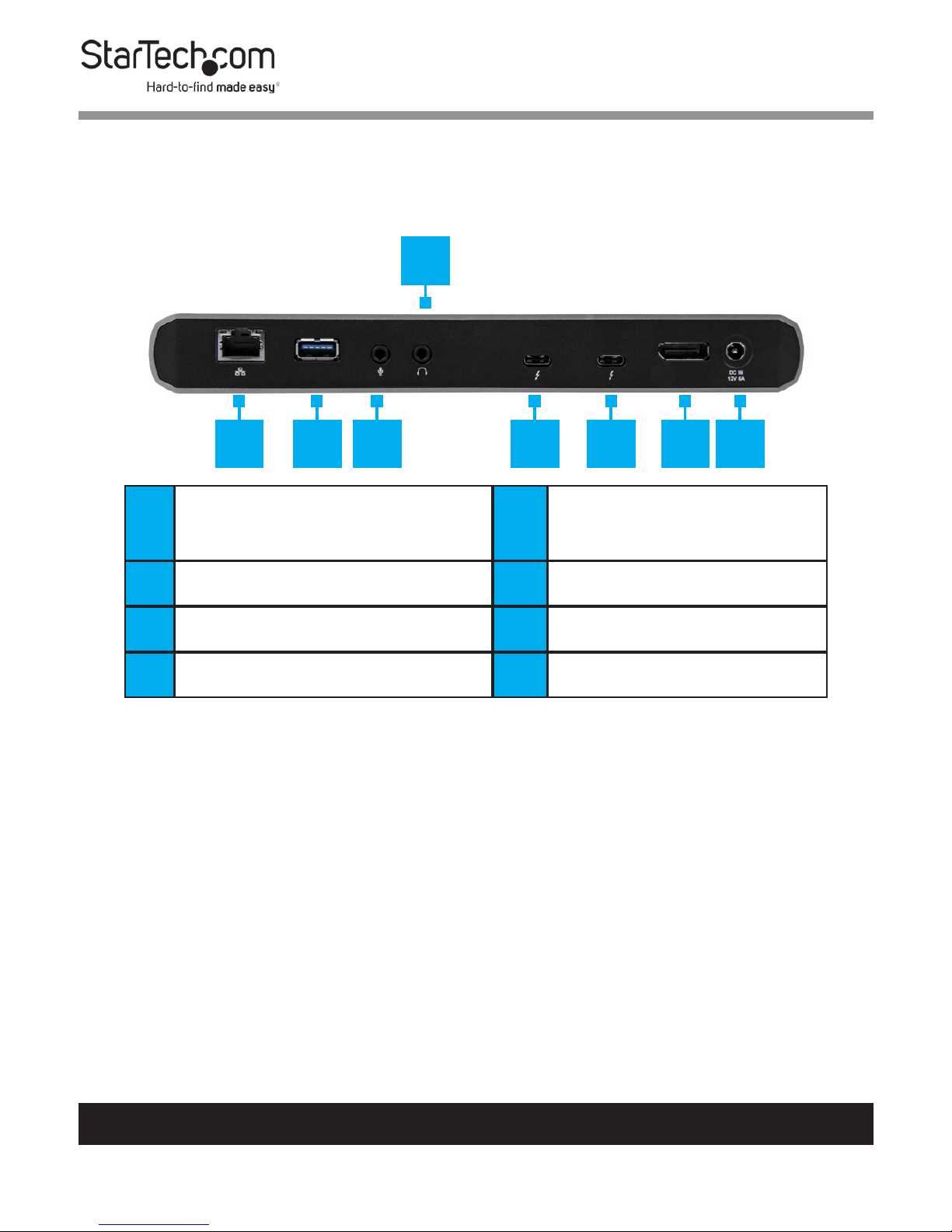

Back View
1RJ45 Port 5Thunderbolt 3 Host
Port
2USB-A 6Thunderbolt 3 Port
3Microphone Input Port 7DisplayPort Port
4Audio Output Port 8DC In Port
1 2 3 5 6 7 8
4

6
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Product Information
Package Content
• Thunderbolt 3 Docking Station x 1
• Thunderbolt 3 Cable (40Gbps - 0.5m) x 1
• Universal Power Adapter x 1
• Power Cords (NA/JP and ANZ for TB3DKDPMAW) (EU and UK
for TB2DKDPMAWUE) x 2
• User Manual x 1
Requirements
Requirements are subject to change. For the latest
requirements, please visit www.startech.com/TB3DKDPMAW or
www.startech.com/TB3DKDPMAWUE.
Host Computer
• An available Thunderbolt 3 port.
Notes: In order to use multiple displays, the Thunderbolt
3 port on the Host Computer must support dual external
displays.
The Docking Station is not compatible with USB-C only
computers.
Dispay
• DisplayPort equipped display(s) with cable(s) (for additional
external display).
• Thunderbolt 3 equipped display(s) with cable(s) (for
additional external display).
• For 4K (4096 x 2160p) resolution, a 4K-capable display is

7
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
required.
Operating System
• Windows® 10, 8, 8.1 or 7.
• macOS 10.14, 10.13 or 10.12.
Installation
Powering the Docking Station
1. Select the appropriate power cord for your region and
connect it to the power adapter.
2. Connect the power adapter to an AC electrical outlet and
then to the docking station’s DC IN (power input) port.
3. Connect the provided Thunderbolt 3 Cable to a Thunderbolt
3 Port on the on the docking station and the other end to a
Thunderbolt 3 port on the Host Computer.
Note: The Docking Station does not support Power Delivery.
Use the power adapter that came with the connected Host
Computer in order to charge the Host Computer.

8
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Connecting the Docking Station
1. Connect a USB Peripheral Device to either the USB-A Ports
or Thunderbolt 3 Port on the back of the Docking Station.
Devices may include USB peripherals, headset, microphone,
etc.
Notes: The three USB ports located at the back of the dock-
ing station (2 x USB-A, 1 x Thunderbolt 3) are standard USB
3.0 throughput ports. When the dock is connected to a Host
Computer, these ports provide a trickle charge to a con-
nected device.
The docking station supports DP Alt Mode, you can con-
nect Thunderbolt 3 or USB-C based video devices, cables, or
adapters to the secondary Thunderbolt 3 port on the rear of
the docking station.
2. Connect a CAT6/5e Cable to the RJ45 Port on the Docking
Station and the other end to a Network Device.
3. Connect an Thunderbolt 3 Cable to the Thunderbolt 3 Port
on the Docking Station and the other end to a Display
Device.
4. For a second display, connect a DisplayPort Cable to the
DisplayPort Port on the Docking Station and the other end
to a Display Device.
- or -
Connect an Thunderbolt 3 Cable to the Thunderbolt 3 Port
on the Docking Station and the other end to a Display
Device.

9
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Notes: Video output capabilities are dependent on the video
card and hardware specications of your connected Host
Computer.
Installing the Remaining Drivers
Depending on your operating system, the dock will
automatically install some of the required drivers once
connected to your Host Computer. Follow the below
instructions to complete the full driver installation process.
1. Using a Web browser navigate to www.startech.com/
MST30C2DPPD.
2. Click the Support tab.
3. Download the drivers.
4. When the download is complete, extract the contents of the
compressed le(s) that you downloaded.
5. Double-click the appropriate driver for the version of
Windows that you are running and follow the on-screen
instructions to complete the installation.
Note: If you are prompted to restart your computer, do so to
complete the installation.
Charging a Device
If using the front USB-A port to charge a device, a connection to
a Host Computer isn’t required.
• Connect a USB device to the USB-A port located on the front
of the docking station.
Notes: This front USB-A port can only fast-charge connected

10
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
devices that comply with USB Battery Charging Specication
Revision 1.2.
When the docking station is connected to a Host Computer,
the front USB-A port functions as a Charging Downstream
Port (CDP), which has simultaneous charge and sync capa-
bilities.
Conguring a Display Device
Use your Windows operating system to adjust display settings
for multiple monitors. Your laptop hardware must support dual
external displays.
• You can set up dual displays by using the video output ports
(1x DisplayPort and 1x HDMI).

11
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Connect a display to the DisplayPort port
The docking station’s DisplayPort connection supports
DisplayPort 1.2, as well as DP++. Because the port supports
DP++, you can use passive adapters or cables to connect
dierent types of monitors to the DisplayPort port.
Type of Display Adapter
DisplayPort None
HDMI DisplayPort to HDMI 4K Audio/Video
Converter (DP2HD4KS)
DVI DisplayPort to DVI Adapter (DP2DVI2)
VGA DisplayPort to VGA Adapter (DP2VGA2)
Connect a display to the Thunderbolt 3 USB-C port
You can also connect a display (or a display adapter) to one of
the docking station’s Thunderbolt 3 ports. One of the docking
station’s Thunderbolt 3 ports must remain connected to your
Host Computer.
Type of Display Adapter
DisplayPort None
HDMI USB-C to DisplayPort Adapter Cable
(CDP2DPMM1MB)
DVI USB-C to HDMI Adapter (CDP2HD4K60)

12
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
VGA USB-C to VGA Adapter (CDP2VGA)
Visit www.StarTech.com/AV/usb-c-video-adapters/ for a range
of USB-C video adapters and cables.
Notes:
• The docking station lets you connect two 4K displays.
• The maximum available resolution might be limited if
your monitor is connected through a video adapter. Check
the documentation of the video adapter to determine its
maximum supported resolution.
Connect multiple Thunderbolt 3
displays in a daisy chain
You can also set up dual displays using multiple Thunderbolt
3 displays in a daisy-chain conguration. For example, you can
connect a Thunderbolt 3 display to the Thunderbolt 3 port on
the docking station. You can then connect another Thunderbolt
3 device, such as a second Thunderbolt 3 display, through the
rst Thunderbolt 3 display.

13
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Supported Video Resolutions
Thunderbolt technology supports both video and data
throughput. However, it prioritizes video bandwidth to help
ensure seamless display performance. The performance of
the remaining dock functions depends entirely on the display
conguration you used.
The docking station supports the follow maximum resolutions:
Number of
Displays Ports Maximum Resolution
1 DisplayPort port 4096 x 2160p
1Thunderbolt 3
port
4096 x 2160p (60Hz)
(Thunderbolt 3 monitor
only)
1
Thunderbolt
USB-C port
(using DP alt
mode)
4096 x 2160p
2
DisplayPort port
and Thunderbolt
3 USB-C port
4096 x 2160p

14
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
• 3840 x 2160p resolution, found on most standard 4K
monitors, is also a fully supported resolution
• Depending on the conguration and the supported
resolutions of your connected monitor(s), the docking station
can support video resolutions lower than specied above.
• In a multi-display conguration, set the refresh rates on each
of your connected monitors to the same values, otherwise
your monitors might not properly display.
• Video output capabilities are dependent on the video
card and hardware specications of your connected Host
Computer.
• Certain monitors may be limited to 4K at 30Hz when
connecting through DisplayPort. (See Troubleshooting for
further details).
Bandwidth Allocation
Thunderbolt technology carries video and data bandwidth, and
it prioritizes video bandwidth to help ensure seamless display
performance. The performance of the remaining dock ports (for
example, the USB 3.0 ports) depends entirely on the display and
I/O (input and output) conguration that you have used.
When multiple high-resolution displays are connected, the
docking station needs to allocate additional bandwidth to the
displays, and the extra bandwidth is reallocated from the other
I/O ports on the docking station. In this situation there is less
bandwidth available for the remaining ports (for example, the
USB 3.0 ports).
The bandwidth allocation table outlines the approximate

15
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
download bandwidth allocation values. The allocation amount
depends on the number and the resolution of your connected
displays.
Video and I/O
Conguration
DisplayPort
Resolution
Thunderbolt
3 USB-C
Resolution
I/O
Bandwidth
Remaining
Data only (No
Displays) N/A N/A
Download:
22Gbps
Upload:
22Gbps
DisplayPort
(Single Display
- 4K)
4096 x
2160p (4K) N/A
Download:
22Gbps
Upload:
22Gbps
Thunderbolt 3
USB-C (Single
Display - 4K)
N/A 4096 x 2160p
(4K - 60Hz)
Download:
22Gbps
Upload:
22Gbps
DisplayPort
and
Thunderbolt
3 USB-C (Two
Displays -
Dual-4K )
4096 x
2160p (4K)
4096 x 2160p
(4K)
Download:
8Gbps
Upload:
22Gbps

16
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
• The bandwidth values are approximate and depend on
several variables including the number, type, resolution, and
refresh rate of your connected display(s).
• When connecting a display to one of the Thunderbolt
3 USB-C ports, a USB-C video adapter may be required,
depending on the input of your display.
Troubleshooting
If you are experiencing issues, there are some quick tests that
you can complete to narrow down the source of the issue.
Update your computer to use Thunderbolt 3
Visit http://thunderbolttechnology.net/updates and look
for your computer in the list of aected computers. If your
computer is listed, then you must update your computer for
its Thunderbolt 3 ports to function properly. To update your
computer, follow the instructions on the website or contact
your manufacturer.
Verify that your components are Thunderbolt compliant
6. Make sure that you are using Thunderbolt 3 certied cables.
7. Make sure that the port on your computer is Thunderbolt
3 compliant. Thunderbolt 3 uses the USB-C connector
type, but not all USB-C connectors are compatible with
Thunderbolt 3. If you are using a USB-C port that is
not Thunderbolt 3 compliant, switch to a port that is
Thunderbolt 3 compliant.
8. Make sure that your peripheral is Thunderbolt compliant. If
you’re not sure, check with the manufacturer.

17
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Replace the Thunderbolt cable
• Use the Thunderbolt peripheral with a dierent cable that is
Thunderbolt compliant.
Test the Thunderbolt peripheral
1. Use a second Thunderbolt peripheral, and see if it works.
Ideally, the second peripheral is one that you know works
in other setups. If the second peripheral works in the
current setup, then there is probably an issue with the rst
Thunderbolt peripheral.
2. Use the Thunderbolt peripheral with a second setup. If it
works in the second setup, then there is probably an issue
with the rst setup.
Important operation notes
• Certain monitors may be limited to 4K at 30Hz when
connecting through DisplayPort. These monitors include
the following models: Dell P2715Q, Viewsonic VX2475Smhl-
4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these
models will need to be set to 4K at 30Hz).

18
Warranty Information
This product is backed by a three-year warranty.
For further information on product warranty terms and conditions, please refer
to www.startech.com/warranty.
Limitation of Liability
In no event shall it be the liability of StarTech.com Ltd. and StarTech.com USA
LLP (or their ocers, directors, employees or agents) for any damages (whether
direct or indirect, special, punitive, incidental, consequential, or otherwise), loss
of prots, loss of business, or any pecuniary loss, arising out of or related to the
use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or
consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
18

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan.
It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need.
From the latest technology to legacy products — and all the parts that bridge
the old and new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they
need to go. Just talk to one of our tech advisors or visit our website. You’ll be
connected to the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products
and to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and
technology parts. StarTech.com was founded in 1985 and has operations in the
United States, Canada, the United Kingdom and Taiwan servicing a worldwide
market.
Reviews
Share your experiences using StarTech.com products, including product
applications and setup, what you love about the products, and areas for
improvement.
StarTech.com Ltd.
45 Artisans Cres.
London, Ontario
N5V 5E9
Canada
StarTech.com LLP
2500 Creekside Pkwy.
Lockbourne, Ohio
43137
U.S.A.
StarTech.com Ltd.
Unit B, Pinnacle
15 Gowerton Rd.,
Brackmills
Northampton
NN4 7BW
United Kingdom
FR: fr.startech.com
DE: de.startech.com
ES: es.startech.com
NL: nl.startech.com
IT: it.startech.com
JP: jp.startech.com
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
