stilum patis 2 User manual

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved
Mounting instructions for swing „patis 2“
Item-No. 51 2014 402
State: 12.08.2020 p. 1
swing bar
post
Diagram 1: Overall view of the play equipment

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved
Mounting instructions for swing „patis 2“
Item-No. 51 2014 402
State: 12.08.2020 p. 2
Play level
1. Select the location of the play equipment taking into account the required
minimum space (see diagram 4, 7800x 3700mm).
2. The impact area of a playground equipment with an enforced movement is
not allowed to overlap the impact area of other equipment.
According to DIN EN 1176-1, 4.2.8.5.2 shock-absorbing oors must be made
on the entire impact area of every equipment that cause forced movement.
3. Carry out excavation work for the foundations as shown in diagram 2. After
excavation compress the foundation oor.
Note: The swing is installed at play level.
Pay attention to items marked „play level“ at play equipment!
4. Set up the concrete foundations according to diagram 2 with central, horizon-
tal reinforcement.
5. After a setting period of 10 – 14 days, depending on weather conditions and
foundation size, ll up and compress the holes between the foundation and
the foundation hole with excavation.
6. Screw the swing bars with the screws included in the delivery to the posts
and insert the plastic caps into the swing bar as shown in diagram 3.
Reinforcement plan: Concrete foundation with reinforcement
Main foundation: BSt 500S
4 stirrups each Ø 8 mm lengthwise and cross
Concrete cover h´= 5 cm, e=15 cm
Concrete quality class C 25/30
Diagram 2: Foundation plan
900
500
1000
4800
3902
450
2488
1000
1000
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
Patis 2
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
1:30
A3
Name
Name
Fundamentplan
0506-00-00
Maßstab
Köhn 26.03.2018
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Beton
concrete
gewachsenes Erdreich
natural ground
Legende
stoßdämpfender Boden
shock-absorbing floor
ES 15.05.20 stoßdämpfender Boden A
DatumÄnderungRev

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved
Mounting instructions for swing „patis 2“
Item-No. 51 2014 402
State: 12.08.2020 p. 3
7. Clean the foundation surface and place the play equipment on it.
Align the swing on the foundation and screw it by using the included heavy-
duty dowels.
8. Cover the entire impact area with fall protection according to the required
drop height in accordance with EN 1176-1.
Critical drop height: 1400 mm
Recommended surface material: sand, wood chips, gravel,
synth. impact protection.
With a smaller installation depth (special edition) we recommend synthetic
impact protection. In this case, make sure that protruding parts (e.g. screws,
gusset plates) are covered with appropriate fall protection.
9. The foundation of one-mast equipment has to be accessible for regularly
inspection.
10. Screw the chains with the swing seats onto the swing suspension.
11. Do not allow children to use the equipment before the installation has been
nished.
Attention: If the play equipment has been incompletely installed or partly dis-
mantled when carrying out maintenance and repair work, this may lead to par-
ticular risks of injury for the user. For this reason, make clearly visible that the
equipment shall not be used in such cases.
NOTE: Play equipment, which contain components made of stainless steel
should not come with „normal“ steel parts in contact. Those steel parts may rub
o󰀨 and leave small steel particles in combination with moisture brown rust stains.
If such corrosion occur on stainless steel parts, they are ne with an abrasive
(240 grit) to remove.
Please take care when transporting and setting up the fact that the components
are made of stainless steel with no „normal“ steel parts in contact.
Diagram 3: Assembly
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
Oberflächen nach
DIN ISO 1302
Reihe 2
Zul. Abweichung
DIN 2768 - mH
1
Patis 1
Benennung
Gepr.
Werkstoff
Blatt
Datum
Projekt
Gez.
Zuschnitt
Zeichnungsnummer
Rev Änderung Datum
1:15
A3
Gewicht
Name
Name
Explosion
0505-00-00
79.4 Maßstab
Schramm 06.07.20
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved
Mounting instructions for swing „patis 2“
Item-No. 51 2014 402
State: 12.08.2020 p. 4
In order to preserve a good visual appearance of your stilum playground equip-
ment over a long period one should take care of maintenance of the stainless
surface even despite of their corrosion resistance.
Especially areas, which can not be reached by rainfall should be frequently clea-
ned from dirt and deposits due to air pollution and dirt caused by the atmosphe-
re.
Light soiling can easily be romoved by using a high pressure cleaner.
For persistent deposits use a clean cloth moistened with a special liquid cleaner
(e.g. on phosphoric acid) and rinse o󰀨 with clear water after a short application
time. During cleaning with mild abrasive components, only wipe over stainless
steel surface in polishing direction.
For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on
cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl
alcohol, isopropyl alcohol or acetone).
However, it should be noted that the dissolved soiling is not spread over the
surface again.
Do not use any chlorid or hydrochloric containing cleaning products nor scouring
powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type
and degree of soiling as well as on demands made on optical characteristics.
Therefore cleaning is advisable at intervals of six to twelve months – whereby in
the case of strong soiling it is appropriate to clean the playground equipment at
intervals of three to six months.
7800
3700
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
Patis 2
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
Rev
Änderung
Datum
1:30
A3
Name
Name
Draufsicht
0506-00-00
Maßstab
Köhn
26.03.2018
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland

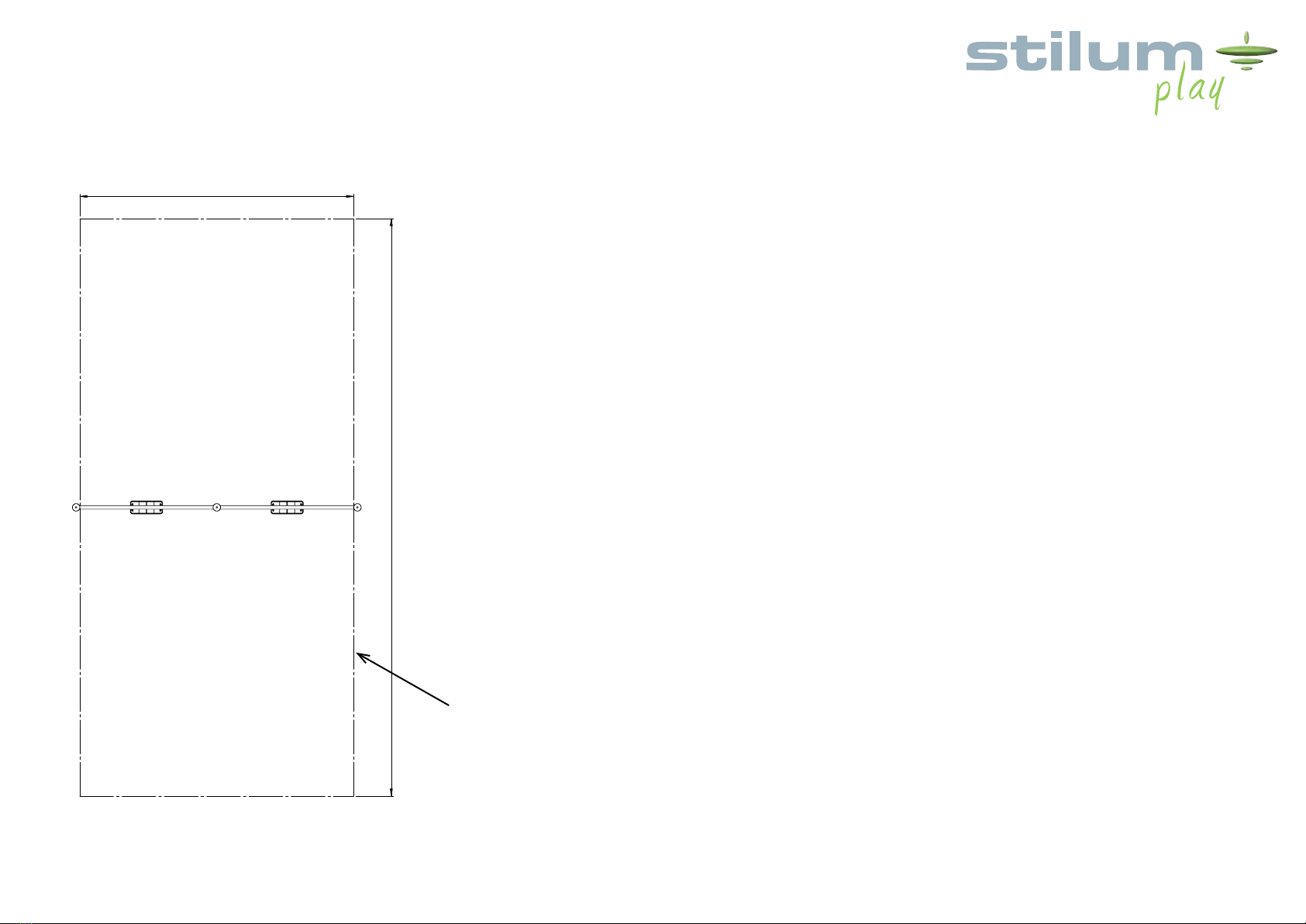

Area of the minimum space =
Impact surface when using natural oors with a
shock-absorbing e󰀨ect.
When using synthetic impact protection the impact area
shortens in the direction of the swing by 500 mm each.
The minimum space remains preserved in its entirety.
Diagram 4: Top view
