stilum simius 6 User manual

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved. State: 25.03.2021 p. 1
Mounting instructions for swing „simius 6“
Item-No. 51 2029 401

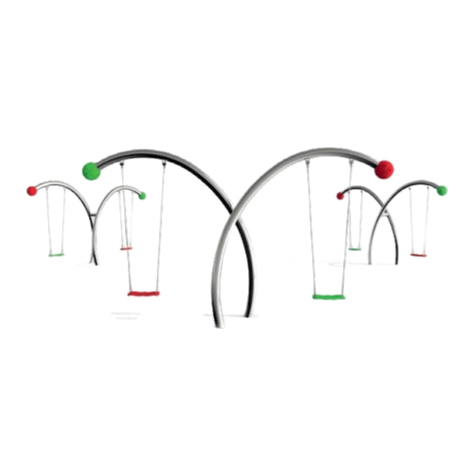

Diagram 1: Overall view of the play equipment

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved. State: 25.03.2021 p. 2
Mounting instructions for swing „simius 6“
Item-No. 51 2029 401
Diagram 2: Foundation plan
1. Select the location of the play equipment taking into account the required
minimum space (equipment space + falling space, see diagram 2 and 3).
2. The impact area of a playground equipment with an enforced movement is
not allowed to overlap the impact area of other equipment.
According to DIN EN 1176-1, 4.2.8.5.2 shock-absorbing oors must be made
on the entire impact area of every equipment that cause forced movement.
3. Carry out excavation work for the foundations as shown in diagram 2. After
excavation compress the foundation oor.
Note: The swing is installed at play level.
Pay attention to items marked „play level“ at play equipment!
4. Set up the concrete foundations according to diagram 2 with central, hori-
zontal reinforcement.
5. After a setting period of 10 – 14 days, depending on weather conditions and
foundation size, ll up and compress the holes between the foundation and
the foundation hole with excavation.
Play level
Concrete foundation
Concrete foundation
400
450
365
2440
A A
1500
1100
9176
7474
1100
1500
8224
3449
9496
10596
4300
4300
4300
4748
A-A
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
simius6
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
1:75
A3
Name
Name
Fundamentplan
0523-00-00
Maßstab
Schramm 22.03.19
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Beton
concrete
gewachsenes Erdreich
natural ground
Legende
stoßdämpfender Boden
shock-absorbing floor
ES 22.05.20 stoßdämpfender Boden A
DatumÄnderungRev
Reinforcement plan: Concrete foundation with reinforcement
Foundation: BSt 500S
Stirrups Ø 8 mm lengthwise and cross
Concrete cover h´= 3 cm
Concrete quality class C 20/25

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved. State: 25.03.2021 p. 3
Mounting instructions for swing „simius 6“
Item-No. 51 2029 401
6. Clean the foundation surface and place the play equipment on it. Place two
swing sides on the foundation. The base plates are placed close to each
other (see diagram 2). Attention: Do not screw the equipment onto the foun-
dation yet!
7. Connect the two parts with the pin attached at the two connection elements
and screw with the screws and acorn nuts (see diagram 4).
8. Align the play equipment on the foundation and screw it by using the included
heavy-duty dowels.
9. Cover the entire impact area with fall protection according to the required
drop height in accordance with EN 1176-1.
Critical drop height: ca. 1400 mm
Recommended surface material: sand, wood chip, gravel, synth. impact
protection.
10. Screw the chains with the swing seats onto the swing suspension.
11. Do not allow children to use the equipment before the installation has been
nished.
Attention: If the play equipment has been incompletely installed or partly dis-
mantled when carrying out maintenance and repair work, this may lead to par-
ticular risks of injury for the user. For this reason, make clearly visible that the
equipment shall not be used in such cases.
NOTE: Play equipment, which contain components made of stainless steel
should not come with „normal“ steel parts in contact. Those steel parts may rub
o󰀨 and leave small steel particles in combination with moisture brown rust stains.
If such corrosion occur on stainless steel parts, they are ne with an abrasive
(240 grit) to remove.
Please take care when transporting and setting up the fact that the components
are made of stainless steel with no „normal“ steel parts in contact.
Diagram 3: Top view
Impact area when using natural oors with a
shock-absorbing e󰀨ect.
When using synthetic impact protection the impact area
shortens in the direction of the swing by 500 mm each.
The minimum space remains preserved in its entirety.
4400
11250
7800
13310
17710
15338
500
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
Oberflächen nach
DIN ISO 1302
Reihe 2
Zul. Abweichung
DIN 2768 - mH
1
simius6
Benennung
Gepr.
Werkstoff
Blatt
Datum
Projekt
Gez.
Zuschnitt
Zeichnungsnummer
Rev Änderung Datum
1:60
A3
Gewicht
Name
Name
Draufsicht
0523-00-00
Maßstab
Schramm 13.03.18
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved. State: 25.03.2021 p. 4
Mounting instructions for swing „simius 6“
Item-No. 51 2029 401
Diagram 4: Connection of the two parts of the swing
In order to preserve a good visual appearance of your stilum playground equip-
ment over a long period one should take care of maintenance of the stainless
surface even despite of their corrosion resistance.
Especially areas, which can not be reached by rainfall should be frequently clea-
ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.
Light soiling can easily be romoved by using a high pressure cleaner.
For persistent deposits use a clean cloth moistened with a special liquid cleaner
(e.g. on phosphoric acid) and rinse o󰀨 with clear water after a short application
time. During cleaning with mild abrasive components, only wipe over stainless
steel surface in polishing direction.
For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on
cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl
alcohol, isopropyl alcohol or acetone).
However, it should be noted that the dissolved soiling is not spread over the sur-
face again.
Do not use any chlorid or hydrochloric containing cleaning products nor scouring
powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type
and degree of soiling as well as on demands made on optical characteristics.
Therefore cleaning is advisable at intervals of six to twelve months – whereby in
the case of strong soiling it is appropriate to clean the playground equipment at
intervals of three to six months.
6
8
3
6
1
5
2
13
15
410
7
9
16
1112
Pos. Stck Typ Benennung Abmessung Werkstoff ZeichnNr Bemerkung Gewicht
1 2 BG SchweißBG Hauptteil 2330x600x2900 0504-01-00 110.3
2 1
EF Alubolzen Ø80,9x210 Aluminium 0504-00-01 4.1
3 2
LT Ronde Ø244x5 Ø244x5 1.4301 (X5CrNi18-10) S-02001-03 1.80
4 4
KT Schaukelgelenk 35x40x83 S-07005-01-00 0.32
5 2
BG Schaukel 1800 1800 S-09003-03 grün 3.24
6 4
BG Gummihalbkugel Ø250 Ø250 S-03003-07-00 grün 1.87
7 12
KT Sechskantmutter M6 A2 DIN 934 0.33
8 12
KT Flachkopfschraube M6x20 A2 DIN 7984
9 8 KT Linsenkopfschraube M10x16 A2 DIN ISO 7380 0.00
10 4
KT Senkschraube innen 6-knt M10 x 70 A2
11 4 KT Scheibe M10 A2 DIN 125
12 4 KT Hutmutter selbstsichernd M10 A2 DIN 986
13 4 KT Zylinderkopfschraube M12x110 A2 0.015
14 8
KT Unterlegscheibe Ø13 A2 DIN 125
15 4 KT Hutmutter selbstsichernd M12 A2 DIN 986
16 8 KT Fixanker, Scheibe, Mutter M16x170 verzinkt 0.28
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
Oberflächen nach
DIN ISO 1302
Reihe 2
Zul. Abweichung
DIN 2768 - mH
2
simius 2
Benennung
Gepr.
Werkstoff
Blatt
Datum
Projekt
Gez.
Zuschnitt
Zeichnungsnummer
Rev Änderung Datum
1:30
A3
Gewicht
Name
Name
Explosion
0504-00-00
246.1 Maßstab
Mattheis
21.07.16
A zweigeteilt 27.03.18 ES
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
