Streetwize SWMCD10 User manual

Read and understand these instructions before attempting any
operation of this battery charger and retain for future reference!

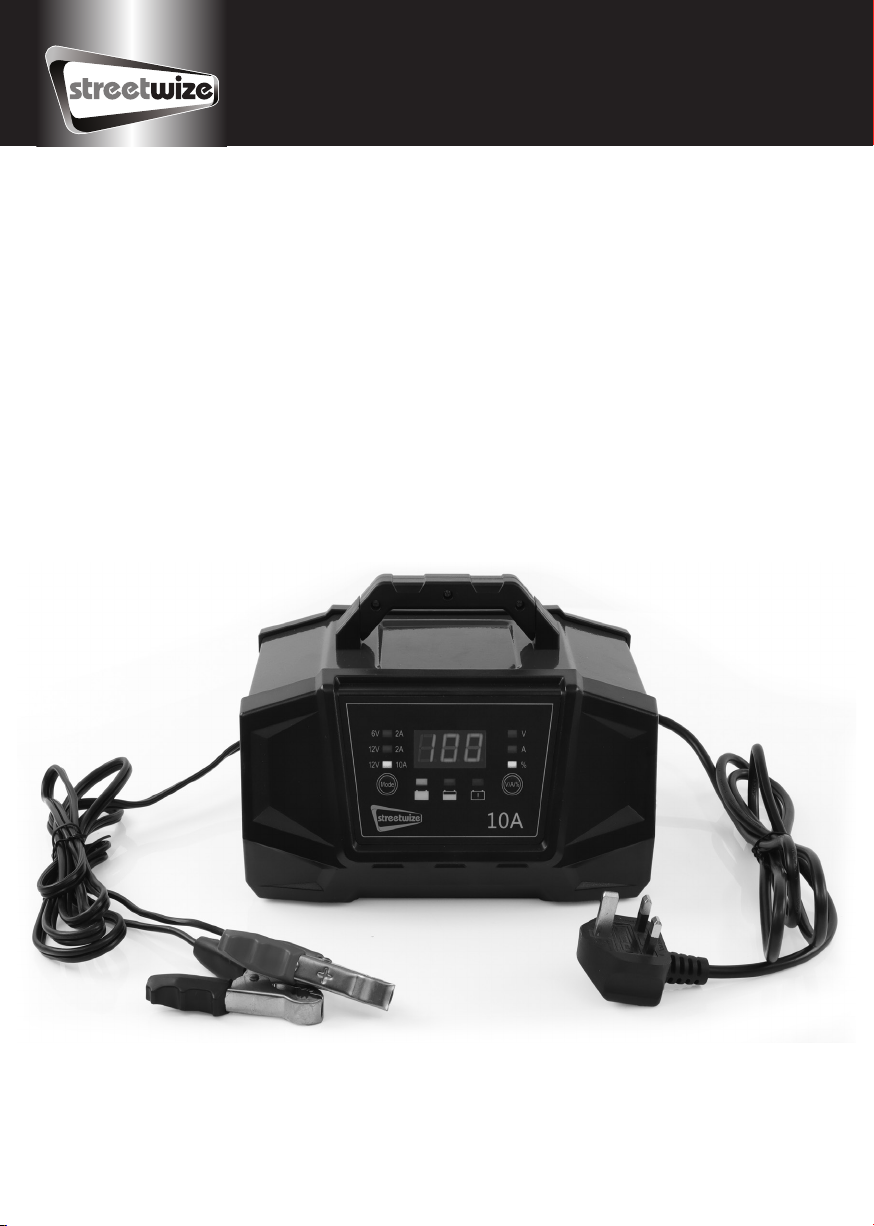

SWMCD10
6/12V 10Amp - Digital Smart
Battery Charger
6V - 2A charge for batteries between 2Ah-30Ah &
12V - 2A charge for batteries between 2Ah-30Ah &
12V - 10A charge for batteries between 30Ah-120Ah.

INDEX
Intention for Use 3
Explanation of Safety Warnings 4
Health & Safety Guidelines 5
Product Elements 8
Product Overview 8
Intelligent Microprocessor 9
Trickle Charge 9
Directions for Use 9
Before use 9
Connecting the Device 10
Charging 11
Switching the Parameter on Display 11
After Use 11
Charge Modes 11
Safety Features 12
Troubleshooting 12
Maintenance Guidelines 13
Disposal 13
Technical Specification 14
INTENTION FOR USE
Thank you for purchasing this 6V/12V 10Amp - Digital Smart Battery Charger from Streetwize.
The battery charger is intended for charging 6V or 12V batteries found in cars, boats, lorries and motorcycles.
This battery is compatible for charging the following battery types:
lWet batteries (WET)
lEFB batteries (Enhanced Flooded Battery)
lLead-acid batteries (liquid electrolyte)
lGel batteries (gel-type electrolyte)
lAGM batteries (electrolyte inside absorbed glass matt)
Please do not charge any other type of battery that is not listed above.
This battery charger can be directly connected to the batteries using the clamps.
Please keep away from children.
Any other use or modification of the device is considered improper and involves significant risks. The manufacturer
assumes no liability for damages due to improper use.
Before using this product, we highly recommend that you read through and understand this document so you
become familiar with the operating instructions, safety guidelines and this battery charger’s function, and
retain the document for future reference.

EXPLANATION OF SAFETY WARNINGS
HEALTH & SAFETY GUIDELINES
General Safety Guidelines
Before using this battery charger, please read all the guidelines and instructions. Any non-compliance to the safety
guidelines and instructions can cause electric shock, fire and / or serious injury.
Keep these guidelines and instructions for future reference.
Warning!
This product is not a toy and should not be used by children. Never leave children unsupervised with the packaging
material due to risk of suffocation. Do not allow children to play with the cables – strangulation risk. Do not allow
children to play with the components or fasteners, as they could be swallowed and result in suffocation.
The manufacturer is not responsible for damages caused by:
lImproper connection or misuse.
lExternal damage to the device and / or damage to parts of the device due to
mechanical impact or overload.
lAny kind of modification to the device.
lUse of the charger for purposes which have been described in this document.
lDefective or frozen batteries
lMoisture
lPoor ventilation.
lUnauthorised opening of the device.
Any of the above reasons will automatically void the guarantee.
Risk of chemical burns
lBatteries contain acid, which can cause damage & harm to the eyes and skin.
lCharging batteries could generate gases and vapours that are hazardous to health.
lAvoid any contact with the battery acid. If you do, for any reason, come in contact with the battery acid,
thoroughly flush skin with water immediately. If eyes have come into contact with battery acid, flush eyes
with running water at least 5 minutes and immediately contact a medical professional.
lAlways use safety goggles and acid-proof safety gloves. And wear protective clothing, e.g. apron or overall.
lNever tip the battery as this causes acid may leak.
lAlways ensure there is adequate ventilation when using the charger.
lDo not inhale any gases or vapours that may come about from charging.
Symbol Explanation Symbol Explanation
Refer to the operator’s manual. Wear safety glasses.
Hazard to children. Risk of harm or
fatal injury to children.
Wear safety gloves.
Attention. Please follow safety
instructions and warnings.
Risk of chemical burns.
Danger of electric shock. Risk of explosion.
For indoor/undercover use ONLY. Risk of fire.
Dispose packaging in the correct &
environmentally-friendly manner.

Explosion and fire hazard
lHydrogen gas may form when charging the battery. If this gas gets in contact with open fire (flame,
embers, sparks) may result in an explosion. Please ensure the area is free from open fire when using this
battery charger.
lAlways ensure sufficient ventilation.
lAlways check to see if the correct Voltage LED appears on the charger. It should match the Voltage of the
battery that you are charging.
lOnly connect and disconnect the battery connecting cables when the charger is disconnected from the
mains.
lNever cover the device when in use as this may lead to damage from extreme heat generated from the
charger.
lIf you notice smoke or an unusual odour, immediately stop using the device.
lDo not use the charger close to where there are substances that are explosive or flammable stored nearby
(e.g. petrol or solvents).
Risk of electrical shock
lThe charger may interfere with the operation of any active electronic implants. This includes pacemakers.
Hence, posing a personal hazard.
lEnsure no water or any other liquid gets in contact with the charger. Water is highly conductive, and poses
an electrically risk.
lEnsure that all plugs and cables are free of moisture.
lNever connect the device to the mains with wet or moist hands.
lNever touch both terminals at once when the device is in use.
lUnplug from mains before connecting or disconnecting the charging cable to/from the battery, or when the
device is no longer being used.
lRemove all device cables from the battery before attempting to drive your vehicle.
lAlways unplug the device by the plug, and not the cable. This prevents the cable being damaged.
lDo not use the device if it is damaged. Any damage to the power cable, the device or the charging cables
increase the risk of electrical shock.
lDo not attempt to disassemble or repair the device. Please take the defective charger to a specialist for
repair.
lNever allow the two connectors from the charging cable to touch each other when the mains is connected
and switched on. This risks a short circuit.
lMake sure you do not connect the connectors or the battery poles through conductive objects (e.g. tools).
lNever use the cable to carry or pull the device.
Risk of injury
lNever attempt to charge non-rechargeable, damaged or frozen batteries.
lDo not use this device to charge dry cell batteries. This could lead to a burst and will result in personal
injury and property damage.
Risk of damage
lNever place the charger over or near the battery to be charged. Gases from the battery could damage the
unit. Place the device as far from the battery as the connecting cables will allow.
lNever operate the device if it has been dropped or damaged in any other way. For inspection and repair,
take it to a qualified electrician.

PRODUCT ELEMENTS
When opening the packaging, you will find the following:
1. Streetwize 10Amp 6V/12V Digital Smart
Battery Charger
2. Information for use
Intelligent Microprocessor
This battery charger comes with a built-in intelligent microprocessor which automatically adjusts the charging
current based on the level of charge of your battery. This assists with prolonging the life of the battery and
preventing it from being damaged through overcharging.
Trickle Charge
The trickle charge function allows you to slow charge your battery so that it is fully charged when not in use. The
trickle charge function can be used for overnight charging as well.
DIRECTIONS FOR USE
Before use
Warning!
Before using this battery charger, please ensure you follow the safety notices below:
lUse safety goggles and acid-proof safety gloves.
lEnsure adequate ventilation when charging.
lPlease follow the guidelines written in your vehicle’s handbook for charging your vehicle’s battery.
Please become fully familiar with the battery charging guidelines written in your handbook.

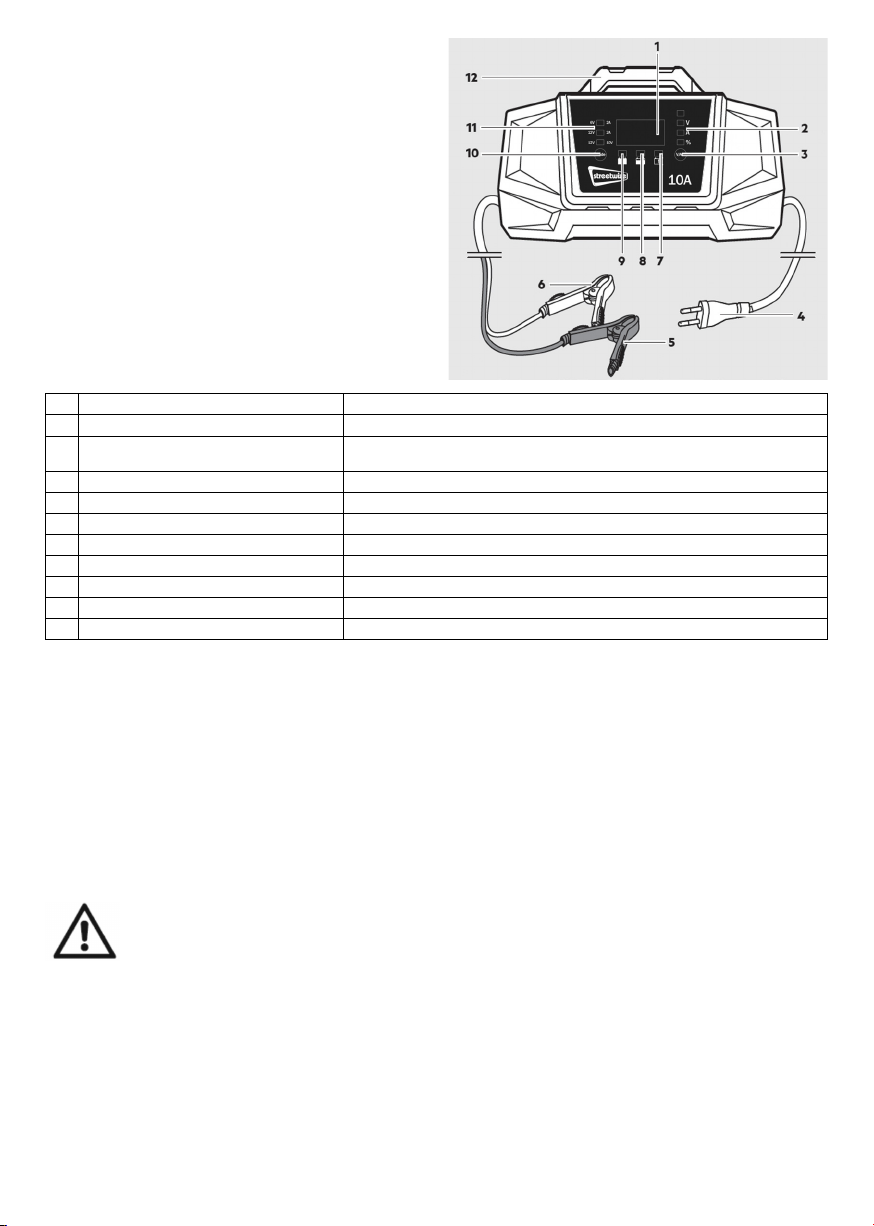

No. Description Function
1 Display Shows the parameter.
2 LED Indicators LED indicators for Voltage, Amp and Charge Level (%) parameter shown on
display.
3 Parameter Switch Button To switch the parameter shown on the display.
4 Power cable UK 230V AC mains power cord to supply power to the unit.
5 Black battery charger cable (-) with clamp Connects to the negative terminal on the battery.
6 Red battery charger cable (+) with clamp Connects to the positive terminal on the battery.
7 LED Error Lights up if the connection to the battery is incorrect.
8 LED charging Lights up to show that the battery is charging.
9 LED Full Lights up to show that the battery is fully charged.
10 Charge MODE button For selecting the charging current and charging voltage.

CONNECTING THE DEVICE
1. Connect the red (+) terminal connection cable with the clamp (6) to the positive battery terminal.
2. Connect the black (-) terminal connection cable with the clamp (5) to the negative battery terminal.
Warning!
Risk of fire and electric shock! Connect the charger to the 230V power socket without the use of extension
cable(s). In exceptions, use the shortest possible undamaged and unrolled 230V AC extension cable.
3. Plug the charger plug into a 230V power socket. Once connected to the mains and the mains is
switched on, the display will show the current battery Voltage. After 10 seconds, the “Charge” LED will
light up and the charging voltage will be at the preset lowest charging rate.
Please note: If the battery is not connected correctly, the Error LED will light up. In this situation, please
unplug the charger and check the battery and connection. Refer to Troubleshooting.
4. Check to see if the charging Voltage corresponds to the Voltage of the connected battery. If the charging
voltage is too high, it may be that the connected battery may be damaged or destroyed. If so, please
disconnect from the mains first, and then disconnect the charging cables from the battery.
5. Select the Charge Mode by pressing the MODE button (10) until your preferred charge mode appears on
the LED display (See Charge Modes).
CHARGING
If the charging device is connected correctly, the CHARGE LED will light up. Once the battery is fully charged, the
FULL LED will light up.
The actual charge process of this battery charger is fully automatic. Once the battery is fully charged, it will
automatically switch to the trickle charge function to protect the battery from overcharging.
SWITCHING THE PARAMETER ON DISPLAY
During the charge, you can switch to what parameter you would like to see on the display. To do so, press the
Parameter Switch Button (3) repeatedly until your parameter appears.
There are three parameters for you to select:
lV = charging voltage
lA = charging current
l% = battery charge condition

AFTER USE
Once the charge has been complete, please follow the instructions below:
1. Disconnect the mains plugs from the 230V AC power socket.
2. First, disconnect the black (-) charging cable from the negative battery terminal.
Then, disconnect the red (+) charging cable from the positive battery terminal.
CHARGE MODES
There are three main charge modes on this battery charger.
Modes Charging voltage (V) Charging Current (A)
6V: Slow charge 6V 2A
12V: Slow charge 12V 2A
12V: Quick charge 12V 10A
SAFETY FEATURES
This battery charger features the following safety features:
lShort circuit (defective battery).
lIncorrect connection (connected with reversed polarity).
lSparking.
lOverheating.
lExcess current.
lOvercharging.
Error/Problem Possible Cause Solution
Display shows “---” • No battery connected.
• Battery Voltage below 0.5V.
• Ensure the battery is connected.
Display shows “Er1” • The connected battery is
incompatible.
• Only use compatible batteries (see
Intention for Use)
Display shows “Er2” • The connected battery is defective. • Dispose the defective battery in the correct
manner.
Display shows “Er3” • The battery was not fully charged
within 24 hours.
• Check if the charging rate has been set
correctly.
• The battery is defective. Dispose the
defective battery in the correct manner.
Error LED has lit up • Battery is either not connected or
incorrectly connected.
• Turn off charger at the mains to check the
connections
• Incorrect battery voltage (6/12V) has
been selected.
• Unplug charger at the mains and wait for
the LED indicator lights to go out. Then
reconnect the charger to the mains, and
select the correct battery voltage.
Battery does not charge • No power supply. The charger is not
plugged into the mains.
• Check if the battery charger is connected
to a 230V AC mains socket.
• Battery may be defective. Dispose the
defective battery in the correct manner.
Long charging time • Low charging current is used in low
temperature (below 0oC).
• Charge battery in room temperature.
• Never charge frozen batteries.
• Battery capacity too high for the
charger being used.
• Use a suitable charger.
Battery voltage is low • Battery wasn’t charged long enough. • Ensure the battery is charged long enough.

Streetwize Accessories:
Unit 1, Royce Trading Estate, Ashburton Road West,
Trafford Park, Manchester M17 1RY
Technical enquiries: [email protected]
Telephone: [phone]
Sales enquiries: [email protected]
www.streetwizeaccessories.com
MAINTENANCE GUIDELINES
lAfter every charge, clean the clamps to prevent corrosion. When cleaning the clamps, ensure you wipe off any
battery fluid which may have come in contact with the clamps.
lWhen not in use, please ensure the cables are carefully stowed away properly. This will prevent accidental
damage to the cable and the device.
lClean the product with a soft, dry cloth.
lStore the battery in a clean, dry place.
Caution!
Only qualified technical personnel should change the plug or the connecting cables. This will guarantee the safety
of the battery charger is maintained. If the product is no longer suitable for use, dispose of it in an environmentally
friendly manner in accordance with your local government.
DISPOSAL
The packaging consists of non-contaminating materials that you can dispose of at your local recycling point.
Do not throw electrical appliances in with domestic waste.
In accordance with European Directive 2012/19/ EC for waste electrical and electronic equipment (WEEE) and
conversion to national law, used electrical appliances must be collected separately and taken to a recycling point.
For ways to dispose of old electrical appliances please contact your local authority.
