Stryker 1079 User manual

2009/12 1079-009-002 REV B www.stryker.com
Eye Surgery
Stretcher
Model 1079
Maintenance Manual
For parts or technical assistance call:
USA: 1-800-327-0770 (option 2)

www.stryker.com 1079-009-002 REV B 3
Table of Contents
Symbols and Definitions....................................................................6
Symbols ............................................................................6
Warning/Caution/Note Definition...........................................................6
Introduction .............................................................................7
Product Description....................................................................7
Intended Use of Product.................................................................7
Specifications ........................................................................7
Contact Information....................................................................8
Serial Number Location .................................................................8
Summary of Safety Precautions ..............................................................9
Cleaning...............................................................................10
Stretcher Cleaning....................................................................10
Mattress Cleaning ....................................................................11
Preventative Maintenance..................................................................13
Lubrication Points ....................................................................14
Quick Reference Replacement Parts List ......................................................15
Service Information.......................................................................16
Caster Cover Removal and Installation.....................................................16
Caster Assembly Removal ..............................................................16
Brake Rod Removal...................................................................17
Release Pedal Rod Removal, Foot End.....................................................19
Release Pedal Adjustment..............................................................20
Brake Ring Removal...................................................................20
Fifth Wheel Assembly Removal ..........................................................21
Litter Removal.......................................................................21
Hydraulic Jack Removal, Foot End ........................................................22
Hydraulic Jack Removal, Head End .......................................................23
Removal of Excess Air From The Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Jack Descent Rate Adjustment...........................................................24
Siderail Latch Adjustment...............................................................25
Arm Board Counterbalance Adjustment ....................................................25
Pneumatic Fowler Adjustment ...........................................................26
Pneumatic Fowler Release Handle Adjustment ...............................................27
Pneumatic Cylinder Replacement.........................................................28
Standard Brake Assembly..................................................................30
Brake Rod Assembly......................................................................32
Side Control Brake Assembly ...............................................................33
Brake Rod/Side Control Assembly............................................................36
Side Control Brake Assembly ...............................................................37
Standard Brake Assembly, Colored Components.................................................38
Side Control Brake Assembly, Colored Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Drive Link Assembly - 0853-003-010..........................................................39
Drive Link Assembly - 0853-006-135..........................................................40

4 1079-009-002 REV B www.stryker.com
Table of Contents
8” Caster Assembly - 0753-010-020 ..........................................................41
Retractable Fifth Wheel Base Assembly - 0853-006-110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Fifth Wheel Assembly.....................................................................44
Constant Descent Jacks...................................................................46
Trend Limiter - 1069-020-010 ...............................................................47
Dual Sided Hydraulics Assembly.............................................................49
Standard Hydraulics Assembly, Colored Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Side Control Hydraulics Assembly, Colored Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Lowering Pedal Assembly..................................................................53
Pump Pedal Assembly, Head End - 0853-005-285................................................54
Three Sided Hydraulics Assembly............................................................55
Release Pedal Assembly, Foot End...........................................................58
Pump Pedal Assembly, Foot End - 0853-005-273 ................................................59
Base Labels - Standard Brakes, Side Control Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Base Labels - Standard Brakes, Foot End/Side Control Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Base Labels - Foot End/Side Brakes, Side Control Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Base Labels - Foot End/Side Brakes, Foot End/Side Control Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Litter Assembly..........................................................................68
Jack Support Assembly, Foot End............................................................71
Jack Support Assembly, Head End ...........................................................72
Dual Articulating Pneumatic Fowler - 1069-132-210 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Dual Articulating Crank Fowler - 1069-142-250 ..................................................78
Dual Articulating Head Piece - 1069-133-020....................................................80
Crank Fowler Assembly ...................................................................84
Crank Screw Assembly - 1069-042-110........................................................85
Stationary Foot Section Assembly............................................................86
Gatch Assembly.........................................................................88
Foot and Thigh Section Subassembly.........................................................90
Gatch Crank Screw Assembly - 1068-046-010...................................................91
Siderail to Litter Assembly, Two-Position Siderails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Two Position Siderail Assembly, Right - 1068-020-015 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Two Position Siderail Assembly, Left - 1068-020-017 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Siderail to Litter Assembly, Optional Three Position Siderail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Three Position Siderail Assembly, Right - 1066-026-015. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Three Position Siderail Assembly, Left - 1066-026-017. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Optional Accessories .....................................................................96
Pre-Op/Post-Op Head Pads - 1069-160-010 ....................................................97
Head Piece Assembly, Right - 1069-060-025....................................................98
Head Piece Assembly, Left - 1069-060-035.....................................................98
Latch Bracket Assembly, Right - 1069-060-220.................................................100
Latch Bracket Assembly, Left - 1069-060-225..................................................100
Temporal Wrist Rest - 1068-251-000.........................................................101
Assembly Drawings (Continued)

www.stryker.com 1079-009-002 REV B 5
Table of Contents
Superior Wrist Rest - 1068-250-000 .........................................................102
I.V. Caddy - 0753-022-000 ................................................................103
Defibrillator Tray - 0785-045-200............................................................104
Defibrillator Tray/Foot Extender/Chart Service - 0785-045-400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Foot Board/Chart Holder - 0785-045-500 .....................................................106
Upright Oxygen Bottle Holder - 1010-030-000..................................................107
Oxygen Bottle Retaining Ring - 1040-010-090..................................................108
Serving/Instrument Tray - 0785-045-700 ......................................................109
Serving Tray Holder / Foot Board - 0785-045-800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Integrated Transfer/Armboards - 1060-058-000.................................................111
Arm Board Support Assembly - 1010-024-030..................................................112
Transfer Board, Left - 1060-001-114 .........................................................113
Transfer Board, Right - 1060-001-115 ........................................................114
Accessory Rail - 1068-266-000.............................................................115
Arm Board with Clamp - 1068-056-000.......................................................116
Arm Board without Clamp - 1068-055-000.....................................................117
Air Delivery / Drape Support - 1068-168-000...................................................118
Removable I.V. Pole Assembly - 0390-025-010 .................................................119
Two Stage Permanent I.V. Pole, Foot End - 1010-080-000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Two Stage I.V. Pole Assembly - 1211-210-010 .................................................. 121
I.V. Pole Latch Assembly - 1211-210-026......................................................122
Three Stage Permanent I.V. Pole, Foot End - 1020-062-000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Three Stage I.V. Pole Assembly - 1211-211-010 .................................................124
Three Stage I.V. Pole Third Stage Assembly ...................................................125
Mattresses and Siderail Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Warranty .............................................................................127
Limited Warranty ....................................................................127
To Obtain Parts and Service ...........................................................127
Service Contract Coverage ............................................................127
Service Contract Programs ............................................................128
Return Authorization..................................................................128
Damaged Merchandise ...............................................................128
International Warranty Clause...........................................................128
Optional Accessories (Continued)

Return To Table of Contents
6 1079-009-002 REV B www.stryker.com
WARNING/CAUTION/NOTE DEFINITION
The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.
WARNING
Alerts the reader about a situation, which if not avoided, could result in death or serious injury. It may also describe
potential serious adverse reactions and safety hazards.
CAUTION
Alerts the reader of a potentially hazardous situation, which if not avoided, may result in minor or moderate injury to the
user or patient or damage to the equipment or other property. This includes special care necessary for the safe and
effective use of the device and the care necessary to avoid damage to a device that may occur as a result of use or
misuse.
NOTE
This provides special information to make maintenance easier or important instructions clearer.
Symbols and Definitions
SYMBOLS
Warning/Caution: Consult accompanying documentation
Safe Working Load

Return To Table of Contents
www.stryker.com 1079-009-002 REV B 7
This manual is designed to assist you with the operation of Stryker Model 1079 Eye Surgery Stretcher. Carefully read
this manual thoroughly before using the equipment or beginning maintenance on it. To ensure safe operation of this
equipment, it is recommended that methods and procedures be established for educating and training staff on the safe
operation of this stretcher.
PRODUCT DESCRIPTION
The Stryker Model 1079 Eye Surgery Stretcher offers head-end clearance for surgeon access with positioning controls
tucked within the headpiece to allow for full articulation.
INTENDED USE OF PRODUCT
The Stryker Model 1079 Eye Surgery Stretcher is a general purpose patient transport and treatment stretcher.
SPECIFICATIONS
Safe Working Load
Note: Safe Working Load
indicates the sum of the patient,
mattress, and accessory weight.
500 pounds 228 kg
Overall Length/Width 90” 229 cm
Overall Width 31.5” 80 cm
Minimum/Maximum Height 23.25” / 36” 59 cm / 91 cm
Fowler Angle 0° to 90°
Gatch Angle 0° to 30°
Trendelenburg / Reverse Trendelenburg +18° to -18°
Minimum / Maximum Headpiece Height -4.5” / 4.5” -11 cm / 11 cm
Headpiece Angle -45° to 45°
Stryker reserves the right to change specifications without notice.
Introduction

Return To Table of Contents
8 1079-009-002 REV B www.stryker.com
Introduction
CONTACT INFORMATION
Contact Stryker Customer Service or Technical Support at: [phone] or [phone].
Stryker Medical
3800 E. Centre Avenue
Portage, MI 49002
USA
Please have the serial number (A) of your Stryker product available when calling Stryker Customer Service or Technical
Support. Include the serial number in all written communication.

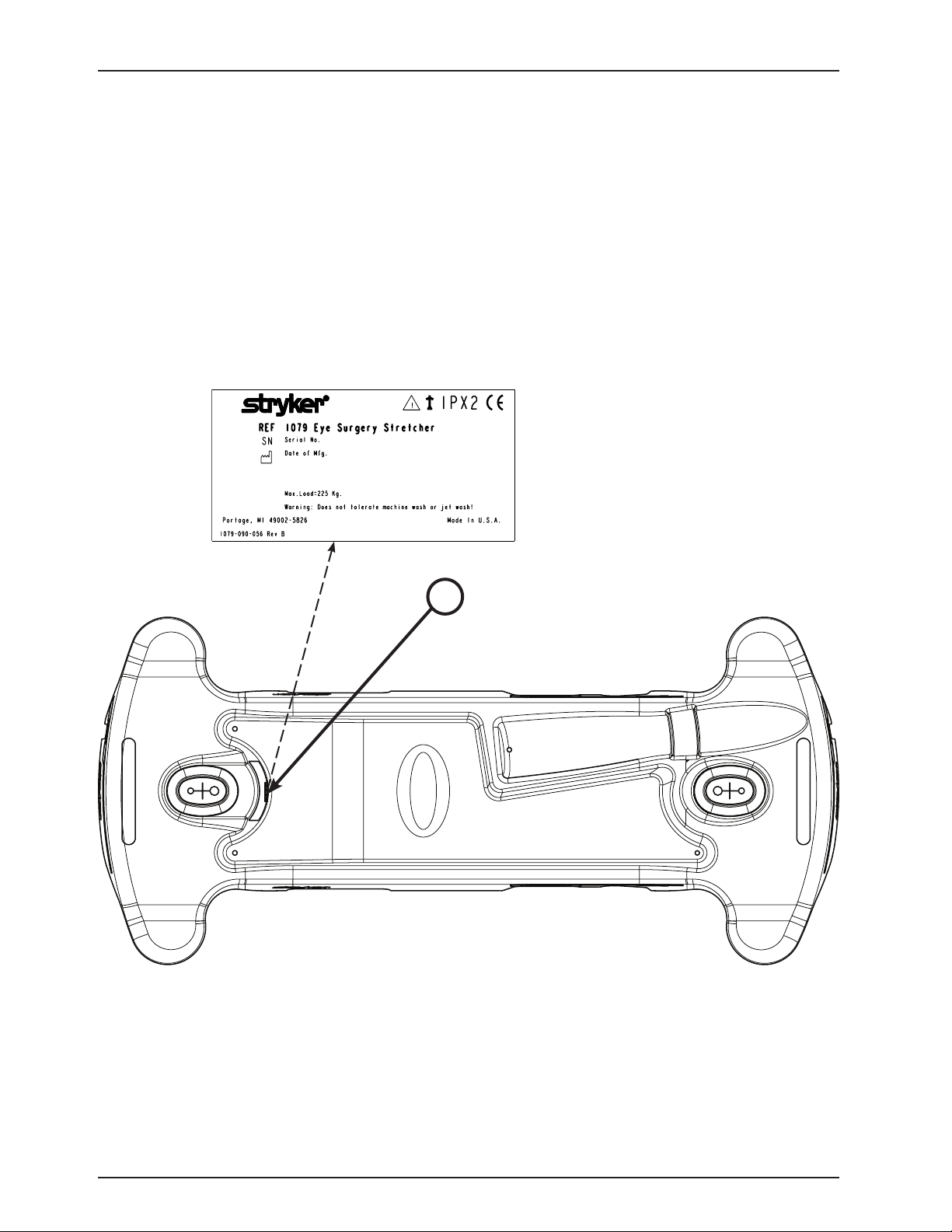

SERIAL NUMBER LOCATION
A

Return To Table of Contents
www.stryker.com 1079-009-002 REV B 9
Carefully read and strictly follow the warnings and cautions listed on this page. Service only by qualified personnel.
WARNING
• Always apply the caster brakes when a patient is getting on or off the stretcher. Push on the stretcher to ensure
that the brakes are securely locked. Always engage the brakes unless the stretcher is being moved. Injury could
result if the stretcher moves while a patient is getting on or off the stretcher.
• Be sure the siderail latching mechanism is working properly at all times. If it is not, refer to your stretcher
maintenance manual for “Siderail Latch Adjustment”.
• When using the transfer board to transfer a patient, always lock the brakes on all stretchers, beds, etc. being used
and always be certain the transfer board is placed securely on the surface of the mating stretcher or bed. The
patient stretcher and the mating surface must be at the same height before the patient is transferred.
• The weight of the patient’s head is resting on the head piece and must be supported by the operator when the
latches are released and the head piece is being positioned. Failure to adequately support the head piece while
positioning the head could result in patient injury.
CAUTION
• To avoid damage, remove any equipment that may be in the way before raising or lowering the litter height.
• When lowering the siderail to the collapsed position, keep extremities of patients and staff away from the siderail
spindles or injury could occur.
• To avoid injury or damage to the equipment, do not allow the siderail to lower on its own.
• Operation of the pneumatic Fowler is a manual procedure. Use caution when raising the Fowler while a patient is
on the stretcher. Use proper lifting techniques and get additional assistance, if necessary. Failure to use proper
lifting techniques could cause injury to the operator.
• Keep hands/fingers clear of the area around the Fowler release handle and the Fowler frame when lowering the
Fowler. Injury could result if care is not taken when lowering the Fowler.
• Do not reach between the side of the head extension and the articulating head piece to pull the release handle.
Finger injury could result.
• To avoid possible pinch points when adjusting the head piece, keep your fingers away from the jointed areas.
• When the transfer board is being used to transfer a patient, the support post must be in the stored (down) position.
Damage to the support post will occur if it is pushed up against a stretcher, table, etc.
• If the stretcher is equipped with the optional foot end I.V. pole, the I.V. pole must be in the raised position when the
foot extension/defibrillator tray is installed. If the I.V. pole is not raised, the foot extension will not function properly
and injury could occur.
• If the stretcher is equipped with the optional foot end push handles, use caution while the foot extension/defibrillator
tray is installed to avoid pinching your fingers.
• To avoid damage while transporting the stretcher, verify the I.V. pole is at a low enough height to allow it to safely
pass through door openings and under light fixtures.
• To avoid damage, the weight of the I.V. bags should not exceed 40 pounds.
• The unit cannot be raised (hydraulics on base) with a patient lift under the stretcher.
• The hood may not be used for stepping.
NOTE
• Clean hood storage area regularly.
• The bottom of the brake pads should be cleaned regularly to prevent wax or floor remnant buildup.
Summary of Safety Precautions

Return To Table of Contents
10 1079-009-002 REV B www.stryker.com
STRETCHER CLEANING
These instructions are intended to provide recommended cleaning methods for the Stryker Model 1079 Eye Surgery
Stretcher. They outline proper care that will provide effective cleaning and disinfecting of stretchers between patients
and prolong the life of the stretcher.
RECOMMENDED CLEANING METHOD
Note: Follow the cleaning solution manufacturer’s dilution recommendations exactly.
• Remove the mattress prior to washing the unit; do not wash the mattress with the stretcher.
• Wipe the unit with cleaning solution and water per manufacturer’s recommended dilution.
• Dry thoroughly. Do not replace the mattress on the stretcher until the unit is completely dry.
• Before returning the unit to service, verify that all labels are intact and that the brake/steer pedal locks properly in
both positions and check all components for proper lubrication.
DO NOT STEAM CLEAN, PRESSURE WASH, HOSE OFF OR ULTRASONICALLY CLEAN THE STRETCHER.
Using these methods of cleaning are not recommended and may void this product’s warranty.
RECOMMENDED CLEANERS
Suggested cleaners for stretcher surfaces:
Quaternary Cleaners (active ingredient - ammonium chloride).
Phenolic Cleaners (active ingredient - o-phenylphenol).
Chlorinated Bleach Solution (5.25% - less than 1 part bleach to 100 parts water).
Avoid over saturation and ensure that the product does not stay wet longer than the chemical manufacturer’s guidelines
for proper disinfecting.
CAUTION
Some cleaning products are corrosive in nature and may cause damage to the product if used improperly. If the products
suggested above are used to clean Stryker patient care equipment, measures must be taken to insure the stretcher is
wiped with a damp cloth soaked in clean water and thoroughly dried following cleaning. Failure to properly rinse and
dry the stretcher will leave a corrosive residue on the surface of the stretcher, possibly causing premature corrosion of
critical components. Failure to follow the above directions when using these types of cleaners may void this product’s
warranty.
Cleaning

Return To Table of Contents
www.stryker.com 1079-009-002 REV B 11
Cleaning
MATTRESS CLEANING
These instructions are intended to provide recommended cleaning methods for stretcher mattresses. They outline
proper care that will provide effective cleaning and disinfecting of mattresses between patients and prolong the life of
the mattress.
RECOMMENDED CLEANING METHOD
• Hand-wash all surfaces of the mattress with warm water and mild detergent cleaner.
• Dry thoroughly.
• Apply disinfectant solution either by spray, solution or pre-impregnated wipes (do not soak mattress).
• Clean per hospital protocol for bed mattresses.
• Wipe up excess disinfectant.
• Rinse with clean water.
• Allow surface to dry.
RECOMMENDED DISINFECTANTS
IMPORTANT: DILUTE ALL DISINFECTANTS IN ACCORDANCE WITH MANUFACTURER’S DIRECTIONS
When used in concentrations recommended by the manufacturer, diluted bleach, diluted phenolic, or diluted quaternary
germicidal disinfectants are recommended. Chlorine Bleach, typically 5.25% Sodium Hypochlorite, should be used at
a dilution ratio of 1 part bleach to 10 parts water.
RINSE OFF CORROSIVE CLEANERS
These products are NOT considered mild detergents. They are corrosive in nature and may cause damage to your
stretcher mattress if used improperly. Mattresses must be rinsed with clean water and dried thoroughly after using
corrosives such as quaternary, phenolic, or chlorine bleach. Failure to properly rinse and dry the mattress leaves a
corrosive residue on the surface, likely causing premature corrosion.
Iodophor type disinfectants are not recommended for use because staining may result.
The following table lists the recommended cleaner types for each mattress cover material (see definitions below):
Vinyl Mattress Cover Polyurethane Mattress Cover
Recommended Phenolics Quaternary, Quat/Isopropyl
Acceptable Quaternary, Chlorine Bleach (1:10) Chlorine Bleach (1:10)
Not Recommended Quat/Isopropyl Phenolics
Quaternary Cleaners: identified by ingredients containing the phrase “…yl ammonium chloride”
Quat/Isopropyl Cleaners: identified by a quaternary ingredient above plus isopropyl alcohol
Phenolic Cleaners: identified by ingredients containing the suffix “-phenol”
Chlorine Bleach: known generically as “Sodium Hypochlorite”

Return To Table of Contents
12 1079-009-002 REV B www.stryker.com
MATTRESS CLEANING (CONTINUED)
SPECIAL INSTRUCTIONS
Velcro To clean and disinfect, saturate with disinfectant, rinse with water, and allow it to evaporate.
Soils or Stains Use neutral soaps and warm water. Do not use harsh cleansers, solvents or abrasive cleaners.
Hard-To-Clean Spots Use standard household/vinyl cleansers and a soft bristle brush on troublesome spots or
stains. Pre-soak heavy, dried-on soil.
Laundering Laundering is NOT RECOMMENDED. Laundering may substantially decrease the useful
life of the mattress.
DO NOT STEAM CLEAN, PRESSURE WASH, HOSE OFF OR ULTRASONICALLY CLEAN MATTRESSES.
Using these methods of cleaning are not recommended and may void this product’s warranty.
REMOVAL OF IODINE STAINS
1. Make a solution of 1−2 Tablespoons Sodium Thiosulfate in a pint of warm water and use it to wipe the stained
area. Clean the stain as soon as possible after it occurs. If stains are not immediately removed, allow solution to
soak or stand on the surface before wiping.
2. Rinse surfaces which have been exposed to the solution with clear water before returning mattress to service.
Note: Failure to follow the above directions when using these types of cleaners may void this product’s warranty.
Cleaning

Return To Table of Contents
www.stryker.com 1079-009-002 REV B 13
______ All fasteners secure
______ Siderails move and latch properly
______ Engage brake pedal and push on the stretcher to ensure that all casters lock securely
______ Steer function working properly
______ All casters secure and swivel properly
______ Body restraints working properly
______ I.V. pole intact and operating properly
______ Oxygen bottle holder intact and operating properly
______ Fowler operating and latching properly
______ Optional articulating head piece locking and releasing properly
______ Gatch operating properly
______ Trendelenburg/Reverse Trendelenburg operating properly
______ No rips or cracks in mattress cover
______ Arm boards intact and operating properly
______ Arm board support levers intact and operating properly
______ Ground chain intact
______ No leaks at hydraulic connections
______ Hydraulic jacks holding properly
______ Hydraulic drop rate set properly
______ Hydraulic oil level sufficient
______ Lubricate where required (page 14)
______ Accessories and mounting hardware in good condition and working properly
Preventative maintenance should be performed at a minimum of annually. A preventative maintenance program should
be established for all Stryker Medical equipment. Preventative maintenance may need to be performed more frequently
based on the usage level of the product.
Preventative Maintenance
Product Serial Number:
Completed by: ____________________________________________ Date: _____________________

Return To Table of Contents
14 1079-009-002 REV B www.stryker.com
Preventative Maintenance
LUBRICATION POINTS
Crank Screw Assembly (1069-042-110)
Apply Syntech grease (3000-200-719) through the slot in the crank screw assembly (as shown). Wipe off excess
grease.

Return To Table of Contents
www.stryker.com 1079-009-002 REV B 15
Quick Reference Replacement Parts List
The parts and accessories listed on this page are all currently available for purchase. Some of the parts identified on
the assembly drawing parts in this manual may not be individually available for purchase. Please call Stryker Customer
Service USA: 1-800-327-0770 (Option 2), for availability and pricing.
Part Name Part Number
Caster Cover Kit 1010-056-200
Foot Board/Chartholder 0785-045-500
Defibrillator Tray/Foot Extender/Chart Service 0785-045-400
Head Pad, 2” Concave 1069-081-000
Head Pad, 3” Concave 1069-181-000
Head Pad, 1” Flat 1069-078-000
Head Pad, 2” Flat 1069-179-000
Head Pad, 3” Flat 1069-180-000
Head Pad, 3” Inflatable, Ultra-Comfort 1069-082-000
Head Pad, Inflatable, Non-Latex Bulb Only 1066-082-020
Hydraulic Jack, Constant Descent 0753-002-001
I.V. Pole, Removable 0390-025-000
I.V. Pole, 2-Stage Permanent, Foot End 1010-080-100
I.V. Pole, 3-Stage Permanent, Foot End 1020-062-000
Mattress, 3” x 26”, Ultra Comfort, Dual Articulation 1069-026-060
Mattress, 4” x 26”, Ultra Comfort, Dual Articulation 1069-026-090
Mattress, 3” x 26”, Enhanced Comfort, Dual Articulation 1069-026-070
Mattress, 4” x 26”, Enhanced Comfort, Dual Articulation 1069-026-080
Neck Pad, Enhanced Clearance Only 1068-236-010
Pads, Pre-Op/Post-Op Head Piece, 2” 1069-062-000
Pads, Pre-Op/Post-Op Head Piece, 3” 1069-060-000
Pads, Pre-Op/Post-Op Head Piece, 3”, Ultra-Comfort 1069-063-000
Pads, Pre-Op/Post-Op Head Piece, 4”, Enhanced Comfort 1069-064-000
Pads, Pre-Op/Post-Op Head Piece, 4”, Ultra-Comfort 1069-064-005
Paint, Touch-Up, Gloss Black, Bottle with Brush 7000-001-322
Paint, Touch-Up, Gloss Black, Spray Can 7000-001-319
Paint, Touch-Up, Gray, Bottle with Brush 7000-001-320
Paint, Touch-Up, Gray, Spray Can 7000-001-317
Restraint Strap, Ankle 0946-043-001
Restraint Strap, Body 0390-019-000
Restraint Strap, Chest 1010-058-000
Restraint Strap, Wrist 0946-044-001
Restraint Straps, Full Patient Security Package 1010-077-000
Siderail Pads 1010-052-000

Return To Table of Contents
16 1079-009-002 REV B www.stryker.com
Service Information
CASTER COVER REMOVAL AND INSTALLATION
Tools Required:
• Large Regular Screwdriver
Procedure:
1. To install the wheel cover, look through the larger of the two side cut-outs to align
the cover with the axle nut or bolt head.
2. Push down on the opposite side of the cover until the single prong (A) engages
the caster horn.
3. To remove the wheel cover, insert a large screwdriver into the cut-out in the
side of the wheel cover and into the space between the double prongs (B). Pry
the cover off to disengage the double prongs (B) and push up to disengage the
single prong (A).
4. Verify proper operation before returning the unit to service.
CASTER ASSEMBLY REMOVAL
Tools Required:
• 9/16” Combination Wrench
• Jack (or equivalent)
Procedure:
1. Apply the brakes.
2. Remove the caster cover. See the “Caster Cover Removal and Installation” procedure above.
3. Using a jack (or equivalent), lift the base assembly.
4. While applying pressure to the caster bolt, use a 9/16” combination wrench to remove the Nylock hex nut on top
of the caster assembly.
5. Remove the caster assembly.
6. Reverse steps 1-5 to install the new caster assembly.
7. Verify proper operation before returning the unit to service.
B
A
Figure 1: Top View (Cut-Away)
1 2 3 B
A
B
A
Properly Attached Cover

Return To Table of Contents
www.stryker.com 1079-009-002 REV B 17
BRAKE ROD REMOVAL
Tools Required:
• Bungee Cords (or equivalent)
• 1/2” Socket
• 3/8” Drive Ratchet
• 3/8” Drive Torque Wrench
• Needle Nose Pliers
Procedure:
1. Place the brake/steer pedal in
the neutral position.
2. Raise the litter to its highest
height.
3. Use bungee cords to lift and
support the base hood.
4. Using a 1/2” socket and 3/8”
drive ratchet, remove the bolt
(B) that connects the drive link
assembly to the fifth wheel
cam.
5. Remove the rue ring cotter
(C) that connects the drive
link assembly to the bearing
pivot support on the base
frame (under the brake ring
weldment).
6. Remove the four hex washer head screws (A) to remove the brake rod assembly from the base frame.
7. Reverse steps 1-6 to reinstall the brake rod. When reinstalling the brake rod assembly, use a 3/8” drive torque
wrench to torque the screws to 12-15 ft-lb.
CAUTION
When reinstalling the brake rod assembly to the base frame, do not exceed 15 ft-lb or damage could occur to the bolts.
8. Verify proper operation before returning the unit to service.
Service Information
B
C
Figure 2
A

Return To Table of Contents
18 1079-009-002 REV B www.stryker.com
Service Information
SIDE CONTROL BRAKE ROD REMOVAL
Tools Required:
• 1/2” Socket
• 3/8” Drive Ratchet
• 3/8” Drive Torque Wrench (ft-lb)
• Hammer
• 7/32” Punch
• Needle Nose Pliers
• Bungee Cords (or equivalent)
Procedure:
1. Place the brake/steer pedal in the neutral
position.
2. Raise the litter to its highest height.
3. Use bungee cords to lift and support the
base hood.
4. Using needle nose pliers, remove the rue
ring cotter (A) and clevis pin (B) that connect
the rod end link to the side control link.
5. Using a 1/2” socket and 3/8” drive ratchet,
remove the four bolts (C) that hold the brake
rod assembly to the base frame and remove
the entire assembly.
6. Using a hammer and 7/32” punch, drive the
slotted spring pin (D) out of the butterfly “V”
pedal on the patient left side and remove
the pedal.
7. Using a hammer and 7/32” punch, drive the
groove pin (E) out of the hard stop in the
center of the shaft support.
8. Using a hammer and 7/32” punch, drive out
the slotted spring pin (F) that connects the
side control link to the side control brake rod
on the patient right side.
9. Pull on the butterfly “V” pedal on the patient
right side to remove the side control brake
rod from the base.
10. Reverse steps 1-9 to reinstall the brake rod.
When reinstalling the brake rod assembly, use a 3/8” drive torque wrench to torque the four bolts to 12-15 ft-lb.
CAUTION
When reinstalling the brake rod assembly to the base frame, do not exceed 15 ft-lb of torque or damage may occur to
the bolts.
11. Verify proper operation before returning the unit to service.
C
A
B
D
E
F
Figure 3

Return To Table of Contents
www.stryker.com 1079-009-002 REV B 19

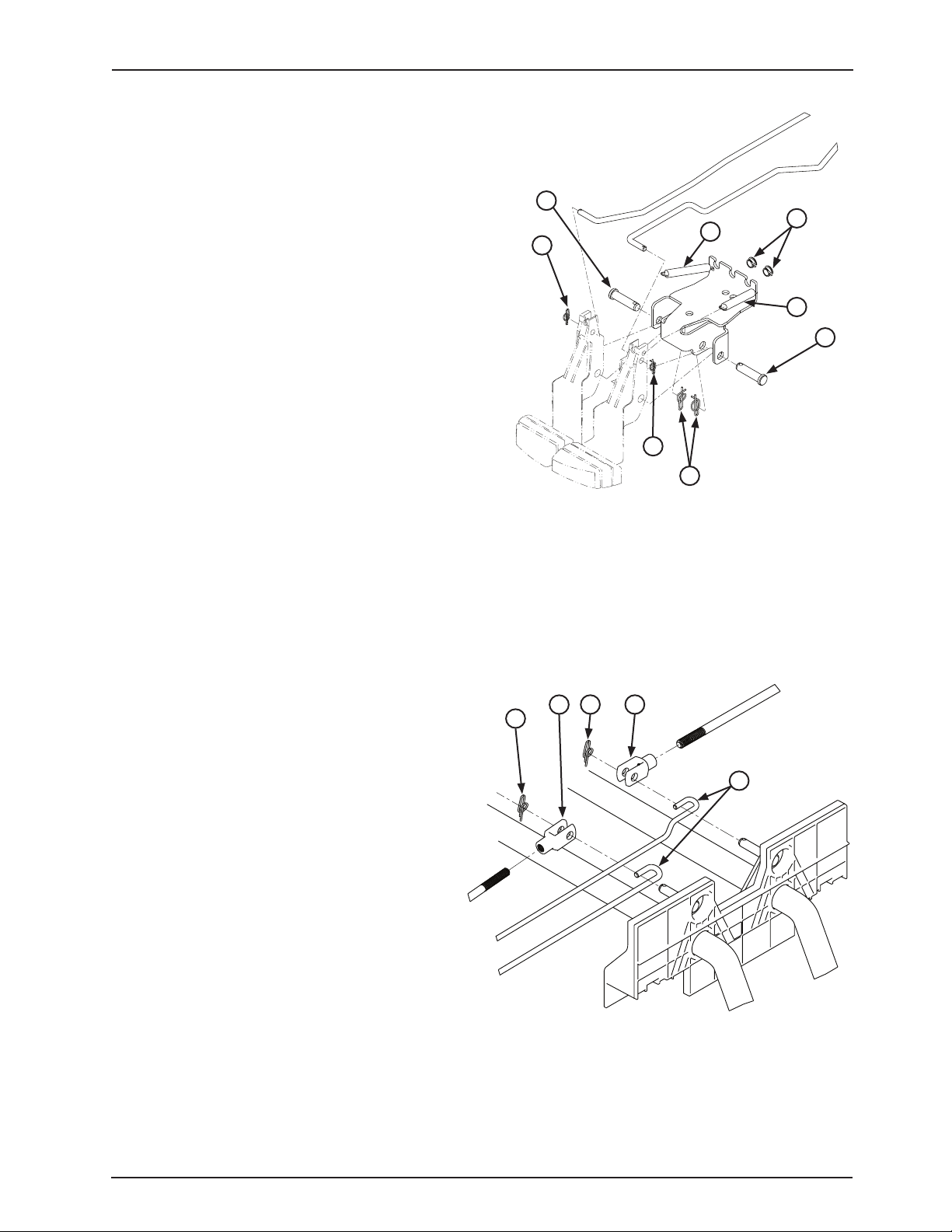

RELEASE PEDAL REPLACEMENT, FOOT END
Tools Required:
• Needle Nose Pliers
Procedure:
1. Apply the brakes.
2. Using needle nose pliers, disconnect the release pedal
return springs (A) from the foot end release pedals.
3. Remove the rue ring cotters (E) and the clevis pins
(C) that connect the foot end release pedals to the
mounting bracket.
4. Rotate the pedals upward.
5. Remove the rue ring cotters (D) that connect the head
end and foot end release rods to the foot end release
pedals and remove the pedals.
6. Reverse steps 1-5 to install the new pedals.
7. Verify proper operation before returning the unit to
service.
RELEASE PEDAL ROD REMOVAL, FOOT END
Tools Required:
• Needle Nose Pliers
• Bungee Cords (or equivalent)
Procedure:
1. Raise the litter to its highest height.
2. Use bungee cords to lift and support the base
hood.
3. Remove the foot end release pedal. See
the “Foot End Release Pedal Replacement”
procedure above.
4. Remove the snap-in nyliners that hold the foot
end pedal release rods into the pedal mounting
bracket (see Figure 4 above).
5. Using needle nose pliers, remove the rue ring
cotters (A) that hold the clevis joints (B) to
the studs on the side control release pedal
weldments.
6. Remove the foot end pedal release rods (C).
7. Reverse steps 1-6 to reinstall the pedal rods.
8. Verify proper operation before returning the unit
to service.
Service Information
A
A
B
C
C
D
D
E
Figure 4
A
B
C
BA
Figure 5

Return To Table of Contents
20 1079-009-002 REV B www.stryker.com
Service Information
RELEASE PEDAL ADJUSTMENT
Tools Required:
• Needle Nose Pliers
Procedure:
1. Apply the brakes.
2. Using needle nose pliers, remove the rue ring cotters (A) that hold the clevis joints (B) to the studs on the side
control release pedal weldments as shown in Figure 5 on page 19.
3. To increase the release rod engagement with the release valve, turn the clevis joint clockwise
on the threaded release rod.
4. To decrease the release rod engagement with the release valve, turn the clevis joint counterclockwise
on the threaded release rod.
Note: If the clevis joint is threaded too far onto the release rod, then the release valve will be partially activated and
the jack will drift.
5. Verify proper operation before returning the unit to service.
BRAKE RING REMOVAL
Tools Required:
• 9/16” Socket with 6” Extension
• 3/8” Drive Ratchet
• Needle Nose Pliers
• Bungee Cords (or equivalent)
• Jack
Procedure:
1. Place the brake/steer pedal in the neutral position.
2. Raise the litter to its highest height.
3. Use bungee cords to lift and support the base hood.
4. Using needle nose pliers, unhook the extension springs (B)
from the top of the base caster tubes.
5. Remove the plastic caster covers. See the “Caster Cover
Removal and Installation” procedure on page 16).
6. Using a jack, lift the base assembly on the end of the unit to
be repaired.
7. While applying pressure to the caster carriage bolt, use a 9/16”
socket and 3/8” drive ratchet to remove the two nuts (A).
8. Remove the caster assembly. See the “Caster Assembly
Removal” procedure on page 16.
9. Remove the brake rod (see the “Brake Rod Removal” procedure
on page 17).
10. Using needle nose pliers, remove the hitch pin (D) and pull the
clevis pin (C) out that connects the white plastic brake cam to
the brake ring weldment.
11. Using needle nose pliers, remove the rue ring cotter (E) from
the bearing pivot support (F).
12. Pull the brake ring down and out away from the stretcher base frame.
13. Reverse steps 1-12 to reinstall the brake ring.
14. Verify proper operation before returning the unit to service.
B
G
C
D
E
Figure 6
A
F
