Sublue WHITESHARK MIX User manual

V2.1
User Manual

I
English 01
Français 15
Español 31
Português 46

II
( The name of component, please see Components of WHITESHARK MIX)

III
( The name of component, please see Components of WHITESHARK MIX)

- 0 -
Table of Contents
Safety Precautions………………………1
General5 …………………………………4
Technical Parameters……………………6
Components of WHITESHARK MIX …8
Operating Instructions…………..………9
Troubleshooting……………………...…11
Maintenance Instructions…….…………12
List of Articles …………….……………14
To master all functions of the device to the greatest extent,
please read this manual before operation and keep it for
reference.

- 1 -
Safety Precautions
Symbol description
Caution! (tips for conditions which may affect personal safety and
normal use of the product)
* Note. Detailed explanations and instructions.
The following items are very important, and please be sure to abide by them！
Before using the product, please survey the area first. Users should only
swim or dive in the appropriate area with approval by the relevant
management personnel. To ensure safety, users should wear life jackets
and/or be provided with other lifesaving equipment.
The product is a recreational device only. Never use it as a life-saving device.
Children under 12 years old should not use the product, unless there are
professionals who guide them. Children under 18 should use it with adult
supervision.
Elderly, pregnant women, and people unsuited for swimming and/or
snorkeling should avoid using the product.
Avoid consuming alcohol and/or drugs before and/or during use of this
product.
Pay attention to long hair or loose clothing of yourself and others to avoid
entanglement in the propellers.

- 2 -
Avoid putting fingers,other parts of the body, or objects into the propellers.
Please use the product in an open area to avoid entanglement with objects
such as algae, ropes, nets, shells, and sand.
During use, do not align the face to the rear part of the thruster as it creates a
strong current.
During use, pay attention to surroundings to avoid collisions.
Always check the battery’s charge level before using the product. When using
the product, please observe the battery‘s capacity all times to ensure a safe
return to land.
Due to battery in the product, always handle with care and avoid extreme
vibrations, bumps, and collisions.
Avoid charging the product with adapters from other models. Only charge
with the official charger.
Unauthorized personnel should never repair the device. If repaired incorrectly,
it may cause water leakage, damage, fire, or electric shock.
Never change the battery while submerged in water. The battery must be
changed in a dry environment. Keep the equipment and hands dry.
Always inspect the product before use. Make sure that battery, propellers,
and thrusters are in good condition.
To ensure the motor’s longetivity,avoid running continuously for more than

- 3 -
one minute while placed on a dry surface. If signs of abnormality (such as
smell) are present, immediately stop the machine and disconnect the power.
Never use product while on land. The surface of the product should be free
from volatile substances, acidic materials, or sharp objects.
Never place heavy objects on the product.
Never put the battery into fire.

- 4 -
General
Launched by SUBLUE, WHITESHARK MIX is the first compact underwater
double-propeller scooter. WHITESHARK MIX has excellent power, a compact body,
and a symmetrical double-propeller system with thrust of up to 8.8lbft (4kgf). This
combination enables users to rival professional swimmers, even if you are a beginner,
the WHITESHARK MIX can make you a star in the water.
Main characteristics of WHITESHARK MIX
1. Simplified user-friendly design for quick and simple use.
To ensure ease of use, consideration is given to user’s feel in every detail. Through a
streamlined and symmetrical design, all users can enjoy the pleasure of swimming
freely in the water.
2. Not only for improving your speed.
Every WHITESHARK MIX scooter has a built-in universal interface for mounting an
action camera* to record during use.
*action camera should be purchased independently.

- 5 -
3. Pursuing fun and easy use in a safe range.
The symmetrical design of the propellers helps stabilize the scooter during use. They
are designed with a safe protective guard to prevent injury. We also fully tested the
scooter through many scenarios in the water and developed an innovative floater to
achieve positive buoyancy. Even when placed in water, WHITESHARK MIX will not
sink to the bottom*.
*WHITESHARKMIX with the floater attached achieves positive buoyancy.

- 6 -
Technical Parameters
Specifications of the complete machine
Size
Length 18.3 in (465 mm) x width 9 in (230 mm) x height
9 in (230 mm)
Weight
7.7 lbs (3500 g) (including the battery)
Power
520 W
Speed
3.35 mph (1.5m/s)1(maximum)
Working depth
40m (depth limit)3
Time of endurance
30 minutes average ase (16 minutes continuous)2
Indicator
Operational and Battery level indicators
Add-on mount
Mount for action camera4
Mount for floaters
Power system
Thrust of a single
thruster
8.8lbft (4 kgf)
Maximum power
of a single thruster
260 W
Charging adapter
Voltage
11.1 V
Rated power
100 W

- 7 -
Battery
Capacity 11000 mAh
Voltage 11.1 V
Energy 121 WH
Charging Ambient
Temperature 32 – 104 °F (0 - 40℃)
Maximum
Charging Power 100 W
Charging Time ≤4h
Weight 1.8 lbs (890 g)
*Note:
1. Speed may vary from person to person and in different environments.
2. 30 minutes is the approximate value. It is the average when used in the normal underwater conditions.
To sustain a longer battery endurance, prepare two or more dedicated batteries.
3. The floater attachment can be used as deep as 10 meters. If you intend to dive deeper than 10 meters,
please remove the floater and use the safety leash.
4. All items should be purchased separately.

- 8 -
Components of WHITESHARK MIX
Name of components of WHITESHARK MIX
(For a parts figure of WHITESHARK MIX, please see Page II and Page III )
[1] Thruster 1
[2] Handle 1
[3] Start button 1
[4] Battery Indicator
[5] Propeller 1
[6] Protective Net 1
[7] Thruster 2
[8] Handle 2
[9] Start button 2
[10] Propeller 2
[11] Propeller Guard
[12] Control Cabinet
[13] Floater
[14] Safety Switch
[15] Back Cover
[16] Floater
[17] Suction Cup
[18] Floater Mounting Bracket
[19] Mounting Bracket
[20] Mounting Screw

- 9 -
Operating Instructions
Preparations before usage
1. Make sure battery is fully charged. This is shown when all five battery indicators
are on.
2. Secure battery. A click should be heard if its secured correctly. (as shown in the
following diagram)
3. Check for damage on the product’s shell before use. If there is visible damage, do
not place product underwater for use. To test the thruster, press the two start
buttons while the scooter is in the air. Do not run for more than one minute outside
the water. Pay attention to any jamming or abnormal noises.
4. To prevent loss, a lanyard is provided and can be used during diving. Pay attention
to surroundings to prevent entanglement.
5. After passing inspection, it can be used. In case of any problems, stop use
immediately.
Install the
battery
Before installation
“click” sound
After installation

- 10 -
Installation of the floater.(optional)
1. Align the hanger of the floater (①) with the hanger of the WHITESHARK MIX
body (②). (as shown below)
2. Insert screw but do not tighten yet. (③) (as shown above)
3. Press the floater down toward WHITESHARK MIX until the suction cup on the
floater (④) attaches to the WHITESHARK MIX. (as shown below)
4. Tighten screw (⑤) to complete assembly. (as shown above)

- 11 -
Common Faults and Troubleshooting
1. In case of jamming or other anomalies during the rotation of the propellers,
immediately turn off the power. Next, take off the top cover of the corresponding
thruster, pull out the propeller, and check whether two bearings and propeller are
blocked or entangled. Clear any foreign objects adhering to the bearing or
propeller. Once cleared, it can be operated again. If any abnormalities are still
present, contact after-sales services.
2. If the battery is damaged, bulged, or abnormally heated in case of an accident,
cease use and contact after-sales services or purchase a new battery as a
replacement.

- 12 -
Maintenance Instructions
Cleaning After Use
After using the WHITESHARK MIX in a seawater or freshwater environment, please
clean it immediately as followed:
1. Fully immerse the WHITESHARK MIX in a container filled with clean fresh water
for 20 minutes.
*Clean water may not be seawater.
*Do not add laundry detergent, cleansers, or other cleaning products in the water.
*When the WHITESHARK MIX is immersed in water, some air bubbles will discharge. This is normal.
2. While submerged in the water, press the switch with both hands to make the
WHITESHARK MIX operate for three seconds. Repeat this step five to ten times.
*To prevent splashing water on yourself during operation, keep the propeller outlet towards the bottom
of the container.
*Since the WHITESHARK MIX has a greater thrust in water, slightly lift it out of the water for easier
cleaning and control.
3. Fully shake and clean the WHITESHARK MIX to remove attached foreign
objects.
4. Wipe away water with a clean soft dry cloth. Make sure that there is no water
around the body and batteries. Remove the batteries and place them separately
in a cool ventilated area to dry.
*Never use a hot air blower or a dryer for drying.

- 13 -
www.sublue.com
Storage
If the WHITESHARK MIX is not used, please note that the WHITESHARK MIX and
batteries should be stored separately in appropriate packaging. Follow these
guidelines:
1. Ensure that the scooter is stored in a cool ventilated environment with
temperatures between 0°C - 50°C.
2. Avoid direct sunlight.
3. Avoid places with poor ventilation or with humidity exceeding 65%.
4. Keep away from heat, fire, and children’s reach.
5. Keep away from devices that may generate strong magnetic fields.
6. To prevent mold, take it out once every month and operate it for ten seconds.
7. Please charge batteries once every three months.
Tel: [phone]
Email: [e-mail]
Address: 2047 Cecilia Cir Corona, CA 92881

- 14 -
List of Articles
SUBLUE provides following standard configuration of WHITESHARK MIX for users:
◆One set of WHITESHARK MIX
◆One li-polymer battery
◆One charging station
◆One power adapter
◆One safety leash
◆One carry bag
◆One floater
◆One user manual
◆One certificate of qualification
◆A warranty policy

- 15 -

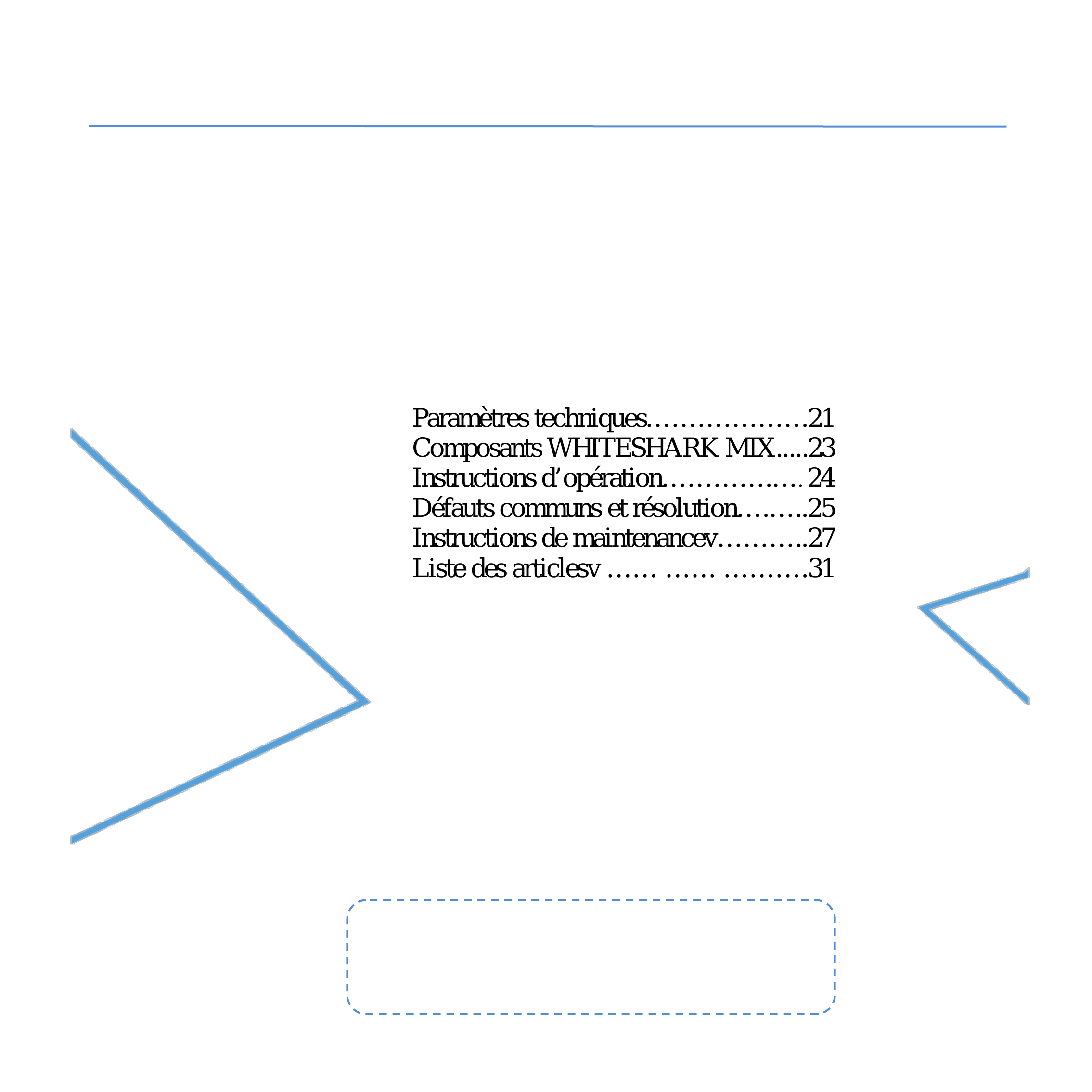

Table des matières
Mesures de sécurité………….………16
Général……………………...……….19
Paramètres techniques……………….21
Composants WHITESHARK MIX.....23
Instructions d’opération………….…. 24
Défauts communs et résolution….…..25
Instructions de maintenancev………..27
Liste des articlesv …… …… ……….31
Afin de maîtriser au mieux toutes les fonctions de
l’appareil, veuillez lire ce manuel avant de l'utiliser et
conservez-le pour consultation future
