Sumake HVLP-3000SG User manual

HVLP-3000SG
HVLP AIR SPRAY GUN W/250CC NYLON CUP
PARTS LIST
No. Parts No. Description Q'ty No. Parts No. Description Q'ty
HVLP3000SA-01A Air Cap Nozzle Set -0.8 1 13-2 HVLP3000SA-13-2 Gasket 1
HVLP3000SA-01B Air Cap Nozzle Set -1.0 114 HVLP3000SA-14 Valve Set 1
HVLP3000SA-01C Air Cap Nozzle Set -1.2 115 HVLP3000SA-15 Spring 1
HVLP3000SA-01D Air Cap Nozzle Set -1.3 116 HVLP3000SA-16 Gasket 1
HVLP3000SA-01E Air Cap Nozzle Set -1.5 117 HVLP3000SA-17 Gasket 1
HVLP3000SA-01F Air Cap Nozzle Set -1.8 118 HVLP3000SA-18 O-Ring 1
HVLP3000SA-01G Air Cap Nozzle Set -2.0 119 HVLP3000SA-19 Bushing 1
HVLP3000SA-01H Air Cap Nozzle Set -2.5 1 19-1 HVLP3000SA-19-1 Gasket 1
HVLP3000SA-01I Air Cap Nozzle Set -0.5 1 HVLP3000SA-20A Needle Assembly -0.8 1
HVLP3000SA-02A Fluid Nozzle -0.8 1 HVLP3000SA-20B Needle Assembly -1.0 1
HVLP3000SA-02B Fluid Nozzle -1.0 1 HVLP3000SA-20C Needle Assembly -1.2 1
HVLP3000SA-02C Fluid Nozzle -1.2 1 HVLP3000SA-20D Needle Assembly -1.3 1
HVLP3000SA-02D Fluid Nozzle -1.3 1 HVLP3000SA-20E Needle Assembly -1.5 1
HVLP3000SA-02E Fluid Nozzle -1.5 1 HVLP3000SA-20F Needle Assembly -1.8 1
HVLP3000SA-02F Fluid Nozzle -1.8 1 HVLP3000SA-20G Needle Assembly -2.0 1
HVLP3000SA-02G Fluid Nozzle -2.0 1 HVLP3000SA-20H Needle Assembly -2.5 1
HVLP3000SA-02H Fluid Nozzle -2.5 1 HVLP3000SA-20I Needle Assembly -0.5 1
HVLP3000SA-02I Fluid Nozzle -0.5 121 HVLP3000SA-21 Spring 1
3 HVLP3000SA-03 Distribute (Aluminum) 1 22 HVLP3000SA-22 Fluid Adjusting Knob 1
4 HVLP3000SA-04 Distribute (Plastic) 1 23 HVLP3000SA-23 Handle (Plastic) 1
5 HVLP3000SA-05 Body 1 24 HVLP3000SA-24 Tube 1
6 HVLP3000SA-06 Screw 125 HVLP3000SA-25 Connector 1
8 HVLP3000SA-08 Pattern Adjusting Needle 126 HVLP3000SA-26 L Screw 1
8A HVLP3000SA-08A Pattern Adjusting Assembly 127 HVLP3000SA-27 Seal 1
9 HVLP3000SA-09 O-Ring 128 HVLP3000SA-28 Seal Nut 1
10 HVLP3000SA-10 O-Ring 129 HVLP3000SA-29 Fluid Inlet 1
11 HVLP3000SA-11 Seat 1 30 HVLP3000SA-30 Pin 1
12 HVLP3000SA-12 Adjusting Knob 1 31 HVLP3000SA-31 E-Ring 1
13 HVLP3000SA-13 Washer 1 32 HVLP3000SA-32 Trigger 1
13-1 HVLP3000SA-13-1 Gasket 1
HVLP-3000SG-P-2003A-JE
1
2
20

Operation:
1. Starting
a. Use spanner to tighten the fluid nozzle.
b. Check for correct tightening of stuffing box to avoid any air leakage.
c. Air hose should be blow out before fitting with the air connection.
d. Before using this gun, please make sure that it is carefully brushed with solvent.
2. Adjustment of the jet width
To Adjust jet width, rotate the stepless adjuster. The spray pattern can be altered
from flat to round spray as required.
3. Air quantity control
To set the air to material ratio, adjust the stepless air micrometer.
While gun is in operation, never dismantle hollow screw for removal of micrometer
by hexagon socket screw key.
4. Exchange of nozzle set
When changing to another nozzle size, make sure that the complete nozzle set is
exchanged. A set comprises of air cap, paint needle and paint nozzle. Insert paint
nozzle before putting in paint needle.
5. Exchange of the self tensioning sealings
The needle seal is effected by a teflon seal and a needle packing with self-
tensioning compression spring. To change the packing, please use the screwdriver.
6. Cleaning and gun care
a. Flush gun thoroughly with solvent.
b. Clean air nozzle with brush. Do not place the gun into solvent.
c. Clogged holes should never be cleaned with improper objects, at the smallest
amount of damage may badly influencen the spray pattern.
d. Slightly oil movable parts.

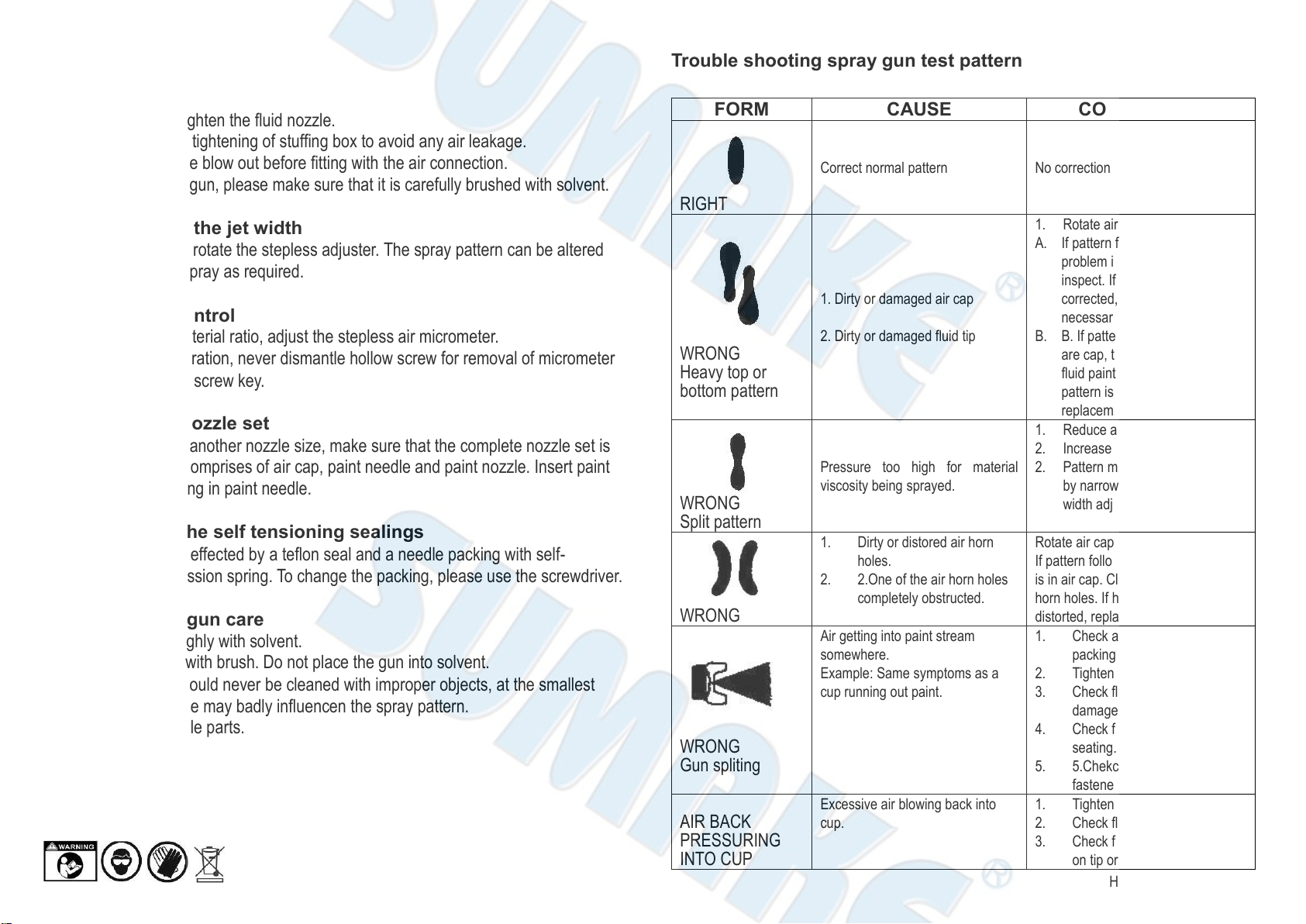

Trouble shooting spray gun test pattern
FORM
CAUSE
CORRECTION
RIGHT
Correct normal pattern
No correction necessary
WRONG
Heavy top or
bottom pattern
1. Dirty or damaged air cap
2. Dirty or damaged fluid tip
1. Rotate air cap 180˚.
A. If pattern following air cap
problem is in air cap. Clean and
inspect. If pattern is not
corrected, replacement is
necessary.
B. B. If pattern doesn’t follow the
are cap, the problem is with the
fluid paint, dirt or damage. If the
pattern is not corrected,
replacement is necessary.
WRONG
Split pattern
Pressure too high for material
viscosity being sprayed.
1. Reduce air pressure.
2. Increase material viscosity.
2. Pattern may also be corrected
by narrowing fan size with spray
width adjuster control knob.
WRONG
1. Dirty or distored air horn
holes.
2. 2.One of the air horn holes
completely obstructed.
Rotate air cap 180˚
If pattern follows air cap, the problem
is in air cap. Clean and inspect the
horn holes. If horn holes are
distorted, replacement is necessary.
WRONG
Gun spliting
Air getting into paint stream
somewhere.
Example: Same symptoms as a
cup running out paint.
1. Check and tighten fluid needle
packing nut.
2. Tighten fluid tip.
3. Check fluid tip seat for
damage.
4. Check for poor gun to cup
seating.
5. 5.Chekc that cup is correctly
fastened in the gun.
AIR BACK
PRESSURING
INTO CUP
Excessive air blowing back into
cup.
1. Tighten fluid tip.
2. Check fluid tip seat.
3. Check for damaged fluid seat
on tip or seat in gun head.
HVLP-3000SG-I-2003A-JE

SPRAY GUN
Original instructions
SUMAKE Industrial Co. Ltd.

1
Read all these safety instructions before operating this product and save these instructions.
The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event
of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual.
Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd.
General safety rules:
1. Watch the tool at all times when in use.
2. People under the influence of alcohol or drugs are not allowed to use, repair or maintain the tool.
3. Keep unqualified persons, children, etc. away from the tool.
4. Keep work area clean and with sufficient daylight or artificial lighting. The work area on which the machine is used must be cleaned up.
Disorder is a potential cause of accidents.
5. Danger of explosion. Never use oxygen and combustible gas as an air supply for the tool which many be ignited by spark and cause fire
or explosion.
6. Never use gasoline or other flammable liquids to clean the tool.
7. Do not use air tools in potentially explosive atmospheres such as in the presence of flammable liquids, cleaning solvents, fluid energy or
stored gases.
8. Do not expose air tools to rain. Do not use air tools in damp or wet locations.
9. When a fault or failure is detected, the tool must immediately be disconnected from the air supply and returned for repair.
10. It is not permitted to modify the tool in any way.
11. When not in use, keep tools in a dry place, either locked up or in a high place, out of the reach of children.
12. Do not force small air tools to do the job of a heavy –duty task. Do not use air tool for purpose of which was not intended.
13. Wear suitable ear protection at environment noise level >80dB(A) and safety spectacles when using the tool. Always wear approved
safety goggles if work in dusty. This also applies to other persons in the nearby vicinity.
14. Do not wear loose clothing or jewelry. They can be caught in moving parts. Rubber gloves and non-skid foot wear are recommended
when working outdoors. Wear protective hair covering to contain long hair.
15. Keep proper footing and balance at all times.
16. Use clamps or a vice to hold work-piece. It is safer than using your hand and free both hands to operate the air tool.
17. When not use, before performing service or changing accessories, please disconnect tool from air compressor.
18. Do not carry plugged in air tool with your finger on the switch trigger. Be sure switch is in the “OFF” position when connecting to air
supply.
19. Watch what you are doing. Use common sense, even unsafe situation or unbalanced positions, particularly when you are tired.
20. Air powered tools can vibrate in use. Vibration, repetitive motions or uncomfortable positions may be harmful to your hands or arms.
Stop using any tool if discomfort, tingling feeling or pain occurs. Seek medical advice before resuming use.
21. Multiple hazards. Read and understand the safety instructions before installing, operating, repairing, maintaining, changing accessories
on, or working near the tool. Failure to do so can result in serious bodily injury.
22. Only qualified and trained operators should install, adjust or use the tool.
23. Do not modify the tool. Modifications may reduce the effectiveness of safety measures and increase the risks to the operator.
24. Do not discard the safety instructions –give them to the operator.
25. Do not use the tool if it has been damaged.
26. Tools shall be inspected periodically to verify the ratings and markings required by this document are legibly marked on the tool. The
employer/user shall contact the manufacturer to obtain replacement marking labels when necessary.
Safety precautions for projectile hazards
1. Disconnect the tool from the energy source when changing inserted tool or accessories.
2. Failure of the accessories may generate high velocity projectiles.
3. Always wear impact-resistant eye protection during operation of the tool. The grade of protection required should be assessed for each
use.
4. The risks to others should also be assessed at this time.
5. Ensure that the work piece is securely fixed.
Safety precautions for operating hazards
1. Use of the tool may expose the operator’s hands to hazards including crushing, impacts, cuts and abrasions and heat. Wear suitable
gloves to protect hands.
2. Operators and maintenance personnel must be physically able to handle the bulk, weight and power of the tool.
3. Hold the tool correctly: be ready to counteract normal or sudden movements –have both hands available.
4. Maintain a balanced body position and secure footing.
5. Release the start and stop device in the case of an interruption of the energy supply.
6. Use only lubricants recommended by the manufacturer.
7. That unsuitable postures may not allow counteracting of normal or unexpected movement of the tool.
8. If the tool is fixed to suspension device make sure that the fixation is secure.

2

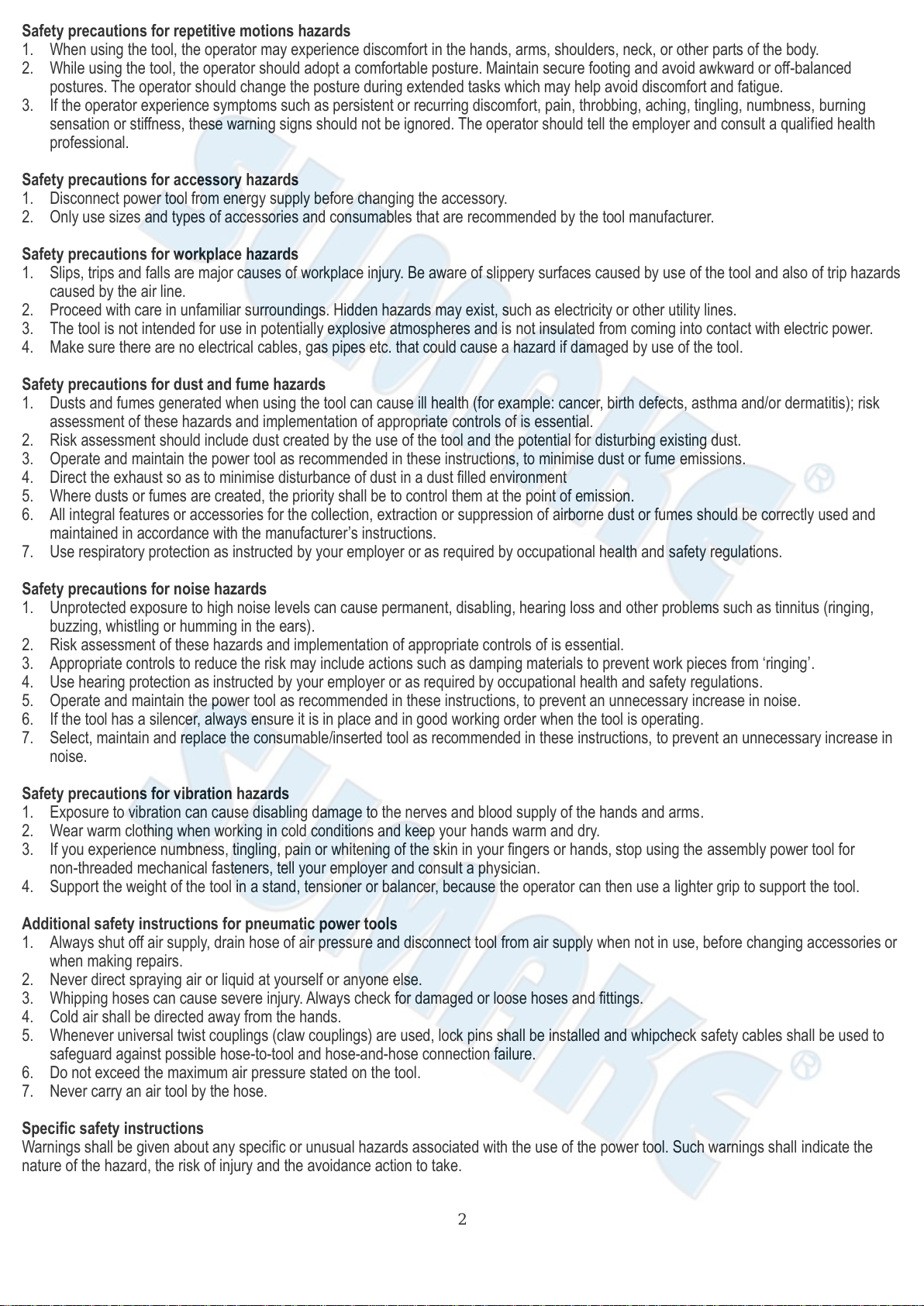

Safety precautions for repetitive motions hazards
1. When using the tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body.
2. While using the tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced
postures. The operator should change the posture during extended tasks which may help avoid discomfort and fatigue.
3. If the operator experience symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning
sensation or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health
professional.
Safety precautions for accessory hazards
1. Disconnect power tool from energy supply before changing the accessory.
2. Only use sizes and types of accessories and consumables that are recommended by the tool manufacturer.
Safety precautions for workplace hazards
1. Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by use of the tool and also of trip hazards
caused by the air line.
2. Proceed with care in unfamiliar surroundings. Hidden hazards may exist, such as electricity or other utility lines.
3. The tool is not intended for use in potentially explosive atmospheres and is not insulated from coming into contact with electric power.
4. Make sure there are no electrical cables, gas pipes etc. that could cause a hazard if damaged by use of the tool.
Safety precautions for dust and fume hazards
1. Dusts and fumes generated when using the tool can cause ill health (for example: cancer, birth defects, asthma and/or dermatitis); risk
assessment of these hazards and implementation of appropriate controls of is essential.
2. Risk assessment should include dust created by the use of the tool and the potential for disturbing existing dust.
3. Operate and maintain the power tool as recommended in these instructions, to minimise dust or fume emissions.
4. Direct the exhaust so as to minimise disturbance of dust in a dust filled environment
5. Where dusts or fumes are created, the priority shall be to control them at the point of emission.
6. All integral features or accessories for the collection, extraction or suppression of airborne dust or fumes should be correctly used and
maintained in accordance with the manufacturer’s instructions.
7. Use respiratory protection as instructed by your employer or as required by occupational health and safety regulations.
Safety precautions for noise hazards
1. Unprotected exposure to high noise levels can cause permanent, disabling, hearing loss and other problems such as tinnitus (ringing,
buzzing, whistling or humming in the ears).
2. Risk assessment of these hazards and implementation of appropriate controls of is essential.
3. Appropriate controls to reduce the risk may include actions such as damping materials to prevent work pieces from ‘ringing’.
4. Use hearing protection as instructed by your employer or as required by occupational health and safety regulations.
5. Operate and maintain the power tool as recommended in these instructions, to prevent an unnecessary increase in noise.
6. If the tool has a silencer, always ensure it is in place and in good working order when the tool is operating.
7. Select, maintain and replace the consumable/inserted tool as recommended in these instructions, to prevent an unnecessary increase in
noise.
Safety precautions for vibration hazards
1. Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms.
2. Wear warm clothing when working in cold conditions and keep your hands warm and dry.
3. If you experience numbness, tingling, pain or whitening of the skin in your fingers or hands, stop using the assembly power tool for
non-threaded mechanical fasteners, tell your employer and consult a physician.
4. Support the weight of the tool in a stand, tensioner or balancer, because the operator can then use a lighter grip to support the tool.
Additional safety instructions for pneumatic power tools
1. Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not in use, before changing accessories or
when making repairs.
2. Never direct spraying air or liquid at yourself or anyone else.
3. Whipping hoses can cause severe injury. Always check for damaged or loose hoses and fittings.
4. Cold air shall be directed away from the hands.
5. Whenever universal twist couplings (claw couplings) are used, lock pins shall be installed and whipcheck safety cables shall be used to
safeguard against possible hose-to-tool and hose-and-hose connection failure.
6. Do not exceed the maximum air pressure stated on the tool.
7. Never carry an air tool by the hose.
Specific safety instructions
Warnings shall be given about any specific or unusual hazards associated with the use of the power tool. Such warnings shall indicate the
nature of the hazard, the risk of injury and the avoidance action to take.

3

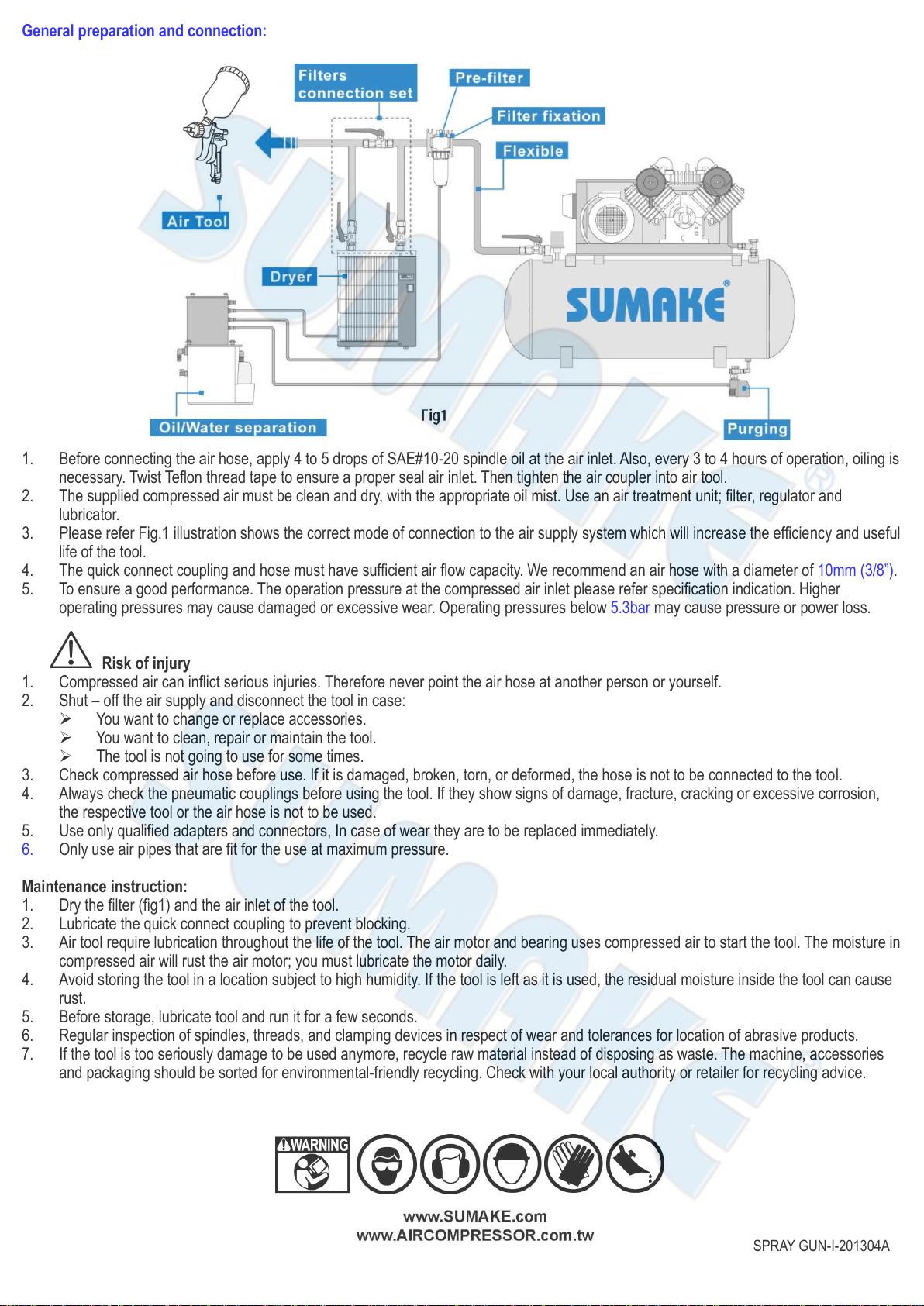

General preparation and connection:
1. Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is
necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
2. The supplied compressed air must be clean and dry, with the appropriate oil mist. Use an air treatment unit; filter, regulator and
lubricator.
3. Please refer Fig.1 illustration shows the correct mode of connection to the air supply system which will increase the efficiency and useful
life of the tool.
4. The quick connect coupling and hose must have sufficient air flow capacity. We recommend an air hose with a diameter of 10mm (3/8”).
5. To ensure a good performance. The operation pressure at the compressed air inlet please refer specification indication. Higher
operating pressures may cause damaged or excessive wear. Operating pressures below 5.3bar may cause pressure or power loss.
Risk of injury
1. Compressed air can inflict serious injuries. Therefore never point the air hose at another person or yourself.
2. Shut –off the air supply and disconnect the tool in case:
➢You want to change or replace accessories.
➢You want to clean, repair or maintain the tool.
➢The tool is not going to use for some times.
3. Check compressed air hose before use. If it is damaged, broken, torn, or deformed, the hose is not to be connected to the tool.
4. Always check the pneumatic couplings before using the tool. If they show signs of damage, fracture, cracking or excessive corrosion,
the respective tool or the air hose is not to be used.
5. Use only qualified adapters and connectors, In case of wear they are to be replaced immediately.
6. Only use air pipes that are fit for the use at maximum pressure.
Maintenance instruction:
1. Dry the filter (fig1) and the air inlet of the tool.
2. Lubricate the quick connect coupling to prevent blocking.
3. Air tool require lubrication throughout the life of the tool. The air motor and bearing uses compressed air to start the tool. The moisture in
compressed air will rust the air motor; you must lubricate the motor daily.
4. Avoid storing the tool in a location subject to high humidity. If the tool is left as it is used, the residual moisture inside the tool can cause
rust.
5. Before storage, lubricate tool and run it for a few seconds.
6. Regular inspection of spindles, threads, and clamping devices in respect of wear and tolerances for location of abrasive products.
7. If the tool is too seriously damage to be used anymore, recycle raw material instead of disposing as waste. The machine, accessories
and packaging should be sorted for environmental-friendly recycling. Check with your local authority or retailer for recycling advice.
SPRAY GUN-I-201304A
Table of contents
Other Sumake Paint Sprayer manuals

Sumake
Sumake SS-1180 User manual

Sumake
Sumake SS-1101 User manual

Sumake
Sumake SS-1180S User manual

Sumake
Sumake SS-1232 User manual

Sumake
Sumake SS-1303LG User manual

Sumake
Sumake SS-1240RGA-1 User manual

Sumake
Sumake ST-M5035 User manual

Sumake
Sumake SS-1140SS/G User manual

Sumake
Sumake SS-1305HSPA-R User manual

Sumake
Sumake SS-1140R User manual

Sumake
Sumake SS-1182P User manual

Sumake
Sumake SS-1150 User manual

Sumake
Sumake SS-400S User manual

Sumake
Sumake SS-1208B User manual

Sumake
Sumake SS-1305HS User manual

Sumake
Sumake SS-1182-A User manual

Sumake
Sumake SS-1303WHGR User manual

Sumake
Sumake SS-1108R User manual

Sumake
Sumake SS-1201SR User manual

Sumake
Sumake SS-1140SS User manual
