Sumake SS-1208B User manual

SUMAKE PNEUMATIC TOOLS

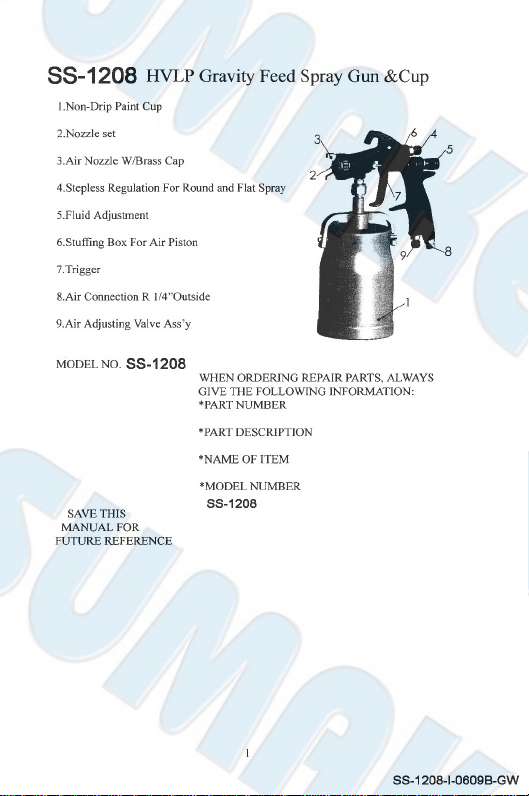

HVLP Air Suction Spray Gun
SS-1208B
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

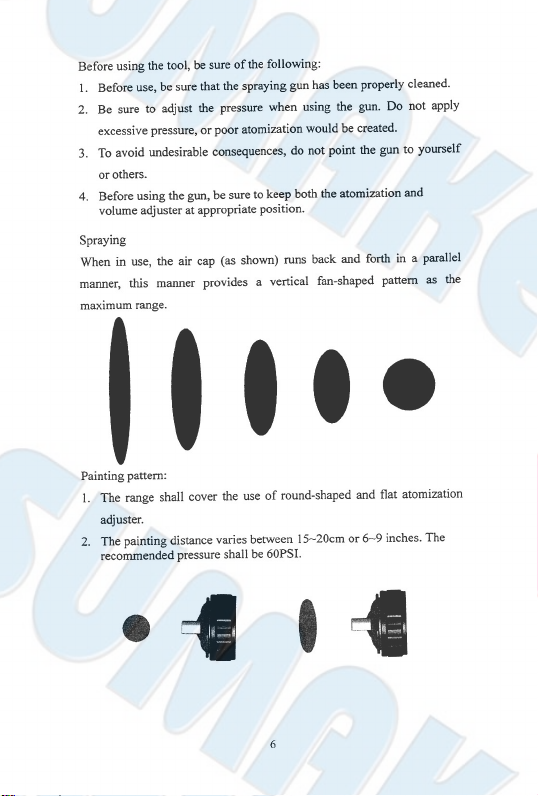

Specification:
Free Type
Suction
Standard Nozzle
1.8 mm
Capacity Of Cup
1 L
Air Consumption
7.5 CFM (212 L/min)
Air Inlet (NPS)
1/4” (6.35 mm)
Air Hose (NPS)
3/8” (10 mm)
Air Pressure
29psi (2kg/cm²) (2Bar)
Net Weight
1.87 lbs (0.85 kg)

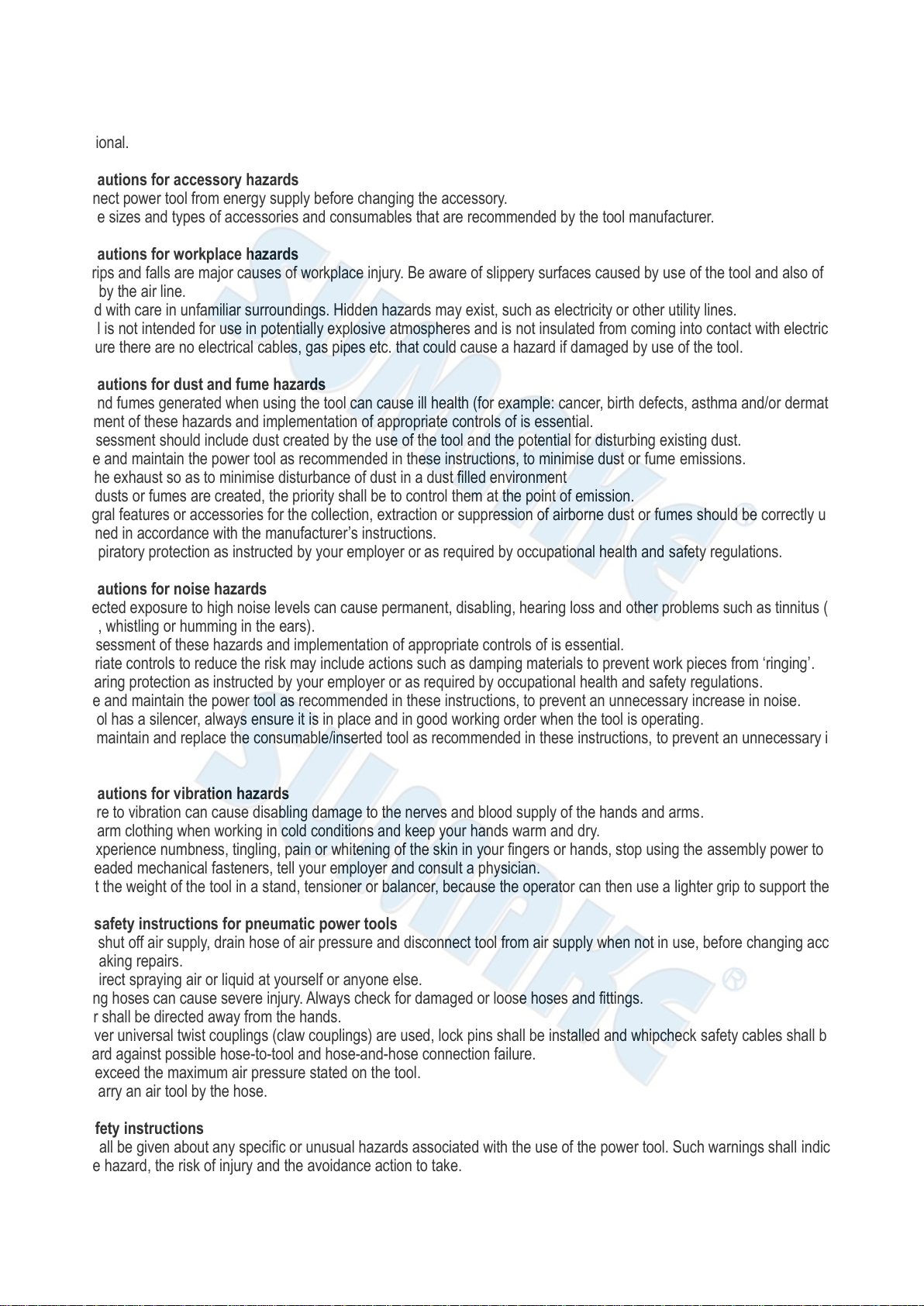

Noise and Vibration:
Vibration
Noise
Remark
0.116 m/s²
Sound Pressure Level
: 80 dB(A)
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
Sound power level
: 91 dB(A)
Uncertainty
K= 1.5 m/s²
Uncertainty
K= 3dB
SS-1208B-S-2007A-GWF

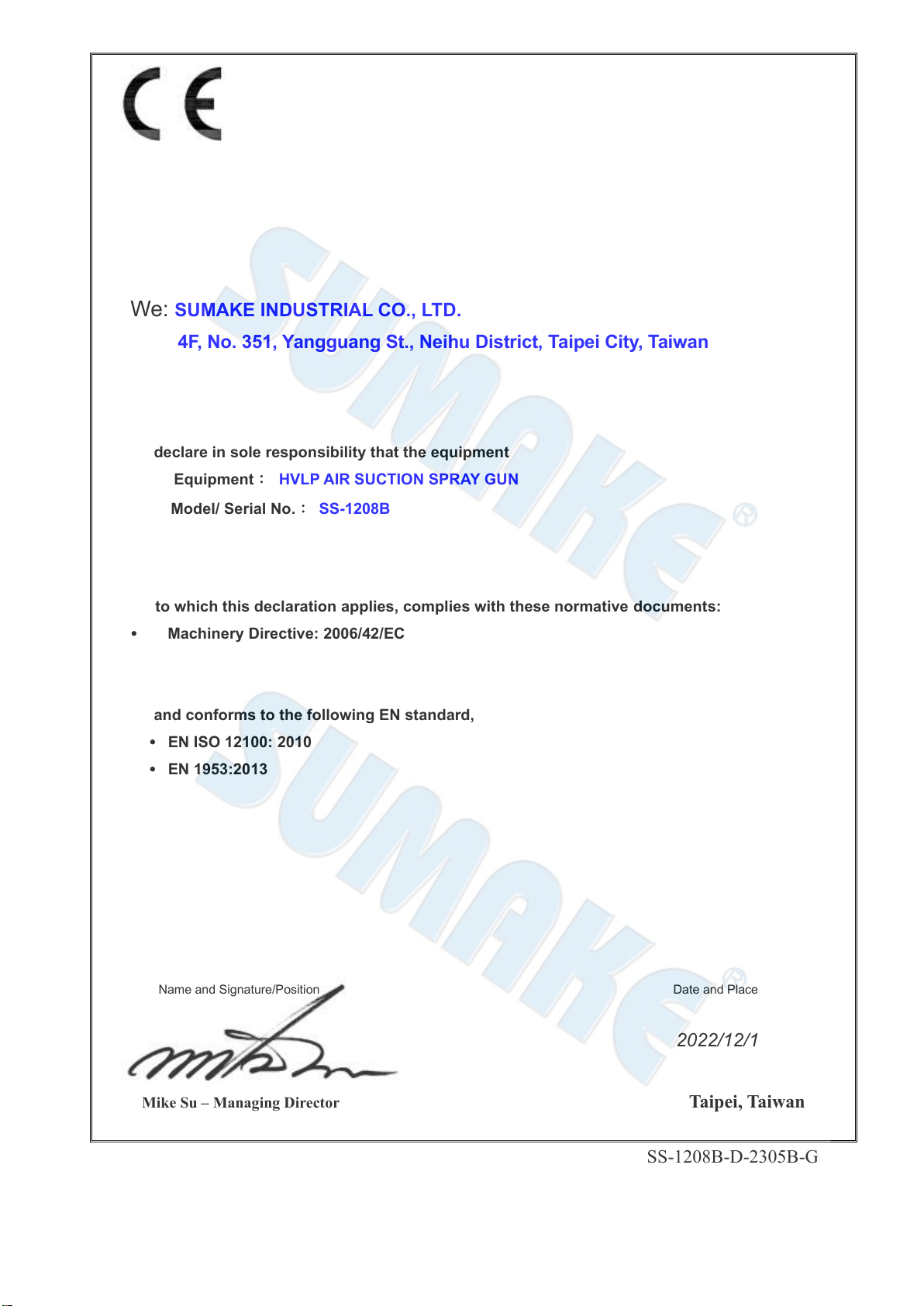

EC DECLARATION OF CONFORMITY
We: SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
declare in sole responsibility that the equipment
Equipment：HVLP AIR SUCTION SPRAY GUN
Model/ Serial No.：SS-1208B
to which this declaration applies, complies with these normative documents:
Machinery Directive: 2006/42/EC
and conforms to the following EN standard,
EN ISO 12100: 2010
EN 1953:2013
Name and Signature/Position Date and Place
2022/12/1
Mike Su –Managing Director Taipei, Taiwan
SS-1208B-D-2305B-GWF

SS-1208B

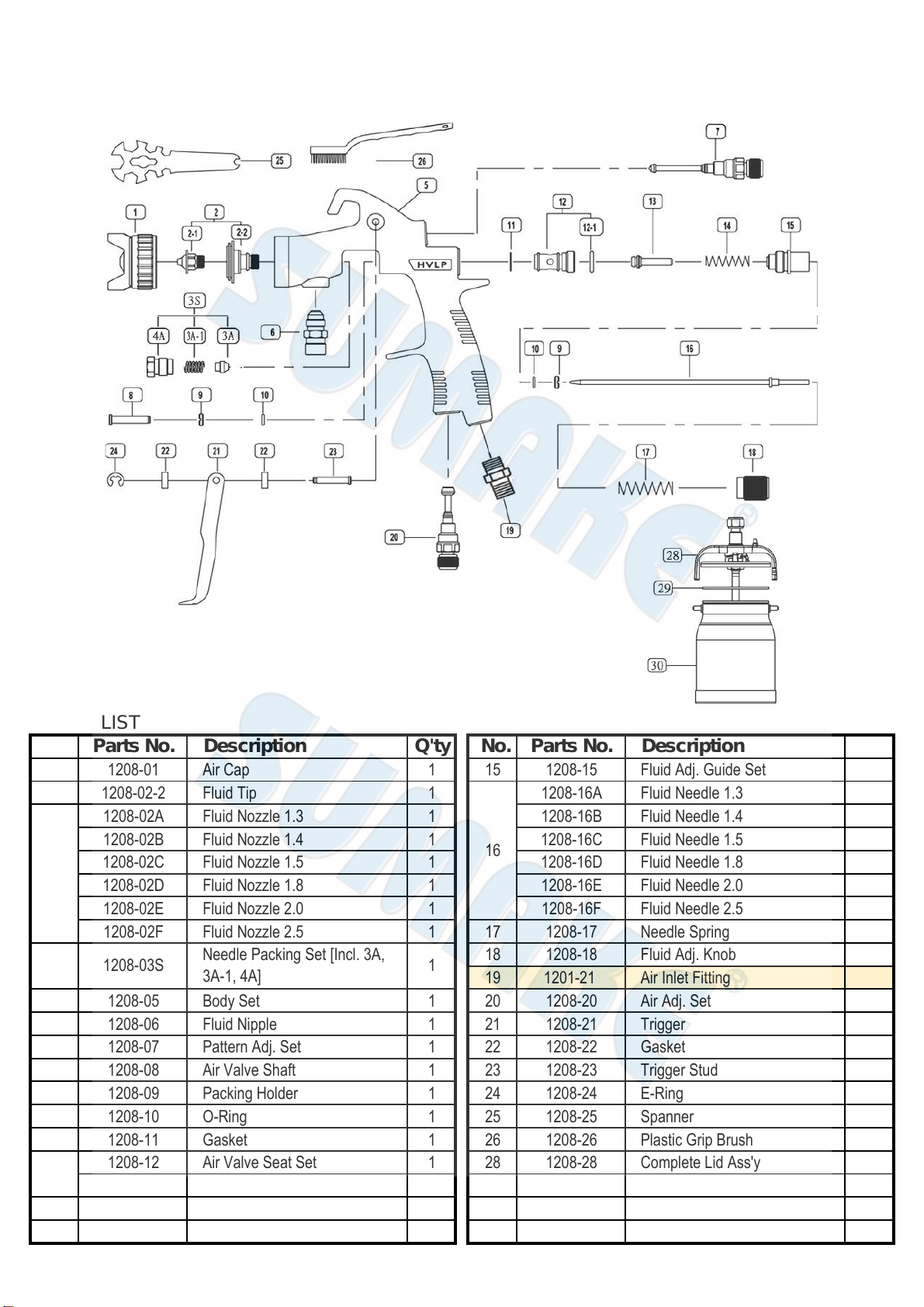

PARTS LIST
No. Parts No. Description Q'ty No. Parts No. Description Q'ty
1 1208-01 Air Cap 1 15 1208-15 Fluid Adj. Guide Set 1
2-2 1208-02-2 Fluid Tip 1 1208-16A Fluid Needle 1.3 1
1208-02A Fluid Nozzle 1.3 1 1208-16B Fluid Needle 1.4 1
1208-02B Fluid Nozzle 1.4 1 1208-16C Fluid Needle 1.5 1
1208-02C Fluid Nozzle 1.5 1 1208-16D Fluid Needle 1.8 1
1208-02D Fluid Nozzle 1.8 1 1208-16E Fluid Needle 2.0 1
1208-02E Fluid Nozzle 2.0 1 1208-16F Fluid Needle 2.5 1
1208-02F Fluid Nozzle 2.5 1 17 1208-17 Needle Spring 1
18 1208-18 Fluid Adj. Knob 1
19 1201-21 Air Inlet Fitting 1
5 1208-05 Body Set 1 20 1208-20 Air Adj. Set 1
6 1208-06 Fluid Nipple 1 21 1208-21 Trigger 1
7 1208-07 Pattern Adj. Set 1 22 1208-22 Gasket 1
8 1208-08 Air Valve Shaft 1 23 1208-23 Trigger Stud 1
9 1208-09 Packing Holder 1 24 1208-24 E-Ring 1
10 1208-10 O-Ring 1 25 1208-25 Spanner 1
11 1208-11 Gasket 1 26 1208-26 Plastic Grip Brush 1
1208-12 Air Valve Seat Set 1 28 1208-28 Complete Lid Ass'y 1
1208-12A O-Ring 1 29 1208-29 Gasket 1
13 1208-13 Air Valve Seat Set 1 30 1208-30 Cannister 1
14 1208-14 Air Valve Spring 1
SS-1208B-P-2007A-GW
HVLP AIR SUCTION SPRAY GUN (REPLACEABLE SPRAY GUN)
2-1
12
16
Needle Packing Set [Incl. 3A,
3A-1, 4A]
3S
1208-03S
1
