Sune Technology QVL-A4L-V7.3 User manual

Your best partner for better driving
A4L V7.3
Specification & Installation
Without MMI version
Last updated : 2013.01.25
model : QVL-A4L-V7.3 / product code : A4L-1106-003
SUNE TECHNOLOGY ELECTRONIC CO., LTD
No.9, Land 606,Anping Rd., Tainan City 70849 Taiwan
Tel: [phone] Fax:[phone]
Website http://www.sune-tech.com
Shop http://www.carnavi-tech.com
Skype : hsin_han99 or sune_tech
CarNavi-Tech

2
1. Before Installation
1.1 Main Specificaton
1.2 Features
1.3 System diagram
1.4 Components
1.5 Exterior
4
3
5
6
7
2. Setup
2.1 DIP switch
2.2 Remote control
2.3 OSD Implementation
2.4 OSD (on screen display)
2.5 FACTORY mode
2.6 Parking guide line setting
2.7 Touch Calibration
2.8 Remote control button
2.10 Select DVD, DTB model
8
9
10
11
3. Trouble Shooting 18
14
12
13
15
17
Contents
CarNavi-Tech

3
1.1 Main specification
1. Input Spec. (MULTI VIDEO INTERFACE)
-. 1 x Analog R,G,B,Sync
-. 1 x CVBS(REAR CAMERA) Input. (Rear camera source)
-3 x A/V (NTST & PAL) Input.
-. 1 x LCD Input (Car system Input)
2. Output Spec.
-. 2 X CVBS OUTPUT (Video Out for installing Headrest monitor)
-. 1 x Audio OUTPUT
-. 1 X LCD OUTPUT(LCD Operation)
3. Power Spec.
- Input Power : 8VDC ~ 24VDC
- Consumption Power : 12WATT, Max
4. Switching AV Source
- Possible to skip AV source while switching Mode (AV source) by DIP S/W
(Refer to the DIP S/W page)
- Change input modes using remote control.
- By a supplied toggle switch
- By OEM touch screen (also controllable external video sources –DVD, DTV etc)
CarNavi-Tech

4
- Input IR Code from each video sources, by using original type touch screen user can control
external DVD, DTV
- RGB and A/V Mode screen can be changed from external video source
- Plug & Play by LVDS cable
1.2 Features
CarNavi-Tech

5
A/V
OUT
HEADREST
MONITOR
MCU
VIDEO
CIRCUIT
VIDEO MUX
POWER
CIRCUIT
TOUCH
A/V1
A/V2
CVBS
(Rear Camera)
Power Input
(+10VDC~+16VDC)
DIP S/W NAVI
DVD
DTV
Navigation Input
A/V3
LVDS In/Out
Touch Input
Car Input
DISPLAY AUDI
Original Monitor
Sub-Board
REAR
CAMERA
1.3 System diagram
CarNavi-Tech

6
1.4 Components
IR cable * 1ea
POWER cable(24P) * 1ea
MODE cable * 1ea
AV cable * 1ea
TOUCH OUT cable * 1ea
REAR CAMERA POWER cable * 1ea
RGB cable * 1ea
Remote control * 1ea
LVDS cable * 1ea
LCD cable * 1ea
TOUCH cable * 1ea
(HAVCAB0002)
(HPOWER0011)
(HARETC0002)
(HLCDCA0008)
(HLVDSC0003)
(ASSEMB0063)
(HARETC0001)
(HTOUCH0007)
(HTOUCH0004)
(HNAVIC0004)
(REMOTE0001)
(HIRCAB0002)
Sub-board* 1ea
CarNavi-Tech

7
①POWER/CAN/RGB
②AV(IN/OUT)
③Rear camera
④LCD-OUT
⑤TOUCH
⑥DIP S/W
⑦LED
⑤⑥⑦
①③
④
②
⑧⑨
⑩TOUCH
⑪
- SUB BOARD -
(52*31*19)
⑧TO LCD
⑨FROM I/F
⑩
⑪LCD-IN
①③②
⑤⑥⑦④
1.5 Exterior
Dimension
Horizontal length 125mm
Vertical length 102mm
Height 24mm
CarNavi-Tech

2.1 DIP switch
8
#PIN Function DIP S/W selection
1 RGB INPUT Skip ON : Skipping RGB Mode
OFF : RGB Display
2 A/V 1 Skip ON : Skipping A/V 1
OFF : A/V1 Display
3 A/V 2 Skip ON : Skipping A/V 2
OFF : A/V2 Display
4 A/V 3 Skip ON : Skipping A/V 3
OFF : A/V3 Display
5 N.C
6 N.C
7 Rear Mode ON : External Rear Camera
OFF : OEM Rear Camera
8 Original
Navigation Skip
ON : Original Navigation
OFF : External Navigation
※DIP S/W Use Example
[AUDI A4/A5]
- Use Input Mode : A/V3(DVD),
Navigation (RGB)
- Rear Camera : External rear camera
- When original Navigation is not installed
▷DIP S/W : 1 OFF
▷DIP S/W : 2,3 ON (INPUT MODE SKIP)
▷DIP S/W : 4 OFF (Using A/V3)
▷DIP S/W : 5 OFF
▷DIP S/W : 6 OFF
▷DIP S/W : 7 ON (External rear camera)
▷DIP S/W : 8 OFF
CarNavi-Tech

2.2 Remote control
9
Key
Function
POWER & PIP
Not for use
MENU
OSD implementation
OK
Making a selection
▲
Move upward
▼
Move downward
◀
Move leftward, press 2 seconds long-Factory
mode implementation
▶
Move rightward, press 2 seconds long-Factory
Mode implementation-Factory mode Reset
*FACTORY MODE (Interface setting )
: Operated by pressing ▲→ ▼→ ▲→MENU button or press ◀more than 2 seconds long on the remote control.
CarNavi-Tech

2.3 OSD Implementation
10
>>
>>>
OSD implementation - DVD
To implement DVD OSD menu, DVD must be installed in AV1; DVD IR in NAVI cable must be connected with DVD remote control sensor
cable.
First of all, if you touch the screen on mode ”AV1”,
you can see the menu as shown left. And then if
you do NOT touch anything on the screen 5
seconds or longer; or if you touch the screen
except the menu, the menu will disappear.
At that time, if you choose “INPUT”, you can get o
ut of the menu and see the mode change men
u.(left picture)
Right picture shows the mode change menu.
Select wanted channel , then the channel will be
changed.
OSD implementation - DTV, NAVI
DVD, DTV, navigation menu are available in English and Chinese. After implementing OSD menu with pushing “MENU” button on the
remote control, choose the language that you want to use.
Same with DVD, if you touch the screen on mode ”AV2”, you
can see the menu as shown left. And then if you do NOT touch
anything on the screen 5 seconds or longer; or if you touch the
screen except the menu, the menu will disappear.(left picture)
Right picture shows the mode change menu. Select wanted
channel , then the channel will be changed..
CarNavi-Tech

2.4 OSD (on screen display)
11
- BRIGHTNESS
- CONTRAST
- SATURATION
- HUE
- SHARPNESS
- USER IMAGE : Selecting one among
4 color options
OSD menu : Press “MENU” button on the remote control.
OSD
-LANGUAGE : Choosing OSD
language while using Touch OSD
(English, Chinese only)
-TRANSPARENT
: Adjusting transparency of OSD
-H_POSITION, V_POSITION
: Positioning OSD menu
UTIL
- FACTORY RESET : Resetting all the
data about the relevant mode.
(applicable to navigation, A/V, DTV,
rear mode respectively)
Video ModeVideo Mode
Analog RGB Mode
Video Mode
Analog RGB Mode Analog RGB Mode
CarNavi-Tech

2.5 Factory mode
12
* H-POSITION : moving in horizontal direction
* V-POSITION : moving in vertical direction
PARK
- PARK ENABLE : Selecting whether to display the parking guide line or not on rear
gear (default : OFF)
- PARK SETUP : Adjusting the position of the parking guide line
(available in PARK SETUP -> V-POSITION, H-POSITION)
UTIL
- CALIBRATION : Touch Calibration (Refer to “Touch Calibration ” page)
- IR MEMORY : Remote button value Memorizing (Refer to “Remote control button”)
- DVD TYPE : DVD type setting (Refer to “DVD, DTV type selection” page)
- DTV TYPE : DTV type setting (Refer to “DVD, DTV type selection” page)
- FACTORY RESET : Initializing
FACTORY mode –Press ◀button 2 seconds long on the remote control.
CarNavi-Tech

13
2.6 Parking guide line setting
FACTORY mode –Press ◀button 2 seconds long on the remote control.
①Register the value needed on the “PARK ENABLE” as “ON” in the PARK
section as shown left. (default –OFF)
②If you get rear gear after setup, parking guide line will appear on
screen as shown left. Now that you push “OK” button, you can see “H-POS”
on the left of screen. Then adjust horizontal position of the guide line.
③After adjusting horizontal position, press “OK” on the remote control.
Then you can see “V-POS” on the left of screen. At that time you can
adjust vertical position of the guide line.
CarNavi-Tech

2.7 Touch calibration
14
>>>
①First of all, press ◀button on remote control 2
seconds long. Then you can access to the FACTORY
mode.
②Register “YES” when the CALIBRATION option is
selected as shown above.
③Then you can see “touch calibration” on
screen about 2 seconds long as shown above.
After the word “touch calibration” disappear,
touch calibration function will implement.
(Just touch “┼” shape on screen.)
If you succeed, you can see “success”. If not,
you will see “failure”.
CarNavi-Tech

2.8.1 Remote control button
15
>>>
①First of all, press ◀button on remote control 2
seconds long. Then you can access to the FACTORY
mode. And go to IR MEMORY, UTIL.
There are two options in IR MEMORY as shown above;
DTV and DVD.
Then you select AV source that you want to set
among them.
②This is a window for register of DVD’ s remote
control button value. At the moment just select a
menu that you want to save.
(Select “DTV in options of IR MEMORY” if you want to
save values of DTV’ s remote control. And follow the
instruction below.)
Instruction>
a. Select “POWER” in OSD menu, then press “OK” on
remote control. (as shown above)
b. If the marked area flickers as shown above, press
“POWER” button on the remote control of DVD that
you want to use. (continued in the next page)
Registering value of remote control buttons?
To control DVD and DTV via touch screen (using OSD menu) with other models besides already registered option-
SANYO and NECVOX, you can register value of DTV and DTV’ s remote control which you have.
Then you can control DVD and DTV via touch screen.
CarNavi-Tech

2.8.2 Remote control button
16
>>>
Instruction> continued…
c. The values that you registered will appear as green
text in the marked area on pressing the button. And
the values will be saved automatically.
d. Register remain buttons’ value in OSD menu like
the above-mentioned.
③After register, select “INPUT” in OSD menu and press
“OK”. Then you can see confirmation window as
shown above. At the moment, if you choose “YES”, all
the values that you entered will be saved.
If you select “NO”, the values won’t be saved.
(If data is saved, DVD TYPE and DTV TYPE will be
changed to “USER” automatically.)
If you see “SUCCESS” on screen, the data is saved
clearly and you can control DVD via touch screen.
BUT, you MUST change the option in
DVD(DTV)/UTIL/FACTORY to “USER”. (Refer to page18.)
CarNavi-Tech

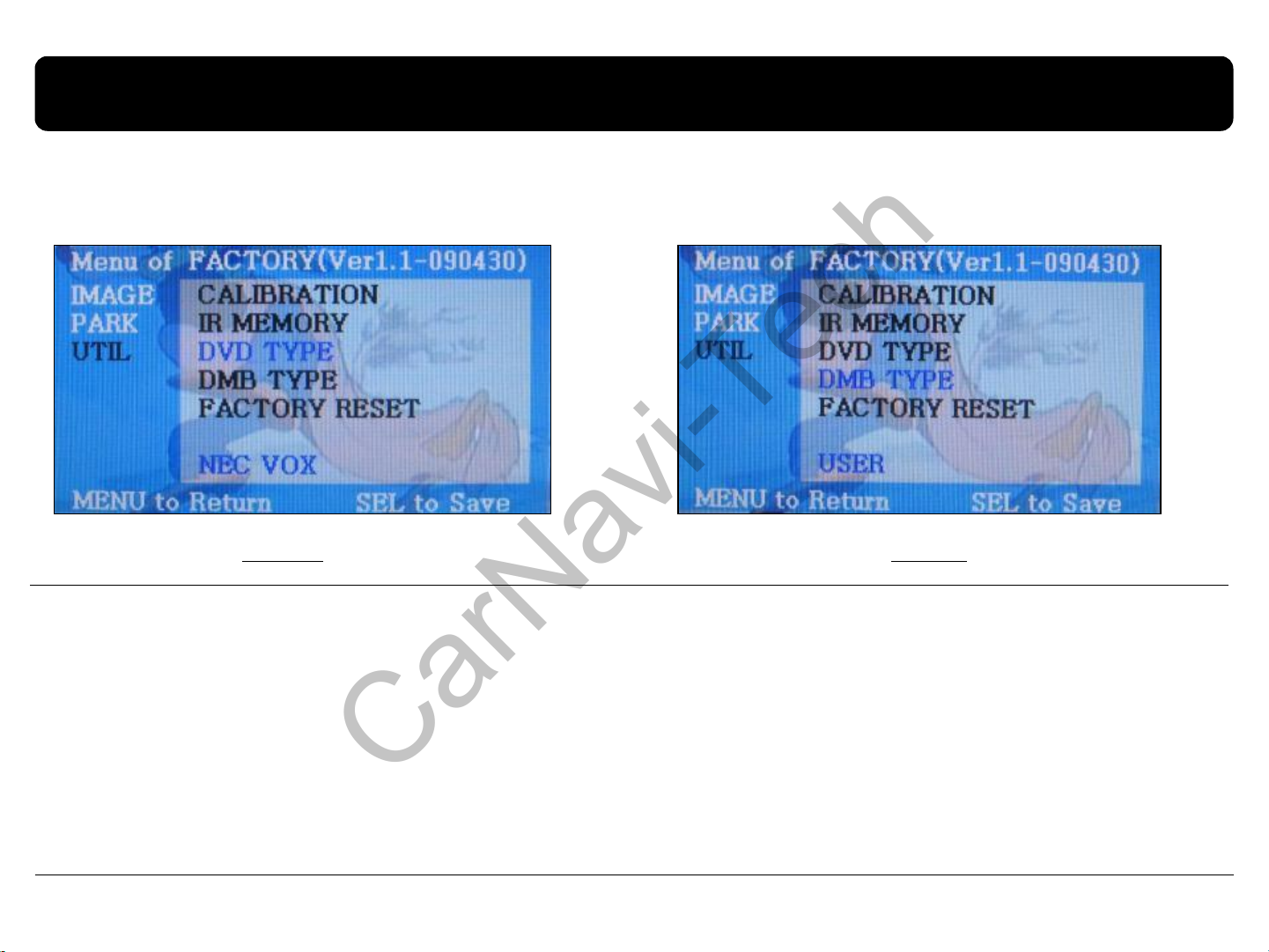

2.9 Select DVD, DTV Model
17
Factory Default : DVD TYPE - NECVOX/SANYO (For Chinese DVD)
DTV TYPE - CMMB(For Chinese DTV)
DVD TYPE DTV TYPE
UTIL –DVD/DTV TYPE
If DVD/DTV type that you want to use is not NECVOX or SANYO, you have to register values of the remote control
that you want to use in the “IR MEMORY” section and set the “DVD TYPE”/”DTV TYPE” to “USER”.
Unless you do this process after saving the data, you can NOT control DVD/DTV via touch screen.
※If you enter data in ”IR MEMORY” section in FACTORY mode, “DVD TYPE”/ “DTV TYPE” will automatically be saved to “USER”.
