Sunjoy Fant L-DN1308SCO User manual

1 of 11

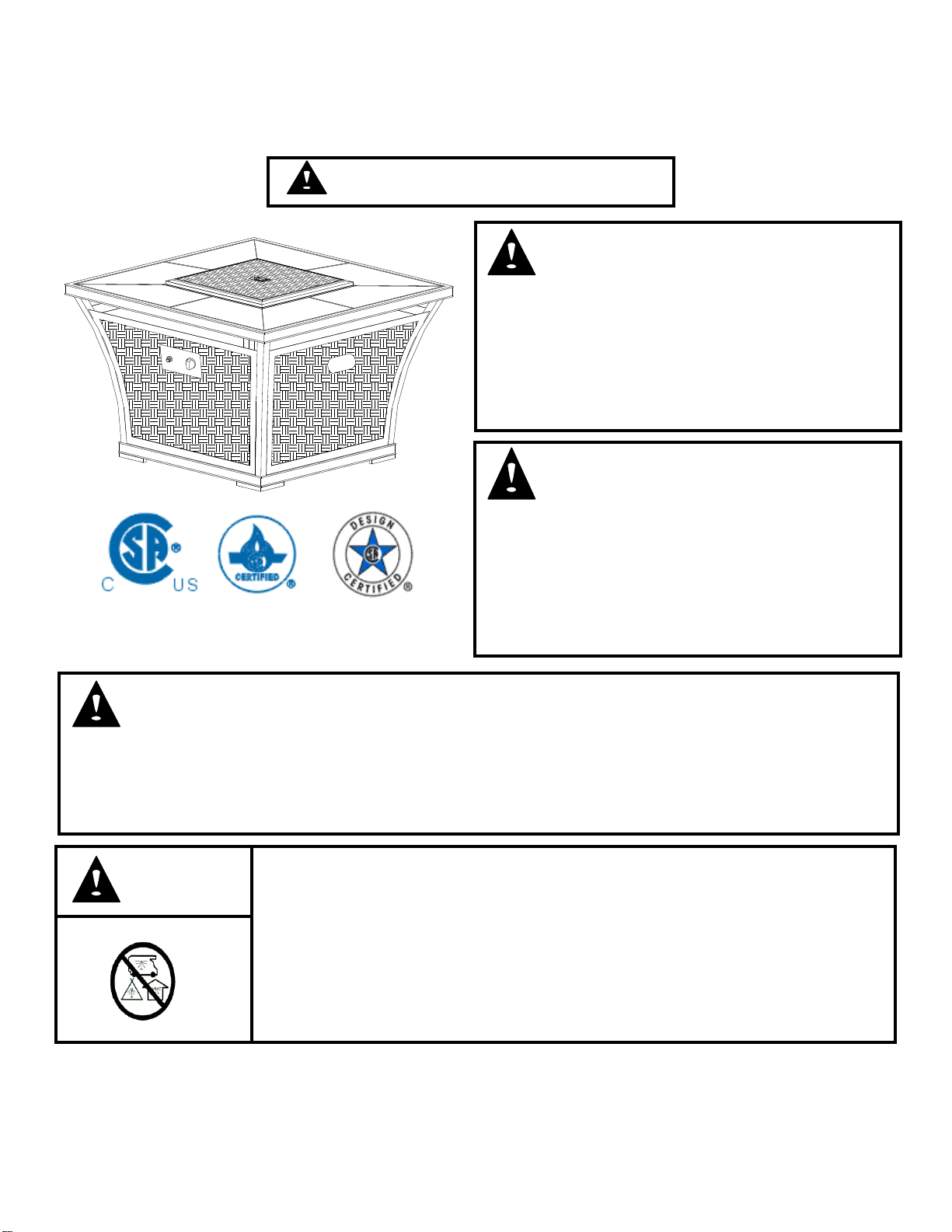

OWNER’S MANUAL
Item# L-DN1308SCO
This appliance complies with “ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING: For Outdoor Use Only.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
Propane tank not included
AA battery needed, not included

2 of 11
TABLE OF CONTENTS
General information …………….…….………………….………………..………….…… 2
Specification……….……………………………………….……………….……….……… 3
Important safety information and precaution……………….….….….….…….…… 3-4
Expanded view……………………………………………………….……….……..……… 5
Parts list……………………….………………………….…………………………….……6
Installation………………………….………………………..………………….…….………7
Location……………………………………………………………………….…….…….….. 8
Set up……………………………………………………………….…………….……...…… 8
Gas connection ………………………………….……………….……………….……… 8-9
Operation……………………………………………………………….……………...…….. 9
Leak check………………………………………………………….…………………...…… 9
Ignite lighting………………………………………………………….…………………. 9-10
Storage and Maintenance………………………………………….……...............… 10-11
Trouble shooting ………………………………………………...….………………..… 11
Limited warranty……………………………………………………………….….…… 11-12
Cleaning and maintenance………………………………………………………………12
GENERAL INFORMATION
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully for safe
and easy operation. Keep this manual to consumer for installer and consumer future
reference/use. We would like to hear from you with any comments or suggestions. In the
continental U.S. or Canada, you can call us toll-free at 1-866-578-6569 from 8 a.m. to 5 p.m.
CST Monday –Friday.
You can also send us an email using the feedback icon at [email protected]

3 of 11
SPECIFICATION
IMPROTANT SAFETY INFORMATION AND PRECAUTION
When the appliance is for connection to a fixed piping system, the installation must conform with
local codes ,or in the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54;
International Fuel Gas Code, Natural Gas and Propane Installation Code, CSA B149.1;or Propane
Storage and Handling Code,B149.2,as applicable.
The LP gas supply cylinder to be used must be:
1- Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable;
2- Provided with a listed overfilling prevention device;
3- Provided with a cylinder connection device compatible with the connection for the appliance.
Always place the appliance on a firm and level surface.
Solid fuels shall not be burned in this gas appliance. Burn ONLY Tempered Glass (INCLUDED).
The appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed area.
When in use, keep the appliance area clear and at least 40 in / 101.6 cm side clearance from
combustible materials, gasoline and other flammable liquid and vapors. Do not use the appliance
under overhead combustible surfaces. Certain items or materials, when stored under the appliance or
nearby, will be subjected to radiant heat and could be damaged.
Inspect the hose assembly and burner prior to each use. If there is evidence of excessive abrasion
or wear or if the hose or burner is damaged, it must be replaced by appropriate part form the
manufacturer.
Inspect the gas connections of the appliance prior to each use. Do not to operate the unit if there is a
gas leak. Have the appliance inspected annually by a qualified service person.
Product name
Fant Fire Pit
Model NO.:
L-DN1308SCO
Rated Heat Input
38,000BTU/HR
Fuel
Propane-LP
Gas Supply
20 lb. LP-Gas cylinder
Manifold Pressure
11 Inches W.C.
Orifice Size (diameter)
1.75mm
Gas Supply Pressure
Max.250 PSI

4 of 11
The pressure regulator and hose assembly provided with the appliance must be used. The
replacement part must be the same as the part specified by manufacturer.
The assembly of LP-gas and leak checking, please refer to the “Gas connection”on page 8 and “leak
Test”on page 9.
Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or prevent clothing ignition.
Young children and pets should be carefully supervised when they are in the area of the
appliance.
Any guard or other protective device removed for servicing the appliance must be replaced
prior to operation.
Clothing or other flammable materials should not be hung from the appliance.
Do not use the appliance if any part has been under water. Immediately call a qualified technician to
inspect the appliance and to replace any part of the control system and any gas control which has been
under water.

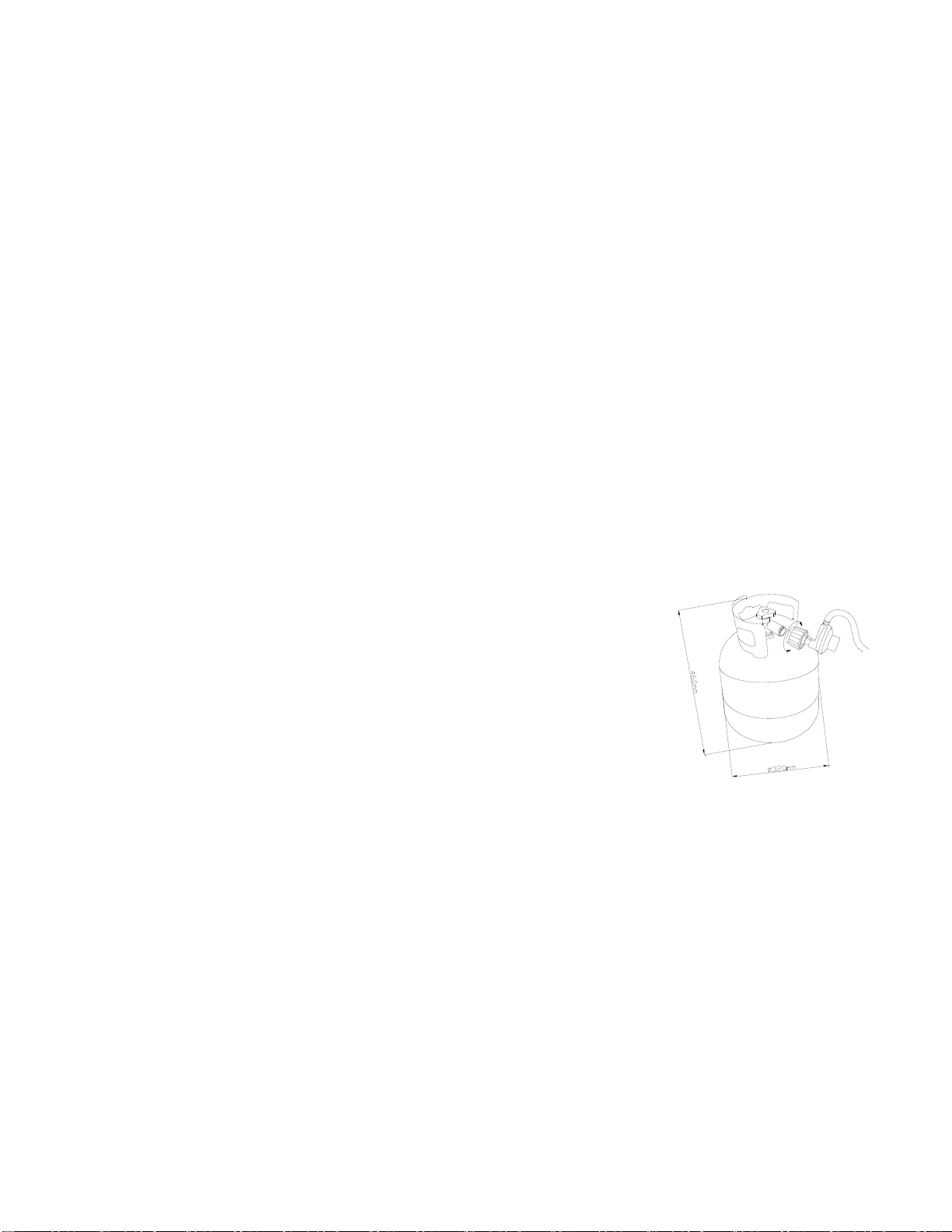

LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT).
The cylinder supplies system must be arranged for vapor withdrawal and the cylinder must include a
collar to protect the cylinder valve.
Use only 20 lb / 9 kg LP-Gas cylinders.
Do not burn wood or any other materials in this appliance.
The appliance must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure testing of
the gas supply piping system at test pressure equal to or less than 1/2psi
(3.5kPa).
Properly place the hose out of pathways where people may trip over it or in areas where there may
be subject to accidental damage.
The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner must be the same as the part specified by manufacturer.
The cleaning of the appliance including the burner, please refer to “Clean and Maintenance”on page
12.

5 of 11

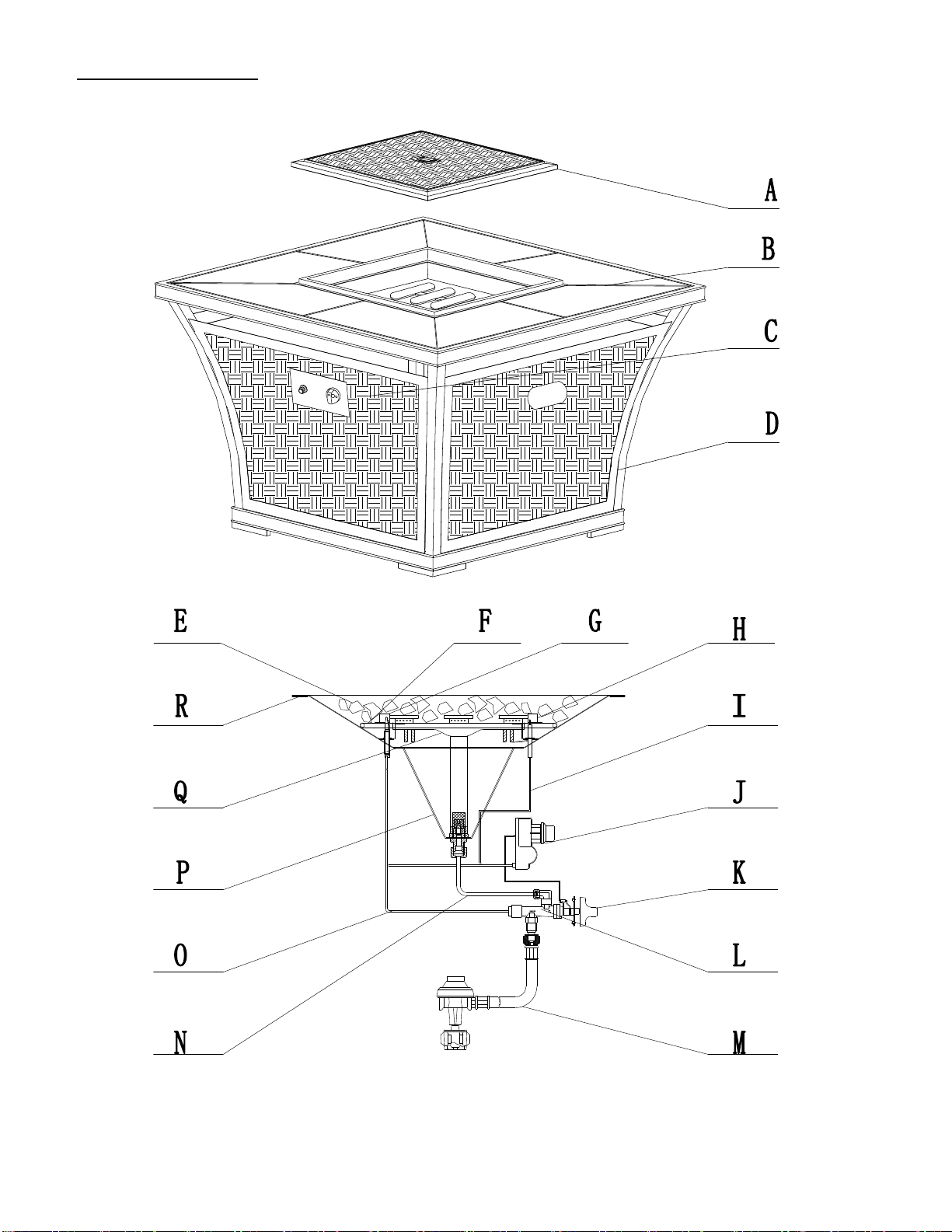

EXPANDED VIEW

6 of 11
NO.
Description
Qty
A
Cover
1
B
Table Base
1
C
Box
1
D
Door
1
E
Cullet (Tempered Glass)
1 (2.5KG)
F
Armor Plate Screen
1
G
Windshield 2
1
H
Windshield 1
1
I
Ignition Wire
2
J
Battery Box
1
K
Control Knob
1
L
Control Valve
1
M
Pressure Regulator
1
N
Nozzle Subassembly
1
O
Thermocouple
1
P
Nozzle Support Bar
1
Q
Burner
1
R
Fire Bowl
1
Parts List
If you want to replace the parts listed, please contact Customer Service Center: 1-866-578-6569.

7 of 11
LOCATION
Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or
construction.
SET-UP
Your Gas appliance comes assembled, ready for a Gas connection.
1- Remove the appliance from container box and place it on any level, outdoor, non-combustible
surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting.
2- Open the gas door, put the cylinder inside.

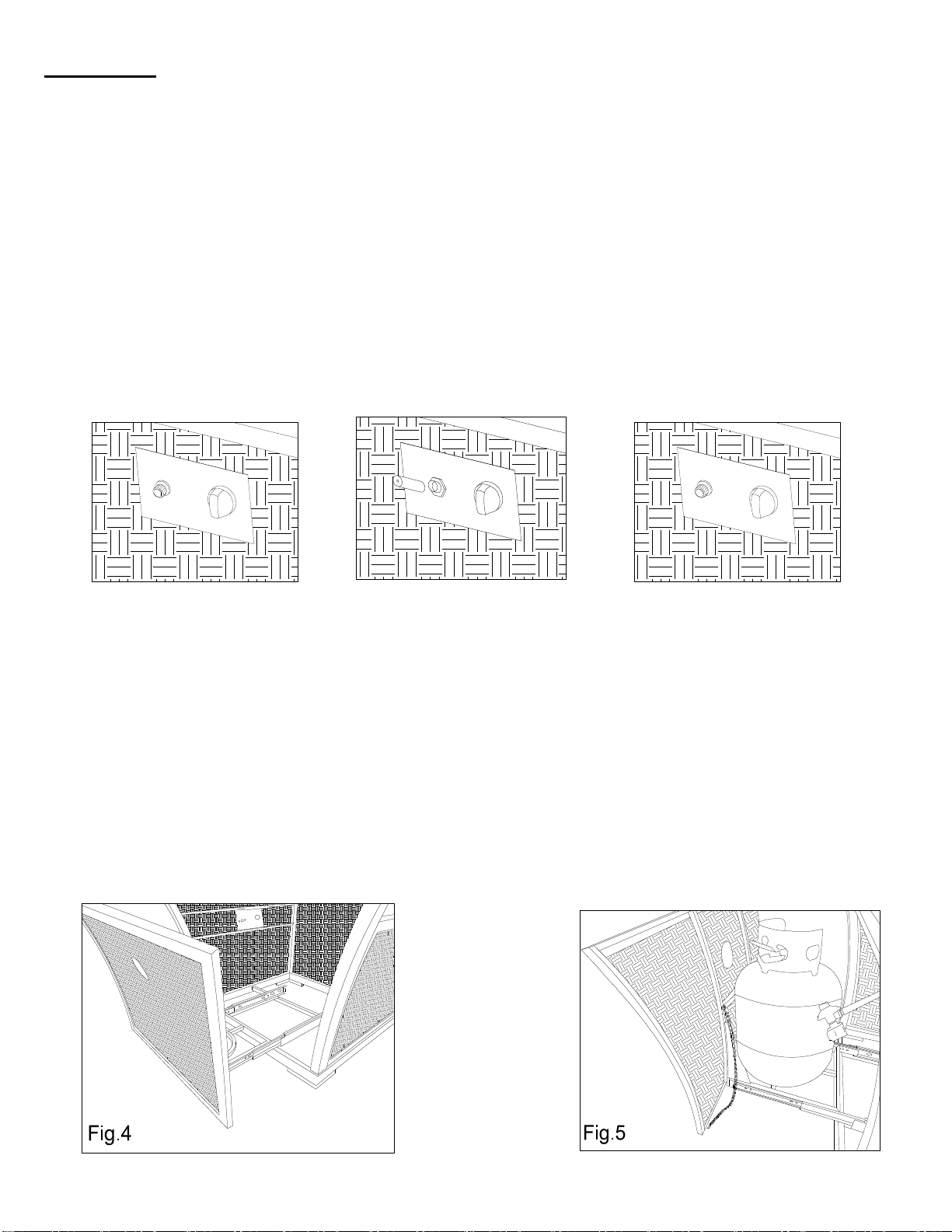

3- Unscrew the battery box as shown in Fig 1.Insert the negative electrode side of the battery into the
bottom of battery box as shown in Fig 2. Then screw the battery box as shown in Fig 3.
Fig 1 Fig 2 Fig 3
Note: If the battery of the pulse electronic igniter runs out of power, please replace the new battery as
above.
Gas Connection
1- Open the door, put the chain and control valve outside. See Fig 4.
2- Put the cylinder into the cylinder rack. See Fig 5.

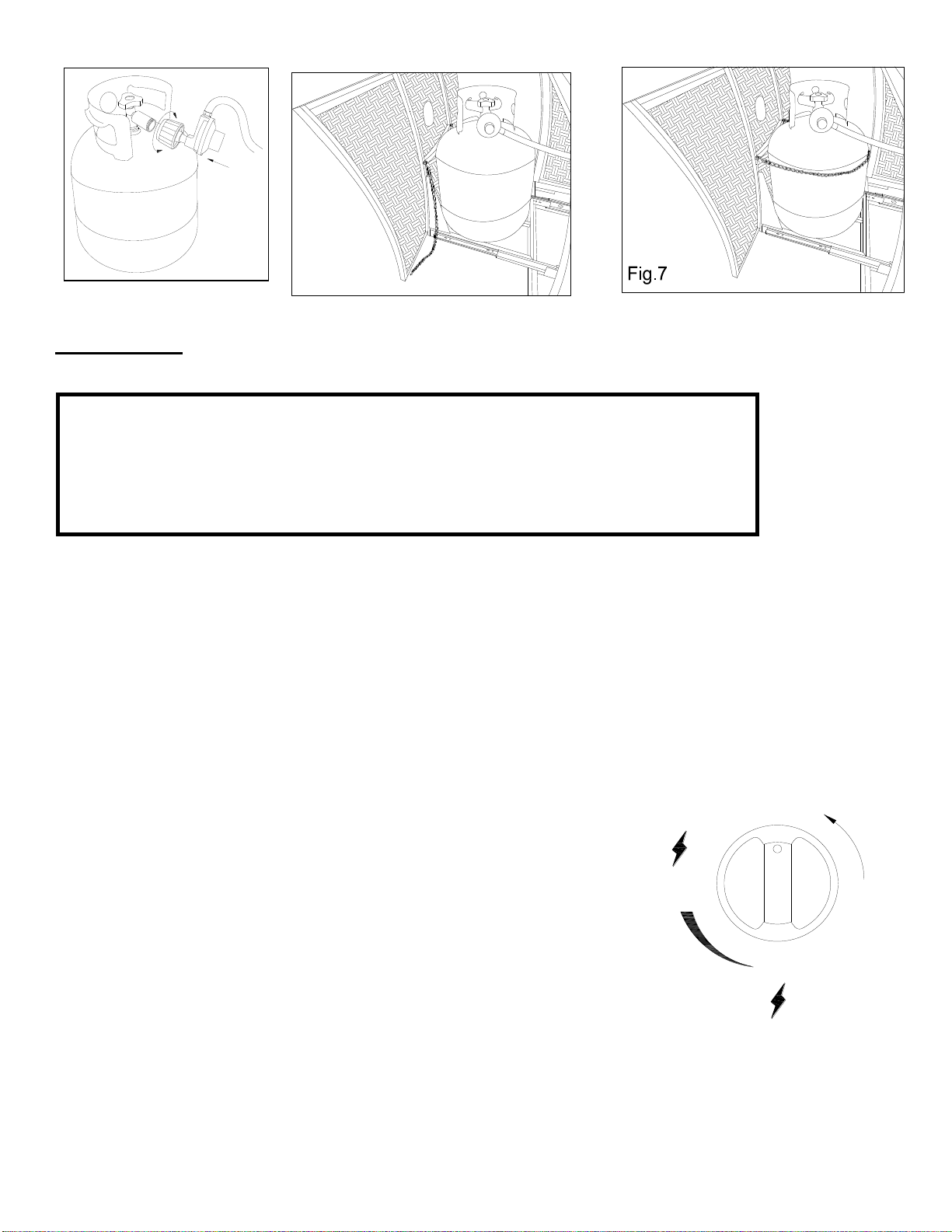

3- Connect the regulator and the cylinder as per Fig.6. Make sure there is no leakage or damage
(please refer to “Leak Test”on page 9 and the damage checking on page 4).
4- Fix the cylinder by the chain. See Fig 7.

8 of 11
OFF
HIGH
MAX
BAS
ARRET
LOW
OPERATION
LEAK TEST
1- Make sure the control knob is on the “OFF”position.
2- Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without
over tightening it.
3- Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose and
connections between the control knob and gas cylinder.
4- If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply, undo the
leaking connection, re-connect it and try again. If the leak persists, consult Customer Service Center for
assistance.
5- If the connection is sound, continue to the next step.
IGNITE LIGHTING
1- Make sure control valve is OFF.
2- Turn on gas tank valve.
3- Press in and turn control valve knob counterclockwise
to High to ignite. See the figure to the right.
4- If burner is lit, do not stop pressing in the control valve knob for
a minute to heat the thermocouple.
5- When control valve knob is released, the burner should be lit. If not, turn control valve knob
clockwise to OFF. Wait 5 minutes after completing Step 3 before attempting to re-ignite.
6- Press in and turn control valve knob to desired heat input, HIGH ~ LOW.
!!!WARNING!!!
Do not use an open flame to check for leaks.
Do not smoke during testing.
Do not test indoors.
A leak check must be performed whenever the gas cylinder is replaced.
Fig 6

9 of 11

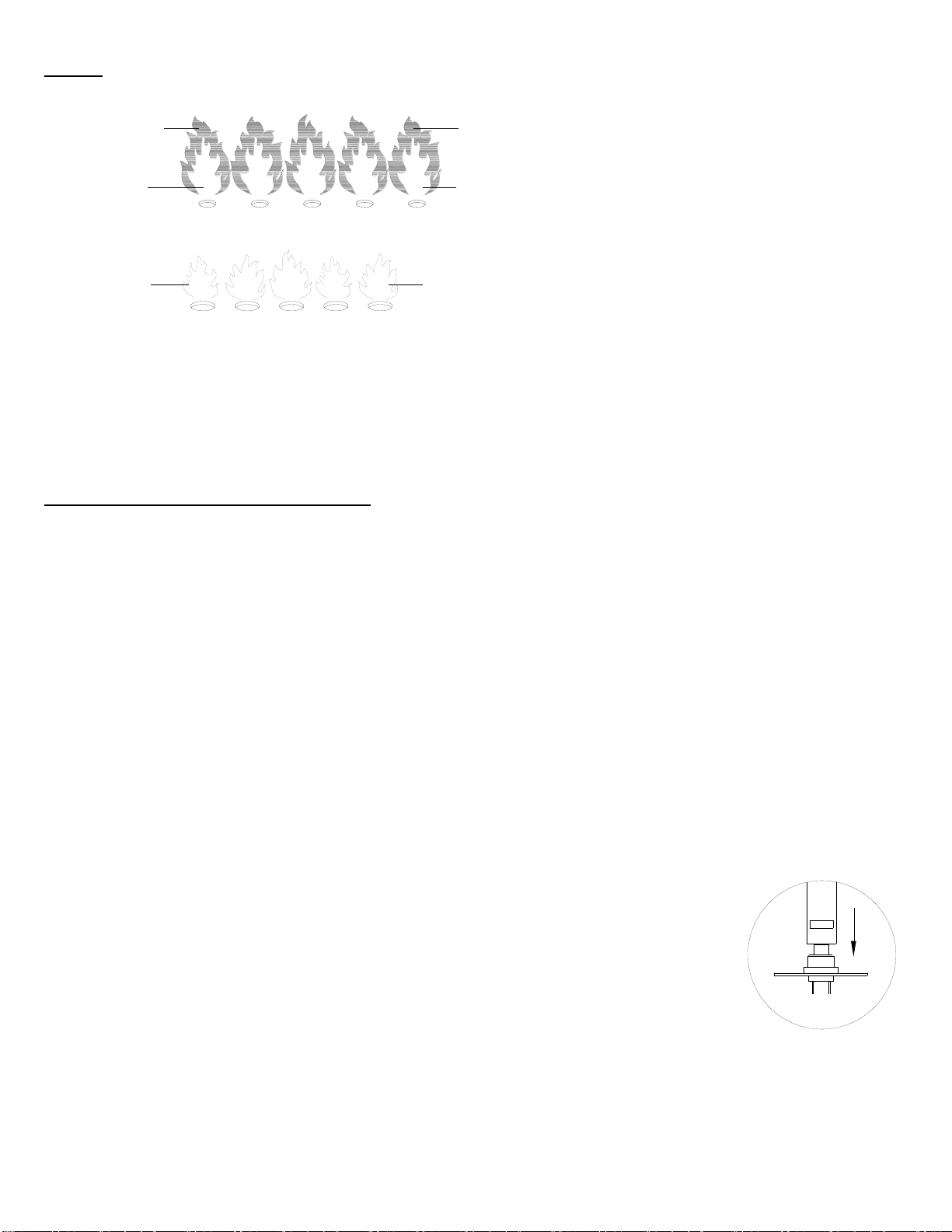

NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow.
The flame can be identified by the following figure.
Warning: Lighting the appliance improperly could lead to an unsafe condition.
7- Press in and turn the control valve knob clockwise to OFF to shut down appliance. Close the gas
cylinder valve when the appliance is not in use.
(CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.)
STORAGE AND MAINTENANCE
To obtain the best performance from your appliance, you must perform the following storage and
maintenance activities on a regular basis:
Allow at least 35 minutes for the appliance to cool down after use, before disconnecting and
removing the gas cylinder.
Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather
and dust, out of the reach of children, and not in a building, garage or any other closed area.
The appliance may be stored indoors only if the cylinder is disconnected and removed.
Keep the appliance area clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent cleaning
may be required as necessary it is imperative that the control compartment,
Burner and circulating air passageways of the appliance be kept clean.
If disassemble the burner when cleaning the appliance, please reassemble
it according to the picture on the right to make sure the burner induction tunnel is
on and exactly cover the orifice base. It is imperative that the control compartment, burner and
circulating air passageways of the appliance be kept clean. It is recommended not to disassemble
the burner.
Incorrect Flame
Y E LLO W T IPS
B LU E
H IG H
LO W
Correct Flame
BLUE LOW

10 of 11
Permanent installation and repair should be done by a qualified service person. The appliance
should be inspected annually by a qualified service person.
TROUBLE SHOOTING
PROBLEM OBSERVED
POSSIBLE CAUSE
CORRECTIVE MEASURES
Gas odor
—Gas leak
—See “If you smell gas:” on front
cover of manual
—Check all gas connections
Delayed ignition
—Low gas pressure
—Clogged or dirty burner
ports
—Blocked orifice
—Spent battery
—Check gas supply pressure
—Clean burner ports, see manual
section
—Check orifice opening
—Change a new battery
Incorrect burner flame
—Incorrect gas supply or
pressure
—Blocked orifice
—Clogged or dirty burner
ports
—Check gas supply pressure
—Check and clean orifice opening
—Clean burner ports
If you want to replace the parts listed, please contact Customer Service Center: 1-888-301-0332.
LIMITIED WARRANTY
Subject to the conditions set out below, this product is warranted to the original purchaser to be free from
defects in workmanship and materials for twelve (12) months from the date of purchase.
Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for
any claim under the warranty to be enforceable.
This warranty covers all parts found defective in workmanship and/or materials during the warranty
period and can be repaired or replaced at the discretion of the manufacturer at no cost to the original
purchaser.
This warranty will be void if the product has not been assembled, installed or operated according to
the instructions, or subjected to abuse, improperly treated, neglected, rusted by exposure to the
elements, misused and/or if any repairs, maintenance, or service has been done by an unauthorized
person.
Returns must be properly packaged and freight prepaid to the dealer from whom the product was
acquired.
The manufacturer, distributor and retailer will not be liable for any incidental or consequential loss or

11 of 11
damage arising from the installation or operation of the product and/or the failure of any part for any
reason.
There are no other express or implied warranties, except for those stipulated herein. This warranty
gives specific rights and the original purchaser may have additional rights and remedies in law.
This warranty does not cover commercial use.
CLEANING AND MAINTENANCE
To enjoy outstanding performance of your appliance for years make sure to perform the following
maintenance activities on a regular basis.
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use flammable, corrosive or abrasive cleaners.
Clean the holes in the burner using a swab that is moistened with soapy water. Keep the holes
unobstructed by using a heavy-duty pipe cleaner. The burner must be dry before normal use. Cleaning
period should be 1 year.
While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all
times. If the gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
After a long break from operation, the unit should be inspected for spiders, spider webs or other
insects.
Air flow must be unobstructed, Keep controls, Burner and circulating air passageways clean.
Signs of possible blockage include:
—Gas odor with extreme yellow tipping of flame.
—Table does NOT reach the desired temperature.
—Table flow is excessively uneven.
—Table makes popping noises.
—Spider and insects can nest in burner or orifices.
—Compressed air may help clear away smaller particles.
