Azoula Smart Hub User Manual

Document Change Log
Version Date Description Editor Review
1.0 2023-07-10 wxy
Contents
Azoula Smart Hub User Manual ................................................................................................................................................................................1
Document Change Log.................................................................................................................................................................................................2
Contents.....................................................................................................................................................................................................................2
1.Introduction of Azoula Smart Hub .....................................................................................................................................................................3
2.Install the App ....................................................................................................................................................................................................3
iOS.......................................................................................................................................................................................................................3
Android ...............................................................................................................................................................................................................4
3.Login to Azoula Smart Hub..................................................................................................................................................................................5
3.1 LAN Login ....................................................................................................................................................................................................5
3.2 Remote Login...............................................................................................................................................................................................7
3.2.1 Register an Account .......................................................................................................................................................................7
3.2.2 Login to the Account and Bind a Gateway...................................................................................................................................8
3.2.3 Bind Multiple Gateways..................................................................................................................................................................9
3.2.4 Switch Gateways ............................................................................................................................................................................12
3.2.5 Exit Remote Login.........................................................................................................................................................................12
3.2.6 Share Gateways ..............................................................................................................................................................................13
3.2.7 Unbind a Gateway...........................................................................................................................................................................15
4. Add Sub-devices ................................................................................................................................................................................................18
4.1 Add a Sub-device via the App................................................................................................................................................................18
4.1.1 Add a Zigbee Device .....................................................................................................................................................................19
4.1.2 Add a Green Power Switch............................................................................................................................................................21
4.2 Add a Sub-device via Smart Hub Button ...............................................................................................................................................22
4.2.1 Add a Sub-device to Favorite Devices ......................................................................................................................................24
4.3 Multi-endpoint Sub-devices ...................................................................................................................................................................25
5.Delete Sub-devices.............................................................................................................................................................................................27
6.Control Sub-devices...........................................................................................................................................................................................27
7.Zones(Rooms)........................................................................................................................................................................................................28
7.1 Create a Zone...........................................................................................................................................................................................29
7.2 Edit a Zone...............................................................................................................................................................................................30
7.3 Delete a Zone...........................................................................................................................................................................................31
7.4 Control Sub-devices in the Zone ..........................................................................................................................................................31
8.Scenes...................................................................................................................................................................................................................34
8.1 Create a Scene .........................................................................................................................................................................................34
8.2 Recall a Scene .........................................................................................................................................................................................36
8.3 Edit a Scene.............................................................................................................................................................................................37
9.Automation ...........................................................................................................................................................................................................37
9.1 Create Automation....................................................................................................................................................................................38
9.2 Edit Automation .......................................................................................................................................................................................41
9.3 Favorite Automation................................................................................................................................................................................41
9.3.1 Create Automation Using Green Power Switch ...........................................................................................................................41
9.3.2 Create Automation Using Sensors ...............................................................................................................................................51
9.3.3 Create Scheduled Automation.......................................................................................................................................................54
9.3.4 Create Automation to Simulate Being at Home .........................................................................................................................56
9.4 Disable Automation..................................................................................................................................................................................61
10.Quick Control ....................................................................................................................................................................................................61
10.1 Create a Scrolling Marquee .................................................................................................................................................................61
10.2 Differences between Quick Control and Scenes/Zones......................................................................................................................69
11.Use Remotes........................................................................................................................................................................................................69
12.Circadian Rhythm...............................................................................................................................................................................................73
13.Energy Consumption...........................................................................................................................................................................................78

14.OTA ......................................................................................................................................................................................................................80
14.1 Update Azoula Smart Hub.......................................................................................................................................................................80
14.2 Update a Sub-device ..............................................................................................................................................................................82
15.Reset Azoula Smart Hub....................................................................................................................................................................................83
16.Gateway Integration .........................................................................................................................................................................................86
17.Homekit...............................................................................................................................................................................................................90
17.1 Add to the Home App ..............................................................................................................................................................................90
17.1.1 Notes.............................................................................................................................................................................................90
17.1.2 Add Azoula Smart Hub via QR Code............................................................................................................................................91
17.1.3 Add Azoula Smart Hub via Manual Setup Code .........................................................................................................................92
17.1.4 Further Explanation ...................................................................................................................................................................93
17.2 Add a Sub-device....................................................................................................................................................................................94
17.3 Remove a Sub-device ..............................................................................................................................................................................94
17.4 Remove Azoula Smart Hub.......................................................................................................................................................................94

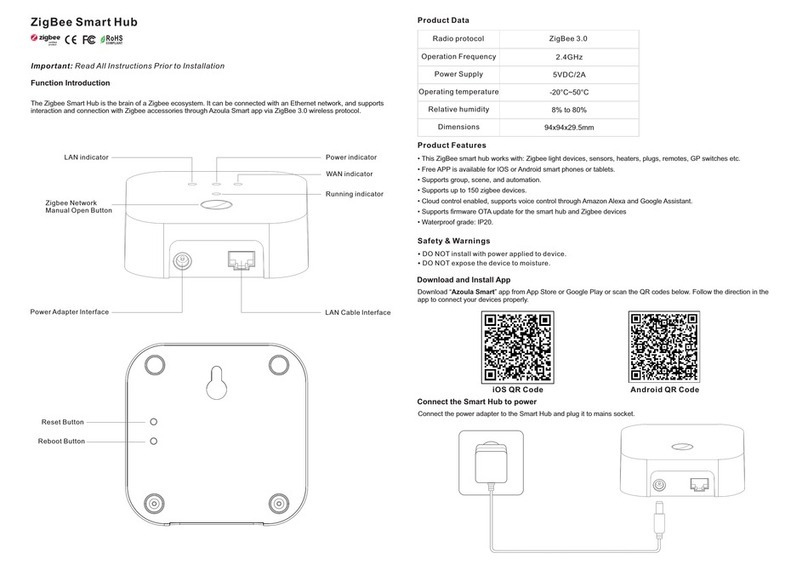

1.Introduction of Azoula Smart Hub
Azoula Smart Hub is a standard Zigbee 3.0 gateway designed to support common devices in smart homes, including ON/OFF lights, dimmable
lights, CCT lights, RGBCCT lights, sockets, Green Power switches, panel switches, remotes, curtains, thermostats, temperature and
humidity sensors, motion sensors, light sensors, occupancy sensors, door sensors, smoke sensors, water sensors, carbon monoxide
sensors, and combustible gas detectors, etc.
Azoula Smart Hub supports both local control and remote control. When using local control, it does not need to connect to the Internet
and only needs to be connected to the LAN for control. In addition, it supports local automation and scene functions without relying
on a cloud platform.
It also provides energy statistics for users to understand energy usage and develop a reasonable electricity plan accordingly.
In applications such as home and commercial lighting, multiple gateways may be required. Azoula Smart Hub supports the merging of
multiple gateways, which means integrating multiple gateways into one gateway.
Azoula Smart Hub is also compatible with third-party platforms such as Apple Homekit, Google Home, Amazon Alexa, and Home Assistant,
which further expands its compatibility and operability.
Azoula Smart Hub supports circadian rhythm(known as Adaptive Lighting in Homekit), which can simulate the natural changes of light
brightness and color temperature throughout the day, thus allowing us to experience the natural light.
Azoula Smart Hub supports OTA, including updates for the gateway itself and devices added to it.
Azoula Smart Hub adopts group control for controlling scenes and rooms, where all devices in a room and scene are synchronized.
Azoula Smart Hub supports connecting up to 150 devices, more than 200 in the actual test.
2.Install the App
iOS
In the App Store, search for “Azoula Smart” to install it.

Android
For overseas users, please search for “Azoula Smart” in Google Play to install it.
For domestic users, please install it from the following link.
https://app-api.awsunny.com/app/downloads?app=android/azoulasmart
Below is the QR code for the link.

3.Login to Azoula Smart Hub
There are two methods: LAN(Local) and remote, which will be explained separately below.
3.1 LAN Login
When logging into Azoula Smart Hub through the LAN, make sure your phone and the gateway are connected to the same LAN, usually
the same router. In this case, the router can be used without being connected to the Internet. It should be noted that as long as
your phone and the gateway are connected to the same LAN, you can log in to it through the LAN at any time, regardless of whether
it has been logged in remotely before.
Open the Azoula Smart app, and tap “Local Gateway Login”.
Then, the app will automatically search for existing gateways(there may be more than one) in the LAN, for example, the “test”
gateway is found, as shown in the image below.
Select the gateway that needs to be logged in, for example, tap the “test” gateway.
If you log in to this gateway for the first time, the app will prompt you to press the button on the gateway to confirm operation(in
order to increase security and prevent malicious addition). You should press this button within 30 seconds, otherwise the operation
will be invalid, as shown in the image below.

At the same time, the LED indicator on the Smart Hub will flash to remind you to confirm the operation, as shown in the image below.

Once you have pressed the button, you will successfully log in and enter the gateway system, as shown in the image below.
If it’s not the first time logging into the gateway, when selecting the gateway from the search list, you will directly log into
the gateway without the above confirmation operation.
3.2 Remote Login
To enable remote control, it’s necessary to log into the Smart Hub remotely. Below are the detailed instructions.
3.2.1 Register an Account
To log into the gateway remotely, you should first have an account. If you haven’t registered yet, please tap “Sign Up” to create
an account, as shown in the image below.

Fill in the information as instructed by the app and tap “Sign Up” to complete the registration. A verification code will be sent
to your Email box after tapping “Obtain”.
3.2.2 Login to the Account and Bind a Gateway
Open the app, and tap “Sign In” to log in with your registered Email address and password.

Upon successful login, the app will display a page for you to select the gateway you want to connect to, as shown in the image below.
Please tap the gateway icon that you want to connect to.
If the gateway you want to connect to is not in the list, it means you have not bound that gateway yet. You can tap “+” in the
upper right corner to search and add it. (Similar to LAN login method,you need to press the button on the gateway to confirm operation.)
Once you have successfully logged into the gateway, you will see a user interface similar to when using LAN login method.
3.2.3 Bind Multiple Gateways
If you need to bind more than one gateways, please follow these steps:
1. Open the app and select “Me” at the bottom.
2. Tap “>” on the right side of “Gateway”.

On the page that appears, tap “+”.
Then, the app will search for gateways in the LAN, and you can select the gateway that is found here.
The app will prompt you to press the button on the gateway to confirm.

At the same time, the LED indicator on the gateway will flash to remind you to press the button, as shown in the image below.
Once you have pressed the button, the app will return to the gateway selection page. On this page, tap the newly bound gateway icon
to switch to it, as shown in the image below.

3.2.4 Switch Gateways
The app can only connect to one gateway at a time(you can integrate multiple gateways, for more information please refer to section
16 “Gateway Integration”). When you have more than one gateway, you need to select one of them to connect. The steps are as follows:
Open the app to enter the main page.
Select “Me” at the bottom.
tap “>” on the right side of “Gateway”.
Then you can see a list of gateways. Select the gateway that you want to connect to in this list(the gateway that is currently connected
will have a “√” icon). After choosing a gateway, the App will only display sub-devices of that gateway.
3.2.5 Exit Remote Login
Once you have logged into the gateway remotely, the app will automatically log into the gateway remotely the next time you open
it. However, if you don’t want automatic remote login(due to potential security risks, such as someone else using your phone),
or you prefer to log in via the LAN, you must exit remote login. Below is how to log out of a remote login.
Please tap “Me” at the bottom of the app, and then tap “>” on the right side of your account.

On the Profile page that appears, tap “Sign Out” to exit.
3.2.6 Share Gateways
When logging in to the gateway remotely, only one user can add and bind it. However, we can share the gateway with other family
members or guests. The steps are as follows:
In the app, tap “Me”- “Settings”, as shown in the image below.

On the Settings page, tap “Family & Guests”, and then tap “+”, as shown in the image below.

On the Add User page, fill in the user’s account and set the role, and then tap “Invite” to complete the operation.
3.2.7 Unbind a Gateway
In the case of remote login to the gateway, each gateway can only be added and bound by one user, and it does not allow a second
user to add and bind (but sharing the gateway is possible). If you want to force the second user to add and bind the gateway and
log in remotely, you need to reset the gateway. Here are two methods to achieve this goal.
Method 1: Use the reset button on the back of the gateway to reset it. Press and hold the reset button for over 5 seconds, and the
LED indicator will flash to indicate a successful reset. This method will not delete any sub-devices and configuration data, including
created scenes, rooms, and automation.

Method 2: In the App, tap “Me”- “Setting”.
On the page that appears, tap “Reset Gateway”.

On the pop-up menu, select one of the following options: “Reset Settings” or “Erase All Content and Settings”. Choosing “Reset
Settings” will not delete sub-devices and configuration data, including created scenes, rooms, and automation, while choosing “Erase
All Content and Settings” will clear all data and restore the device to its factory settings.

4. Add Sub-devices
There two ways to add sub-devices: via the app or via the button on the gateway.
4.1 Add a Sub-device via the App
Open the app, log in to the gateway, select “Home” at the bottom, and then tap “+” in the upper right corner, as shown in the
image below.
On the page that appears, select the type of device you want to add. There are three options, as shown in the image below.

4.1.1 Add a Zigbee Device
Zigbee devices support two methods of adding. The first method is the regular searching method (Zigbee - Standard). For this method,
any sub-device that is in the network pairing state can be added to the gateway. The second method is through the Install Code (Zigbee
- Install Code). For this method, the sub-device has a QR code with an Install Code attached to it. The user needs to scan the QR
code with their phone and transmit the Install Code to the gateway. The gateway will only allow sub-devices that have been scanned
to be added. Compared to the first method, the second method prevents the possibility of accidentally adding sub-devices. For example,
if you are adding a sub-device and your neighbor's sub-device is also being added, there is a chance that your neighbor's sub-device
may be mistakenly added to your gateway. Here, we will only introduce the first method (the second method is similar to the first,
except that it needs an additional scanning process).
Select “Zigbee - Standard”, then tap “Start”, and the gateway will enable network joining permission and search for sub-devices.

At this time, the sub-device to be added needs to be in pair mode, please refer to your device’s manual to learn how to set it
to pair mode. The following image shows sub-devices that have been discovered and successfully added to the gateway.
