Sven PS-520 User manual

www.sven.fi
Portable Speaker System with
Bluetooth and FM-radio
PS-520
PS-580
USER MANUAL

Portable Speaker System with
Bluetooth and FM-radio
ENG
2
Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2021. SVEN PTE. LTD. Version 1.0 (12.07.2021).
This Manual and information contained in it are copyrighted. All rights reserved.
BUYER RECOMMENDATIONS
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer
equipment.
APPLICATION
SVEN PS-520, PS-580 portable multimedia speaker system with Bluetooth and FM-radio is
designed for operation with PC, notebooks and other mobile devices by means of data transfer
via Bluetooth protocol. It can be also used in internet telephony, during video conferences, in
multimedia applications, in interactive games, for speech recognition and foreign language
teaching. Microphone input with echo function, FM-tuner and the player with USB-flash and micro
SD-cards are included.
PACKAGE CONTENTS
• Speaker system – 1 pc
• 3.5 mm mini-jack to 3.5 mm mini-jack signal cable – 1 pc
• USB to micro USB power cable – 1 pc
• Remote control (RC) – 1 pc
• RC batteries (ААА type) – 2 pcs
• User Manual – 1 pc
• Warranty card – 1 pc
SPECIAL FEATURES
• Bluetooth wireless signal transmission
• Effective multi-colored lighting
• Wireless connection of two speakers to one source*
• Wired/wireless audio signal transmission
• Built-in player for audio files from USB-flash and micro SD card
• Built-in equalizer
• Microphone input with echo function
• Built-in FM tuner
• LED display
*only for models with production date from 04.2021

ENG
User Manual PS-520
PS-580
3

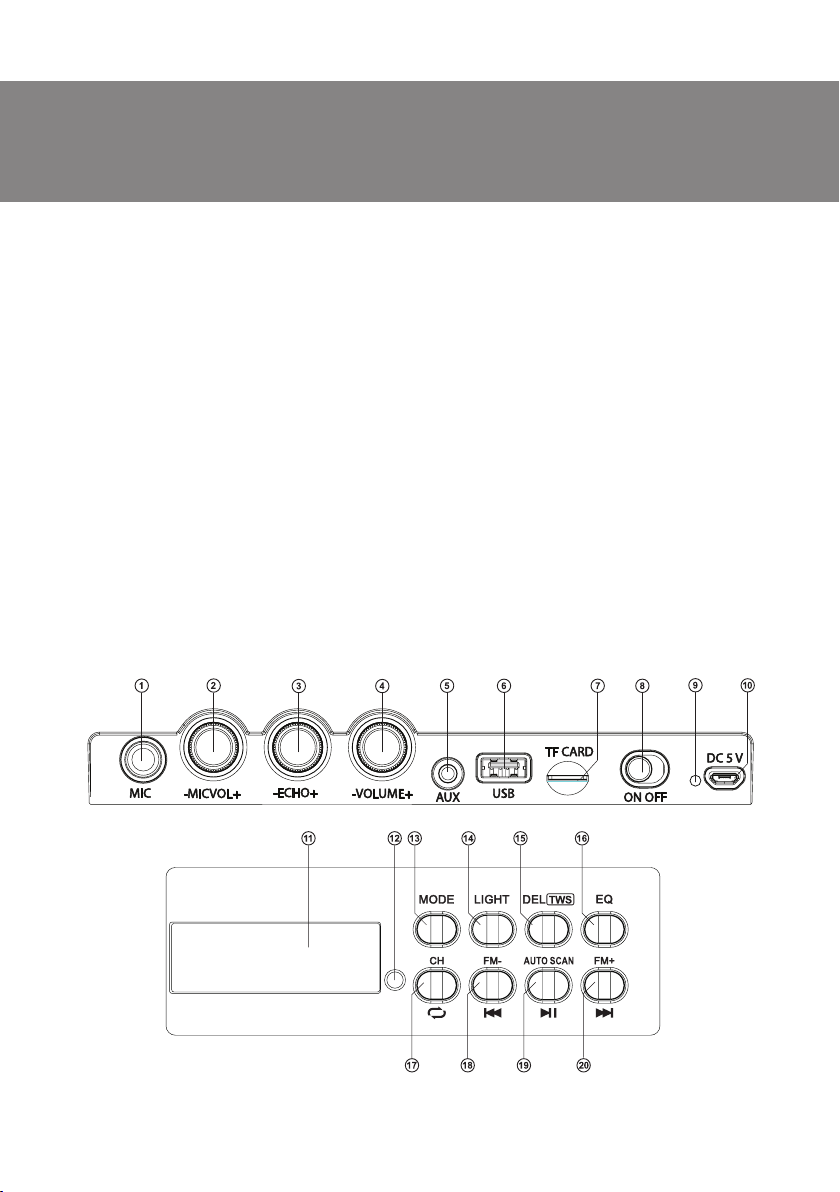

Fig.1.
Speaker system description
aMIC: 6.3 mm jack microphone jack
bMIC VOL +/-: microphone volume control knob
cECHO +/-: microphone echo adjustment knob
dVOLUME +/-: volume control knob
eAUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
fUSB: USB-flash card slot
gTF CARD: micro SD card slot
hON/OFF: POWER button
iIndicator
jDC 5V: micro USB jack for charger connecting, the USB port of laptop/PC
kDisplay
lIR receiver
mMODE: switching modes button: Bluetooth/Radio/Player/LINE IN (short pressing);
ON/OFF the service signals (long pressing)
nLIGHT: switching backlight modes (short pressing);
Turning on/off the backlight (long pressing)
oDEL(TWS): FM station deletion (long pressing in Radio mode);
Connecting an additional speaker (long pressing in Bluetooth mode)
pEQ: EQ mode switch button (short pressing);
Return to default settings (long pressing)

Portable Speaker System with
Bluetooth and FM-radio
ENG
4
qCH/ : button for switching between stations or frequency (in Radio mode);
Repeat mode selection button (in the Player mode):
ONE – repeats the current track;
RAND – play tracks in the random order;
ALL – plays all tracks in the sequential order
rFM-/ : previous track (short pressing in Player and Bluetooth mode);
Navigation on the track (long pressing in Player mode);
Previous track/station (in Radio mode)
sAUTO SCAN/ : Play/Pause button (in Player and Bluetooth mode);
Start/Stop auto scan (long pressing in Radio mode);
Mute (short pressing in Radio and LINE IN mode)
tFM+/ : next track (short pressing in Player and Bluetooth mode);
Navigation on the track (long pressing in Player mode);
Next track/station (in Radio mode)
Remote control
aMODE: switching modes button: Bluetooth/Radio/Player/LINE IN (short pressing);
ON/OFF the service signals (long pressing)
bLIGHT (MUTE): switching backlight modes (short pressing);
Mute (long pressing)
cREP: disconnect from the device (long pressing Bluetooth mode);
Repeat mode selection button (in Player mode)
dEQ: EQ mode switch button
eVOL-/+: volume up/down
f, CH-: previous track (in Player and Bluetooth mode)
Previous station (in Radio mode)
g, CH+: next track (in Player and Bluetooth mode)
Next station (in Radio mode)
h, AUTO SCAN: Play/Pause button (in Player and Bluetooth
mode);
Start/Stop auto scan (long pressing in Radio mode);
Mute (short pressing in Radio and LINE IN mode)
iFM-/+: frequency changeа (in Radio mode)
j0-9: numeric pad for entering track number (in Player mode)
or number track/station in Radio mode
Fig. 2.

ENG
User Manual PS-520
PS-580
5
CONNECTION AND OPERATION
Attention! The built-in battery must be charged completely prior to the application.
Speaker system battery charging
• Connect speaker system to a USB port of PC or USB charger using micro USB to USB cable
(included). During battery charging the indicator iis red. Indicator igoes out when the battery
is charged.
• The battery is used in the speaker system as an integral part of the device, therefore do not try
to extract or replace it, because this can result in the warranty cancellation or the device damage.
OPERATION MODES
Bluetooth mode
• Wireless data transfer via the Bluetooth protocol enables to connect speaker system to
compatible
devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other
electronic devices can interfere with the signal transfer.
• Turn on the speaker system Bluetooth mode – press button МODE mseveral times until display
shows «bt» inscription.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone,
notebook, smartphone, etc.). «SVEN PS-520/580», massage will be displayed on the screen which
is to be connected to*.
• When connection is successful, there will be a short beep and the indication of the search mode
on speaker system is over**.
* You might have to enter «0000» code to connect some models of devices via Bluetooth.
** If the item has been already registered in the device list of a source, then the second search mode
activation is not obligatory. Choose the item name «SVEN PS-520/580» and the «connect» command
on the source.

Portable Speaker System with
Bluetooth and FM-radio
ENG
6
Radio mode
Attention! To improve the reception quality of the radio signal, connect the 3.5 mm mini-jack cable
(included) to the AUX IN input
o .
• Turn on the speaker system – press button МODE mseveral times until the display shows the
station frequency. Long-term pressing button sactivates auto search mode. After scanning
completion, the first scanned radio station will start to operate automatically. With buttons r
and tselect a desired radio station.
Player mode
Attention! The file system of a micro SD carrier is FAT32. Maximum volume is 32 GB.
It is not recommended to use the micro SD Ultra Speed.
• The system will enter the Player mode automatically when a carrier (USB flash or SD card) is
connected to corresponding ports. Use button sto switch between Play/Pause modes. You can
control tracks by using buttons r(previous track) and t(next track).
The use in the wired mode (LINE IN)
• Speaker system can be used as an external device for amplifying any audio source with a 3.5 mm
output mini-jack. Connect a cable mini USB, plug 3.5 mini-jack to the audio input AUX e. Turn the
speakers to the LINE IN mode – press the MODE button mseveral times until «LINE» appears on
the display.
Connecting an additional speaker
(only for models with production date from 04.2021)
For models PS-520/PS-580 you can connect an additional speaker (Bluetooth mode only):
• Turn both speakers into Bluetooth mode.
• Connect the signal source to one of the speakers via Bluetooth (the second column should be
in search mode).
•On another speaker press and hold button DEL(TWS).
•If two speakers are successfully connected between themselves, the inscription TWS will glow
constantly.
Reset
To reset the settings, long press the EQ button until «RES»appears. Then press button hon the
RC or button son the front panel. Settings will reset.

ENG
User Manual PS-520
PS-580
7
TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the
improvement of SVEN production.
Parameter, measurement unit Value
Frequency response, Hz 80 – 22 000
Output power (RMS), W 36 (2 × 18 )
Speaker diameter, mm Ø 35 + Ø 100
Battery capacity, mA*h 2 000 (2 pcs)
Power supply USB/DC 5V
Weight, g 2 850
Dimensions, mm 460 × 243 × 175
Technical support is on www.sven..

Portable Speaker System with
Bluetooth and FM-radio
PS-520
PS-580
Models: PS-520, PS-580
Importer: Tiralana OY, Office 102, Kotolahden- tie 15, 48310
Kotka, Finland.
Импортер в России: ООО «РЕГАРД», 105082, г. Москва,
ул. Фридриха Энгельса, д. 75, стр. 5.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 56, стр. 1.
Условия гарантийного обслуживания смотрите в
гарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 12 мес.
Срок службы: 2 года
Производитель: «СВЕН ПТЕ. Лимитед», 176 Джу
Чиат Роуд, № 02-02, Сингапур, 427447. Произведено
под контролем «Свен Скандинавия Лимитед», 48310,
Финляндия, Котка, Котолахдентие, 15.
Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-
02, Singapore, 427447. Produced under the control of Oy
Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland,
48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
