USERS MANUAL
Bluetooth FM-
Portable Speaker System
with Bluetooth and FM-radio
PS-77
UNPACKING
Shipping and transportation equipment is permitted only in the original container.
Does not require special conditions for realization.
Dispose of in accordance with regulations for the disposal of household and computer
equipment.
APPLICATION
SVEN PS-77 portable multimedia speaker system with Bluetooth and FM-radio is
designed for operation with PC, notebooks and other mobile devices by means of data
transfer via Bluetooth protocol. They can be also used in internet telephony, during video
conferences, in multimedia applications, in interactive games. FM-tuner and the player
with micro SD-cards are included.
PACKAGE CONTENTS
Speaker system 1 pc
Mini-jack to mini-jack signal cable 1 pc
USB to microUSB power cable 1 pc
arabine 1 pc
Users Manual 1 pc
Warranty card 1 pc
SPECIAL FEATURES
Bluetooth wireless signal transmission
Built-in player for audio les from micro SD card
Built-in FM tuner
Wired connection
Waterproof (IPx5)
ENG
14
Portable Speaker System
with Bluetooth and FM-radio
Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2017. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
CONTENTS
RUS ................................................................................
UKR ................................................................................
ENG ................................................................................
2
7
13
b
ac
h
d
e
Speaker system description
a!Signal source wired connection jack
b!MicroUSB jack for connecting speakers to the charger, the USB port of laptop / PC
c!TF Card slot
d!Volume level up button (long pressing);
Next track (in Player, AUX and Bluetooth mode);
Next station (in Radio mode)
e!Volume level down button (long pressing);
Previous track (in Player!and Bluetooth mode);
Previous station (in Radio mode)
f!Play/Pause button (in Player and Bluetooth mode);
Start/Stop auto scan (long pressing in Radio mode);
Mute (short pressing in Radio mode);
Answer an incoming call. Press again to reset the incoming call
g Switching modes button: Bluetooth/Radio / Player/ AUX (short pressing);
POWER button (long pressing)
h!Operation mode indicator

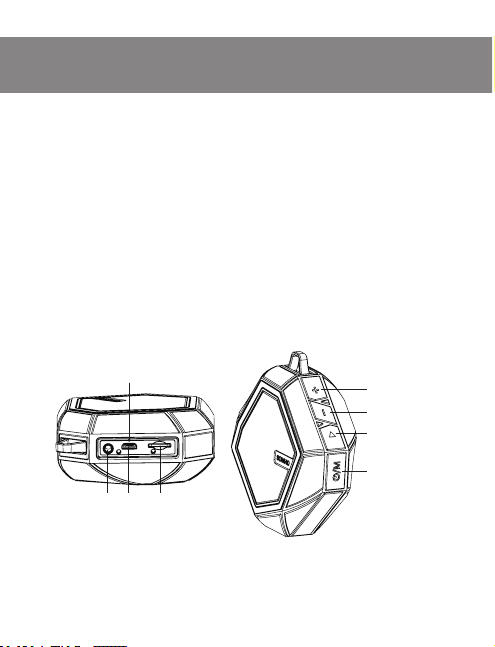

Fig. 1. Speaker system description
f
g
ENG
15
Users Manual PS-77
CONNECTION AND OPERATION
Attention! The built-in battery must be charged completely prior to the
application.
Speaker system battery charging
Connect speaker system to a USB port of PC or USB charger using microUSB to
USB cable (included). During battery charging the indicator is red. Indicator lights
green when the battery is charged.
The battery is used in the speaker system as an integral part of the device, therefore
do not try to extract or replace it, because this can result in the warranty cancellation
or the device damage.
OPERATION MODES
Bluetooth mode
Wireless data transfer via the Bluetooth protocol enables to connect speaker system
to compatible devises. Maximum radius of action of data transfer is 10 m. Such
obstacles as walls or other electronic devices can interfere with the signal transfer.
Turn on the speakers in Bluetooth mode.
It is necessary to select the search mode of devices with Bluetooth on a signal
source (telephone, notebook, smartphone, etc.). «SVEN PS-77» massage will be
displayed on the screen which is to be connected to*.
When connection is successful, there will be a short beep and the indication of the
search mode on speaker system is over**.
Radio mode
To improve the reception quality of the radio signal, connect the cable microUSB !
USB (included) to the input microUSB.
Turn on the speaker system press button g several times until speaker system
does not go to radio mode. Long press of a button f activates auto search mode.
After scanning completion, the rst scanned radio station will start to operate
automatically. With buttons d and e select a desired radio station.
* You might have to enter 0000 code to connect some models of devices via Bluetooth.
** If the item has been already registered in the device list of a source, then the second search
mode activation is not obligatory. Choose the item name «SVEN PS-77» and the connect
command on the source.
ENG
16
Portable Speaker System
with Bluetooth and FM-radio
Player mode
Attention! The le system of a micro SD carrier is FAT32. Maximum volume is 32
GB. It is not recommended to use the micro SD Ultra Speed.
!The system will enter the Player mode automatically when a carrier micro SD is
connected to corresponding ports. Use button!f to switch between Play / Pause
modes. You can control tracks by using buttons!e!(previous track) and!d!(next
track).
The use in the wired mode (AUX)
!To connect the speakers to an additional signal source use a AUX!connector and
3.5 mm mini-jack signal cable (not included).

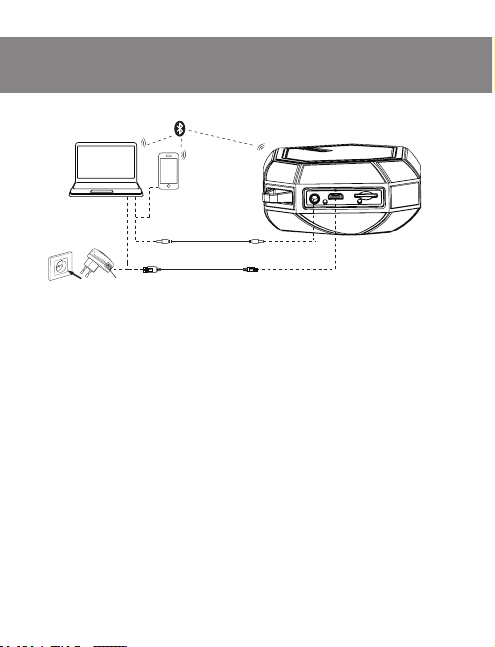

Fig. 2. Connection diagram
USB jack
Socket
Mobile
device
PC
USB to microUSB Power cable
Mini-jack to mini-jack signal cable
ENG
17
Users Manual PS-77
ENG
18
Portable Speaker System
with Bluetooth and FM-radio
TECHNICAL SPECIFICATIONS
Notes:
Technical specications given in this table are supplemental information and cannot
give occasion to claims.
Technical specications and package contents are subject to change without notice
due to the improvement of SVEN production.
Parameter, measurement unit
Frequency range, Hz
Output power (RMS), W:
Membrane, mm
Radius of Bluetooth operation, m
Battery capacity, mA / h
Power supply, V
Weight, g
Dimensions, mm
Value
speaker: 120 20,000;
microphone: 50 16,000
5
Ø 45
up to 10
600
USB/DC5
210
86 × 86 × 41
Technical support is on www.sven..
