Swisher L115260001 User manual

Read and follow all Safety
Precautions and Instructions
before operating this
equipment.
OWNER’S
ANUAL
1602 CORPORATE DRIVE, WARRENSBURG, ISSOURI 64093
PHONE [phone] FAX [phone] E AIL Custom[email protected]
ODEL NO.
STARTING SERIAL #:
L115260001
20020
anufacturing quality lawn care equipment since 1945
Safety
Assembly
Operation
Service and Adjustment
Repair Parts
I PORTANT
swisherinc.com
19967 REV 15-260
Model 20020 shown
ROAD BUSTER
GRA EL GRADER

ӡ
2
LIMITED WARRANTY
TABLE OF CONTENTS
WARRANTY………………....….2
SAFETY..………………………...3
TOWING..….……..……………...4
MAINTENANCE/STORAGE…...5
TRANSMITTER/RECEI ER…...6
ASSEMBLY……………………..7-8
POWER AND CHARGING…………..9
PARTS BREAKDOWN……………..10-12
DECALS…..………….……………….13
NOTES/MAINTENANCE LOG……...13
SPECIFICATIONS..…………………..14
The manufacturer’s warranty to the original consumer purchaser is: This product is free from defects in
materials and workmanship for the period's shown below beginning from the date of purchase by the original
consumer purchaser. We will repair or replace, at our discretion, parts found to be defective due to materials or
workmanship. This warranty is subject to the following limitations and exclusions:
Materials and Workmanship 3 Years
Commercial Use The warranty period for this product when used for commercial or rental
is limited to 1 year from the date of original purchase.
Limitation This warranty applies only to products which have been properly
assembled, adjusted, and operated in accordance with the instructions
contained within this manual. This warranty does not apply to any
product of Swisher that has been subject to alteration, misuse, abuse,
improper assembly or installation, shipping damage or to normal wear of
product.
Exclusions Excluded from this warranty are normal wear items, normal or routine
adjustments, and normal or routine maintenance.
In the event you have a claim under this warranty, you must return the product to an authorized service dealer.
All transportation charges, damage, or loss incurred during transportation of parts submitted for replacement or
repair under this warranty shall be borne by the purchaser. Should you have any questions concerning this
warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase,
and the name of the authorized Swisher dealer from whom you purchased the splitter will be needed before any
warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DA AGES AND ANY I PLIED WARRANTIES ARE LI ITED TO THE SA E TI E PERIODS
STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not allow the limitation of
consequential damages or limitations on how long an implied warranty may last, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights and you may have other rights,
which vary from state-to-state. This is a limited warranty as defined by the Magnuson-Moss Act of 1975.

3

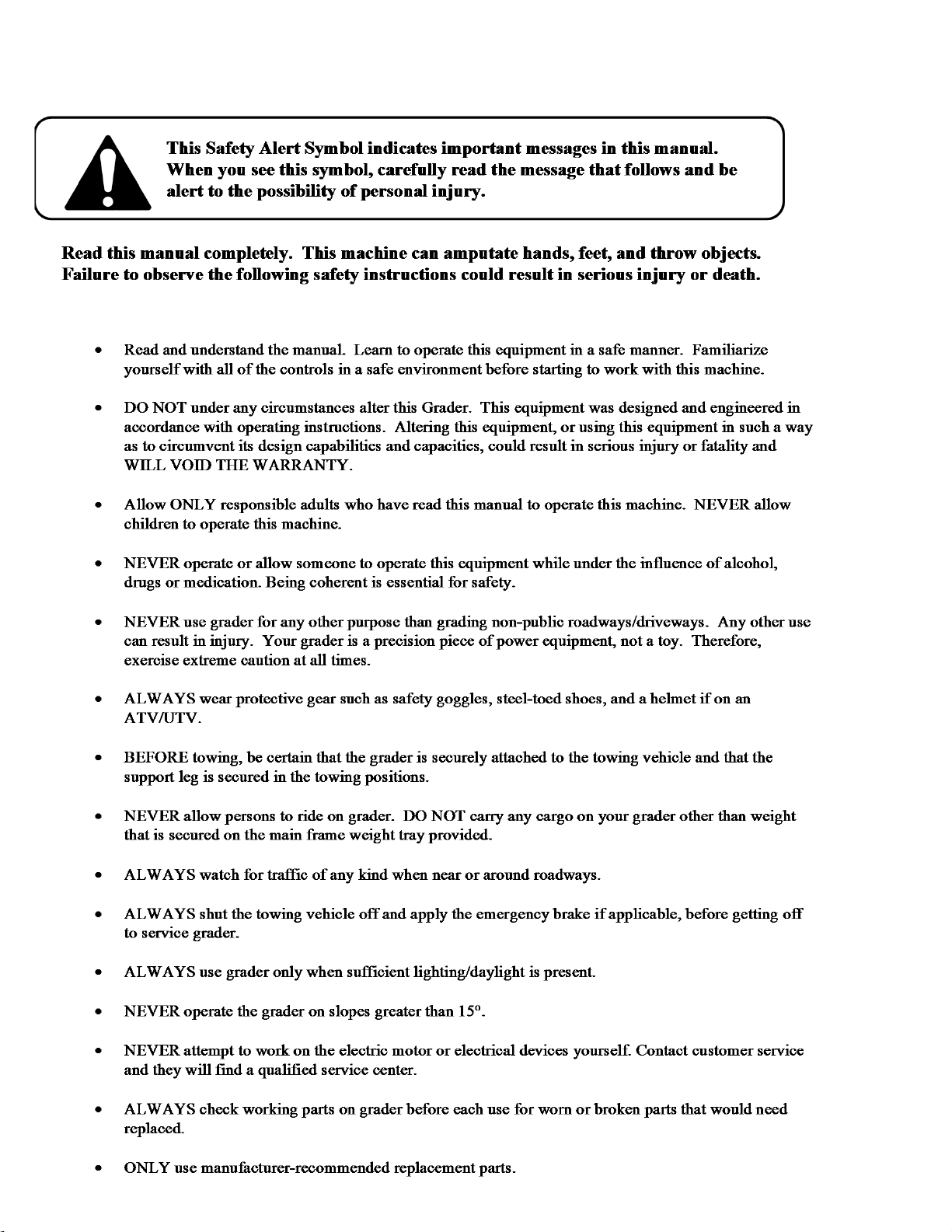

SAFETY PRECAUTIONS

4
TOWING SAFETY

5
When storing the grader always lower the grader to which the scarifiers contact the ground and the
actuator is relieved of carrying any load. It is not recommended to ever leave the grader stored with
the actuator holding the weight of the unit.
It is recommended to use the jackstand provided to raise and lower the unit when connecting and
disconnecting from vehicles. DO NOT try and lift the weight of the grader by yourself when
uncoupling, it may cause injury.
INTENDED USE / RECO ENDED VEHICLES
The grader is intended to refinish non-public driveways or roadways consisting of primarily
gravel and or rock. Be aware of your surroundings and what is beneath the ground you
intend to use the grader on. ALWAYS avoid large rocks, embedded obstacles, and buried
utilities such as gas, electric, or phone lines.
A minimum of a 500 cc ATV/UTV or a 20 HP /500 lb. garden tractor is required to pull the
grader and Four-wheel or all wheel drive is always recommended when available on the
vehicle to gain maximum traction to ensure best performance.
Understand that the amount of ground engagement with the scarifiers depends strongly on
the type of vehicle you are using and media make up that you are refinishing. The looser the
media and the more
traction from vehicle allows more ground engagement and the lighter the
vehicle and more hard packed the media allows less engagement.
It is recommended to start with minimum engagement (1/4”-1/2”) when beginning to refinish
an area, and as the ground loosens increase the depth of engagement on scarifiers.
The grader design allows the operator to add weight to the unit if necessary to break up the
ground when pulled with an adequate vehicle. The weight area is located in the main frame
section on the unit on either side of the actuator mount. Any additional weight should not
exceed 100 lbs and should always be secured within the weight area by any means possible.
MAINTENANCE & STORAGE
Fig. 1
Fig. 2

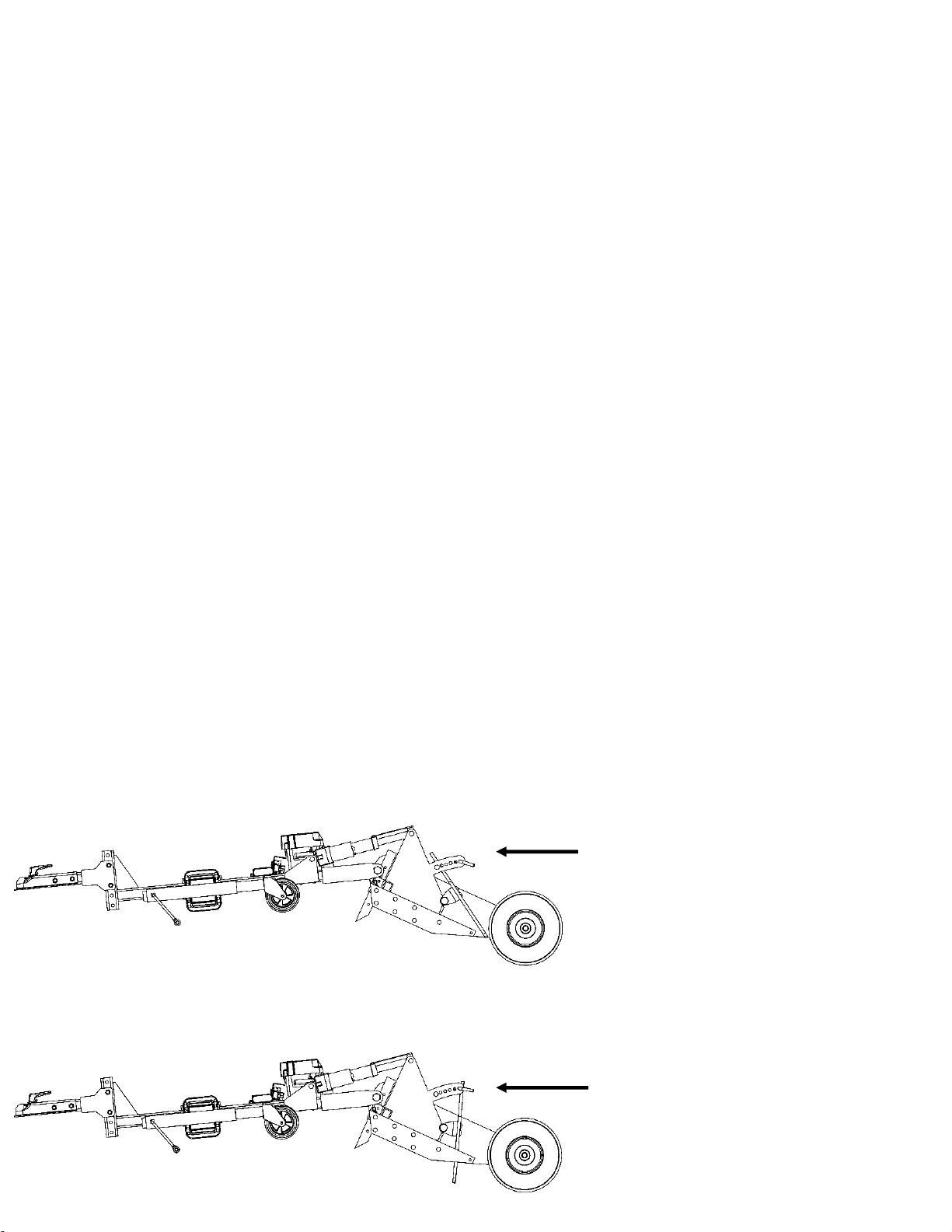

The rear blade on the grader can be
used in several positions depending
on the work you are doing.
In fig. 1 the blade is free floating and
only restrained by the a pin in the last
pin position. This allows the blade to
swing freely and the weight of the
blade helps level and smooth loose
media. In fig 2 the blade is pinned in
the upright position and the grader
can act as a scrapping blade when
scarifiers are raised up away from
media.

쫀Ӝ
TRANS ITTER AND RECEIVER
The grader comes equipped with a remote control to raise and lower
the unit by electric actuator. The remote has two buttons, one to
extend and one to retract the actuator. Follow the directions
below to activate the remote once battery is installed.
1) Once receiver is plugged into a power source, with the
remote in hand hold down the button on the receiver box
until a GREEN LED light comes on solid.
2) Once the GREEN LED is solid hold down one of the buttons
on the remote for approximately one second and verify the
GREEN LED light flashes momentarily when button is
pressed.
3) Repeat this process but with the opposite button on the
remote
4) Once both signals have been sent to the receiver the LED
light on the receiver should turn solid RED. This means
your transmitter and receiver are now paired.
5) Press the IN and OUT button as needed.
To turn off the wireless system press the button on the receiver box
once and ensure there is no longer a LED light on.
LED Indicator Light
Steady RED – The system is active and ready to use.
Flashing RED during use – The battery or power source is low.
RED light is off – The wireless remote control is turned off, or not
active.
Replacing batteries
If the indicator light on the handheld remote
flashes during use, the batteries are
low and should be replaced.
1) Remove the two screws from the
handheld remote located on the back
of the remote.
2) Separate the top and bottom sections
of the remote using a flat head screw
driver or similar device.
3) Remove the old batteries and dispose
in accordance with local
environmental regulations.
4) Insert (2) new A23 style alkaline
batteries as shown with the positive
terminals facing the switches. Do not
mix old and new batteries.
5) Join the top and bottom sections
making sure they snap together and
rubber seal remains intact.
6) Secure with the two screws.
Battery Location
Screws
OUT
IN
6

7
ASSE BLY
This grader has been mostly assembled at the factory. Refer to uncrating and assembly
instructions below to complete the final assembly steps. Refer to the drawings and part lists
should it become necessary to disassemble the unit for repair or replacement of parts.
Inspect all components for damage. If you believe you have a damaged part please contact
customer service immediately at 1-800-222-8183.
TOOLS REQUIRED: (2) ¾” WRENCH OR SOCKET, (2) 1 ¼”
WRENCHES/SOCKETS OR LARGE CRESCENT WRENCHES
HA ER, CROW BAR/PRY BAR, WIRE CUTTERS, GLOVES
AND PROTECTIVE EYEWEAR RECO ENDED
WARNING:
Exercise extreme caution,
as parts are very heavy. Sufficient
persons or mechanical handling
equipment should be used.
Step 1: Carefully remove top,
sides, and ends of crate with
hammer and pry bar.
Step 2: Remove the ball coupler
assembly #1 from within the frame
assembly and install it on to the tongue
assembly with the NB577 (bolts) #2
and NB281 (nuts) #3 provided.
STEP 1
STEP 2

ӟ
Step 4: Once the two main frame assemblies
are fastened, install the 20008TK height
indicator bracket #1 over the actuator #4 and
slide towards front of unit. While holding
actuator up run NB132 bolt #5 through frame,
20008TK #1, 19942TK #2, actuator, then
through second spacer and opposite side of
bracket. Capture the bolt with the NB281 nut
#3 provided.
ASSEMBLY CONTINUED
SHOWN BELOW IN FIG. 2 IS THE PROPER
ASSE BLY OF HEIGHT INDICATOR AND
ACTUATOR.
Fig. 2
Step 3: Remove main tongue assembly
from crate and bolt both frame ends #1 to
the inside of main frame rail sides using
(2) 11431 bolts #2 and (2) 13997 nuts #3
provided. Tighten hardware snug but do
not lock completely, allow frame
assemblies to hinge.
STEP 3
STEP 4
8

Supplying Power to the Grader
The grader is supplied with two power leads. The remote power lead (20038) is
designed to be attached to your AT /UT or other vehicles 12 battery. The onboard
power lead (20039) is designed to hook up to a battery installed directly on the grader.
Both power leads plug directly into the grader wiring harness but only one can be used
at a time. The 20039 harness requires (2) NB524 nuts and (2) NB690 bolts to fasten to
battery posts. These are located in the parts bag.
Caution: Always be sure to install RED wire of lead to Positive side of battery
and BLACK wire of lead to the negative side of battery. ALWAYS disconnect
negative (black) lead from battery first and install negative (black) last when
reconnecting to battery.
Caution: Always be sure to secure the remote lead to tongue of grader and vehicle
so not to drag on ground or become tangled in unit.
*Below is a visual of all harnesses and where the connections attach.
NOTE: Grader does not come supplied with a battery but has the option of installing
an onboard battery. The unit is designed to use a 12 U1 or U1 deep cycle battery.
Any other style of battery may not mount on unit correctly or allow unit to function
properly.
aintaining Battery: It is very important to recharge a battery after each use or
if completely drained, and also recommended to install a battery tender (charger)
on to the battery when not in use. IT IS NOT recommended to charge a battery
at more than a 10 amp rate for extended periods of time.
19972 ain Harness
20039 Harness
20038 Remote Harness
IN/OUT Switch
Relays
Power Source
Actuator
Receiver Box
Power Source Connection
Connects to 12 Battery
9
30 AMP FUSE

耰ӝ

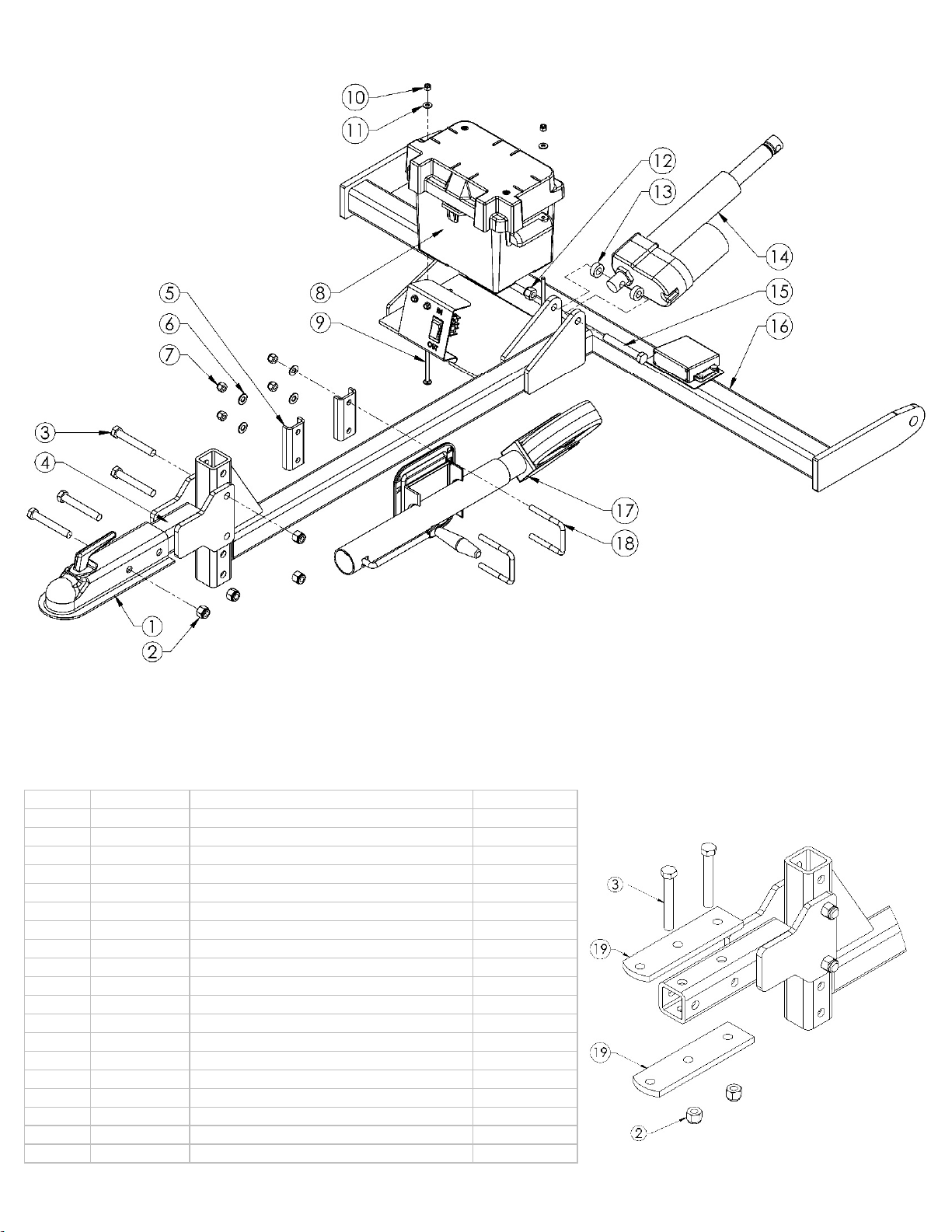

ITEM NO. PART NUMBER DESCRIPTION QTY.
1 7365 Coupler - 2 Ball 1
2 NB281 Nut - Nyloc 1/2-13 ZY 4
3 NB577 Bolt - 1/2-13 X 3 1/2 GR5 ZY 4
4 19958TK Weldment - Hitch, Grader; Txt Blk 1
5 19477TK Plate - Support, Kickst and Txt Blk 2
6 NB272 Washer - SAE Flat 3/8 ZY Carbon Steel 4
7 NB182 Nut - Nyloc 3/8-16 ZY 4
8 19974 Battery - Box, Grader 1
9 NB100 Bolt - Carriage, 1/4-20 X 6 GR5 2
10 NB180 Nut - Nyloc 1/4-20 2
11 NB274 Washer - SAE Flat 1/4 ZY 2
12 NB281 Nut - Nyloc 1/2-13 ZY 1
13 19942TK Spacer - .515 ID X 1 OD X .500 , Txt Blk 2
14 19957 Actuator - 12VDC, 20:1, ACME 6 , 1500# 1
15 NB577 Bolt - 1/2-13 X 3 1/2 GR5 ZY 1
16 19946TK Weldment - Main Tongue, Grader; Txt Blk 1
17 19179 Jackstand 1
18 12447 Ubolt - SQ , 3/8-16X2.437 X 3 Lg GR 5 ZY 2
19 19962TK Plate - Hitch, Latch; Txt Blk 2
10
PARTS BREAKDOWN
LATCH PIN OPTION
(Latch pin plates included in parts bag)

11

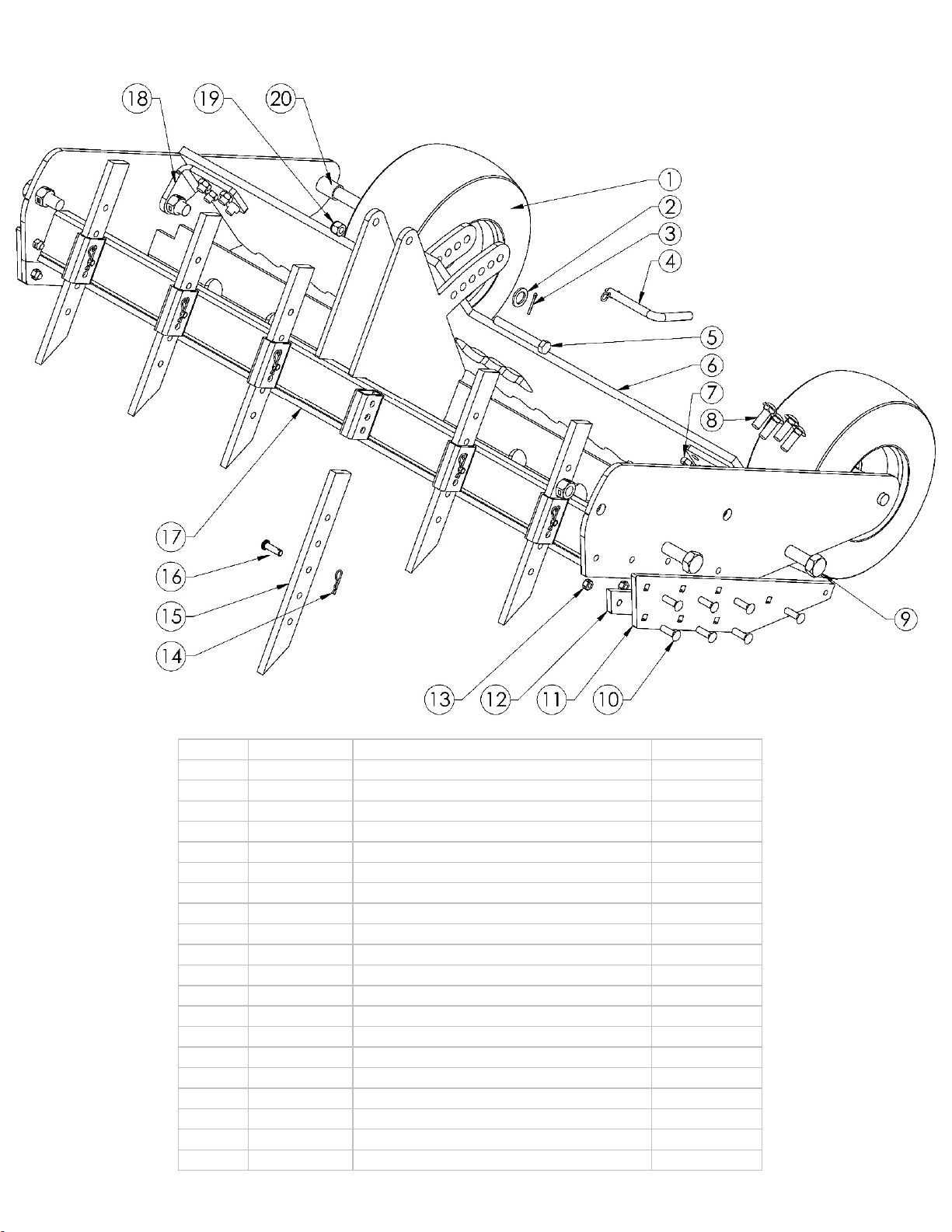

PARTS BREAKDOWN
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 19971 Tire -13 X 650-6 3/4 ID Smooth 2
2 NB195 Washer - 13/16 X 1 1/4 X 1/8 ZY; Mild 2
3 NB126 Pin - Cotter, 1/8 X 1, Crbn Stl Ext Prng 2
4 15177 Bent Pin - W/ Hair Pin 1/2OD X 3.5, ZP 1
5 NB132 Bolt -1/2-13 X 4 HCC GR5 ZY 1
6 19944TK Plate - Rake, Grader, Txt Blk 1
7 NB121 Nut - Jam Lock, 1/2-13 2-Way Gr A 8
8 20057 Bolt - Carriage, 1/2-13 X 1 1/2 GR5 ZY 8
9 11431 Bolt - 3/4-10 X 2 GR8 ZY 4
10 10501 Bolt - Carriage 3/8-16 X 1 1/4 GR5 ZY 14
11 19941TK Plate - Outer Skid, Grader, Txt Blk 2
12 19940TK Plate - Inner Skid, Grader, Txt Blk 2
13 NB280 Nut - 2 Way Lock 3/8-16 ZY & Wax Gr A 14
14 NB127 Pin - Hair, #39 (A155H) ZY Std 6
15 19943TK Scarifier - 4140 Rc28-32, Txt Blk 6
16 20051 Pin - Clevis, Std 3/8 X 1 1/4 ZY 6
17 19929TK Weldment - Main Frame, Txt Blk 1
18 19945TK Bracket - Rake Hinge, Grader; Txt Blk 2
19 NB281 Nut - Nyloc 1/2-13 ZY 1
20 19961TK Spacer - .750 ID X 1 OD X 1.250, Txt Blk 2

12
PARTS BREAKDOWN
ELECTRICAL CONTROLS
HEIGHT INDICATOR
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 19858 Button - Plastic, Top 2
2 19857 Button - Plastic, Bottom 2
3 NB281 Nut - Nyloc 1/2-13 ZY 1
4 20008TK Bracket - Height Indicator Txt Blk 1
5 19942TK Spacer - .515 ID X 1 OD X .500 , Txt Blk 2
6 NB577 Bolt - 1/2-13 X 3 1/2 GR5 ZY 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 NB524 Nut - Serr Flange, 1/4-20 Grade 5 ZY 2
2 15749 Electrical - 12V 30 AMP Relay 2
3 NB690 Bolt - Serr Flange, 1/4-20 X 3/4 GR5 ZY 2
4 19978 Switch - DPDT, 30A, On-Off-On MOM 1
5 NB250 Bolt - 1/4-20 X 3/4 GR5 ZY 2
6 19970 Remote - Wireless, Grader 1
7 NB180 Nut - Nyloc 1/4-20 2

SAFETY DECALS
Replace decals immediately if damaged.
13
20082
20068
The operation of any grader can produce foreign objects to be
thrown into the air, resulting in severe eye damage. Always
wear certified safety glasses or wide-vision safety goggles
over spectacles before and while operating such a machine.
MAINTENANCE LOG
Date of Service Service Performed Notes

ӡ
SPECIFICATIONS
14
Dimensions
Length 95"
Width 50"
Weight 80lbs
Shipping Dim. 51.5" X 51.5" X 24"
Shipping Weight 460lbs
Working Dimensions
Working Width 50"
Max. Teeth Ground Clearance 10"
Grading Depth Range 1-10" 2" max. ground engagement recommended with ATV/UTV
Total Scarifier Adjustment 9"
Material
Frame Welded /8" Steel & Tube
Scarifiers Hardened 1/2" Steel
Hardware Minimum Grade 5
Towing
Recommended Towing Vehicle Minimum 500cc ATV/UTV 4X4 Desired
Hitch Style 2" Ball Coupler and Hitch Pin both Standard
Miscellaneous
Actuator 1500 # Industrial Remote Controlled Linear
Tires/Wheels 1 X 650-6 /4 ID Smooth
Power Source 12V U1 Deep cycle battery recommended

ӡ
15
SWISHER HISTORY
Back before electricity came to rural Missouri Max Swisher was producing lawn mowers
from his mother’s chicken house. Max never liked to mow grass. He installed a
gearbox on his family’s lawn mower creating a self-propelled unit. By tying one end of a
rope to the mower and the other end to a tree in the center of the yard the mower
circled the tree, shortening the rope and guiding the mower in concentric circles. Max
enjoyed relaxing under a shade tree while his invention did all the work.
Max had designed his first self-propelled rotary lawn mower to do his dirty work for him.
Neighbors noticed his new invention and began asking him to make more. Today, 60
years later, Swisher is still producing innovative lawn and garden and ATV/UTV
equipment designed to give us all more “relaxing in the shade” time.
Swisher products have been featured nationally on television programs such as Regis
and Kathie Lee and seen in publications like ATV Magazine, Country Journal, Popular
Mechanics Magazine and others. In January 2000 Popular Mechanics Magazine
named Max’s zero turning radius riding mower one of the 20th century’s top household
inventions.
Swisher offers value and function in its products to meet your grounds maintenance
needs.
CELEBRATING OVER 70 YEARS OF INNOVATION
SINCE 1945

좠ӣ
OWNER’S
ANUAL
ODEL NO.
20020
HOW TO ORDER
REPAIR PARTS:
GRAVEL
GRADER
ROAD
BUSTER
Each Grader has its own serial number.
All Grader parts listed herein may be ordered directly from
Swisher, your nearest Swisher dealer, or from our website.
WHEN ORDERING PARTS, PLEASE HA E THE
FOLLOWING INFORMATION A AILABLE:
* PRODUCT – SWISHER GRADER
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________
* TYPE - _______________
* PART NUMBER
* PART DESCRIPTION
www.swisherinc.com
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWISHER
1602 CORPORATE DRI E
WARRENSBURG, MO 64093
SWISHER
