Symbol CRD 2x00 - 1000S User manual

CRD 2x00 - 1000S
Serial/Charging
Cradle

Single Slot
Serial/Charging
Cradle
©2001 SYMBOL TECHNOLOGIES, INC. All rights reserved.
Symbol reserves the right to make changes to any product to improve reliability,
function, or design.
Symbol does not assume any product liability arising out of, or in connection with, the
application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under
any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Symbol products might
be used. An implied license exists only for equipment, circuits, and subsystems
contained in Symbol products.
Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc.
Other product names mentioned in this manual may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged.
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com
Patents
This product is covered by one or more of the following U.S. and foreign Patents:
U.S. Patent No. 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095;
4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281;
4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461;
5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149;
5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791;
5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163;
5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,324,924; 5,337,361; 5,367,151;
5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140;
5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949;
5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621;
5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679;
5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803;
5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153;
5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731;
5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050;
5,848,064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146;
5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659;
5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,029,894; 6,031,830; 6,036,098; 6,047,892;
6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,082,621; 6,084,528; 6,088,482;
6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265;
6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681;
6,209,788; 6,209,789; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,308,061;
6,250,551; 6,295,031; 6,308,061; 6,308,892; 6,321,990; 6,328,213; 6,330,244; 6,336,587;
6,340,114; 6,340,115; 6,340,119; 6,348,773; 6,380,949; 6,394,355; D305,885; D341,584;
D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250;
D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035;
D430,158; D430,159; D431,562; D436,104.
Invention No. 55,358; 62,539; 69,060; 69,187, NI-068564 (Taiwan); No. 1,601,796; 1,907,875;
1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832;
France 81/03938; Italy 1,138,713
rev. 06/02

1
Quick Reference
Introduction
This guide describes how to set up and use the single slot serial/
charging cradle with Symbol PPT 2700 and PPT 2800 terminals.
The cradle:
• provides power for operating the terminal
• provides serial port data communication between a terminal
and a host PC or other external device (e.g., a printer)
• synchronizes information between your terminal and a host
PC running Windows®ActiveSync®software
• synchronizes information between your terminal and a host
PC or corporate database (requires custom software)
• re-charges the terminal’s battery and a spare battery
The cradle requires a 9VDC power supply, and provides 9VDC
power to an inserted terminal.
About This Guide
Specific topics in this guide include:
•Parts on page 2
•Connecting to Power on page 3
•Inserting the Terminal on page 3
•Connecting to a Host PC or a Serial Device on page 4
•Synchronizing Data With a Host PC on page 6
•Terminal Battery Charging on page 8
•Spare Battery Charging on page 9
•Troubleshooting on page 10
•Regulatory Information on page 11
•Service Information on backcover.
For detailed information on any PPT 2700 or PPT 2800 terminal,
refer to the Quick Reference Guide or Product Reference Guide
for that terminal.

2
CRD2x00-1000S

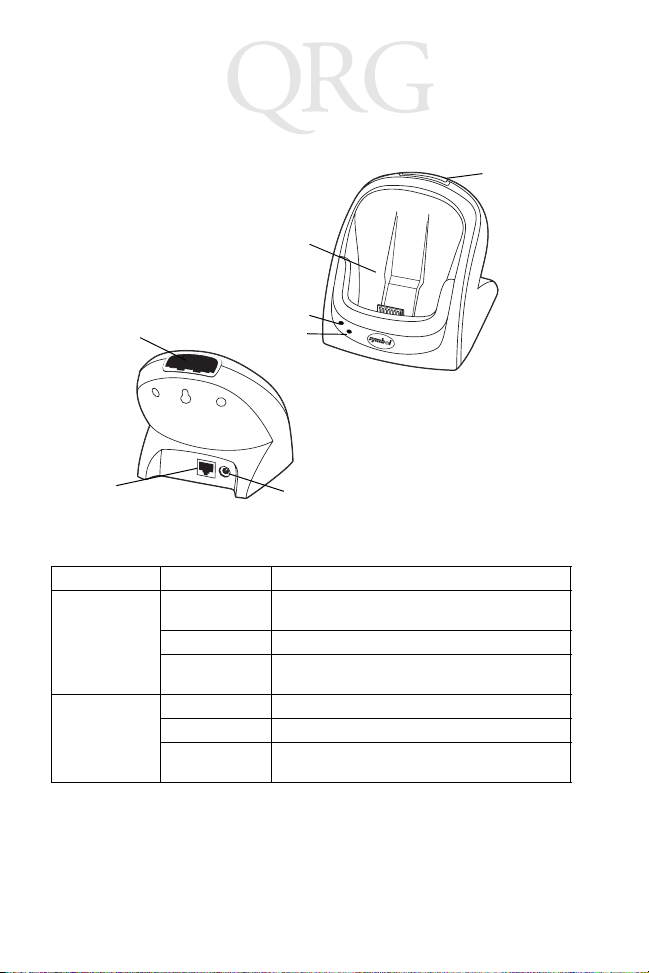

Parts
LED Indicators
LED Indicator Meaning
Terminal Status Solid Red Terminal battery is charging. This occurs
whether the terminal is on or off.
Solid Green The terminal battery is fully charged.
No Light No power or there is no terminal inserted in cra-
dle.
Spare Battery Solid Red Spare battery is charging.
Solid Green Spare battery is fully charged.
Flashing Red Spare battery is defective. See Charging Spare
Batteries on page 9.
Spare Battery LED
Spare Battery
Slot for Terminal
Serial Port Power Port
Terminal Status LED
Charging Slot
Spare Battery
Charging Slot

3
Quick Reference

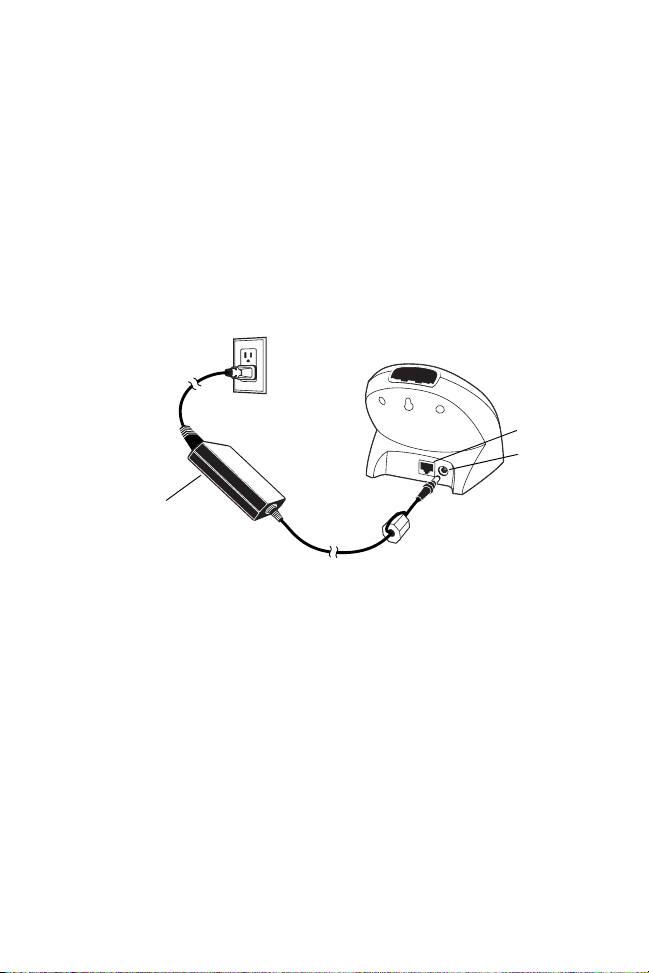

Connecting to Power
The cradle provides power to a PPT 2700 or PPT 2800 terminal,
and re-charges terminal batteries.
To connect the cradle to a power source:
1. Connect one end of the power input cable to the power port
on the back of the cradle.
2. Connect the other end of the power input cable to a wall
outlet, as shown below.
3. To see if the cradle has power, insert and power on a terminal.
- If the Terminal Status LED turns red, the cradle has pow-
er. Note that if the battery is already fully charged the
LED turns green.
- If the Terminal Status LED does not react, the cradle may
not be receiving power, or the terminal may not be com-
municating with the cradle. For more information, see
Troubleshooting on page 10

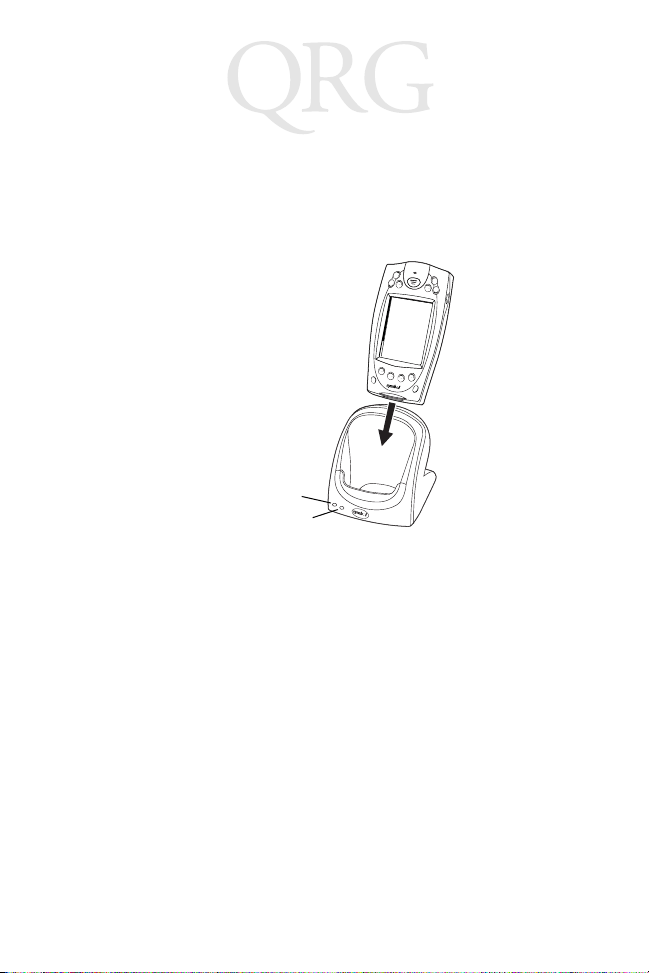

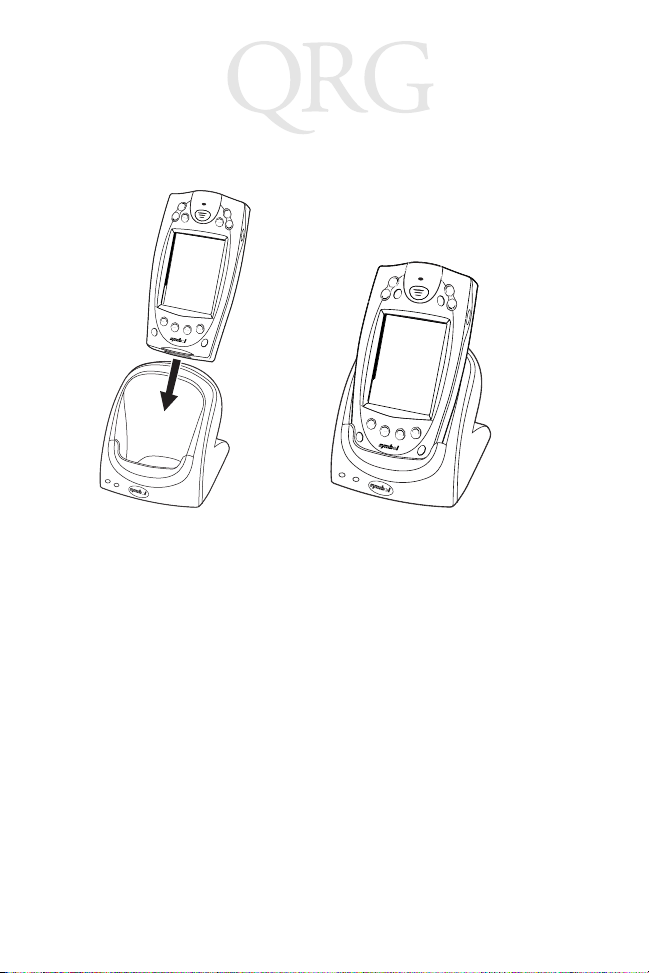

Inserting the Terminal
Insert the terminal as shown below. When inserted correctly:
• the bottom of the terminal fits smoothly into the cradle.
Serial Port
Power Port
Power Input
Cable

4
CRD2x00-1000S
• the Terminal Status LED lights up (red, if battery is charging).
If the battery is fully charged, the Status LED turns green.
Connecting to a Host PC or a Serial Device
Host PC
To enable synchronization, make sure Windows CE Services/
ActiveSync Software have been installed and configured on both
the terminal and the Host PC. For software installation
instructions, see the Product Reference Guide for your terminal.
To use the cradle to provide serial communications between a
terminal and a host PC:
1. Connect the cradle to a power supply.
2. Connect one end of a serial cable to the cradle Serial Port.

5
Quick Reference
3. Connect the other end of the serial cable to the host PC.
Note: The cradle requires a dedicated serial port on the host
PC. It cannot share a port with an internal modem or
other device.
Serial Devices
To use the cradle to provide serial communications between a
terminal and a serial device:
1. Make sure the terminal is set up with the software necessary
for communicating with the serial device.
2. Connect the cradle to a power supply.
3. Connect one end of a serial cable to the cradle’s Serial Port.
4. Connect the other end of the serial cable to the serial device.
For example, to connect the cradle to a printer, run the cable
from the cradle serial port to the printer serial port.
Note: Some serial devices may require an adapter to ensure
RS-232 signals are routed to the correct pins on the
serial device. The CRD2x00-1000S RS-232 connector
is designed to connect directly to a PC COM1 port.

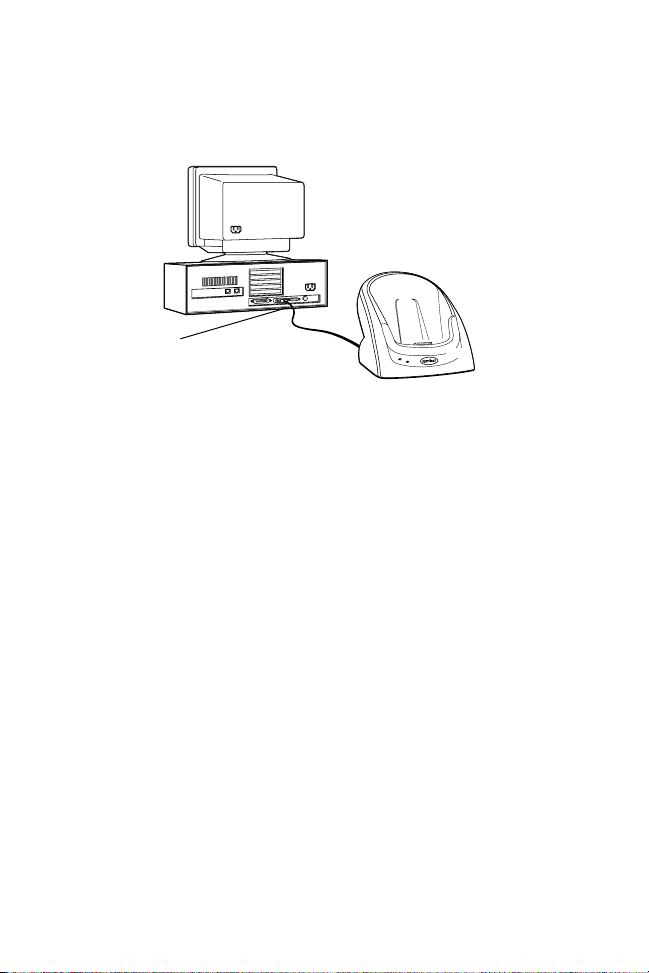

Serial Port
on host PC

6
CRD2x00-1000S
Synchronizing Data With a Host PC
This section describes how to use the cradle to synchronize infor-
mation between a terminal and a host PC. After you synchronize,
any changes you have made on your terminal or in your desktop
software appear in both places.
Installing Communication Software
Before using the cradle to synchronize information between a ter-
minal and a host PC, you must install and configure communica-
tions software appropriate for your terminal. These instructions
assume you are using the ActiveSync software. For instructions
on installing and configuring this software, see the Product Refer-
ence Guide for your terminal. If you require more detailed informa-
tion on the ActiveSync process, refer to the PPT2700 Product
Reference Guide, p/n 70-37806-xx, PPT2800 Product Reference
Guide, p/n 72-50931-xx, or Microsoft®Windows®CE Pocket PC
User’s Guide.
Performing an ActiveSync Operation for the First Time
The first time you synchronize information, you must create a part-
nership using a local, direct connection, rather than a modem. You
may also be prompted for user information both on the terminal
and on the host PC.
To perform an ActiveSync operation for the first time:
1. On the terminal, enable Settings - Connections - PC -
Automatically synchronize when serial cable is connected
using: and select 57,600 baud rate.
2. After installing the Windows CE Services/ActiveSync Host
PC Software, restart your desktop computer. Ensure
ActiveSync connection over serial is allowed and the correct
host PC COM port is specified.
3. Turn on the terminal and slide it into the cradle. The host
ActiveSync should detect the insertion and display the new

7
Quick Reference
partnership dialog box. The terminal should similarly indicate
a “connected” status.
4. On the desktop computer, enter a unique device name for
your terminal and click the Next button. Follow the
instructions on the screen to set up a partnership that allows
synchronization of information between the two computers.
Items to be synchronized may be customized.
Important:Every terminal should have a unique name. Never try to
synchronize more than one terminal to the same user name.
Synchronizing Data Using ActiveSync
To synchronize data between the terminal and a host PC:
1. Make sure the host PC is running ActiveSync and serial
connection is enabled on the COM port you are using.
2. Insert the terminal into the cradle.
3. An ActiveSync progress dialog appears and the
synchronization process begins automatically.
4. Wait for the software to display a message indicating that the
process is complete. The length of time this takes depends
on the amount of information being synchronized.

8
CRD2x00-1000S
Terminal Battery Charging
To recharge the terminal’s lithium-ion battery using the cradle:
1. Ensure the cradle is powered.
2. Insert the terminal in the cradle.
3. The Terminal Status LED turns red to indicate charging, then
green when the battery is fully charged.
If the terminal is off when being charged. the terminal’s battery will
fully charge after approximately 2 1/2 hours. If the terminal is on
when being charged, the charge time can be substantially longer
depending on the terminal activity.
Terminal Status LED
Spare Battery LED

9
Quick Reference

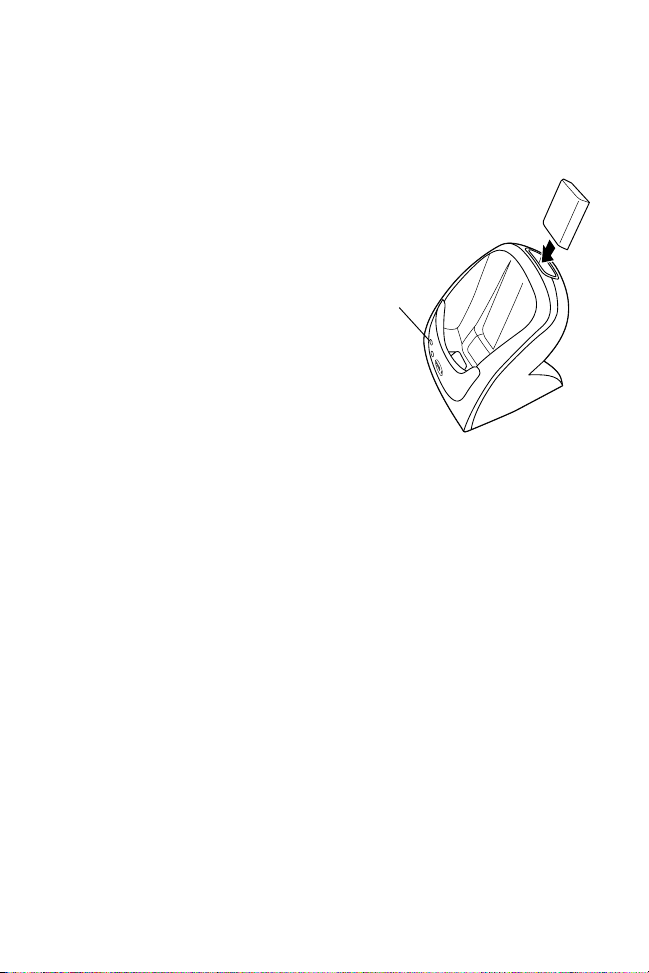

Spare Battery Charging
To charge a spare terminal
battery:
1. Insert the battery into the
spare battery charging slot
in the back of the cradle.
Position it with the charging
contacts facing down and
toward the back of the
cradle.
2. Gently press down on the
battery to ensure proper
contact. Do not force the
battery into the slot. Forcing it may damage the cradle
battery contacts.
When the Spare Battery LED turns red, the spare battery is
charging. When the Spare Battery LED turns green, the spare
battery is fully charged. The battery usually charges in two hours
or less, but may take up to four hours to fully charge.
If the red LED is flashing, the battery is defective. Remove the
battery from the spare battery charging slot. Wait 5 seconds and
insert the spare battery again in the spare battery slot. If the red
LED is flashing again, replace the battery.
Spare
Battery
LED

10
CRD2x00-1000S
Troubleshooting
Symptom Possible Cause Action
Terminal Status
LED does not
light up.
Terminal is not inserted
correctly into the cradle.
Remove the terminal and re-insert
it, making sure it fits snugly onto the
connector at the bottom of the cra-
dle.
Cradle is not receiving
power.
Make sure the power input cable is
securely connected on both ends.
Battery is not re-
charging.
Terminal (or spare bat-
tery) was removed from
the cradle too soon.
Replace the terminal or spare bat-
tery in the cradle. It can take up to 2-
1/2 hours to recharge a completely
depleted spare battery pack.
Battery is faulty. Replace the battery.
Terminal (or spare bat-
tery) is not inserted cor-
rectly into the cradle.
Remove the terminal and re-insert it
with the contacts down and facing
the back of the cradle.
If the terminal is properly inserted,
the Terminal Status LED turns a sol-
id red. When the battery is fully
charged, the LED turns green (or off
if the cradle is not connected to the
host computer via a serial cable).
If a spare battery has been inserted
properly, the Spare Battery LED
turns a solid red. When the battery
is fully charged, the LED turns a sol-
id green.
Spare battery
red LED flash-
ing.
Defective battery. If the spare battery red LED is flash-
ing, the battery is defective. Re-
move the battery from the spare
battery charging slot. Wait 5 sec-
onds and insert the spare battery
again in the spare battery slot. If the
red LED is flashing again, replace
the battery.

11
Quick Reference
Regulatory Information
All Symbol devices are designed to be compliant with rules and regulations in
locations they are sold and will be labeled as required.
Any changes or modifications to Symbol Technologies equipment, not expressly
approved by Symbol Technologies, could void the user's authority to operate the
equipment.
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the
recommendations below. Consult with your local Health & Safety Manager to ensure
that you are adhering to your company's safety programs to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Power Supply
Note: Use only a Symbol-approved power supply (p/n 50-14000-107) output
rated 9 VDC and minimum 2 Amperes. The power supply is certified to
EN60950 with SELV outputs.
Hinweis: Benutzen Sie nur eine Symbol Technologies genehmigt
Stromversorgung in den Ausgabe: 9 Vdc und minimum 2 Amperes. Die
Stromversorgung ist bescheinigt nach EN60950 mit SELV Ausgaben.
During data
communica-
tions, no data
was transmit-
ted, or transmit-
ted data was
incomplete.
Terminal removed from
cradle during communi-
cations.
Replace terminal in cradle and
retransmit.
Incorrect cable configu-
ration.
See your system administrator.
Communications soft-
ware is not installed or
configured properly.
Perform setup as described in this
guide, the PRG for your terminal, or
the appropriate software manual.
Symptom Possible Cause Action

12
CRD2x00-1000S
Radio Frequency Interference Requirements
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Marking and European Economic Area (EEA)
Statement of Compliance
Symbol Technologies, Inc., hereby declares that this device is in
compliance with all the applicable Directives, 89/336/EEC, 73/23/EEC. A
Declaration of Conformity may be obtained from http://
www2.symbol.com/doc/

13
Quick Reference
Warranty
(A) Warranty Symbol Technologies (hereafter “Seller”) hardware Products are warranted against defects in
workmanship and materials for a period of three (3) months from the date of shipment, unless otherwise
provided by Seller in writing, provided the Product remains unmodified and is operated under normal and
proper conditions. Warranty provisions and durations on software, integrated installed systems, Product
modified or designed to meet specific customer specifications (“Custom Products”), remanufactured
products, and reconditioned or upgraded products, shall be as provided in the applicable Product
specification in effect at the time of purchase or in the accompanying software license.
(B) Spare Parts Spare parts (i.e. parts, components, or subassemblies sold by Seller for use in the service
and maintenance of Products) are warranted against defects in workmanship and materials for a period of
thirty (30) days from the date of shipment. Spare parts may be new or originate from returned units under
the conditions set forth in subsection D below.
(C) Repair of Symbol-branded hardware For repairs on Symbol-branded hardware Products under this
Agreement, including repairs covered by warranty, the repair services provided are warranted against
defects in workmanship and materials on the repaired component of the Product for a period of thirty (30)
days from the shipment date of the repaired Product, or until the end of the original warranty period,
whichever is longer.
(D) Product Service Products may be serviced or manufactured with parts, components, or subassemblies
that originate from returned products and that have been tested as meeting applicable specifications for
equivalent new material and Products. The sole obligation of Seller for defective hardware Products is limited
to repair or replacement (at Seller’s option) on a “return to service depot” basis with prior Seller authorization.
Customer is responsible for shipment to the Seller and assumes all costs and risks associated with this
transportation; return shipment to the Customer will be at Seller's expense. Customer shall be responsible
for return shipment charges for product returned where Seller determines there is no defect (“No Defect
Found”), or for product returned that Seller determines is not eligible for warranty repair. No charge will be
made to Buyer for replacement parts for warranty repairs. Seller is not responsible for any damage to or loss
of any software programs, data or removable data storage media, or the restoration or reinstallation of any
software programs or data other than the software, if any, installed by Seller during manufacture of the
Product.
(E) Original Warranty Period Except for the warranty applying solely to the repaired component arising from
a repair service as provided in Section C above, the aforementioned provisions do not extend the original
warranty period of any Product that had either been repaired or replaced by Seller.
(F) Warranty Provisions The above warranty provisions shall not apply to any Product (i) which has been
repaired, tampered with, altered or modified, except by Seller’s authorized service personnel; (ii) in which the
defects or damage to the Product result from normal wear and tear, misuse, negligence, improper storage,
water or other liquids, battery leakage, use of parts or accessories not approved or supplied by Symbol, or
failure to perform operator handling and scheduled maintenance instructions supplied by Seller; (iii) which
has been subjected to unusual physical or electrical stress, abuse, or accident, or forces or exposure beyond
normal use within the specified operational and environmental parameters set forth in the applicable Product
specification; nor shall the above warranty provisions apply to any expendable or consumable items, such
as batteries, supplied with the Product.
EXCEPT FOR THE WARRANTY OF TITLE AND THE EXPRESS WARRANTIES STATED ABOVE,
SELLER DISCLAIMS ALL WARRANTIES ON PRODUCTS FURNISHED HEREUNDER INCLUDING ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE. ANY
IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED IN DURATION TO THE LIMITED
WARRANTY PERIOD. SOME STATES OR COUNTRIES DO NOT ALLOW A LIMITATION ON HOW LONG
AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS. IN SUCH STATES OR COUNTRIES, FOR
SUCH PRODUCTS, SOME EXCLUSIONS OR LIMITATIONS OF THIS LIMITED WARRANTY MAY NOT
APPLY.
The stated express warranties are in lieu of all obligations or liabilities on the part of Seller for damages,
including but not limited to, special, indirect or consequential damages arising out of or in connection with
the use or performance of the Product or service. Seller’s liability for damages to Buyer or others resulting
from the use of any Product or service furnished hereunder shall in no way exceed the purchase price of said
Product or the fair market value of said service, except in instances of injury to persons or property.

70-37807-02
Revision D — December 2002
Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300
Service Information
Before you use the unit, it must be configured to operate in your facility’s network and
run your applications.
If you have a problem running your unit or using your equipment, contact your facility’s
Technical or Systems Support. If there is a problem with the equipment, they will
contact the Symbol Support Center:
For the latest version of this guide go to: http://www.symbol.com/manuals.
United States11-800-653-5350
1-631-738-2400
Canada 905-629-7226
United Kingdom 0800 328 2424 Asia/Pacific [phone]
Australia 1-800-672-906 Austria/Österreich 1-505-5794-0
Denmark/Danmark 7020-1718 Finland/Suomi 9 5407 580
France 01-40-96-52-21 Germany/Deutchland 6074-49020
Italy/Italia 2-484441 Mexico/México 5-520-1835
Netherlands/Nederland 315-271700 Norway/Norge [phone]
South Africa 11-8095311 Spain/España 91 324 40 00
Inside Spain
Sweden/Sverige 84452900 [phone]
Outside Spain
Latin America
Sales Support
1-800-347-0178 Inside US
[phone] Outside US
Europe/Mid-East
Distributor Operations
Contact local distributor or call
[phone]
1Customer support is available 24 hours a day, 7 days a week.
