Symbol CRD6800 User manual

CRD6800 Lithium-Ion
Cradle

CRD6800 Lithium-Ion
Cradle
©2002 SYMBOL TECHNOLOGIES, INC. All rights reserved.
Symbol reserves the right to make changes to any product to improve reliability,
function, or design.
Symbol does not assume any product liability arising out of, or in connection with, the
application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under
any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Symbol products might
be used. An implied license exists only for equipment, circuits, and subsystems
contained in Symbol products.
Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc.
Other product names mentioned in this manual may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged.
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com
Patents
This product is covered by one or more of the following U.S. and foreign Patents:
U.S. Patent No. 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805;
4,736,095; 4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532;
4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617;
5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148;
5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162;
5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162;
5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924;
5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081;
5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891;
5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322;
5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810;
5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852;
5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851;
5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500;
5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520;
5,823,812; 5,828,050; 5,848,064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617;
5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420;
5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,031,830; 6,036,098;
6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,068,190; 6,082,621;
6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678;
6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426;
6,186,400; 6,188,681; 6,209,788; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647;
6,308,061; 6,250,551; 6,295,031; D305,885; D341,584; D344,501; D359,483; D362,453;
D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581; D414,171;
D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562;
D436,104.
Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269
(Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/
03938; Italy 1,138,713.
rev. 11/01

1
Quick Reference
Introduction
Symbol Technologies' CRD6800 Lithium-Ion Cradle provides
Lithium-Ion battery charging capabilities for up to four Series 68XX
terminals.
About This Guide
This guide provides operation and installation information for the
operator and system administrator.
Required Equipment
Verify that you have received the following:
• CRD 6800 Lithium-Ion cradle
• AC power supply
• DC cable
•ACcable
If any parts are damaged or missing, contact your nearest Service
Center listed on the backcover.

2
CRD6800 Lithium-Ion
Cradle
Parts of the Cradle
The numbers in the figure correspond to the descriptions below:
1. Battery charging contacts
2. Each terminal slot holds one Series 68XX terminal for re-
charging the Lithium-Ion battery.
3. Terminal contacts
4. Charging LED
5. DC power port - connects the power supply to the cradle
Connecting Power
Note: Use only Symbol-approved power supply p/n 50-
14001-005 output rated 15Vdc and minimum 2.5A. The
power supply is certified to EN60950 with SELV out-
puts.






3
Quick Reference
Hinweis: Benutzen Sie nur eine Symbol Technologies
genehmigt Stromversorgung p/n 50-14001-005 in
den Ausgabe: 15Vdc und minimum 2.5A. Die
Stromversorgung ist bescheinigt nach EN60950 mit
SELV Ausgaben

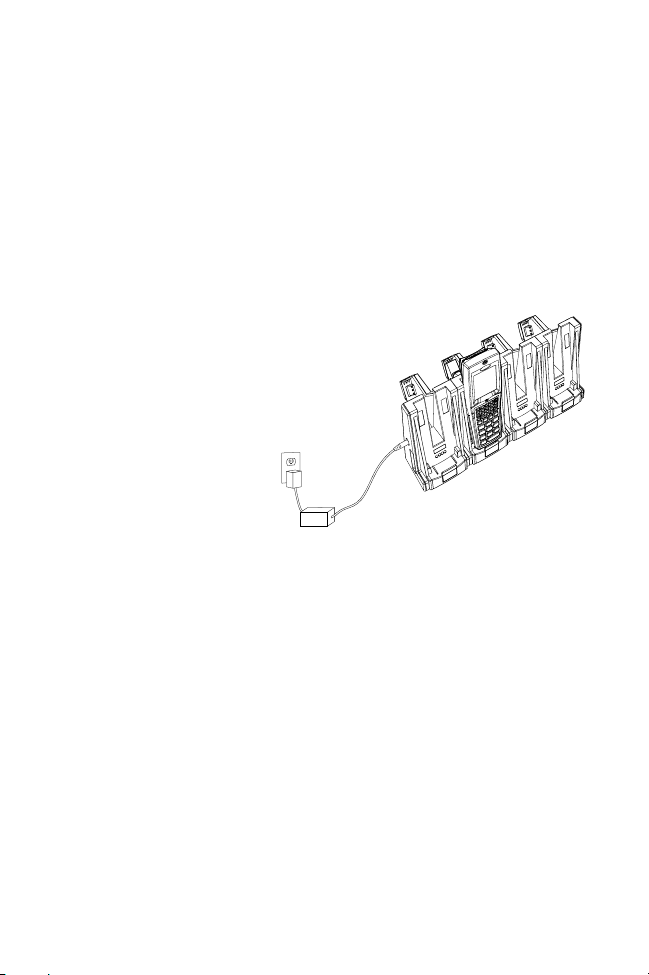

1. Connect the power supply cord round plug to the power con-
nector on the side of the cradle.
2. Connect the pow-
er supply cord AC
plug to a standard
electrical outlet.
Upon power-up,
the LEDs flash
green-yellow-red,
then dark in se-
quence from left
(slot 1) to right
(slot 4).
Inserting and Removing the Terminal
WARNING
DO NOT allow metal to short the exposed contacts on the
toe of the battery while the battery is installed in an operating
terminal. Doing so may cause the terminal to stop operating
and lose contents.
If contacts are inadvertently shorted, remove and install the
battery before restarting the terminal. If the terminal still does
not power up, momentarily place the battery in a charger, ei-
ther in this cradle with the terminal, or in a UBC charger.

4
CRD6800 Lithium-Ion
Cradle
To insert the terminal in the cradle:
1. Fit the bottom of the 68XX into the bottom of the cradle, en-
suring the hand strap at the base of the battery falls away
from the charging contacts.
2. Push the top of the 68XX toward the back of the cradle until
it is firmly seated.
3. Place the terminal
in SUSPEND
mode with power
managementen-
abled.
4. The
cradle’s charge
LED is solid or
flashing green.

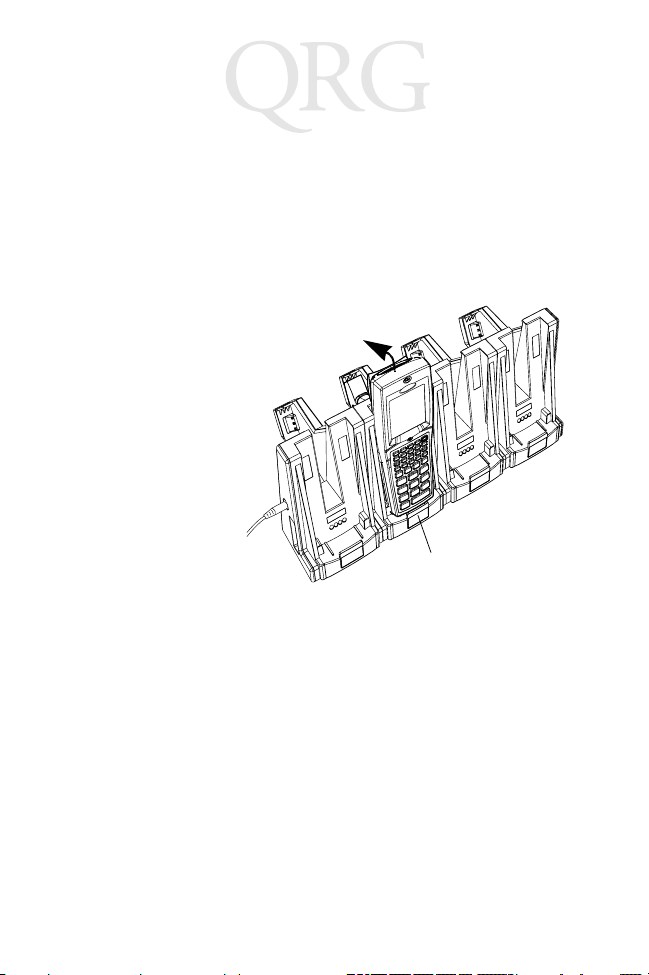

To remove the terminal
from the cradle:
1. Pull the top of the
68XX to unlatch it.
2. Lift the 68XX out
of the cradle.
Press Top Back
Charging LED

5
Quick Reference
Recharging the Battery in the 68XX
Note: Fully charge the battery before using the terminal.
After placing the terminal in the cradle, put the terminal
in SUSPEND mode with power management enabled.
Ensure that the terminal is awakened from SUSPEND
infrequently if at all during charging, and that if awak-
ened, the terminal automatically returns to SUSPEND
within a few minutes.
The battery is automatically charged when the 68XX is properly
inserted in the cradle.
1. Place the 68XX in the cradle. Place the terminal in SUS-
PEND mode with power management enabled. The LED in-
dicator flashes green when charging a discharged battery,
and remains solid green when the battery is fully charged.
Refer to LED Indicator on page 6.
2. Leave the 68XX up to 7 hours to charge a fully-discharged
battery, or until the LED indicator is solid green.

6
CRD6800 Lithium-Ion
Cradle
LED Indicator
LED Indicator Cradle
DARK No battery or faulty battery in cradle
bay
Slowly flashing GREEN
(On for one second,
off for one second)
Cradle is charging a very weak bat-
tery
Quickly flashing GREEN
(On for 1/4 second or less,
off for 1/4 second or less)
Cradle is charging the battery
Solid GREEN Battery in bay is fully charged
Slowly flashing YELLOW
(On for one second,
off for one second)
Battery is too cold to charge
Quickly flashing YELLOW
(On for 1/4 second or less,
off for 1/4 second or less)
Battery is too hot to charge
Long RED (two seconds) followed
by flashing RED
Self-test failure does not allow bat-
tery charging in this bay
Long DARK (two seconds) followed
by flashing RED
OR
Any flashing sequence other than
those described above
Battery in bay is faulty

7
Quick Reference
Troubleshooting
Symptom Possible Cause Action
Indicators do not momen-
tarily light when the cradle
is powered up.
Cradle is not receiv-
ing power.
Make sure AC and DC pow-
er cables are securely con-
nected and wall outlet is
supplying power.
LED does not light or flash
GREEN when terminal is
inserted in cradle.
Terminal is not seat-
ed firmly in cradle.
Securely place terminal in
cradle.
There is no battery in
the terminal.
Place discharged battery in
terminal and place terminal
in cradle.
LED flashes YELLOW
once every two seconds.
The battery is too
cold and the cradle
does not permit
charging.
Allow battery to warm to
above 5°C. (Ambient tem-
perature must be in the
range of 5 to 45°C.) Charg-
ing starts automatically
when battery temperature
rises to within the range.
LED flashes YELLOW
twice every second.
The battery is too hot
and the cradle does
not permit charging.
Allow battery to cool to be-
low 40°C. (Ambient temper-
ature must be in the range of
0 to 40°C.) Charging starts
automatically when battery
temperature lowers to within
the range.
LED is DARK for two sec-
onds, followed by flashing
RED.
Battery failed. You may try again to charge
the battery by removing the
terminal from and replacing
it in the cradle, but the bat-
tery is probably faulty. Re-
place the battery.
LED is RED for two sec-
onds, followed by flashing
RED.
Cradle self test of its
circuitry in that charg-
ing bay has failed so
cradle prevents
charging in that bay.
Charging function is
available in other
bays.
You may remove and then
apply power again to cradle
by disconnecting and then
connecting either AC or DC
power cord. The symptom
may recur when a terminal
with a battery is placed in
that bay. If it does, cradle is
faulty and should be re-
paired.

8
CRD6800 Lithium-Ion
Cradle
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the
recommendations below. Consult with your local Health & Safety Manager to ensure
that you are meeting with your company’s safety programs to prevent employee
injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Regulatory Information
All Symbol devices are designed to be compliant with rules and regulations in
locations they are sold and will be labeled as required.
Any changes or modifications to Symbol Technologies equipment, not expressly
approved by Symbol Technologies, could void the user's authority to operate the
equipment.
Marking and European Economic Area (EEA)
Statement of Compliance for non-radio devices
Symbol Technologies, Inc., hereby declares that this device is in compliance with all
the applicable Directives, 89/336/EEC, 73/23/EEC. A Declaration of Conformity may
be obtained from http://www2.symbol.com/doc/
Radio Frequency Interference Requirements
Note: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

9
Quick Reference
Warranty
Symbol Technologies, Inc. (“Symbol”) manufactures its hardware products in accordance with
industry-standard practices. Symbol warrants that for a period of twelve (12) months from date of
shipment, products will be free from defects in materials and workmanship.
This warranty is provided to the original owner only and is not transferable to any third party. It shall
not apply to any product (i) which has been repaired or altered unless done or approved by Symbol,
(ii) which has not been maintained in accordance with any operating or handling instructions
supplied by Symbol, (iii) which has been subjected to unusual physical or electrical stress, misuse,
abuse, power shortage, negligence or accident or (iv) which has been used other than in
accordance with the product operating and handling instructions. Preventive maintenance is the
responsibility of customer and is not covered under this warranty.
Wear items and accessories having a Symbol serial number will carry a 90-day limited warranty.
Non-serialized items will carry a 30-day limited warranty.
Warranty Coverage and Procedure
During the warranty period, Symbol will repair or replace defective products returned to Symbol’s
manufacturing plant in the US. For warranty service in North America, call the Symbol Support
Center at 1-800-653-5350. International customers should contact the local Symbol office or
support center. If warranty service is required, Symbol will issue a Return Material Authorization
Number. Products must be shipped in the original or comparable packaging, shipping and
insurance charges prepaid. Symbol will ship the repaired or replacement product freight and
insurance prepaid in North America. Shipments from the US or other locations will be made F.O.B.
Symbol’s manufacturing plant.
Symbol will use new or refurbished parts at its discretion and will own all parts removed from
repaired products. Customer will pay for the replacement product in case it does not return the
replaced product to Symbol within 3 days of receipt of the replacement product. The process for
return and customer’s charges will be in accordance with Symbol’s Exchange Policy in effect at the
time of the exchange.
Customer accepts full responsibility for its software and data including the appropriate backup
thereof.
Repair or replacement of a product during warranty will not extend the original warranty term.
Symbol’s Customer Service organization offers an array of service plans, such as on-site, depot, or
phone support, that can be implemented to meet customer’s special operational requirements and
are available at a substantial discount during warranty period.
General
Except for the warranties stated above, Symbol disclaims all warranties, express or implied, on
products furnished hereunder, including without limitation implied warranties of merchantability and
fitness for a particular purpose. The stated express warranties are in lieu of all obligations or
liabilities on part of Symbol for damages, including without limitation, special, indirect, or
consequential damages arising out of or in connection with the use or performance of the product.
Seller’s liability for damages to buyer or others resulting from the use of any product, shall in no way
exceed the purchase price of said product, except in instances of injury to persons or property.
Some states (or jurisdictions) do not allow the exclusion or limitation of incidental or consequential
damages, so the preceding exclusion or limitation may not apply to you.
Radio Frequency Interference Requirements - Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

72-54434-01
Revision A — February 2002
Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300
Service Information
Before you use the unit, it must be configured to operate in your facility’s network and
run your applications.
If you have a problem running your unit or using your equipment, contact your
facility’s Technical or Systems Support. If there is a problem with the equipment, they
will contact the Symbol Support Center:
For the latest version of this guide go to:http://www.symbol.com/manuals.
United States11-800-653-5350
1-631-738-2400
Canada 905-629-7226
United Kingdom 0800 328 2424 Asia/Pacific 337-6588
Australia 1-800-672-906 Austria/Österreich 1-505-5794
Denmark/Danmark 7020-1718 Finland/Suomi 9 5407 580
France 01-40-96-52-21 Germany/Deutchland 6074-49020
Italy/Italia 2-484441 Mexico/México 5-520-1835
Netherlands/Nederland 315-271700 Norway/Norge 66810600
South Africa 11-4405668 Spain/España [phone]
Sweden/Sverige 84452900
Latin America
Sales Support
1-800-347-0178 Inside US
[phone] Outside US
Europe/Mid-East
Distributor Operations
Contact local distributor or call
[phone]
1Customer support is available 24 hours a day, 7 days a week.
