System air S-SA1 User manual

S-SA1
Smoke Control Damper - AAsingle
Handbook

2/47 | S-SA1
Table of Contents
Overview .........................................................3
Technical Parameters ..................................................6
Diagrams .........................................................8
Dimensions & Weights ..................................................17
Ordering Code ......................................................21
Product Handling .....................................................22
Installation ........................................................26
Electrical Parameters ...................................................32
Operation Manual ....................................................44

3/47 | S-SA1
Description
S-SA1 smoke control dampers operate with mechanical or natural smoke and heat extraction systems. They remove
poisonous gases, smoke and fire and can also supply clean air to fire compartments.
S-SA1 dampers have an actuator without a spring. Thus, they have two safety positions: an “open” position and a
“closed” position. Power is necessary for the smoke control dampers.
S-SA1 dampers are designed for on a duct installations ended with grille, not in the wall or ceiling. The “Installation
Methods” section shows the types of installations that are permitted.
Special Properties
• The pressure level is 3 (-1500 Pa … 500 Pa)
• The blade leakage class 3 (compliant with EN 1751)
• The casing leakage class C (compliant with EN 1751)
• AA – automatic activation (sets the safety position within 60 seconds). No thermal insulation around the actuator
needed.
Fire Resistivity
S-SA1 smoke control dampers have a CE certification that meets the EU’s Construction Products Regulation and
complies with Standard EN 12101-8:2011, EN 1366-10:2022, and EN 1366-2:2015 are the reference Standards for
the tests. EN 13501-4:2016 is the reference Standard for the Classification.
Resistivity rating for damper installed on the duct: E600 120 (ved - i↔o) S1500 Cmod AAsingle
Types of Activation
•B230 - Activation mechanism with a Belimo actuator (230V AC) and auxiliary switches
•B24 - Activation mechanism with a Belimo actuator (24V AC/DC) and auxiliary switches
•B24-W - Activation mechanism with a Belimo actuator (24V AC/DC) and auxiliary switches, with provided cable
connectors for the supply and communication unit (communication unit not part of the mechanism)
•B24-SR - Activation mechanism with a modulating Belimo actuator (24V AC/DC; 0(2) V...10 V DC) and auxiliary
switches. Modulating actuators have the possibility to open the blade at a desired angle.
•BST0 - Activation mechanism with a Belimo actuator (AC/DC 24 V) with a supply and communication unit (AC 230 V)
BKNE230-24 (2-wire to BKSE...)
•BST1 - Activation mechanism with a Belimo actuator (AC/DC 24 V) with a supply and communication unit (SLC
powered) BC24-G2 (THC)
•BST10 - Activation mechanism with a Belimo actuator (AC/DC 24 V) with a supply and communication unit (AC 230
V) BKNE230-24-PL (Powerline)

4/47 | S-SA1
Accessories
Detailed information about accessories is available in design.systemair.com
• GE1-S-SA1: Extension with Grille for S-SA1
Design
The casing of the S-SA1 is made of a galvanized sheet metal. Blades are made from calcium silicate boards with a
silicone rubber gasket which prevent leaks of heat or smoke. The casing has flange on two sides with holes for screws
to attach to sheet-metal duct flanges. The damper casing has inspection openings. The mechanisms actuator of the S-
SA1 is accesible from the outside.
Composition of Materials
The product contains these materials:
• Galvanized sheet metal
• Calcium silicate board
• Ethylene-propylene rubber
• Galvanized steel fasteners
The manufacturing processes of these materials agree with local regulations. The product does not contain dangerous
materials. No silicone caulks are used in the manufacturing processes.

5/47 | S-SA1

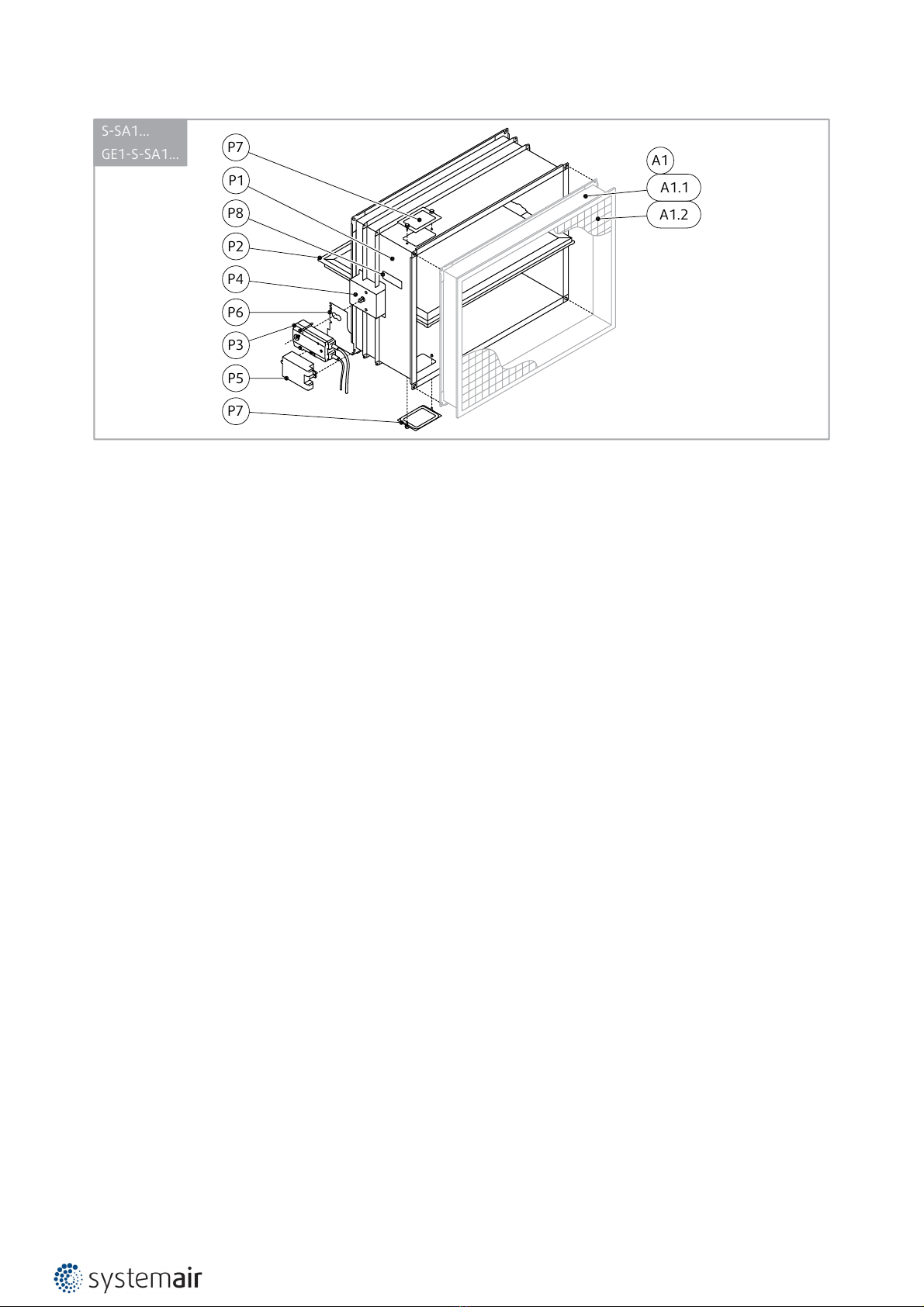

Product Parts
P5
P2
P1
P7
P8
P3
P6
P7
A1.1
A1.2
A1
P4
GE1-S-SA1...
S-SA1...
Legend
P1 - Damper casing
P2 - Damper blade
P3 - Actuator
P4 - Holder for actuator
P5 - Supply and communication unit (only for BST0, BST1, BST10 activation type)
P6 - Holder for communication unit (without unit installed only for B24-W activation type)
P7 - Inspection lid
P8 - Product label
A1 - Extension with Grille (GE1-S-SA1) is not part of S-SA1 delivery
A1.1 - Extended ductwork
A1.2 - Grid

6/47 | S-SA1
Technical Parameters
Durability Test
• Test procedure with 10000 cycles and actuator control
(rotation from 0° to 90°)
• No change of the necessary properties.
• Test procedure with 10000 cycles and actuator control
for “mod” classification (rotation from 45° to 60°)
• No change of the necessary properties.
Tested Pressures
Maximum underpressure 1500 Pa
Maximum overpressure 500 Pa
Safe Position Open or closed
Possible Installations Refer to the "Installation" section
Direction of the Airflow Both direction for supply or extract
Permitted air Velocity During Blade Movement 12 m/s
Side with Fire Protection Both sides: (i<->o) - symmetrical
Closing and Opening Time Motor running time: <60 s / 90°
Closed or Open Status Indicator Microswitches that are part of the mechanism actuator
signal the closed or open status.
Environmental Conditions for Operation
The temperatures must be: -20 °C ... 50 °C
Relative humidity: Less than 95% (3K21, EN 60721-3-3)
Product protected from: Weather, rain and water from other sources
Condensation: Cannot form on the product
Icing: Cannot form on the product
Access for Inspection
The inspection is possible through the grille when available or through an inspection opening on the damper body.
Connection and actuator accessible from outside.
Maintenance Maintenance is not necessary. A dry-cleaning procedure
can be mandatory in some countries or when needed.
Inspections
Obey local laws for the minimum time between inspection procedures. When not specified the maximum interval
between inspections is 6 months
Tightness of the Blade Class 3 of Standard EN 1751 at 500 Pa
Tightness of the Housing Class C of Standard EN 1751 at 500 Pa
EC Directives
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
Driving Actuator Types
Belimo BEN..., BEE..., BE... ...230; ...24; ...24-ST; ...24-SR
Transportation and Storage The temperature range must be: -30...50 °C
Make sure that the damper blade is in the closed position during transportation and protected from weather
disruptions. The storage of the smoke control damper must be indoors.

7/47 | S-SA1
Assessed Performance
23 CE 1396
Systemair Production a.s.
Hlavná 371, 900 43 Kalinkovo, Slovakia
1396-CPR-0229 S-SA1
EN 12101-8 : 2011
Smoke control damper
Nominal Activation Conditions/Sensitivity Pass
Response Delay (Response Time) Opening/closure time proven. Duration: <60 s / 90°
Operational Reliability Cmod: 20.000 cycles (modulated)
Fire resistance: E600 120 (ved - i↔o) S1500 Cmod AAsingle
Resistivity depends on installation method and situation
• integrity E
maintenance of the cross section (under E)
mechanical stability (under E)
• smoke leakage S
Durability of Response Delay AA - Automatic Activation. Opening/closure time proven.
Duration: <60 s / 90°
Durability of Operational Reliability Cmod: 20.000 cycles. Cycle duration: <120 s

8/47 | S-SA1

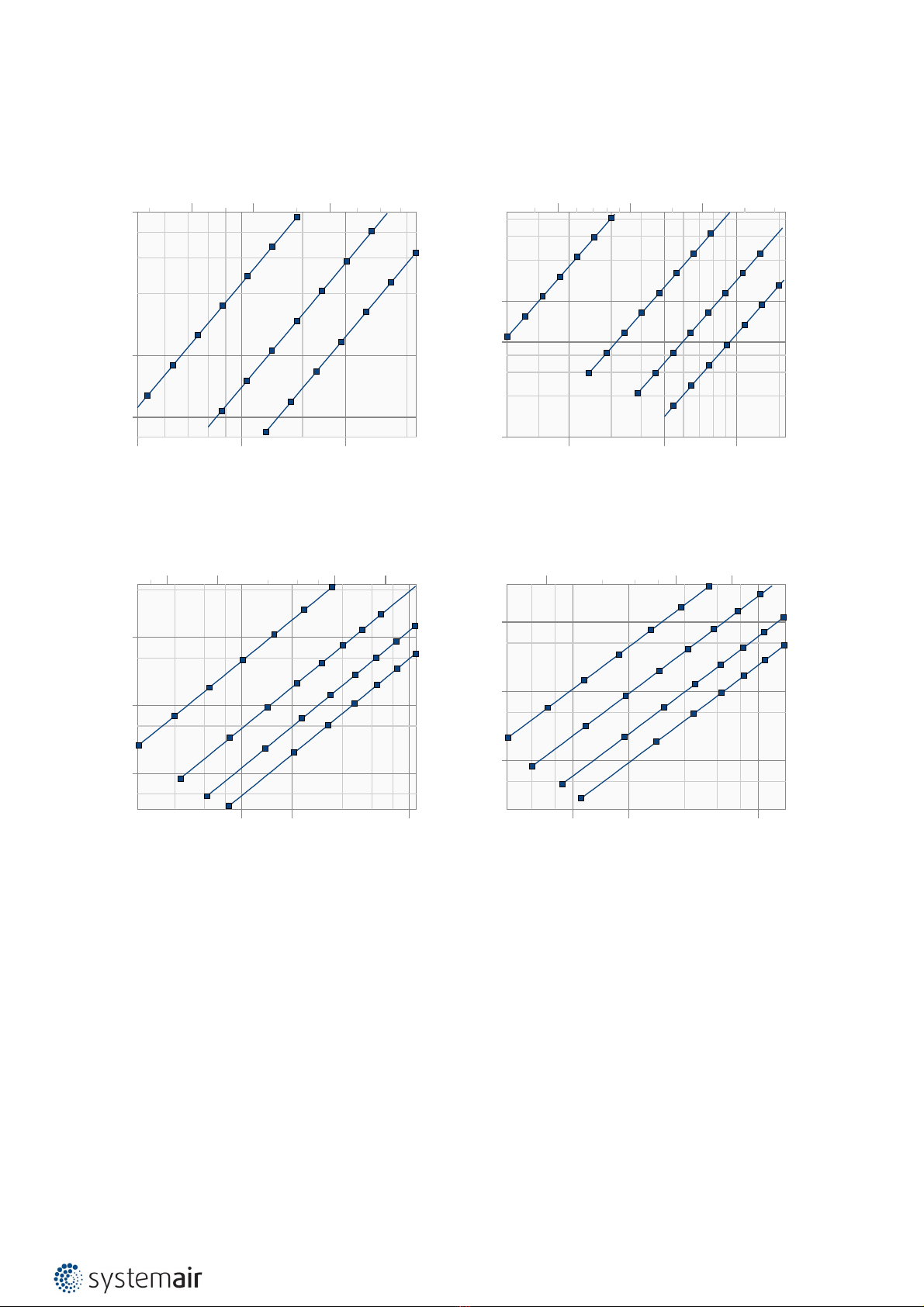

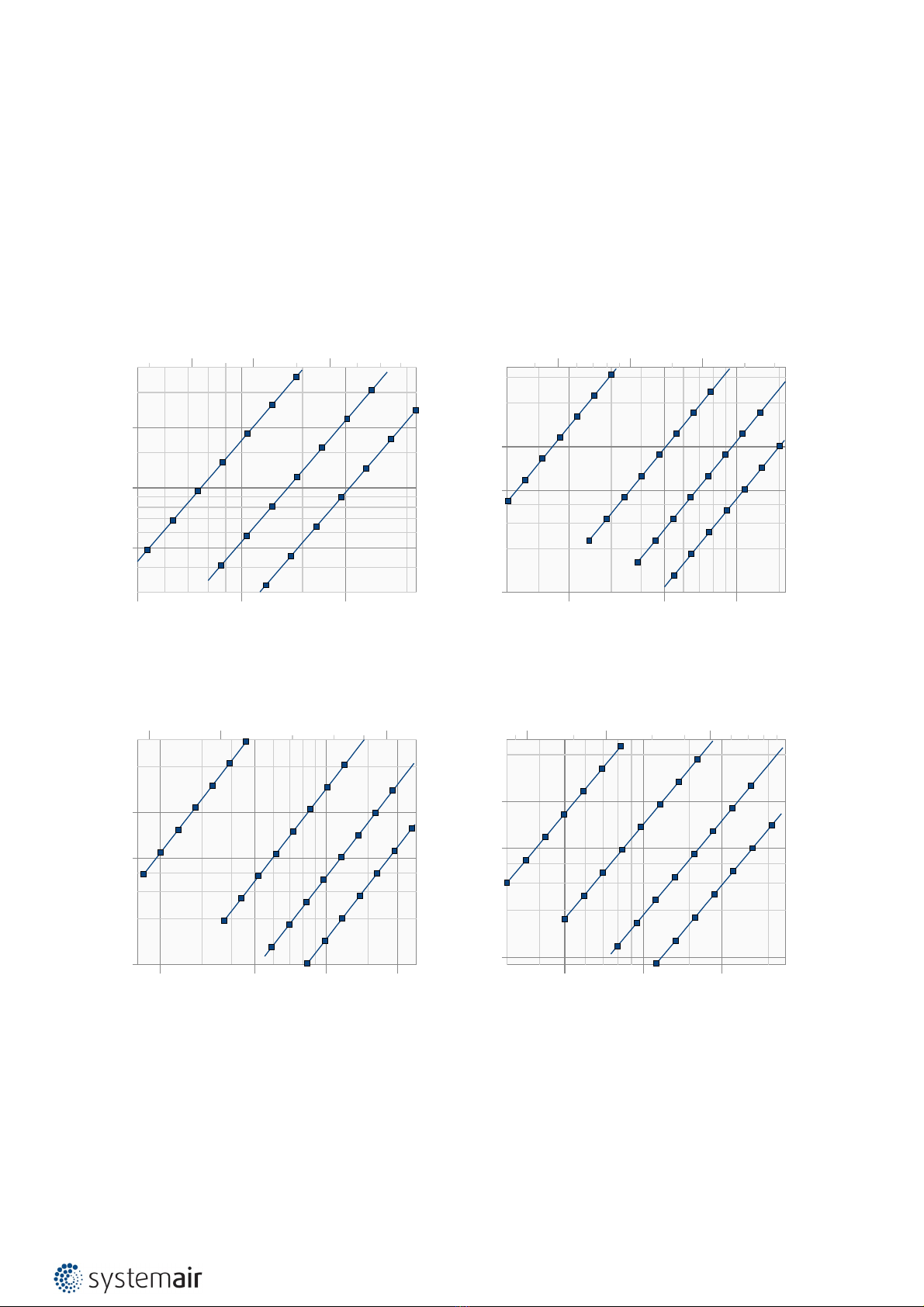

Diagrams
The pressure drop, and A-weighted total discharged sound power level depend on the nominal width and height of the
damper and air flow volume at different duct pressures. The type of activation does not influence the airflow
parameter, therefore only one activation type is shown in the diagrams.

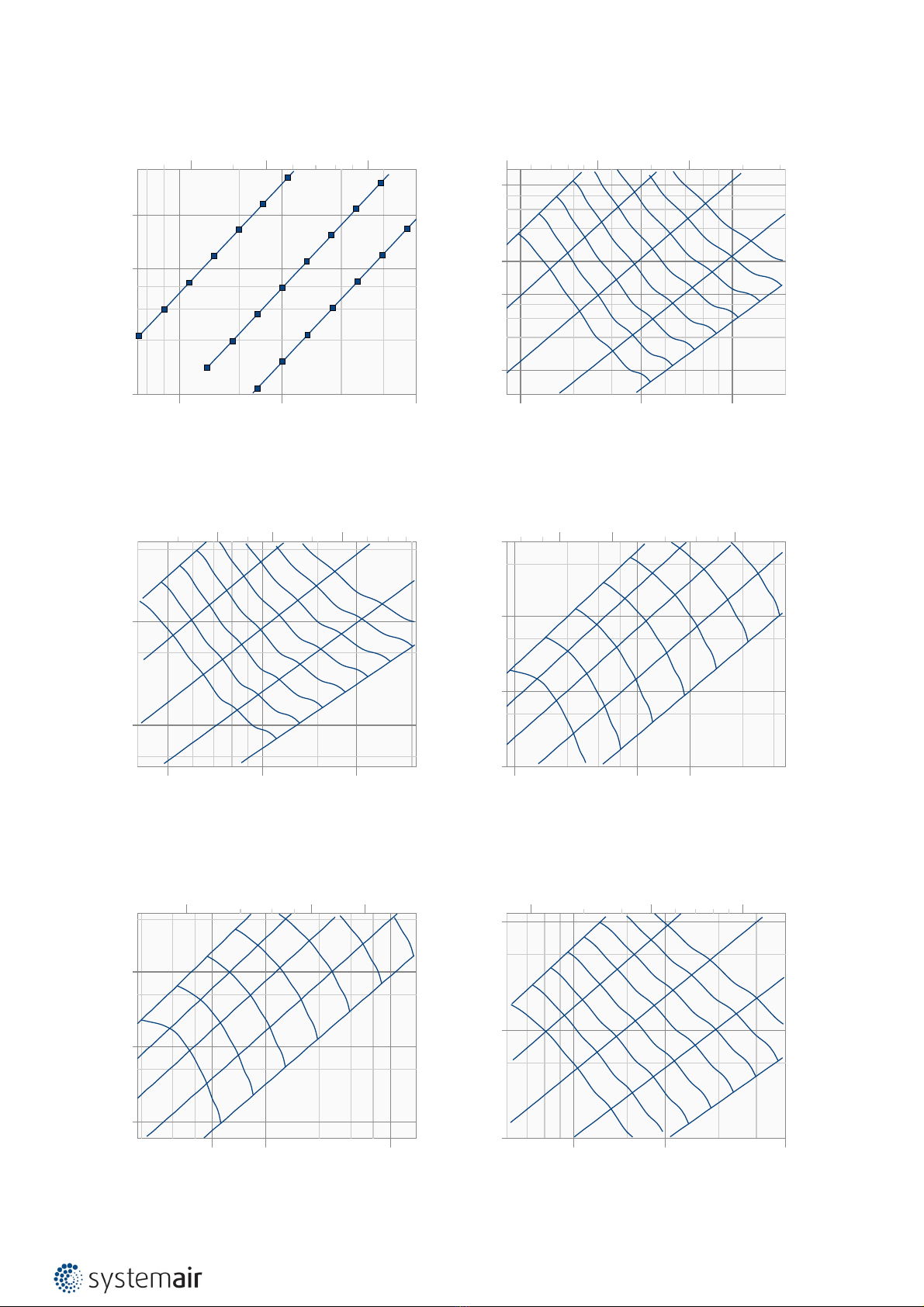

Diagrams for Extract Air
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
500 1000 2000 m³/h
200 300 500 l/s
5
10
20
Pa
W: 200, H: 200 W: 200, H: 300
W: 200, H: 400
25
30
35
40
45
50
55
25
30
35
40
45
50
55
25
30
35
40
45
50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000 m³/h
500 1000 2000 l/s
1
5
10
Pa
W: 400, H: 200
W: 400, H: 400
W: 400, H: 800
W: 400, H: 600
25 30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000 20000 m³/h
500 1000 5000 l/s
1
5
10
Pa
W: 600, H: 200
W: 600, H: 400
W: 600, H: 600
W: 600, H: 800
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000 m³/h
1000 2000 5000 l/s
1
5
10
Pa
W: 800, H: 250
W: 800, H: 400 W: 800, H: 600
W: 800, H: 800
25
30
35
40
45
50
55
25
30
35 40
45
50
55
60
25
30
35
40
45 50
55
60
25
30
35
40
45
50
55

9/47 | S-SA1
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 50000
m³/h
3000 5000 10000 l/s
1
5
10
Pa
W: 1200, H: 400 W: 1200, H: 600
W: 1200, H: 800
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
200 500 1000 m³/h
50 100 200 l/s
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 200, H: 200, 0 %
45 dB(A)
50 dB(A)
W: 200, H: 200, 25 %
55 dB(A)
60 dB(A)
W: 200, H: 200, 50 %
W: 200, H: 200, 75 %
W: 200, H: 200, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
500 1000 2000 m³/h
200 300 500 l/s
5
10
50
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 400, H: 200, 0 %
45 dB(A)
50 dB(A)
W: 400, H: 200, 25 %
55 dB(A)
60 dB(A)
W: 400, H: 200, 50 %
W: 400, H: 200, 75 %
W: 400, H: 200, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000
m³/h
500 1000 2000 l/s
1
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
W: 600, H: 400, 0 %
40 dB(A)
45 dB(A)
50 dB(A)
W: 600, H: 400, 25 %
55 dB(A)
60 dB(A)
W: 600, H: 400, 50 %
W: 600, H: 400, 75 %
W: 600, H: 400, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000
m³/h
1000 2000 5000 l/s
1
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
45 dB(A)
50 dB(A)
W: 800, H: 600, 0 %
55 dB(A)
60 dB(A)
W: 800, H: 600, 25 %
W: 800, H: 600, 50 %
W: 800, H: 600, 75 %
W: 800, H: 600, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 50000
m³/h
2000 5000 10000 l/s
1
5
10
50
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
45 dB(A)
W: 1200, H: 800, 0 %
50 dB(A)
55 dB(A)
60 dB(A)
W: 1200, H: 800, 25 %
W: 1200, H: 800, 50 %
W: 1200, H: 800, 75 %
W: 1200, H: 800, 100 %

10/47 | S-SA1

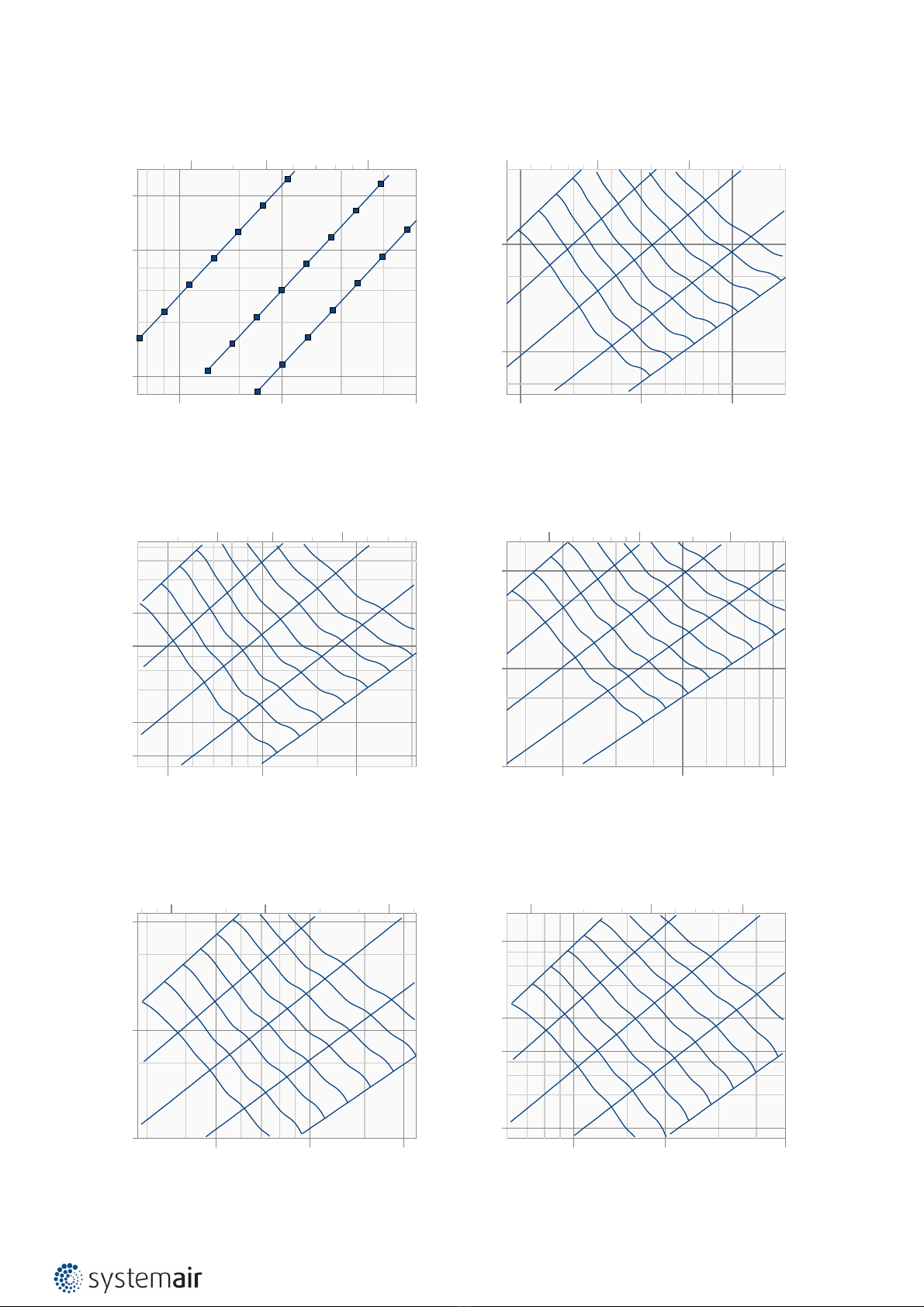

Diagrams for Supply Air
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
800 1000 2000 m³/h
200 300 500 l/s
5
10
20
Pa
W: 200, H: 200
W: 200, H: 300
W: 200, H: 400
25
30
35
40
45
50
25
30
35
40
45
50
25
30
35
40
45
50
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000 m³/h
500 1000 2000 l/s
1
5
10
Pa
W: 400, H: 200
W: 400, H: 400
W: 400, H: 600
W: 400, H: 800
25
30
35
40
45
50
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000 20000
m³/h
500 1000 5000 l/s
1
5
10
Pa
W: 600, H: 200 W: 600, H: 400
W: 600, H: 600
W: 600, H: 800
25
30
35
40
45
50
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
60
25
30
35
40
45
50
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000 m³/h
1000 2000 5000 l/s
1
5
10
Pa
W: 800, H: 250
W: 800, H: 400
W: 800, H: 600
W: 800, H: 800
25
30
35
40
45
50
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
30
35
40
45
50

11/47 | S-SA1
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 30000 m³/h
3000 5000 10000 l/s
1
2
5
Pa
W: 1200, H: 400
W: 1200, H: 600
W: 1200, H: 800
25
30
35
40
45
50
25
30
35
40
45
50
55
30
35
40
45
50
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
200 500 1000 m³/h
100 200 300 l/s
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 200, H: 200, 0 %
45 dB(A)
50 dB(A)
W: 200, H: 200, 25 %
55 dB(A)
60 dB(A)
W: 200, H: 200, 50 %
W: 200, H: 200, 75 %
W: 200, H: 200, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
500 1000 2000 m³/h
200 300 500 l/s
5
10
50
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 400, H: 200, 0 %
45 dB(A)
50 dB(A)
W: 400, H: 200, 25 %
55 dB(A)
60 dB(A)
W: 400, H: 200, 50 %
W: 400, H: 200, 75 %
W: 400, H: 200, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000
m³/h
500 1000 2000 l/s
1
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
W: 600, H: 400, 0 %
40 dB(A)
45 dB(A)
50 dB(A)
W: 600, H: 400, 25 %
55 dB(A)
60 dB(A)
W: 600, H: 400, 50 %
W: 600, H: 400, 100 %
W: 600, H: 400, 75 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000 m³/h
1000 2000 5000 l/s
1
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
45 dB(A)
W: 800, H: 600, 0 %
50 dB(A)
55 dB(A)
60 dB(A)
W: 800, H: 600, 25 %
W: 800, H: 600, 50 %
W: 800, H: 600, 75 %
W: 800, H: 600, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 50000
m³/h
2000 5000 10000 l/s
1
5
10
50
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
45 dB(A)
50 dB(A)
W: 1200, H: 800, 0 %
55 dB(A)
60 dB(A)
W: 1200, H: 800, 25 %
W: 1200, H: 800, 50 %
W: 1200, H: 800, 75 %
W: 1200, H: 800, 100 %

12/47 | S-SA1
Diagrams for Extract with GE1-S-SA1 Accessory
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
500 1000 2000 m³/h
200 300 500 l/s
5
10
50
Pa
W: 200, H: 200 W: 200, H: 300
W: 200, H: 400
25
30
35
40
45
50
55
25
30
35
40
45
50
55
25
30
35
40
45
50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
1000 5000 10000 m³/h
500 1000 2000 l/s
1
5
10
Pa
W: 400, H: 200
W: 400, H: 400
W: 400, H: 800
W: 400, H: 600
25
30
35
40
45
50
55
25
30
35 40
45
50
55
60
25
30
35
40 45
50
55
60
25
30
35
40
45
50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000 20000
m³/h
500 1000 5000 l/s
1
5
10
Pa
W: 600, H: 200
W: 600, H: 400
W: 600, H: 800
W: 600, H: 600
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000 m³/h
1000 2000 5000 l/s
1
5
10
Pa
W: 800, H: 250
W: 800, H: 400
W: 800, H: 800
W: 800, H: 600
25
30 35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55

13/47 | S-SA1
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 30000 m³/h
2000 5000 10000 l/s
1
5
10
Pa
W: 1200, H: 400 W: 1200, H: 600
W: 1200, H: 800
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
200 500 1000 m³/h
50 100 200 l/s
10
50
100
500
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 200, H: 200, 0 %
45 dB(A)
50 dB(A)
W: 200, H: 200, 25 %
55 dB(A)
60 dB(A)
W: 200, H: 200, 50 %
W: 200, H: 200, 75 %
W: 200, H: 200, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
500 1000 2000 m³/h
100 200 500 l/s
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 400, H: 200, 0 %
45 dB(A)
50 dB(A)
W: 400, H: 200, 25 %
55 dB(A)
60 dB(A)
W: 400, H: 200, 50 %
W: 400, H: 200, 75 %
W: 400, H: 200, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000
m³/h
500 1000 2000 l/s
5
10
50
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
W: 600, H: 400, 0 %
40 dB(A)
45 dB(A)
50 dB(A)
W: 600, H: 400, 25 %
55 dB(A)
60 dB(A)
W: 600, H: 400, 50 %
W: 600, H: 400, 75 %
W: 600, H: 400, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000
m³/h
1000 2000 5000 l/s
1
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
45 dB(A)
50 dB(A)
W: 800, H: 600, 0 %
55 dB(A)
60 dB(A)
W: 800, H: 600, 25 %
W: 800, H: 600, 50 %
W: 800, H: 600, 75 %
W: 800, H: 600, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 30000 m³/h
2000 5000 10000 l/s
1
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
45 dB(A)
W: 1200, H: 800, 0 %
50 dB(A)
55 dB(A)
60 dB(A)
W: 1200, H: 800, 25 %
W: 1200, H: 800, 50 %
W: 1200, H: 800, 75 %
W: 1200, H: 800, 100 %

14/47 | S-SA1
Diagrams for Supply with GE1-S-SA1 Accessory
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
500 1000 2000 m³/h
200 300 500 l/s
5
10
50
Pa
W: 200, H: 200 W: 200, H: 300
W: 200, H: 400
25
30
35
40
45
50
55
25
30
35
40
45
50
55
25
30
35
40
45
50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000 m³/h
500 1000 2000 l/s
1
5
10
Pa
W: 400, H: 200
W: 400, H: 400
W: 400, H: 600
W: 400, H: 800
25 30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35 40 45
50
55
60
25
30
35 40
45 50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 50000
m³/h
500 1000 5000 10000 l/s
1
10
100
Pa
W: 600, H: 200
W: 600, H: 600
W: 600, H: 400
W: 600, H: 800
25
30
35
40
45
50
55
25
30
35 40
45
50
55
60
25
30
35 40
45 50
55
60
25
30
35
40
45
50
55
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 50000 m³/h
1000 5000 10000 l/s
1
10
100
Pa
W: 800, H: 250
W: 800, H: 400
W: 800, H: 600
W: 800, H: 800
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55 60
25
30
35
40
45
50
55

15/47 | S-SA1
S-SA1-...-B230
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 50000
m³/h
3000 5000 10000 l/s
1
5
10
Pa
W: 1200, H: 400 W: 1200, H: 600
W: 1200, H: 800
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
200 500 1000 m³/h
50 100 200 l/s
10
50
100
500
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 200, H: 200, 0 %
45 dB(A)
50 dB(A)
W: 200, H: 200, 25 %
55 dB(A)
60 dB(A)
W: 200, H: 200, 50 %
W: 200, H: 200, 75 %
W: 200, H: 200, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
500 1000 2000 m³/h
200 300 500 l/s
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 400, H: 200, 0 %
45 dB(A)
50 dB(A)
55 dB(A)
W: 400, H: 200, 25 %
60 dB(A)
W: 400, H: 200, 50 %
W: 400, H: 200, 75 %
W: 400, H: 200, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
1000 5000 10000 m³/h
500 1000 5000 l/s
1
10
100
1000
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
45 dB(A)
W: 600, H: 400, 0 %
50 dB(A)
W: 600, H: 400, 25 %
W: 600, H: 400, 50 %
55 dB(A)
W: 600, H: 400, 75 %
W: 600, H: 400, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 50000 m³/h
1000 5000 10000 l/s
1
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
W: 800, H: 600, 0 %
45 dB(A)
W: 800, H: 600, 25 %
W: 800, H: 600, 50 %
50 dB(A)
W: 800, H: 600, 75 %
55 dB(A)
W: 800, H: 600, 100 %
S-SA1-...-B24-SR
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 50000
m³/h
2000 5000 10000 l/s
1
10
100
Pa
25 dB(A)
30 dB(A)
35 dB(A)
40 dB(A)
45 dB(A)
50 dB(A)
W: 1200, H: 800, 0 %
55 dB(A)
60 dB(A)
W: 1200, H: 800, 25 %
W: 1200, H: 800, 50 %
W: 1200, H: 800, 75 %
W: 1200, H: 800, 100 %

16/47 | S-SA1
Legend:
Pa - Pressure drop (ps)
m3/h; l/s - Air flow volume (qv)

17/47 | S-SA1
Dimensions & Weights

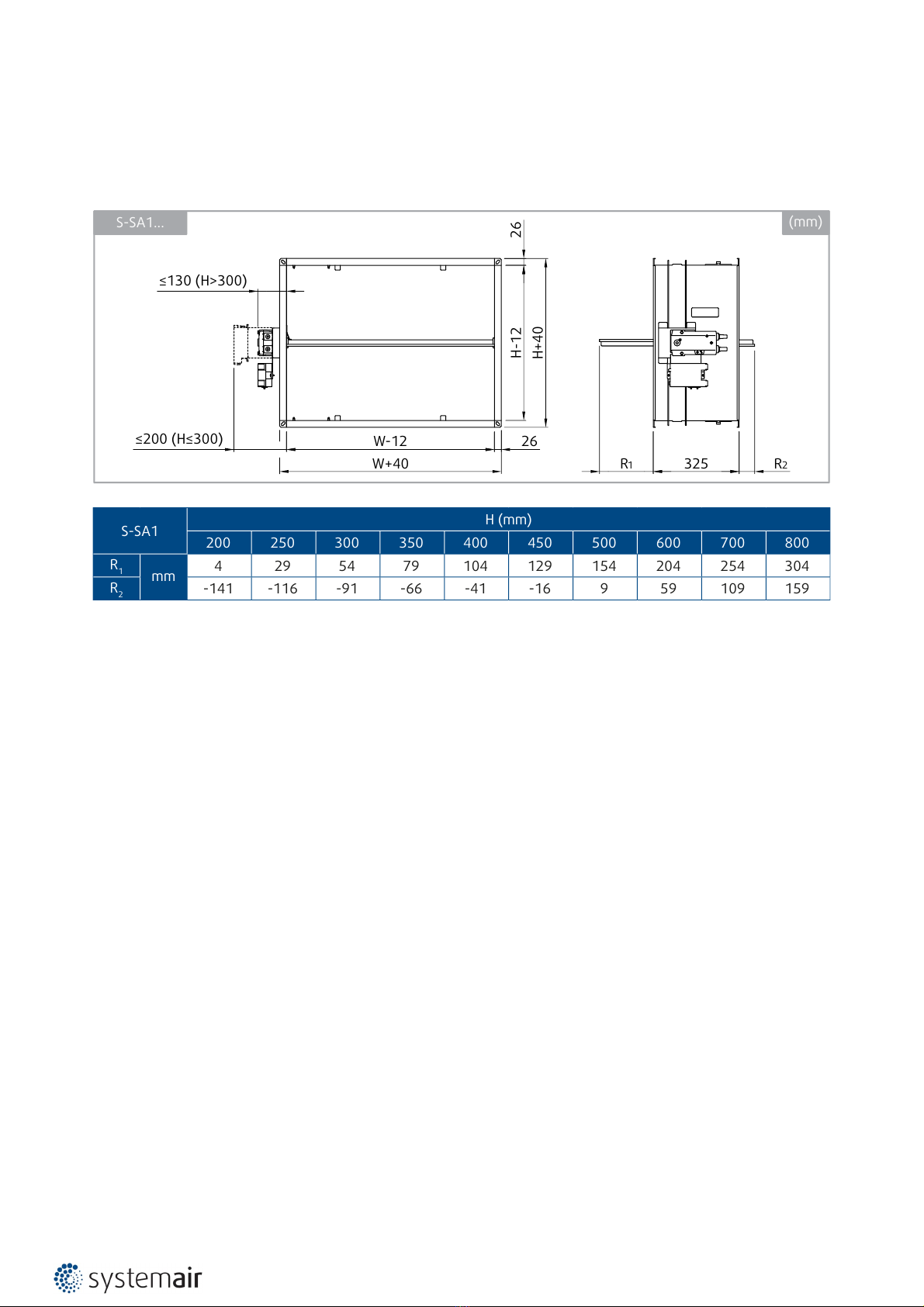

Dimensions of S-SA1
W-12
W+40
H-12
H+40
≤130 (H>300)
≤200 (H≤300)
R1325 R2
26
26
(mm)
S-SA1...
S-SA1 H (mm)
200 250 300 350 400 450 500 600 700 800
R1mm 4 29 54 79 104 129 154 204 254 304
R2-141 -116 -91 -66 -41 -16 9 59 109 159

18/47 | S-SA1

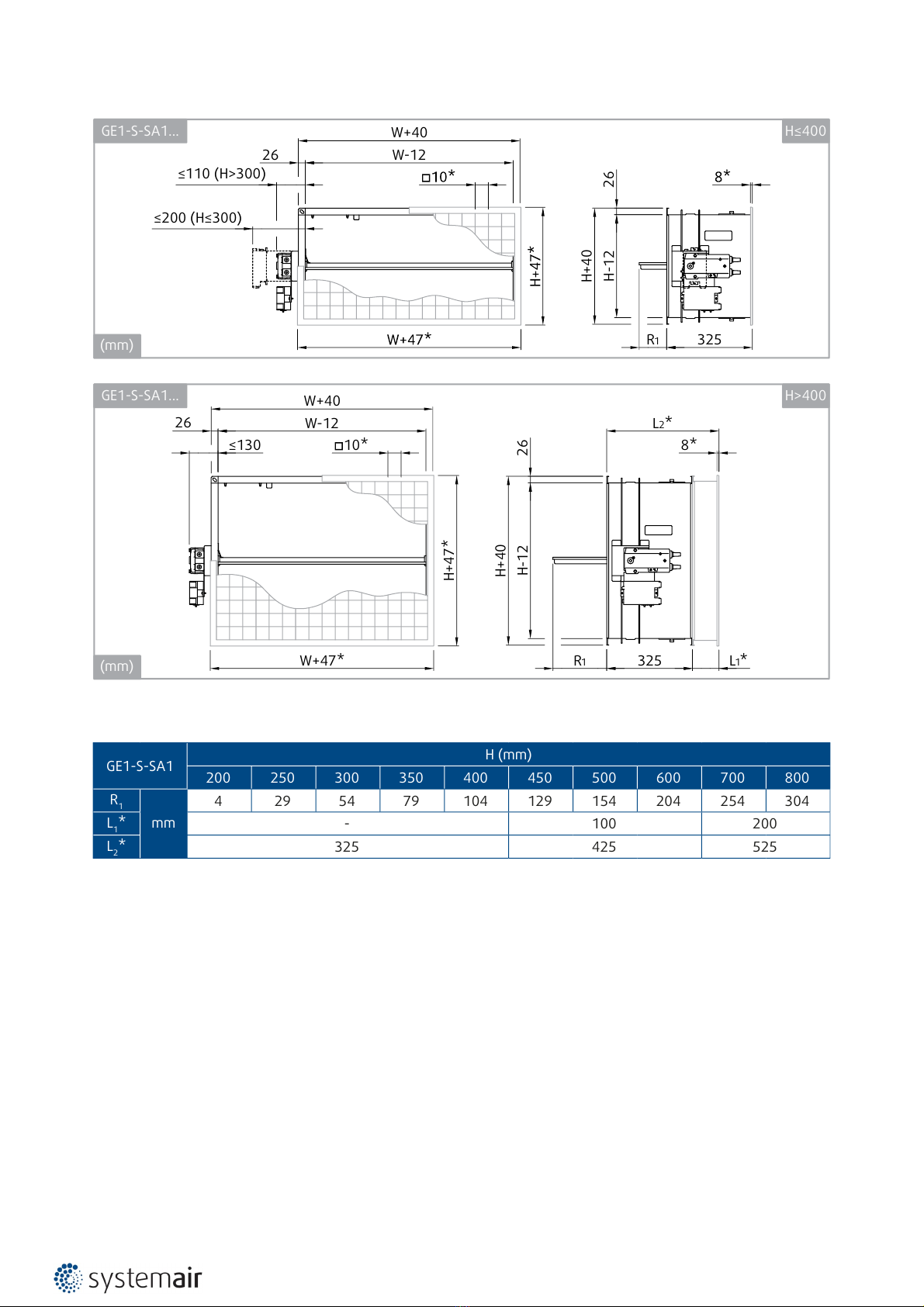

Dimensions of GE1-S-SA1
≤110 (H>300)
≤200 (H≤300)
W-12
W+40
26
R1325
H-12
H+40
26
GE1-S-SA1...
(mm)
H≤400
R1325 L1*
H-12
H+40
26
8*≤130
W-12
W+40
26
10*
H+47*
W+47*
L2*
GE1-S-SA1... H>400
(mm)
NOTE: *Accessory GE1-S-SA1 sold separately. GE1-S-SA1 is not part of the S-SA1 delivery.
GE1-S-SA1 H (mm)
200 250 300 350 400 450 500 600 700 800
R1
mm
4 29 54 79 104 129 154 204 254 304
L1*- 100 200
L2*325 425 525

19/47 | S-SA1
Free Area of S-SA1 Without Grille
Av
(m2)
W (mm)
200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200
H (mm)
200 0,030 0,039 0,047 0,055 0,063 0,071 0,079 0,095 0,111 - - - - -
250 0,040 0,050 0,061 0,072 0,082 0,093 0,103 0,125 0,146 0,167 - - - -
300 0,049 0,062 0,075 0,089 0,102 0,115 0,128 0,154 0,180 0,206 0,233 - - -
350 0,059 0,074 0,090 0,105 0,121 0,137 0,152 0,183 0,215 0,246 0,277 0,308 - -
400 0,068 0,086 0,104 0,122 0,140 0,159 0,177 0,213 0,249 0,285 0,321 0,358 0,394 0,430
450 - 0,098 0,119 0,139 0,160 0,180 0,201 0,242 0,283 0,325 0,366 0,407 0,448 0,489
500 - 0,110 0,133 0,156 0,179 0,202 0,225 0,272 0,318 0,364 0,410 0,456 0,503 0,549
600 - - 0,162 0,190 0,218 0,246 0,274 0,330 0,387 0,443 0,499 0,555 0,611 0,668
700 - - - 0,224 0,257 0,290 0,323 0,389 0,455 0,522 0,588 0,654 0,720 0,786
800 - - - - 0,296 0,334 0,372 0,448 0,524 0,600 0,677 0,753 0,829 0,905
Free Area of GE1-S-SA1 Accessory
Av
(m2)
W (mm)
200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200
H (mm)
200 0,029 0,037 0,044 0,052 0,060 0,067 0,075 0,090 0,106 - - - - -
250 0,038 0,048 0,058 0,068 0,078 0,088 0,098 0,118 0,139 0,159 - - - -
300 0,047 0,059 0,072 0,084 0,097 0,109 0,121 0,146 0,171 0,196 0,221 - - -
350 0,056 0,071 0,085 0,100 0,115 0,130 0,145 0,174 0,204 0,234 0,263 0,293 - -
400 0,065 0,082 0,099 0,116 0,133 0,151 0,168 0,202 0,237 0,271 0,305 0,340 0,374 0,409
450 - 0,069 0,083 0,097 0,112 0,126 0,141 0,170 0,198 0,227 0,256 0,285 0,314 0,343
500 - 0,077 0,093 0,109 0,125 0,142 0,158 0,190 0,222 0,255 0,287 0,320 0,352 0,384
600 - - 0,113 0,133 0,153 0,172 0,192 0,231 0,271 0,310 0,349 0,389 0,428 0,467
700 - - - 0,157 0,180 0,203 0,226 0,272 0,319 0,365 0,411 0,458 0,504 0,551
800 - - - - 0,207 0,234 0,260 0,314 0,367 0,420 0,474 0,527 0,580 0,634

20/47 | S-SA1

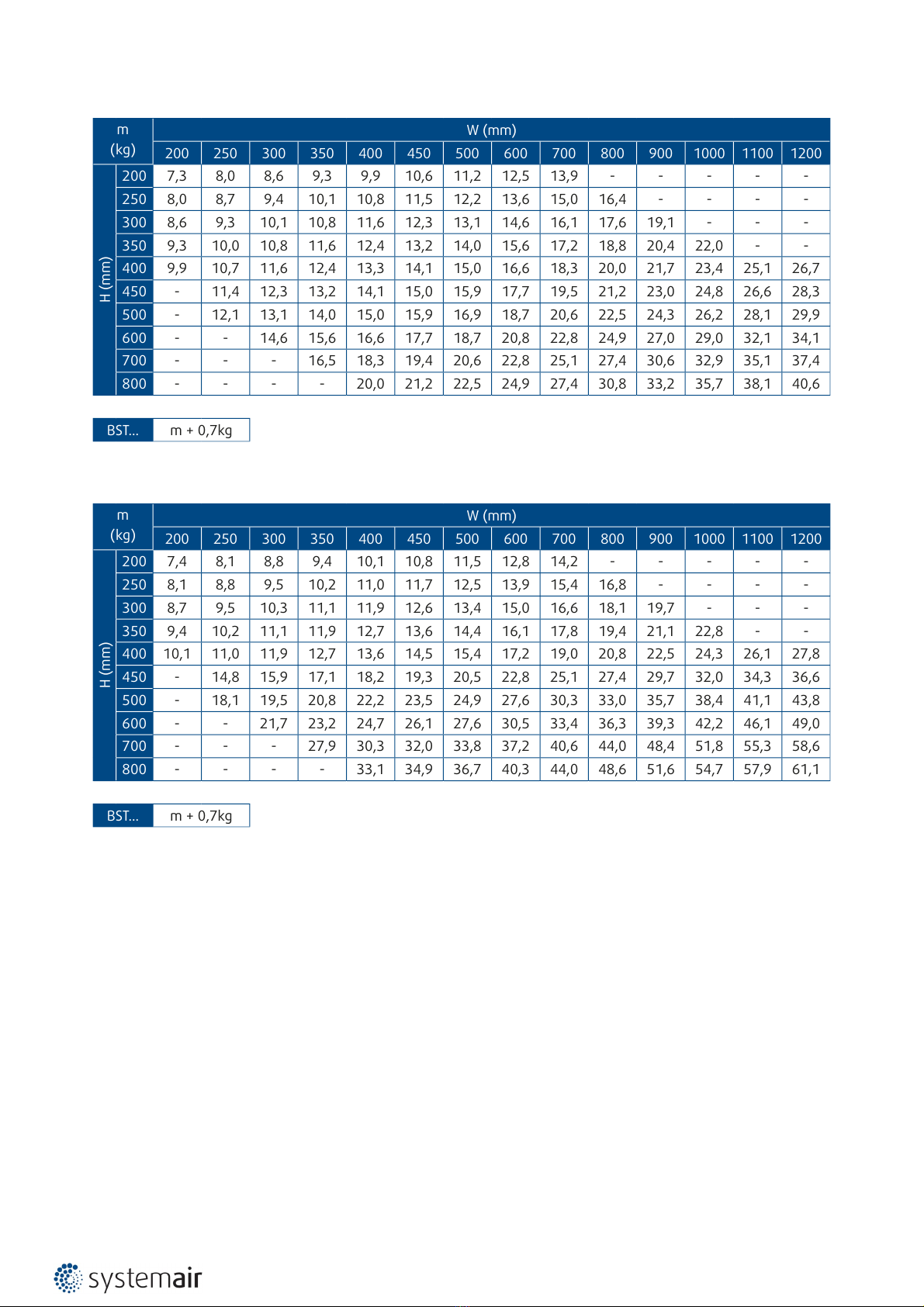

Weights of S-SA1 Without Grille
m
(kg)
W (mm)
200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200
H (mm)
200 7,3 8,0 8,6 9,3 9,9 10,6 11,2 12,5 13,9 - - - - -
250 8,0 8,7 9,4 10,1 10,8 11,5 12,2 13,6 15,0 16,4 - - - -
300 8,6 9,3 10,1 10,8 11,6 12,3 13,1 14,6 16,1 17,6 19,1 - - -
350 9,3 10,0 10,8 11,6 12,4 13,2 14,0 15,6 17,2 18,8 20,4 22,0 - -
400 9,9 10,7 11,6 12,4 13,3 14,1 15,0 16,6 18,3 20,0 21,7 23,4 25,1 26,7
450 - 11,4 12,3 13,2 14,1 15,0 15,9 17,7 19,5 21,2 23,0 24,8 26,6 28,3
500 - 12,1 13,1 14,0 15,0 15,9 16,9 18,7 20,6 22,5 24,3 26,2 28,1 29,9
600 - - 14,6 15,6 16,6 17,7 18,7 20,8 22,8 24,9 27,0 29,0 32,1 34,1
700 - - - 16,5 18,3 19,4 20,6 22,8 25,1 27,4 30,6 32,9 35,1 37,4
800 - - - - 20,0 21,2 22,5 24,9 27,4 30,8 33,2 35,7 38,1 40,6
BST... m + 0,7kg
Weights of S-SA1 with GE1-S-SA1 Accessory
m
(kg)
W (mm)
200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200
H (mm)
200 7,4 8,1 8,8 9,4 10,1 10,8 11,5 12,8 14,2 - - - - -
250 8,1 8,8 9,5 10,2 11,0 11,7 12,5 13,9 15,4 16,8 - - - -
300 8,7 9,5 10,3 11,1 11,9 12,6 13,4 15,0 16,6 18,1 19,7 - - -
350 9,4 10,2 11,1 11,9 12,7 13,6 14,4 16,1 17,8 19,4 21,1 22,8 - -
400 10,1 11,0 11,9 12,7 13,6 14,5 15,4 17,2 19,0 20,8 22,5 24,3 26,1 27,8
450 - 14,8 15,9 17,1 18,2 19,3 20,5 22,8 25,1 27,4 29,7 32,0 34,3 36,6
500 - 18,1 19,5 20,8 22,2 23,5 24,9 27,6 30,3 33,0 35,7 38,4 41,1 43,8
600 - - 21,7 23,2 24,7 26,1 27,6 30,5 33,4 36,3 39,3 42,2 46,1 49,0
700 - - - 27,9 30,3 32,0 33,8 37,2 40,6 44,0 48,4 51,8 55,3 58,6
800 - - - - 33,1 34,9 36,7 40,3 44,0 48,6 51,6 54,7 57,9 61,1
BST... m + 0,7kg
NOTE:
For activation types BST... add communication unit weight of 0,7 kg to the weight of S-SA1 (see table).
