Smoke Control Damper - AAmulti
Handbook

2/52 | S-SA2L
Table of Contents
Overview .........................................................3
Technical Parameters ..................................................6
Diagrams .........................................................8
Dimensions & Weights ..................................................11
Ordering Code ......................................................13
Product Handling .....................................................14
Installation ........................................................18
Electrical Parameters ...................................................32
Operation Manual ....................................................49

3/52 | S-SA2L

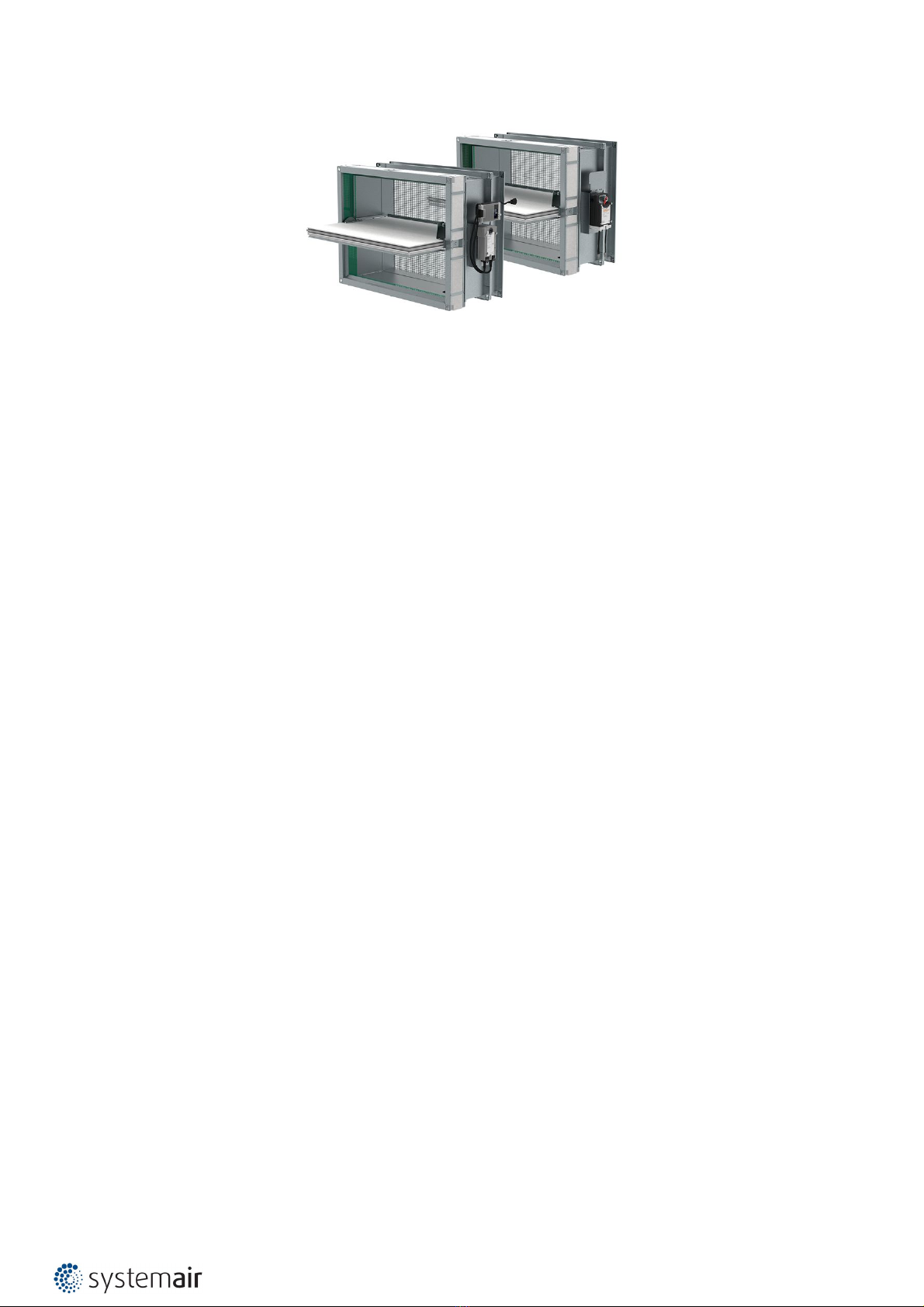

Description
S-SA2L smoke control dampers operate with mechanical or natural smoke and heat extraction systems. They remove
poisonous gases, smoke and fire and can also supply clean air to fire compartments.
S-SA2L dampers have an actuator without a spring. Thus, they have two safety positions: an “open” position and a
“closed” position. Power is necessary for the smoke control dampers.
S-SA2L dampers are designed for on a duct installations ended with grille, not in the wall or ceiling. The “Installation
Methods” section shows the types of installations that are permitted.
Special Properties
• The pressure level is 3 (-1500 Pa … 500 Pa).
• The blade leakage class 3 (compliant with EN 1751).
• The casing leakage class C (compliant with EN 1751).
• The S-SA2L dampers classified “multi” can also operate in compartments that are identified as "single”.
• AA – automatic activation (sets the safety position within 60 seconds). No thermal insulation around the actuator
needed.
Fire Resistivity
S-SA2L smoke control dampers have a CE certification that meets the EU’s Construction Products Regulation and
complies with standard EN 12101-8:2011. EN 1366-10:2011, A1:2017, and EN 1366-2:2015 are the reference
standards for the tests. EN 13501-4:2016 is the reference standard for product Classification. The smoke control
damper and its installation counts as one unit for fire resistivity rating:
• Damper installed on a duct with horizontaly oriented damper blade in closed possition:
EI 120 (hod - i↔o) S1500Cmod AAmulti
• Damper installed on a duct with vertically oriented damper blade in closed possition:
EI 120 (ved - i↔o) S1500Cmod AAmulti
Types of Activation
•B230 - Activation mechanism with a Belimo actuator (230V AC) and auxiliary switches
•G230 - Activation mechanism with a Gruner actuator (230V AC) and auxiliary switches
•B24 - Activation mechanism with a Belimo actuator (24V AC/DC) and auxiliary switches
•G24 - Activation mechanism with a Gruner actuator (24V AC/DC) and auxiliary switches
•B24-W - Activation mechanism with a Belimo actuator (24V AC/DC) and auxiliary switches, with provided cable
connectors for the supply and communication unit (communication unit not part of the mechanism)

4/52 | S-SA2L
•G24-W - Activation mechanism with a Gruner actuator (24V AC/DC) and auxiliary switches, with provided cable
connectors for the supply and communication unit (communication unit not part of the mechanism)
•B24-SR - Activation mechanism with a modulating Belimo actuator (24V AC/DC; 0(2) V...10 V DC) and auxiliary
switches. Modulating actuators have the possibility to open the blade at a desired angle
•BST0 - Activation mechanism with a Belimo actuator (AC/DC 24 V) with a supply and communication unit (AC 230 V)
BKNE230-24 (2-wire to BKSE...)
•GST0 - Activation mechanism with a Gruner actuator (AC/DC 24 V) with a supply and communication unit (AC 24 V)
FS-UFC24-2 (Modbus/BACnet)
•BST1 - Activation mechanism with a Belimo actuator (AC/DC 24 V) with a supply and communication unit (SLC
powered) BC24-G2 (THC)
•BST10 - Activation mechanism with a Belimo actuator (AC/DC 24 V) with a supply and communication unit (AC 230
V) BKNE230-24-PL (Powerline)
Accessories
Detailed information about accessories is available in design.systemair.com
• K1-S-SA2L: Kit for Sheet-Metal Duct Installation.
• LEAS: Damper Extension for Thick-wall Installations.
Design
The casing of the S-SA2L is made of a galvanized sheet metal. Blades are made from calcium silicate boards. A foam
seal, silicone rubber gasket with an intumescent seal prevent leaks of heat or smoke. The casing has flange on one
side with holes for screws to attach to sheet-metal duct flanges. Casing is fitted with grille at one side. The casing also
has a calcium silicate board circumfering the blade area for connection to board made duct. The damper casing has
inspection openings. The mechanisms actuator of the S-SA2L is accesible from the outside.
Composition of Materials
The product contains these materials:
• Galvanized sheet metal
• Calcium silicate board
• Fireproof carbon fiberglass
• Polyurethane foam
• Intumescent strips
• Bound silicone in extruded gasket
• Ethylene-propylene rubber
• PE tapes and foil
• Galvanized steel fasteners
• Acrylic sealant
The manufacturing processes of these materials agree with local regulations. The product does not contain dangerous
materials. No silicone caulks are used in the manufacturing processes.

5/52 | S-SA2L

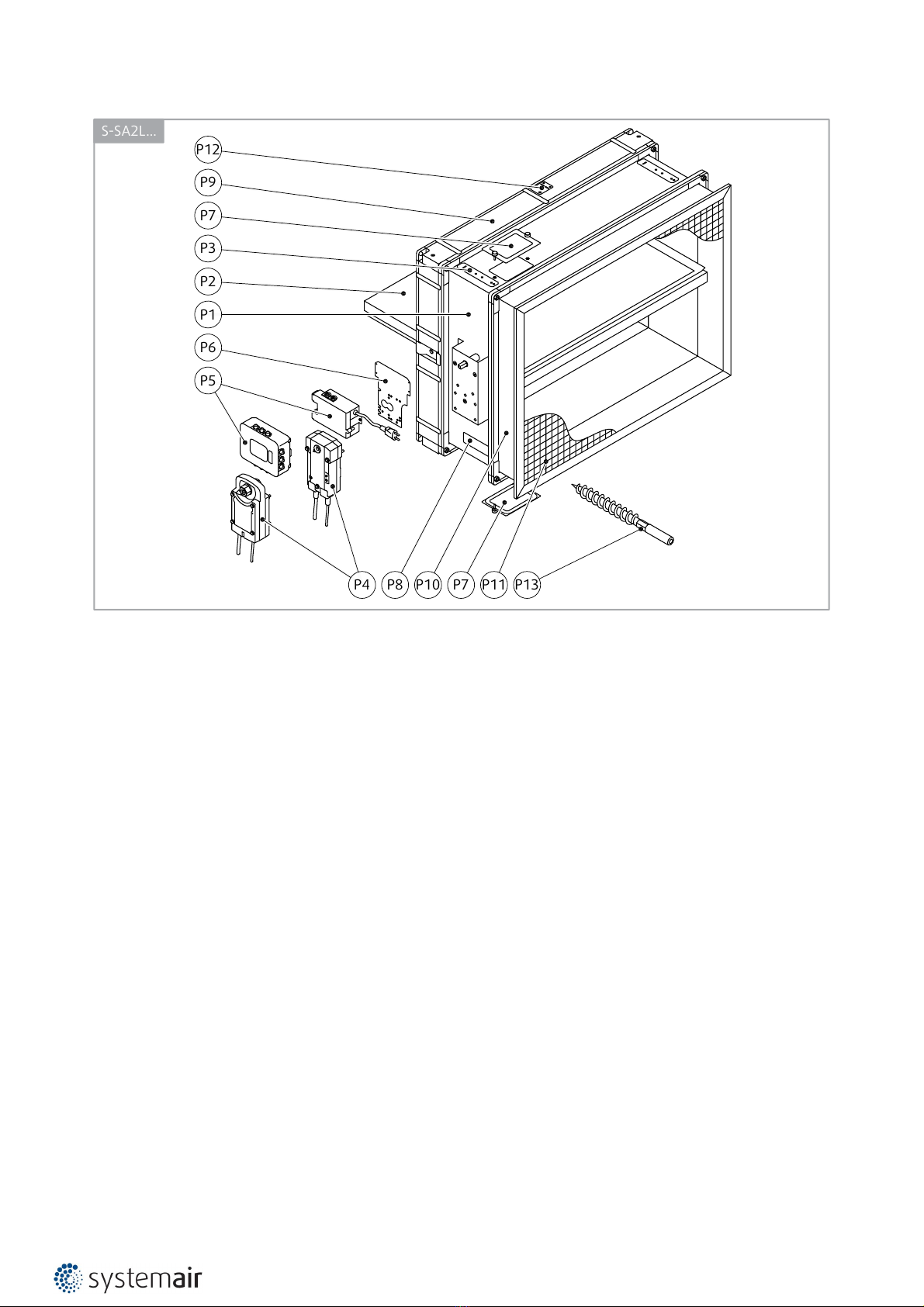

Product Parts

P12
P9
P7
P3
P2
P1
P6
P5
P4 P8 P10 P7 P11 P13
S-SA2L...
Legend
P1 - Damper casing
P2 - Damper blade
P3 - Bendable hanger
P4 - Actuator
P5 - Supply and communication unit (only for BST0, GST0, BST1, BST10 activation type)
P6 - Holder for communication unit (without unit installed only for B24-W activation type)
P7 - Inspection lid
P8 - Product label
P9 - Calcium silicate frame
P10 - Duct extension
P11 - Sheet metal mesh
P12 - Installation brace (for W>800)
P13 - Kombi screw M8

6/52 | S-SA2L
Technical Parameters
Durability Test
• Test procedure with 10000 cycles and actuator control
(rotation from 0° to 90°)
• No change of the necessary properties.
• Test procedure with 10000 cycles and actuator control
for “mod” classification (rotation from 30° to 60°)
• No change of the necessary properties.
Tested Pressures
Maximum underpressure 1500 Pa
Maximum overpressure 500 Pa
Safe Position Open or closed
Possible Installations Refer to the "Installation" section
Direction of the Airflow Both direction for supply or extract
Permitted air Velocity During Blade Movement 12 m/s
Side with Fire Protection Both sides: (i<->o) - symmetrical
Closing and Opening Time Motor running time: <60 s / 90°
Closed or Open Status Indicator Microswitches that are part of the mechanism actuator
signal the closed or open status.
Environmental Conditions for Operation
The temperatures must be: -20 °C ... 50 °C
Relative humidity: Less than 95% (3K21, EN 60721-3-3)
Product protected from: Weather, rain and water from other sources
Condensation: Cannot form on the product
Icing: Cannot form on the product
Access for Inspection
Through opening of inspection lid.
Maintenance Maintenance is not necessary. A dry-cleaning procedure
can be mandatory in some countries or when needed.
Inspections
Obey local laws for the minimum time between inspection procedures. When not specified the maximum interval
between inspections is 6 months
Tightness of the Blade Class 3 of standard EN 1751 at 500 Pa
Tightness of the Housing Class C of standard EN 1751 at 500 Pa
EC Directives
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
Driving Actuator Types
Belimo BEN..., BEE..., BE..., (BLE...) ...230; ...24; ...24-ST; ...24-SR
Gruner 342-..., 362-... ...230-15, -20, -40...; ...024-15, -20, -40...; ...024-15-
ST01, -20-ST01, -40-ST01...
Transportation and Storage The temperature range must be: -30...50 °C
Make sure that the damper blade is in the closed position during transportation and protected from weather
disruptions. The storage of the smoke control damper must be indoors.

7/52 | S-SA2L
Assessed Performance
15 CE 1396
Systemair Production a.s.
Hlavná 371, 900 43 Kalinkovo, Slovakia
1396-CPR-0147 S-SA2L
EN 12101-8 : 2011
Smoke control damper
Nominal Activation Conditions/Sensitivity Pass
Response Delay (Response Time) Opening/closure time proven. Duration: <60 s / 90°
Operational Reliability Cmod: 20.000 cycles (modulated)
Fire Resistance:
installation: EI 120 (ved - hod - i↔o) S1500Cmod AAmulti
Resistivity depends on installation method and situation
• integrity E
maintenance of the cross section (under E)
mechanical stability (under E)
• insulation I
• smoke leakage S
Durability of Response Delay AA - Automatic Activation. Opening/closure time proven.
Duration: <60 s / 90°
Durability of Operational Reliability Cmod: 20.000 cycles. Cycle duration: <120 s

8/52 | S-SA2L
Diagrams
The pressure drop, and A-weighted total discharged sound power level depend on the nominal width and height of the
damper and air flow volume at different duct pressures. The type of activation does not influence the airflow
parameter, therefore only one activation type is shown in the diagrams.
Diagrams for Extract Air
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
300 500 1000 m³/h
100 200 300 l/s
1
5
10
Pa
W: 200, H: 200
W: 200, H: 300
W: 200, H: 400
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
25
30
35
40
45
50
55
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
500 1000 5000 m³/h
200 500 1000 2000 l/s
1
5
10
Pa
W: 400, H: 200
W: 400, H: 400
W: 400, H: 600
W: 400, H: 800
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
25
30
35
40
45
50
55
25
30
35
40
45
50
55
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
1000 5000 10000 m³/h
500 1000 2000 l/s
1
5
10
Pa
W: 600, H: 200
W: 600, H: 400
W: 600, H: 600
W: 600, H: 800
W: 600, H: 1000
25
30
35
40
45
50
55
25
30
35
40
45
50
55
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000 20000
m³/h
500 1000 5000 l/s
1
5
10
Pa
W: 800, H: 250
W: 800, H: 400
W: 800, H: 600
W: 800, H: 800
W: 800, H: 1000
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
25
30
35 40
45
50
55
60
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55

9/52 | S-SA2L
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000 m³/h
2000 3000 5000 l/s
1
5
10
Pa
W: 1200, H: 400
W: 1200, H: 600
W: 1200, H: 800
W: 1200, H: 1000
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
10000 20000 30000 m³/h
3000 5000 10000 l/s
1
2
5
Pa
W: 1600, H: 700
W: 1600, H: 800
W: 1600, H: 900
W: 1600, H: 1000
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40 45
50
55
60
25
30
35
40
45
50
55
Diagrams for Supply Air
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
300 500 1000 m³/h
100 200 300 l/s
2
5
10
20
Pa
W: 200, H: 200 W: 200, H: 300
W: 200, H: 400
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
25
30
35
40
45
50
55
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
1000 2000 5000 m³/h
200 500 1000 2000 l/s
1
5
10
Pa
W: 400, H: 200
W: 400, H: 400
W: 400, H: 600
W: 400, H: 800
25
30
35
40
45
50
55
25
30
35 40
45
50
55
60
65
25
30
35
40
45
50 55
60
65
25
30
35
40
45
50
55

10/52 | S-SA2L
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
1000 5000 10000 m³/h
500 1000 2000 l/s
0.5
1
5
10
Pa
W: 600, H: 200
W: 600, H: 400
W: 600, H: 600
W: 600, H: 800
W: 600, H: 1000
25
30
35
40
45
50
55
25
30
35 40
45
50
55
60
65
25
30
35
40
45
50
55
60
65
70
75
25
30
35
40
45
50
55
60
65
25
30
35
40
45 50
55
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
2000 5000 10000 20000 m³/h
500 1000 5000 l/s
0.5
1
5
10
Pa
W: 800, H: 250
W: 800, H: 400 W: 800, H: 600
W: 800, H: 800
W: 800, H: 1000
25 30
35
40
45 50
55
25
30
35
40
45
50
55
60
65
25
30
35
40 45
50
55
60
65
70
25
30
35
40
45
50
55
60
65
25
30
35
40
45
50
55
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000 m³/h
2000 3000 5000 l/s
0.5
1
5
10
Pa
W: 1200, H: 400
W: 1200, H: 600
W: 1200, H: 1000
W: 1200, H: 800
25
30
35
40
45
50
55
25
30
35
40
45
50
55
60
65
25
30
35
40
45 50
55
60
25
30
35
40
45
50
55
S-SA2L-...-
Pressure drop & A-weighted sound power level in dB(A)
20000 30000 50000
m³/h
5000 8000 10000 l/s
0.5
1
2
Pa
W: 1600, H: 700
W: 1600, H: 800
W: 1600, H: 900
W: 1600, H: 1000
25
30
35 40
45
50
55
25
30
35
40
45
50
55
25
30
35
40 45
50
55
60
25
30
35
40
45
50
55
Legend:
Pa - Pressure drop (ps)
m3/h; l/s - Air flow volume (qv)

11/52 | S-SA2L
Dimensions & Weights
Dimensions
W
W+65
H
H+65
≤125 R1
300 L1
L
(H+60) (W+60)
10
100
S-SA2L...
(mm)
H>400
H (mm) 200 250 300 350 400 450 500 600 700 800 900 1000
R145 70 95 120 145 170 195 245 295 345 395 445
L1- 100 200 300
Free Area
Av
(m2)
W (mm)
200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600
H (mm)
200 0,025 0,031 0,037 0,044 0,050 0,057 0,063 0,076 0,089 - - - - - - - - -
250 0,034 0,043 0,052 0,060 0,069 0,078 0,086 0,104 0,121 0,138 - - - - - - - -
300 0,041 0,052 0,062 0,072 0,083 0,093 0,104 0,124 0,145 0,166 0,186 - - - - - - -
350 0,048 0,060 0,072 0,085 0,097 0,109 0,121 0,145 0,169 0,193 0,217 0,242 - - - - - -
400 0,055 0,069 0,083 0,097 0,110 0,124 0,138 0,166 0,193 0,221 0,248 0,276 0,304 0,331 - - - -
450 - 0,078 0,093 0,109 0,124 0,140 0,155 0,186 0,217 0,248 0,279 0,311 0,342 0,373 0,404 - - -
500 - 0,086 0,104 0,121 0,138 0,155 0,173 0,207 0,242 0,276 0,311 0,345 0,380 0,414 0,449 0,483 - -
600 - - 0,124 0,145 0,166 0,186 0,207 0,248 0,290 0,331 0,373 0,414 0,455 0,497 0,538 0,580 0,621 -
700 - - - 0,169 0,193 0,217 0,242 0,290 0,338 0,386 0,435 0,483 0,531 0,580 0,628 0,676 0,725 0,773
800 - - - - 0,221 0,248 0,276 0,331 0,386 0,442 0,497 0,552 0,607 0,662 0,718 0,773 0,828 0,883
900 - - - - - 0,279 0,311 0,373 0,435 0,497 0,559 0,621 0,683 0,745 0,807 0,869 0,932 0,994
1000 - - - - - - 0,345 0,414 0,483 0,552 0,621 0,690 0,759 0,828 0,897 0,966 1,035 1,104

12/52 | S-SA2L
Weights
m
(kg)
W (mm)
200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600
H (mm)
200 14,8 16,2 17,6 19,1 20,5 22,1 23,5 26,5 29,4 - - - - - - - - -
250 16,2 17,7 19,3 20,8 22,4 24,0 25,6 28,7 31,8 34,9 - - - - - - - -
300 17,6 19,3 21,1 22,6 24,4 26,0 27,7 31,0 34,3 37,6 40,9 - - - - - - -
350 19,4 21,1 22,9 24,7 26,4 28,3 30,0 33,5 37,0 40,5 44,0 48,5 - - - - - -
400 20,9 22,7 24,7 26,4 28,3 30,3 32,1 35,9 39,6 43,3 47,3 50,9 54,7 58,5 - - - -
450 - 24,3 26,3 28,3 30,2 32,3 34,2 38,2 42,3 46,2 50,1 54,8 58,0 62,0 65,9 - - -
500 - 25,9 28,1 30,1 32,1 34,2 36,6 40,7 44,8 49,0 53,0 57,2 61,4 65,5 69,7 76,9 - -
600 - - 31,4 33,6 36,2 38,5 40,8 45,2 49,8 54,3 58,9 63,4 68,0 72,5 77,1 83,6 87,7 -
700 - - - 37,4 39,9 42,4 44,9 49,8 54,7 59,8 64,7 69,6 74,5 80,8 86,0 91,4 95,9 100,9
800 - - - - 43,6 46,4 49,1 54,4 59,8 65,1 70,7 76,0 82,6 88,0 93,4 99,3 104,1 109,4
900 - - - - - 50,3 53,2 58,9 64,7 70,4 76,4 83,5 89,3 95,0 100,8 107,1 112,3 118,3
1000 - - - - - - 57,3 63,5 69,7 75,8 83,5 89,6 95,8 102,0 108,2 115,0 120,5 126,7
BST.../GST... m +0,7 kg
NOTE:
For activation types BST.../GST... add communication unit weight of 0,7 kg to the weight of S-SA2 (see table).

13/52 | S-SA2L
Ordering Codes
S-SA2L-
W
H
A
× -
W - Width Dimension
200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm,
1100 mm, 1200 mm, 1300 mm, 1400 mm, 1500 mm, 1600 mm
H - Height Dimensions
200 mm, 250 mm,300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm
A - Type of Activation
B230 - 230 V AC Belimo actuator
G230 - 230 V AC/DC Gruner Actuator
B24 - 24 V AC/DC Belimo actuator
G24 - 24 V AC/DC Gruner Actuator
B24-W - 24 V AC/DC Belimo actuator & wire connector for supply and communication unit
G24-W - 24 V AC/DC Gruner actuator & wire connector for supply and communication unit
B24-SR - 24 V AC/DC Belimo actuator, modulated (0)2 V ... 10 V
BST0 - 230 V AC supply and communication unit BKNE230-24 (2-wire to BKSE...) & 24 V AC/DC Belimo actuator
GST0 - 24 V AC supply and communication unit FS-UFC24-2 (Modbus/BACnet) & 24 V AC/DC Belimo actuator
BST1 - SLC powered supply and communication unit BC24-G2 (THC) & 24 V AC/DC Belimo actuator
BST10 - 230 V AC supply and communication unit BKNE230-24-PL (Powerline) & 24 V AC/DC Belimo actuator
Example of the Ordering Code
S-SA2L-800×450-B24-SR
Smoke control damper with width of 800 mm and height of 450 mm, with a grille on one side. Activated by a 24 V
modulated Belimo actuator (0) 2 V ... 10 V.

14/52 | S-SA2L
Product Handling
Warning
Some damper parts can have sharp edges. To prevent injuries, use gloves when you install or move the damper. If
you use or operate the damper incorrectly, there is a risk of:
- electric shock.
- fire.
- other damage.
Ensure that installation is performed by a trained person. The S-SA2L is made of boards and sheet metal. Thus
considered fragile.Be careful when you move the smoke control damper. Two persons are necessary to move the
dampers and put them onto the duct and/or hangers.It is necessary to move the bigger dampers with suitable lifting
equipment (forklift, crane).Please follow both textual and graphic instructions.
1. Unpacking:
• Remove the packaging
2. Functionality check:
• Perform damper's functionality check (see "Operation Manual" section).
3. Placing the damper:
• Prepare the duct connection surfaces as per the desired installation type.
• Prepare the corner screws in the board duct connections.
• Fix the supports to the propper place as per chosen installation type.
• Carefully lift the smoke control damper with the forklift, crane or manually.
• Place the damper on the hangers and on duct connection surfaces.
4. Fixing the damper:
NOTE: Make sure to continually check the alignment of the damper against the duct connection when performing the
next steps.
• Prepare the installation brace when installing to board ducts.
• Fix the damper with duct by using suitable screws through the flange corners and installation brace.
• Verify there is no skewing of the damper body by measuring diagonal dimensions of the blade area or the nominal
dimension.
• As per chosen installation finish the connection surfaces with suitable caulck and overlapping boards.

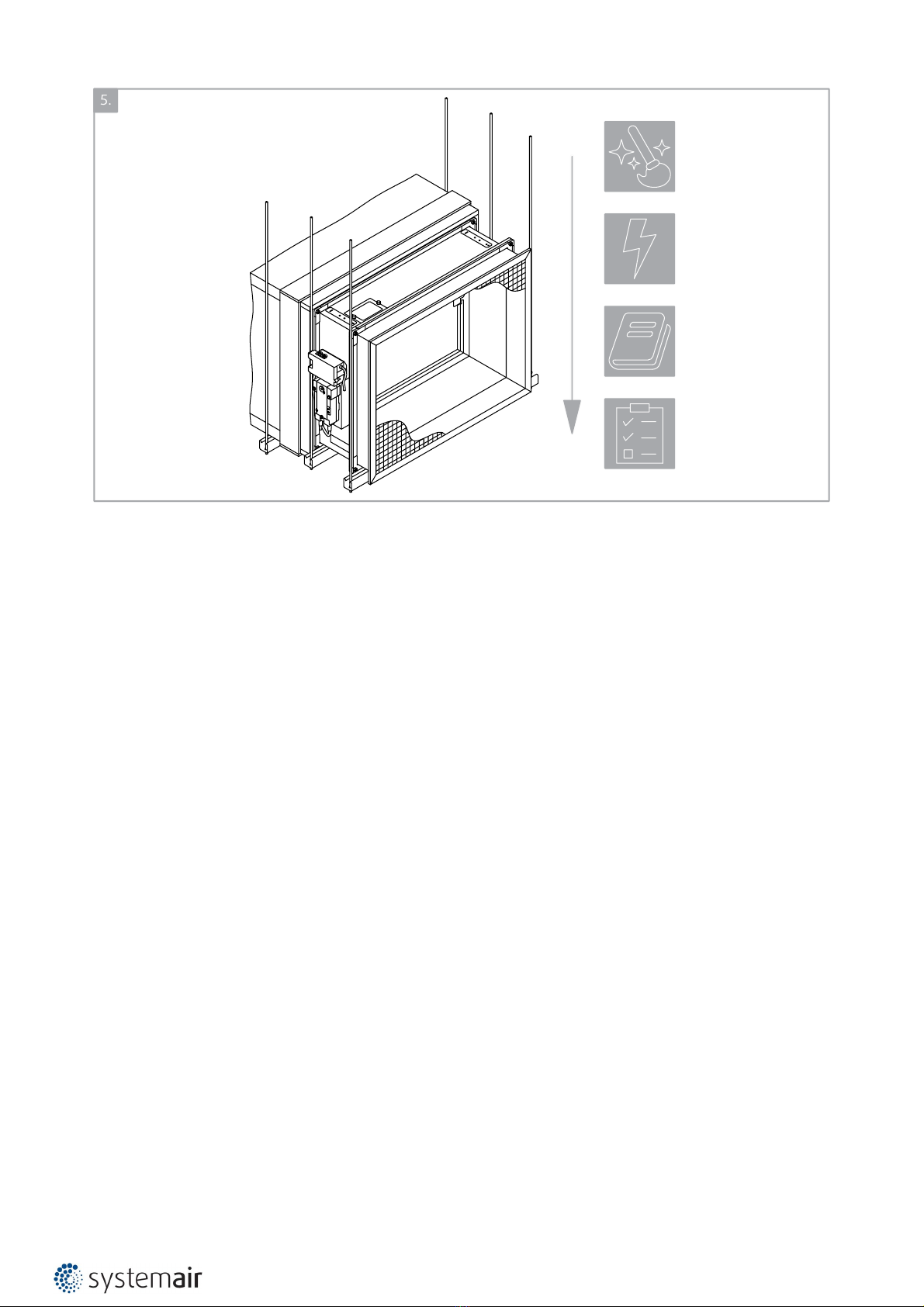

5. Finishing:
• Clean the damper from the debris and excess material from the filling or insulation.
• Connect the dampers actuator as per activation type wiring diagram in the "electrical connection" section.
• Perform damper's functionality check (see "Operation Manual" section).
• Create and/or fill out the Operating Journal included with the smoke control damper (Operating Journal can be also
downloaded at design.systemair.com)

15/52 | S-SA2L
1
2
1. 2.
3.

16/52 | S-SA2L

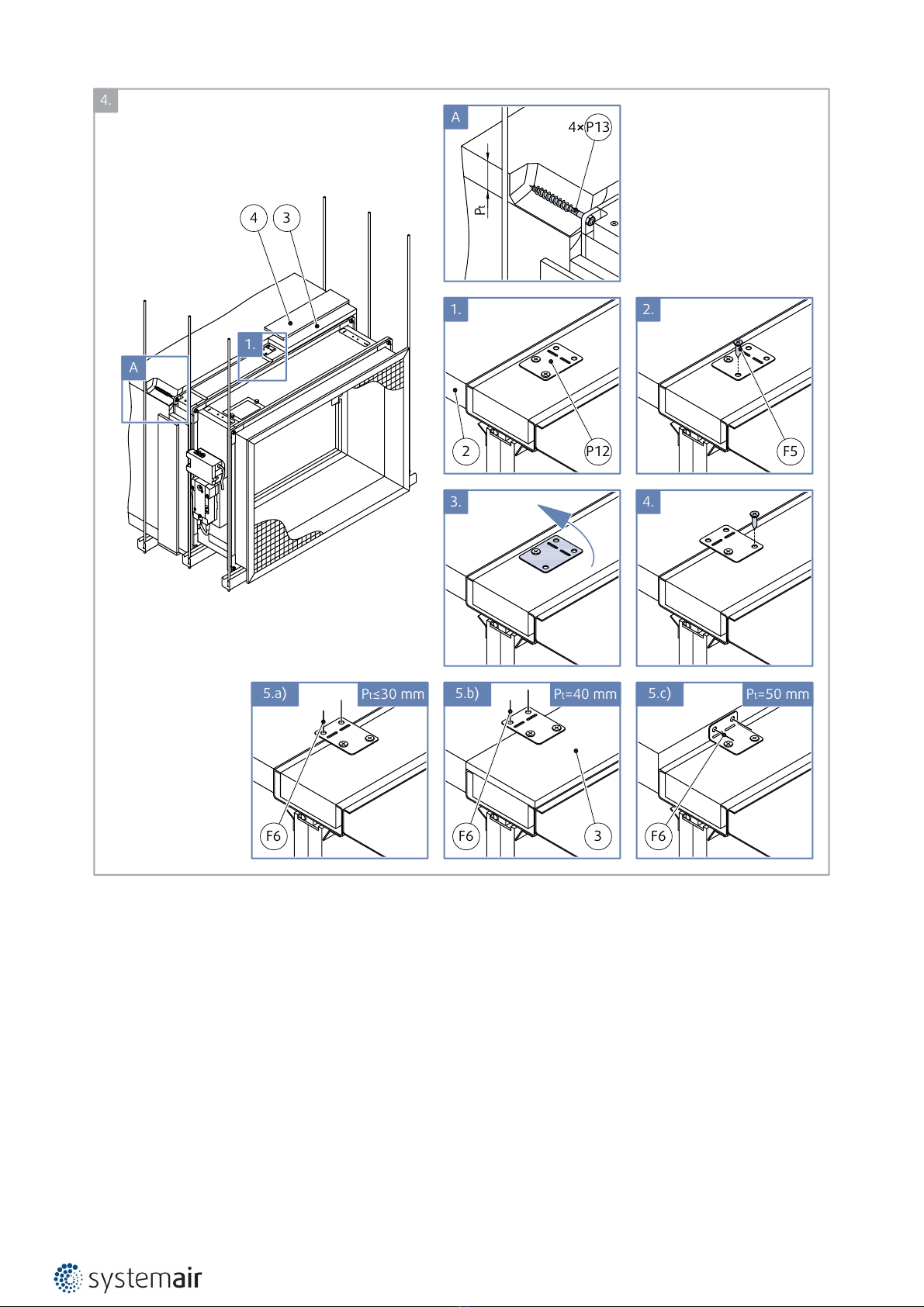

Pt
2 P12 F5
F6 F6 3 F6
4 3
P13
4.
Pt=50 mmPt=40 mmPt≤30 mm
1. 2.
3. 4.
5.a) 5.b) 5.c)
A4
A
1.

17/52 | S-SA2L
5.
Legend for Product Handling
1 - Smoke control damper S-SA2L
2 - Connected ductwork tested according to EN 1366-9
3 - Board collar as per chosen installation
4 - Cover plates as per chosen installation
F5 - Screw 4,8×16 mm DIN 7982 (delivered on the damper)
F6 - Screw 4,8×16 mm DIN 7982
P12 - Installation brace (for W>800 mm)
P13 - Fixing Kombi screws

18/52 | S-SA2L
Installation Methods
Warning
• Suspension systems longer than 1,5 m require fire-resistant insulation.
• Obey the applicable regulations and standards of the country that this product will be installed in.
• Make sure that only approved personnel performs the installation.
• Obey the written instructions and the illustrations in selected installation method.
Installation Rules
• The S-SA2L smoke damper can be installed on “single” (tested according to EN 1366-9) or “multi” (tested according
to EN 1366-9) ductwork. If mounted on a duct classified with lower fire resistivity, the fire resistivity of the S-SA2L
smoke damper will be decreased to the duct level.
• The duct connected to the smoke control damper must be supported or hung in such a way that the damper does not
carry its weight. The damper must not support any part of the surrounding construction or wall which could cause
damage and consequent damper failure.
• Smoke control dampers can be suspended from solid ceiling slabs using adequately sized threaded rods. When using
anchors in the ceiling, use a fire-rated anchor (with suitable a fire rating certificate).
• Easy access to mechanism and internal parts during inspection must be considered during damper placement.
• The minimum distance between the smoke control damper bodies must be 200 mm (refer to Standard EN 1366-2).
• The minimum distance between the smoke control damper and the adjacent wall or ceiling must be 75 mm.
• If the grilles are not original accessories, there must be a minimum clearance between the damper blade in its open
position and self-standing grille. The clearance between the damper blade and these components must be at least
200 mm (refer to EN 1366-10).

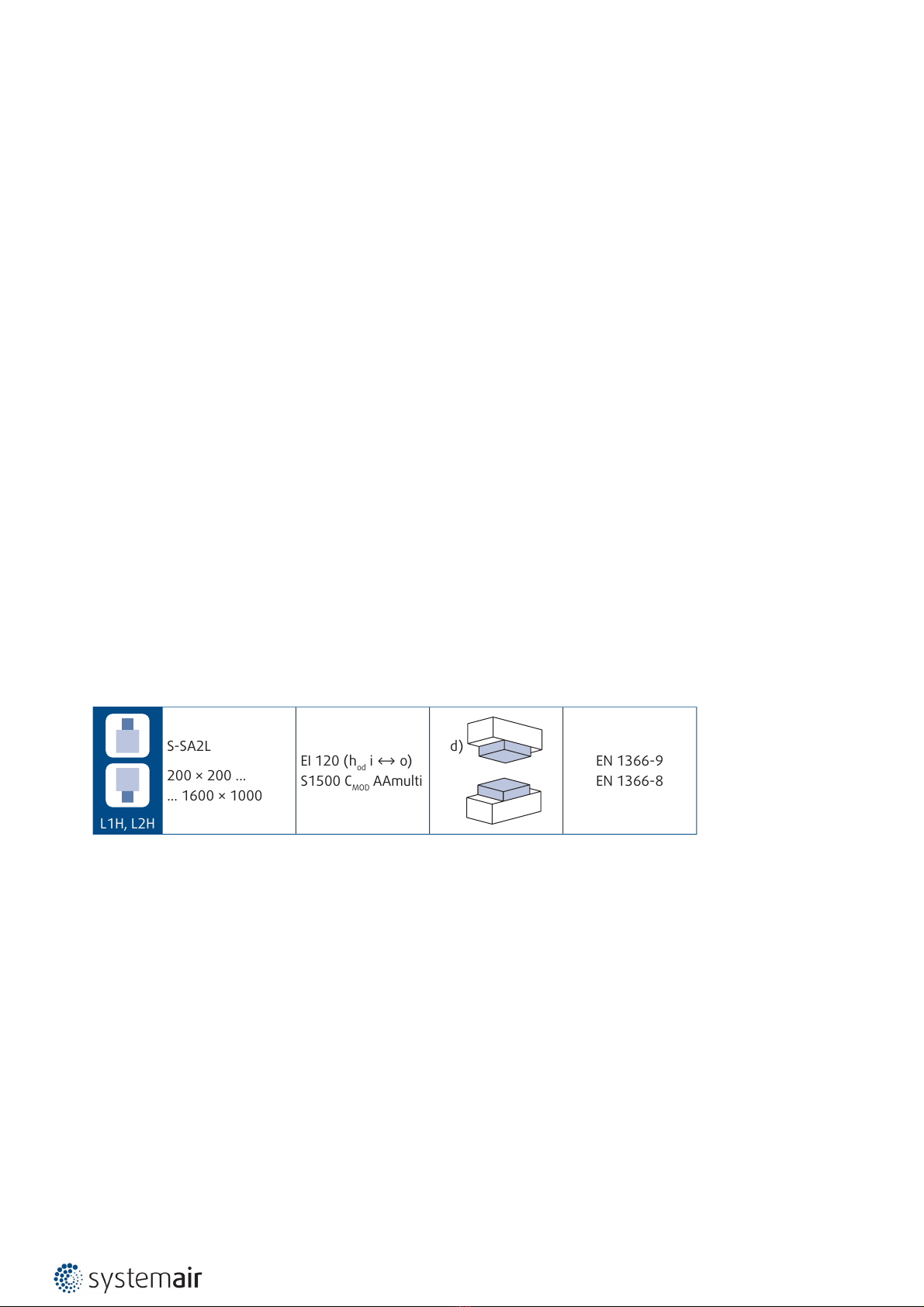

• Lists of all permitted installation methods are provided in Handbook.
L1H, L2H
S-SA2L
200 × 200 ...
... 1600 × 1000
EI 120 (hod i ↔ o)
S1500 CMOD AAmulti
d)
EN 1366-9
EN 1366-8
L1V, L2V
EI 120 (ved i ↔ o)
S1500 CMOD AAmulti
d)
EN 1366-9
EN 1366-8
NOTES:
L1H - Horizontally Oriented Damper (With Ledge)
L2H - Horizontally Oriented Damper (Directly)
L1V - Vertically Oriented Damper (With Ledge)
L2V - Vertically Oriented Damper (Directly)
d) - Duct per EN 1366-9 or EN 1366-8
ved - Duct placement, vertically oriented damper
hod - Duct placement, horizontally oriented damper

19/52 | S-SA2L

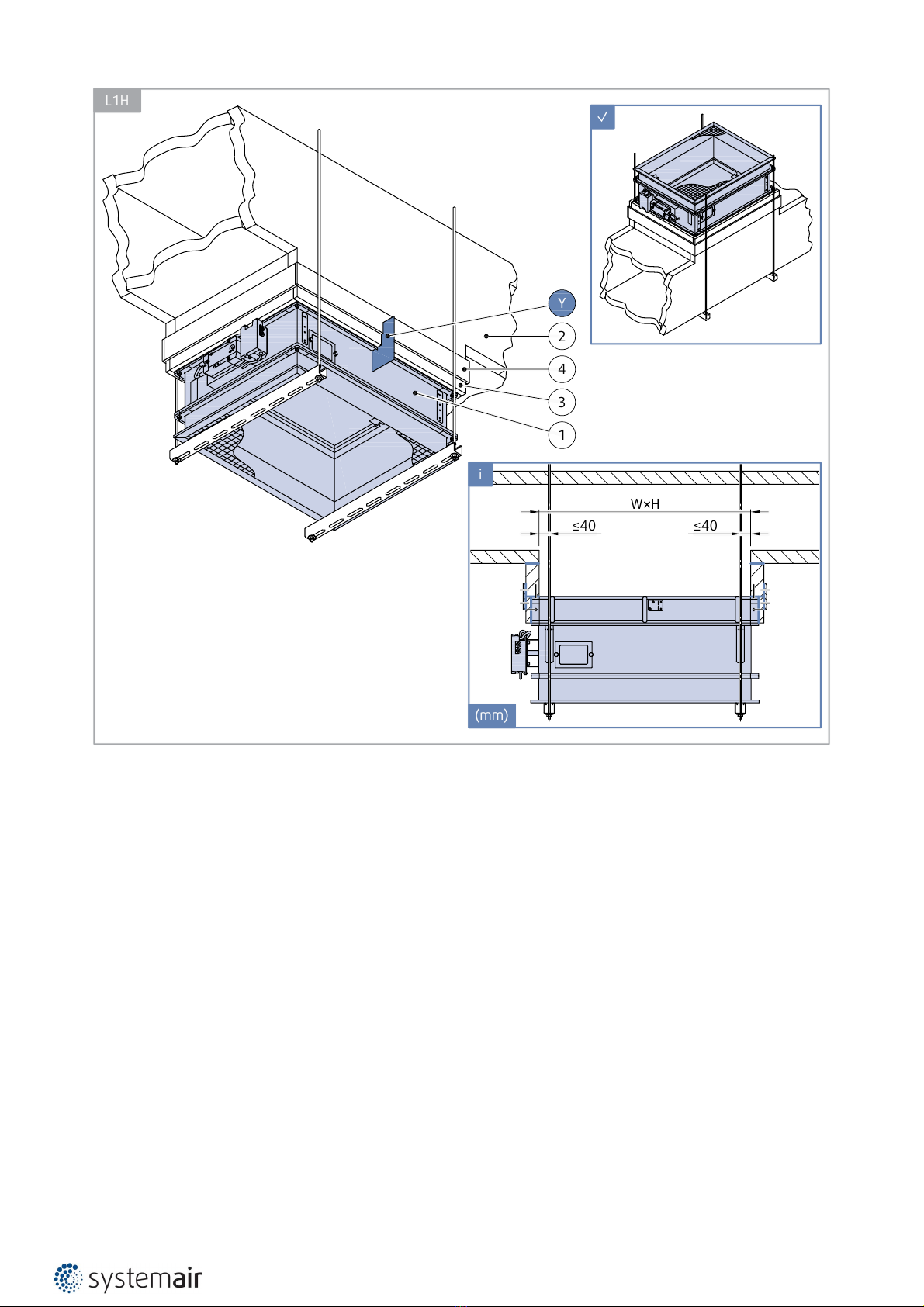

Installation L1H
Horizontally Oriented Damper, Connected to Duct With Ledge
1. Prepare the duct connection and the damper hangers. The opening dimensions must be created according to the
details of each type and thickness of the connected duct.
NOTE: The dimensions of the openings are the result of the nominal dimensions of the damper with added clearance.
The dimensions of the connection will be W1 and H1.
a. Clean the connection surfaces. Make sure that the surfaces are even.
2. Apply a fire resistive coat (F1) to the connection surfaces.
CAUTION: The product label must remain clean and readable.
3. Obey the procedure in the “Product Handling” section to put the damper on its suspension system and against the
connection surfaces.
CAUTION: Make sure the kombi screws are fixed to the board duct corners. If the width of the damper is more than
800 mm, use installation brace during the installation procedure.
4. Connect the damper’s flange (on the blade side) to the duct.
5. From boards (F2, F3) create a collar overlapping the connection.
6. Fix the overlapping collar to the damper with screws (F4). Fix the collar to the duct by using screws as per
instructions of duct system manufacturer.
7. Perform damper's functionality check (see "Operation Manual" section).
IMPORTANT
• The suspension of the damper must be loaded only with the weight of the damper.
• Suspension rods longer than 1,5 m require fire-resistant insulation.
• The fire resistivity of the S-SA2L smoke damper must be decreased to the duct system performance.
• The maximum resistivity for L1V installation is EI120S with pressure level 3 (-1500 Pa … 500 Pa).
L1H, L2H
S-SA2L
200 × 200 ...
... 1600 × 1000
EI 120 (hod i ↔ o)
S1500 CMOD AAmulti
d)
EN 1366-9
EN 1366-8
NOTES:
L1H - Horizontally Oriented Damper (With Ledge)
d) - Duct per EN 1366-9 or EN 1366-8
hod - Duct placement, horizontally oriented damper

20/52 | S-SA2L
≤40 ≤40
W H
Y
4
3
1
2
✓
(mm)
i
L1H
