System air FDR-3G User manual

FDR-3G
Circular Fire Damper
Handbook

2/67 | FDR-3G
Table of Contents
Overview .........................................................3
Technical Parameters ..................................................7
Diagrams .........................................................10

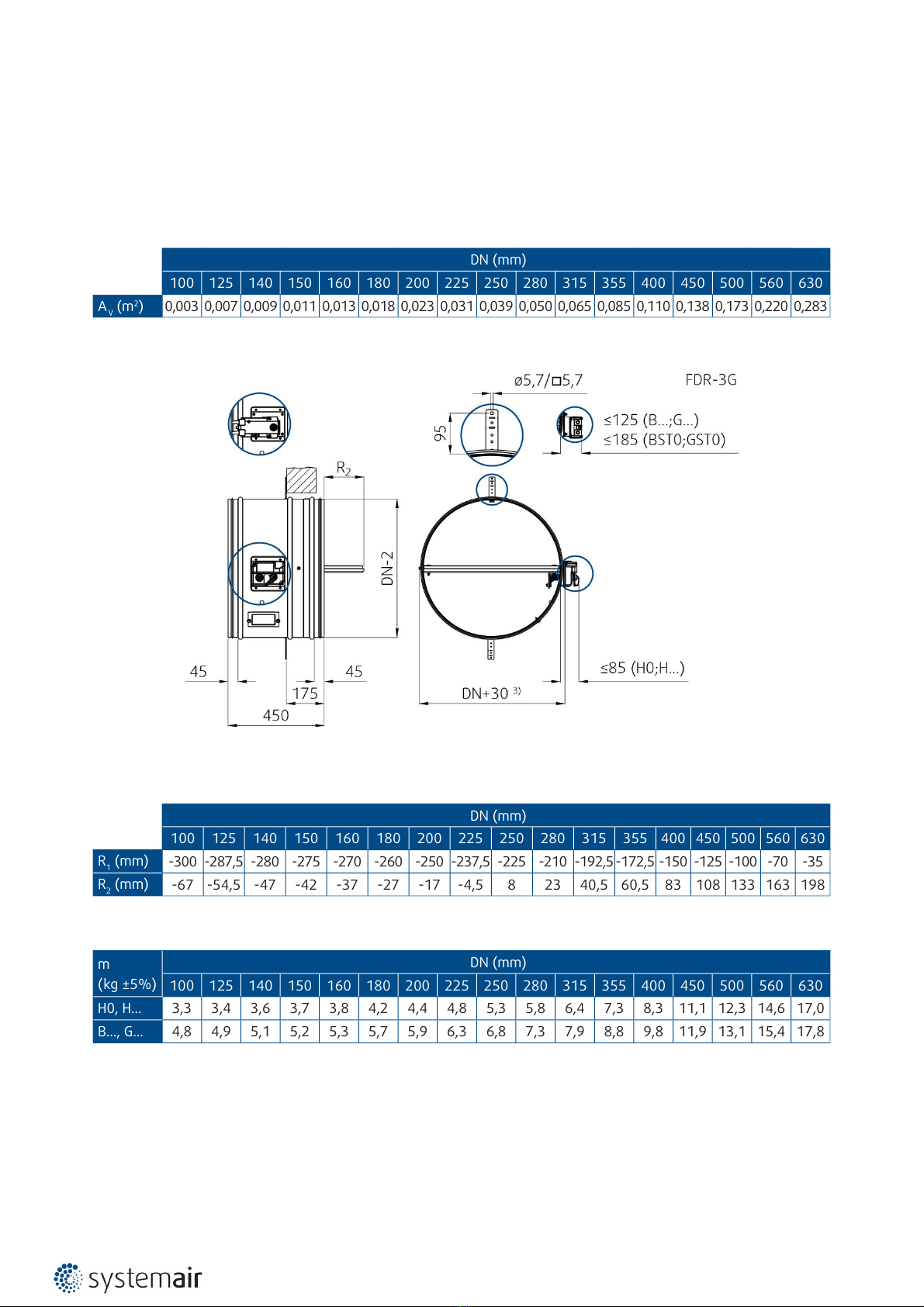

Dimensions & Weights ..................................................12
Ordering Code ......................................................14

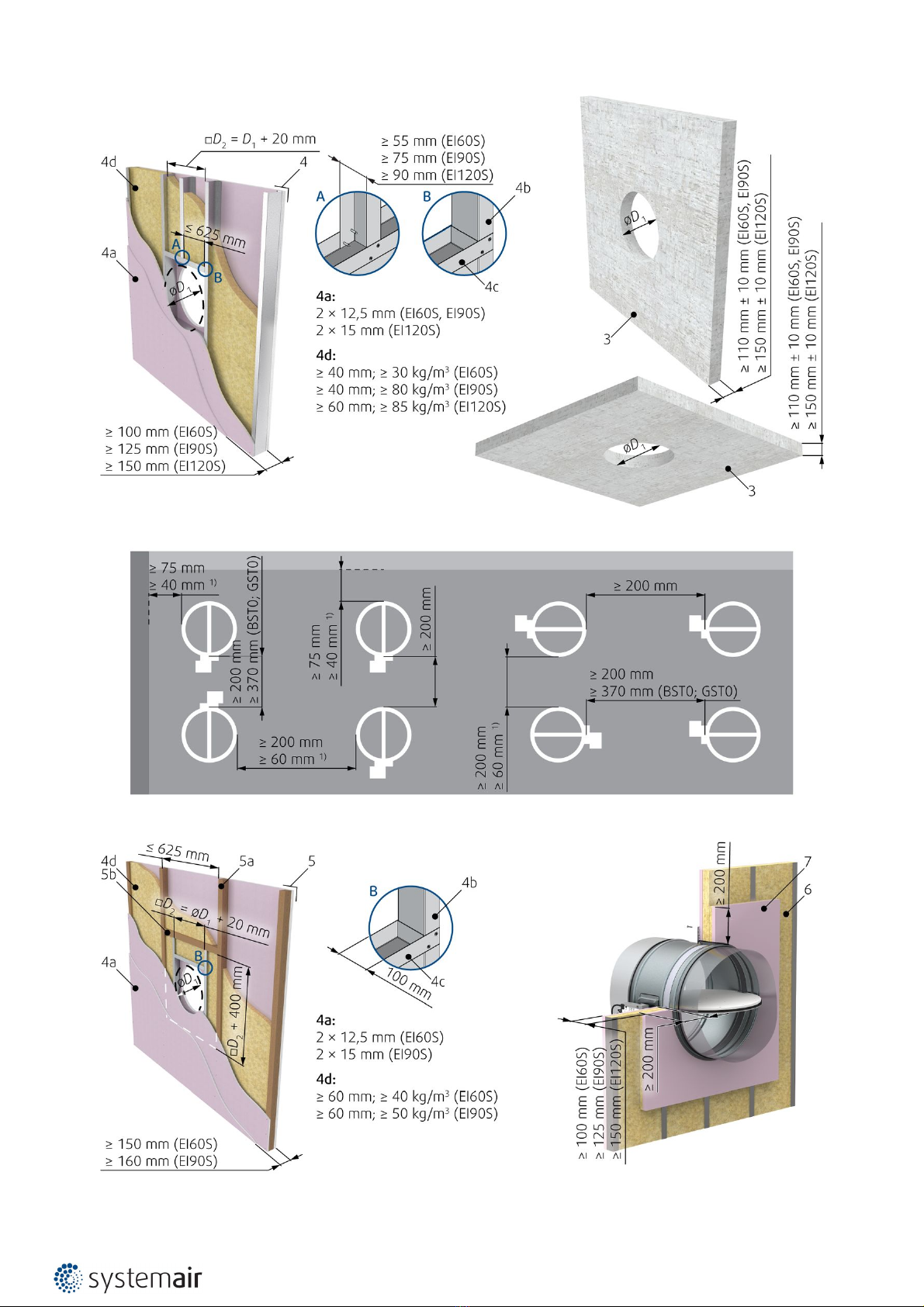

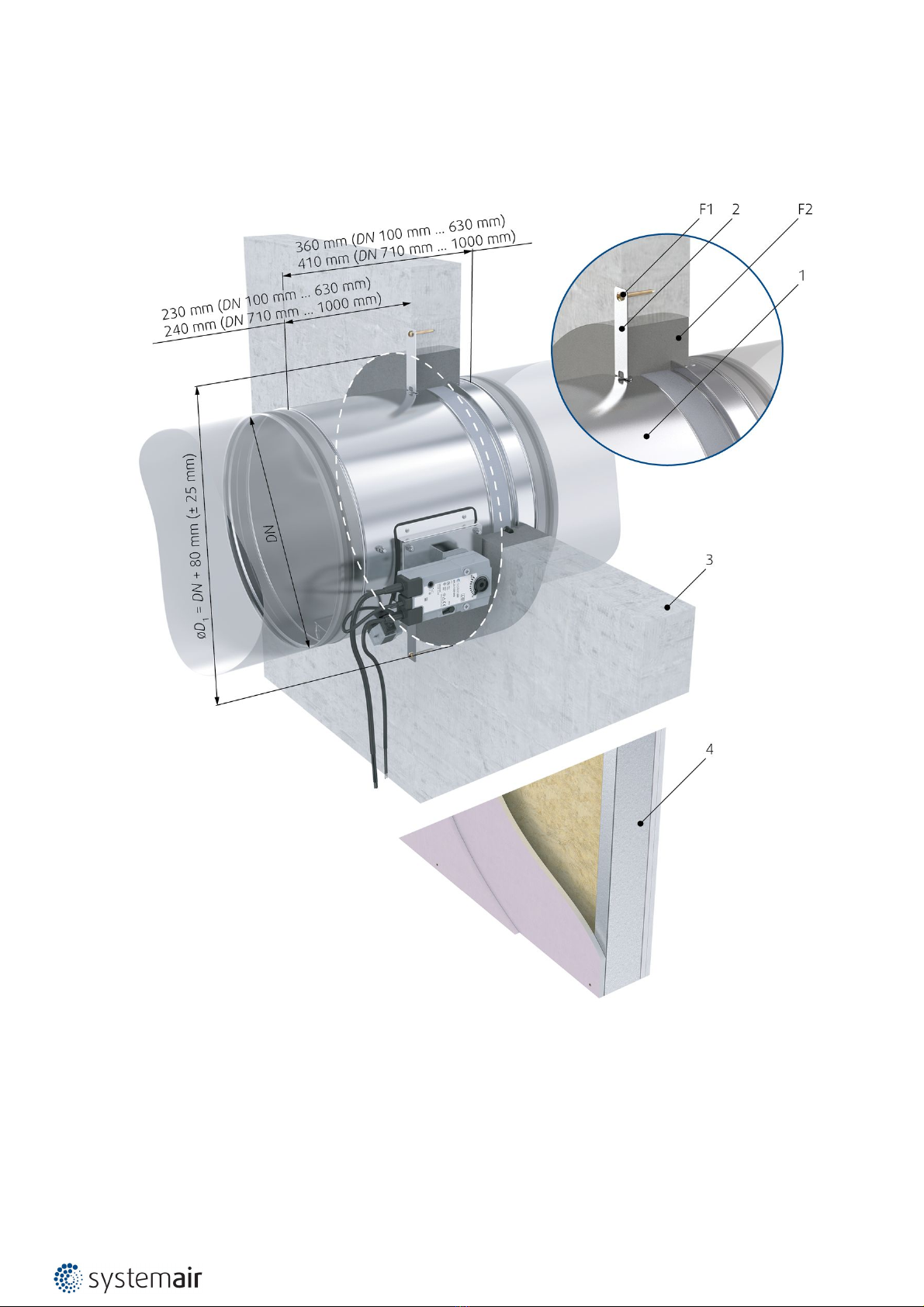

Installation ........................................................16
Electrical Parameters ...................................................42
Operation Manual ....................................................65

3/67 | FDR-3G
Description
Fire dampers represent passive fire protection, designed with the help of compartmentalization to prevent the spread
of toxic gases, smoke and fire. Standard fire dampers are designed and certified in accordance with EN 15650 and
tested for EIS criteria according to EN 1366–2. Fire damper together with its installation form an inseparable part of fire
resistivity rating. FDR-3G fire dampers are designed for the installations listed and described in their User Manual. By
default, all fire dampers are supplied with a manual mechanism or actuator mechanism, optionally with a supply and
communication unit.
The activation mechanisms are removable and are interchangeable, for example an actuator operated mechanism
instead of a manually operated mechanism.
Highlights
• Lightweight construction
• Tightness class 3C as standard
• Low pressure drop
• Changeable mechanism
• Inspection opening built-in

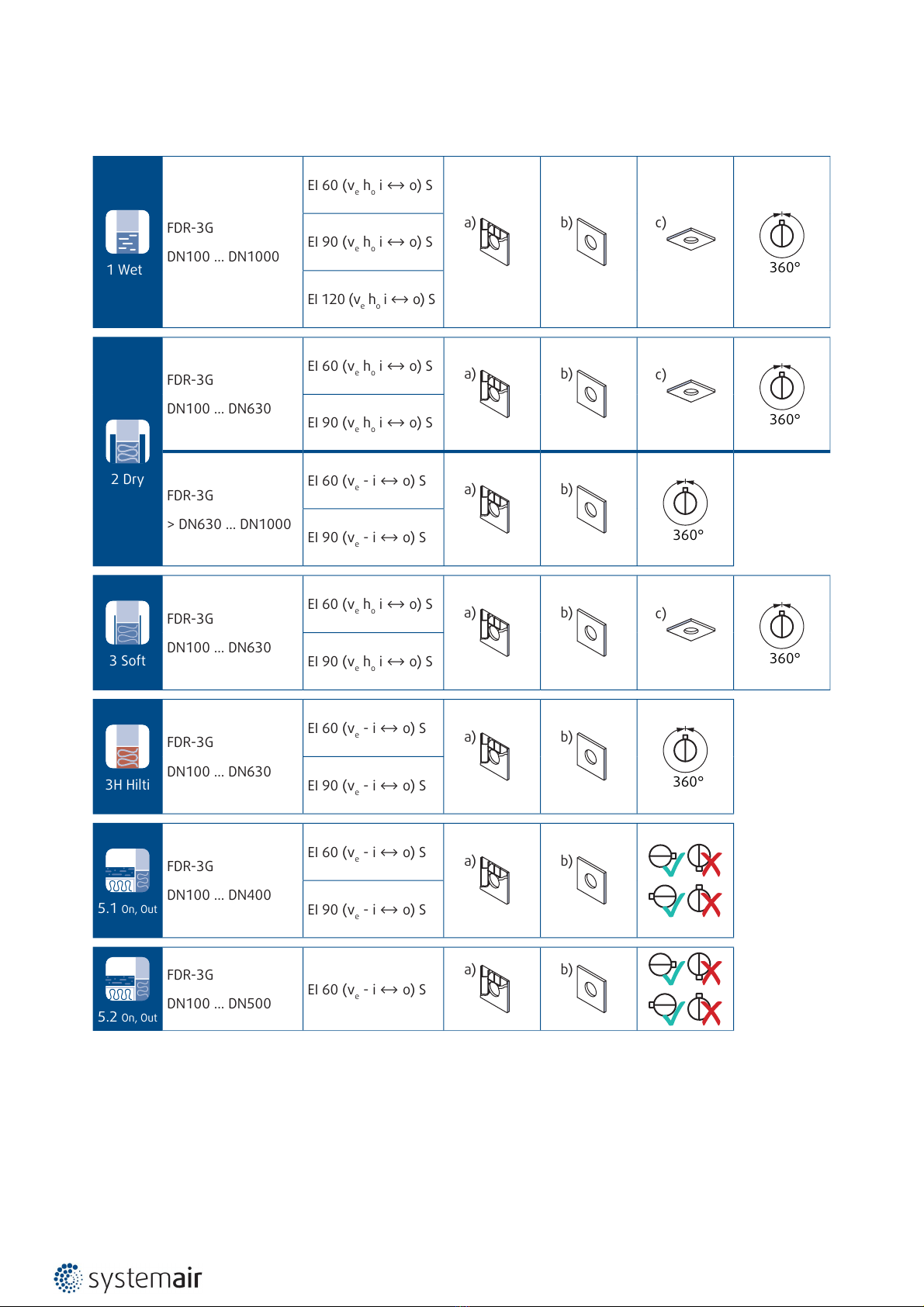

• Great variety of installations rated up to EI120S
• Modulated actuator suitable for system balancing - possibility to open the blade at the desired angle.
Activation Types
Manually Operated Fire Dampers
By default, all manually operated fire dampers are supplied with manual control, optionally with micro switches and
electromagnets. In case of fire, the fire damper is closed automatically. Depending on the version, the damper closes
either after the melting of the thermal fuse or by means of remote activation through an electromagnet in impulse
connection. After the closing of the damper blade, it is mechanically locked in the closed position and can only be
opened manually. The actuating mechanism is activated when the temperature of the air in the duct reaches 74°C and
the damper closes within 10 seconds after the melting of the fuse.
•H0
Fire damper with an activation mechanism with a cover, manual crank and with a spring return release mechanism
activated by a fusible thermal link set to 74°C (on demand 100°C).
•H2

4/67 | FDR-3G
Fire damper with an activation mechanism H0 + open and closed indication with AC 230 V or AC/DC 24 V contact
switches.
•H5-2
Fire damper with an activation mechanism H0 + an AC/DC 24 V electromagnetic release mechanism in the impulse
connection (release takes place when the electromagnet is activated) + open and closed indication with AC 230 V or
AC/DC 24 V contact switches.
•H6-2
Fire damper with an activation mechanism H0 + an AC 230 V electromagnetic release mechanism in the impulse
connection (release takes place when the electromagnet is activated) + open and closed indication with AC 230 V or
AC/DC 24 V contact switches.
Actuator Operated Fire Dampers
By default, all actuator operated fire dampers are supplied with an actuator with micro switches, optionally with a
power and communication unit. A fire damper can be equipped with a spring return actuator can be closed with
command from the building management system, or after the breaching of the thermoelectric fuse. Actuator operated
fire dampers are standardly equipped with a thermoelectric fuse, that activates the closing of the damper after the
reaching or exceeding of the ambient temperature of 72°C. The actuator power circuit is interrupted and its spring
closes the damper blade within 20 seconds.
Belimo actuator available with on demand fuse 95 °C or 120 °C.
•B230T or G230T
Fire damper with an activation mechanism with a Belimo or Gruner spring return actuator (AC 230 V) with electro-
thermal fuse 72°C and auxiliary switches.
•B24T or G24T
Fire damper with an activation mechanism with a Belimo or Gruner spring return actuator (AC/DC 24 V) with electro-
thermal fuse 72°C and auxiliary switches.
•B24T-W or G24T-W
Fire damper with an activation mechanism with a Belimo or Gruner spring return actuator (AC/DC 24 V) with an
electro-thermal fuse 72°C and auxiliary switches, with provided cable connectors for the supply and communication
unit (communication unit not part of the mechanism).
•B24T-SR or G24T-SR
Fire damper with an activation mechanism with a Belimo or Gruner spring return actuator (AC/DC 24 V) with electro-
thermal fuse 72°C and auxiliary switches for Modulated dampers (possibility to open the blade at the desired angle).
For fire dampers in the size DN ≥ 160 mm.
Actuator Operated Fire Dampers with Various Communication Modules.
•BST0 or GST0
Fire damper with an activation mechanism with a Belimo (BST0) or Gruner (GST0) spring return actuator (AC/DC 24 V)
with an electro-thermal fuse 72°C and auxiliary switches, with a Belimo supply unit BKN230-24 (supply through unit:
AC 230 V, communication: 2-wire to BKS...) or Gruner supply and communication unit FSC-UFC24-2 (supply through
unit: AC 24 V, communication: Modbus/BACnet).
•BST1
Fire damper with an activation mechanism with a Belimo spring return actuator (AC/DC 24 V) with an electro-thermal
fuse 72°C and auxiliary switches, with a supply and communication unit (SLC powered) BC24-G2 (THC).
•BST2
Fire damper with an activation mechanism with a Belimo spring return actuator (AC/DC 24 V) with an electro-thermal
fuse 72°C and auxiliary switches, with a Belimo supply and communication unit (AC 230 V) BKN230-24-MOD
(Modbus/BACnet).
•BST3
Fire damper with an activation mechanism with a Belimo spring return actuator (AC/DC 24 V) with an electro-thermal
fuse 72°C and auxiliary switches, with a Belimo supply and communication unit (AC 230 V) BKN230-24-C-MP (SBS/
MP).
•BST10

5/67 | FDR-3G
Fire damper with an activation mechanism with a Belimo spring return actuator (AC/DC 24 V) with an electro-thermal
fuse 72°C and auxiliary switches, with a Belimo supply and communication unit (AC 230 V) BKN230-24-PL (Powerline).
Other communication units are possible on demand.
Design
Fire dampers have casings made from galvanized sheet metal. Blades from non-asbestos insulants have a rubber seal
for cold smoke and an intumescent seal, that expands in a fire situation.
Material Composition
The product contains galvanized sheet metal, calcium silicate board, fireproof carbon fiberglass, polyurethane foam
and ethylene-propylene rubber. These are processed in accordance with local regulations. The product contains no
hazardous substances, except for the solder in the thermofuse, which contains a milligram of lead.
List of Accessories
Detailed information about accessories for FDR-3G is available in SystemairDESIGN under Fire Damper Accessories.
•AM-FD: Activation Mechanisms
•CBR-FD: Cover Boards
•IPOR-FD: Insulation Cover Plates
Product Parts

6/67 | FDR-3G
Legend:
P1 Blade
P2 Casing
P3 Manually operated activation mechanism (H0;H...)
P4 Actuator operated activation mechanism (B...;G...)
P5 Inspection lid
P6 Thermoelectric fuse (BAT72;TA-72)
P7 Supply and communication unit (BKN230-24;FS-UFC24-2)
P8 Bendable hanger
P9 Release and test button
P10 Crank
P11 Open position
P12 Closed position
P13 Hexagon bent wrench No.10 (not part of delivery)

7/67 | FDR-3G
Technical Parameters
Durability test
• 50 cycles/manually operated activation mechanism – with no change of the required properties
• 10000 + 100 + 100 cycles/actuator operated activation mechanism – with no change of the required properties
Fire testing pressure
Underpressure up to 300 Pa
Safety position
Closed. (In fire scenario the damper closes via spring in actuator or spring in manual mechanism)
Airflow direction
Both directions
Allowed air velocity
Damper can still operate at max. 12 m/s. Air without any mechanical or chemical contamination
Side with fire protection
Depending on installation classification: From both sides (i <-> o)
Repeated opening
Suitable for daily check procedure. It is not possible to operate the device after reaching Activation temperature.
Activation Temperature
• Manually operated: 74 °C as standard by means of a spring after the melting of the thermal fuse.
• Actuator operated: 72 °C as standard (95 °C or 120 °C on request with Belimo actuator) by means of the spring after
current interruption in the electro-thermal fuse.
Operational temperature
• Minimum: 0 °C
• Maximum: 60 °C for 74 °C and 72 °C thermal fuse
• Maximum: 85 °C for 95 °C and 100 °C thermal fuse
• Maximum 105 °C for 120 °C thermal fuse
Environment suitability
Protected against weather disruptions, with temperature above 0 °C, up to 95% Rha, (3K5 according to EN 60721-3-3)
Open/Closed indication
• Manually operated microswitches - Activation types H2 up to H6-2
• Actuator operated built-in microswitches - Activation types B230T/G230T up to B24T-SR/G24T-SR
Closing/Opening time
Manually operated < 10 s, actuator operated < 20 s
Maintenance
Not required. Dry cleaning if demanded by law in the country in which the dampers are installed.
Revisions
Determined by law in the country in which the fire dampers are installed but at least every 12 months.
Allowed pressure
1200 Pa
Blade tightness (STN EN 1751)
Class 3 as standard
Tightness of the housing (STN EN 1751)
Class C as standard

8/67 | FDR-3G
Conformity with EC directives
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
Driving actuator types
Belimo: BLF230-T, BLF24-T, BFL24-SR-T, BF230-T, BF24-T, BF24-SR-T, BFN230-T, BFN24-T, BFN24-T, BFL230-T, BFL24-
T, BFL24-SR-T (also with connection possibilities with acronyms ST, W)
Gruner: 360TA-230-12-S2, 360CTA-024-12-S2, 360TA-024-12-S2, 340TA-230D-03-S2, 340TA-024D-03-S2,
340CTA-024D-03-S2, 340TA-230-05-S2, 340TA-024-05-S2, 340CTA-024-05-S2 (also with connection possibilities
with acronyms ST, W)
Transport and Storage
Dry indoor conditions with a temperature range of -20 °C to +50 °C

9/67 | FDR-3G
Assessed Performance - FDR-3G
19 CE 1396
Systemair Production a.s.
Hlavná 371, 900 43 Kalinkovo, Slovakia
1396-CPR-0162, FDR-3G
(valid for subgroups: …EX, …KS, …OF)
EN 15650 : 2010
Circular fire dampers
Nominal activation conditions/sensitivity - Pass
• sensing element load bearing capacity
• sensing element response temperature
Response delay (response time) - Pass
• closure time
Operational reliability - Pass
• motorized cycle = 10.200 cycles
• manual cycle = 50 cycles
• modulated = 20.200 cycles
Fire resistance:
Resistivity depending on installation method and situation
• integrity E
• maintenance of the cross section (under E)
• mechanical stability (under E)
• cross section (under E)
• insulation I
• smoke leakage S
Durability of response delay - Pass
• sensing element response temperature and load bearing capacity
Durability of operational reliability - Pass
• open and closing cycle

10/67 | FDR-3G
Diagrams
The pressure drop and A-weighted total discharged sound power level depend on the nominal diameter of the damper
and air flow volume at different duct pressures. The type of activation does not influences the airflow parameter,
therefore only one activation type is shown in the diagrams.
FDR-3G-...-H0
Pressure drop & A-weighted sound power level in dB(A)
100 200 500
m³/h
30 50 100 l/s
10
50
100
Pa
Size: 100 Size: 125
Size: 140
25
30
35
40
45
50
25
30
35
40
45
50
55
25
30
35
40
45
50
FDR-3G-...-H0
Pressure drop & A-weighted sound power level in dB(A)
200 300 500 m³/h
50 100 200 l/s
10
50
100
Pa
Size: 150 Size: 160
Size: 180
25
30
35
40
45
50
25
30
35
40
45
50
55
25
30
35
40
45
50
FDR-3G-...-H0
Pressure drop & A-weighted sound power level in dB(A)
500 800 1000 m³/h
200 300 500
l/s
5
10
20
Pa
Size: 200
Size: 225
Size: 250
25
30
35
40
45
50
25
30
35
40
45
50
25
30
35
40
45
50
FDR-3G-...-H0
Pressure drop & A-weighted sound power level in dB(A)
800 1000 2000 m³/h
200 300 500 l/s
5
10
20
Pa
Size: 280
Size: 315
25
30
35
40
45
50
25
30
35
40
45
50

11/67 | FDR-3G
FDR-3G-...-H0
Pressure drop & A-weighted sound power level in dB(A)
2000 3000 5000 m³/h
500 800 1000 l/s
2
5
10
20
Pa
Size: 400
Size: 450
Size: 500
25
30
35
40
45
50
25
30
35
40
45
50
25
30
35
40
45
50
FDR-3G-...-H0
Pressure drop & A-weighted sound power level in dB(A)
3000 5000 8000 m³/h
800 1000 2000 l/s
1
5
10
Pa
Size: 560
Size: 630
Size: 710
25
30
35
40
45
50
25
30
35
40
45
50
25
30
35
40
45
50
FDR-3G-...-H0
Pressure drop & A-weighted sound power level in dB(A)
5000 10000 20000 m³/h
2000 3000 5000 l/s
0.5
1
5
Pa
Size: 800
Size: 900
Size: 1000
25
30
35
40
45
50
25
30
35
40
45
50
25
30
35
40
45
50

12/67 | FDR-3G
Dimensions
DN 100 up to DN 630
Free area
DN (mm)
100 125 140 150 160 180 200 225 250 280 315 355 400 450 500 560 630
AV(m2)0,003 0,007 0,009 0,011 0,013 0,018 0,023 0,031 0,039 0,050 0,065 0,085 0,110 0,138 0,173 0,220 0,283
Dimensions
Note: 3) Inclusive bearing
Overhangs
DN (mm)
100 125 140 150 160 180 200 225 250 280 315 355 400 450 500 560 630
R1(mm) -300 -287,5 -280 -275 -270 -260 -250 -237,5 -225 -210 -192,5-172,5 -150 -125 -100 -70 -35
R2(mm) -67 -54,5 -47 -42 -37 -27 -17 -4,5 8 23 40,5 60,5 83 108 133 163 198
Weights
m
(kg ±5%)
DN (mm)
100 125 140 150 160 180 200 225 250 280 315 355 400 450 500 560 630
H0, H... 3,3 3,4 3,6 3,7 3,8 4,2 4,4 4,8 5,3 5,8 6,4 7,3 8,3 11,1 12,3 14,6 17,0
B..., G... 4,8 4,9 5,1 5,2 5,3 5,7 5,9 6,3 6,8 7,3 7,9 8,8 9,8 11,9 13,1 15,4 17,8

13/67 | FDR-3G
DN 710 up to DN 1000
Free area
DN (mm)
710 800 900 1000
AV(m2)0,357 0,459 0,587 0,731
Dimensions
Note: 3) Inclusive bearing
Overhangs
DN (mm)
710 800 900 1000
R1(mm) 3 48 98 148
R2(mm) 191 236 286 336
Weights
m
(kg ±5%)
DN (mm)
710 800 900 1000
H0, H... 33,5 39,4 46,5 54,2
B..., G... 35,6 41,5 48,6 56,3

14/67 | FDR-3G
Ordering Code
DN
Dimension, øDN (from 100 mm up to 1000 mm)
B - Type of Activation (H0 up to G24T-SR)
H0 - Manual crank, no switches
H2 - Manual crank, 2 switches 230V AC or 24V AC/DC
H5-2 - Manual crank, 24V AC/DC electromagnet, 2 switches 230V AC or 24V AC/DC
H6-2 - Manual crank, 230V AC electromagnet, 2 switches 230V AC or 24V AC/DC
B230T - 230V AC Belimo spring return actuator
G230T - 230V AC Gruner spring return actuator
B24T - 24V AC/DC Belimo spring return actuator
G24T - 24V AC/DC Gruner spring return actuator
B24T-W - 24V AC/DC Belimo spring return actuator & wire connector for communication unit
G24T-W - 24V AC/DC Gruner spring return actuator & wire connector for communication unit
BST0 - 230V AC supply and communication unit BKN230-24 & 24V AC/DC Belimo spring return Actuator
GST0 - 24V AC/DC supply and communication unit FSC-UFC24-2 (Modbus/BACnet) & 24V AC/DC Gruner spring return
Actuator
BST1 - SLC powered supply and communication unit BC24-G2 (THC) & 24V AC/DC Belimo spring return actuator
BST2 - 230 V AC supply and communication unit BKN230-24-MOD (Modbus/BACnet) & 24V AC/DC Belimo spring
return actuator
BST3 - 230 V AC supply and communication unit BKN230-24-C-MP (SBS/MP) & 24V AC/DC Belimo spring return
actuator
BST10 - 230 V AC supply and communication unit BKN230-24-PL (Powerline) & 24V AC/DC Belimo spring return
actuator
Only for dimensions from DN≥200 mm up to DN≥1000 mm
B24T-SR - 24V AC/DC Belimo spring return actuator, modulated (0)2 V ... 10 V
G24T-SR - 24V AC/DC Gruner spring return actuator, modulated (0)2 V ... 10 V
Example of the Circular Fire Dampers Ordering Code
FDR-3G-1000-H5-2
Circular fire damper, nominal diameter 1000 mm, manually operated activation mechanism with open and closed
position indication with 230 V contact microswitches.
Note: The fire resistivity depends on the installation method.

15/67 | FDR-3G
Inspection opening positions (Removable mechanism is available for all sizes):
DN ≤ ø 150
No inspection opening. Inspection possible through removable mechanism or additional inspection opening must be
added to the conecting duct.
ø 160 ≤ DN ≤ ø225
Standardardly in position: L; Additional inspection opening cannot be added.
ø 250 ≤ DN ≤ ø1000
Standardardly in position: B; On demand in position: L, T.

16/67 | FDR-3G
Installation Methods
1 Wet
FDR-3G
DN100 ... DN1000
EI 60 (ve ho i ↔ o) S
a) b) c)
360°
EI 90 (ve ho i ↔ o) S
EI 120 (vehoi ↔ o) S
2 Dry
FDR-3G
DN100 ... DN630
EI 60 (ve ho i ↔ o) S a) b) c)
360°
EI 90 (ve ho i ↔ o) S
FDR-3G
> DN630 ... DN1000
EI 60 (ve - i ↔ o) S a) b)
360°
EI 90 (ve - i ↔ o) S
3 Soft
FDR-3G
DN100 ... DN630
EI 60 (ve ho i ↔ o) S a) b) c)
360°
EI 90 (ve ho i ↔ o) S
3H Hilti
FDR-3G
DN100 ... DN630
EI 60 (ve - i ↔ o) S a) b)
360°
EI 90 (ve - i ↔ o) S
5.1 On, Out
FDR-3G
DN100 ... DN400
EI 60 (ve - i ↔ o) S a) b)
EI 90 (ve - i ↔ o) S
5.2 On, Out
FDR-3G
DN100 ... DN500 EI 60 (ve - i ↔ o) S
a) b)
Legend:
1. Wet - Wet Installation, Using Plaster/Mortar/Concrete Filling
2. Dry - Dry Installation, using cover boards and mineral wool filing
3. Soft - Soft Installation, using mineral wool filing
3H. Hilti - Filling made only from Hilti foam
5.1. On & Out - ON & OUT of the wall installation rated for EI90S, Using 2 layers of Mineral Wool
5.2. On & Out - ON & OUT of the wall installation rated for EI60S, Using 1 layer of Mineral Wool

17/67 | FDR-3G
a) - Flexible (plasterboard) wall
b) - Concrete/masonry/cellular concrete (rigid) wall
c) - Concrete/cellular concrete (rigid) floor/ceiling
ve - Vertical wall
ho - Horizontal floor/ceiling
Installation, Maintenance & Operation
Some damper parts may have sharp edges – therefore to protect yourself from harm, please use gloves during damper
installation and manipulation. In order to prevent electric shock, fire or any other damage which could result from
incorrect damper usage and operation, it is important to:
1. ensure that installation is performed by a trained person.
2. follow the written and depicted instructions provided within Handbook closely.
3. perform damper inspection in accordance with Handbook.
4. check the damper’s functionality as per the chapter “Fire Damper Functionality Check” before you install the fire
damper. This procedure prevents the installation of a damper that has been damaged during transportation or
handling.
Information about installation, maintenance and operation is available in the “Handbook_FDR-3G” document or more
can be found at design.systemair.com.
Installation rules
• The duct connected to the fire damper must be supported or hung in such a way that the damper does not carry its
weight. The damper must not support any part of the surrounding construction or wall which could cause damage
and consequent damper failure. It is recommended to connect the damper to a dilatation compensator on either end
of the damper.
• The damper driving mechanism can be placed on either side of the wall, however it needs to be placed so as to
ensure easy access during inspection.
• According to the standard EN 1366-2, the distance between the fire damper bodies must be at least 200 mm. This
condition does not apply for tested distances. Therefore installations Wet and Soft are approved for smaller distances
under condition that the resulted resistivity is reduced to EI90S.
• The distance between the wall/ceiling and the fire damper must be at least 75 mm. This condition does not apply for
tested distances. Therefore installations Wet and Soft are approved for smaller distances under condition that the
resulted resistivity is reduced to EI90S.
• The fire damper must be installed into a fire partition structure in such a way that the damper blade in its closed
position is located inside this structure. A bendable hinge is provided on the damper body which represents a plane
where supporting constructure begins. This condition does not apply for installations On & Out.
• For each resistivity the minimum thickness of a its supporting construction cannot be decreased as per EN 1366-2 at
least 200 mm from the installation opening.
• The gap in the installation opening between the fire damper and the wall/ceiling can be increased by up to 50% of
the gap area, or decreased to the smallest amount possible that still provides sufficient space for the installation of
the filling.
IN ACCORDANCE WITH EN 15650, EACH FIRE DAMPER MUST BE INSTALLED ACCORDING TO THE INSTALLATION
INSTRUCTIONS PROVIDED BY THE MANUFACTURER!

18/67 | FDR-3G
Wet Installation
Using Plaster/Mortar/Concrete Filling
1.The supporting construction opening must be prepared as depicted. Opening surfaces must be even and cleaned off.
The flexible wall opening must be reinforced as per the standards for plasterboard walls. The opening dimensions are
driven by the nominal dimensions of the damper with added clearance. For circular dampers prepare the opening of
diameter D1.
2.Insert the closed damper into the middle of the opening so that the damper blade is in the wall. Use the bendable
hanger (2; or hangers) to secure the damper against the wall using a suitable screw (F1; recommended screwdiameter
5,5; e.g. DIN7981).
3.For damper diameter greater than 800 mm, it is recommended to use a duct support inside the damper to avoid
any damage, bend to the damper housing from the weight of the filling.
4.Fill in the area between the wall and the damper with plaster or mortar or concrete filling (2), while paying attention
to prevent the fouling of the damper’s functional parts, which could limit its correct functionality. The best way is to
cover the functional parts during installation. The seepage of the filling material can be prevented by using boards.
However, these are not required for wet installation.
First let the plaster or mortar or concrete filling harden and then perform the next steps!
5.After the filling hardens, remove the duct support from inside of the damper.
6.If needed, uncover and clean the damper after installation.
7.Check the damper’s functionality
Installation - Standard Distances
According to the standard EN 1366-2, the minimum distance from the wall or ceiling to the damper body is 75 mm.
For multiple crossings through a fire-resistive wall the minimum distance between two damper bodies is 200 mm. This
applies to distances between the damper and a nearby foreign object crossing the fire-resistive wall.
Installation - Smaller Distances - Maximum resistivity reduced to EI90S
The distance between 2 individual fire dampers can be reduced to 60 mm, measured from surface to surface of the
housing and the distance between the surface of the damper installed in the duct and the adjacent supporting
construction (wall/floor) can be reduced to 40 mm, provided that the fire resistance classification will be reduced as
follows: EI90 (ve i <-> o) S.
Installation in a Wall thinner than tested
Installation in a thinner wall is allowed under the condition that an additional layer/layers of fire protective board are
fixed to the surface of the wall in order to achieve the same length of damper penetration seal as was tested. The
minimum width of added boards around the damper is 200 mm. In addition, the alternative thinner wall should be
classified in accordance with EN 13501-2:2007 + A1: 2009 for fire-resistance required for product application. For a
protruding wall, the additional layers must be fixed on the steel supporting construction of the wall.
1 Wet
FDR-3G
DN100 ... DN1000
EI 60 (ve ho i ↔ o) S
a) b) c)
360°
EI 90 (ve ho i ↔ o) S
EI 120 (vehoi ↔ o) S

19/67 | FDR-3G

20/67 | FDR-3G
