REGULATING DAMPERS
IMOS-RK
IMOS-RKT
TECHNICAL CONDITIONS
TPI 16-05
IMOS - RK IMOS - RKT
900 43 Kalinkovo 146
Slovakia
Tel.: [phone]
40203112
Fax: [phone]
Email: [email protected]
http://www.imos.sk

1 TPI 16-05
The present technical conditions determine sizes, properties, scope of application and final manufac-
ture of regulating dampers manufactured by IMOS-Systemair spol. s.r.o. The specifications apply to
design, ordering, production, delivery, acceptance and use of these products as of January 1, 2005.
I. GENERAL
The IMOS-RK and IMOS-RKT regulating dampers are designed for the smooth control of the volume of airflow. The IMOS-
RKT tight damper is also designed for closing the airflow tightly but is not manufactured as gastight. Dampers are used in
ducts, air conditioning units as well as in mixing chambers of air conditioning devices. The IMOS-RK and IMOS-RKT
dampers are designed to operate at temperatures ranging from -20 to 100°C and at pressure differential of up to 4,000
Pa and 80% humidity. The maximum airflow velocity is 20ms-1. The design of the IMOS-RK and IMOS-RKT enables their
installation to the opening in the wall or to the duct. It is possible to connect the damper to the flanges of width 20mm
(P20) and width 30 mm (P30).
The IMOS - RK and IMOS - RKT regulating dampers con-
sist of rectangular frame manufactured from horizontal 1
and vertical 2 channel frames between which the channel
blades 4 are situated. The channel blades 4 in the IMOS-
RK and IMOS - RKT dampers where the width is less than
1000mm form one field. In dampers where the width is
more than 1000 mm a vertical channel 3 is inserted in the
middle. It divides the damper blades 4 into two fields. The
blades 4 are set in opposed directions through a cogwheel
transmission. The channel blades 4 in the IMOS - RK
damper are without sealing. The blades 4 in the IMOS -
RKT damper are interlockingly sealed by means of rubber
sealing. In the ends the blades are fitted with sealing
sheets 7 with self-adhesive seals. The blades 4 are
inserted into the channels 5 and 6. The adjusting and
arresting mechanism 8 provides adjustment and fixing of
channel blades 4 in selected position on the damper,
which is operated manually.
Construction Features
Fig.1 Main parts of IMOS-RK axb-R and IMOS-
RKT axb-R if a
>>
1000, b
≤≤
900

2 TPI 16-05
The adjusting and arresting mechanism shown in Figure 2
is used only with the dampers IMOS - RK and it is used
with the dampers IMOS - RKT if b ≤900, and allows
adjustment of the damper channel blades. To the pin 3,
which is attached to the channel blade is by a welded con-
nection 8, 9, 1 an adjustment lever 5 connected. The
screw 7 and wing nut 6 are parts of set position of channel
blades. Direction of opening and closing of the damper is
indicated by stickers on the side channel 2, where also a
damper holder is.
Fig.2 Adjusting and arresting mechanism for
IMOS-RK axb-R and IMOS-RKT axb- R if b
≤≤
900
Adjusting mechanism shown in fig.3 is used only for IMOS-
RKT dampers, which have the nominal dimension b>900.
It is delivered in two models and is mounted next to the side
channel 1. Fig.3a shows the manufacture of a mechanism
that supplements adjusting and arresting mechanism
shown in fig.2. Two pins 4 and 2 go through the side chan-
nel 1. After mounting of adjustment and arresting mecha-
nism are a lever 3 and two levers 10put on the pin 2 and
two pins 4. The lever 3 is fixed by welded connection 7, 8,
9and levers 10by safety ring 11. Levers 10and 3 are con-
nected by the connecting rod 5, its pins are secured by
safety ring 6.
Fig 3 Adjusting and arresting mechanism for
a - IMOS-RKT axb-R if b
>>
900
b - IMOS-RKT axb-S if b
>>
900

3 TPI 16-05
Manufacturing Of The Regulating Dampers
By the type of tightness of the closed space and by manner of damper control, the following damper modifications are
supplied to the market:
Regulating damper IMOS-RK. The main parts of the damper are its frame and the channel blades, which are made of
aluminum sheets without surface finish. The parts that serve to fix, insert and rotate the blades are made of plastic mate-
rials. Other constructional elements are made of aluminum sheet. The standard model of IMOS-RK is delivered with a
frame without holes in the corners that serve as a connection to the duct.
Tight damper IMOS-RKT. The main parts of the damper are its frame and the channel blades, which are made of alu-
minum sheets without surface finish. The parts that serve to fix, insert and rotate the blades are made of plastic materials.
Sealing of the blades are made of a special rubber mixture. Other constructional elements are made of aluminum sheet.
The standard model of IMOS-RKT is delivered with a frame without holes in the corners that serve as a connection to the
duct.
Manual operation - R. The parts designed to control the damper are made of non-alloy construction steel with zinc-plat-
ed surface. The connecting material has either anticorrosive finish or is made of aluminum. For the damper IMOS-RKT is
the manual operation shown if the dimension a ≤1000 in fig.2 and if a >1000 in fig.3. The model of damper IMOS-RK
with manual operation is shown in fig.2. The height level of the operating mechanism is for both types on the level of b/2.
Servomotor operation - S consists of a zinc- plated extended square steel pin with dimensions12×12 mm and zinc-
plated surface. Since there is a wide availability of suitable servomotors from various manufacturers, the dampers are
delivered without such motors.
Product information
A manufacturer's label is attached to every product, indicating the following data:
a.) Manufacturer's name and address
b.) Product indication, type of the damper, dimensions
II. TECHNICAL CONDITIONS
Nominal dimensions and weights
Nominal dimensions a, b of the damper in the period 200 to 2000mm are pursuant to STN 12 0005 elements of the line
R 2O. Manufactured dimensions and their relevant weights are shown in table 1. Weights based on the table 1 refer to all
the models with tolerance ±5%.

4 TPI 16-05

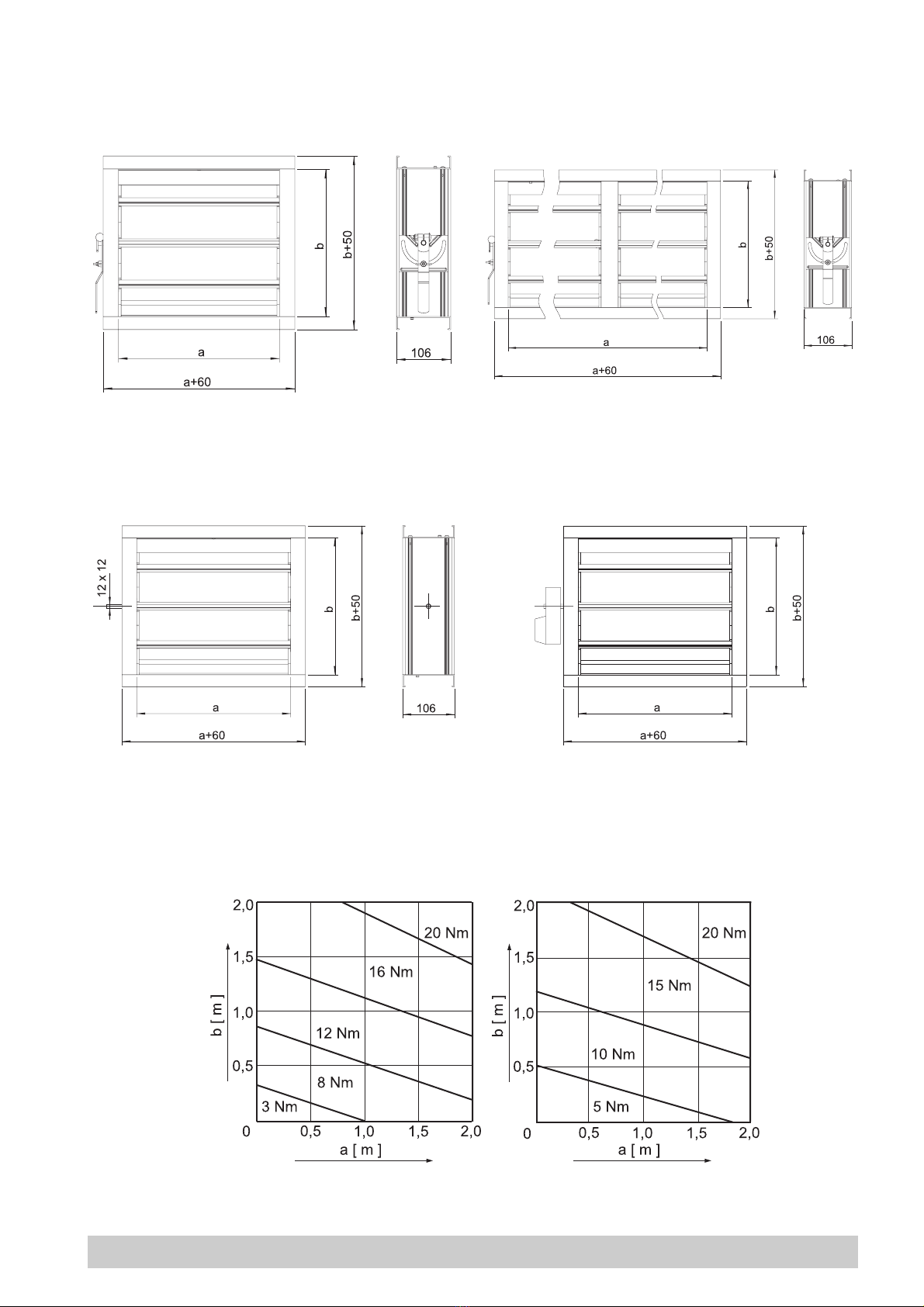

Fig. 6 IMOS-RK axb-S and IMOS-RK axb-S if
a
≤≤
1000, b
≤≤
900 when b > 900 b = b + 9 mm
Fig. 7 IMOS-RK axb-S and IMOS-RKT axb-S
with a mounted servomotor if a
≤≤
1000,
b
≤≤
900 when b > 900 b = b + 9 mm
Fig. 4 IMOS-RK axb-R and IMOS-RKT axb-R if
a
≤≤
1000, b
≤≤
900 * b > 900 b = b + 9 mm
Fig. 5 IMOS-RK axb-R and IMOS-RKT axb-R if
a
>>
1000, b
≤≤
900 * b > 900 b = b + 9 mm
Figure 8: The torque values for closing the damper by a servomotor
IMOS - RK IMOS - RKT
**
*

5 TPI 16-05
Diagram 1: The dependence of the flow velocity, pressure drop of IMOS-RKT at different opening posi-
tions of the damper blades
Diagram 2: The flow of air mass through the closed IMOS-RKT tight regulating damper and non-tight
regulating damper IMOS- RK according to STN EN 1751 depending on the pressure drop.

6 TPI 16-05

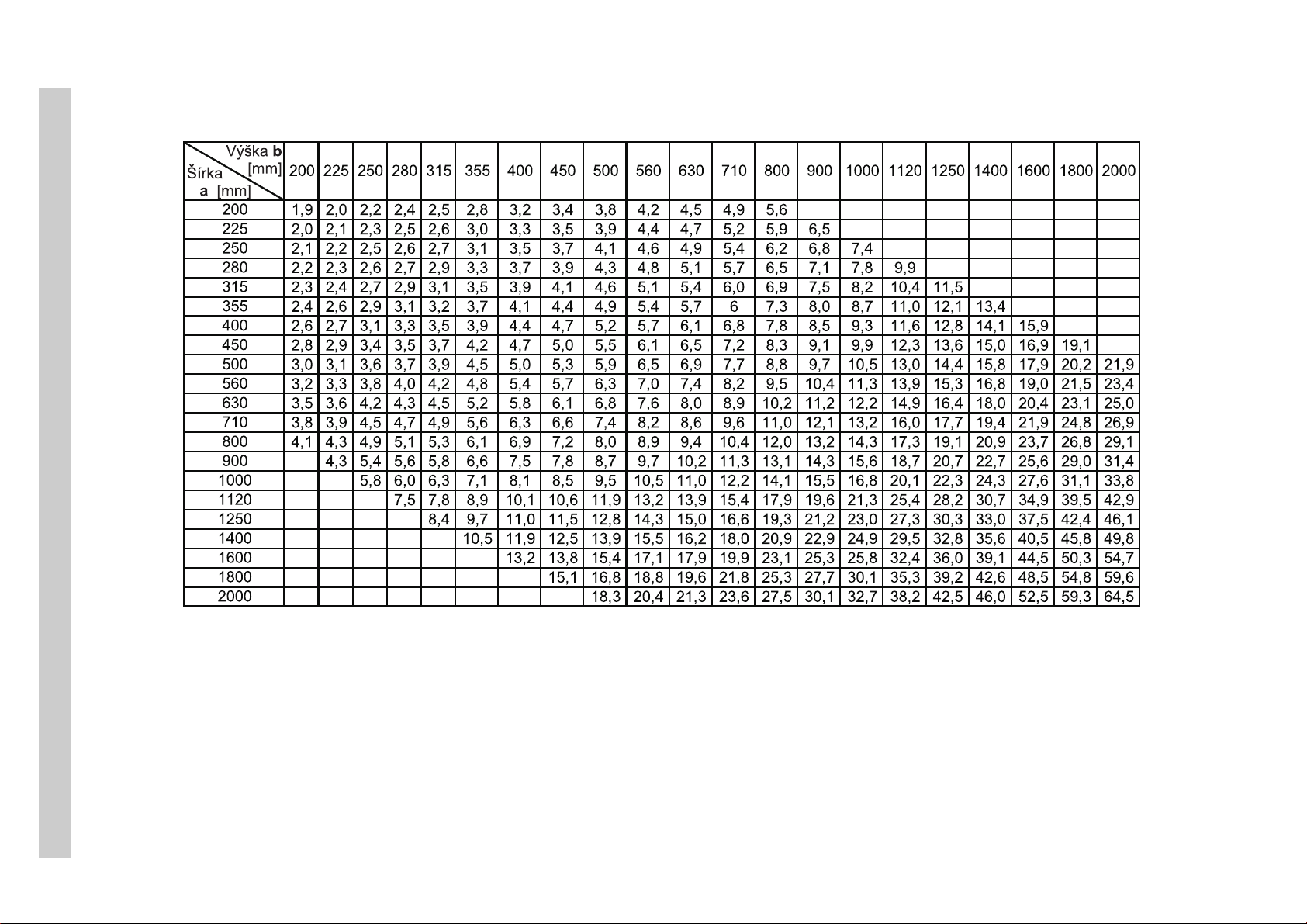

Table 1: The dimension series, nominal dimensions and damper weights of IMOS-RK and IMOS-RKT (kg)
Term for calculation for damper effective areas
Effective area - Sef [m2]:
for a < 1000
Sef = (a x b)/1000000 - (k x 0,015 x a/1000) [m2]
for 2000 < a >1000
Sef = (a x b)/1000000 - (k x 0,15 x a/1000) - (0,038 x b/1000) [m2]
where k = b/78 - rounded off down to a number

7 TPI 16-05
Stating the damper parameters
Example 1:
Given are: Searched for:
Flow velocity in the duct v = 6 m.s-1 Blade positioning angle α= ?°
Pressure drop ∆p = 100 Pa Acoustic power L = ? dB(A)
In Diagram 1 we can find the points of intersection of the given values. By interpolating between the curves we can deter-
mine that the angle of the blade position for the given values should be equal α= 25° while L = 84 dB(A).
Example 2:
Given are: Searched for:
Duct with damper a=1400 mm, b=1600 mm Flow when damper closed qC= ? m3.h-1
Pressure drop ∆p = 100 Pa
Besides the flow qVLBA diagram 2 states also the class of damper tightness represented by the IMOS-RKT curve. We will
determine the point of intersection of the pressure drop on the given line and will subtract the value of the flow qVLBA = 68,4
m3.h-1.m-2. We will then determine the cross-section of the duct from the relationship S = axb = 1,4x1,6 = 2,24 m2. Accord-
ingly, the total flow through the damper will be qC= qVLBA . S = 68,4 x 2,24 = 153,2 m3.h-1.
Explanatory notes:
a - a- damper width [mm] ∆p - pressure difference in flow meter [Pa]
b - b- damper height [mm] qC- flow when damper closed [m3.h-1, l.s-1]
v - flow velocity in the duct [m.s-1]q
vLBA - flow through leakage of the damper to the area unit of duct cross section
α - blade positioning angle [°] [m3.h-1.m-2, l.s.m-2]
Product Ordering
In an order, it is necessary to indicate the following information:
Designation: IMOS - XXX axb- X - X
Non-Tight Regulating Damper RK
Tight Regulating Damper RKT
Width a
Height b
Manual operation R
Servomotor operation S
Width of the duct or a flange P20 P1
P30 P2
An example of a Non-Tight Regulating Damper order a=450 mm, b=500 mm, manual operation:
IMOS - RK 450 x 500 - R - P1
An example of a Tight Regulating Damper order a=1120 mm, b=560 mm, servomotor operation:
IMOS - RKT 1120 x 560 - S - P2

8 TPI 16-05

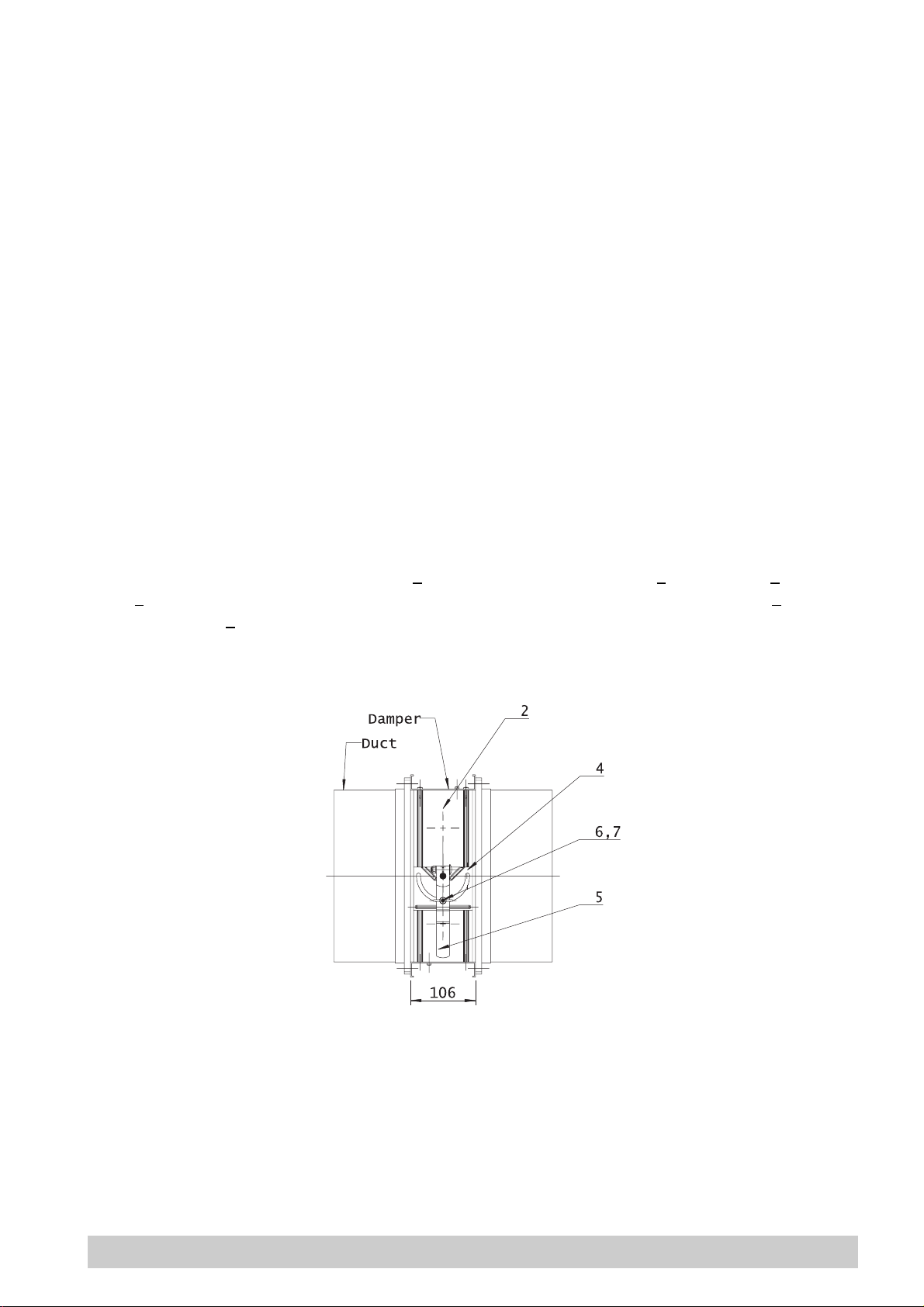

Fig.9 Mounting and adjusting the regulation damper
During the lifetime of the damper no maintenance is required. In equipment requiring strictly tight closure of dampers it is
recommended that after 10 years of operation the tightness of the seals on the blades is checked.
III. CHECKING, ACCEPTING, AND WARRANTY
The manufacturer provides a quality and completeness checking. Every damper functionality is tested by the
manufacturer.The manufacturer grants 24 months´ guarantee from the dispatch date. Acceptance is due to valid instruc-
tions in the company.
IV. MOUNTING AND MAINTENANCE
Mounting of the damper is provided by regular means used by mounting of ventilation units.
Prior to the mounting of the regulating damper it is required that holes are drilled on its frame that correspond with the size
of the opposite holes on the duct flange. If the damper is to be mounted on tinny flanges smaller in size than 750×750,
the damper must be connected with four M8×20 sized screws, which are inserted into the holes produced according to
the carobs of duct contra flange. The same result can be attained also by applying two sets of four retracting connectors
fitted onto the frame channel with a width of 25 mm. Between the flanges it is needed to insert a soft sealing with one side
being self-adhesive. When mounting a damper with dimensions equal to or greater than 750×750 we should combine
screws in the corners with retracting connectors or only retracting connectors are used along the whole perimeter of the
frame. The values of the tightening torque depend on the mechanical properties of the used screws of particular size and
they are following: M6-(5-7 Nm), M8-(11-16 Nm), M10-(22-30 Nm).
These values are applicable only if a seal made on the base of technical rubber or a material with similar features is used
between the flanges. The adjusting and arresting mechanism allow adjusting the channel blades of the dampers. After
adjusting the amount of airflow the adjusting lever 5 is fixed to the damper with a screw 7 and a wing nut 6 to the lever
holder 4. Direction of the opening and closing of the damper is indicated by stickers on the side channel 2 where also
the damper holder is 4.

9 TPI 16-05
V. PACKING, TRANSPORTATION AND STORAGE
The IMOS - RK and IMOS - RKT products are delivered without packing. If a large number of pieces are purchased, the
manner of tying them up, stacking on pallets or transporting can be agreed additionally. The products are delivered at the
purchaser's costs by common means of transport.
The IMOS - RK and IMOS - RKT products are recommended to be stored on closed and dry places.
VI. PRODUCT TESTING
The manufacturer constantly examines the quality of the supplied products by testing them. The IMOS - RK and IMOS -
RKT products are in accordance with legislative regulations applicable to product testing and certification.
VII. APPENDIX
Any deviation from these technical conditions should be discussed with the manufacturer. The manufacturer reserves the
right of technical innovation and therefore these technical conditions can be subject to a change without prior notice.
Related standards: STN CR 12 792 (12 0001) Ventilation of buildings. Symbols and Terminology.
STN 12 0005 Ventilation devices. Nominal dimensions of cross-section connections.
STN EN 1751 Ventilation of buildings. Terminal parts. Aerodynamic tests of dampers and valves.
