Tab Wheels Gen 2 User manual

!
!
1!
!
!
Gen 2
WARNING! IMPROPER USE OF THE TAB | WHEELS GEN 2 AND/OR
FAILURE TO READ THIS USER MANUAL MAY LEAD TO SERIOUS
BODILY INJURY AND/OR DEATH
User Manual

!
!
2!
!
!
Congratulations on the purchase of your new TAB | WHEELS GEN 2
PLEASE READ THE USER MANUAL THOROUGHLY BEFORE OPERATING
It is highly recommended to start your first TAB | WHEELS GEN 2
experience with a friend. Having a spotter during initial use will
increase your confidence and help you become acclimated to your
TAB | WHEELS GEN 2. Always wear the proper safety gear before
operating. ENJOY YOUR TAB | WHEELS GEN 2!
PLEASE NOTICE:
• The original TAB | WHEELS GEN 2 is an Intelligent Personal
Mobility Device
• Before riding, please read the User Manual carefully, and
follow all Safety Precautions
• Improper use of this product can lead to property damage,
serious bodily injury, and/or death
• The information in this User Manual will help you better
understand, enjoy and maintain you’re TAB | WHEELS GEN 2
For more information or questions regarding the TAB | WHEELS
GEN 2, please contact:
TAB USA, Inc.
150 Wood Road,
Braintree MA 02184
Ph. No. [phone]
[e-mail]

!
!
3!
!
!
Table of Contents
1. Product Overview ...................................................................................... .4
1.1 General Information ............................................................................ ...4
1.2 What You Need To Know ................................................................... .…4
1.3 WARNING ............................................................................................ ...4
2. Product Description……………………………………………………………...5
2.1 Description of TAB | WHEELS GEN 2 ............................................ ....5
2.2 Description of TAB | WHEELS GEN 2 Components ........................ ...5
3. Operating Principles ................................................................................... .6
3.1 How TAB | WHEELS GEN 2 Works… .............................................. ..6
3.2 READ THE FOLLOWING INSTRUCTIONS CAREFULLY ………... 6-11
Step 1-Getting Started…………….……..……………………….….….…..6
Step 2-Checking the Display Board……………………..…..................…6
Step 3-Charging Your TAB WHEELS GEN 2………..……………….…..7
Step 4-Safety Gear………………………….………………….……....……7
Step 5-Stepping On…………………………………………….……....……8
Step 6-Staying Balanced…………………………………….……….……..9
Step 7-Riding your TAB WHEELS GEN 2……………………...……………...…..10
Step 8-The Dismount………………………..………………………..……11
4. Remote Control and Special Functions .................................................. 12
4.1 Remote Controller .......................................................................... ..12
4.2 Recalibrating……………………………………………………………...12
5. TAB | WHEELS GEN 2 Safety Precautions– MUST READ ................ .13-16
6. Weight and Speed Limitations……………………………….……………..…17
7. Operating Range……….…………. ............................................................. .17
8. Battery Information and Specifications...… ....................................... ..18-19
9. Charging your TAB | WHEELS GEN 2……………………………………… 20
10. Safety Alerts……………………………………………………………….…….21
11. Inspection, Maintenance, and Storage.……………………...……….…….22
12. TAB | WHEELS GEN 2 Specifications …………………………………..….23
13. Packing List………………………………………………………………....…..23
14. Warranty………………………………………………………...………….…….24
15. Thank You………………………………………………………...……….……..24

!
!
4!
!
!
1. Product Overview
1.1 General Information
The original TAB | WHEELS GEN 2 is an Intelligent Personal Mobility
Device. This device is an intuitive, technologically advanced solution that
provides the user personal transportation based on dynamic balancing
principles calculating the user’s center of gravity using gyroscope and
acceleration sensors. Using the latest technology and production
processes, each TAB | WHEELS GEN 2 undergoes strict testing for
quality and durability. With it’s lightweight, portable design, ease of use,
range, and low carbon footprint, the TAB | WHEELS GEN 2 is the
Ultimate Last Mile Solution.
1.2 What You Need to Know
Before you first experience your TAB | WHEELS GEN 2, please read
the USER MANUAL thoroughly and learn the basics to ensure your
safety and the safety of others. It is highly recommended that your
initial TAB | WHEELS GEN 2 experience be with a spotter who can
assist you in centering your balance. Once you keep your center of
gravity even, you will be able to stand on the TAB | WHEELS GEN 2
without moving, similar to standing on the ground. The most important
thing to do is stay relaxed and confident. The TAB | WHEELS GEN 2
is very intuitive and senses the slightest motion, so finding your center
of balance is key. Step on quickly, confidently, and evenly, but remember
to keep your body quiet. Please refrain from flaying your arms, leaning
too far forward and/or backwards, or stepping on your TAB | WHEELS
GEN 2 unevenly, as this will cause you to lose control and increase
your probability of injury. Please follow the detailed directions outlined in
the USER MANUAL in Section 3 under Operating Principles.
1.3 WARNING
Failure to follow the basic instructions and safety precautions
listed in the USER MANUAL, can lead to damage to your TAB |
WHEELS GEN 2, other property damage, serious bodily injury, and
even death.

!
!
5!
!
!
2. Product Description
2.1 Description of TAB | WHEELS GEN 2
The TAB | WHEELS GEN 2 is a technologically advanced Personal
Mobility Device. It has two Wheels that balance and transport the
user using battery powered brushless motors. The TAB | WHEELS GEN
2 uses digital gyroscope modules and acceleration sensors to calculate
the user’s center of gravity and move the device accordingly. The TAB |
WHEELS GEN 2 can move forwards, backwards, turn in either direction
or turn in place. The compact footprint and zero degree turning radius
allow you to enjoy your TAB | WHEELS GEN 2 both indoors and
outdoors.
2.2 Description of TAB | WHEELS GEN 2 Components

!
!
6!
!
!
A. Operating Principles
A.1 How TAB | WHEELS GEN 2 Works
The TAB | WHEELS GEN 2 uses digital electronic gyroscopes and
acceleration sensors to control balance and motion intelligently,
depending on the user’s center of gravity. The device also uses an
intelligent control system to drive the brushless motors that are located
within the Wheels. The TAB | WHEELS GEN 2 has a built-in inertia
dynamic stabilization system that can help assist with balance when
moving forward and backwards, but not while turning.
TIP -To increase your stability, you must shift your weight in order to
overcome the centrifugal force during turns, especially when entering a
turn at higher speeds.
A.2 PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY
Step 1: Getting Started - Take your TAB | WHEELS GEN 2 out of the
box and place it flat on the floor. Press and hold the power button, located
on the front of your TAB | WHEELS GEN 2 until you hear beep sound.
There are two sensor switches under the pedals of TAB | WHEELS GEN
2, when the user steps on them, the sensors are activated, TAB |
WHEELS GEN 2 will automatically adjust to the equilibrium state; when
rider get off from TAB | WHEELS GEN 2, sensors are deactivating, and
TAB | WHEELS GEN 2 enter into standby mode.
Step 2: Checking the Display Board - located in the center of your
TAB | WHEELS GEN 2. The Battery indicator lights should be lit,
indicating there is power to the device.

!
!
7!
!
!
• Battery status Indicator: The Green LED light indicates the
TAB | WHEELS GEN 2 is fully charged, the Yellow LED light
indicates the power is under 50%, and the red LED light indicates
the power is under 20%. When flashing red, please recharge the
device right away and please do not operate.
• Running Indicator: When the operator triggers the rubber foot
mats, the Running Indicator LED will light up, which means that
the system enters the running state; when the system has an error
during operation, the running LED light will turn red and you will
hear the system alert you with a beep.
Step 3: Charging your TAB | WHEELS GEN 2 - Make sure the TAB |
WHEELS GEN 2 is fully charged before your initial use. For charging
instructions, please follow details in Section 8 under Battery and
Charging Specifications.
Step 4: Safety Gear - Wear all proper safety gear, including, but not
limited to a helmet, knee pads, elbow pads, and wrist guards

!
!
8!
!
!

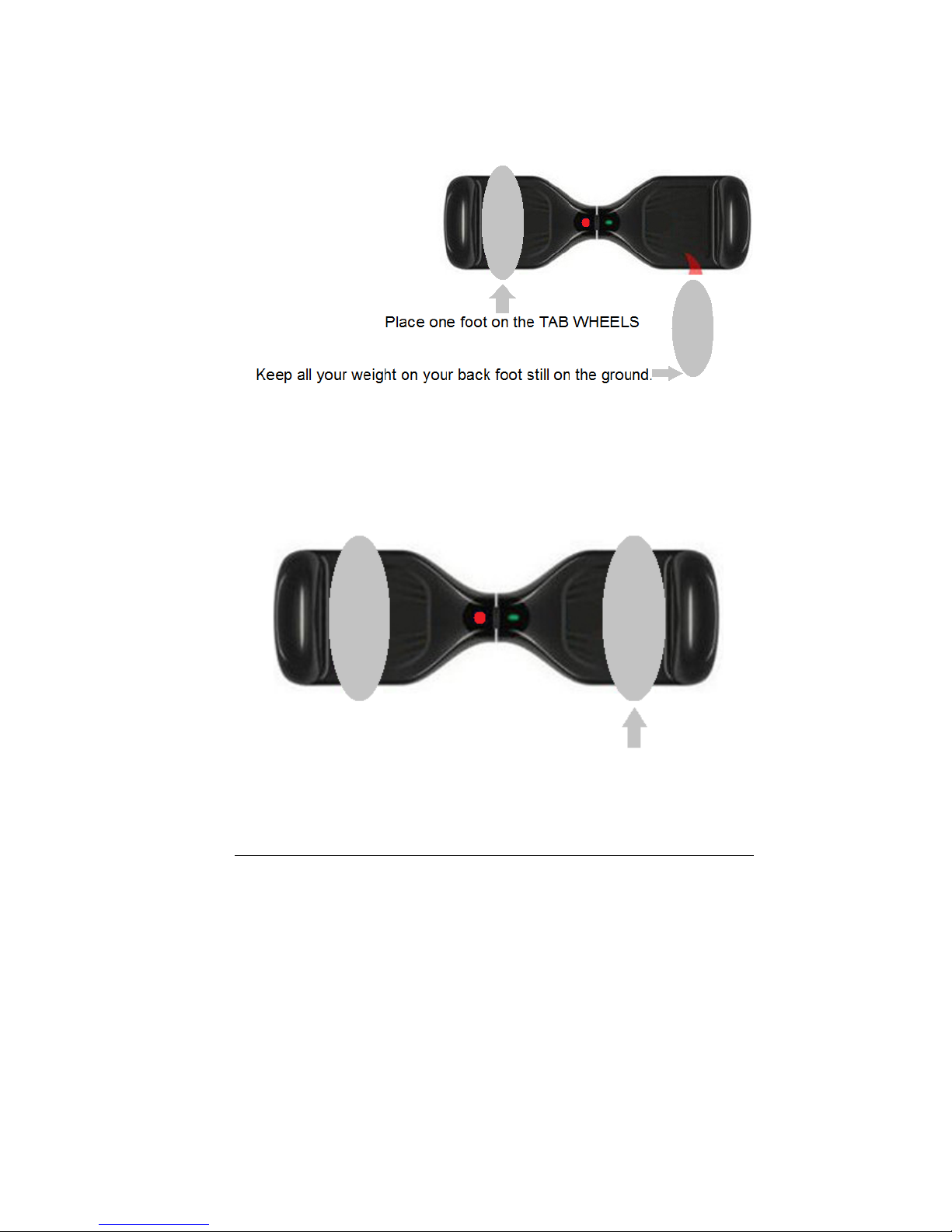

Step 5: Stepping On -Stand directly behind your TAB | WHEELS GEN 2.
Place one foot on the Rubber Foot Mat, keeping the instep of your foot
where it’ s far left the rubber mat (as described below).
Otherwise, your device will begin to move, making it difficult to step on
evenly with your other foot.
When you are ready, shift your weight to the foot already placed on the
device and step on with your second foot quickly and evenly (as described in
the diagram below).
TIP– Stay relaxed and step on quickly, confidently and evenly 1-2. Many
people overthink this step, imagine climbing a stair, one foot, then the other.
Once your feet are even, try to look up.
For more details, please watch the video on how to step on TAB | WHEELS

!
!
9!
!
!
GEN 2 on www.tabwheels.com
Step 6: Staying Balanced - Find your center of gravity. If your weight is
distributed correctly on the foot mats, and your center of gravity is level,
you should be able to stand on your TAB | WHEELS GEN 2, just as if
you were standing on the ground. IF NOT, you may feel like you are
moving in a particular direction, turning, spinning in place, wobbling
back and forth, or simply uncomfortable with the device.
NOTE – On average, it takes 3-5 minutes just to get comfortable
standing on the TAB | WHEELS GEN 2 and maintaining proper
balance. Having a spotter will help you feel more secure. The TAB |
WHEELS GEN 2 is an incredibly intuitive device; it senses even the
slightest bit of motion, so having any anxiety or reservation about
stepping on may cause you to panic and trigger movement that is not
otherwise natural to you. The best way to overcome that initial anxiety is
by having a spotter.
TIP – Stay relaxed, stand evenly, and apply an equal amount of
pressure on both sides of the device. Relax your muscles as much as
you can. Taking a deep breath and exhaling can help you achieve this.
Slightly bending your knees can also help. Once you can stand IDLE
and STOP, you are ready for the next step.
When you first begin using your TAB | WHEELS GEN 2, the fastest way
to move in your desired direction is to focus in that direction. You will
notice that just thinking about which way you would like to go will shift
your center of gravity, and that subtle movement will propel you in that
direction.
! !
!

!
!
10!
!
!
Step 7: Riding your TAB | WHEELS GEN 2 - Keeping in mind what
we learned in Step 6, apply the following general principles to the
operation of your TAB | WHEELS GEN 2.
/

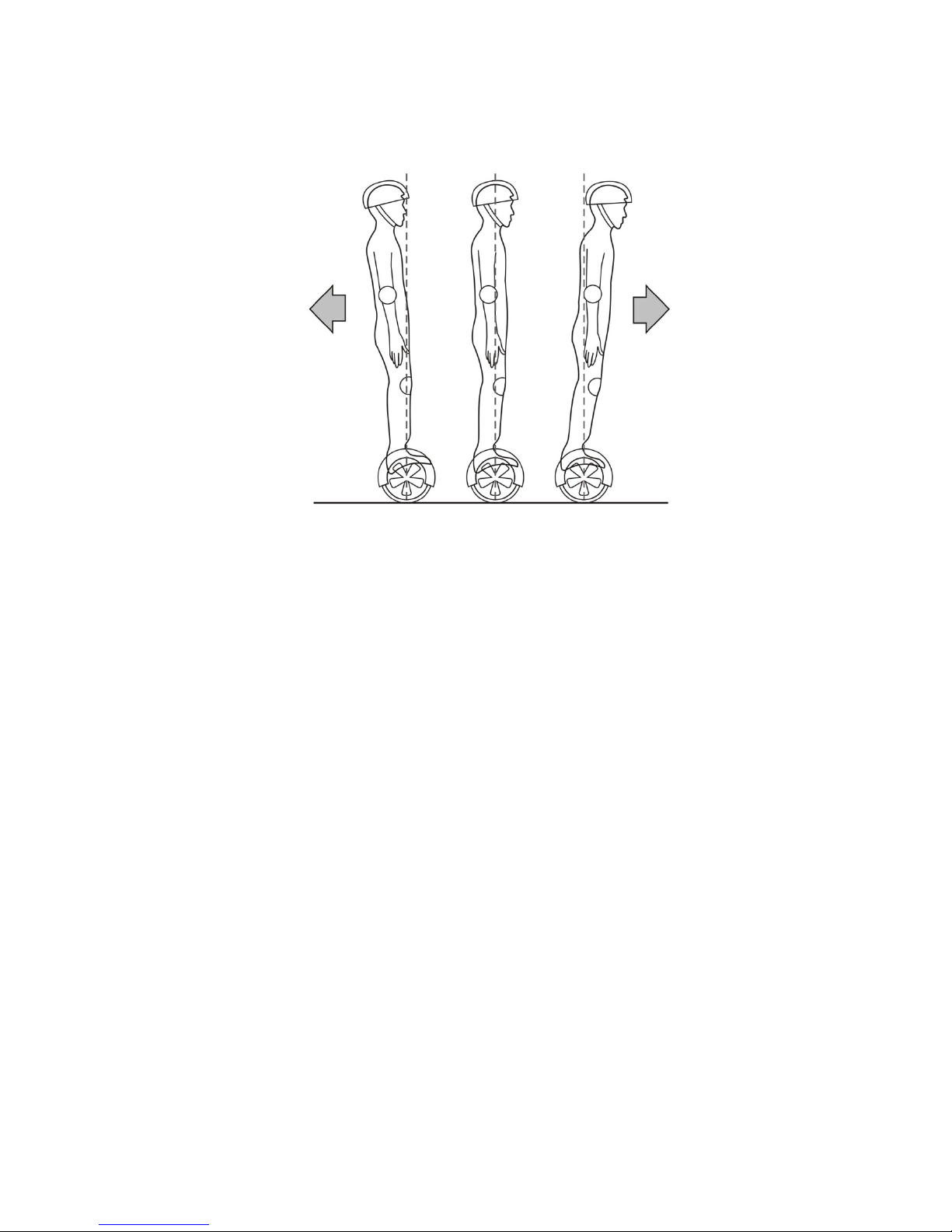

I
\
TO MOVE BACKWARDS
TO STOP
TO MOVE FORWARDS
Notice in the diagram above, your center of gravity determines
which direction you move, accelerate, decelerate, and come to a
complete stop.
TIP - Try staying relaxed and focus on finding your center of gravity to
maintain full control. Tilt your center of gravity in the direction you wish
to move. To turn, focus on the direction you wish to turn and stay
relaxed. The more comfortable you get on the TAB | WHEELS GEN 2,
the easier you will maneuver. Remember at higher speeds, it is
necessary to shift your weight to overcome the centrifugal force. For
bumps or uneven roads, bend your knees.

!
!
11!
!
!
Step 8: The Dismount - Stepping off of the TAB | WHEELS GEN 2 can
be one of the easiest steps, yet when done improperly, may cause you
to fall. To properly dismount, from a stopped position, lift one leg up and
set your foot back down on the ground (STEPPING BACK). Then step off
completely.
NOTE - A common error is to try and step forward.
TIP – make sure to lift your leg completely off to clear the device when
stepping back, otherwise you can get sent into a tailspin.

!
!
12!
!
!
B. Remote Control and Special Functions
B.1 Remote Control
Please notice in your box the TAB | WHEELS GEN 2 has remote
control; its maximum operating range is up to 15 feet
(approximately 5 meters).
A. Power OFF (A) Button: When the device is
power on, press and hold button A for 3
seconds to power o Note- You must press
the power button on the actual device to
power the TAB | WHEELS GEN 2 back
ON.
B. Lock/Unlock (B) Button: While the device
is powered on, click the B button to lock
your TAB | WHEELS GEN 2 (Your battery
display will turn red, indicating locked mode).
Click the B button again to unlock your TAB
| WHEELS GEN 2 (display green/active)
Note- after 10 minutes of no activity, your
TAB | WHEELS GEN 2 will always power
itself off to conserve battery.
C. Buzzer or beep sound: Hold the button to
make sound out of your TAB | WHEELS
GEN 2.
4.2 Recalibrating
When the TAB | WHEELS GEN 2 experiences an error, the Running
indicator light will remain red, meaning your TAB | WHEELS GEN 2 will
not operate until it is properly recalibrated. To learn, how to recalibrate
please visit www.tabwheels.com
A
B
C

!
!
13!
!
!
5. TAB | WHEELS GEN 2 SAFETY PRECAUTIONS –MUST READ
FAILURE TO FOLLOW ANY OF THE FOLLOWING SAFETY
PRECAUTIONS CAN AND MAY LEAD TO DAMAGE TO YOUR TAB |
WHEELS GEN 2, VOID YOUR MANUFACTURER WARRANTY, LEAD
TO PROPERTY DAMAGE, CAUSE SERIOUS BODILY INJURY, AND
CAN LEAD TO DEATH.
1. Please wear all appropriate safety and protective gear as
previously mentioned in the User Manual (Section 3, Page 7)
before operating the TAB | WHEELS GEN 2.
2. Make sure to wear comfortable clothes and flat closed toe
shoes when operating your TAB | WHEELS GEN 2.
3. Please carefully read the User Manual, which will assist in
explaining the basic working principles and provide tips on
how to best enjoy your TAB | WHEELS GEN 2 experience.
4. Before stepping on your TAB | WHEELS GEN 2, make sure it is
placed flat on level ground, the power is on, and the Running
Indicator light is green. Do not step on if the Running Indicator
is red.
5. Do not try to open or modify your TAB | WHEELS GEN 2, as
doing so will void your manufacturer warranty, and may cause
failure to your device leading to serious bodily injury or death.
6. Do not use the TAB | WHEELS GEN 2 to place yourself or
anyone else and their property in d anger.
7. Do not operate the TAB | WHEELS GEN 2 while under the
influence of drugs and/or alcohol.
8. Do not operate the TAB | WHEELS GEN 2 when you are
restless or sleepy.

!
!
14!
!
!
9. Use your best judgment to keep yourself out of dangerous
situations with your TAB | WHEELS GEN 2.
10. Do not ride your TAB | WHEELS GEN 2 off of curbs, ramps, or
attempt to operate in a skate park, empty pool, or in any way
similar to a skateboard or scooter. The TAB | WHEELS GEN 2
IS NOT A SKATEBOARD.
11. Do not turn sharply, especially at high speeds.
12. Do not continuously spin in place, it will cause dizziness and
you will fall and injure yourself.
13. Do not abuse your TAB | WHEELS GEN 2, doing so can damage
your unit and cause failure to the operating system leading to
injury.
14. Do not drive in or near puddles of water, mud, sand, stones,
gravel, and debris or near rough and rugged terrain.
15. The TAB | WHEELS GEN 2 can be used on paved roads that
are flat and even. If you encounter uneven pavement, please
lift your TAB | WHEELS GEN 2 over and past the obstruction.
16. Do not ride in inclement weather: snow, rain, hail, sleek, on icy
roads or in extreme heat.
17. Do not ride in or near pools or other large bodies of water.
18. For Bumps and Uneven pavement- Bend your knees when
riding on bumpy or uneven pavement to absorb the shock and
vibration and help you keep your balance. If you are unsure if
you can safely ride on a specific terrain, step off and carry your
TAB | WHEELS GEN 2. ALWAYS ERR ON THE SIDE OF
CAUTION.
19. Do not attempt to ride over bumps or objects greater than ½
inch even when prepared and bending your knees.
20. PAY ATTENTION- look at where you are riding and be
cognoscente of the road conditions, people, places, property
and objects around you.
21. Do not operate the TAB | WHEELS GEN 2 in crowded areas.
22. Operate your TAB | WHEELS GEN 2 with extreme caution when
indoors, especially around people, property, and narrow
spaces like doorways and other narrow spaces.
23. Operate your TAB | WHEELS GEN 2 with extreme consideration
for people and property at all times.

!
!
15!
!
!
24. Do not operate the TAB | WHEELS GEN 2 while talking, texting,
or looking at your phone.
25. Do not ride your TAB | WHEELS GEN 2 where it is not
permitted.
26. Do not ride your TAB | WHEELS GEN 2 near motor vehicles or
on public roads.
27. Do not climb or travel down steep hills with your TAB |
WHEELS GEN 2.
28. The TAB | WHEELS GEN 2 is intended for use by a single
individual, DO NOT attempt to operate the TAB | WHEELS GEN
2 with two or more people.
29. Do not carry anything while riding the TAB | WHEELS GEN 2.
30. Individuals with lack of balance should not attempt to operate
the TAB | WHEELS GEN 2.
31. Women who are pregnant or who may become pregnant should
not operate the TAB | WHEELS GEN 2.
32. Young children and the elderly should not operate the
TAB | WHEELS GEN 2 without proper instruction and
supervision from a Certified TAB | WHEELS GEN 2 trainer.
33. At higher speeds, always take into consideration longer
stopping distances.
34. DO NOT step forward off of your TAB | WHEELS GEN 2.
35. Do not attempt to jump on or off your TAB | WHEELS GEN 2.
36. Do not attempt any stunts or tricks with your TAB | WHEELS
GEN 2
37. Do not ride the TAB | WHEELS GEN 2 in dark or poorly lit
areas.
38. Do not ride the TAB | WHEELS GEN 2 near or over potholes,
cracks or uneven pavement.
39. Do not operate your TAB | WHEELS GEN 2 off-road.
40. Keep in mind that you are 4.3in. (11cm) taller when operating
the TAB | WHEELS GEN 2. Make sure to go through

!
!
16!
!
!
doorways safely.
41. Do not exceed the maximum or minimum weight limits.
42. Do not step on the fenders of the TAB | WHEELS GEN 2.
43. Avoid driving the TAB | WHEELS GEN 2 in unsafe places,
including near areas with flammable gas, steam, liquid,
dust, fiber, which could cause fire and explosion accidents.
44. Follow all of the state, local, and federal laws in your respective
jurisdiction regarding operation of the TAB | WHEELS GEN 2 or
similar products.
45. Enjoy your TAB | WHEELS GEN 2 safely and responsibly.
If you have any questions and/or concerns, or if you would like
more information on safety tips, please feel free to contact the
TAB | WHEELS GEN 2 team and visit our website for more
information and tips on how to best enjoy your TAB | WHEELS GEN
2 experience. www.tabwheels.com

!
!
17!
!
!
6. Weight and Speed Limitations
PLEASE NOTICE- Speed and Weight Limits are set for your own
Safety. Please do not exceed the limits listed in the User Manual.
6.1 Weight Restrictions
! Maximum Weight: 265lbs - 120 kg.
! Minimum Weight: 45lbs - 20 kg.
6.2 Speed Limits
! Maximum Speed in Standard Operating Mode: 7.5mph (12 km/h.)
7. Operating Range
Please notice the TAB | WHEELS GEN 2 can travel a distance of 8-
12 miles (13-20km) on a fully charged battery in ideal conditions. The
following are some of the major factors that will affect the operating
range of your TAB | WHEELS GEN 2.
! Terrain: A smooth, flat surface will increase your driving distance,
while driving uphill, as well as rough or uneven terrain will reduce your
distance significantly.
! Weight: The weight of the user can affect driving distance; a lighter
user will have further range than a heavier user.
! Ambient temperature: Please ride and store the TAB | WHEELS
GEN 2 under recommended temperatures, which will increase driving
distance; battery life, and overall performance of your TAB | WHEELS
GEN 2.
! Maintenance: Reasonable battery charging and maintenance will
increase the distance. Overcharging the battery can reduce range.
! Speed and Driving Style: Maintaining a moderate speed will increase
your distance; while travelling at high speeds for extended periods,
frequent starts, stops, idling, along with frequent acceleration and
deceleration will reduce your overall distance.
8. Battery Information and Specifications
This section is intended to provide you basic information about

!
!
18!
!
!
your battery and charger, please read this section carefully to
ensure you for user safety and to prolong the life of your battery,
as well as improve battery performance, please follow these
instructions
Ø Battery Power: When the Battery Indicator light is green, your
battery is over 75% charged; when the Battery Indicator light
turns yellow, your TAB wheels is at less than 50% battery
capacity, and when the Battery Indicator light turns red, your
TAB wheels is at less than 10% battery at this point, please stop
operating your TAB | WHEELS GEN 2 and charge your battery
2-3 hours utilizing the charger that you received in your TAB |
WHEELS GEN 2 package. To fully recharge your battery
please follow the instructions under charging your TAB |
WHEELS GEN 2.
Ø Battery Specifications
Content
Parameters
Battery
Lithium Battery
Charging time
2-3h
Voltage
36V
Initial Capacity
2-4Ah
Working Temperature
5°F - 122°F (-15℃~50℃)
Charging Temperature
32°F - 104°F (0℃~40℃)
Storage Time
12 months
Storage Temperature
-4°F - 77°F (-20℃-25℃)
Storage Humidity
5%-95%

!
19!
!
!
8. Battery Information and Specifications Continued
Ø BATTERY WARNING
Failure to follow the Safety Precautions listed in the Battery
Warning could lead to serious bodily injury and death. Seek
immediate medical attention if you are exposed to any substance
that is emitted from the battery.
! Do not attempt to modify, change, or replace your battery.
! Do not use your TAB | WHEELS GEN 2 if the battery begins
to emit odor, overheats, or begins to leak.
! Do not touch any leaking materials, or breathe fumes emitted.
! Do not allow children and animals to touch the battery.
! The battery contains dangerous substances, do not open the
battery, or insert anything into the battery.
! Please only use the charger provided by TAB | WHEELS GEN
2.
! Do not attempt to charge the TAB | WHEELS GEN 2 if the
battery has discharged or emitted any substances. In
that case, the battery should be abandoned for safety.
! Please follow all local, state and federal laws in regards to
recycling, handling and disposing of Lithium Ion batteries.
! The TAB | WHEELS GEN 2 should only be shipped
in its original packaging.
! Do not throw away your box as you need you TAB | WHEELS
GEN 2
Packaging for future use.

!
20!
!
!
9. Charging your TAB | WHEELS GEN 2
Step 1: Ensure that the charging port is clean and dry. Make sure that there
is no dust, debris or dirt inside the charging port.
Step 2: Plug the charger into the wall, then connect the cable with the
power supply (100V ~ 240V; 50, 60 Hz), make sure the light on the
charger is lit GREEN.
Step 3: Connect the charging cable into the charging port of the
TAB | WHEELS GEN 2. The indicator light on the charger should change
to RED, indicating that your TAB | WHEELS GEN 2 is now being charged.
When the RED indicator light on your charger turns to GREEN, then your
TAB | WHEELS GEN 2 is fully charged. A full charge typically occurs
within 2-3 hours.
Step 4: Please unplug the charger from your TAB | WHEELS GEN 2 and
from the power outlet.
Important Notes about Charging
• If the GREEN light on your charger does not turn RED when you
plug it into your TAB | WHEELS GEN 2, it could mean you have to
check the cables to ensure you have a proper connection; or that
your TAB | WHEELS GEN 2 is already fully charged. Push and
hold your power button next to the charging port to check the
status of your battery in the display.
• Do not overcharge, as this will affect the life of the battery.
• The best charging temperatures are between 32°F - 104°F
(0℃~40℃). Extreme cold and extreme heat will prevent your
battery from charging fully.
• Make sure to unplug your charger before standing on or
operating your TAB | WHEELS GEN 2, as this can be very
dangerous.
• Use only the TAB | WHEELS GEN 2 charger that you received in
your box.
• If the TAB | WHEELS GEN 2 is powered on when you enter the
plug, the Battery Indicator will begin blinking, if the TAB | WHEELS
GEN 2 is powered off when you enter the plug, the Battery
Indicator will not blink.
