Thank you for purchasing this Takara Belmont product.
The instructions contained in this booklet should be
thoroughly read and understood before use.
Using this product before reading this operating instructions
may result in an accident.
This product is an industrial shampoo unit designed for
barbers and hair salons. Only use this product for its intended
purpose and do not use it for non-hairdressing work.
Keep this instruction and refer back to them when required.
TAKARA BELMONT SHAMPOO EQUIPMENT
Operating Instructions
Table of Contents
■MAJOLICAPORTO
2nd Edition June. 2019
○Basin
○Water plumbing kit

2
CAUTION
WARNING
Description of "ideal points to adhere to for safety".
Note
■ Before Using
■ Symbols
This mark indicates that the user must
be ALERT against a possible danger.
Common danger, warning and caution
notifications
General Safety Instructions
■ Precautions Listed Here
Do NOT
Disassemble
This instruction manual contains important information to avoid personal injuries, or property damages
against you or your clients by using this product correctly.
These precautions are important for ensuring safety.
Adhere to these precautions at all times..
TAKARA BELMONT is not responsible for any damage or risk to the person using this product or those
around them due to accidents if this product is used without adhering to the "Safety Precautions", "Precau-
tions For Use", "Precautions For Use Of Basin Products" or “Precautions For Use Of Resin-plated Parts”.
In this case, the person failing to adhere to the "Safety Precautions", "Precautions For Use", "Precautions For
Use Of Basin Products" or “Precautions For Use Of Resin-plated Parts” will be responsible for any damage
or risk incurred.
Detailed descriptions of symbols are provided below.
Read and understand these symbols thoroughly before reading this Operating Instructions.
If this symbol is ignored and the product is used, "there is the risk of death or
serious injury to the user".
Indicates that disassembly, repair, and
modification are prohibited.
CAUTION
HOT
The "Safety Precautions", "Precautions For Use", "Precautions For Use Of Basin Products" or “Precau-
tions For Use Of Resin-plated Parts” contained in this booklet should be thoroughly read and understood
before use.
This mark warns the user that "improper use may cause death or severe
personal injuries".
Indicates what a user is forced or
instructed to do.
Indicates the notice of high-tempera-
ture condition.

Install on a stable areu
Fix the basin vertically on a flat wall.
After installation, check that the basin is securely
fixed.
Failure to follow this instruction may cause the
basin come off the wall,
and crack the basin or be injury.
WARNING
Do NOT lean against the basin.
If you provide any service for the customer
leaning against the basin, the product may fall
down and cause damage to the product or
personal injury.
Wall
Do NOT use hot water (boiling water)
of 140°F or higher.
Using hot water at 140°F or higher may deform or
damage the ceramic basin, the shower head, or
the faucet handle, the neck cushion, the neck
base, the neck fittings, the drain cap, the strainer,
the drain housing.
3
Do NOT get on or hang from the basin.
Do NOT attempt to disassemble or repair the
equipment on your own.
Damage to the product or deformation may be
caused.Failure to follow this instruction may
cause the product fell down,
leading to injury.
Return the faucet to an appropriate
position after using hot water.
●Return the faucet to an appropriate position after
using hot water. Continuing to use the hot water
with the knob in the hot position may cause burns.
●Using other equipment that share the same
water/hot water supply source at the same time
may cause unstable water temperature. If multiple
equipment is to be used, move the faucet slowly
to adjust the water temperature.
CAUTION
HOT
Do NOT
Disassemble
Do NOT attempt to repair the unit by
yourself.
Do NOT attempt to disassemble or repair the
equipment on your own. Failure to follow this
instruction may cause the water leak or abnormal
operation, leading to injury.
Safety Precautions
When adjusting the hot water temperature, reduce
the volume of hot water, point the shower head
away from the customer and check the tempera-
ture by your hand.
Take care when doing so, as hot water may come
out of the shower head.
Adjust the temperature of warm water
while checking it by hand.

4
CAUTION
Do not spray areas other than the
basin with water.
●Take care not to spray areas other than the basin
with water.
If water does come in contact with areas other
than the basin, wipe them dry as soon as
possible.
●Take care not to allow water to drip on the floor.
If water does drip on the floor, wipe it dry as soon
as possible. Failure to follow this instruction may
damage the floor, or cause water leakage.
This product is for business use by the barber and
beauty service.
Do NOT use for other than the barber and beauty
service.
Also, do NOT wash any animals, such as pets.
Do NOT use for other than the barber and
beauty service.
Do NOT use outdoors.
This product is intended for indoor use only.
Do NOT place outdoors or in vehicles.
Be sure to use inside barber and beauty salons.
Failure to follow this instruction may cause a
malfunction in or damage to the equipment.
Failure to take this precaution may result in
breakage of parts, thus resulting in water leaks.
If it is expected to be frozen, keep it at a tempera-
ture of 0 degrees or more by heating.
Do NOT use the product where it is
expected to be frozen.
Failure to follow this instruction may cause water
to spill out of the basin, covering the customer
with water.
When supplying water with the shower head
placed in the shower head holder, check the
surroundings and then slowly turn the faucet handle.
Do NOT spray the water with the shower
head placed in the shower head holder.
Do NOT drink the hot water.
This product is for the purpose of shampooing.
Do not drink the hot water.
The water quality may cause diarrhea or stomach
pain.
Do NOT use with the plating peeled off.
If the plating of the faucet metal fittings (faucet
handle, ) is peeled off.
If use them with the plating peeled off may cause
injuries.
Do NOT make an impact on the product.
Failure to follow this instruction may damage the
product.
Do NOT make an impact on the product.
California Proposition 65
Cancer and Reproductive Harm - www.
P65Warnings.ca.gov.

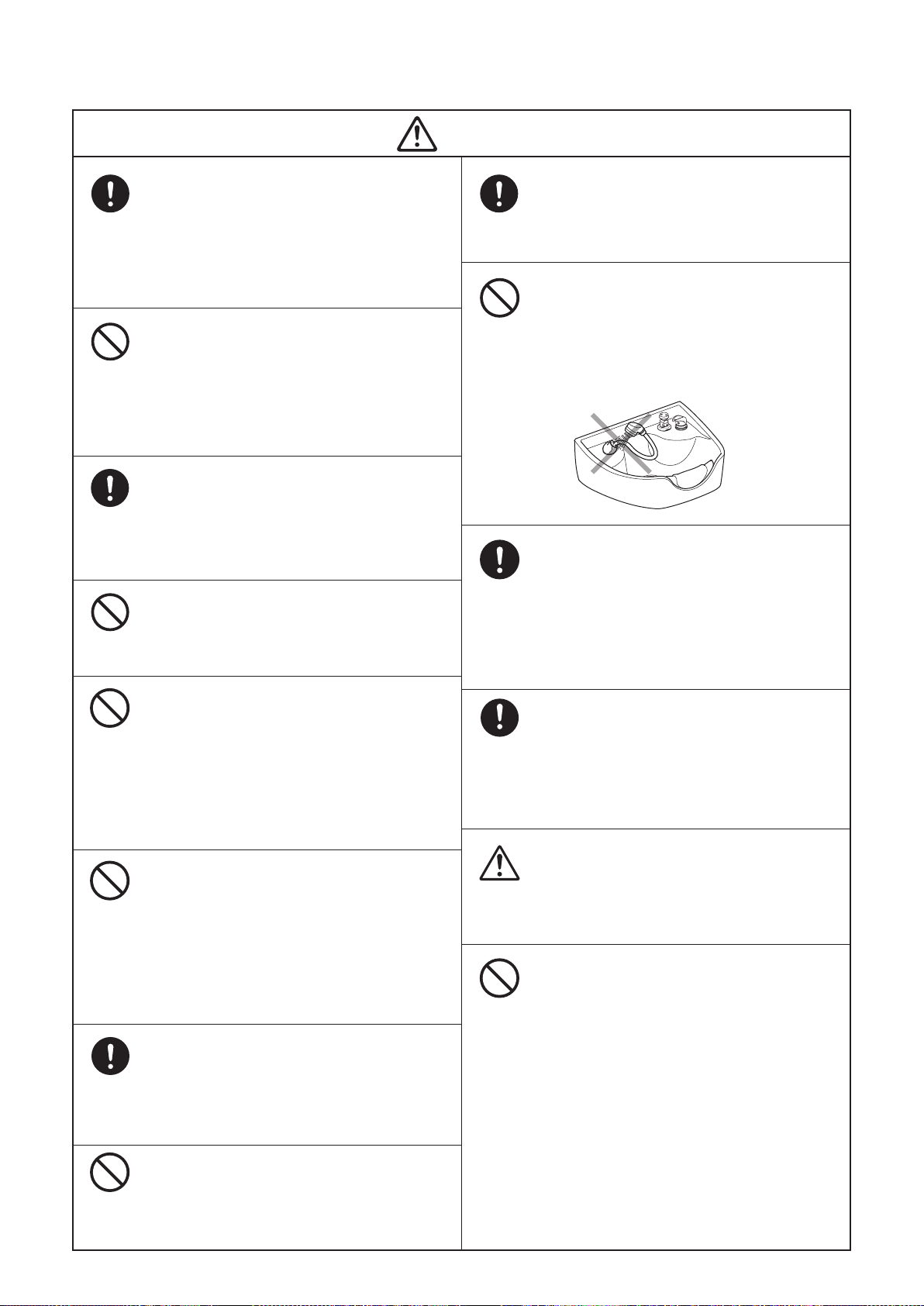

Precautions For Use
5
薬
品
Do NOT wipe with chemicals other than
neutral detergent or add heat.
Failure to follow this instruction may cause
discoloration or alteration.
Do NOT leave the shower head in the
filled water basin.
Failure to follow this instruction can result in a
back flow of water in the basin when the pressure
in the water piping decreases as the water supply
is suspended for execution of work.
Do NOT practice side shampooing.
This product is shampoo equipment intended for
side shampooing.
Do NOT practice side shampooing.
Water may overflow from the basin during
shampooing, it may fall to the floor and deteriorate.
※Figure is front shampoo
CAUTION
When cleaning drainpipes etc., do NOT use a
cleaning agent that contains caustic soda (NaOH)
or caustic potash (KOH) as its principal compo-
nent.
Never pour thinners, alcohol, nail polish remover,
gasoline or kerosene into the drain.
Failure to follow this instruction may damage the
drainpipes.
Do NOT use a cleaning agent of strong
acid / strong alkali.

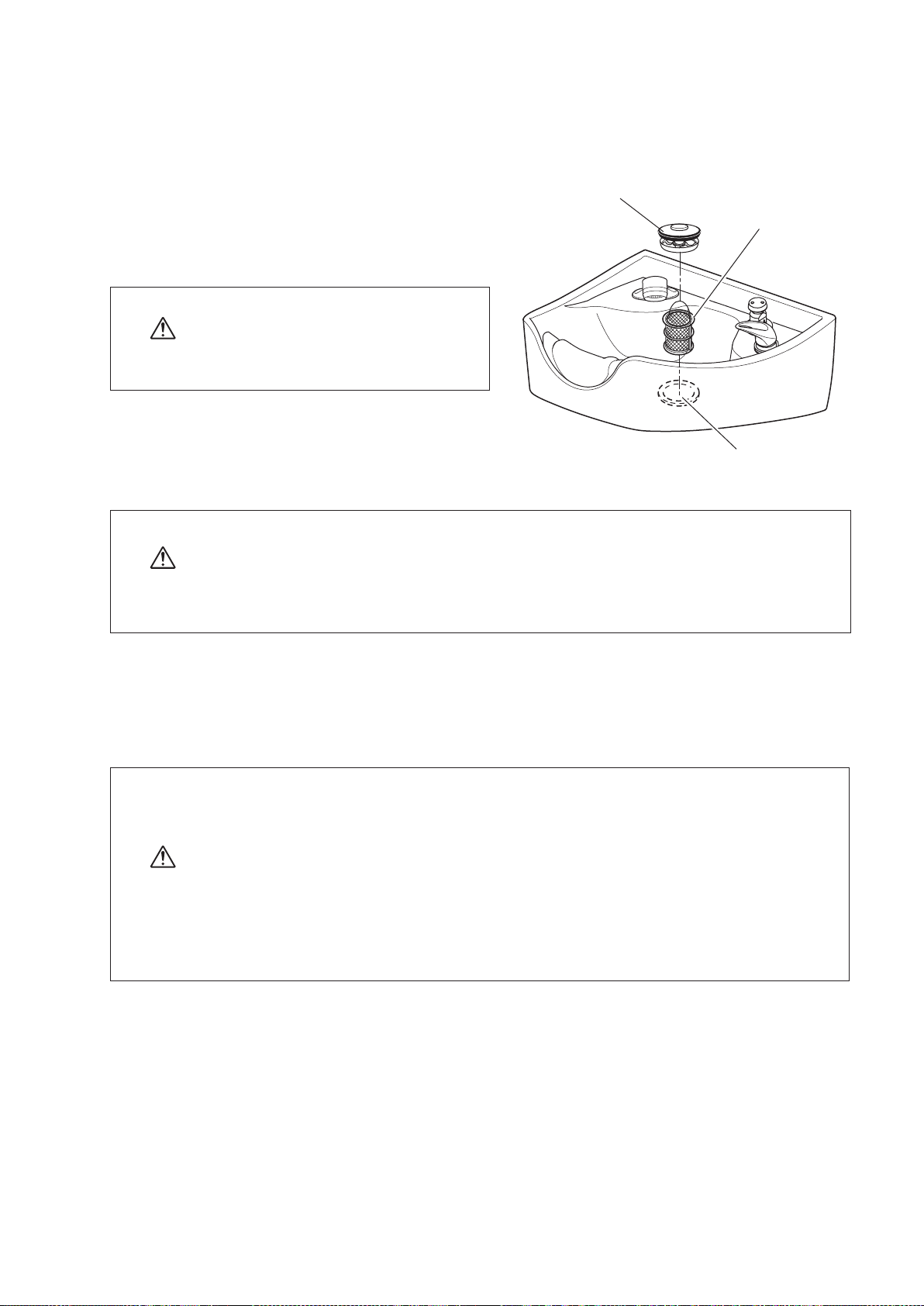

Clean the hair trap regularly.
Clean the hair trap as regularly as possible.
If it is used without cleaning, the drain port is
clogged with a buildup of hair etc., which causes
water to overflow, resulting in unsanitary condi-
tions.
Try to clean it every time you shampoo custom-
er's hair.
After the completion of work, do NOT leave the
upper and floor units connected.
In the event of water leakage from cold/hot water
supply couplers, water leak accidents may occur.
If chemical such as hair dye attached to the
equipment, wipe it out immediately.
This may cause discoloration or deterioration.
Do Not use a chemical agent or hot water. Failure
to follow this instruction may cause deteriora-
tion/discoloration.
In the event that chemical
agents adhere to the
covers, immediately wipe
them off.
Remove chemical immediately after it
attached.
After the completion of use or work, fully turn the
faucet handle clockwise to the end to ensure that
the water stops.
Failure to completely stop the water may cause
water leak accidents.
Fully close the faucet handle.
If not in use, do NOT block the drain port.
After the completion of work, do NOT block the
drain port with the trap cap, a towel, or a
shampoo cloth.
If warm water comes out by mistake or a small
amount of warm water comes out due to an
increase in water pressure late at night, water
may spill out of the basin, resulting in a water
leak accident.
Avoid the heat from direct sunlight and stoves.
Failure to follow this instruction may
causes discoloration and
deterioration of resin parts.
Avoid the heat from direct sunshine and
stoves.

Return the shower head to the shower
head holder so that the sprinkling plate
face the basin.
Failure to follow this instruction may cause water
to spill out of the basin
or splash on the customer with water.
6
Do NOT wet the shower head holder with
water.
Do NOT wet the shower head holder with water.
Failure to follow this instruction may cause
water leaks.
Do NOT use a scourer.
Do NOT use a scourer to clean the basin, the
faucet handle, the shower head or the shower
head holder. Using hard cleaning tools such as a
scourer or a sponge with a scourer, metallic
scouring pad or nylon scouring pad may cause
scratches.
Do NOT touch the hot water supply
pipe or mixing pipe.
The hot water supply pipe or mixing pipe may
become very hot. Do NOT touch the pipes directly.
Do NOT bump any objects against the
handles of the resin-plated parts.
Do NOT bump any hard objects against the
faucet handle of the resin-plated parts.
Failure to follow this instruction may cause flaws or
cracks on the plated surfaces and separation of
plating, resulting in injury.
Adjust the hot water supply temperature
into the equipment to 176°F or less.
Failure to follow this instruction may cause a
malfunction in or damage to the stop vale, check
valve, flexible hose, thermostat faucet, etc.
Clean the shower hose.
Clean the shower hose as regularly as possible.
Continuing to use the shower hose without
cleaning, it may cause that the dirt of the shower
hose will not come out.
Do NOT pull the shower hose to
unreason able.
Take care when handling the shower
hose.
Do NOT use a peppermint oil or aroma oil.
Do NOT use any peppermint oil or aroma oil that
contains menthol.
The oils may cause damage to resin parts, such
as the shower head, shower head holder,
shower hose, faucet handle, neck cushion,
neck base, neck fittings, hair trap, and trap cover.
CAUTION
Do NOT bring cutters and sharp objects, such as
scissors, (including grown nails) into contact with
or press them against the neck cushion.
Take care in handling the neck cushion.
If the product is left with moisture, it may cause a
malfunction of the equipment or make it impossi-
ble to remove soil.
After the completion of work, be sure to
wipe off moisture on the areas other than
the basin.
Do NOT drop or place the heavy or sharp objects
on the basin.
Failure to follow this instruction may cause damage
such as scratches or cracks to the basin.
Do NOT drop heavy or sharp objects on
the basin.
Do NOT bump a thing on the product.
Do not bump the product with a hard object.
This may cause deformation or breakage of the
product.
If the floor is wet, be sure to wipe it out.
If the floor is wet after the completion of a sham-
poo, immediately wipe it out.
Failure to follow this instruction may degrade the
floor or you may slip and fall.

This product uses pottery for the basin.
Note in advance that bends and deformations cannot be avoided depending on the product in molding of the neck
position and the pottery, and there are slight variations in height, shape, and weight.
In addition, because of the nature of pottery, pouring hot water in a pottery part may result in a sudden expansion of
that part, causing cracks in the surface.
Do NOT pour hot water in the pottery. Failure to follow this instruction may damage to the pottery, causing injury, or
cause water to enter the upper unit due to a water leak, resulting in formation of rust.
7
Precautions on Resin (Plated) Parts
Check that there are no flaws, cracks, or peeling of the plated surface of the knobs before
using the product. If peeling is observed, immediately stop using the product and contact
your closest dealer or Takara Belmont. Continued operation may result in injuries.
〇Plating is a thin, hard metal film applied to the surface that may crack or peel due to corrosion or
aged deterioration.
〇Flaws or cracks may occur on the plated surface due to impacts from falling objects.
〇Flaws or cracks may occur on the plated surface when a hard object hits the surface.
〇Peeling of the plating may occur from flaws or cracks on the plated surface.
Example of Flaws on the
Plated Surface
Example of Peeling of the
Plated Surface
Position of Warning Label
Precautions For Use of Basin Products
CAUTION
• Resin plating is adopted for part of the water stop knob and the temperature control knob.
WARNING 1A0SK2A0
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov.

Before Using
• This product is shampoo equiment intended for side shampoo services.
Do not perform any treatment other than side shampoo.
• Check that all accessories have been attached properly.
*Side shampoo : This means that staff provide shampoo services standing next to the basin (in the side position)
8
Name Of Each Parts
Accessories
□Strainer…１
□Drain cap…1
□Neck cushion…１□Neck fittings…１
DRAIN CAP
STRAINER
VACUUM BREAKER
1 COCK WATER MIXING VALVE
(With temperature control)
CONNECTING HOSE
BASIN
NECK CUSHION
SHOWER HEAD
HOLDER
SHOWER HEAD
SHOWER HOSE
DRAIN HOUSING
■Unit

Preparations
9
Basin side
Chair side
Basin side Basin side
Chair side Chair side
Overhead view
Neck cushion Cutaway
Neck fittings
Neck fittings
Chair side
Adjust the
height
Adjust the
height
Cutaway
Hook
Fix the hooks
at the bottom of
neck fittiings
Cutaway
٭This side with cutaway should
come to the chair side.
1. Check the proper direction of the neck
cushion and the neck fittings.
2. Hold the neck cushion, and fit it to the
centre of neck fittings.
3. Adjust the height of neckrest fittings and
right and left edges of neck cushion.
(both sides)
4. While pulling the neck cushion, secure it
with the hooks (2 locations). As shown in
the below illustration, secure the hooks
at the bottom of neck fittings.
5. Insert and secure the neck fittings to
the neck base. Pay attention to the
proper direction of neck fittings.The
surface of neck cushion with cutaway
to be faced to the chair side.

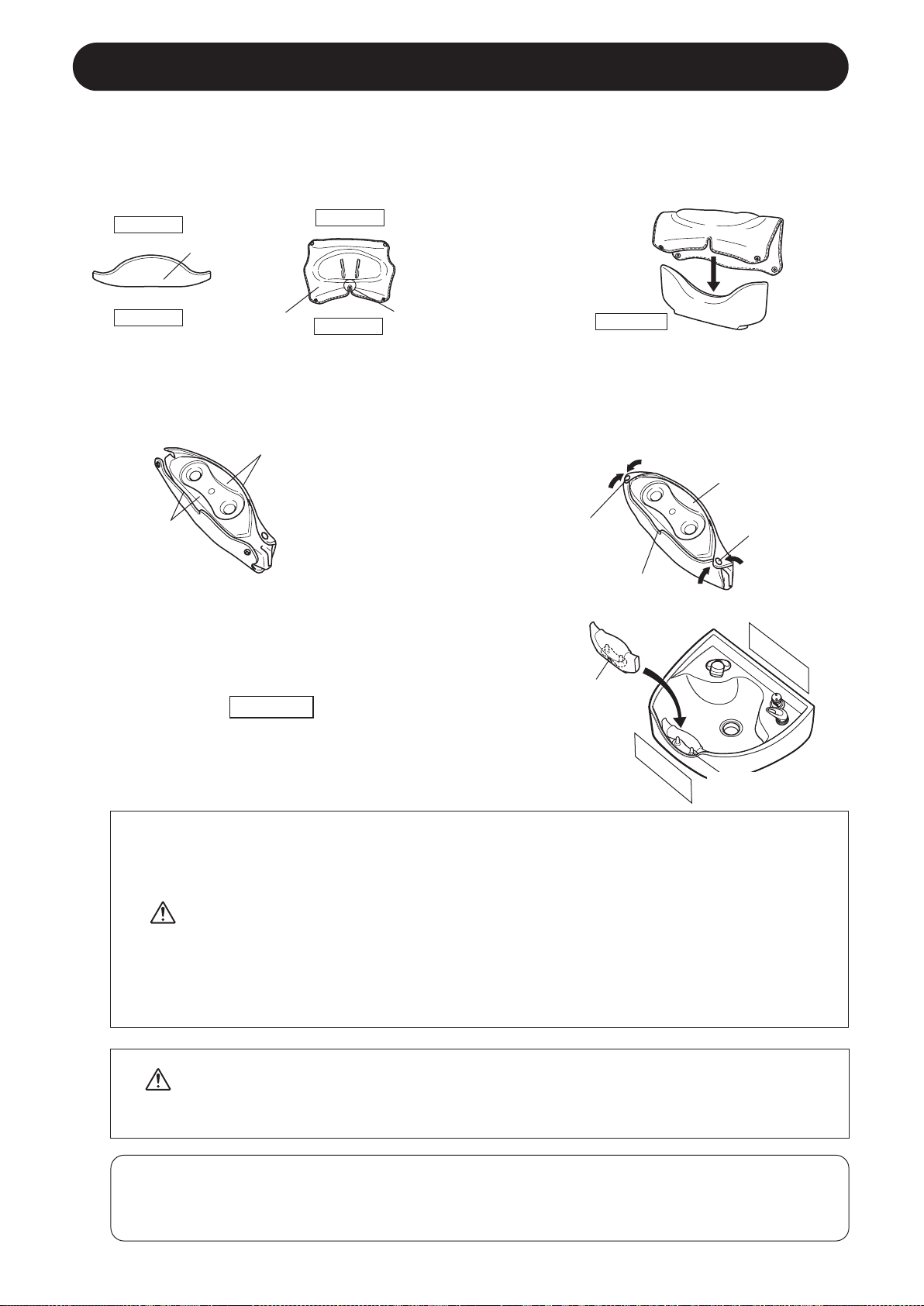

■Attach the neck cushion
Note
The neck cushion is a consumable supply.
Replace them if they are extremely dirty or the surface has deteriorated, replace it (on a
chargeable basis).
Do not force the neck cushion if it does not fit smoothly.
Instead, check the following points.
Forcing the neck fittings on may cause damage to the neck base or injury to customers.
● Check the neck fittings insert the direction.
● If the neck cushion is loose, check the direction of the neck cushion toward the neck fittings.
● If the neck fittings dowel hole is clogged with dirt, clean and remove the dirt before use.
CAUTION
CAUTION
If neither of the above are appropriate and the cause still remains unknown, contact your
closest dealer.
When removing the neck cushion, remove the neck cushion from the neck fittings, and
then remove the two hooks.
Applying excessive force to remove the neck cushion may damage the parts.
Neck base

10
How To Use
■Using the Shower head
１．Hold the shower head and pull it out.
２．After using the shower head, be sure to put it back in the shower head receptacle.
Sprinkling plate
Water
outlet
Do not discharge a strong water stream when the shower head is in the shower head holder.
Failure to take this precaution may result in system failure due to spilled water or damage to
the floor.
After using the shower head, be sure to put it back in the shower head holder.
Failure to take this precaution may result in system failure due to spilled water or damage to
the floor.
Shower head holder
Shower head holder
Adjusting the volume of water
Faucet handle
the amount of hot water increases by pulling up the faucet handle.
A full up of the handle will output the maximum amount.
A full down of the handle will stop the water.
< Output the water > < Close the water >

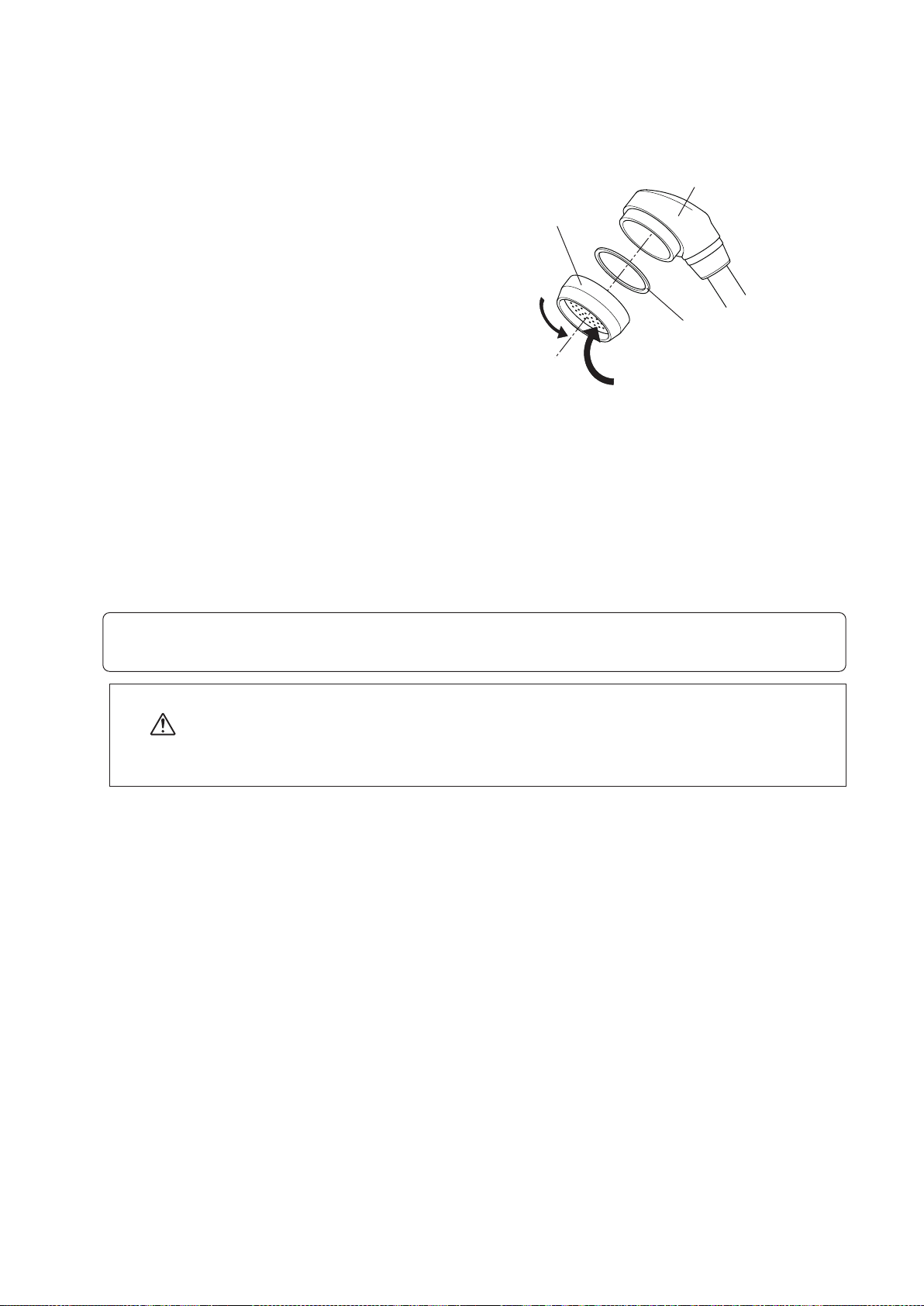

Shower head
CAUTION
Shower head body
Shower hose
