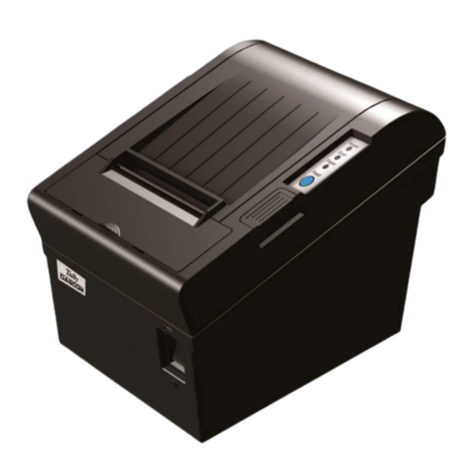

Tally Dascom DT-210 User manual

User Guide DT-210/230 Thermal Receipt Printer

Tally Dascom DT-210/230 User Guide V1.3
I
Important Safety Instructions (English)
Read the following instructions thoroughly before starting up your printer.
•The device and mains-socket must all times be easily accessible.
•Never carry out maintenance or repair work yourself. Always contact a qualified service
technician.
•Keep this user guide in a place which is easily accessible at all times.
•Place the printer on a solid and even base so that it cannot fall.
•Never place the printer in the vicinity of inflammable gas or explosive substances.
•Ensure the printer is connected to a socket with the correct voltage.
•Always disconnect the printer from the power before opening the device to perform
maintenance work or remedy errors.
•Do not expose the printer to high temperatures, direct sunlight or dust.
•Keep all liquids away from the printer.
•Protect the printer from shock, impact and vibration.
•Make sure that both the printer and the computer are switched off before connecting the data
cable.
•The print head will become very hot during printing; avoid contact with the print head after
printing has finished.
•Do not perform any operation or action in any way other than those provided in this manual.
When in doubt, contact your dealer or your customer support.

Tally Dascom DT-210/230 User Guide V1.3
II
Wichtige Sicherheitshinweise (German)
Lesen Sie bitte diese Sicherheitshinweise durch, bevor Sie den Drucker in Betrieb nehmen.
Das Gerät und die Netzsteckdose müssen jeder Zeit leicht zugänglich sein.
Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie
immer einen qualifizierten Servicetechniker.
Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.
Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen
kann.
Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven
Stoffen auf.
Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.
Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den
Netzstecker an der Steckdose ziehen.
Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.
Keine Flüssigkeiten mit dem Drucker in Berührung bringen.
Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.
Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel
angeschlossen wird.
Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen
lassen.
Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation
ab. Bei Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

Tally Dascom DT-210/230 User Guide V1.3
III
Consignes importantes de sécurité (French)
Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.
Le dispositif et la prise principale doivent toujours être accessibles facilement.
Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un
dépanneur qualifié.
Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.
Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de
substances explosives.
Ne connecter l’imprimante à une prise que lorsque la tension est correcte.
Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et
toujours débrancher le connecteur secteur de la prise murale.
Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la
poussière.
Ne pas mettre l’imprimante en contact avec des liquides.
Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.
S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de
données.
La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez-la refroidir
quelques instants avant d’y toucher.
N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel.
En cas de doute, veuillez contacter votre distributeur ou service après-vente.

Tally Dascom DT-210/230 User Guide V1.3
IV
Indicazioni di sicurezza importanti (Italian)
Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.
Il dispositivo e la presa di corrente devono essere sempre facilmente accessibili.
Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un
tecnico di assistenza qualificato.
Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.
Collocare la stampante su una superficie stabile, per evitare che cada a terra.
Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.
Collegare la stampante a una presa di corrente con tensione adeguata.
Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire
sempre il connettore di rete dalla presa.
Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.
Evitare il contatto della stampante con liquidi.
Non esporre la stampante a colpi, scosse o vibrazioni.
Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione
dati.
Durante la stampa, la testina si surriscal-da notevolmente. Prima di toccarla, se necessario
opportuno quindi lasciarla raffreddare qualche istante.
Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale.
In caso di dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

Tally Dascom DT-210/230 User Guide V1.3
V
Instrucciones de seguridad importantes (Spanish)
Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.
El dispositivo y la toma de corriente deben estar ubicados de forma que sea fácil acceder a ellos.
Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un
técnico de servicio calificado.
Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.
Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.
Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias
explosivas.
Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.
Cuando quiera desconectar la impresora de la red, apague la impresora y siempre tire la clavija
de alimentación del enchufe.
No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.
No ponga la impresora en contacto con fluidos.
Nunca exponga la impresora a sacudidas, choques o vibraciones.
Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de
datos.
La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo
algún tiempo antes de tocarla.
No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala
en el manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post-
venta.

Tally Dascom DT-210/230 User Guide V1.3
VI
Правила по технике безопасности. (Russian)
Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу
принтера.
Устройство и розетка должны быть всегда легко доступна.
Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о
неисправностях квалифицированным сервисным техникам.
Данная инструкция должна быть всегда доступна каждому пользователю.
Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть на пол.
Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых
веществ.
Включайте принтер в розетку только с соответствующим напряжением.
Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем
выньте штекер из розетки.
Берегите принтер от нагревания, от попадания на него прямых солнечных лучей и пыли.
Не допускайте попадания жидкости на принтер.
Нельзя подвергать принтер тряске, ударам и вибрации.
Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с
компьютером.
Печатающая головка нагревается во время работы принтера. Поэтому подождите какое-то
время, прежде чем дотронуться до нее.
Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают
неясности, обращайтесь с вопросами к Вашим продавцам или в сервисный центр.

Tally Dascom DT-210/230 User Guide V1.3
VII
Instruções Importantes sobre Segurança (Portuguese)
Leia as instruções de segurança antes de usar a impressora.
A impressora e a tomada devem ser facilmente em todos os momentos acessíveis.
Consulte sempre um técnico qualificado para executar uma reparação .
Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.
Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias
explosivas.
Assegure-se de conectar a impressora à tomada elétrica com a voltagem apro-priada.
Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.
Não exponha a impressora a temperaturas altas ou luz solar direta.
Não aproxime substâncias líquidas da impressora.
Proteja a impressora de choques, impactos e vibrações.
Desligue a impressora e o computador antes de conectar o cabo da rede.
A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá-
la.
Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida,
contate seu revendedor ou companhia de serviço.

Tally Dascom DT-210/230 User Guide V1.3
VIII
Önemli Güvenlik Talimatları (Turkish)
Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.
Cihaz ve elektrik prizinin her zaman kolayca erişilebilir olması gerekir.
Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman
kalifiye bir uzman servis-teknisyenine haber verin.
Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.
Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren
nesnelerin yakınına koymayın.
Yazıcı akım kablosunu sadece doğru gerilime sahip bir prize takın.
Yazıcıyı şebeke ağından ayırmak istediğinizde, yazıcıyı kapatın ve ağ-fişini her zaman prizden
çıkartın.
Yazıcıyı ne yüksek ısılı ne de doğrudan güneş ışığına ve toza mâruz kalan mekânlarda bulundurun.
Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.
Yazıcı hiçbir sarsıntıya, darbeye veya titreşime mâruz kalmamalıdır.
Veri kablosu bağlanmadan önce hem yazıcının hem de bilgisayarın kapalı olduklarından emin
olmalısınız.
Yazıcının başı basma esnasında yüksek ısıya ulaşıyor. Bu yüzden lütfen dokunmadan önce kısa
süre soğumasını bekleyin.
Yazıcının işletimi ve kullanımında bu dokümantasyondaki talimatların hiç dışına çıkmayın. Sorunlu
görünen hususlarda lütfen imâlatçınıza veya müşteri hizmetleri servisinize başvurun.

Tally Dascom DT-210/230 User Guide V1.3
IX
TRADEMARK ACKNOWLEDGEMENTS
“IBM” is a trademark of International Business Machines Corporation.
“EPSON” is a trademark of Epson America Incorporated.
“DEC” is a trademark of Digital Equipment Corporation.
“Centronics” is a trademark of Centronics Data Computer Corporation.
“DOS” is a trademark of Microsoft Corporation.
“SAP” is a trademark of SAP AG.
“Windows”, “Windows 7”,”Windows 8”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows
2000”, “Windows 2003/2008/2013 Server”, “Windows XP” and “Windows Vista” are trademarks of
Microsoft Corporation.
All other product names and company names appearing in this manual are the registered
trademarks or trademarks of the individual companies.

Tally Dascom DT-210/230 User Guide V1.3
X
About This Manual
This manual provides information to operators of the DT-210/230 to describe basic operations to enable safe
and correct use of the printer.
Symbols Description
The symbols in this manual are identified by their level of importance, as defined below. Read the following
carefully before handling the product.
CAUTION: Provides information that must be observed to prevent damage to the
equipment or loss of date.
NOTE: Advises you of information that is essential to complete a task.

Tally Dascom DT-210/230 User Guide V1.3
XI
Related Software and Documents
Related Software and Documents
Document name
Description
DT-210/230 User Manual
This manual.
DT-210/230 Maintenance Manual
This manual provides developer/ engineers
with all the necessary information.
DT-210/230 Programming Guide
This provides description in Acrobat format of
the commands used by each DT printer, along
with sample programs and other information
about the printer
Software
Utility
DT-210/230 Printer Driver (Windows)
DT-210/230 Printer Driver (Linux)
DT-210/230 Utility (Windows)
JavaPOS SDK
OPOS SDK
OPOS SDK for .NET

Tally Dascom DT-210/230 User Guide V1.3
TABLE OF CONTENTS
ABOUT THIS MANUAL .................................................................................................................................................... X
RELATED SOFTWARE AND DOCUMENTS.................................................................................................................. XI
1PRODUCT OVERVIEW ............................................................................................................................................ 1
Features ..........................................................................................................................................................................................................1
1.2 Printer Specification ..........................................................................................................................................................................2
1.3 Paper Specification.............................................................................................................................................................................4
1.3.1 Continuous Paper.......................................................................................................................................................................4
1.3.2 Notices.............................................................................................................................................................................................4
1.4 Printing and Cutting Positions ......................................................................................................................................................5
1.4.1 Printable Area..............................................................................................................................................................................5
1.4.2 Cutting Positions.........................................................................................................................................................................6
1.5 External Dimension and Mass .......................................................................................................................................................7
1.6 Unpacking ..............................................................................................................................................................................................8
1.7 Product Configurations ....................................................................................................................................................................9
1.8 Part Names and Functions ...........................................................................................................................................................10
1.8.1 Power Switch.............................................................................................................................................................................11
1.8.2 Control Panel.............................................................................................................................................................................11
1.8.3 LED Indicators ..........................................................................................................................................................................12
2SETUP ......................................................................................................................................................................... 13
2.1 Flow of Setup .....................................................................................................................................................................................13
2.2 Placing the Printer...........................................................................................................................................................................13
2.3 Attaching Power ...............................................................................................................................................................................15
2.4 Adjusting the Paper Near-end Sensor.....................................................................................................................................16
2.5 Loading Roll Paper ..........................................................................................................................................................................17
2.5.1 Loading 80mm Media............................................................................................................................................................17
2.5.2 Loading 58mm Media............................................................................................................................................................19
2.6 Connecting to Computer ...............................................................................................................................................................20
2.6.1 Connection Cable Requirement.........................................................................................................................................20
2.6.2 Connecting USB Interface ....................................................................................................................................................21
2.6.3 Connecting Cash Drawer Interface ..................................................................................................................................21
2.6.4 Connecting Serial Interface .................................................................................................................................................22
2.6.5 Connecting Parallel Interface .............................................................................................................................................23
2.6.6 Connecting Ethernet Interface...........................................................................................................................................23
2.6.7 Connecting Wi-Fi Interface..................................................................................................................................................24
2.7 Installing Optional Kits..................................................................................................................................................................25
3NETWORK SETUP AND CONFIGURATION........................................................................................................ 26
3.1 Installing Windows Driver ...........................................................................................................................................................26
3.2 Installing Setup Tool .......................................................................................................................................................................28
3.3 Black Mark Setup..............................................................................................................................................................................32
3.4 Installation Driver for Ethernet and Wi-Fi Interface ........................................................................................................34
3.5 Self Test for Ethernet and Wi-Fi.................................................................................................................................................40
3.6.1 Ethernet.......................................................................................................................................................................................40
3.6.2 Wi-Fi..............................................................................................................................................................................................40
3.6.3 Reset Parameters.....................................................................................................................................................................41
3.6 Ethernet IP Address Setting.........................................................................................................................................................42
3.7 Wi-Fi Setting.......................................................................................................................................................................................43
3.7.1 Access to Wi-Fi Setting Page...............................................................................................................................................44
3.7.2 Wlan Setup - STA mode.........................................................................................................................................................47

Tally Dascom DT-210/230 User Guide V1.3
3.7.3 Wlan Setup - AP mode...........................................................................................................................................................52
3.7.4 Return to Factory Setting .....................................................................................................................................................55
4SETTING DIP SWITCHES ....................................................................................................................................... 56
4.1 DIP Switch Setting............................................................................................................................................................................56
4.1.1 For Serial Interface (RS-232C) .......................................................................................................................................57
4.1.2 For Parallel, USB2.0 and Ethernet Interface .............................................................................................................58
4.1.3 Selecting the Print Density...............................................................................................................................................59
4.1.4 Auto Cutter Enable/Disable Selection.........................................................................................................................59
4.2 Memory Switch Setting..................................................................................................................................................................60
5SETTING/CHECKING MODES ............................................................................................................................... 62
5.1 Print a Parameter Setting Page (Self-test Page)..................................................................................................................62
5.2 Hexadecimal Dumping Mode ......................................................................................................................................................64
6TROUBLESHOOTING .............................................................................................................................................. 65
6.1 Error Status ........................................................................................................................................................................................65
6.2 Trouble occur during printing....................................................................................................................................................65
6.3 Trouble occur during cutting ......................................................................................................................................................66
6.4 Removing Jammed Paper..............................................................................................................................................................66
6.5 Cleaning Thermal Head .................................................................................................................................................................68
7COMMUNICATION INTERFACES SPECIFICATIONS ......................................................................................... 69
7.1 USB interface......................................................................................................................................................................................69
7.2 Cash Drawer interface....................................................................................................................................................................69
7.3 Serial interface ..................................................................................................................................................................................70
7.4 Parallel interface...............................................................................................................................................................................71
7.5 Ethernet interface ............................................................................................................................................................................72
7.6 Wi-Fi interface...................................................................................................................................................................................72
7.7 Power Adapter...................................................................................................................................................................................72
8CHARACTER CODE PAGES..................................................................................................................................... 74
8.1 Common to All Pages (International Character Set: USA) ..............................................................................................74
8.2 International Character Sets .......................................................................................................................................................75
8.3 [User-defined page] ........................................................................................................................................................................76
8.4 [PC437: USA, Standard Europe].................................................................................................................................................77
8.5 [PC850: Multilingual] .....................................................................................................................................................................78
8.6 [PC852: Latin2].................................................................................................................................................................................79
8.7 [PC858: Euro] ....................................................................................................................................................................................80
8.8 [PC860: Portuguese].......................................................................................................................................................................81
8.9 [PC863: Canadian-French] ...........................................................................................................................................................82
8.10 [PC865: Nordic] .........................................................................................................................................................................83
8.11 [PC866: Cyrillic #2]..................................................................................................................................................................84
8.12 [KU42: Thai]................................................................................................................................................................................85
8.13 [TIS11: Thai] ...............................................................................................................................................................................86
8.14 [TIS18: Thai] ...............................................................................................................................................................................87
8.15 [PC720: Arabic]..........................................................................................................................................................................88
8.16 [PC864: Arabic]..........................................................................................................................................................................89
8.17 [WPC1256: Arabic] ..................................................................................................................................................................90
9PRINTING CONTROL COMMAND SETS.............................................................................................................. 91
FCC STATEMENT ............................................................................................................................................................... 95

Tally Dascom DT-210/230 User Guide V1.3
DASCOM REPRESENTATIVES ........................................................................................................................................ 96

Tally Dascom DT-210/230 User Guide V1.3
1
1PRODUCT OVERVIEW
Tally Dascom’s DT-210/230 offers high-speed receipt printing for a wide range of terminal equipment
including data, POS, and kitchen terminals. With extensive features, they can be used in a wide range
of applications such as food service, retail and grocery.
With an internal memory large enough to store logos, footers, custom fonts, keywords and
downloading custom applications, this unit has it all. The DT-210/230 can be desktop or wall-mounted
and comes standard with USB interface, RS-232 serial, Centronics parallel, Ethernet, or Wi-Fi interfaces.
Printer drivers included are: Windows XP (32 and 64 bit), Windows Vista (32 and 64 bit), Java POS,
OPOS, and Linux.
Features
Printing
High speed printing (260 mm/s maximum).
Versatile roll capacity with ability to use 80mm, and 58mm wide paper rolls.
Can use paper roll with a maximum of 83mm diameter.
Equipped with a fast and quiet cutter (DT-230).
Handling
Compact design, can be installed anywhere.
Drop-in paper roll mechanism facilitating easy paper handling and head cleaning.
Drip-proof design.
Software
Command protocol is based on the ESC/POS Proprietary Command System.
OPOS ADK, OPOS ADK for .NET, JavaPOS ADK, Linux, and Windows printer drivers are available.
Barcode and 2D barcode printing supported.
Various layouts are possible by using page mode.
Buzzer reminder after each printout.
Paper-saving function is supported.
The DT-210/230 is ENERGY STAR qualified. (Some configurations may be exempted, depending on their

Tally Dascom DT-210/230 User Guide V1.3
2
components.)
Others
Wide range of connectivity. The USB interface is standard interface. Serial/parallel/Ethernet/ Wi-Fi are
optional interfaces. Various interface choices suit all needs.
Built-in USB interface is also available for all interface models.
The DT-210/230 Software & Documents Disc (drivers, utility, and manuals).
Printer status and errors indicated by 3 LEDs and a buzzer.
1.2 Printer Specification
Print
Parameter
Print method
Direct thermal line printing
Resolution
203DPI, 8dots/mm
Print speed
DT-230: 260mm/s Default; 240-270mm/s adjustable via DIP.
DT-210: 220mm/s Default; 210-230mm/s adjustable via DIP.
Print width
72mm (576dots)
Interface
USB (On-board) + Cash Drawer (On-board) + one optional
interface (daughter board): Serial, Parallel, Ethernet, Wi-Fi or
fiscal interface.
Print density
The density can be adjusted to different levels:
DT-210:
Level 1 Density light: Speed 230 mm/s
Level 2 Density middle: Speed 220 mm/s
Level 3 Density middle: Speed 210 mm/s
Level 4 Density dark: Speed 200 mm/s
DT-230:
Level 1 Density light: Speed 270 mm/s
Level 2 Density middle: Speed 260 mm/s
Level 3 Density middle: Speed 250 mm/s
Level 4 Density dark: Speed 240 mm/s
Power
consumption
51.6W(Normal)
7W(Standby)
Memory
RAM
1Mbytes
Flash
4Mbytes
Receive buffer
48Kbytes
Fonts
Characters
per line
Font A, Special Font A: 48 cpl
Font B, Special Font B: 64 cpl
User-defined
Supported
Code page
14 code pages (PC437, PC850, PC852, PC858, PC860, PC863,
PC865, PC866, KU42, TIS11, TIS18, PC720, PC864, WPC1256)
Chinese
Character
GB18030 24×24
Barcodes
1D
UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128,

Tally Dascom DT-210/230 User Guide V1.3
3
CODE32
2D
PDR417, QR code
Graphics
Supports several bitmap densities and download image printing.
(Maximum size of each bitmap is 64kB. The total size of memory
is 256K.)
Detect
Function
Sensors
Paper End, Paper Near End, Paper Jam and Cover Open sensors.
Power Supply
External power adapter
Input
AC 100V-240V 50-60Hz
Output
DC 24V±5%, 2.15A, A-1009-3P interface
Paper Handling
Paper type
Standard Thermal Paper (see P31- 5.4 paper specification)
Paper width
79.5±0.5mm/57.5±0.5mm
Paper
thickness
0.056~0.1mm
Paper roll
diameter
Max. OD ∮83mm
Min. ID ∮13mm
Paper load
Upward cover open and Easy paper loading
Paper cut
Manual tear; Auto-cutter (hay cutter type) and partial cut.
Emulation
ESC/POS (TM-T88IV) Compatible command set
Noise
The noise level will be less than 50 dBA at 260mm/s printing speed
(to be measured in accordance with ISO 7779)
Physical Spec.
Operating
condition
5～45℃/10～95％RH
Storage
condition
-10～50℃/10～95％RH
Dimensions
147×198×146 (W×L×H mm)
Color
Black
Weight
Approx. 1.8kg
Optional Kits
Splash cover and Hanging plate
Accessory
Interface cover
Reliability
Head lifetime
150km
MTBF
360, 000 hours
Cutter
lifetime
2,000,000 cuts
MCBF
52,000,000 lines
Software
Driver
Windows, 32 & 64 Bit; Linux
Certification
CCC, CE, UL, FCC, Energy Star

Tally Dascom DT-210/230 User Guide V1.3
4
1.3 Paper Specification
1.3.1 Continuous Paper
1.3.2 Notices
Pls. use the recommended thermal paper or same quality paper, otherwise it will influence the
printing quality and decrease the thermal printer head life.
Don’t stick the paper on the roll paper core.
If the thermal paper is polluted by chemical or oil, the thermal paper heat sensibility decreases,
which will influence the printing quality.
Don’t use finger nail or hard articles to touch the surface of thermal paper, otherwise it will cause
color fading.
When the environment temperature is higher than 70°C，the thermal paper color will fade, so pay
attention to the influence of temperature, humidity and sunlight.
Paper type
Specified thermal paper
Form
Roll paper
Size
Roll paper diameter
83 mm {3.27"} maximum
Min. core diameter
13mm
Take-up roll paper
width
79.5±0.5mm
Paper width
79.5 ± 0.5 mm/57.5±0.5mm
Paper thickness
0.065mm ~ 0.090mm
CAUTION
• Paper must not be pasted to the roll paper spool.
• The remaining amount of the roll paper when a roll
paper near-end is detected differs depending on the spool
type.

Tally Dascom DT-210/230 User Guide V1.3
5
1.4 Printing and Cutting Positions
1.4.1 Printable Area
80 mm paper width printing
The printable area of a paper with width of 79.5 ± 0.5 mm {3.13 ± 0.02"} is 72.2 ± 0.2 mm {2.84 ± 0.008"}
(576 dots) and the space on the right and left sides are approximately 3.7 ± 2 mm {0.15 ± 0.079"}.
79.5 ± 0.5 mm {3.13 ± 0.02"}
0.141 ± 0.05 mm {0.056 ± 0.002"}
72.2 ± 0.2 mm {2.84 ± 0.008"}
3.7 mm {0.15} 3.7 mm {0.15}
All the numeric values are typical.
58 mm paper width printing
The printable area of a paper with width of 57.5 ± 0.5 mm {2.26" ± 0.02"} is 50.8 ± 0.2 mm {2.00"
± 0.008"} (360 dots), and the space is approximately 3.7mm {0.15"} on the left side and approximately
3.0 mm {0.12"} on the right side.
57.5 ± 0.5 mm {2.26 ± 0.02"}
0.141 ± 0.05 mm {0.056 ± 0.002"}
50.8 ± 0.2 mm {2.00 ± 0.008"}
3.7 ± 0.2 mm {0.15 ± 0.079"} 3.0 ± 0.2 mm {0.12 ± 0.079"}
All the numeric values are typical.
