INSTRUCTIONS MANUAL
9009T DODH-F

Dealer:
Owner:
Firm / Farm:
City: State:
No. of the Certificate of Guarantee:
Serial / No.:
Date: Invoice No.:
Product:
Notes:
IDENTIFICATION

1
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
Introduction
The DODH-F 9009T disk harrow was specially designed to
prepare the soil over long areas, break the clods and level the soil
after the harrowing.
Equipped with bearings bathed in oil, reagreasable roller
bearings and duo-cone seals; they provide a greater durability. The
bearings have protection covers to protect them from the wear.
The transportation of this harrow is done by an efficient double
wheelset system, being one on the central frame and the other on
the lateral. This wheelset system also makes the operation easier
by its quick and precise working depth and facilitates maneuvering
during the job.
It has high-resistance disc blades and also furrow fillers on
the rear gang ends used to reduce furrows and to let the harrowing
uniform.
This instructions manual contains the necessary information
for the best performance of this disk harrow. The operator must
carefully read the entire manual before working with the equipment.
Also, read and understand the safety recommendations.
For any further clarification or in the event of technical problems
that may arise during the service, consult your dealer and the
Technical Support department of the factory. They can ensure the
fully functioning of your TATU disk harrow.

2Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
Table of contents
1. To the owner 03
2. To the operator 04 to 09
3. Data sheet 10

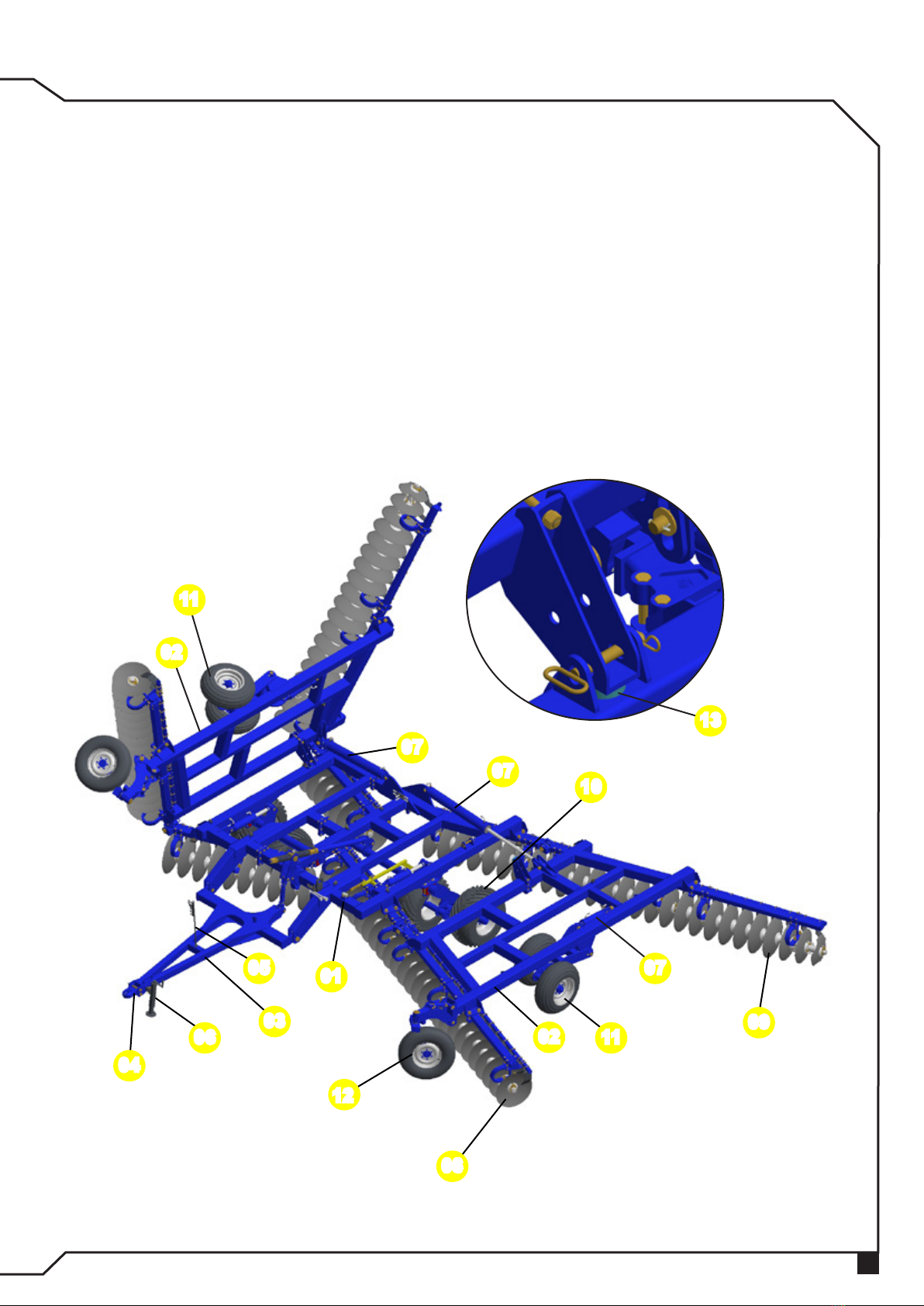

4. Components 11
5. Assembly 12 to 24
Using the set of wrenches / Disc gangs assembly 12
Assembly of bearings and spacer spools 13 & 14
Disc gangs assembly sequence 15 & 16
Assembly of the disc gangs on the frame 17
Scrapers assembly 18
Assembly of the disc carrier to the frame 19
Tires assembly 19 & 20
Drawbar assembly 21
Hose support and jack assembly 21
Engraved information on the disc gang carriers 22
Folding disc gangs carriers assembly 23
Hydraulic circuit 24
6. Working preparation 25 & 26
Tractor preparation / Harrow preparation 25
Hitching to the tractor 25
Important recommendations 26
7. Adjustments and operations 27 to 30
Adjusting the wheelset bearings / Fuse adjustment 27
Locking the frames for transportation 28
Cutting depth 28
Ways to start the harrowing / Direction of the maneuvers 29
Operations - Important points 30
8. Maintenance 31 to 35
Lubrication / Lubrication points 31 to 33
Harrow maintenance / Maintenance precautions 34
Lifting points 35
9. Important data 36 to 38
Calculation of hourly income 36
Average income table 37
Torque table 38
10. Important 39
11. Notes 40

3
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
General information
Important
To the owner
Right and left hand side indication are made observing the equipment from the rear.
To order any parts or request technical assistance services, it is required to provide
the data contained on the nameplate, which is located on the equipment frame.
• Only people who own a full knowledge of the tractor and equipment
must operate them;
• Marchesan is not responsible for any damage caused by accident
on transporting, incorrect utilization or inadequate storage, either
by negligence and/or lack of experience from any person;
• Marchesan is not responsible for any damage caused by unpredictable
situations or the incorrect use of the equipment.
The warranty shall not be applied to any equipment or any part thereof
which has been altered elsewhere than at the place of manufacture or
which the original purchaser thereof at retail has used or allowed to be
used parts, not made or supplied by Marchesan S/A.
NOTE
The acquisition of any Tatu product assures to the original purchaser the following
rights:
• Warranty certificate;
• Instructions manual;
• Technical assistance by the dealer on equipment delivery.
However, the owner must check the condition of the equipment on delivery, as well
as knowing the warranty terms.
Special attention should be given to the safety recommendations, operation precautions
and maintenance of the equipment.
The instructions in this manual indicates how to get the best performance and allow
the operator to get maximum income, increasing the equipment lifetime.
This manual should be read by operators and maintenance staff.

4Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
To the operator
Dear user!
Respect the ecology. Do not throw trash away. This gesture
of goodwill helps to protect our environment.
Working safely
• Security aspects must be carefully observed to avoid
accidents.
• This symbol is a warning used to prevent accidents.
• The instructions under this symbol refers to the safety of the
operator or third parties, therefore they should be carefully
read and observed.
Read and understand the information before making any
adjustment or maintenance.
Be careful with the environment
DODH-F 9009T disk harrow is simple to operate, requiring
however the basic and essential cautions to its handling.
Always keep in mind that safety requires constant attention,
observation and prudence during transportation, maintenance
and storage.
Have extreme caution when operating with the power take-off
(PTO). Do not get closer during operation.
Products such as oil, fuel, filters, batteries and others are
spilled to the soil and can penetrate to the underground layers,
compromising nature. Ecological and conscious disposal of them
should be done.

5
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
To the operator
Never use your bare hands to check hydraulic leaks, the high
pressure can cause several injuries.
Be careful while driving on slopes. Risk of overturn.
Prevent that chemical products (i.e.: fertilizers, treated seeds)
make any contact with your skin or clothes.
Keep access and work places clean and free from oil and
grease. Risk of accidents.
Never transport the equipment on highways or paved roads
during the night. Avoid that the tractor wheels touch the drawbar in
sharp turns.
The presence of any other people on the tractor or equipment
is stricly forbidden.
Have extreme caution when driving under electrical power lines.
Any contact may result in severe shocks, injuries or death.
For your protection and safety, always wear adequate clothes
and footwear while operating the equipment.
Always use the safety locks to transport the equipment.
Never attempt to change the adjustments, clean or lubricate the
equipment when the same is switched on or in movement.

6Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
To the operator
• Only trained and qualified personnel is allowed to operate the equipment.
• While working or during transportation, only the presence of the operator is
allowed on the tractor.
• Do not allow children to play near or over the equipment while it is operating,
during transportation or storage.
• Have full knowledge of the soil before starting to work. Provide the delineation
of obstacles or hazardous locations. Use the speed which is suitable to the
conditions of the ground or pathways to be covered.
• Use personal protective equipment (PPE).
• Wear appropriate clothes and footwear. Avoid clothes that are either loose or
hanging from the body, which may become entangled in moving parts.
• Never operate the equipment without its proper protective devices.
• Be careful while hitching the drawbar to the tractor.
• Wear protective gloves to work near the disc blades.
• When setting the harrow to transport position, check if there are no people or
animals close or under it.
• Never attempt to change the adjustments, clean or lubricate the equipment
while it is moving.
• In case of emergency, know how to stop the tractor and harrow quickly.
• Always shut down the engine, remove the key and use the handbrake before
leaving the tractor seat.
• Only drive the equipment using tractors with appropriate power.
• Carefully check the transport width on narrow locations.
• Whenever you unhitch the equipment, either in the field or shed, do it on a
flat and firm surface and use the parking stands. Make sure the equipment is
properly supported.
• Please check the general safety instructions on the back cover of this manual.

7
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
Truck or trailer transportation
Marchesan does not advise the equipment traffic on highways, because this
practice involves serious security risks in addition to being prohibited by the
current existing traffic law. The transportation for long distances should be done
on truck, trailer or others by following these safety guidelines:
• Use adequate ramps to load or unload the equipment. Do not make the loading
on ditch banks, it may cause a serious accident.
• When lifting with a hoist, use the appropriate points to lift.
• Underpin the equipment appropriately.
• Use chock blocks and safety chains to secure the equipment to the truck or
trailer during the transport.
• After 8 to 10 km transporting, please inspect the load condition. Repeat this
procedure every 80 to 100 km. Give more attention when transporting the
equipment on rough roads, slopes and other adverse conditions.
• Always be careful with the load height, especially when passing under electrical
power lines, bridges and others.
• Check all laws and regulations regarding the height limits and load width while
transporting the equipment to the truck or trailer. If necessary use banners,
lights and other devices in order to give adequate warning to the other drivers.
To the operator

8Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
The safety stickers warn about the equipment points that require more attention and
they should be kept in good repair. If these stickers become damaged or illegible, replace
them. Marchesan provide stickers, upon request and indication of the respective serial
number.
To the operator
Safety stickers
P E R I G O / D A N G E R /
P E L I G R O
Para evitar acidentes, não faça regulagens com o
equipamento em movimento. Para manutenção
e limpeza, desligue o motor do trator.
In order to avoid accidents, do not carry out adjustments
with the equipment in movement. For maintenance and
cleaning, switch off the tractor engine.
Para evitar accidentes, no haga reglajes con el
equipo en movimiento. Para mantenimiento y limpieza,
apague el motor del tractor.
05.03.03.1739
ATENÇÃO
ATTENTION
ATENCIÓN
05.03.03.1428
Leia o manual antes de iniciar o
uso do equipamento.
Read the manual before attempting
to work with the equipment.
Lea el manual antes de iniciar el
uso del equipo.

9
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
To the operator
Sticker set
PERIGO / DANGER / PELIGRO
05.03.03.1896
Para evitar acidentes, fique longe do equipamento quando o mesmo
estiver articulando ou desarticulando.
Falhas mecânicas ou hidráulicas podem fazer com que o equipamento
abaixe rapidamente.
In order to avoid accidents, keep away from the equipment
when the same is folding or unfolding.
Mechanical or hydraulic failure can make the equipment to
fall down quickly.
Para evitar accidentes, quede lejos del equipo cuando el mismo esté
articulando o desarticulando.
Fallas mecánicas o hidráulicas pueden hacer con que el equipo baje
rapidamente.
Para evitar acidentes, instale as travas dos cilindros antes
do transporte ou antes de efetuar serviços no equipamento.
In order to avoid accidents activate cylinder locks
before transportation or carrying out any service on
the equipment.
Para evitar accidentes, instale las trabas de los cilindros
antes del transporte o antes de efectuar trabajos en el
equipo. 05.03.03.1738
ADVERTÊNCIA / WARNING /
ADVERTENCIA
LUBRIFICAR E REAPERTAR DIARIAMENTE
LUBRICAR Y REAPRETAR DIARIAMENTE
L U B R I C A T E A N D T I G H T E N D A I LY
05.03.03.1827
Model Serial number
DODH-F 9009T 05.03.03.3932
TATU logo 05.03.03.3933

10 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
Data sheet
Model Number of
disc blades
Cutting width
(mm)
Transport
height
(mm)
Weight
(kg)
Ø 24" x 6
Tractor
required (cv)
9009T
DODH-F
88 10155 4435 8792 260 - 280
96 10795 4876 9191 280 - 320
104 11658 5409 9557 320 - 360
Type: ......................................................................................Double Offset Disk Harrow
Model: .....................................................................................................DODH-F 9009T
Number of disc blades: ............................................................................ 88, 96 and 104
Spacing between disc blades:............................................................................. 230 mm
Discs dimension - Plain disc blade:............................................................Ø 24" x 6 mm
- Plain disc blade: ............................................................Ø 22" x 6 mm
- Plain disc blade: ............................................................Ø 20" x 6 mm
- Notched disc blade: ....................................................Ø 18" x 4.5 mm
Bearings - Length: .............................................................................................. 225 mm
- Type:................................................................................... Oil roller bearings
Spacer spools - Length: ...................................................................................... 225 mm
- Type: .............................................................................................. Cast
Axle diameter: ................................................................................. Ø 44.45 mm (1.3/4")
Hitching type: ............................................................................................... Traction bar
Working speed:.......................................................................................... 05 to 07 Km/h
Tires (central wheelset):.......................................................................... 400/60 (52 PSI)
Tires (lateral wheelset): ...........................................................11L 15 - 10 tarps (52 PSI)
Tires (front wheelset): ......................................................... 7.50 X 16 - 10 tarps (60 PSI)

11
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
Components
13
07
07 10
09
07
02 11
08
12
01
05
03
06
04
02
11
01 - Central frame 08 - Front disc gang
02 - Lateral frames 09 - Rear disc gang
03 - Drawbar 10 - Central wheelset
04 - Hitch 11 - Lateral wheelset
05 - Hose support 12 - Front wheelset
06 - Jack 13 - Shock absorber
07 - Hydraulic cylinders

12 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
Assembly
First of all, put the parts in a clean place to identify them easier. Check the parts using
the list that comes inside the packing box.
Using the set of wrenches
NOTE We recommend wearing gloves, especially while assembling the disc gangs.
Disc gangs assembly
Before starting to assemble the disc gangs, check the correct position of the bearings
and spacer spools, according to the following pages:
Use two box end wrenches (A) to tighten the nuts of the disc gangs, one to hold the
axle nut on one side while the other tight the nut to the other end, thereby preventing the
axle from rotating.
Use a 2.3/8" or 2.3/4" adjustment wrench (B) to tighten the leveling control.
Use a 3/4" L shaped socket wrench (C) to tighten the bearings.
Use a 1" L shaped socket wrench (D) to tighten the disc gang carriers to the frames.
Use the box end wrench (E) to tighten the nuts of the traction set.
A
D
C
B
E

13
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
Assembly
Assembly of bearings and spacer spools
DODH-F 9009T
88 disc blades
26 bearings
50 spacer spools
DODH-F 9009T
96 disc blades
26 bearings
58 spacer spools

14 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
Assembly
Assembly of bearings and spacer spools
Spacer spool
Bearing
Furrow filler
DODH-F 9009T
104 disc blades
26 bearings
66 spacer spools

15
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
Assembly
Disc gangs assembly sequence
IMPORTANT •Check the correct side of the bearings and spacer spools according
to the concavity of the disc blades.
Place the outer lock (A) along with the axle (B).
Then, place the lock nut (C) and nut (D).
Place the disc blades (E), bearings (F) and spacer spools (G), following the instructions
on pages 13 and 14.
Place the bolt (H), along with a spring washer and nut.
Use the wrenches (A) from page 12 to tighten the gangs, as follows:
1) Place one of the wrenches on the outer side of the gangs (locked side), supporting
it on the ground. (as shown on page 16).
2) On the inner side, use the other wrench and tighten the gangs to get maximum
torque.
3) To tighten, the gangs must remain underpinned with a piece of wood or another
object, preventing them from moving. (as shown on page 16).
Lastly, place the inner lock (I), lock nut (C-1) and nut (D-1), fastening with a bolt (H-
1), spring washer and nut.

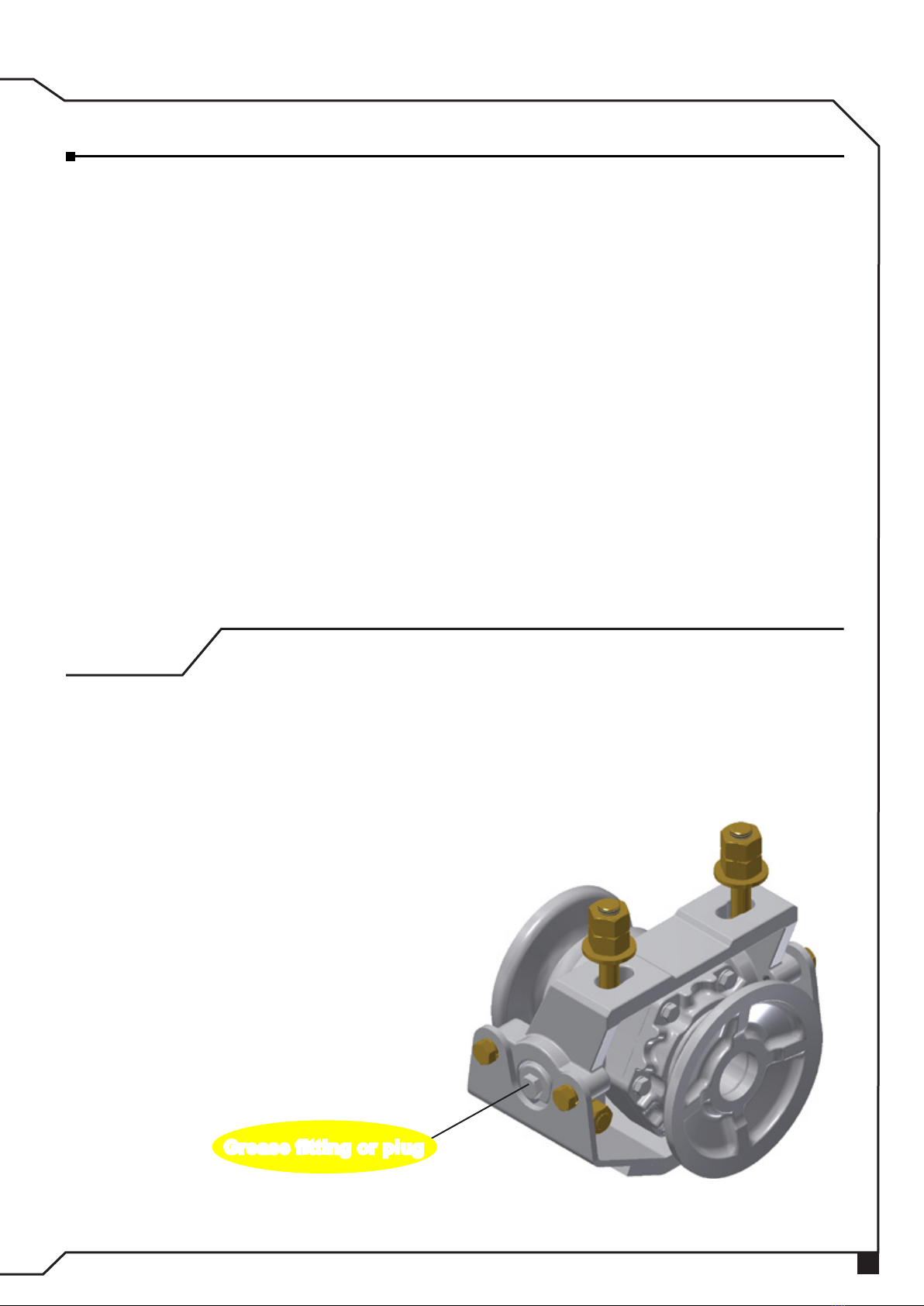

Grease fitting or plug

16 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
Assembly
Consult torque table on page 38.
NOTE
F
G
A
B
D
H
C
E
H-1
I
D-1
C-1
Axle torque
Axle diameter Ft. - lbs.
1.1/2" 2670
1.5/8" 2890
2.1/8" 3300
2.1/2" 3500

17
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DODH-F 9009T
Assembly
Assembly of the disc gangs on the frame
IMPORTANT The rear gang turns dirt to the left and the front gang turns dirt to
the right.
Procedure:
Place the bolt (A) and the lock (B), passing
through the bearing housing (C) and the bearing
hanger hole (D). On top, place a flat washer (E)
and nuts (F).
Repeat this operation for other bearings.
In the gang assembly to the carriers,
the bearing hangers should remain facing
the disc blades concavity.
DF
E
B
A
C

18 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DODH-F 9009T
Assembly

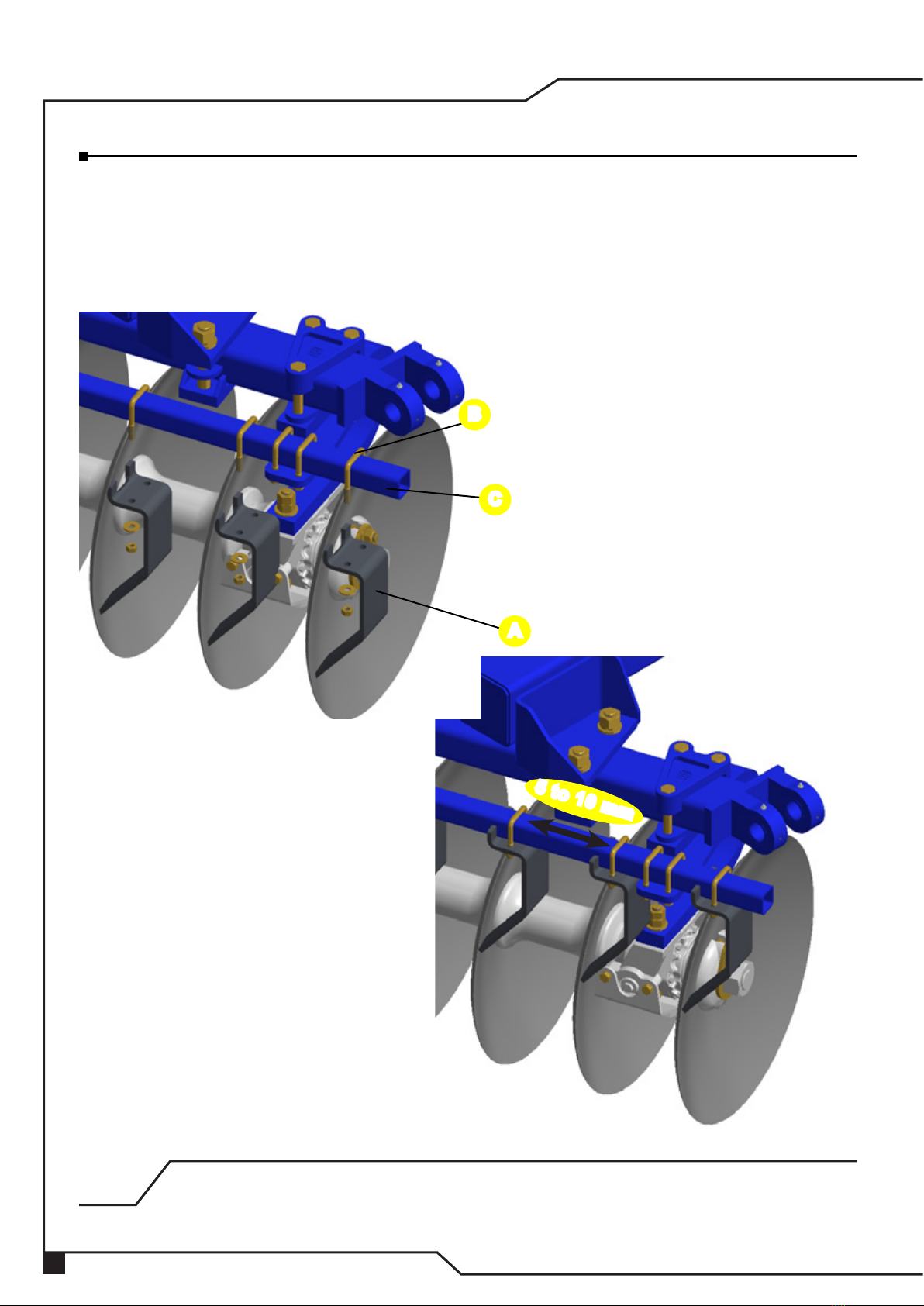

Scrapers assembly
Note the fixing point of the scrapers with the end facing the concave side of the disc
blades.
Assemble the scrapers (A) using clamps (B), which are placed over the bar (C); lock
it using a flat washer and nut.
C
A
5 to 10 mm
B
The scrapers feature an adjustment to approach or distance them from the
disc blades, on a range from 5 to 10 mm.
NOTE
