Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
Introduction
GAPCR and GASPCR disk harrows are designed to work in any
kind of soil with excellent application, mainly in newly cleared areas,
in the heavy sugar cane renewal, pasture recovery, construction of
highways or in the simple primary soil tillage for annual and perennial
crops, disaggregating and incorporating stubbles to greater depths.
The heavy-duty structure with proper dimensioning is made of bent
steel plates joined by a good penetration and fine finishing welding
process, with tough parts in the mechanical load concentrations.
The transportation of these disk harrows are made through an
efficient wheelset system composed by tires and hydraulic cylinder,
which allows long-distance transportation. The wheelset system also
streamlines the operation through the fast and precise working depth
control, as well as facilitate maneuvers during the service.
This operator's manual contains the necessary information for the
best performance of these disk harrows. The operator must carefully
read the entire manual before working with the equipment. Also, read
and understand the safety recommendations.
For any further clarification or in the event of technical problems
that may arise during the service, consult your dealer and the Technical
Support department of the factory. They can ensure the fully functioning
of your TATU disk harrow.

2Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR
Table of contents
1. To the owner 3
2. To the operator 4 to 11
3. Data sheet 12 to 15
4. Components 16 to 18
5. Assembly 19 to 31
Using the set of wrenches 19
Assembly of bearings and spacer spools 20 to 22
Disc gangs assembly sequence 23 & 24
Assembly of the disc gangs on the frame 25
Scrapers assembly 25
Assembling the disc carrier to the frame / Tires assembly 26
Wheelset bearings adjustment 27
Traction set assembly 28
Wheelset cylinder assembly 29
Hydraulic circuit (GAPCR 10 - 16 / GASPCR 10 disc blades) 30
Hydraulic circuit (GAPCR 18 - 30 / GASPCR 12 - 22 disc blades) 31
6. Set-up instructions 32 to 34
Preparing the tractor & disk harrow / Hitching to the tractor 32 & 33
Important recommendations 34
7. Adjustments and operations 35 to 43
Cutting depth - Disc gangs opening 35
Tractor position related to the previous pass - Lateral displacement 36 & 37
Drawbar angles 37
Ways to start the harrowing 38
Correct way for harrowing 39
Direction of the maneuvers 40
Troubleshooting guide 41 & 42
Operations - Important points 43
8. Maintenance 44 to 51
Lubrication / Lubrication points 44 & 45
Wheelset hubs lubrication 46
Hydraulic cylinder maintenance / assembly 47 & 48
Hydraulic safety 49
Disk harrow maintenance 50
Tires inflation 51
9. Important data 52 to 54
Calculation of hourly income 52
Average income tables 53
Torque table 54
10. Important 55

3
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
General information
Important
To the owner
Right and left hand side indication are made observing the equipment from the rear.

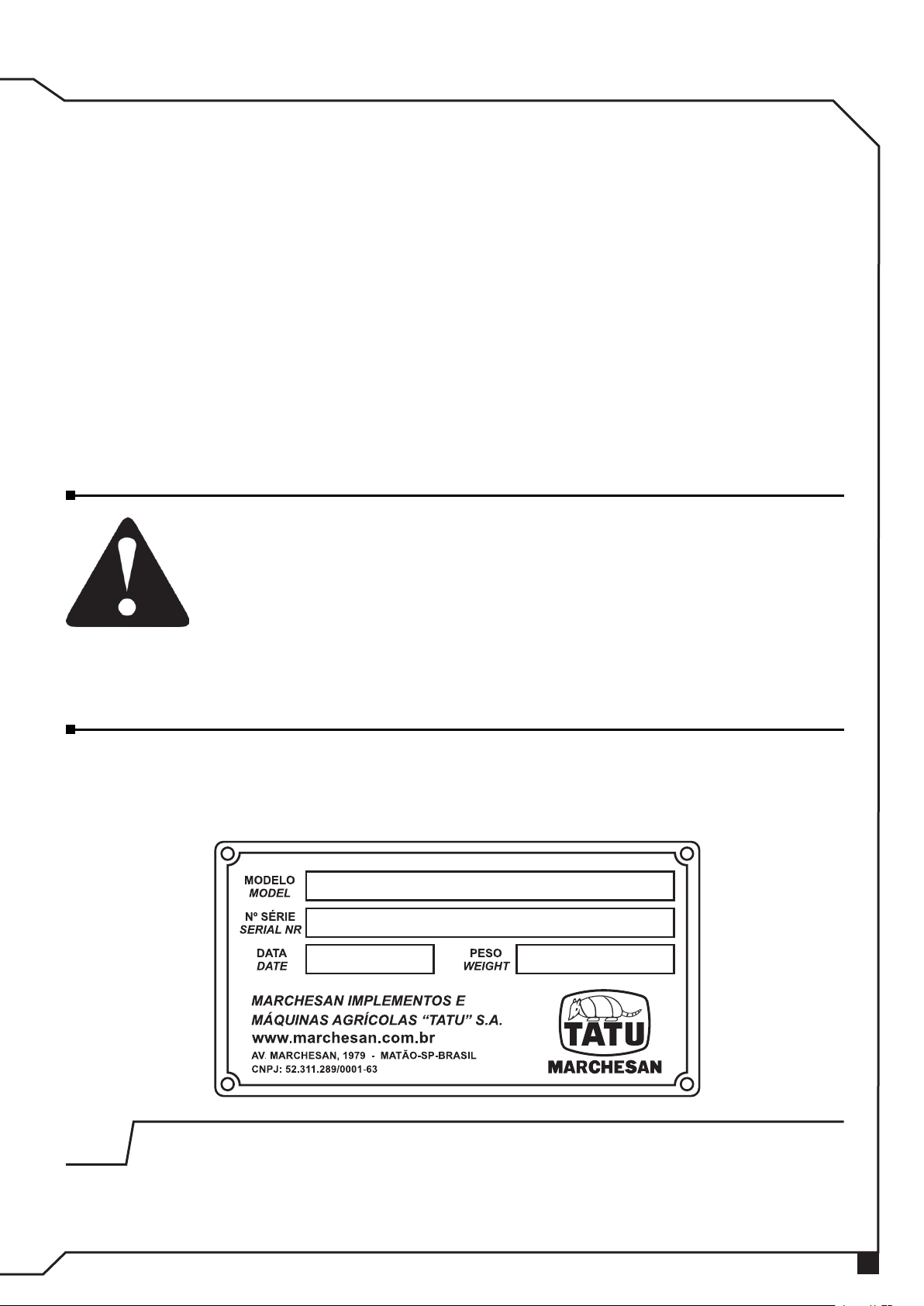

To order any parts or request technical assistance services, it is required to provide
the data contained on the nameplate, which is located on the equipment frame.
The acquisition of any TATU product assures to the original purchaser the following
rights:
• Warranty certificate;
• Operator's manual;
• Technical assistance by the dealer on equipment delivery.
However, the owner must check the condition of the equipment on delivery, as well
as knowing the warranty terms.
Special attention should be given to the safety recommendations, operation precautions
and maintenance of the equipment.
The instructions in this manual indicates how to get the best performance and allow
the operator to get maximum income, increasing the equipment lifetime.
This manual should be read by operators and maintenance staff.
• Only people who own a full knowledge of the tractor and equipment
must transport, operate and carry out any maintenance on them;
• Marchesan is not responsible for any damage caused by accident on
transporting, incorrect utilization or inadequate storage, either by
negligence and/or lack of experience from any person;
• Marchesan is not responsible for any damage caused by unpredictable
situations or the incorrect use of the equipment.
The warranty shall not be applied to any equipment, or any parts thereof,
which has been altered elsewhere than at the place of manufacture or which
the original purchaser thereof, at retail, has used or allowed to be used parts,
not made or supplied by Marchesan S/A.
NOTE

4Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR
To the operator
Working safely
These disk harrows are simple to operate, requiring however
the basic and essential cautions to their handling.
Always keep in mind that safety requires constant attention,
observation and prudence during harrowing, transportation,
maintenance and storage.
Dear operator!
Respect the ecology. Do not throw trash away. This gesture
of goodwill helps to protect our environment.
Be careful with the environment
Products such as oil, fuel, filters, batteries and others may
spilt over the soil and penetrate to the underground layers, thus
compromising nature. Ecological and conscious disposal of them
should be done.
• Security aspects must be carefully observed to avoid
accidents.
• This symbol is a warning to prevent accidents.
• The instructions under this symbol refers to the safety of the
operator or third parties, therefore they should be carefully
read and observed. When the safety instructions are not being
followed, a serious accident or even death may occur.
Read and understand the information before making any
adjustment or maintenance.
Have extreme caution when operating with the power take-off
(PTO). Do not get closer during operation.

5
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
To the operator

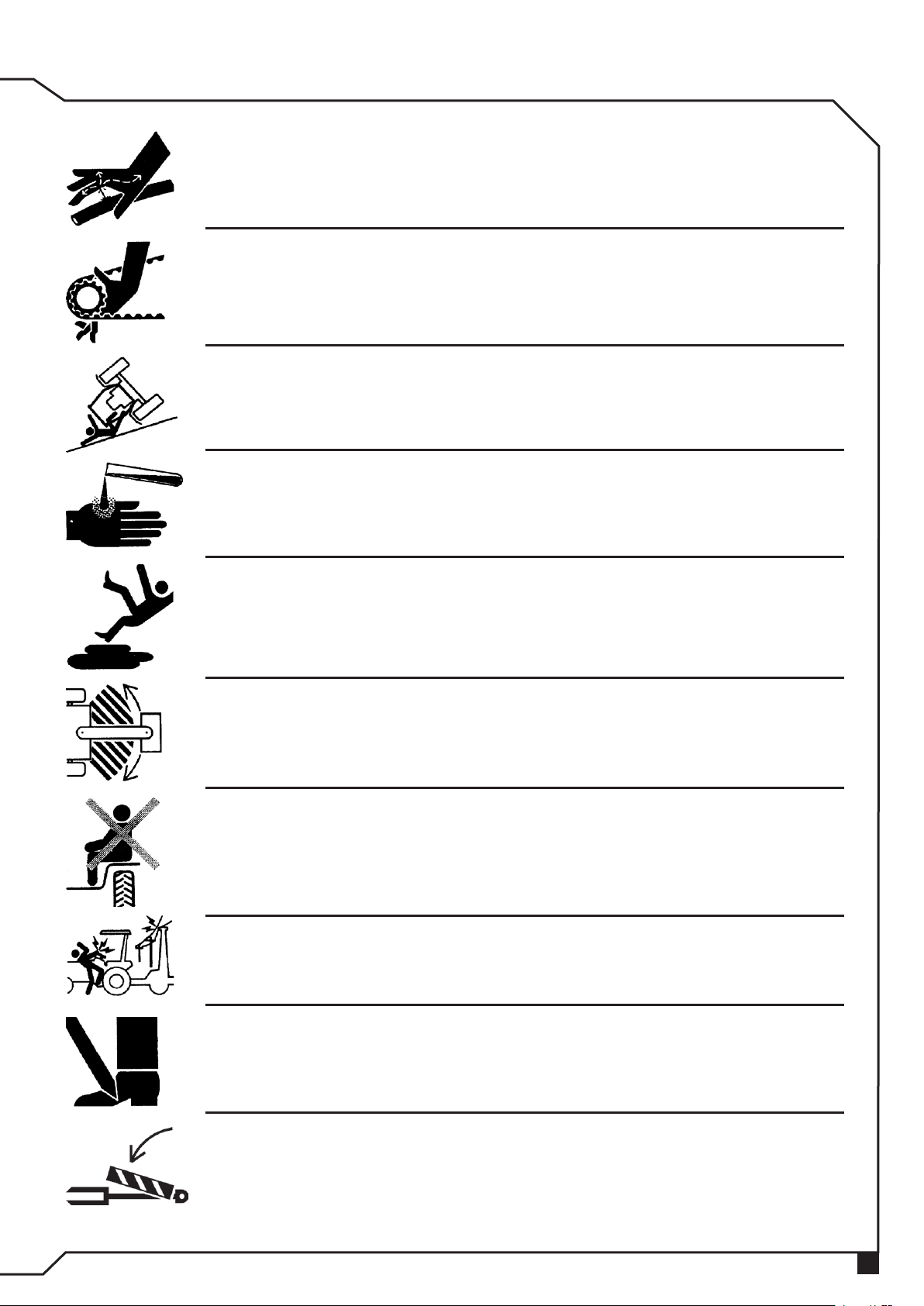

Never use your bare hands to check hydraulic leaks, the high
pressure can cause injuries.
Never attempt to change the adjustments, clean or lubricate the
equipment when the same is switched on or in movement.
Be careful while driving on slopes. Risk of overturn.
Prevent that chemical products (i.e.: fertilizers, treated seeds)
make any contact with your skin or clothes.
Keep access and work places clean or free from oil and grease.
Risk of accidents.
Never transport the equipment on highways or paved roads
during the night. Avoid that the tractor wheels touch the drawbar in
sharp turns.
The presence of any other people on the tractor or equipment
is stricly forbidden.
Have extreme caution when driving under electrical power lines.
Any contact may result in severe shocks, injuries or death.
For your protection and safety, always wear adequate clothes
and footwear while operating the equipment.
Always use the safety locks to carry out any maintenance or to
transport the equipment.

6Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR
To the operator
• Only trained and qualified personnel are allowed to operate the equipment.
• While working or during transportation, only the presence of the operator is
allowed on the tractor.
• Do not allow children to play or to get over the equipment, while it is operating,
during transportation or storage.
• When setting the disk harrow to transport position, check if there are no people
or animals close or under it.
• Use personal protective equipment (PPE).
• Wear appropriate clothes and footwear. Avoid clothes that are either loose or
hanging from the body, which may become entangled in moving parts.
• Wear protective gloves to work near the cutting parts.
• Never operate the equipment without its protective devices.
• Have full knowledge of the soil before starting to work. Use the speed which is
suitable to the conditions of the ground or pathways to be covered. Provide the
delineation of obstacles or hazardous locations.
• Carefully check the transport width on narrow locations.
• Be careful while hitching the equipment to the tractor.
• Only pull the equipment using a tractor with appropriate power.
• Do not drive the equipment under the influence of alcohol or any soothing/
stimulating medicine, as it may result in a serious accident.
• In case of a fire outbreak or any possible hazard, the operator must leave the
area as fast as possible and look for a safe place. Always have emergency
numbers at hands.
• In case of emergency, know how to stop the tractor and disk harrow quickly.
• Always shut down the engine, remove the key and use the handbrake before
leaving the tractor seat.
• Never attempt to change the adjustments, clean or lubricate the equipment while
it is moving.
• Whenever you unhitch the equipment, either in the field or shed, do it on a flat
and firm surface and use parking jacks. Make sure the equipment is properly
supported.
• We suggest that you carefully read the manual, as it will be a guide for periodic
verifications that need to be done and will allow that you assure the maintenance
of your equipment.
• If there is any doubt after reading it, ask your dealer. For more complicated
operations, there will be the right person to help you there.
• Please check the general safety instructions on the back cover of this manual.

7
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
Transportation over truck or trailer
To the operator
Marchesan does not advise the equipment traffic on highways, because this
practice involves serious security risks in addition to being prohibited by the
current existing traffic law. The transportation for long distances should be done
on truck, trailer or others by following these safety guidelines:
• Use adequate ramps to load or unload the equipment. Do not make the loading
on ditch banks, it can cause a serious accident.

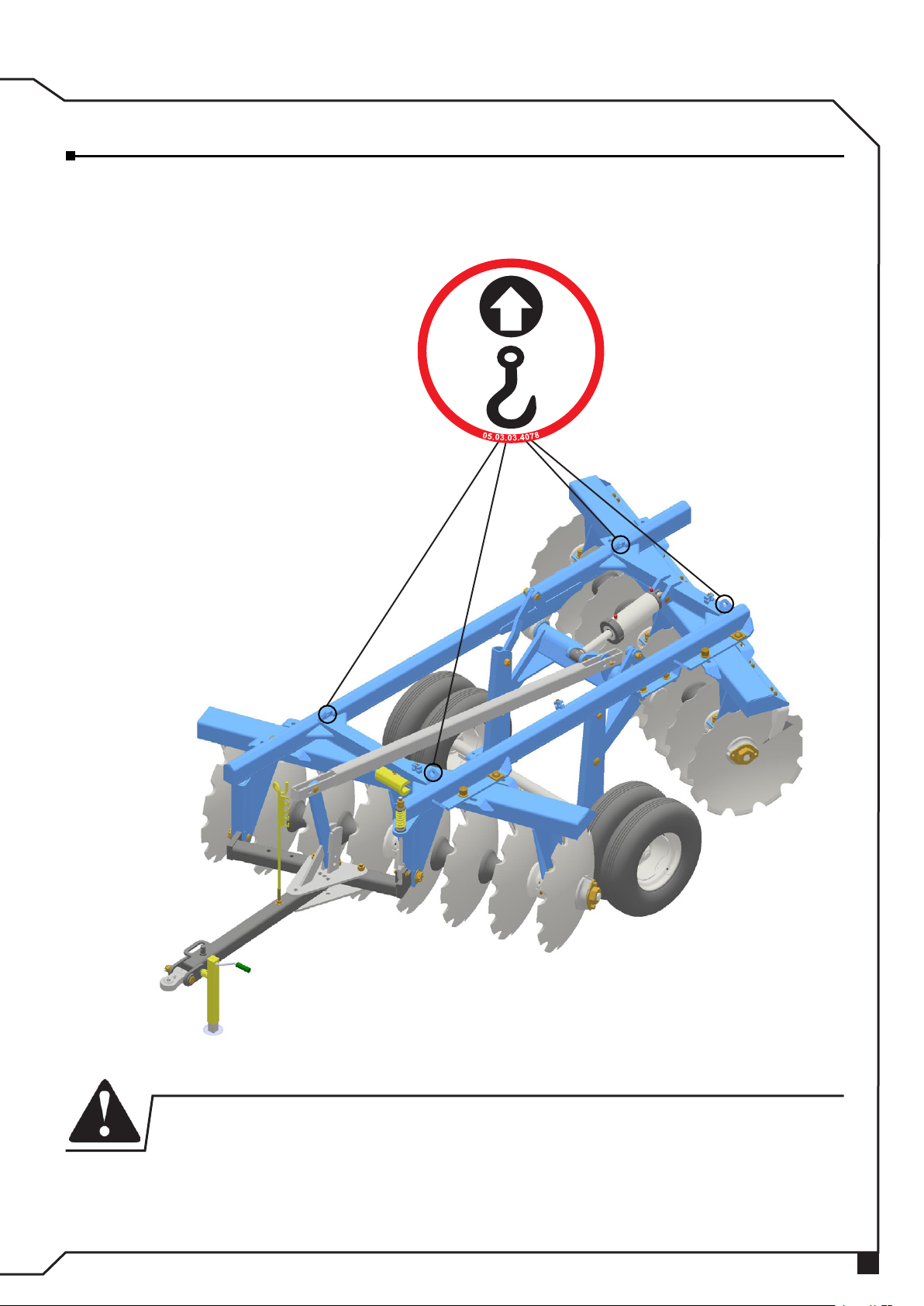

• When lifting with a hoist, use the appropriate points to lift.
• Underpin the equipment appropriately.
• Use chock blocks and safety chains to secure the equipment to the truck or
trailer during the transport.
• Make sure the SMV (Slow Moving Vehicle) sign, and all the lights and reflectors
that are required by the local highway and transport autorithies are in place, are
clean and can be seen clearly by all overtaking and oncoming traffic.
• After 8 to 10 km transporting, please inspect the load condition. Repeat this
procedure every 80 to 100 km. Give more attention when transporting the
equipment on rough roads, slopes and other adverse conditions.
• Always be careful with the load height, especially when passing under electrical
power lines, bridges and others.
• Check all laws and regulations regarding the height limits and load width while
transporting the equipment on truck or trailer. If necessary use banners, lights
and other devices in order to give adequate warning to the other drivers.

8Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR
To the operator
It is important to have knowledge not only about the functioning, operation of the
equipment and its technology, but also the working legal aspects when using the equipment,
such as: safety standards, operator's manual and working safety.
The equipment and tools used on the rural area must be properly handled, otherwise
health and safety of involved personnel may be compromised.
The operator must be capable and authorized to operate the tractor, meaning that
that person must comprehend the functioning instructions of the tractor and know about
the safety standards regarding the job that will be performed.
The Ministry of Labor and Employment created safety standards that aim to decrease
the risk of accidents that may occur to the rural worker. Related to the subject of agicultural
machines and equipments, we specifically cited the NR 06, NR 12 and NR 31 standards.
Regulatory Standard - NR 06:
• For purposes of applying this Regulatory Standard, Personal Protective Equipment
(PPE) is considered any device or product that is worn by an individual worker for protection
against risks that could threaten safety and health at work.
Regulatory Standard - NR 12:
• This Regulatory Standard and its annexes provide technical references, basic
principles and protective measures to ensure the health and physical integrity of workers
and establishes minimum requirements for the prevention of accidents and occupational
diseases in the design stages and use of machinery and equipment of all kinds, and also to
its manufacture, importation, trading, exhibition and cession in any way. It is understood as
using phase the construction, transportation, assembly, installation, adjustment, operation,
cleaning, maintenance, inspection, disabling and dismantling of machinery or equipment.
Regulatory Standard - NR 31:
• This Regulatory Standard has the purpose to establish the precept to be applied on
the organization and on the working environment, in order to make compatible the planning
and development of agriculture, livestock, forestry, forest exploration and aquaculture with
safety on the working environment.
Working safety standards

9
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
To the operator
Lifting points
This equipment has adequate lifting points located on the frame. When lifting with a
hoist, it is essential to hitch the cables to the points as shown below.
Use chains of at least 3 meters long to lift the equipment safely.
Use the adequate points for lifting and be sure that the equipment is safe.
Avoid accidents.
Always keep a safe distance from the equipment.

10 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR
To the operator
The safety decals warn about the equipment points that require more attention and they
should be kept in good repair. If these decals become damaged or illegible, replace them.
Marchesan provide decals, upon request and indication of the respective serial number.
Safety decals
Para evitar acidentes, instale as travas dos cilindros antes
do transporte ou antes de efetuar serviços no equipamento.
In order to avoid accidents activate cylinder locks
before transportation or carrying out any service on
the equipment.
Para evitar accidentes, instale las trabas de los cilindros
antes del transporte o antes de efectuar trabajos en el
equipo.
05.03.03.1738
AADDVVEERRTTÊÊNNCCIIAA // WWAARRNNIINNGG //
AADDVVEERRTTEENNCCIIAA

11
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
To the operator

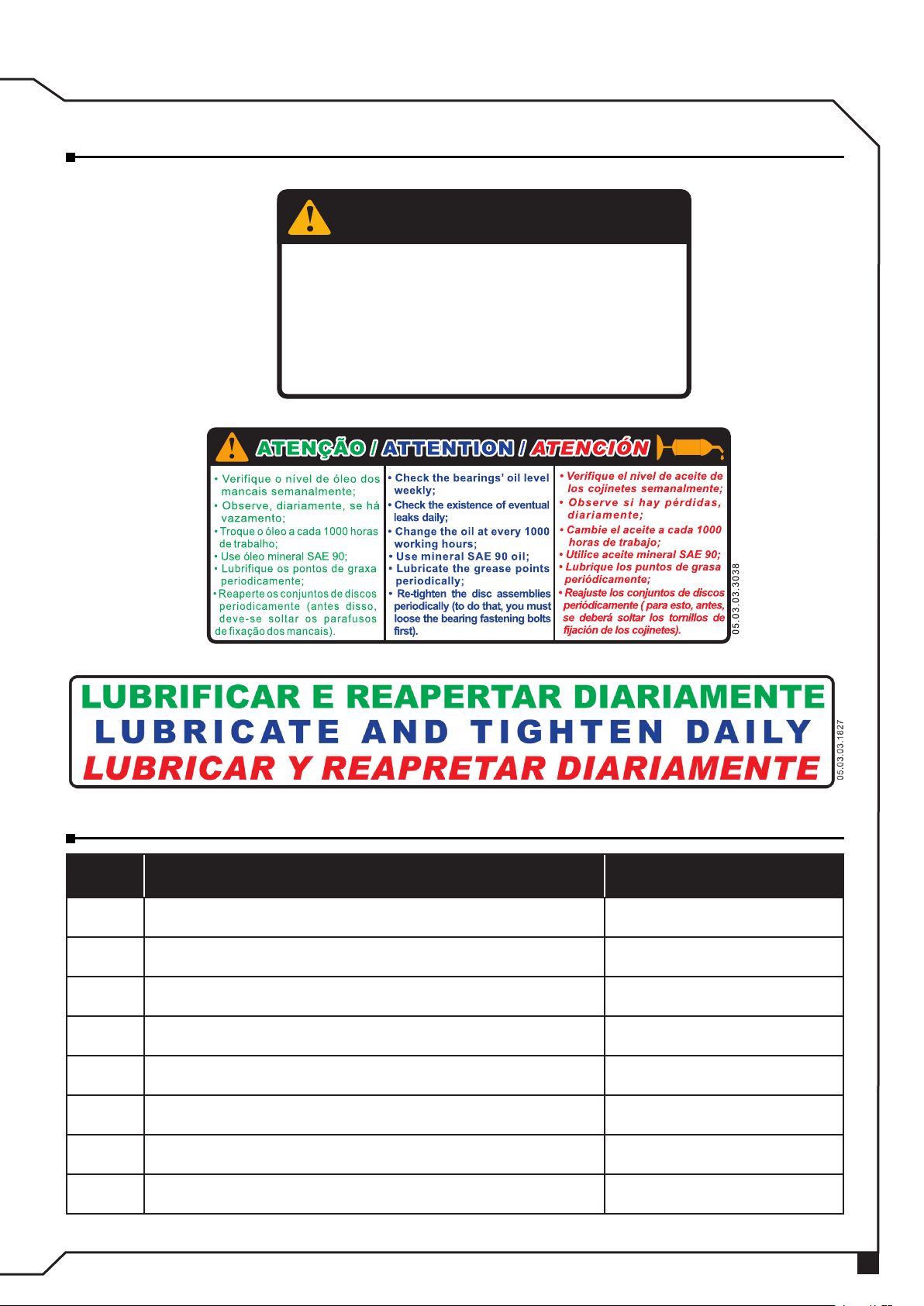

Safety decals
Qty. Model Serial number
1GAPCR decal set 05.03.06.0788
1GASPCR decal set 05.03.06.0832
4Lifting points decal 05.03.03.4078
1Warning decal 05.03.03.1738
1Read the manual decal 05.03.03.1428
1Lubricate and retighten daily decal 05.03.03.1827
1Danger decal 05.03.03.3038
1Danger decal 05.03.03.1739
Decal set
Para evitar acidentes, instale as travas dos cilindros antes
do transporte ou antes de efetuar serviços no equipamento.
In order to avoid accidents activate cylinder locks
before transportation or carrying out any service on
the equipment.
Para evitar accidentes, instale las trabas de los cilindros
antes del transporte o antes de efectuar trabajos en el
equipo.
05.03.03.1738
A
A
D
D
V
V
E
E
R
R
T
T
Ê
Ê
N
N
C
C
I
I
A
A
/
/
W
W
A
A
R
R
N
N
I
I
N
N
G
G
/
/
A
A
D
D
V
V
E
E
R
R
T
T
E
E
N
N
C
C
I
I
A
A

12 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR
Data sheet
NOTE • The weights above were quoted using Ø 32' x 9 mm disc blades.
• Tires 11-15 Raked BL - 12 L and 400/60 - 14L are optionals.
Model Number of
disc blades
Cutting
width (mm)
Total weight
(Kg)
Tractor required power
(hp)
10 1765 2650 100 - 120
GAPCR
12 1870 2784 120 - 140
14 2210 3050 140 - 160
16 2550 3457 160 - 180
18 2900 4385 180 - 200
20 3230 4675 220 - 240
24 3910 5012 240 - 260
28 4590 5513 280 - 300
30 4930 5969 300 - 320
Type: .............................................................................. Wheel Type Offset Disk Harrow
Model: ................................................................................................................ GAPCR
Number of disc blades: ........................................... 10, 12, 14, 16, 18, 20, 24, 28 and 30
Spacing between disc blades:.............................................................................340 mm
Disc blades dimension: ...........................Ø 28" x 7.5 mm, Ø 28" x 9 mm, Ø 30" x 7.5 mm
..............................Ø 30" x 9 mm, Ø 32" x 7.5 mm, Ø 32" x 8 mm
......................................................Ø 32" x 9 mm, Ø 32" x 12 mm
.................................................. Ø 34" x 9 mm or Ø 34" x 12 mm
Disc blade type:....................................................................................Concave notched
Bearings - Length: .............................................................................................. 330 mm
- Type: ..........................................................................Tapered roller bearings
Spacer spools - Length: ......................................................................................330 mm
- Type: ........................................................................................Iron cast
Axle diameter: ............................................................................... Ø 53.975 mm (2.1/8")
Hitching type: .................................................................................................... Drawbar
Tires (4):...............................................................................................7.50 x 16 - 10 ply
Working speed:.............................................................................................. 5 to 7 km/h

13
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
Data sheet
NOTE • The weights above were quoted using Ø 34' x 12 mm disc blades.
Type: ................................................................................................. Offset Disk Harrow
Model: ..............................................................................................................GASPCR
Number of disc blades: .......................................................10, 12, 14, 16, 18, 20 and 22
Spacing between disc blades:.............................................................................440 mm
Disc blades dimension: ......................................................Ø 32" x 9 mm, Ø 32" x 12 mm
......................................................Ø 34" x 12 mm, Ø 36" x 9 mm
............................................................................ Ø 36" x 12 mm
Disc blade type:....................................................................................Concave notched
Bearings - Length: .............................................................................................. 430 mm
- Type: ..........................................................................Tapered roller bearings
Spacer spools - Length: ......................................................................................430 mm
- Type: ........................................................................................Iron cast
Axle diameter: ................................................................................. Ø 63.50 mm (2.1/2")
Hitching type: .................................................................................................... Drawbar
Tires (2):...............................................................................................9.00 x 20 - 14 ply
Working speed:.............................................................................................. 5 to 7 km/h
Model Number of
disc blades
Cutting depth
(mm)
Total weight
(Kg)
Tractor required
power (hp)
10 1770 3149 150 - 170
GASPCR
12 2210 4354 180 - 200
14 2650 4606 220 - 230
16 3100 5358 240 - 260
18 3520 5700 260 - 270
20 4000 5774 270 - 280
22 4440 6030 290 - 300

14 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR
Data sheet
Dimensions for transportation and storage - GAPCR
Model Number of
disc blades A B C D
GAPCR
10 1460 1630 4740 1620
12 1460 1630 5100 2030
14 1460 1630 5470 2440
16 1460 1630 5830 2850
18 1460 1630 6200 3260
20 1460 1630 6560 3670
24 1460 1630 6925 4080
28 1460 1630 7290 4490
30 1460 1630 7650 4900
NOTE Measures in millimeters.
DD
CC
AA
BB

15
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
Data sheet
Dimensions for transportation and storage - GASPCR
Model Number of
disc blades A B C D
GASPCR
10 1460 1760 7270 2320
12 1460 1760 7360 2720
14 1460 1760 7450 3120
16 1460 1760 7540 3520
18 1460 1760 7630 3920
20 1460 1760 7720 4320
22 1460 1760 7800 4720
NOTE Measures in millimeters.
DD
CC
AA
BB

16 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR

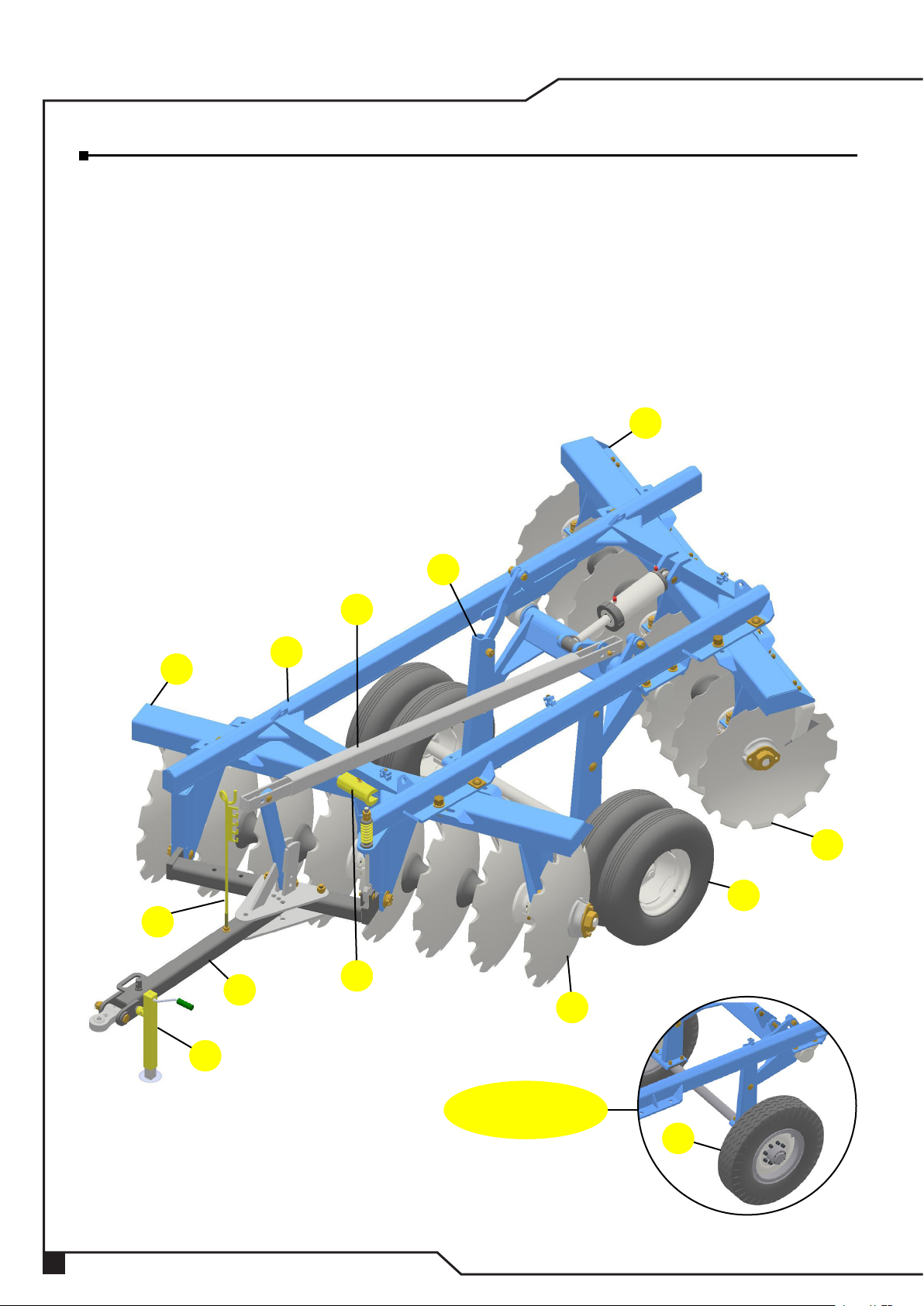

Components
GAPCR 10 - 16 disc blades / GASPCR 10 disc blades
01 - Frame 07 - Front disc carrier
02 - Drawbar 08 - Rear disc carrier
03 - Stabilizer bar 09 - Front disc gang
04 - Wheelset articulation system 10 - Rear disc gang
05 - Tires 11 - Parking jack
06 - Hose support 12 - Transport lock
0101
0202
0303
0404
0505
0606
0707
0808
0909
1010
1111
1212
0505
GASPCRGASPCR
10 disc blades10 disc blades

17
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. GAPCR / GASPCR
Components
GAPCR 18 - 30 disc blades
01 - Frame 07 - Front disc carrier
02 - Drawbar 08 - Rear disc carrier
03 - Stabilizer bar 09 - Front disc gang
04 - Wheelset articulation system 10 - Rear disc gang
05 - Tires 11 - Parking jack
06 - Hose support 12 - Hose set
0101
0202
0303
0404
0505
0606
0707
0808
0909
1010
1111
1212

18 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
GAPCR / GASPCR
Components
GASPCR 12 - 22 disc blades
01 - Frame 07 - Front disc carrier
02 - Drawbar 08 - Rear disc carrier
03 - Stabilizer bar 09 - Front disc gang
04 - Wheelset articulation system 10 - Rear disc gang
05 - Tires 11 - Parking jack
06 - Hose support
0101
0202
0303
0404
0505
0606
0707
0909
1010
1111
0808
