Tatu Marchesan ATCR User manual

OPERATOR’S
MANUAL
ATCR / ATCRLATCR / ATCRL
GAICR / GAICR 300GAICR / GAICR 300

Dealer:
Owner:
Firm / Farm:
City: State:
No. of the Certificate of Guarantee:
Serial / No.:
Date: Invoice No.:
Product:
Notes:
IDENTIFICATION

1
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300
Introduction
The ATCR, ATCRL, GAICR and GAICR 300 disk harrows
were designed to work in any type of soil and they provide an
excellent seedbed preparation for annual and perennial crops.
The rugged structure has an adequate size and is made of
folded steel plates, joined by a good weld penetration and fine
finishing, with resistant parts on the force concentration.
These disk harrows have an efficient wheel system
composed by tires and hydraulic cylinders, which allow the
transportation over long distances.
This operator's manual contains the necessary information
for the best performance of these equipments. The operator
must carefully read the entire manual before working
with the equipment. Also, read and understand the safety
recommendations.
For any further explanation or in the case of technical
problems that may arise during the service, consult your dealer
and the Technical Support department of the factory. They can
ensure the fully functioning of your TATU disk harrow.

2Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
Table of contents
1. To the owner 03
2. To the operator 04 to 11
3. Data sheet 12 to 17
4. Components 18 to 21
5. Assembly 22 to 42
Using the set of wrenches 22
Assembly of bearings and spacer spools 23 to 29
Disc gangs assembly sequence 30 & 31
Furrow ller assembly sequence 32 & 33
Disc carrier assembly to the frame 34
Scrapers assembly / Disc carrier assembly to the frame 35
Tires assembly 36
Adjusting the wheel support bearings 37
Drawbar assembly 38
Cylinder assembly 39
Hydraulic circuit 40 to 42
6. Set-up instructions 43 to 46
Preparing the tractor / Preparing the equipment / Hitching to the tractor 43 to 45
Important recommendations 46
7. Adjustments and operations 47 to 54
Cutting depth adjustment - disc gangs opening 47
Cutting depth adjustment - depth stops 48
Tractor position related to the previous pass - lateral displacement 48 & 49
Drawbar angle 49
Ways to start the harrowing / Direction of the maneuvers 50 & 51
Troubleshooting guide 52
Operations - important points 53 & 54
8. Maintenance 55 to 62
Lubrication 55
Lubrication points 56
Wheel support hubs lubrication 57
Hydraulic cylinder maintenance / assembly 58 & 59
Hydraulic safety 60
Disk harrow maintenance 61
Tires ination 62
9. Important data 63 to 66
Hourly income calculation 63
Average income table 64 & 65
Torque table 66
10. Important 67

3
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300
General information
Important
To the owner
The acquisition of any Tatu product assures to the original purchaser the following rights:
• Warranty certificate;
• Operator's manual;
• Technical assistance by the dealer on equipment delivery.
However, the owner must check the condition of the equipment on delivery, as well as
knowing the warranty terms.
Special attention should be given to the safety recommendations, operation precautions
and maintenance of the equipment.
The instructions in this manual indicates how to get the best performance and allow
the operator to get maximum income, increasing the equipment lifetime.
This manual should be read by operators and maintenance staff.
• Only people who own a full knowledge of the tractor and equipment
must transport, operate and carry out any maintenance on them;
• Marchesan is not responsible for any damage caused by accident on
transporting, incorrect utilization or inadequate storage, either by
negligence and/or lack of experience from any person;
• Marchesan is not responsible for any damage caused by unpredictable
situations or the incorrect use of the equipment.
The warranty shall not be applied to any equipment or any part thereof which
has been altered elsewhere than at the place of manufacture or which the
original purchaser thereof at retail has used or allowed to be used parts, not
made or supplied by Marchesan.
NOTE
Right and left hand side indication are made observing the equipment from the rear.
To order any parts or request technical assistance services, it is required to provide
the data contained on the nameplate, which is located on the equipment frame.

4Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
To the operator
Dear operator!
Respect the ecology. Do not throw trash away. This gesture
of goodwill helps to protect our environment.
Working safely
Read and understand the information before making any
adjustment or maintenance.
Be careful with the environment
Have extreme caution when operating with the power take-
off (PTO). Do not get closer during operation.
This equipment is simple to operate, requiring however the
basic and essential cautions to its handling.
Always keep in mind that safety requires constant attention,
observation and prudence during harrowing, transportation,
maintenance and storage.
Products such as oil, fuel, filters, batteries and others can be
spilt over to the soil and penetrate to the underground layers, thus
compromising nature. Ecological and conscious disposal of them
should be done.
• Security aspects must be carefully observed to avoid
accidents.
• This symbol is a warning used to prevent accidents.
• The instructions under this symbol refers to the safety of the
operator, mechanician or third parties, therefore they should
be carefully read and observed. When the safety instructions
are not being followed, a serious accident or even death may
occur.

5
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300
To the operator
Never use your bare hands to check hydraulic leaks, the high
pressure can cause injuries.
Never attempt to change the adjustments, clean or lubricate the
equipment when the same is switched on or in movement.
Be careful while driving on slopes. Risk of overturn.
Prevent that chemical products (i.e.: fertilizers, treated seeds)
make any contact with your skin or clothes.
Keep access and work places clean or free from oil and grease.
Risk of accidents.
Never transport the equipment on highways or paved roads
during the night. Avoid that the tractor wheels touch the drawbar in
sharp turns.
The presence of any other people on the tractor or equipment
is stricly forbidden.
Have extreme caution when driving under electrical power lines.
Any contact may result in severe shocks, injuries or death.
For your protection and safety, always wear adequate clothes
and footwear while operating the equipment.
Always use the safety locks to carry out any maintenance or to
transport the equipment.

6Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
To the operator
• Only trained and qualified personnel are allowed to operate the equipment.
• While working or during transportation, only the presence of the operator is
allowed on the tractor.
• Do not allow children to play or to get over the equipment, while it is operating,
during transportation or storage.
• When setting the plow to transport position, check if there are no people or
animals close or under it.
• Use personal protective equipment (PPE).
• Wear appropriate clothes and footwear. Avoid clothes that are either loose or
hanging from the body, which may become entangled in moving parts.
• Wear protective gloves to work near the cutting parts.
• Never operate the equipment without its protective devices.
• Have full knowledge of the soil before starting to work. Use the speed which is
suitable to the conditions of the ground or pathways to be covered. Provide the
delineation of obstacles or hazardous locations.
• Carefully check the transport width on narrow locations.
• Be careful while hitching the equipment to the tractor.
• Only pull the equipment using a tractor with appropriate power.
• Do not drive the equipment under the influence of alcohol or any soothing/
stimulating medicine, as it may result in a serious accident.
• In case of a fire outbreak or any possible hazard, the operator must leave the
area as fast as possible and look for a safe place. Always have emergency
numbers at hands.
• In case of emergency, know how to stop the tractor and disk harrow quickly.
• Always shut down the engine, remove the key and use the handbrake before
leaving the tractor seat.
• Never attempt to change the adjustments, clean or lubricate the equipment while
it is moving.
• Whenever you unhitch the equipment, either in the field or shed, do it on a flat
and firm surface and use jacks. Make sure the equipment is properly supported.
• We suggest that you carefully read the manual, as it will be a guide for periodic
verifications that need to be done and will allow that you assure the maintenance
of your equipment.
• If there is any doubt after reading it, ask your dealer. For more complicated
operations, there will be the right person to help you there.
• Please check the general safety instructions on the back cover of this manual.

7
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300
Transportation over truck or trailer
To the operator
Marchesan does not advise the equipment traffic on highways, because this
practice involves serious security risks in addition to being prohibited by the
current existing traffic law. The transportation for long distances should be done
on truck, trailer or others by following these safety guidelines:
• Use adequate ramps to load or unload the equipment. Do not make the loading
on ditch banks, it can cause a serious accident.

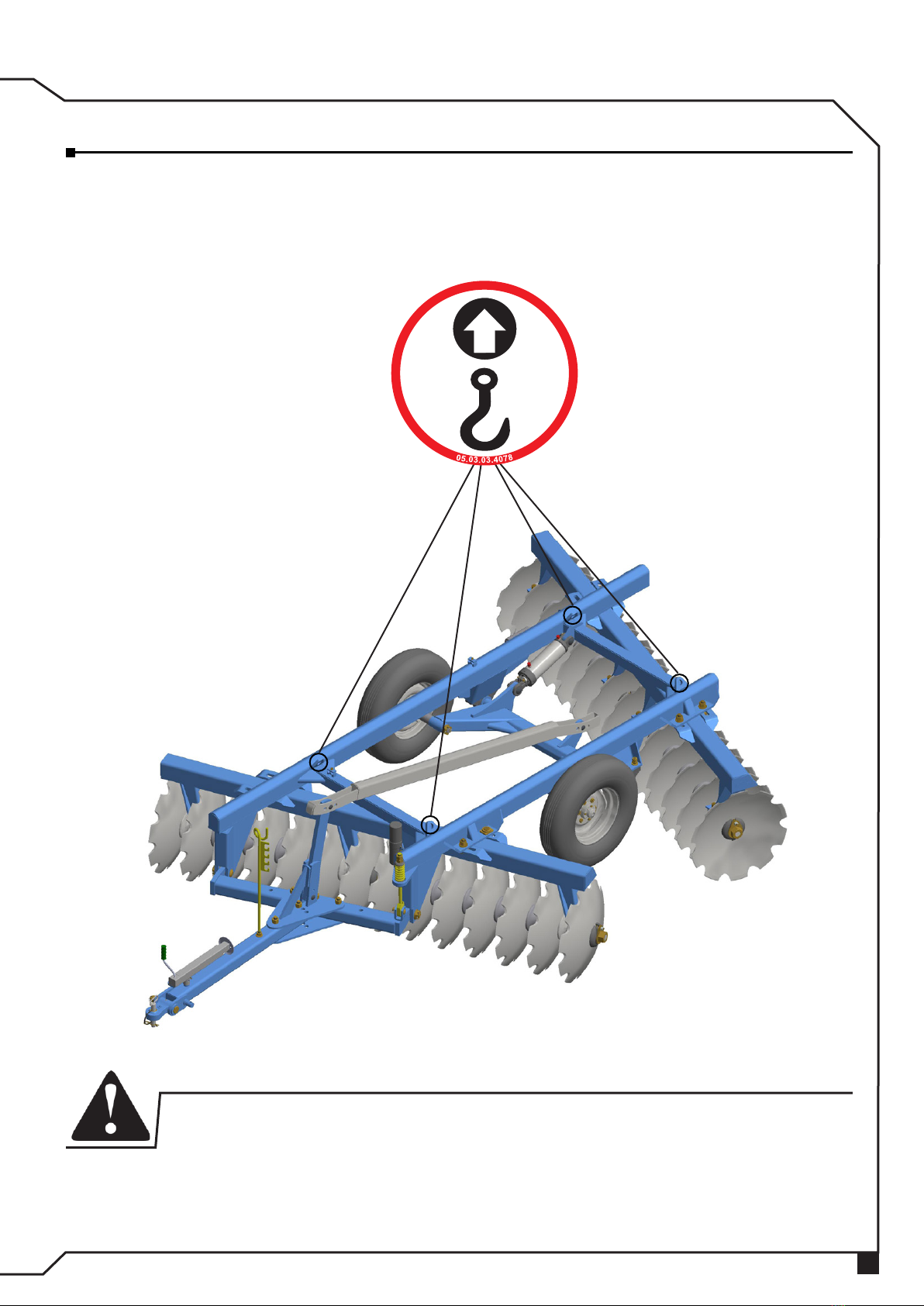

• When lifting with a hoist, use the appropriate points to lift.
• Underpin the equipment appropriately.
• Use chock blocks and safety chains to secure the equipment to the truck or trailer
during the transport.
• Make sure the SMV (Slow Moving Vehicle) sign, and all the lights and reflectors
that are required by the local highway and transport autorithies are in place, are
clean and can be seen clearly by all overtaking and oncoming traffic.
• After 8 to 10 km transporting, please inspect the load condition. Repeat this
procedure every 80 to 100 km. Give more attention when transporting the
equipment on rough roads, slopes and other adverse conditions.
• Always be careful with the load height, especially when passing under electrical
power lines, bridges and others.
• Check all laws and regulations regarding the height limits and load width while
transporting the equipment on truck or trailer. If necessary use banners, lights
and other devices in order to give adequate warning to the other drivers.

8Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
Working safety standards
It is important to have knowledge not only about the functioning, operation of the
equipment and its technology, but also the working legal aspects when using the equipment,
such as: safety standards, operator's manual and working safety.
The equipment and tools used on the rural area must be properly handled, otherwise
health and safety of involved personnel may be compromised.
The operator must be capable and authorized to operate the tractor, meaning that that
person must comprehend the functioning instructions of the tractor and know about the
safety standards regarding the job that will be performed.
The Ministry of Labor and Employment created safety standards that aim to decrease
the risk of accidents that may occur to the rural worker. Related to the subject of agicultural
machines and equipments, we specifically cited the NR 06, NR 12 and NR 31 standards.
Regulatory Standard - NR 06:
• For purposes of applying this Regulatory Standard, personal protective equipment
(PPE) is considered any device or product that is worn by an individual worker for protection
against risks that could threaten safety and health at work.
Regulatory Standard - NR 12:
• This Regulatory Standard and its annexes provide technical references, basic
principles and protective measures to ensure the health and physical integrity of workers
and establishes minimum requirements for the prevention of accidents and occupational
diseases in the design stages and use of machinery and equipment of all kinds, and also to
its manufacture, importation, trading, exhibition and cession in any way. It is understood as
using phase the construction, transportation, assembly, installation, adjustment, operation,
cleaning, maintenance, inspection, disabling and dismantling of machinery or equipment.
Regulatory Standard - NR 31:
• This Regulatory Standard has the purpose to establish the precept to be applied on
the organization and on the working environment, in order to make compatible the planning
and development of agriculture, livestock, forestry, forest exploration and aquaculture with
safety on the working environment.
To the operator

9
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300
To the operator
Lifting points
This planter has adequate lifting points located on the frame. When lifting with a hoist,
it is essential to hitch the cables to these points.
Use chains, of at least 3 meters long, to lift the equipment safely.
Use the adequate points for lifting and be sure that the equipment is safe.
Avoid accidents.
Always keep a safe distance from the equipment.

10 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
To the operator
Safety decals
The safety decals warn about the equipment points that require more attention and
they should be kept in good repair. If these decals become damaged or illegible, replace
them. Marchesan provide decals, upon request and indication of the respective serial
number.
Para evitar acidentes, instale as travas dos cilindros antes
do transporte ou antes de efetuar serviços no equipamento.
In order to avoid accidents activate cylinder locks
before transportation or carrying out any service on
the equipment.
Para evitar accidentes, instale las trabas de los cilindros
antes del transporte o antes de efectuar trabajos en el
equipo.
05.03.03.1738
A
A
D
D
V
V
E
E
R
R
T
T
Ê
Ê
N
N
C
C
I
I
A
A
/
/
W
W
A
A
R
R
N
N
I
I
N
N
G
G
/
/
A
A
D
D
V
V
E
E
R
R
T
T
E
E
N
N
C
C
I
I
A
A

11
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300

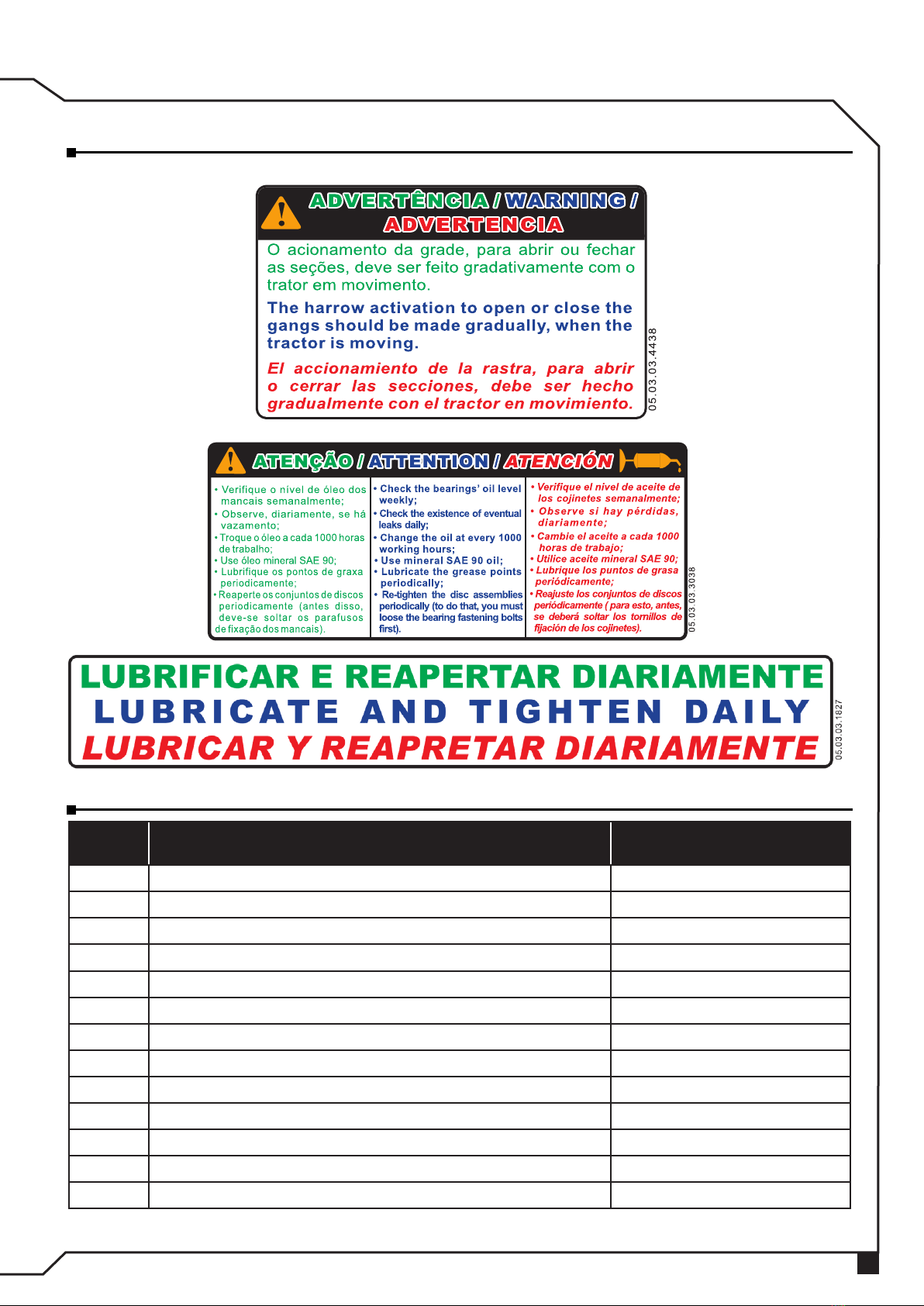

Safety decals
To the operator
Safety decals
Qty. Model Serial number
1ATCR decal 05.03.06.0786
1ATCRL decal 05.03.06.1529
1GAICR decal 05.03.06.0787
1GAICR 300 decal 05.03.06.0824
1Warning decal 05.03.03.1738
4Lifting points decal 05.03.03.4078
1Disk harrow transportation decal 05.03.03.4509
1Grip coupler colors decal 05.03.03.4499
1Danger decal 05.03.03.1739
1Read the manual decal 05.03.03.1428
1Opening / closing the disc gangs decal 05.03.03.4438
1Attention decal 05.03.03.3038
1Lubricate and tighten daily decal 05.03.03.1827

12 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
Data sheet
NOTE The weights above were quoted using Ø 26'' disc blades.
Type: .................................................................................. Wheel type offset disk harrow
Model: .....................................................................................................................ATCR
Disc blades:..........................12,14, 16, 18, 20, 22, 23, 24, 25, 26, 28, 29, 32, 36, 40 & 44
Spacing between disc blades:...............................................................................230 mm
Disc blades dimension: ......................................................... Ø 24" x 6 mm, Ø 26" x 6 mm
...................................................... Ø 28" x 6 mm, Ø 28" x 7.5 mm
Disc blade type:..................................................................................... Concave notched
Bearings - length: .................................................................................................225 mm
- type: ........................................ Grease/oil bath bearing or steel-plated bearing
Spacer spools - length: .........................................................................................225 mm
- type: ...........................................................................................Iron cast
Axle diameter: ........................................................................................Ø 41 mm (1.5/8")
Hitching type: ......................................................................................................Drawbar
Working speed:................................................................................................5 to 7 km/h
Transport speed:...................................................................................................30 km/h
Tires: ..................................................................................Check the 'tires inflation' page
Model Number of
disc blades
Cutting width
(mm) Weight (kg) Tractor required power (cv)
ATCR
12 1270 1498 70 - 75
14 1500 1681 75 - 80
16 1730 1804 80 - 90
18 1960 1951 95 - 100
20 2190 2043 105 - 120
22 2420 2195 125 - 135
23 2530 1999 135 - 140
24 2650 2309 140 - 150
25 2760 2350 150 - 160
26 2880 2488 160 - 170
28 3110 2559 170 - 180
29 3220 2125 180 - 190
32 3570 3436 180 - 190
36 4030 3664 200 - 220
40 4490 4033 230 - 240
44 4950 4378 240 - 260

13
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300
Data sheet
NOTE The weights above were quoted using Ø 26'' disc blades.
Type: .................................................................................. Wheel type offset disk harrow
Model: ................................................................................................................... ATCRL
Disc blades:...................14, 16, 18, 19, 20, 21, 22, 23, 24, 25, 26, 28, 29, 32, 33, 36 & 37
Spacing between disc blades:...............................................................................230 mm
Disc blades dimension: ................................................. Ø 24" x 7.5 mm, Ø 26" x 4.75 mm
................................................................................Ø 26" x 6 mm
Disc blade type:..................................................................................... Concave notched
Bearings - length: .................................................................................................225 mm
- type: ........................................ Grease/oil bath bearing or steel-plated bearing
Spacer spools - length: .........................................................................................225 mm
- type: ...........................................................................................Iron cast
Axle diameter: .....................................................................................Ø 38,1 mm (1.1/2")
Hitching type: ......................................................................................................Drawbar
Working speed:................................................................................................5 to 7 km/h
Transport speed:...................................................................................................30 km/h
Tires: ..................................................................................Check the 'tires inflation' page
Model Number of
disc blades
Cutting width
(mm) Weight (kg) Tractor required power (cv)
ATCRL
14 1500 1237 50 - 70
16 1730 1314 70 - 80
18 1960 1412 80 - 90
19 2075 1385
20 2190 1556 90 - 100
21 2305 1484
22 2420 1593 100 - 110
23 2535 1662
24 2650 1695 110 - 120
25 2770 1736
26 2890 1835
130 - 140
28 3110 1869
29 3225 1937
32 3570 2019 150 - 160
33 3675 2003
36 4030 2236 170 - 180
37 4140 2204

14 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
Data sheet
NOTE The weights above were quoted using Ø 28'' disc blades.
Type: .................................................................................. Wheel type offset disk harrow
Model: ................................................................................................................... GAICR
Disc blades:...................... 12,14, 16, 18, 20, 22, 24, 26, 28, 29, 30, 32, 36, 40, 44 and 48
Spacing between disc blades:...............................................................................270 mm
Disc blades dimension: ......................................................... Ø 26" x 6 mm, Ø 28" x 6 mm
............................................................................. Ø 28" x 7.5 mm
Disc blade type:..................................................................................... Concave notched
Bearings - length: .................................................................................................262 mm
- type: ........................................ Grease/oil bath bearing or steel-plated bearing
Spacer spools - length: .........................................................................................262 mm
- type: ...........................................................................................Iron cast
Axle diameter: ........................................................................................Ø 41 mm (1.5/8")
Hitching type: ......................................................................................................Drawbar
Working speed:................................................................................................5 to 7 km/h
Transport speed:...................................................................................................30 km/h
Tires: ..................................................................................Check the 'tires inflation' page
Model Number of
disc blades
Cutting width
(mm) Weight (kg) Tractor required power (cv)
GAICR
12 1600 1689 70 - 80
14 1750 1766 80 - 90
16 2000 2072 100 - 110
18 2300 2154 110 - 120
20 2570 2382 120 - 135
22 2840 2517 135 - 150
24 3110 2596 150 - 165
25 3250 2606 165 - 180
26 3380 2706 170 - 180
28 3650 2882 180 - 195
29 3780 2876 195 - 210
30 3920 2973 195 - 210
32 4180 4117 210 - 230
36 4720 4368 230 - 250
40 5250 4730 250 - 270
44 5440 5424 270 - 290
48 6230 5652 290 - 310

15
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300
Data sheet
NOTE The weights above were quoted using Ø 26'' disc blades.
Type: .................................................................................. Wheel type offset disk harrow
Model: ............................................................................................................ GAICR 300
Disc blades:........................................................ 12, 14, 16, 18, 20, 22, 24, 26, 28 and 30
Spacing between disc blades:...............................................................................300 mm
Disc blades dimension: ......................................................... Ø 26" x 6 mm, Ø 28" x 6 mm
............................................................ Ø 28" x 7.5 mm, Ø 30" x 7.5 mm
Disc blade type:..................................................................................... Concave notched
Bearings - length: .................................................................................................296 mm
- type: ........................................ Grease/oil bath bearing or steel-plated bearing
Spacer spools - length: .........................................................................................296 mm
- type:...........................................................................................Iron cast
Axle diameter: ...................................................................................Ø 44,45 mm (1.3/4")
Hitching type: ......................................................................................................Drawbar
Working speed:................................................................................................5 to 7 km/h
Transport speed:...................................................................................................30 km/h
Tires: ..................................................................................Check the 'tires inflation' page
Model Number of
disc blades
Cutting width
(mm) Weight (kg) Tractor required power (cv)
GAICR
300
12 1650 1713 80 - 90
14 1900 1567 90 - 105
16 2185 1976 105 - 115
18 2400 2028 115 - 125
20 2735 2290 125 - 140
22 3010 2402 140 - 155
24 3280 2422 155 - 170
26 3560 2627 170 - 185
28 3840 3180 185 - 200
30 4120 3416 200 - 215

16 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
Data sheet

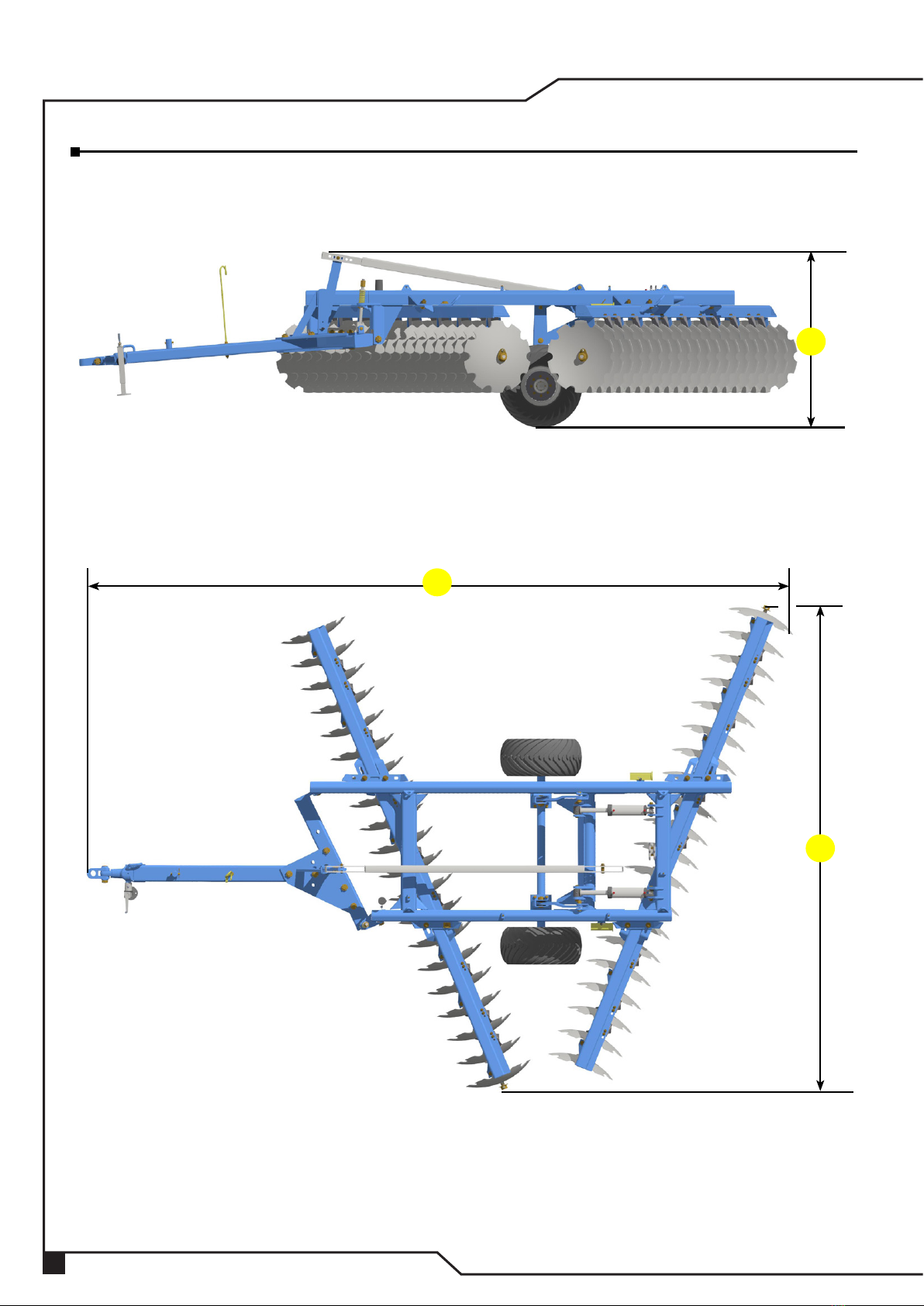

Dimensions for transportation and storage
AA
BB
CC

17
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. ATCR / ATCRL / GAICR / GAICR 300
Data sheet
Dimensions for transportation and storage
Models ATCR ATCRL GAICR GAICR 300
Disc
blades A B C A B C A B C A B C
12 1580 5420 1460 1580 5440 1610 1580 5460 1630
14 1580 5510 1680 1580 5510 1680 1580 5600 1860 1580 5640 1910
16 1580 5600 1900 1580 5600 1900 1580 5760 2110 1580 5820 2190
18 1580 5690 2120 1580 5690 2120 1580 5920 2360 1580 6000 2470
19 1580 5780 2230
20 1580 5870 2340 1580 5870 2340 1580 6080 2610 1580 6180 2750
21 1580 5960 2450
22 1580 6050 2560 1580 6050 2560 1580 6240 2860 1580 6360 3030
23 1580 6140 2670 1580 6140 2670
24 1580 6230 2780 1580 6230 2780 1580 6400 3110 1580 6540 3310
25 1580 6320 2890 1580 6320 2890 1580 6480 3235
26 1580 6410 3000 1580 6410 3000 1580 6560 3360 1580 6720 3590
28 1580 6590 3220 1580 6590 3220 1580 6720 3610 1580 6900 3870
29 1580 6680 3330 1580 6680 3330 1580 6800 3735
30 1580 6880 3860 1580 7080 4150
32 1580 7220 3650 1580 7220 3650 1580 7040 4110
33 1580 7310 3760
36 1580 7580 4750 1580 7580 4750 1580 7360 4610
37 1580 7670 3870
40 1580 7940 5860 1580 7550 5110
44 1580 8300 6135 1580 7870 5610
48 1580 8190 6110
Measures in millimeters.
NOTE

18 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
ATCR / ATCRL / GAICR / GAICR 300
Components
ATCR 12 - 29 / ATCRL 14 - 37 / GAICR 12 - 30 disc blades
01 - Frame 08 - Drawbar
02 - Front disc gang 09 - Tractor hitch (ATCR 12 - 28 disc blades)
03 - Rear disc gang 10 - Tractor hitch (ATCRL 14 - 36 /
GAICR 12 and 14 disc blades)
04 - Hydraulic cylinder 11 - Tractor hitch (GAICR 16 - 30 disc blades)
05 - Stabilizer bar 12 - Transport lock
06 - Wheel support 13 - Depth stops (optional)
07 - Hose support
0101
0202
0303
0404
0505
0606
0707
0808
0909 1010 1111 1212
1313
