Taurus TF-SCANDIC-X Series User manual

TF-
SCANDIC X
TF-SCANDIC-X
TFSCANDICX.01.01
TF-SCANDIC-X-STAND
TF-SCANDIC-X
Assembly and Operating Instructions

SCANDIC X
2

SCANDIC X
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Scope of Delivery (optional Floor Stand) 12
2.4 Assembly 13
2.5 Mounting the feet (optional) 19
3 OPERATING INSTRUCTIONS 21
3.1 Console Display 21
3.2 Button Functions 22
3.3 Switching on the console 22
3.4 Programmes 23
3.4.1 QUICK START 23
3.4.2 Interval Programmes 24
3.4.3 Target Programmes 25
4 STORAGE AND TRANSPORT 27
4.1 General Instructions 27
4.2 Transportation Wheels 27
5 TRAINING RECOMMENDATIONS 28
6 TROUBLESHOOTING, CARE AND MAINTENANCE 29
6.1 General Instructions 29
6.2 Faults and Fault Diagnosis 29
6.3 Maintenance and Inspection Calendar 30

SCANDIC X
4
7 DISPOSAL 30
8 RECOMMENDED ACCESSORIES 31
9 ORDERING SPARE PARTS 32
9.1 Serial Number and Model Name 32
9.2 Parts List 33
9.3 Exploded Drawing 35
10 WARRANTY 37
11 CONTACT 39

SCANDIC X
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand TAURUS®. TAURUS® oers sports
and tness equipment for the sophisticated home sport and the equipment of tness studios
and business customers. With TAURUS® tness equipment, the focus is on what sport is all about:
maximum performance! Therefore, the equipment is developed in close consultation with athletes
and sports scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
LEGAL NOTICE
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2011 TAURUS® is a registered brand of the company Sport-Tiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
This tness equipment is suitable for home use, semi-professional use and commercial or
professional use. The semi-professional sector includes, for example, institutional facilities such
as hospitals, schools, hotels and associations. Professional use refers to commercial use, e.g. in a
tness studio.

SCANDIC X
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

SCANDIC X
7
1 GENERAL INFORMATION
1.1 Technical Data
LCD display of
+ training time in min
+ training distance in m
+ calories burnt in kcal
+ heart rate (when using a chest strap)
+ strokes per minute and in total
+ watts
Total number of training programmes: 10
Quick start: 1
Target programmes (time, distance, calories, heart rate (4), watts): 6
Interval programmes: 3
(1 of them user-dened)
Resistance levels: 16
Output range: 10 - 350 watts (adjustable in 1 watt-steps)
Weight and dimensions:
Ski trainer
Article weight (gross, including packaging): 57.4 kg
Article weight (net, without packaging): 48.7 kg
Packaging dimensions (L x W x H): 133.5 cm x 13.3 cm x 19 cm
Set-up dimensions (L x W x H): 53 cm x 32.6 cm x 209.9 cm
9 kg
8.3 kg
15.1 cm x 74 cm x 37.3 cm
85.75 cm x 95.85 cm
Stand
Article weight (gross, including packaging):
Article weight (gross, without packaging):
Packaging dimensions (L x W x H):
Set-up dimensions (L x W):

SCANDIC X
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that heart
rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea,
dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately
and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make sure
that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

SCANDIC X
9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed to prevent improper use by
third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. In the
meantime, the equipment must not be used.
ATTENTION
+ The equipment requires a mains connection of 220-230V with 50 Hertz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of“16 amps, slow blow”.
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

SCANDIC X
10
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around, as
otherwise there is a danger of suocation for children. Keep children away from the equipment
during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the
help of another technically skilled person.
ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

SCANDIC X
11

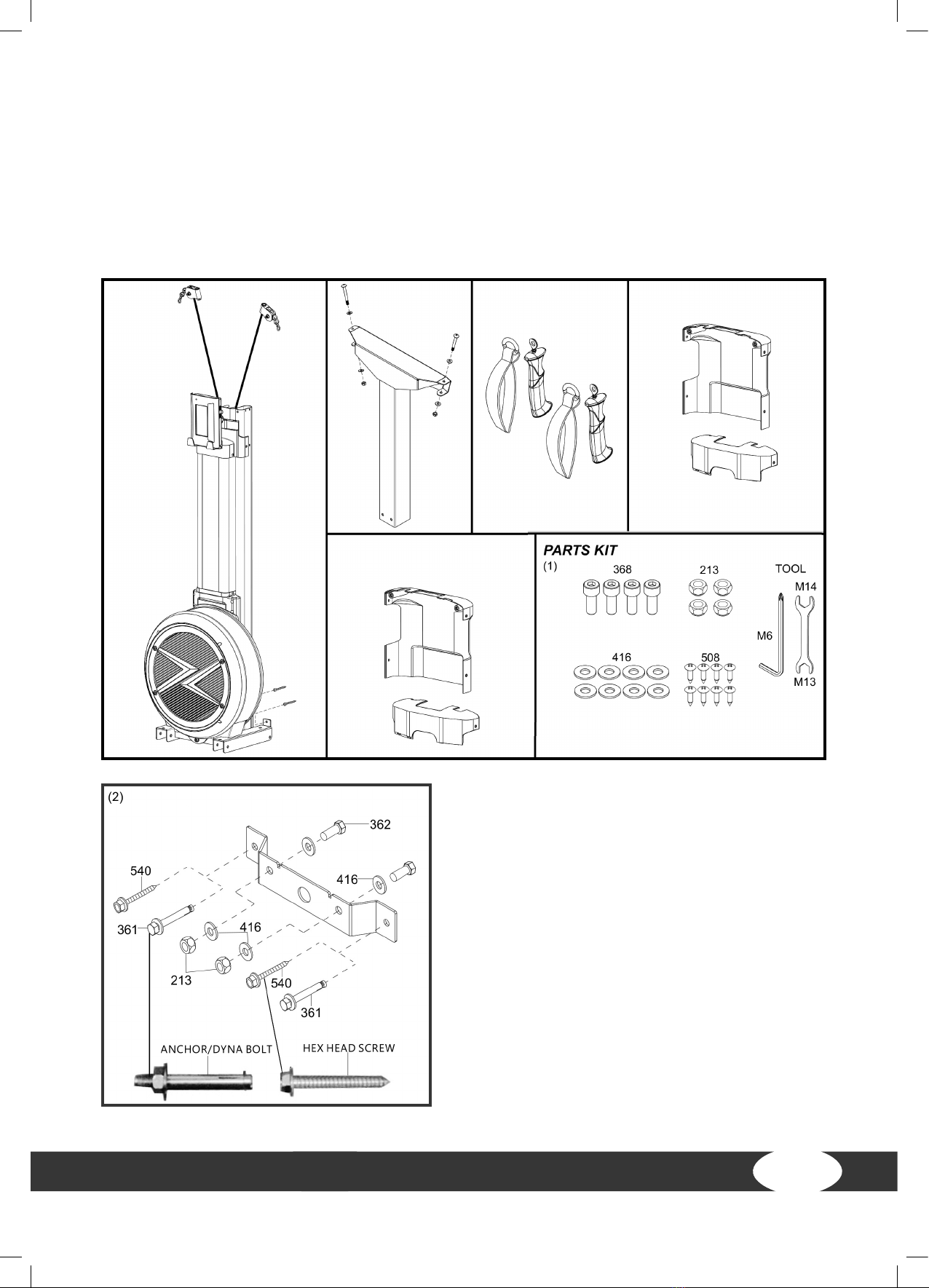

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

SCANDIC X
12

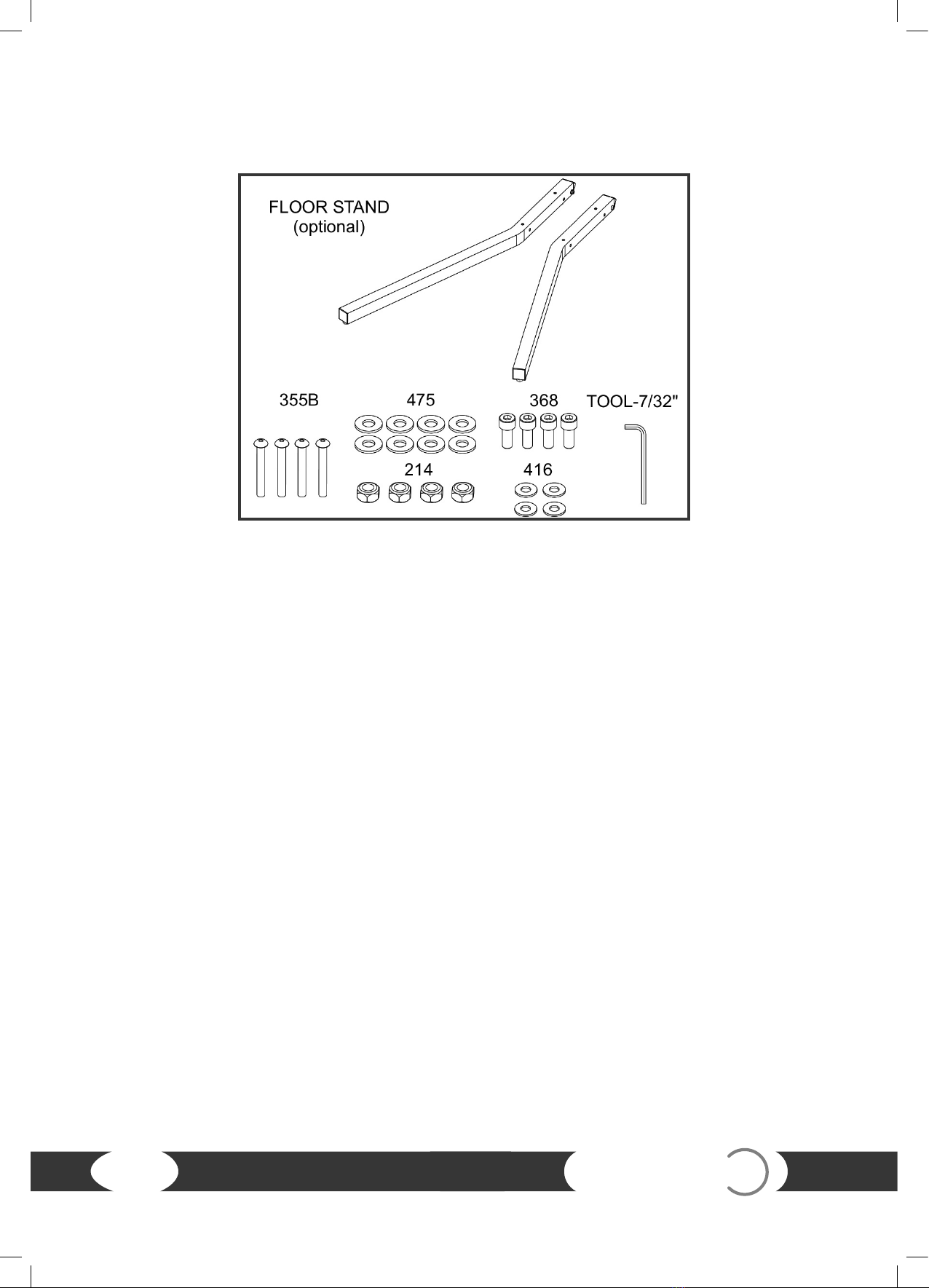

2.3 Scope of Delivery (optional Floor Stand)

SCANDIC X
13
2.4 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the
assembly in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Then tighten the screws
using the tool only when you are instructed to do so.

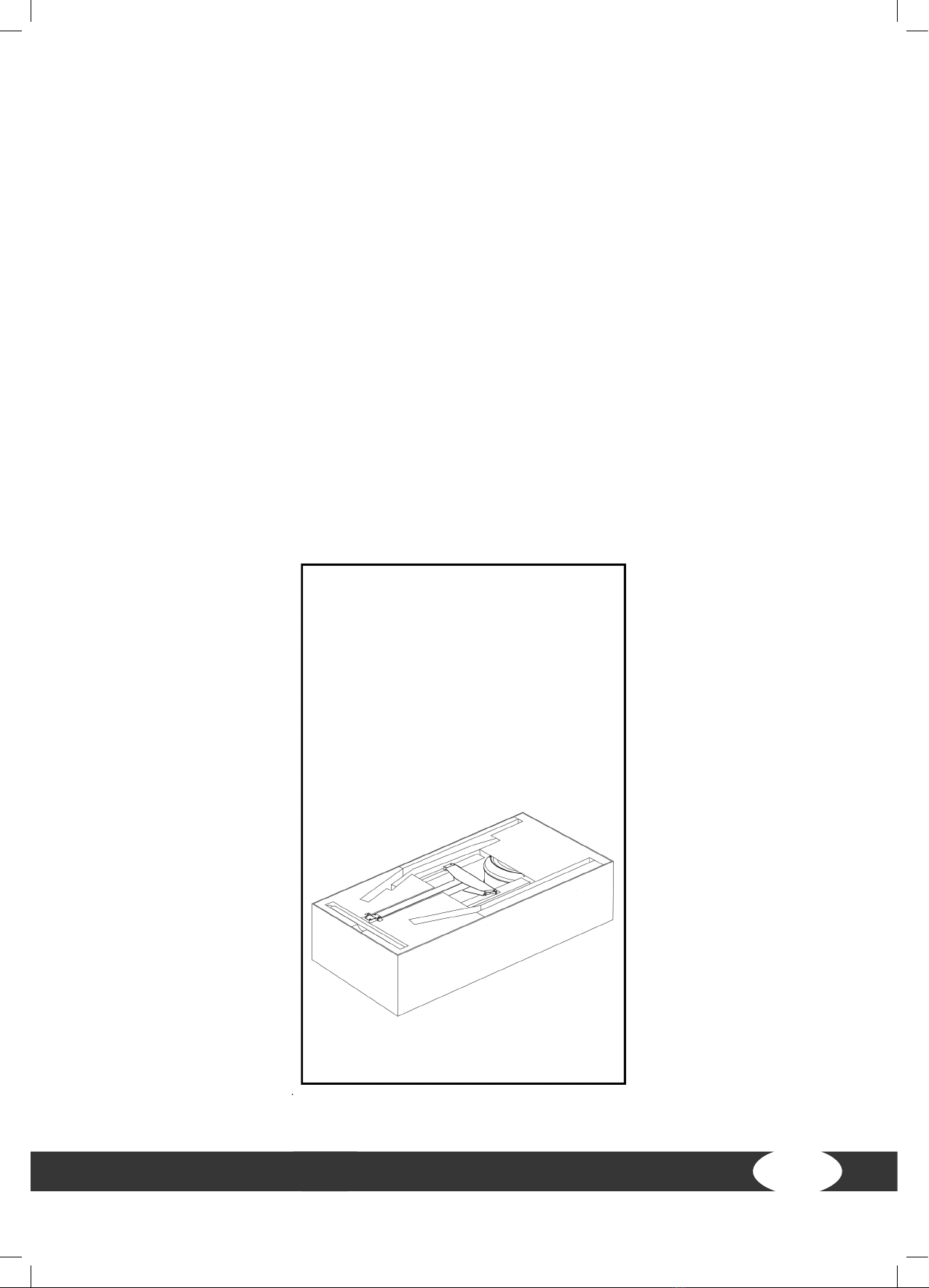

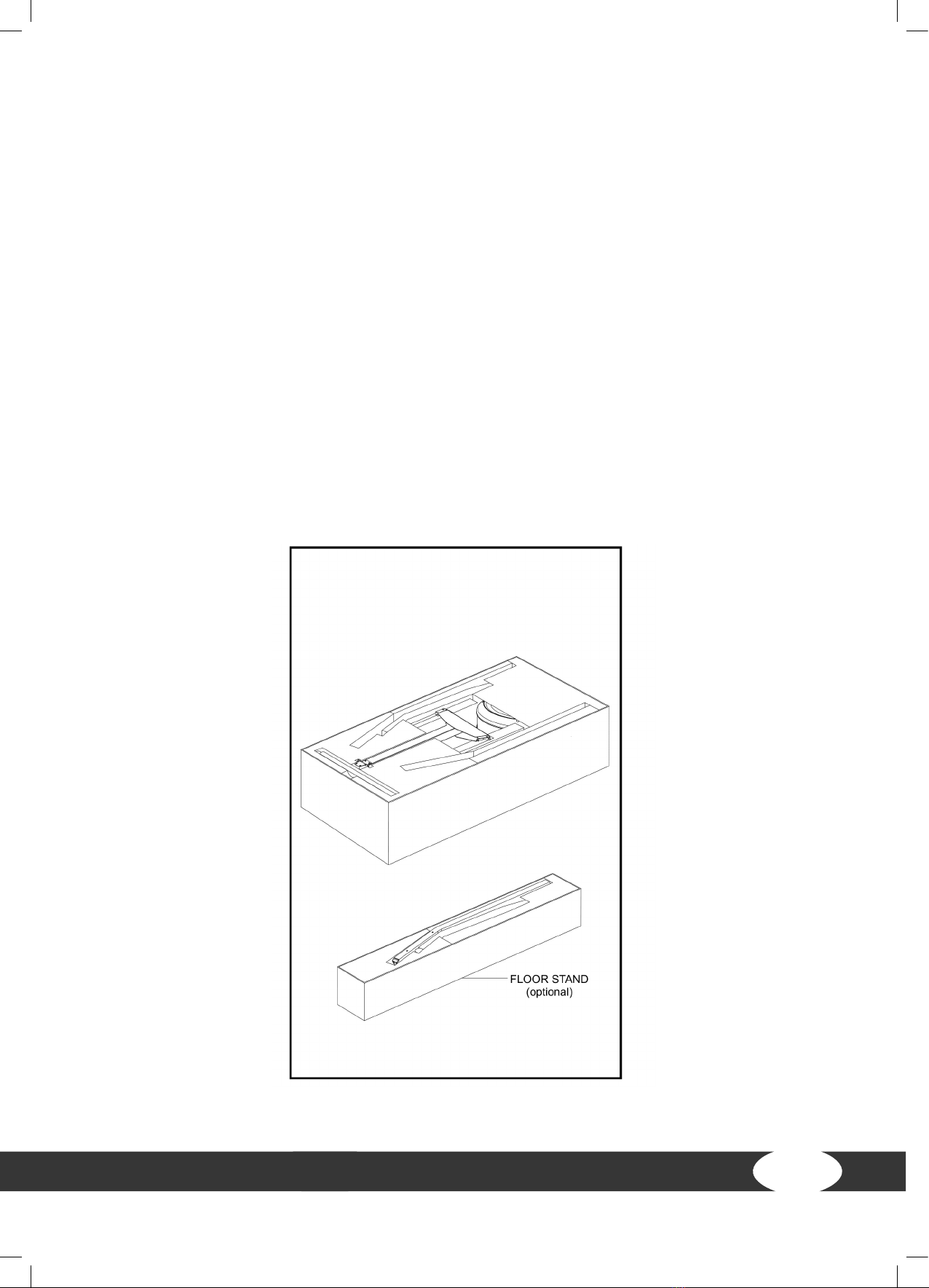

Step 1: Opening the box and scope of delivery
1. Open the box with a knife and lay it at on the oor.
2. Remove all loose parts.
3. Check the scope of delivery for completeness.
LNOTICE
We recommend not to remove the cardboard during assembly - it serves as soil protection.

SCANDIC X
14

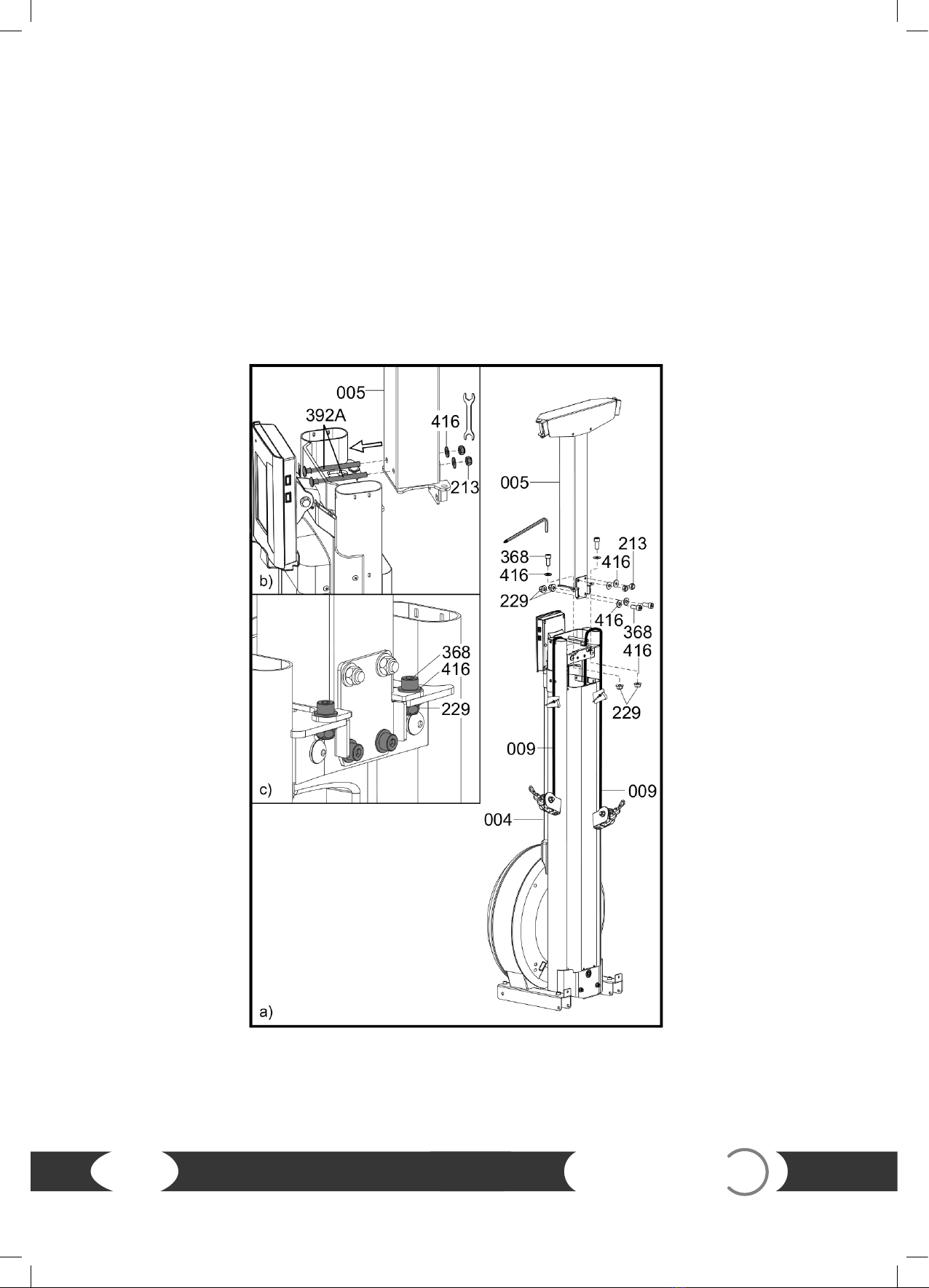

Step 2: Mounting the vertical beam top
1. Pull out the two rope pulls (009) and hang them over the main frame (see illustration).
2. Slide the drill holes of the vertical beam top (005) onto the two bolts (392A) of the main frame
(004).
3. Fix the two bolts (392A) with two washers (416) and two nuts (213) to the back of the vertical
beam top (005) using the tool provided.
4. Fit the four bolts (368) together with the four washers (416) and four nuts (229) using the
tool provided.

SCANDIC X
15

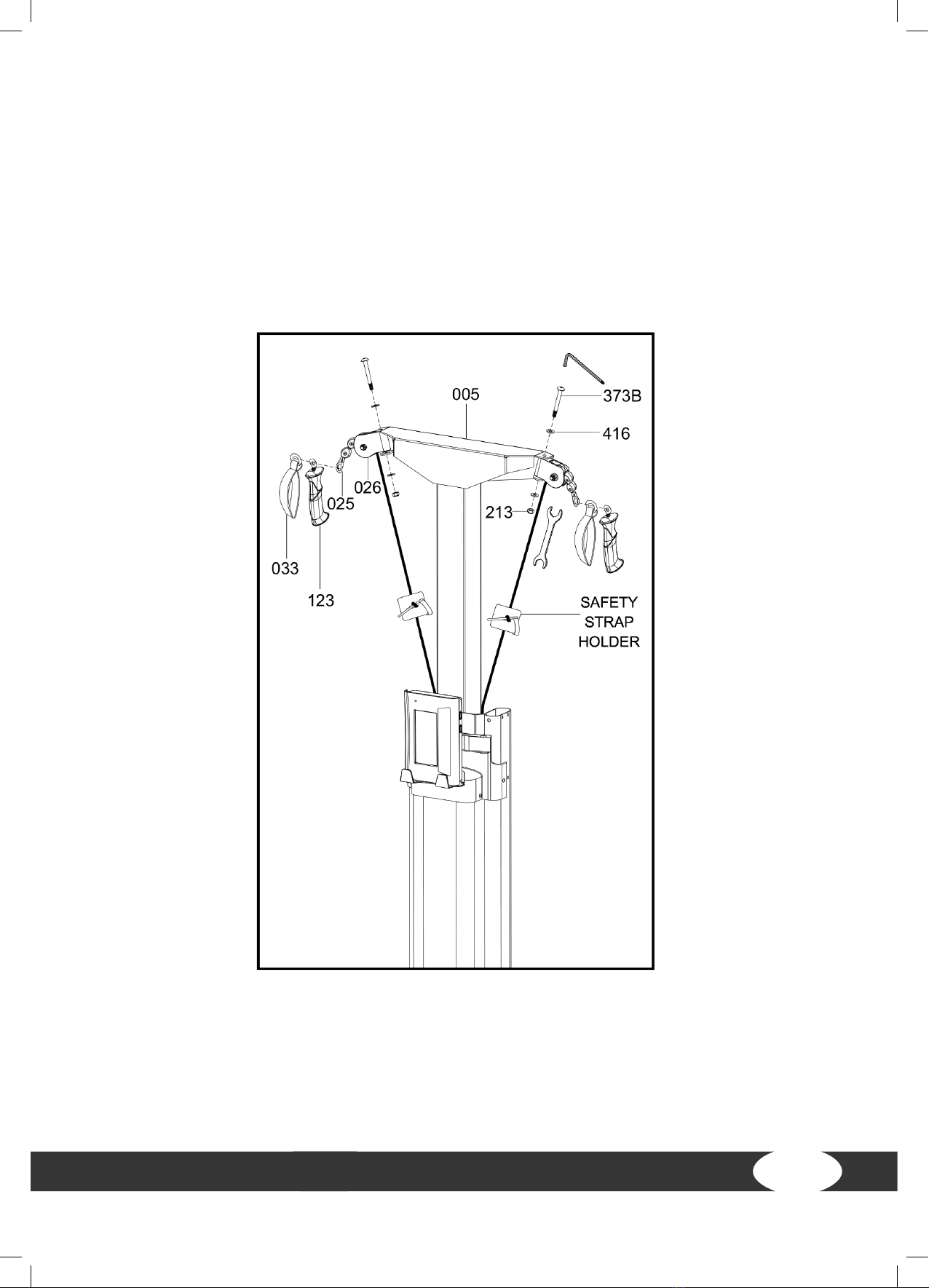

Step 3: Mounting the u-pulley holders
1. Mount the u-pulley holders (026) to the vertical beam top (005) using two bolts (373B), four
washers (416) and two nuts (213) with the supplied tool.
2. Attach the two handles (123) and two handle straps (033) to the snap hook (025).
3. Remove the safety strap holders from the cable pull ropes.

SCANDIC X
16

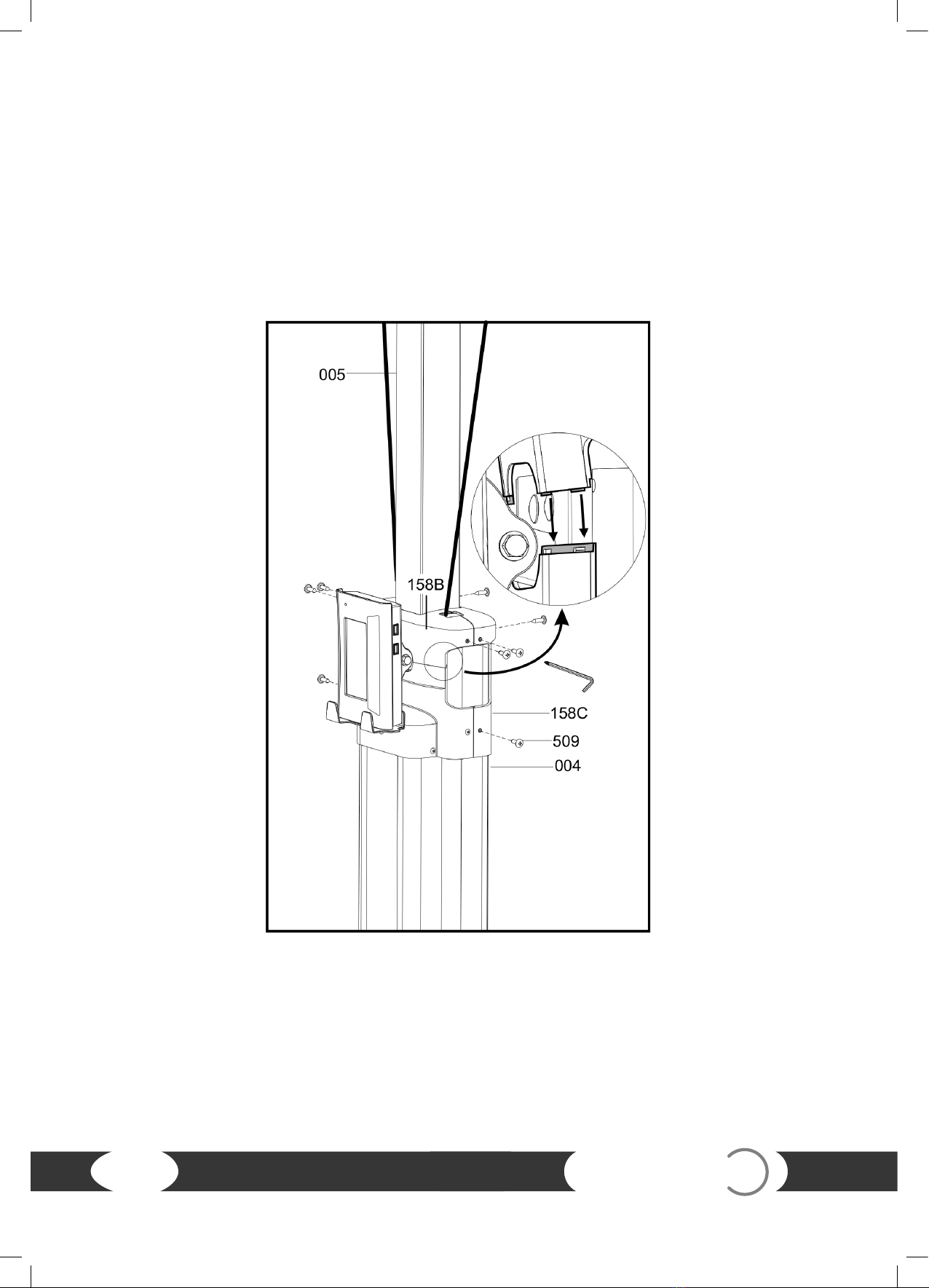

Step 4: Mounting the covers
1. Mount the cover B (158B) and the cover C (158C) on the main frame (004) and the vertical
beam top (005) with a total of eight bolts (509) using the tool supplied.
2. Make sure that the covers mesh correctly (see illustration).

SCANDIC X
17
Step 5: Mounting the wall bracket
1. Drill four holes with a diameter of 7.9 mm with a masonry drill into the wall on
which you want to mount the ski trainer (the corresponding tool is not included).
LNOTE
Make sure the wall is at and straight.
2. Loosen the nut of the anchor bolt (361) until it is ush with the end of the bolt.
3. Carefully hammer the anchor bolts (361) into the pre-drilled holes and remove the nuts
completely.
4. Slide the wall mouting bracket (034) over the anchor bolts and screw the nuts back onto the
anchor bolts.
5. Tighten the nuts of the anchor bolts.

SCANDIC X
18

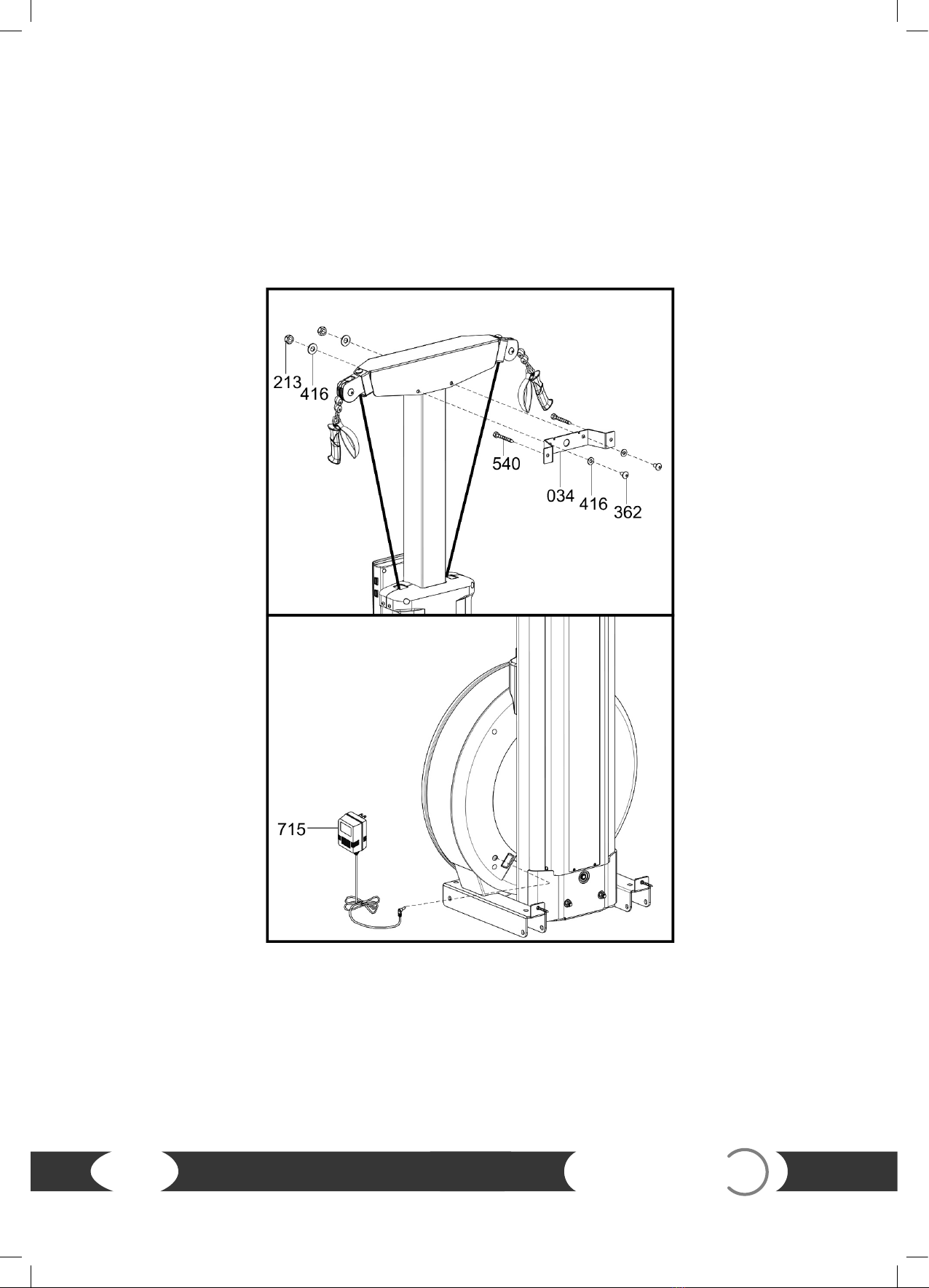

Step 6: Attaching the ski trainer to the wall bracket
1. Mount the ski trainer to the wall mounting brackets (034) with a total of two bolts (362), four
washers (416) and two nuts (213) using the tool supplied.
2. Now tighten all screws and bolts with the enclosed tool.
3. Connect the mains plug (715) to a mains socket.

SCANDIC X
19
2.5 Mounting the feet (optional)
LNOTICE
The feet for the device are optional accessories.
Step 1: Free area
Make sure that there is a free area of 2 x 2.5 metres around the device while you are assembling it.
Step 2: Opening the box and scope of delivery
1. Open the box with a knife and lay it at on the oor.
2. Remove all loose parts.
3. Check the scope of delivery for completeness.
LNOTICE
We recommend not to remove the cardboard during assembly - it serves as soil protection.

SCANDIC X
20

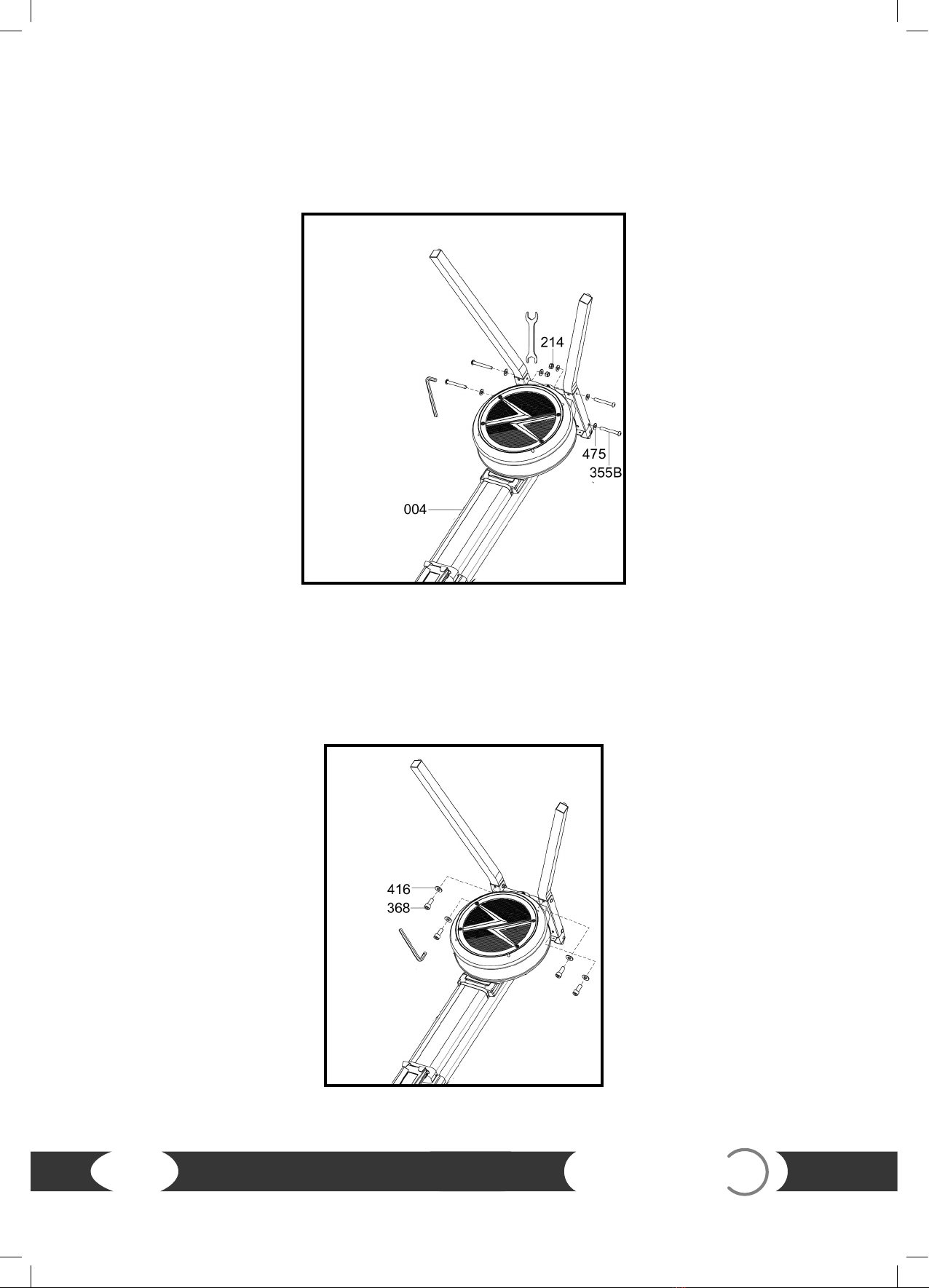

Step 3: Mounting the feet
1. Mount the two oorstands (001A) and (001B) to the main frame (004) with a total of eight
washers (475), four nuts (214) and four bolts (355B) with the supplied tool.
2. Mount the four bolts (368) and four washers (416) with the supplied tool.
