Assembly and Operating Instructions

2Half Rack V2

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 10
2.3 Assembly 13
3 STORAGE AND TRANSPORT 21
3.1 General Instructions 21
4 TROUBLESHOOTING, CARE AND MAINTENANCE 22
4.1 General Instructions 22
4.2 Faults and Fault Diagnosis 22
4.3 Maintenance and Inspection Calendar 23
5 DISPOSAL 23
6 RECOMMENDED ACCESSORIES 24
7 ORDERING SPARE PARTS 25
7.1 Serial Number and Model Name 25
7.2 Parts List 26
7.3 Exploded Drawing 28
8 WARRANTY 29
9 CONTACT 31

4Half Rack V2

5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Disclaimer
©2011 Taurus® is a registered brand of the company Sport-Tiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
This tness equipment is suitable for home use, semi-professional use and commercial or
professional use. The semi-professional sector includes, for example, institutional facilities such
as hospitals, schools, hotels and associations. Professional use refers to commercial use, e.g. in a
tness studio.

6Half Rack V2
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and Dimensions
Article weight (gross, incl. packaging) approx.: 238 kg
Article weight (net, excl. packaging) approx.: 198 kg

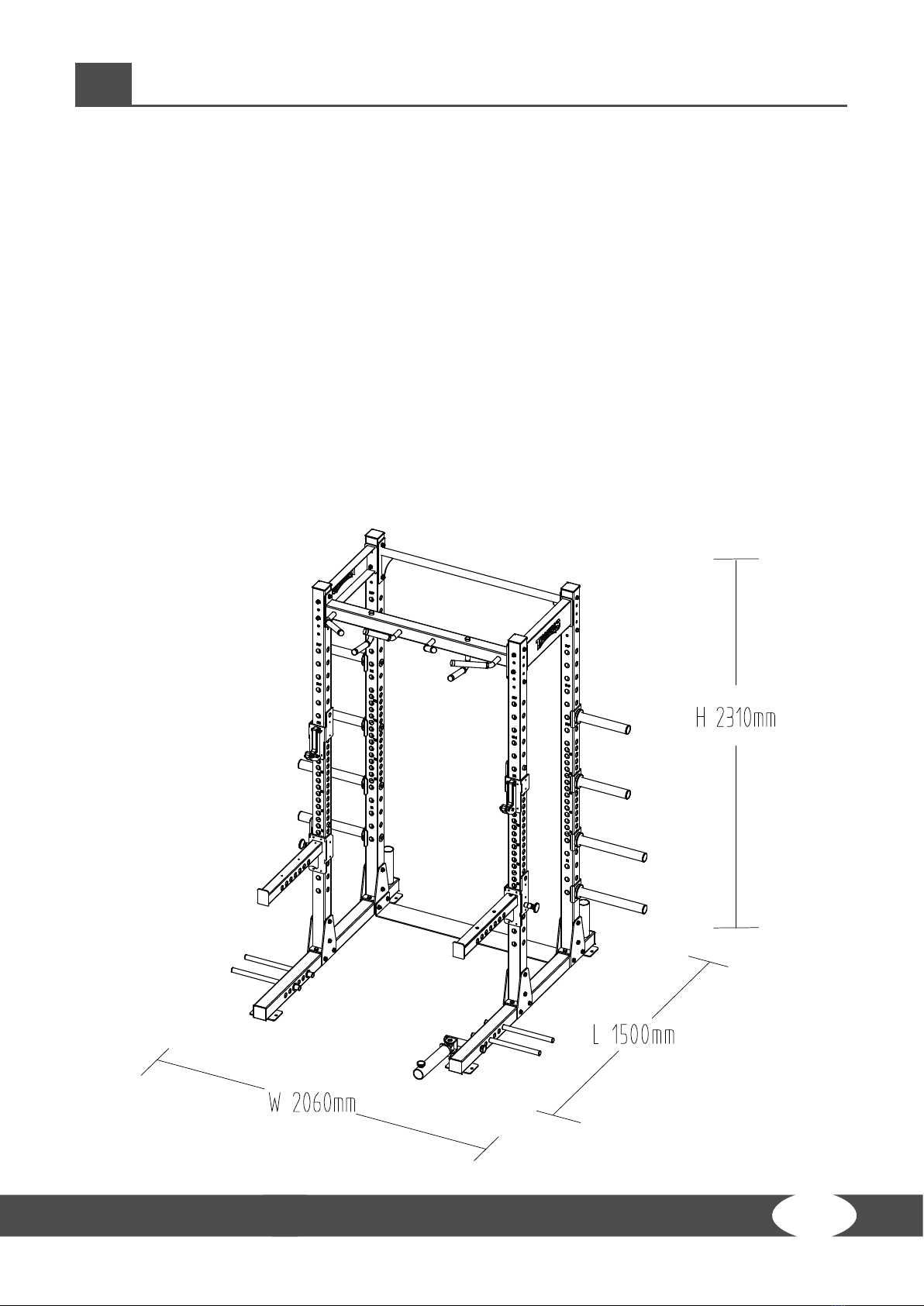

Packaging dimensions (L x W x H) approx.: 230 cm x 80 cm x 40 cm
Set-up dimensions (L x W x H) approx.: 150 cm 206 cm x 231 cm
Maximum user weight (pull up bars): 200 kg
Maximum load: 500 kg
Class: S

8Half Rack V2
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
+ The owner must communicate all warnings and instructions to the user.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
+ Always start each workout with a light warm-up and end with a cool-down phase.
+ Using the machine as a support during stretching exercises or attaching resistance bands,
ropes or other accessories to it, may cause injuries.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
+ Be aware that if adjustment devices are left protruding, they may impede the user’s
movement.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9

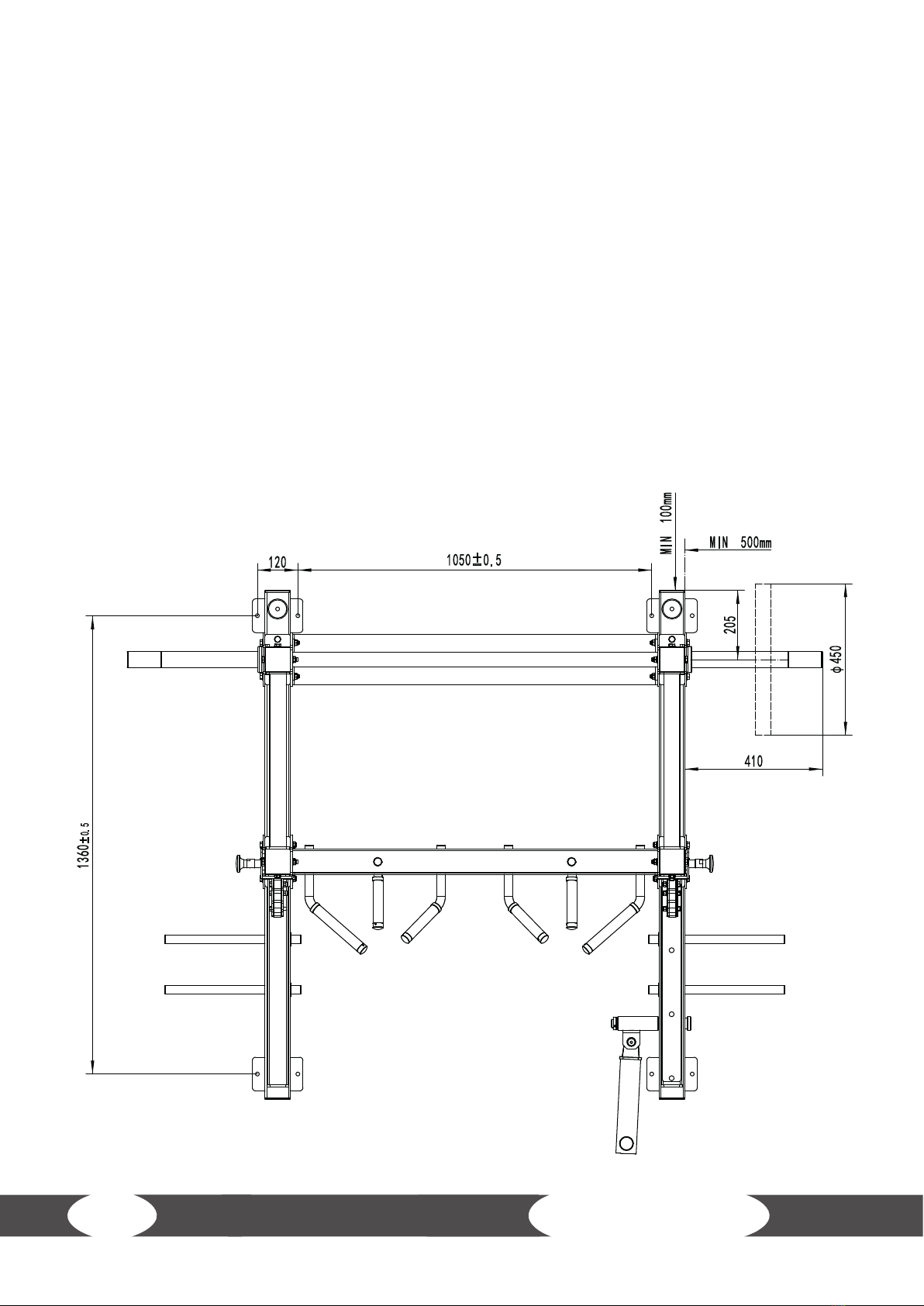

1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The free area in the direction from which the exercise equipment is accessed must be at
least 0.6 m larger than the exercise area.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
+ If your device is to be mounted on the wall/ceiling, make sure that you use the appropriate
assembly material to avoid possible damages or personal injuries. The contractual partner
accepts no liability for this.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.
+ For Class S and I equipment, the exercise equipment may only be used in areas where
access, supervision and control are specically regulated by the owner.

10 Half Rack V2
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

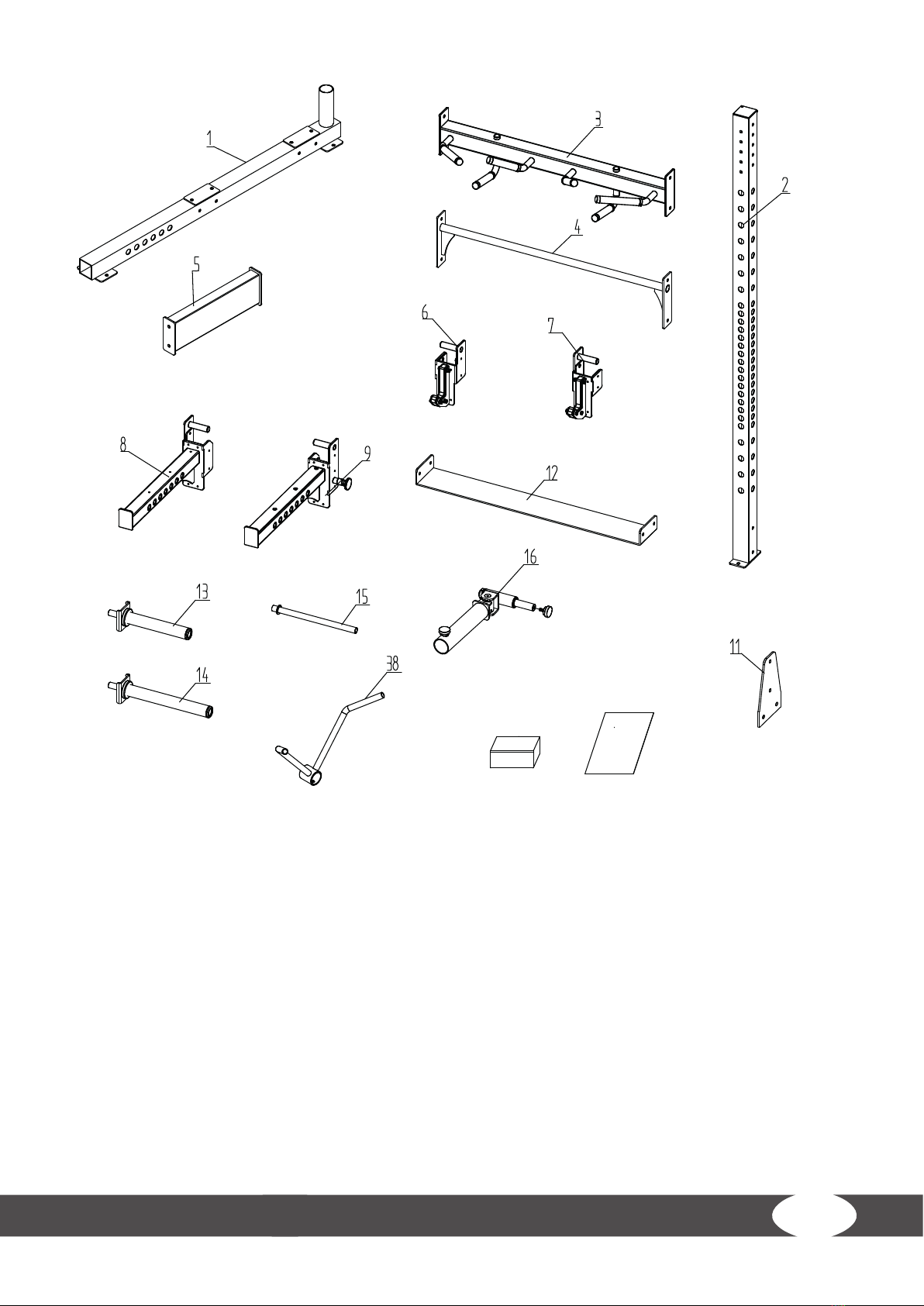

SEBR7156 PACKING LIST
11
Part no. Description Qty.
1 Underframe 2
2 Upright support 4
3 Front pull up bar 1
4 Rear pull up bar 1
5 Nameplate brace 2
6 J hook (L) 1
7 J hook (R) 1
8 Spotter catcher arm (L) 1
9 Spotter catcher arm (R) 1
Part no. Description Qty.
11 Triangle plate 8
12 Bottom connection panel 1
13 Short plate horn 4
14 Long plate horn 4
15 Band rod 4
16 Landmine 1
38 T-bar row handle 1
Toolkit 1
Manual 1
Toolkit
Manual

12 Half Rack V2

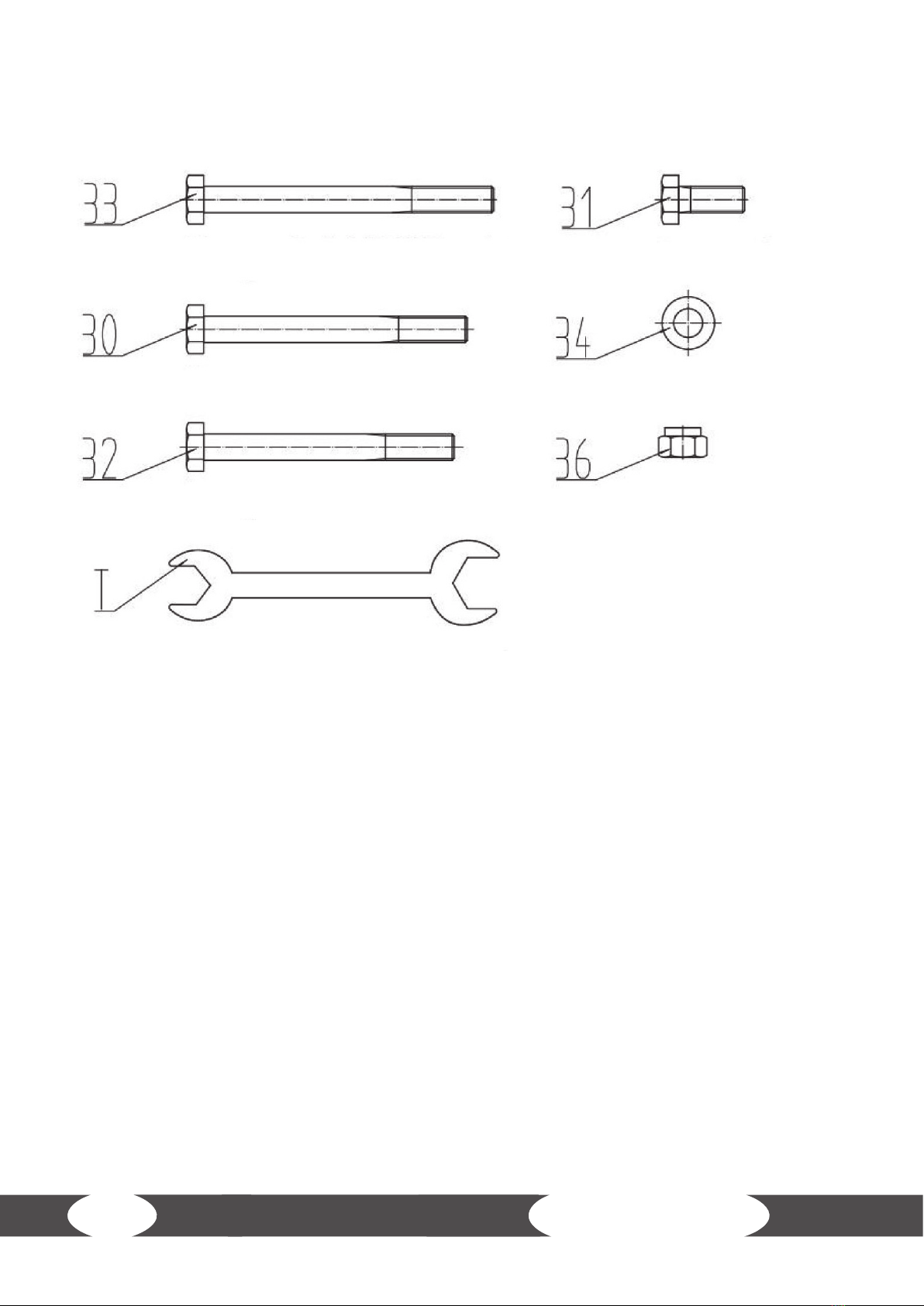

Hexagon Bolt M10*110 4pcs
Hexagon Bolt M10*100 12pcs
Hexagon Bolt M10*95 16pcs
Fork wrench 14-17# 2 pcs
Hexagon Bolt M10*25 8pcs
Flat Washer Ø10 72pcs
Locknut M10 32pcs
Tool kit

13
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
+ First loosely screw all parts together and check that they t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have diculty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer.

14 Half Rack V2

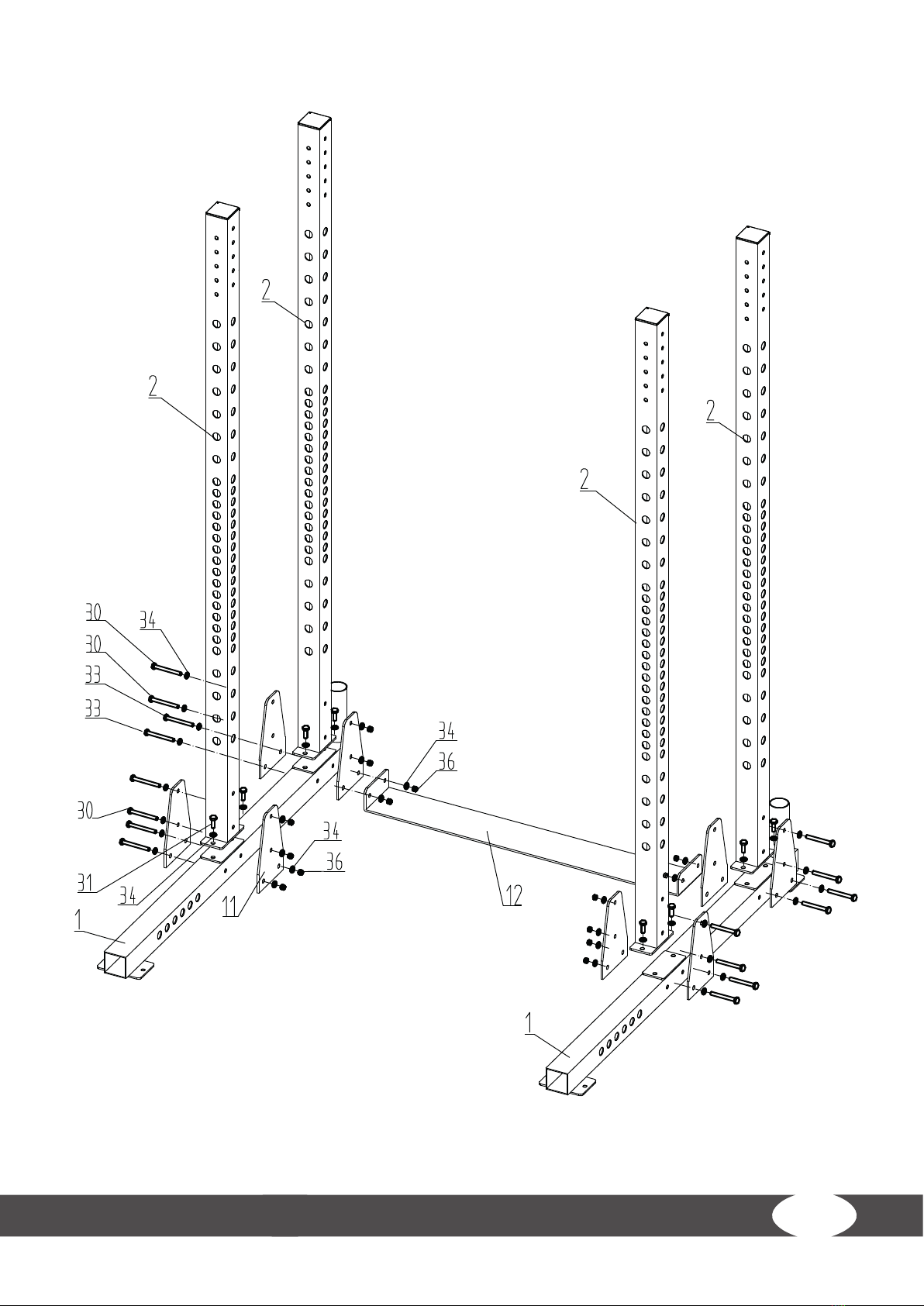

Step 1: Assembly of the Upright Supports and Underframes
LNOTICE
Do not tighten the bolts and nuts completely yet. Leave room for adjustments.
1. Attach two upright supports (2) to each underframe (1) with four M10*25 bolts and four Ø10
at washers (34).
2. Attach two triangle plates (11) to each of the front upright supports (2) and underframe (1) with
four M10*100 bolts (30), eight Ø10 at washers (34) and four M10 lock nuts (36).
3. Attach two triangle plates (11) and the bottom connection panel (12) to the rear upright
supports (2) and underframe (1) with four M10*100 bolts (30), eight Ø10 at washers (34) and
four M10 lock nuts (36).

FRONT
REAR
15

FRONT
REAR
16 Half Rack V2

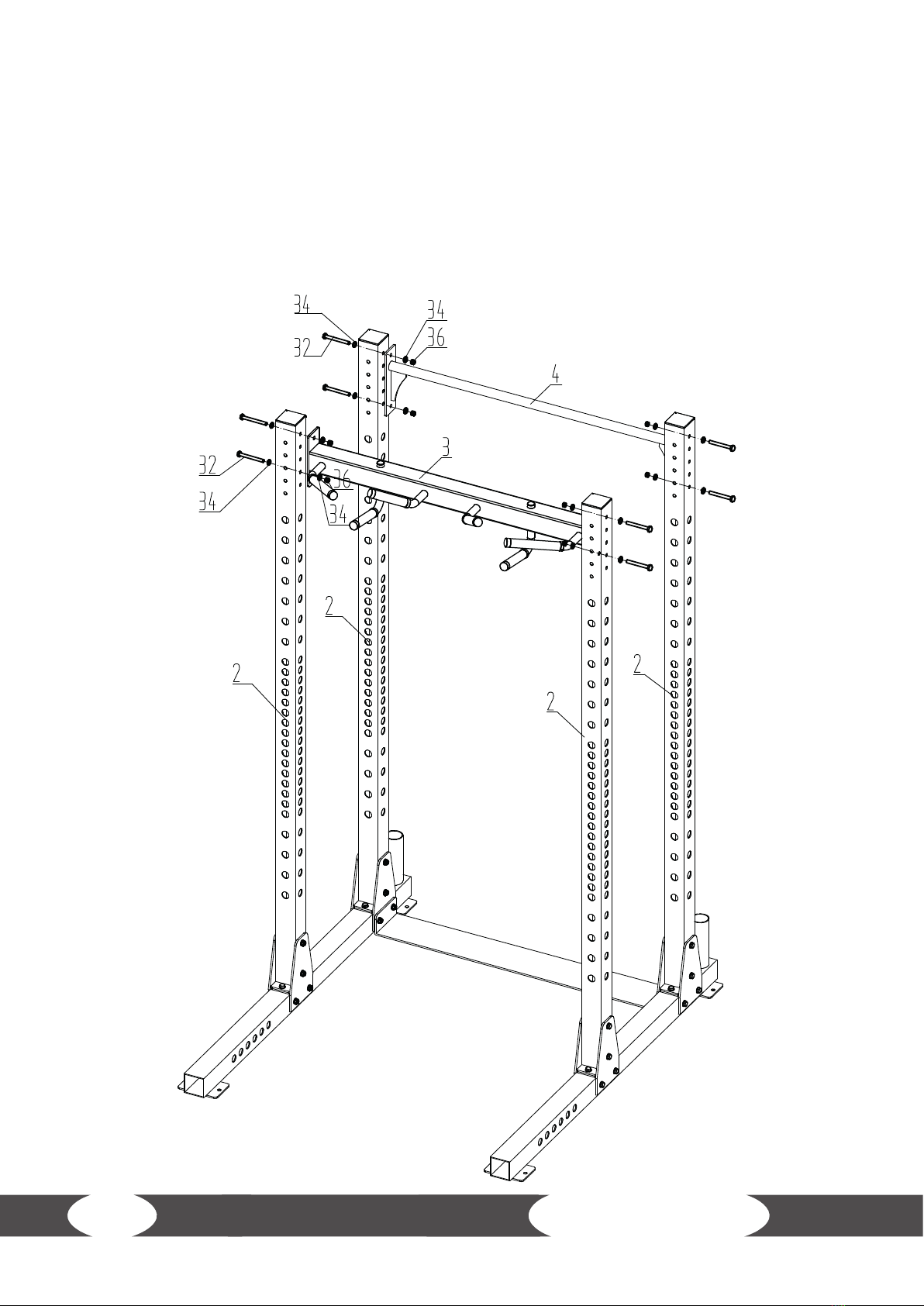

Step 2: Assembly of the Front and Rear Pull up Bars
LNOTICE
Do not tighten the bolts and nuts completely yet. Leave room for adjustments.
1. Attach the front pull up bar (3) to the front upright supports (2) with a total of four M10*95 bolts
(32), eight Ø10 washers (34) and four M10 lock nuts (36).
2. Attach the rear pull up bar (4) to the rear upright supports (2) with a total of four M10*95 bolts
(32), eight Ø10 at washers (34) and four M10 lock nuts (36).

17

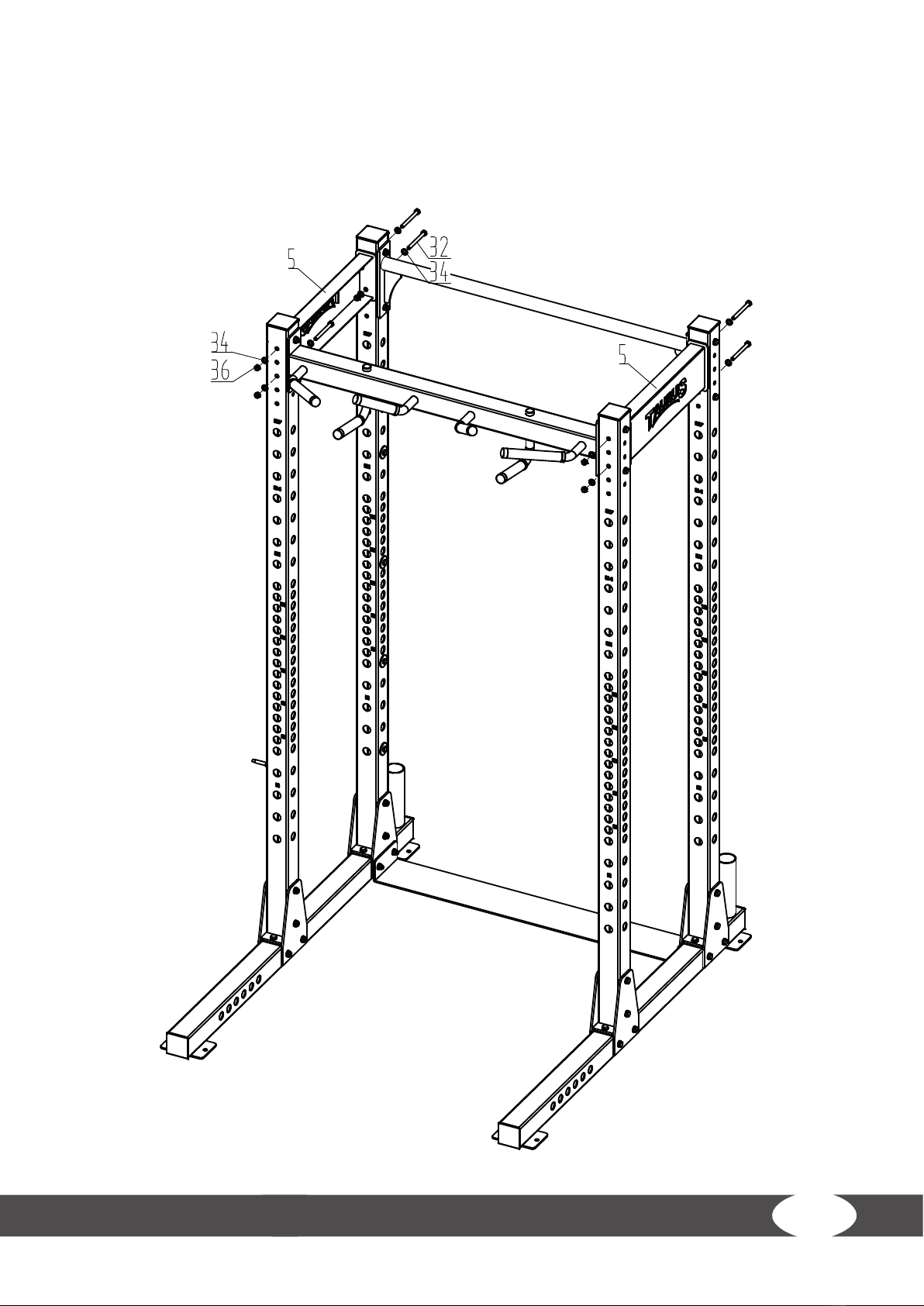

Step 3: Assembly of the Nameplate Braces
1. Attach the nameplate braces (5) to the upright supports (2) with four M10*95 bolts (32), eight
Ø10 at washers (34) and four M10 lock nuts (36) each.
2. Now tighten all bolts and nuts with the tools, beginning at the bottom.

18 Half Rack V2

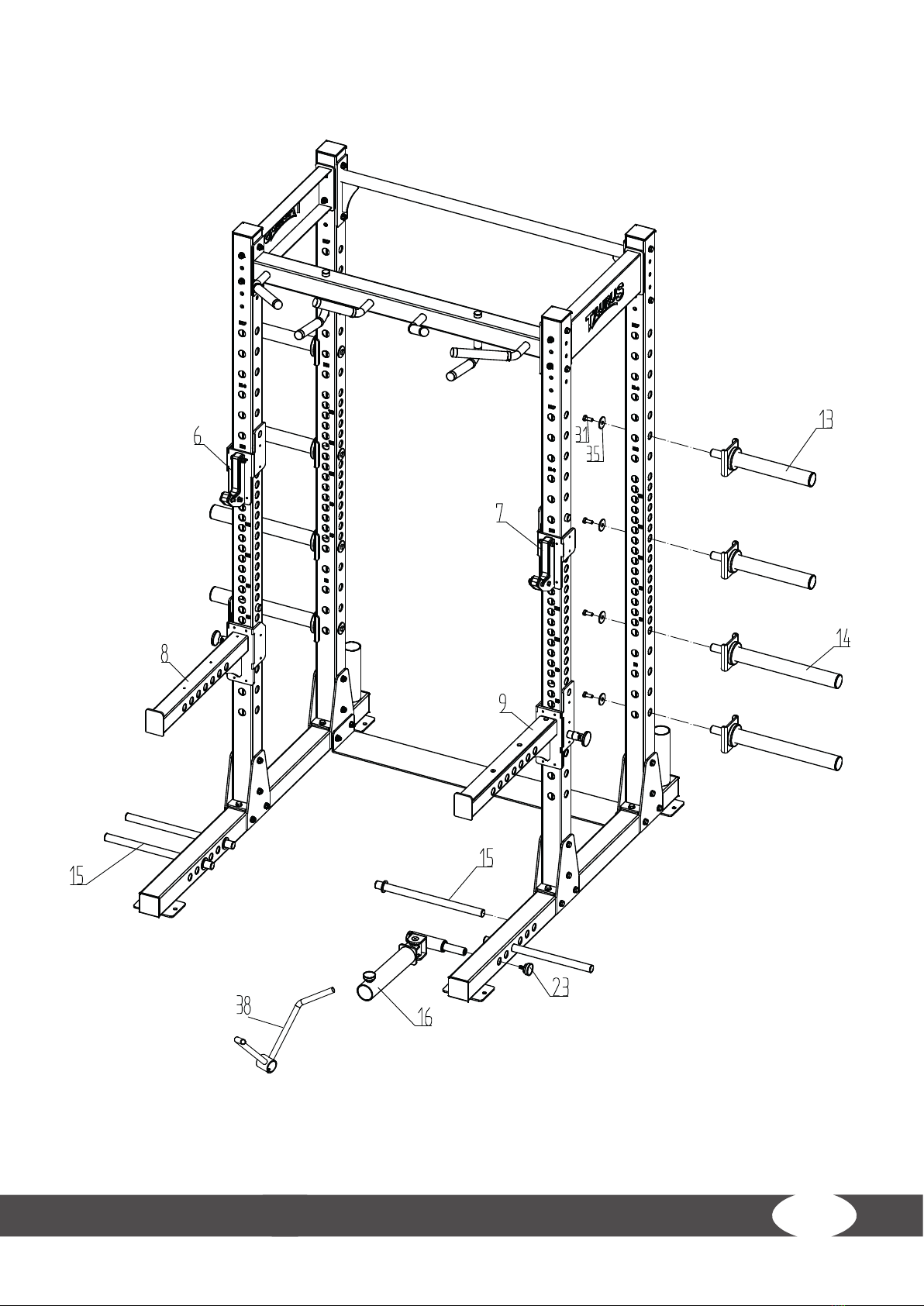

Step 4: Assembly of the Accessories
LNOTICE
+ The accessories can be used interchangeably.
+ The plate horns (13 & 14) can be used to store 50 mm weight plates. Weight plates are not
included in the scope of delivery.
1. Remove the pre-assembled M10*25 bolts (31) and Ø10 big washers (35) from the short plate
horns (13) and long plate horns (14).
2. Attach the short plate horns (13) and long plate horns (14) to the rear upright supports (2) with
the same bolts (31) and big washers (35).
3. Insert the left and right J hooks (6 & 7) into the front upright supports (2).
4. Insert the left and right spotter catcher arm (8 & 9) into the front upright supports (2).
5. Insert the band rods (15) to the underframes (1).
LNOTICE
To use the landmine (16) and T-bar row handle (38), a barbell bar is needed. A barbell bar is not
included in the scope of delivery.
6. Loosen the pre-asssembled bolt (23) from the landmine (16), then attach the landmine (16) to
the underframe (1) be reattaching the bolt (23).
7. Attach the T-bar row handle (38) to a barbell bar, then insert the barbell bar into the landmine
(16).
→The assembly is completed.

FRONT
REAR
19

20 Half Rack V2
Step 5: Anchoring the Rack to the Ground (Optional)
You have the option to anchor the rack to the ground. This step is not mandatory. Required tools,
bolts and dowels are not included in the scope of delivery.
࣑ATTENTION
+ Not every type of ooring is suitable for anchoring.
+ Consider the condition of your oor to determine which assembly material is suitable.
+ Make sure there are no pipes, cables or wires running in the oor where you anchor the
equipment.
+ A hand drill is required to anchor the equipment. Make sure to use suitable drilling
attachment. The contractor can not be held liable for any damages to the oor.
1. Drill a total of eight holes in the oor with a hand drill.
2. Insert suitable dowels into the holes.
3. Attach the equipment to the oor with suitable bolts.
