Taurus Iso Low Row Sterling User manual

TFSL7004.01.01
TF- Taurus Iso Low Row Sterling
max. 150 kg
~ 120 Min.
CM
168 kg
Art. No. TF-SL7004
Assembly and Operating Instructions
L 176 | W 145 | H 165

2Low Row

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 10
2.3 Assembly 13
3 STORAGE AND TRANSPORT 23
3.1 General Instructions 23
3.2 Transportation Wheels 23
4 TROUBLESHOOTING, CARE AND MAINTENANCE 24
4.1 General Instructions 24
4.2 Faults and Fault Diagnosis 24
4.3 Maintenance and Inspection Calendar 25
5 DISPOSAL 25
6 RECOMMENDED ACCESSORIES 26
7 ORDERING SPARE PARTS 27
7.1 Serial Number and Model Name 27
7.2 Parts List 28
7.3 Exploded Drawing 31
8 WARRANTY 32
9 CONTACT 34

4Low Row

5
Disclaimer
©2011 Taurus® is a registered brand of the company Sport-Tiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
This tness equipment is suitable for home use, semi-professional use and commercial or
professional use. The semi-professional sector includes, for example, institutional facilities such
as hospitals, schools, hotels and associations. Professional use refers to commercial use, e.g. in a
tness studio.
Dear customer,
Thank you for choosing quality training equipment from the TAURUS brand. Taurus oers sports and
tness equipment for home users with high demands on quality, functionality and longevity. Also,
Taurus is a well-known and experienced brand for equipping professional rooms for tness studios
and business customers. The focus of Taurus tness equipment is on what matters most in sports:
maximum performance!Therefore, the devices are developed in close consultation with athletes and
sports scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.taurus-tness.com.

6Low Row
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
NOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and Dimensions
Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.:
Box 1: 201.5 cm x 72.5 cm x 32.5 cm 122 kg
Box 2: 108.5 cm x 76.5 cm x 43.5 cm 73.6 kg
Set-up dimensions (L x W x H) approx.: 176 cm x 145 cm x 165 cm
Article weight (net, excl. packaging) approx.: 167.5 kg
Maximum user weight: 150 kg
Maximum load weight (training): 2 x 150 kg
Maximum load weight (storage): 2 x 100 kg
Class: S
NOTICE
This equipment is compatible with weight plates with a 50 mm hole and a maximum external
diameter of 500 mm (not included in the scope of delivery).

8Low Row
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
+ The owner must communicate all warnings and instructions to the user.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
+ Always start each workout with a light warm-up and end with a cool-down phase.
+ Using the machine as a support during stretching exercises or attaching resistance bands,
ropes or other accessories to it, may cause injuries.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
+ Be aware that if adjustment devices are left protruding, they may impede the user’s
movement.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.

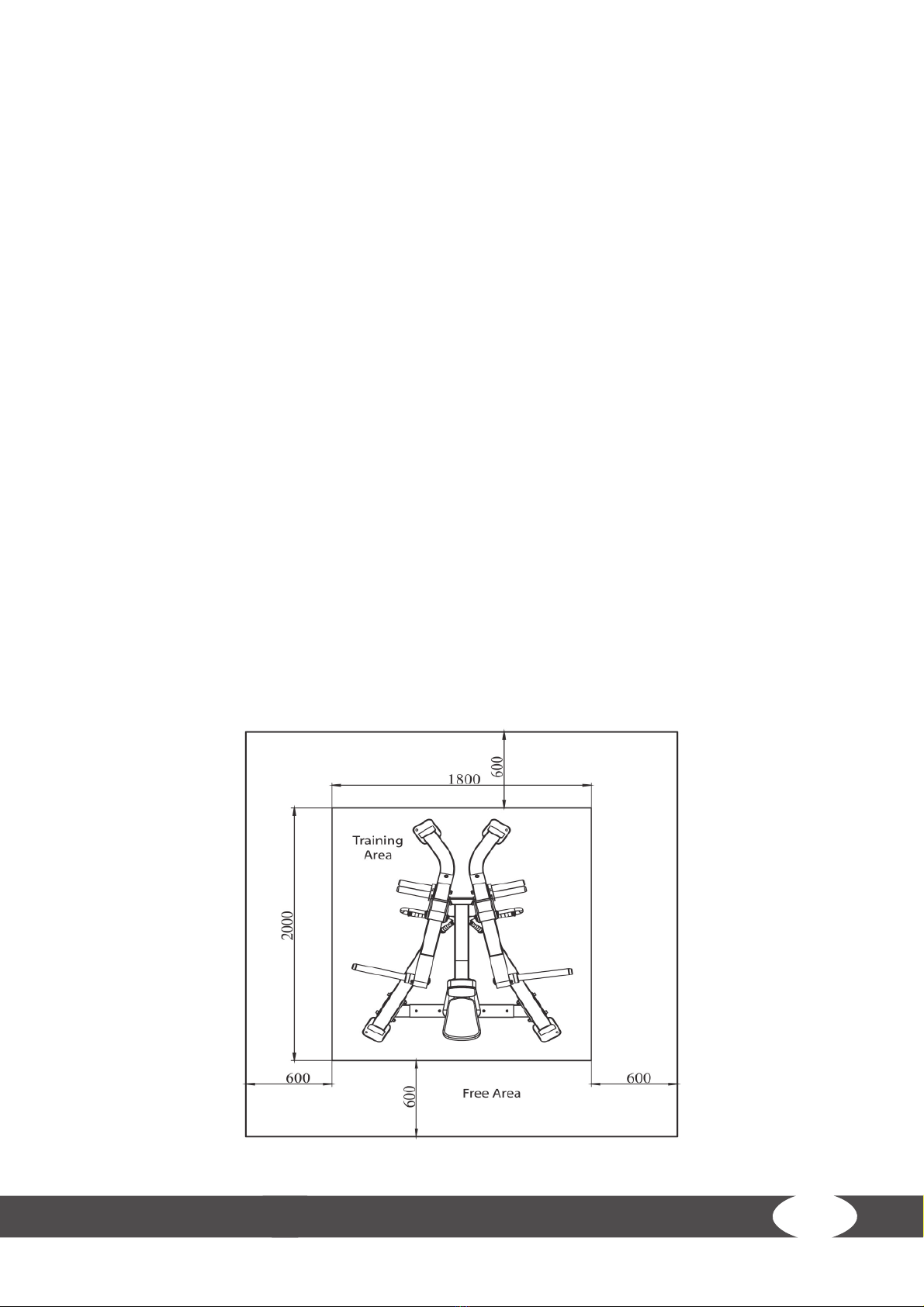

+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The free area in the direction from which the exercise equipment is accessed must be at
least 0.6 m larger than the exercise area.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
+ If your device is to be mounted on the wall/ceiling, make sure that you use the appropriate
assembly material to avoid possible damages or personal injuries. The contractual partner
accepts no liability for this.
ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.
+ For Class S and I equipment, the exercise equipment may only be used in areas where
access, supervision and control are specically regulated by the owner.

10 Low Row
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
NOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

11
9
13 14
12
11
Part no. Description Qty.
1 Left Bottom Frame 1
2 Right Bottom Frame 1
3 Upright Frame 2
4 Weight Horn Assembly 2
9 Middle Standing Frame 1
13 Pivot Plate 1 2
14 Pivot Plate 2 2
Content of Box 1

56
7
8
15
17
16
21
30
29
12 Low Row
Part no. Description Qty.
5 Left Arm Frame 1
6 Right Arm Frame 1
7 Long Cross Frame 1
8 Short Cross Frame 1
15 Seat Frame 1
16 Chest Pad 1
17 Seat Pad 1
21 Pivot Shaft 2
29 Pull Spring 1
30 Idler Wheel 2
Manual 1
Hardware Pack 3
Content of Box 2
Manual
Hardware
pack

13
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
+ First loosely screw all parts together and check that they t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have diculty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer.

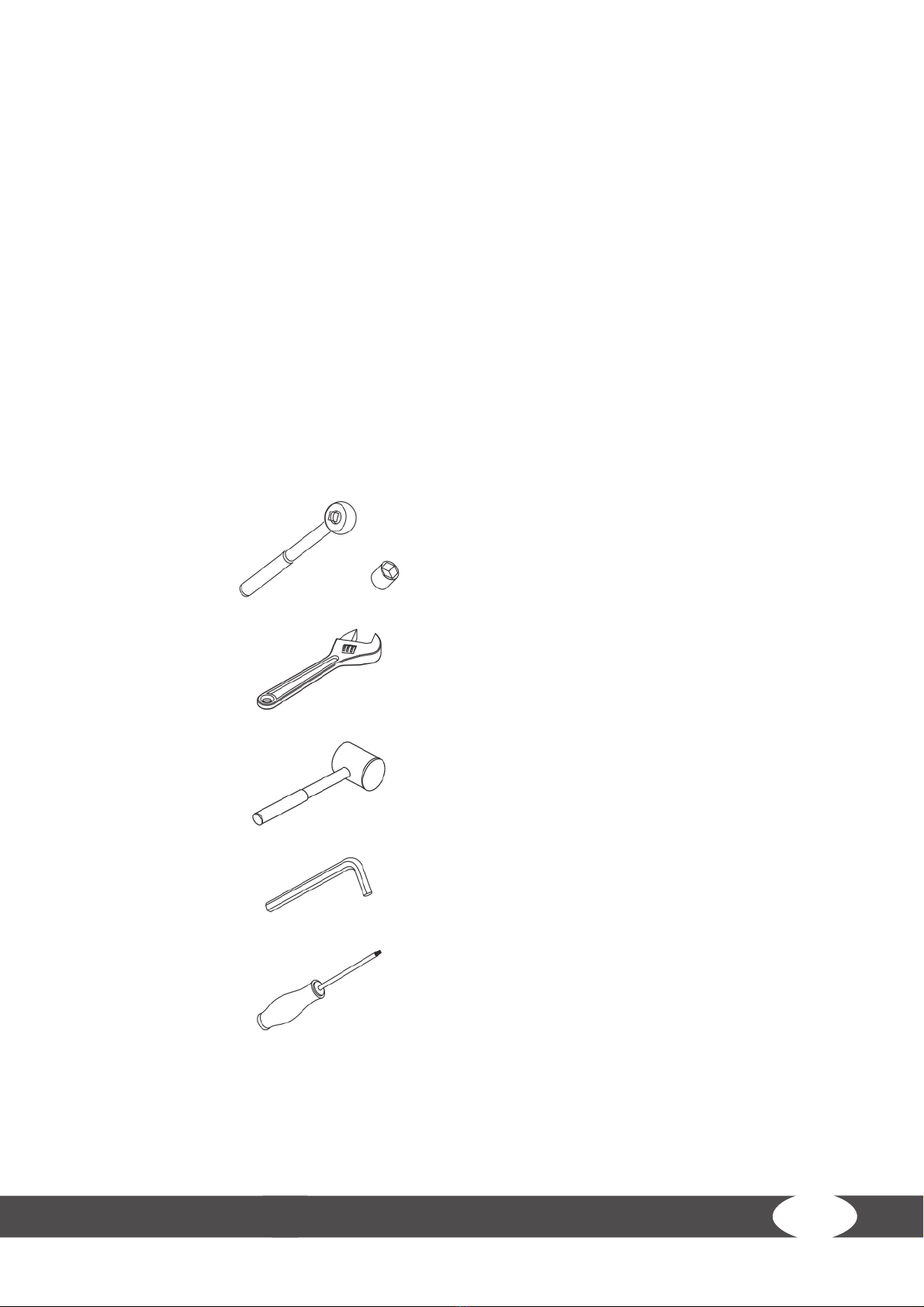

Required Tools
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set
Phillips Screwdriver

14 Low Row
Step 1: Assembly of the Bottom Frames and Cross Frames
NOTICE
Do not tighten the screws and nuts completely yet.
Attach the long cross frame (7) and the short cross frame (8) to the left and right bottom frames (1 &
2) with a total of eight screws (49), 16 at washers (62) and eight lock nuts (65).

15

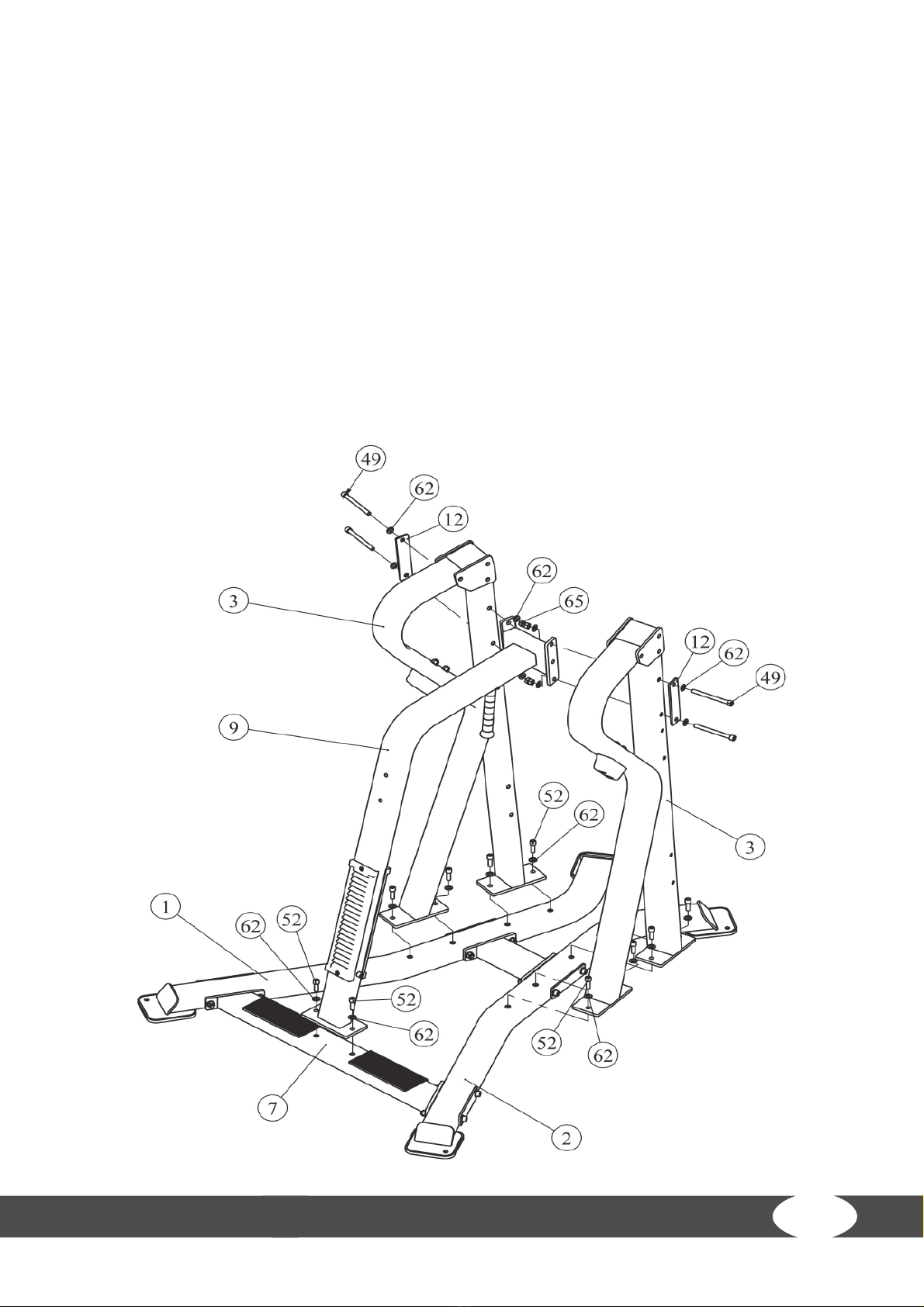

Step 2: Assembly of the Upright Frames and Middle Standing Frame
NOTICE
Do not tighten the screws and nuts completely yet.
1. Attach one upright frame (3) to the left bottom frame (1) with four screws (52) and four at
washers (62).
2. Attach another upright frame (3) to the right bottom frame (2) with four screws (52) and four
at washers (62).
3. Attach the middle standing frame (9) to the long cross frame (7) with two screws (52) and two
at washers (62).
4. Attach the middle standing frame (9) to the upright frames (3) with a total of two narrow outside
plates (12), four screws (49), eight at washers (62) and four lock nuts (62).
5. Tighten the screws and nuts from this and the previous assembly step with the appropriate
tools.

16 Low Row

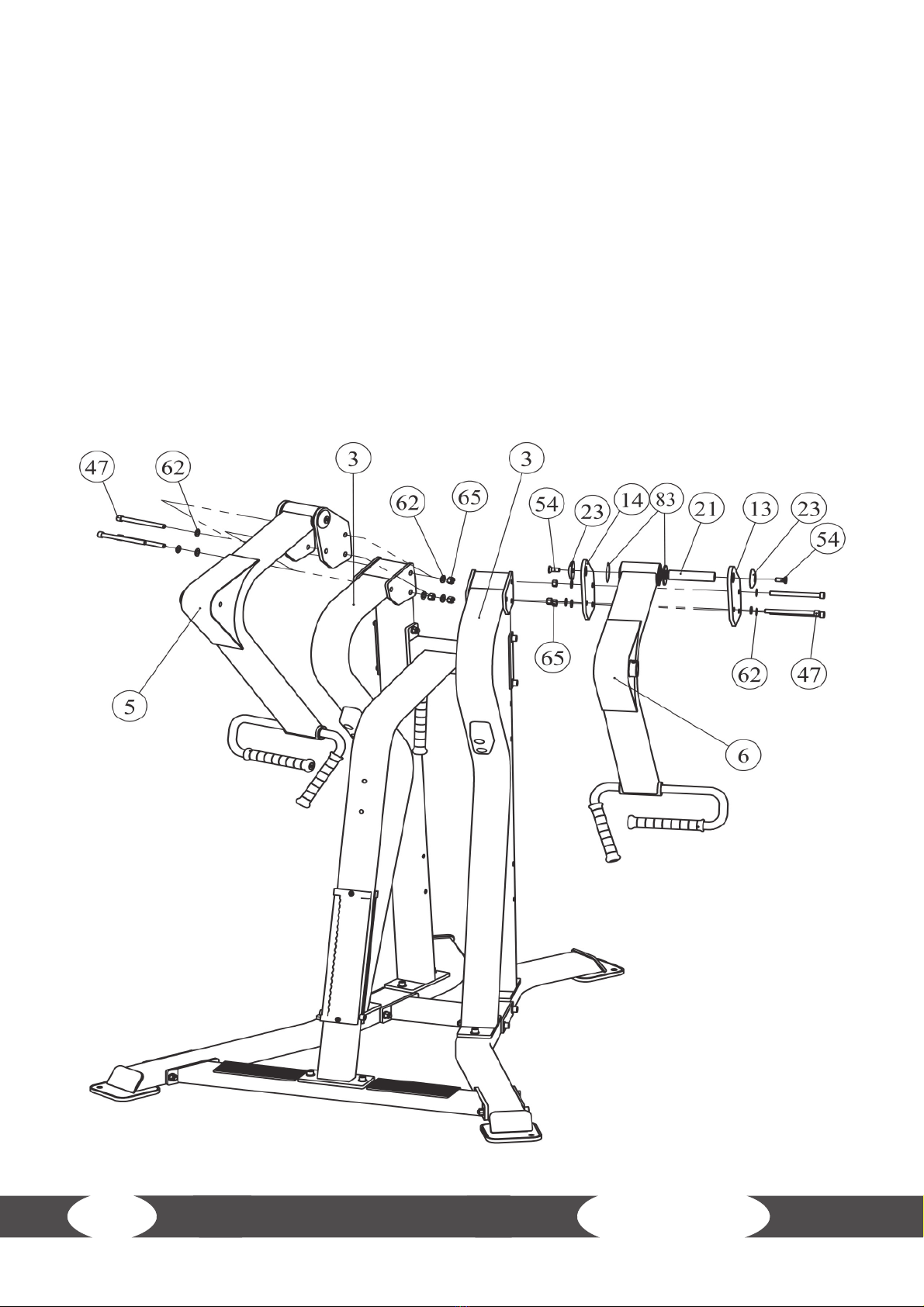

Step 3: Assembly of the Arm Frames
1. Slide one pivot shaft (21) through the right arm frame (6).
2. Attach two bae rings (83), one pivot plate 1 (13) and one pivot plate 2 (14) to the right arm
frame (6) with two domed aluminium caps (23) and two screws (54).
3. Attach the right arm frame (6) to the right sided upright frame (3) with three screws (47), six at
washers (62) and three lock nuts (65).
4. Repeat the steps 1 to 3 with the left arm frame (5).
5. Tighten the screws and nuts with the appropriate tools.

17
Step 4: Assembly of the Weight Horns and Weight Plate Storages
1. Attach two weight plate storages (11) to the right upright frame (3) with a total of four screws
(50), eight at washers (62) and four lock nuts (65).
NOTICE
The weight horns should be installed at a 5-degree-angle like shown.
2. Attach one weight horn (4) to the right arm frame (6) with one screw (53) and one domed
aluminium cap (23).
3. Secure the weight horn (4) with two screws (82), two spring washers (81) and two at washers
(80).
4. Slide one rubber bumper (22) onto the weight horn (4).
5. Repeat the steps 1 to 4 on the left side.
6. Tighten the screws and nuts with the appropriate tools.

18 Low Row
Step 5: Assembly of the Seat Frame
NOTICE
+ Do not tighten the screws and nuts completely yet.
+ Make sure that the seat frame (15) can be moved up and down smoothly. If needed, slightly
loosen the screws and nuts.
1. Attach the seat frame (15) to the middle standing frame (9) with two idler wheels (30), two
screws (48), four at washers (62) and two lock nuts (65).
2. Slide the supporting sleeve (71) between the two frame parts of the seat frame (15).
3. Attach the supporting sleeve (71) to the seat frame (15) with one screw (55), two at washers
(63) and one lock nut (64).
⚠CAUTION
Carefully hold the pull spring (29) at the hooks.
4. Hook the pull spring (29) onto the supporting sleeve (71) and the middle standing frame (9).

19
Pull spring
Lock nut
Flat washer
Seat frame
Supporting sleeve
Screw
Flat washer

63
63
56
57
20 Low Row

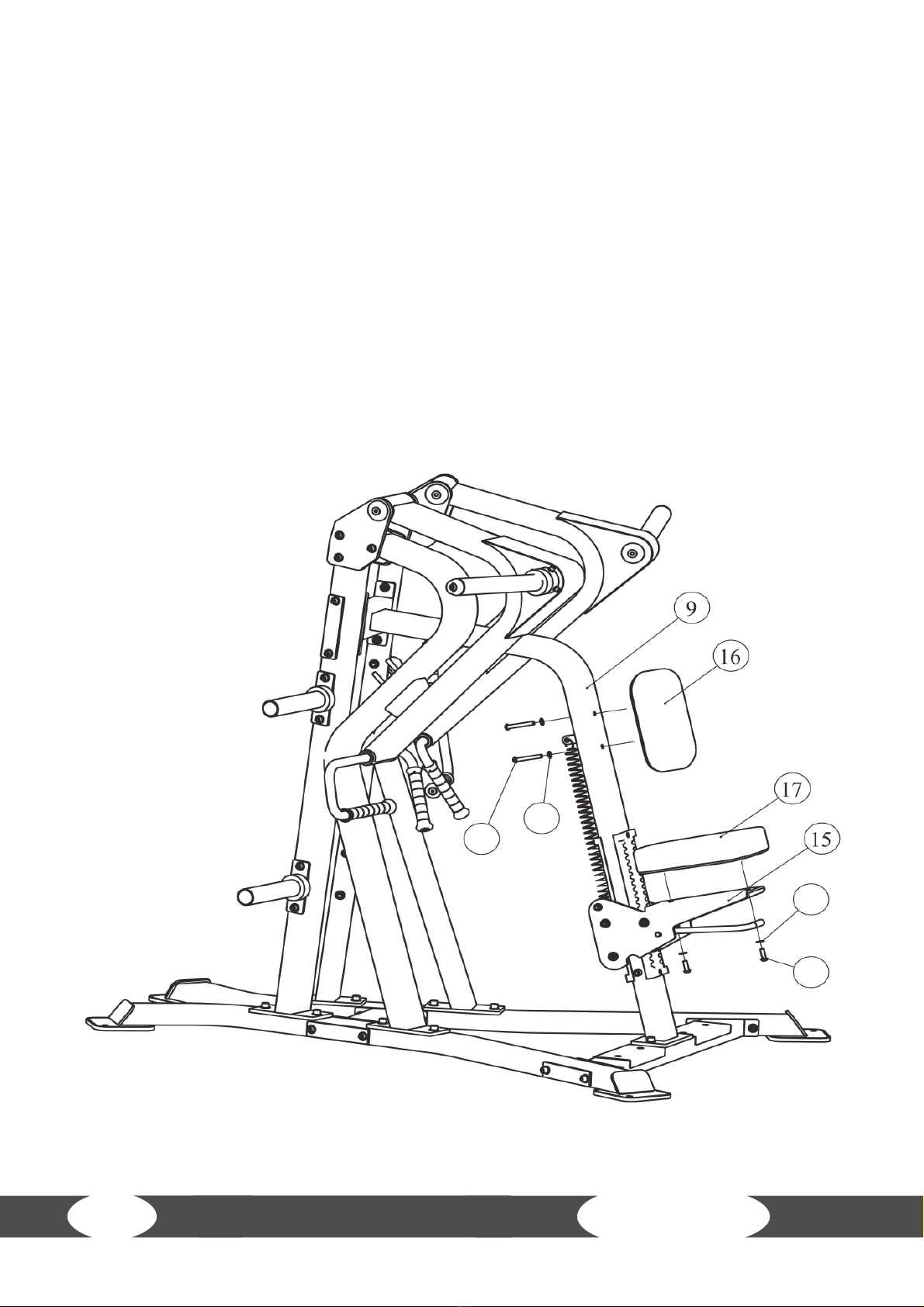

Step 6: Assembly of the Pads
1. Attach the seat pad (17) to the seat frame (16) with two screws (57) and two at washers (63).
2. Attach the chest pad (16) to the middle standing frame (9) with two screws (56) and two at
washers (63).
3. Tighten the screws with the appropriate tool.
4. Check that all screws and nuts are properly tightened and retighten if needed.
→The assembly is completed.
