Taurus TF-PTT0224 User manual

TFPTT0224.01.01
TF- Taurus Studio Adj Roman Chair
max. 250 kg
~ 60 Min.
CM
71 kg
Assembly Instructions
Art. No. TF-PTT0224
L 160 | W 94 | H 108

2
Adjustable Roman Chair

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 12
3 STORAGE AND TRANSPORT 22
3.1 General Instructions 22
4 TROUBLESHOOTING, CARE AND MAINTENANCE 23
4.1 General Instructions 23
4.2 Faults and Fault Diagnosis 23
4.3 Maintenance and Inspection Calendar 24
5 DISPOSAL 24
6 RECOMMENDED ACCESSORIES 25
7 ORDERING SPARE PARTS 26
7.1 Serial Number and Model Name 26
7.2 Parts List 27
7.3 Exploded Drawing 29
8 WARRANTY 30
9 CONTACT 32

4
Adjustable Roman Chair

5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2011 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
This tness equipment is suitable for home use, semi-professional use and commercial or
professional use. The semi-professional sector includes, for example, institutional facilities such
as hospitals, schools, hotels and associations. Professional use refers to commercial use, e.g. in a
tness studio.

6
Adjustable Roman Chair
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and Dimensions:
Packaging dimensions (L x W x H) and weight approx.:
Box 1: 127 cm x 67 cm x 38.5 cm 65 kg
Box 2: 60 cm x 20 cm x 48 cm 13 kg
Article weight (net, excl. packaging) approx.: 71 kg
Set-up dimensions (L x W x H) approx.: 159.7 cm x 93.8 cm x 108.4 cm
Maximum load: 250 kg

8
Adjustable Roman Chair
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

10
Adjustable Roman Chair
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

INSPECTED BY EEEEEEEEEEEEEEE 
PTT0224F-PART LIST
ITEM NO. NAME. DESCRIPTION. QTY.
OPERATER.
1
Intermediate
Support
Frame
1
2 Right Support
Frame
1
3
Left Support
Frame
1
5 Cushion Frame 1
6
Mainframe
1
12
Foot frame
1
4
Pedal Frame
1
8
Arc Adjusting
Plate
1
9
Adjusting Tube
1
13
Back Pad
2
14 Leg Pad 4
Intermediate
support frame
Left support frame
HARDWARE PACK
1
INSPECTED BY:_______________
2
3
4
5
6
7
1
back pad frame
1
1
Foot frame
1
1
1
leg pad supporting
structure
arc adjustable plate
1
Right support frame
Mainframe
8
9
10
1
1
1
Adjustment pipe
PTT0224F-PART LIST
ITEM NO. DESCRIPTION. QTY.
NAME. OPERATER.
11
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

1Intermediate support frame 1
2Right support frame 1
3Left support frame 1
44 Hex socket head cap screw M12*140 2
47 Plain washer Φ24*Φ13*2.5 4
52 Nylon insert lock nut M12 2
12
Adjustable Roman Chair
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Assembly of the Support Frames

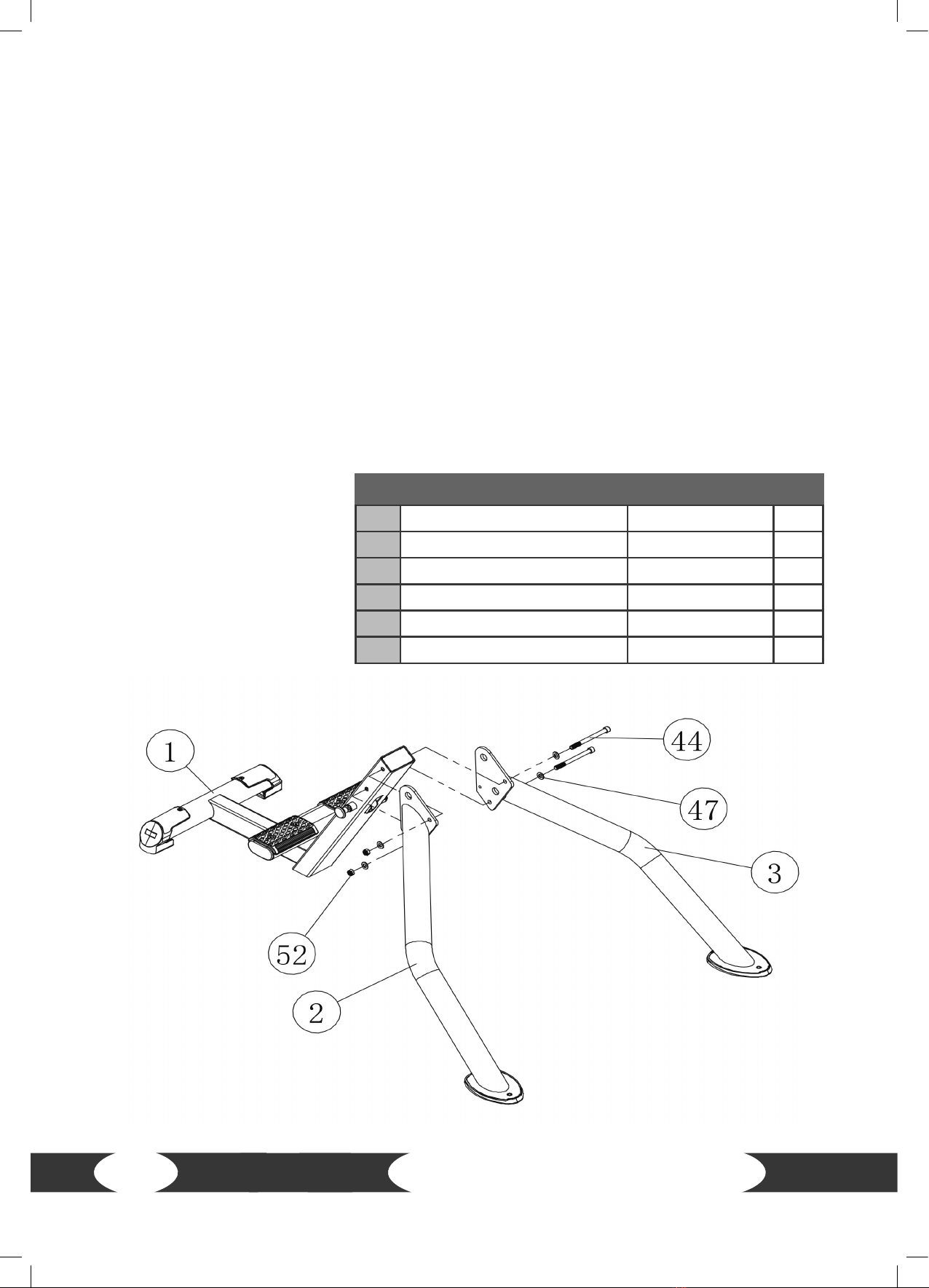

1. Place the right support frame (2) and left support frame (3) on the outer sides of the intermediate
support frame (1).
2. Mount the right support frame (2) and left support frame (3) onto the intermediate support
frame (1) with two screws (44), four plain washers (47) and two nuts (52).
No. Name Specication Qty.

2Right support frame 1
3Left support frame 1
6Main frame 1
7Leg pad xing frame Φ25*124 1
33 Circlips for shaft d0=25 2
13
Step 2: Assembly of the Main Frame

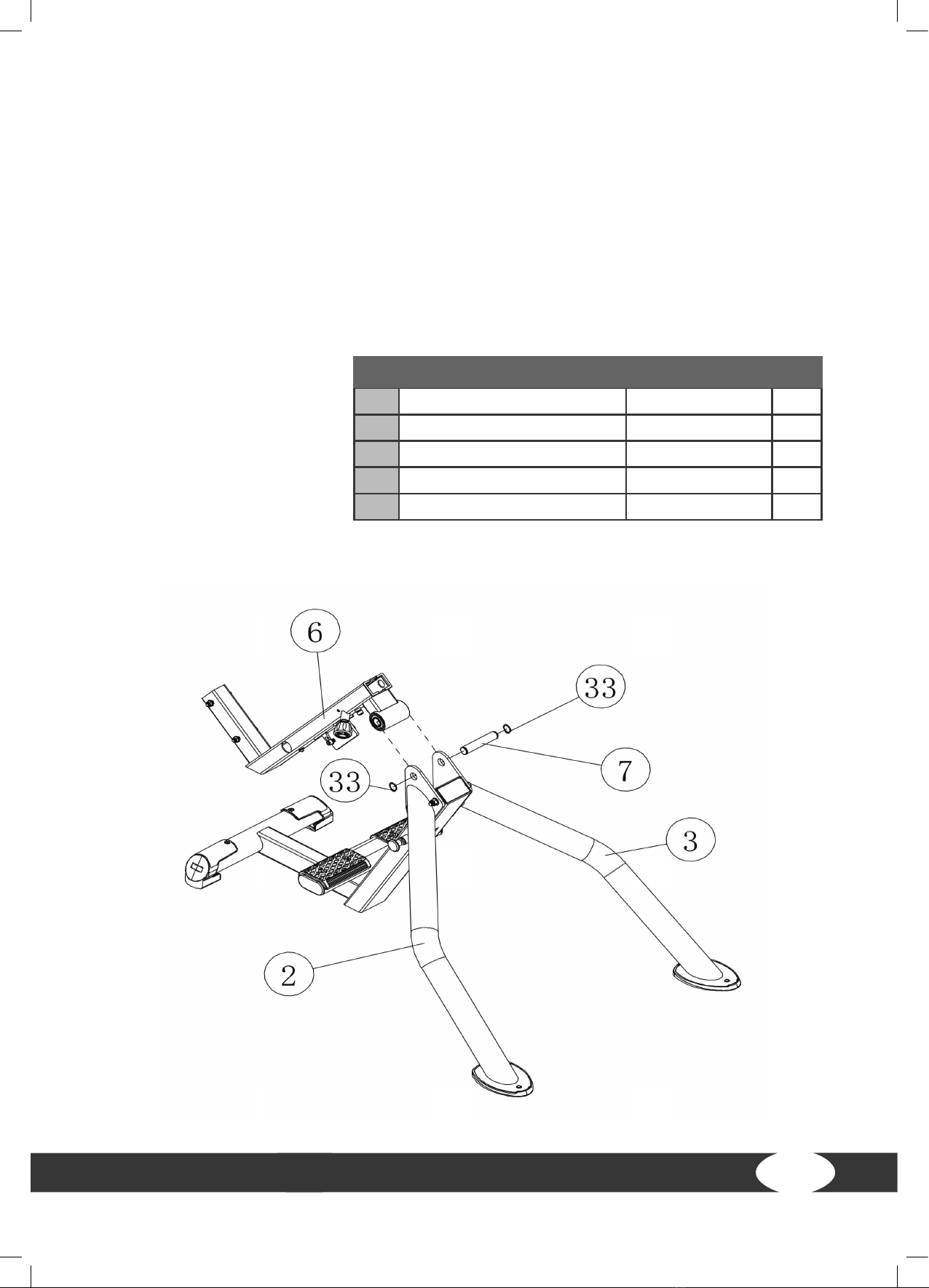

1. Slide the main frame (6) in between the right support frame (2) and left support frame (3).
2. Make sure that the holes of the right and left support frames (2 & 3) align with the hole of the
main frame (6).
3. Insert the leg pad xing frame (7) through the hole of the right and left support frames (2 & 3)
and main frame (6).
4. Secure the joint on the outer side of the right and left support frames (2 & 3) with one circlips
for shaft (33) each.
No. Name Specication Qty.

6Main frame 1
12 Foot frame 1
42 Hex socket head cap screw M10*80 2
46 Plain washer Φ20*Φ10.5*2 4
51 Nylon insert lock nut M10 2
14
Adjustable Roman Chair
Step 3: Assembly of the Foot Frame
Mount the foot frame (12) onto the main frame (6) with two screws (42), four plain washers (46) and
two nuts (51).
No. Name Specication Qty.

6Main frame 1
8Arc adjusting plate 1
25 Limiting rubber φ20*17*M8 2
39 Hexagon socket button head
screw
M8*20 2
41 Hex socket head cap screw M10*30 2
45 Plain washer Φ16*Φ8.4*1.6 2
46 Plain washer Φ20*Φ10.5*2 4
48 Spring washer M8 2
51 Nylon insert lock nut M10 2
15
Step 4: Assembly of the Arc Adjusting Plate
1. Mount the arc adjusting plate (8) onto the main frame (6) with two screws (41), four plain
washers (46) and two nuts (51).
2. Mount the limiting rubber (25) onto the two outer holes of the arc adjusting plate (8) with one
screw (39), one spring washer (48) and one plain washer (45) each.
No. Name Specication Qty.

2Right support frame 1
6Main frame 1
19 Gas spring φ22*330 (55KG) 1
45 Plain washer Φ16*Φ8.4*1.6 2
50 Nylon insert lock nut M8 2
16
Adjustable Roman Chair
Step 5: Assembly of the Gas Spring
1. Mount the gas spring (19) onto the main frame (6) with one nut (50) and one plain washer (45).
2. Mount the gas spring (19) onto the right support frame (2) with one nut (50) and one plain
washer (45).
No. Name Specication Qty.

6Main frame 1
9Adjusting tube 1
31 Rotary knob 1
18 Limiting screw M10*25*φ8 1
49 Spring washer M10 1
31
17
Step 6: Assembly of the Adjusting Tube
1. Pull out the rotary knob (31) a bit.
2. Insert the adjusting tube (9) into the opening of the main frame (6).
3. Let go of the rotary knob (31) and ensure that it engages with one of the holes of the adjusting
tube (9).
4. Screw in the limiting screw (18) along with a spring washer (49).
No. Name Specication Qty.

5Cushion frame 1
9Adjusting tube 1
43 Hex socket head cap screw M10*90 2
46 Plain washer Φ20*Φ10.5*2 4
51 Nylon insert lock nut M10 2
18
Adjustable Roman Chair
Step 7: Assembly of the Cushion Frame
Mount the cushion frame (5) onto the adjusting tube (9) with two screws (2), four plain washers (46)
and two nuts (51).
No. Name Specication Qty.

5Cushion frame 1
13 Back pad 2
40 Hexagon socket button head
screw
M8*30 4
45 Plain washer Φ16*Φ8.4*1.6 4
48 Spring washer M8 4
19
Step 8: Assembly of the Back Pad
1. Mount the back pads (13) onto the cushion frame (5) with two screws (40), two spring washers
(48) and two plain washers (45) each.
No. Name Specication Qty.

4Pedal frame 1
6Main frame 1
26 End cap Φ50*Φ9*15 1
38 Countersunk hex socket screw M8*25 1
39 Hexagon socket button head
screw
M8*20 1
45 Plain washer Φ16*Φ8.4*1.6 1
48 Spring washer M8 1
20
Adjustable Roman Chair

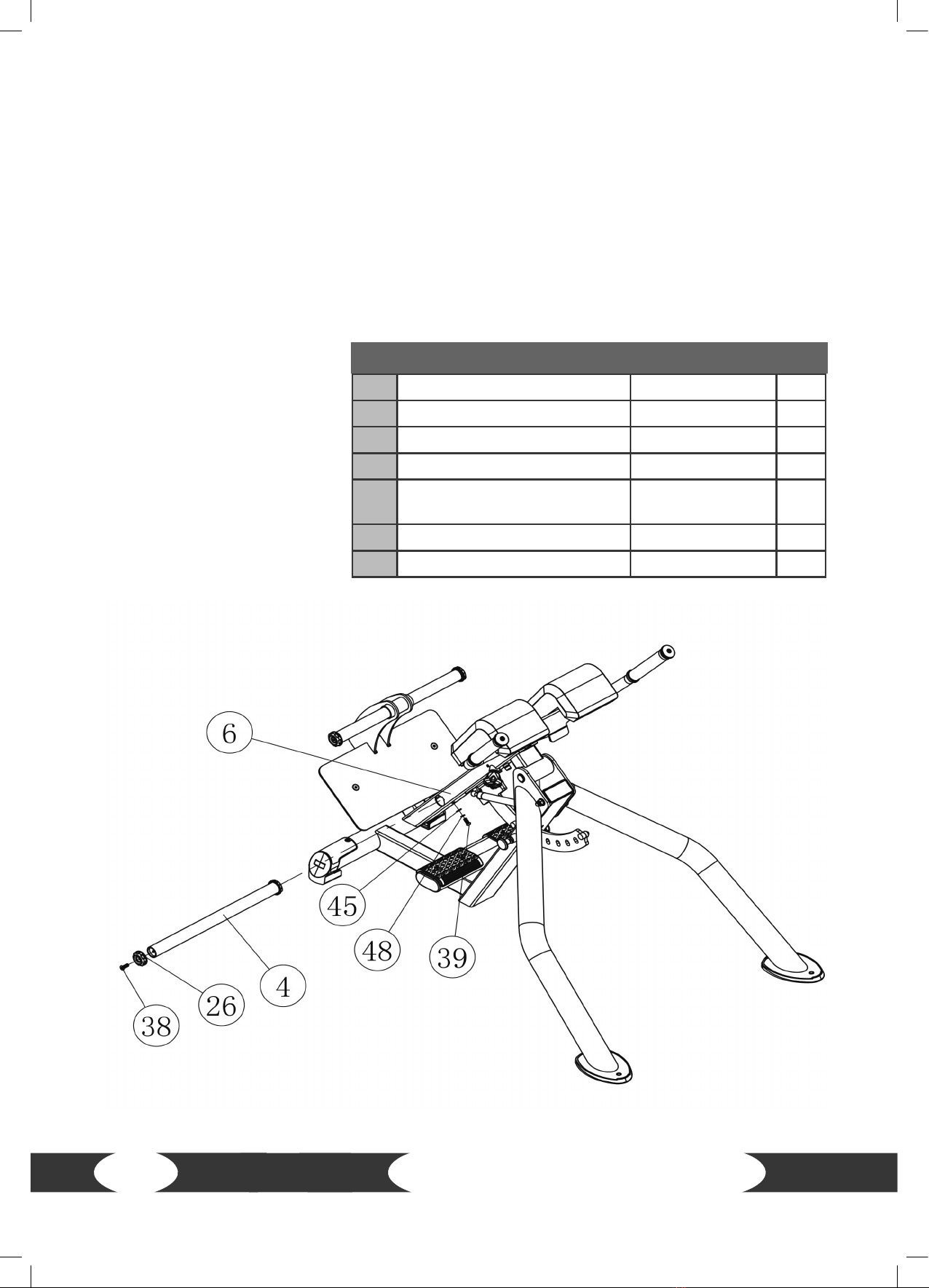

Step 9: Assembly of the Pedal Frame
1. Remove one end cap (26) of the pedal frame (4) by loosening the screw (38).
2. Slide the pedal frame (4) through the opening of the main frame (6).
3. Mount the pedal frame (4) onto the main frame (6) with one screw (39), one spring washer (48)
and one plain washer (45).
LNOTICE
Do not re-attach the end cap (26) yet.
No. Name Specication Qty.
