Tcl Alcatel pixi4-4.5 tf User manual

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 1/28

PIXI4-4.5 CRICKET

4060 O

Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior

notice on the characteristics of described equipments.

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 2/28

1.1 Verify

1.1 Update

1.0 2016-06-02 Preliminary Draft Mani Lee Abby Zhou Damon Han

Rev. Date Modification description Prepared By Checked By Approved By

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 3/28

Content

1.General.............................................................................................................................................4

2.Portable Label..................................................................................................................................6

2.1.Label zones......................................................................................................................................6

2.2.Commercial Label Samples...........................................................................................................7

2.3.CU label............................................................................................................................................8

2.4.L1 Spare Part List ...........................................................................................................................8

2.5.Accessory.........................................................................................................................................8

2.5.1.Charger......................................................................................................................................8

2.5.2.End user USB cable ................................................................................................................9

2.6.Maintenance policy.........................................................................................................................9

2.6.1.For handset:..............................................................................................................................9

2.6.2.For standard accessories (charger, headset and USB cable)..........................................9

2.6.3.If input the following codes on handset, you can:.............................................................10

2.6.4.User Data Format reset introduction...................................................................................10

2.7.Cell phone maintenance..............................................................................................................11

2.8.Invoice check.................................................................................................................................11

2.9.IMEI Check.....................................................................................................................................12

2.10.Humidity sensitive sticker Check.........................................................................................13

2.11.Visual Mechanical inspection...............................................................................................13

2.12.Accessories inspection..........................................................................................................14

2.13.Cell phone maintenance procedure....................................................................................15

3.Software download .......................................................................................................................20

3.1 Equipments requested when download：.................................................................................20

3.2 Handset driver installation............................................................................................................20

3.3 SW download process..................................................................................................................24

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 4/28

1. General

PIXI4-4.5 CRICKET (4060 O) is a MSM8909 Platform phone with Quad Core, @ 4x1.1GHz, and

BT/WLAN/MP3, social network service etc functions. It originally installed android M. It can work with the

2G Data GSM 850/900/1800/1900, 3G Data B2 / B4 / B5, HSPA+ (21M bit/s DL), 4G Data B2 / B4 / B5 /

B12 MFBI.

Detail features

Project Name PIXI4-4.5 CRICKET

Commercial Name 4060 O

Platform & OS Platform MSM8909

CPU frequence Quad Core, @ 4x1.1GHz

OS Android M

Design

Dimensions (mm) 132.2*65.1*10.05mm

Form factor Bar

Side Keys Volume & Power Key

Removable battery cover Yes

Estimated Weight (g) 136

Display

Main LCD Size (inch) 4.5

Main display resolution FWVGA (854×480)

LTPS --

LED indicator charging indicator, events indicator

Touch technology Capacitive

Main display orientation Portrait

Touch technology Capacitive

Main LCD Type TFT

Sub-display --

Oleophobic coating (Anti-finger

coating) --

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 5/28

Available Ports

Card slot 1SIM + TF card

SIM Card Number 1

SIM Slot 1 3FF (Micro-SIM)

SIM Slot 2 --

SIM Slot 3 --

TF card slot Yes

Hot swap No for Sim card, yes for TF card

Audio Jack 3.5mm audio jack

Multimedia Output --

Charging Port Micro-USB

Memory

ROM 8GB

RAM 1GB

External storage Micro SD, up to 128GB

End User Space --

Connectivity

Wi-Fi / WLAN 802.11b/g/n

Wi-Fi Direct Yes

Radio Yes

Wireless FM ----

Bluetooth Yes

Bluetooth supported version BT 4.1

USB Data Transfer Yes

USB OTG ---

USB Charging Micro-USB

Others

Rear Camera

Number of pixels 5MP

Focus FF

Image Sensor S5K5E8

Sensor Size 1/5"

Sensor Pixel size 1.12um

Lens Apeture size f/2.39

Flash type --

Focus Speed --

Video 720@30fps

Front Camera

Number of pixels 2MP

Focus FF

Image Sensor GC2355

Sensor Size 1/5"

Sensor Pixel size 1.75um

Camera Flash no

Lens Apeture size f/2.85

Flash type --

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 6/28

Video 720@30fps

Other features ---

Sensors

GPS Yes, with A-GPS

Accelerometer (G sensor) Yes

Proximity Sensor SW solution by default, HW P-sensory

compatible

Light sensor ---

E-Compass ---

Gyro ----

Hall Switch ----

Battery

Battery capacity (mAh) '1780mAh

Standby time 180h

Talking time (Hours) 5h

Charging Technology ----

Battery type hardpack

Accessary

Standard

MOU 5V 1A charger

USB cable

LCD sticker

Quick Guide

Product Safety Information leaflet

Optional --

2. Portable Label

2.1. Label zones

Printing zone definition (CPE000380AC0----For General 45*59)

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 7/28

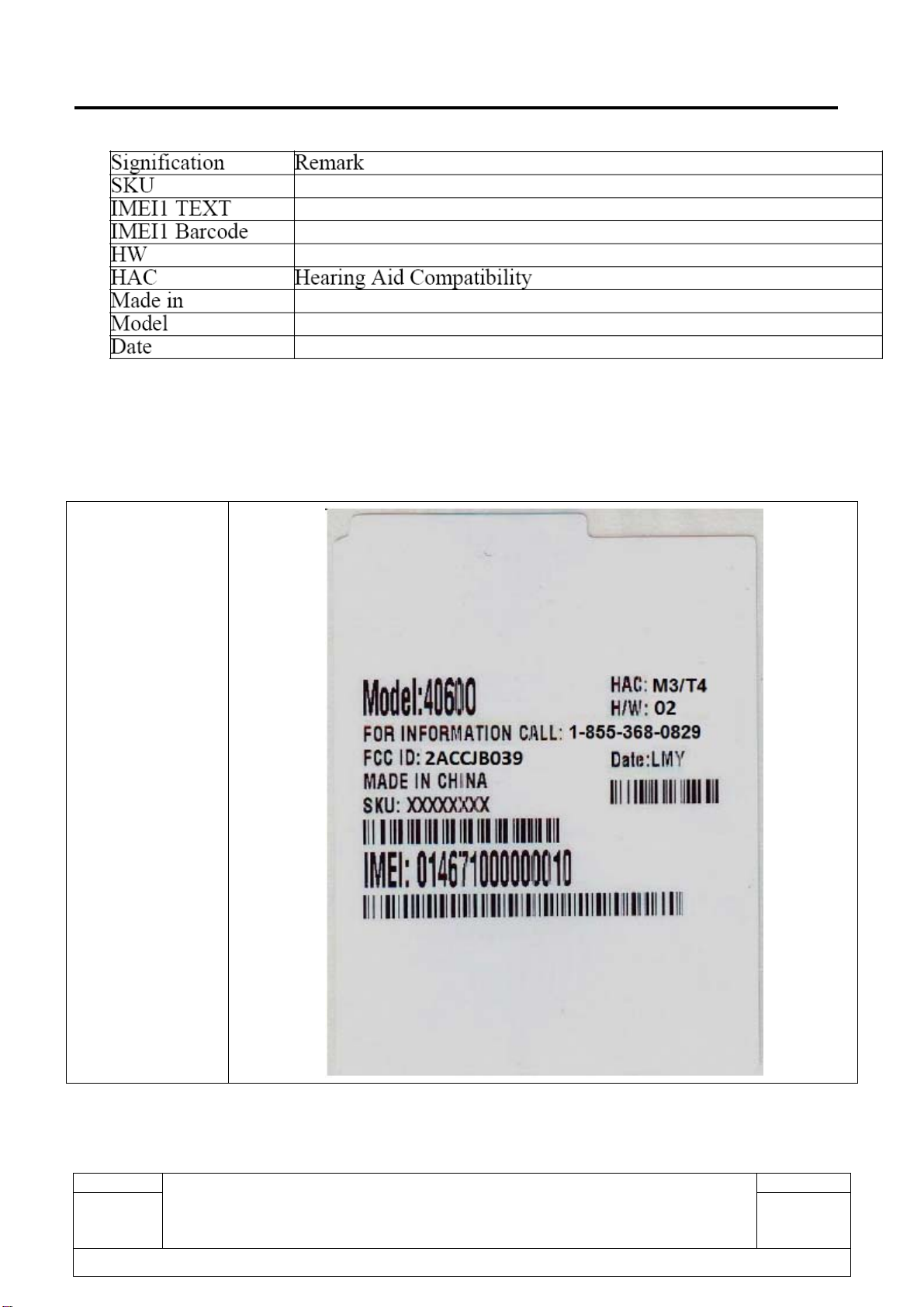

2.2. Commercial Label Samples

4060 O-2AAQUS0-

R1

IMEI V04

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 8/28

2.3. CU label

4060 O-2AAQUS0-R1

CU V02

2.4. L1 Spare Part List

Please get the latest SPL in Forlog system.

2.5. Accessory

2.5.1. Charger

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 9/28

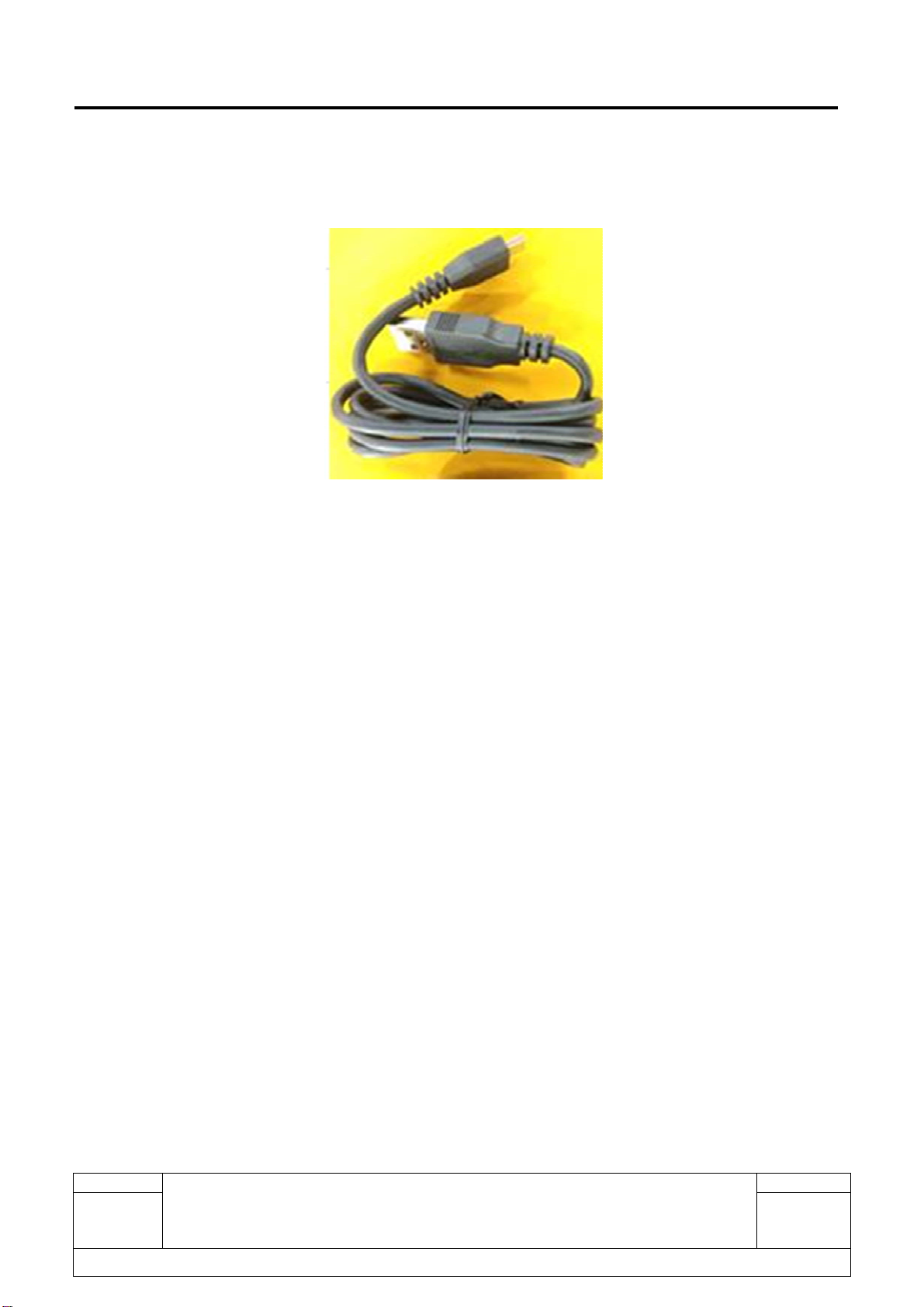

2.5.2. End user USB cable

2.6. Maintenance policy

This chapter describes the maintenance of the 4060 O series phone authorized at L1 repair centre. The

maintenance operations can only be performed in approved repair centres.

General

Main L1 maintenance operations are as following:

2.6.1. For handset:

1) Warranty check

2) Function test

3) SW downloading

4) Replacement of the defective handset.

2.6.2. For standard accessories (charger, headset and USB cable)

1) Warranty check

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 10/28

2) Functional check

3) Replacement of defective accessories

2.6.3. If input the following codes on handset, you can:

Code Description

*#06# Display IMEI number

*#2886# Enter Auto Test mode

*#3228# Check current software version

End user format Long press volume up key +power key

2.6.4. User Data Format reset introduction

How to use:

Long press Power Key + Volume up key in power off mode to enter recovery mode.

When to use: If you can’t start your handset or when you start your handset, there will be something wrong

with it, like can’t charge or can’t charge normally.

What does it do when you use End user format function: it will format end user area, and your handset

will come back to factory model, everything you save or set in the handset (except SIM card) will be lost.

Detail steps：

1. Shut down the phone.

2. Long press Power Key + Volume up key for about 8s to enter recovery mode to select “Reboot

the system now”, press power key to confirm

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 11/28

2.7. Cell phone maintenance

1) Equipments for handset test.

Battery with full power.

One SIM card.

2) It is recommended the following tools:

One PC with Windows 2000/NT/XP/Windows 7.

One ampere meter for charger current test.

2.8. Invoice check

1. Check warranty status of Handset by POP (Proof of Purchase) firstly.

2. If the end user lost his POP, then consider the data code on commercial label as the purchasing day.

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 12/28

Note:

day

1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6 7 8 9 A

11 12 13 14 15 16 17 18 19 20

B C D E F G H I J K

21 22 23 24 25 26 27 28 29 30

L M N O P Q R S T U

31

V

mouth

1 2 3 4 5 6 7 8 9 10

E F G H I J K L M N

11 12

O P

year

16 17 18 19 20 21 22 23 24 25

Z A B C D E F G H I

26 27 28 29 30 31 32 33

J K L M N O P Q

2.9. IMEI Check

1) Power on the handset, enter ”Settings” -> “About” -> “Status” ”IMEI”

Coding day

Coding month

Coding year

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 13/28

2) If the IMEI sticker in the back casing is not lost:

We should make sure that the IMEI number MUST be the same with the one on the IMEI sticker; if not,

it’s out of warranty policy.

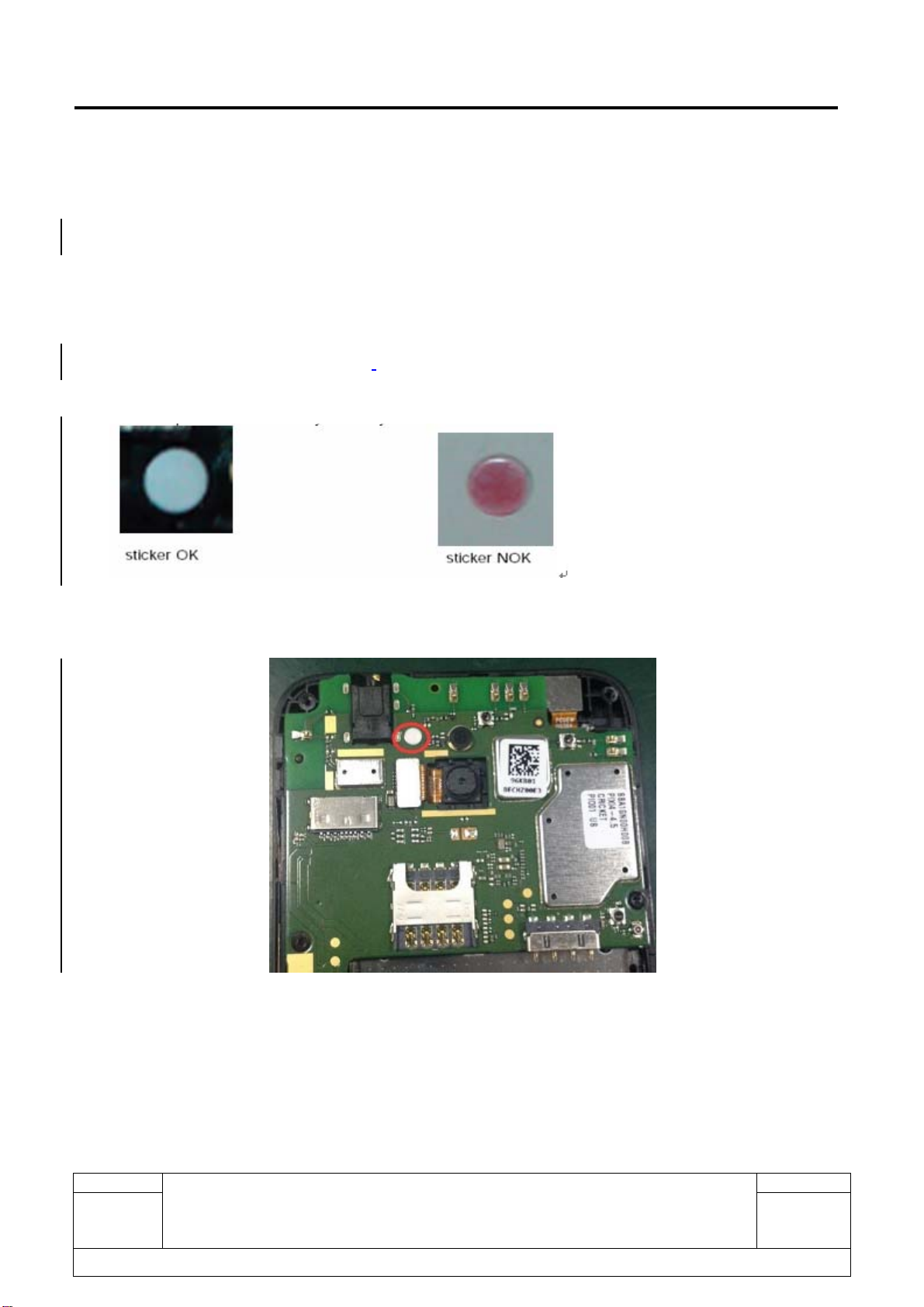

2.10.Humidity sensitive sticker Check

If humidity sensitive label is not good, the cell phone will be considered as out of guarantee.

¾Liquid was detected by humidity sensitive label.

¾Positions of humidity sensitive sticker.

2.11.Visual Mechanical inspection

Mechanical warranties check items:

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 14/28

1) Corrosion

Corrosion on the USB connectors, SIM connectors, and other metal surfaces

2) Hole

Holes (Diameter > 1mm) on any surface, including front casing, decorate frame, battery cover,

LCD Lens, keypad.

3) Bump

Bumps (Diameter>1mm) on any surface, including the front casing, decorate frame, battery cover,

LCD Lens, keypad

4) Scratch (length > 3mm)

Scratches on any surface, including the front casing, furnished frame, battery cover, LCD Lens,

keypad

5) Distortion

Bend, twisted or crushed on the h/s, cover/casing or connectors

6) Broken

LCD broken, casing broken, cover broken

7) Dropped.

Keypad tear off, LCD lens, connectors fallen off

8) Gap:

External physical damage relating to abnormal use, like front case and frame opened

9) Others:

Damage caused by disassembly like wrong part assembly, lost of components

Use in abnormal environment like too high temperature with plastic melts

2.12.Accessories inspection

Accessories warranties check items:

1) Any use in abnormal temperature, other than the one specified in the user manual. Any evidence of

plastic/casing melted.

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 15/28

2) Any mark of food or liquid around the accessory or in the USB socket.

3) Any evidence of mechanical shocked which damage the enclosure of the charger or headset.

4) Any mark of tentative of disassembly the accessory

5) Any abnormal use which induce wire damage, wire broken or USB socket deformed.

2.13.Cell phone maintenance procedure

1) Check that the SIM card and SD card are set correctly.

2) Power on the cell phone.

3) If the cell phone asks to input NCK code, which means it is SIM locked, and can only be worked with

dedicated SIM card. Use the correct SIM card.

4) Enter the phone code if necessary.

5) If power on, test step by step with the auto test code:

Press *#2886# in dial screen and then you will see the interface displaying the SW version. Select

“Auto” to start the auto test, or select “MANU” to do the MMI test manually.

If one of the tests failed during “Auto” test mode, it will display “Failed: xxx, Press ‘Next’ to go on test;

Press ‘RETEST’ to retest this item; Press ‘END’ to Power off.”

Traceability

I. You can get information such as BT, CU-REF, PTH ,MMI,etc.,

II. Press “pass” key to continue.

Check Tunning

It will test automatically and display” OK” if it functions well.

TP RAW Data

I. You can see Raw data test is running;

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 16/28

II. Press “pass” key to continue;

Touch Panel

I. “Please draw in the yellow area” according to instructions

II. Press “PASS” to continue.

Display

I. You will see the LCD display three colors - RED, GREEN and BLUE - if it functions well;

II. Press “Pass” to continue.

III. You will see the LCD display black if it functions well.

IV.Press “Pass” to continue.

V. You will see the LCD display greychart if it functions well.

VI.Press “Pass” to continue.

VII. You will see the LCD display white if it functions well.

VIII.Press “Pass” to continue.

IX.You will see the LCD display grey if it functions well.

X. Press “Pass” to continue.

Keyboard

I. You will see the key of the V+, V-, and power, click the corresponding key, then the key turn

gray on the screen.

II. Press “Pass” to continue.

BACKLIGHT

I. You will see the screen flash if it functions well

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 17/28

II. Press “Pass” to continue.

Front Camera

I. You will see the LCD displays the picture that front camera catch if it functions well;

II. Press “Pass” to continue.

Main Camera

I. You will see the LCD displays the picture that back camera catch if it functions well;

II. Press “Pass” to continue;

Charger Led

I. It will display “Please check charge LED" if it functions well.

II. Press “Pass” to continue;

AUDIO

I. You will hear piece of record if it functions well;

II. Press ”Pass” to continue;

Vibrator

You can feel the vibration if it functions well.

Accessories

I. Insert the headset.

II. You will hear one record in left discrete;

The “Volume Down “and “Volume Up” will display grey if it functions well.

III. Press ”Pass” ,you will hear one record in right discrete;

The “Volume Down “and “Volume Up” will display grey if it functions well.

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 18/28

IV. Press ”pass” to continue;

V. You will hear piece of record if it functions well;

VI. remove your headset

VII. Press ”Pass” to continue;

FM

I. You will hear the sound from on channel when you insert earphoneif it functions well;

II. Remove the ear phone then press “Pass” to continue;

USB/Charger

I. Insert USB cable according to instruction, then it will say “USB is OK” ;

II. Remove USB cable according to instruction

III. Press “Pass” to continue;

IV. Insert charger cable according to instruction, then it will say “Charger cable checked” ;

V. Press “Pass” to continue;

G-Sensor

I. Put the handset up and towards up according to instruction;

II. Put the handset towards the directions indicated by instructions; it will say “All positions

checked” after you following all the directions if it if it functions well;

III. Press “Pass” to continue;

SIM

I. Insert SIM card and the phone will detect it if functions well;

II. Press “Pass” to continue;

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 19/28

SD Card

III. Insert SD card and the phone will detect it if functions well;

IV. Press “Pass” to continue;

Battery

I. It will display “Battery temperature should between: 20~50”, “current is xxx”

“Battery content should between: 30~80%”, “current is xxx”

“Battery Voltage is xxx”, “Battery Present is xxx” if it functions well;

II. Press ”Pass” to continue;

BLUETOOTH

I. Bluetooth will search automatically and it will display device address if it functions well;

II. Press ”Pass” to continue;

WIFI

I. It will search for WIFI hotspot and display searched result on the screen if it functions well;

II. Press”Pass” to continue;

GPS

I. It will run GPS and search for satellite, and then it will display info such as “PRN”, “SUR”,

etc. on the screen if it functions well;

II. Press”Pass” to continue;

Calling

I. It will automatically call the emergency call if it functions well.

II. Press “Pass” to continue;

Factory Reset

It will do the factory reset automatically if you press the item.

L1 Service Manual TCLCommunication Ltd.

Rev.

4060 O Level 1 Service Manual

Page

1.1 20/28

Seclnfo

I. Check device is effuse or not.

II. Press “Pass” to continue;

3. Software download

It is authorized to download software for the handset which needs to be updated. This downloading

tool is called “Multi-Download QCT_SP”. Handset Software can be downloaded from TS website via it.

Thus internet access is necessary. TS Website: https://css.tclmobile.cn/.

3.1 Equipments requested when download：

⑴A handset with full power;

⑵PC with windows system;

⑶A USB cable.

3.2 Handset driver installation

1）Android USB driver installation

TCL Alcatel Pixi4-4.5 TF User manual

Popular Cell Phone manuals by other brands
