DDVV--HH555500
SERVICE MANUAL
DVD Player
Effective : June, 2002 S-0067B
NOTES
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
●Parts of [ ] mark can be used only with the version designated.
[J]:JAPAN[US]:U.S.A.[C]:CANADA[E]:EUROPE[UK]:U.K.
注 意
●分解図に部番のない部品および品番のない部品は供給できま
せん。
●標準の抵抗、コンデンサーは省略してあります。
回路図を参照してください。
●£印は安全重要部品です。
交換する時は必ず指定の部品を使用してください。
●仕向先
[J]:JAPAN[US]:U.S.A.[C]:CANADA[E]:EUROPE[UK]:U.K.
CONTENTS
1 SAFETY INFORMATION ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
3 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・4
4 ELECTRICAL PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・8
5 INCLUDED ACCESSORIES ・・・・・・・・・・・・・・・・・・・・・・・・・・・・9
目次
1SAFETYINFORMATION ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2仕 様 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
3分解図とパーツリスト ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・4
4電気パーツリスト ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・8
5付属品 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・9

1 SAFETY INFORMATION
−2−
This product has been designed and manufactured according to FDA
regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation
Control for Health and Safety Act of 1968", and is classified as a class 1
laser product. There is no hazardous invisible laser radiation during
operation because invisible laser radiation emitted inside of this product
is completely confined in the protective housings.
The label required in this regulation is shown 1.
OCAUTION
USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
Optical pickup:
TYPE : DVD-1000J22B
MANUFACTURER : Hitachi Media Electronics Co. Ltd
LASER OUTPUT : Less than 0.5 mW on the objective lens
WAVE LENGTH : 635 - 665 nm (DVD)
: 790 ± 20 nm (CD)
1For U.S.A.

2 SPECIFICATIONS
−3−
仕 様
本体
電源 ................................................................ 100VAC50-60Hz
消費電力 ...................................................................................... 18W
外形寸法(WxHxD) .................... 285mmx101mmx288mm
質量............................................................................................ 3.3kg
許容動作温度............................................................ ＋5℃〜＋35℃
許容動作湿度...................................... 5％〜90％(結露のないこと)
許容保管温度 ........................................................ −20℃〜＋55℃
DVDプレーヤー部
レーザー ................................................ セミコンダクターレーザー
信号方式.......................................................................... NTSC/PAL
周波数特性(デジタルオーディオ) ............................ 2Hz〜22kHz
SN比(デジタルオーディオ) ................................................ 105dB
全高調波歪率................................................................ 0.008％以下
ダイナミックレンジ(デジタルオーディオ)............................ 92dB
ワウ・フラッター ................ 測定限界以下(±0.001%W.PEAK)
出力
映像出力.................................................................... 1.0Vp-p,75Ω
S映像出力
Y出力レベル ........................................................ 1Vp-p,75Ω
C出力レベル(NTSC) ................................ 0.286Vp-p,75Ω
コンポーネントビデオ出力(Y,CB,CR)
Y出力レベル .................................................... 1.0Vp-p,75Ω
CB出力レベル .................................................. 0.7Vp-p,75Ω
CR出力レベル .................................................. 0.7Vp-p,75Ω
音声出力(ライン).......................................... 2Vrms(1kΩ,0.8dB)
付属品
リモコン
リモコン用乾電池(単4)x2本
光デジタルケーブル×1本
オーディオケーブル×1本
映像ケーブル×1本
リモコンコード×1本
取扱説明書
保証書
仕様及び外観は改善のため予告なく変更することがあります。
DVD Player
Signal system: NTSC / PAL
Laser: Semiconductor laser
Frequency range (digital audio): 2 Hz to 22 kHz
Signal-to-noise rating (digital audio): More than 105 dB
Audio dynamic range (digital audio): More than 92 dB
Harmonic distortion (digital audio): 0.008%
Wow and flutter:
Below measurable level (less than ± 0.001% (W.PEAK))
Operating conditions:
Temperature: 5˚C to 35˚C
Operation status: Horizontal
Outputs
Video output:
RCA jack x 1
1.0 Vp-p, 75 Ω, negative sync.
S-video output:
Mini DIN 4-pin x 1
(Y) 1.0 Vp-p, 75 Ω, negative sync.
(C) 0.286 Vp-p, 75 Ω
Component Video output (U.S.A./Canada Model):
RCA jack x 1
(Y) 1.0 Vp-p, 75 Ω
(CB, CR) 0.7 Vp-p, 75 Ω
Audio output (digital audio):
RCA jack x 1, 0.5 Vp-p, 75 Ω
Audio output (analog audio):
RCA jack x1, 2.0 Vrms (1 kHz, 0.8 dB)
AV connector output (Europe/U.K. Model):
SCART jack x1
General
Power supply:
AC 120V, 60Hz (U.S.A./Canada Model)
AC 230V, 50Hz (Europe/U.K. Model)
Power consumption: 18 W
Weight: 3.3 kg (7-1/4 lbs)
External dimensions (W x H x D):
285 x 101 x 288 mm (11-1/4" x 4" x 11-5/16")
Accessories
Remote Control Unit x 1
Owner’s manual x 1
Audio Signal Cable x 1
Video Signal Cable x 1
Optical Cable x 1
Remote Control Cord x 1
•Design and specifications are subject to change without notice.
•Weight and dimensions are approximate.

−4−
1
3
2
4
5
6
8
911
12
13
14 15
16
16
17
18
19
20
21
22
23
24
24
24
25
26
27
28
29
30
7
10
3 EXPLODED VIEWS AND PARTS LIST
分解図とパーツリスト
EXPLODED VIEW-1

−5−
EXPLODED VIEW-1
REF.NO. PARTSNO. DESCRIPTION REMARKS
1‑1 9A06240500 WINDOW KGU1A154Y
1‑2 9A09261600 ORNAMENT,DOOR KGX1A310ZC11
1‑3 9A09261300 ORNAMENT,DOOR KGR1A246K92
1‑4 9A06677900 BADGE KGB1A047
1‑5 9A09261900 FRONTPANEL KKM1A112ZC11
1‑6 9A06251600 BAR,SIDE KKM1A051C11
1‑7 9A06229000 SCREW,SPECIAL KHD1A016
1‑8 9A08792000 WINDOW,SENSOR KGU1A245A10
1‑9 9A09261500 PANEL,SUB KGW1A323M9K64
1‑10 9A06316000 KNOB,TACT KBT1A386WK64
1‑11 9A06239700 KNOB,TACT KBT1A410C13
1‑12 9A06314300 KNOB,TACT(OPEN/CLOSE) KBT1A385YK64
1‑13 9A07301200 KNOB,POWER KBT2A387ZK64
1‑14 9A07301300 INDICATOR,POWER KGL2A120
1‑15 9A09255300 FIPDISPLAY KFLHNV07SM08T
1‑16 9A07290000 BRACKET,FLT KMD1A374
1‑17 9A09262100 FRONTPCBASSY KOP11464B
1‑18 9A09256800 SUPPORT,MECHA KMH1A141
1‑19 9A09229600 1DVDMECH(P/U),MGD‑F6003A BJDMGD‑F6003A
1‑20 9A09252200 1DVDMAINPCBASSY[J] KOP11445D
9A09252210 1DVDMAINPCBASSY[US,C] KOP11445C
9A09252220 1DVDMAINPCBASSY[E,UK] KOP11445B
1‑21 9A06315500 FOOT KKL1A047ZK63
1‑22 9A06229300 CUSHION,FOOT KHG1A039Z
1‑23 9A09262600 CHASSIS,BOTTOM KUA1A207
1‑24 9A01375500 PCBHOLDER KHE170
1‑25£9A09252400 POWERPCBSMPSASSY[J,US,C] KOP11489BSMPS
£9A09252420 POWERPCBSMPSASSY[E,UK] KOP11489CSMPS
1‑26 9A09262000 AVPCBASSY[J,US,C] KOP11458D
9A09262020 AVPCBASSY[E,UK] KOP11458E
1‑27 9A06251100 CABINET,TOP KKC1B076S21
1‑28 9A09261800 REARPANEL KKF1A229XK59
1‑29£9A06754900 BUSHING,ACCORD KHR1A028
1‑30£9A08144000 POWERCORD[J] BJA2J049Z
£9A08043100 POWERCORD[UC,C] BJA523FBY
£9A08152100 POWERCORD[E] BJA2B043Z
£9A09267600 POWERCORD[UK] BJA2E045Z
9A08038100 RING,FERRITE KLZ9W001Z

EXPLODED VIEW-2
−6−

−7−
EXPLODED VIEW-2 (MGD-F6003A)
REF.NO. PARTSNO. DESCRIPTION REMARKS
2‑1 9A09462400 CLAMPERBKT F6C1001
2‑2 9A09462500 YORK(CLAMPER‑T) 30D1002
2‑3 9A09462600 CHASSIS F6A3001
2‑4 9A09462700 PULLEY(MOTOR) F6D3007
2‑5 9A09462800 CLAMPER F6C3008
2‑6 9A09462900 GEAR(LOAD) F6D3006
2‑7 9A09463000 HOLDER(TU) F6C3003
2‑8 9A09463100 SLIDER(CAM) F6C3004
2‑9 9A09463200 TRAY F6A3002
2‑10 9A09463300 PULLEY(GEAR) F6D3005
2‑11 9A09463400 INSULATOR F6D4003
2‑12 9A09463500 DRIVEBELT F6D4002
2‑13 9A09463600 SCREW(TU) F5D8010
2‑14 9A09442300 SCREW(A2) E1D8012
2‑15 9A09463700 SCREW,SEMS1.7X3.5 N530047
2‑16 9A09463800 SCREW,BINDTAPPINGM2.6X8 N230001
2‑17 9A09463900 SHEET(FFC‑H) F6D8012
2‑19 9A09464100 PCB(MECH) F6A9002
2‑20 9A09464200 CUSHION(TU‑R) F6D8022
2‑21 9A09464300 FFCWIRE(24P) F6D9003
2‑22 9A09464400 MOTOR,MDN3BT3DSA 91433174
2‑23 9A09464500 LEVERSW,SSS‑28‑3 94402124
2‑24 9A09464600 TRAVERSEUNIT,DVD1000J22B 90999033
2‑27 9A09464900 PCBASSY P34‑0020

1 DVD MAIN PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
9A09252200 1DVDMAINPCBASSY[J]
9A09252210 1DVDMAINPCBASSY[US,C]
9A09252220 1DVDMAINPCBASSY[E,UK]
9A09259900 DVDMAINPCB
CN10 9A09256300 WAFER,CARDCABLE
CN12 9A09256400 40PHEADER
IC01 9A09254200 IC,ES4318F
IC03 9A09260300 IC,FLASHMEMORY(4M)
IC07 9A09254500 IC,74VHC04MX
IC08,IC09£9A09254300 IC,RC1117ST
IC10,IC11 9A08149700 IC,16MSDRAM
IC13 9A09260200 IC,EEPROM(16K)
IC14 9A09254100 IC,CS4955
L101,L102 9A05968600 COIL,BEAD
X101 9A09257100 CRYSTAL,CHIP(27MHZSMD)
AV PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
9A09262000 AVPCBASSY[J,US,C]
9A09262020 AVPCBASSY[E,UK]
9A09260000 AVPCB
CN10 9A09256300 WAFER,CARDCABLE
CN91 9A08870000 WAFER,CARDCABLE15P
D501 9A01390600 DIODE,1N4148T
IC51£9A09260500 IC,KA79L08AZT
IC52£9A09260400 IC,KA78L08AZT
IC53 9A07343300 IC,NJM2068MD‑TE1
IC54 9A09254400 IC,XWM8706EDS
IC55£9A07871100 IC,NJM7805FA
JK51 9A09256200 JACK,S‑VIDEO(1P/H)
JK52 9A09256100 JACK,IN/OUT[J,US,C]
JK53 9A08152300 SCARTCONNECTOR[E,UK]
JK54 9A06239100 MODULE,OPTICAL
JK55 9A09256000 PINJACKBOARD(6P)
L501,L502 9A08158400 COIL,1.8UHK
L503‑L505 9A08148000 COIL,2.7UHK
L506,L507 9A08158400 COIL,1.8UHK
L508,L509 9A05356900 COIL,10UHK
Q501 9A08791000 TR,KRA107M
Q502,Q503 9A05895900 TR,KTA1266YT
Q504 9A08791100 TR,KRC107M
Q505,Q506 9A05197500 TR,KTD1302T
SW51 9A06675300 SWITCH,SLIDE
FRONT PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
9A09262100 FRONTPCBASSY
9A09262700 FRONTPCB
CN91 9A08867800 WAFER,CARDCABLE15P
D901 9A08147300 LED,SLR342VCTB7(RED)
D906,D911 9A01390500 DIODE,1N4148MT
F901 9A09255300 FIPDISPLAY
IC91 9A09254000 IC,MICOM
IC92 9A08563600 SENSOR,REMOCON
L901,L902 9A05356900 COIL,10UHK
PB91,PB92 9A07290000 BRACKET,FLT
Q901 9A08791000 TR,KRA107M
Q902,Q903 9A08791100 TR,KRC107M
Q904 9A08791000 TR,KRA107M
S901‑S908 9A04882500 SW,TACTSKHV10910A
X901 9A09253900 RESONATOR,CERAMIC
−8−
4 ELECTRICAL PARTS LIST
電気パーツリスト

5 INCLUDED ACCESSORIES
−9−
付属品
INCLUDED ACCESSORIES
REF.NO. PARTSNO. DESCRIPTION REMARKS
9A08902300 OWNER'SMNL,J[J] KQX1A715Y
9A08902100 OWNER'SMNL,E/F[US,C] KQX1A731Z
9A08902200 OWNER'SMNL,E/F/G/I/S[E,UK] KQX1A730Z
9A09252100 REMOCONASSY KARTDVH350
9A08127600 BATTERY[J] KABAAAM1.5V
9A05935900 CORD,PIN KJS4M014Y
9A05936000 CORD,PIN KJS4N001Y
9A08130000 OPTICALFIBERCABLE KJS8H002Z
9A08143300 CORD,PHONE KJS4M011Y

45231
C
B
A

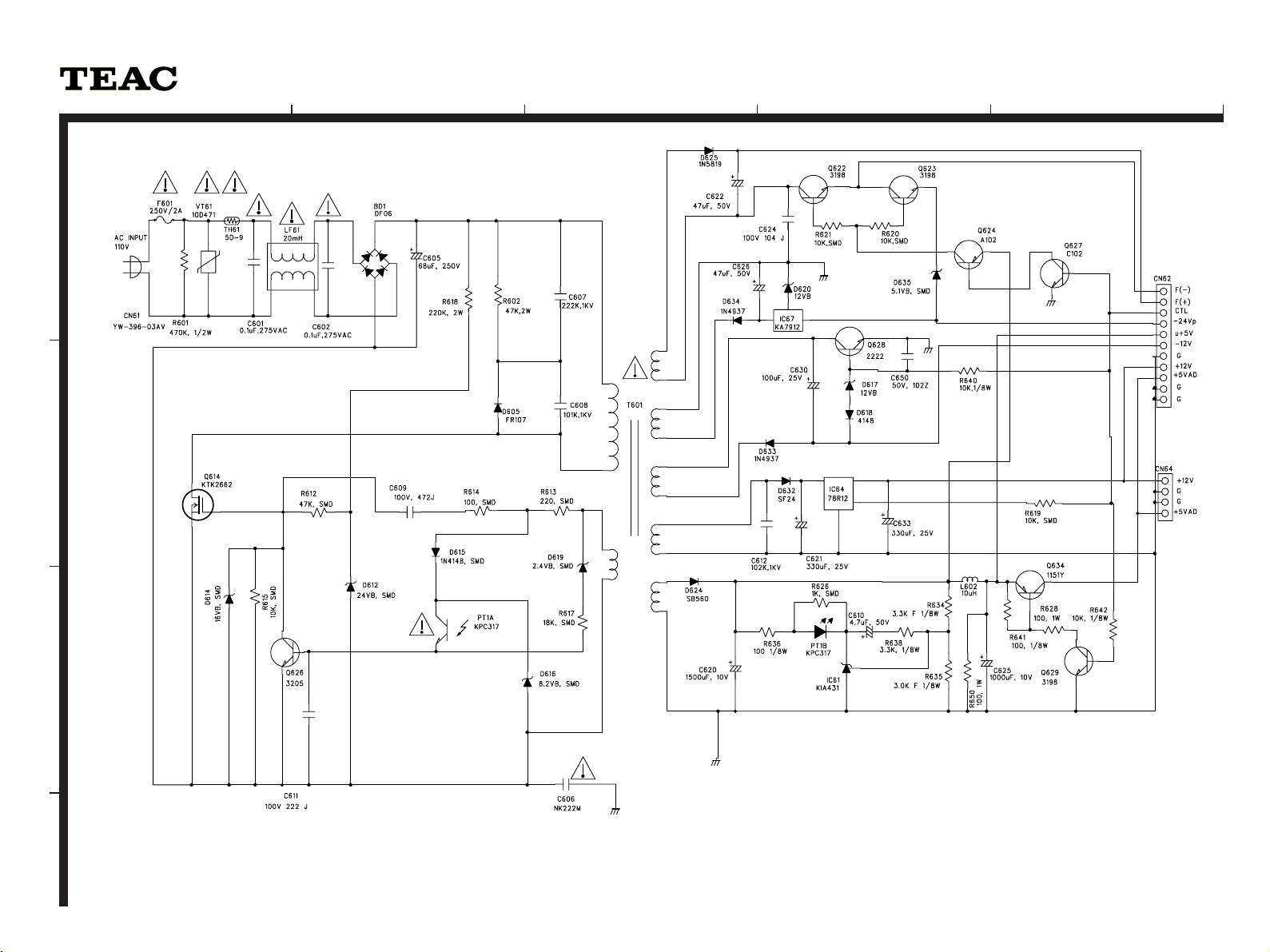

SCHEMATIC DIAGRAM
DV-H550/DV-H350
POWER SUPPLY (DM, TCA)
1 st Issue; November 2001
DVD Player
DDVV--HH555500//DDVV--HH335500

45231
C
B
A

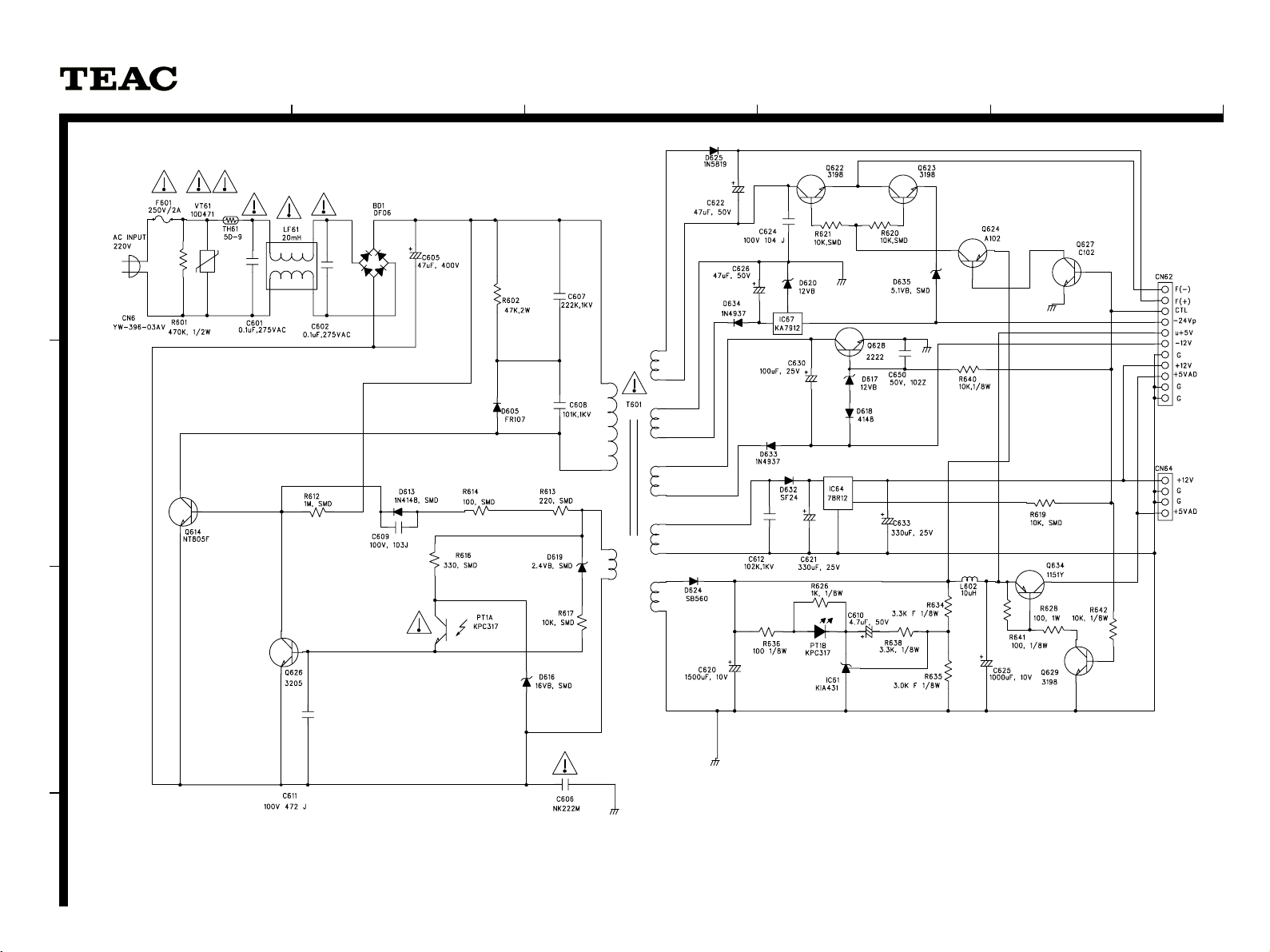

SCHEMATIC DIAGRAM
DV-H550/DV-H350
POWER SUPPLY (EUR, UK)
1 st Issue; November 2001
DVD Player
DDVV--HH555500//DDVV--HH335500

86745231
E
D
C
B
A
BLOCK DIAGRAM
DV-H550
DVD Player
DDVV--HH555500
1 st Issue; September 2001

86745231
E
D
C
B
A
WIRING DIAGRAM
DV-H550
DVD Player
DDVV--HH555500
1 st Issue; September 2001

86745231
E
D
C
B
A
SCHEMATIC DIAGRAM
DV-H550
MAIN PCB
DVD Player
DDVV--HH555500
1 st Issue; September 2001
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
注意
1.抵抗の単位はΩ（ｋ＝ｋΩ，Ｍ＝ＭΩ）です。
2.コンデンサの単位はμＦ（ｐ＝ｐＦ）です。
3.£マークのある部品は安全規格重要部品です。
交換するときは必ずティアック指定の部品を使用してください。

86745231
E
D
C
B
A

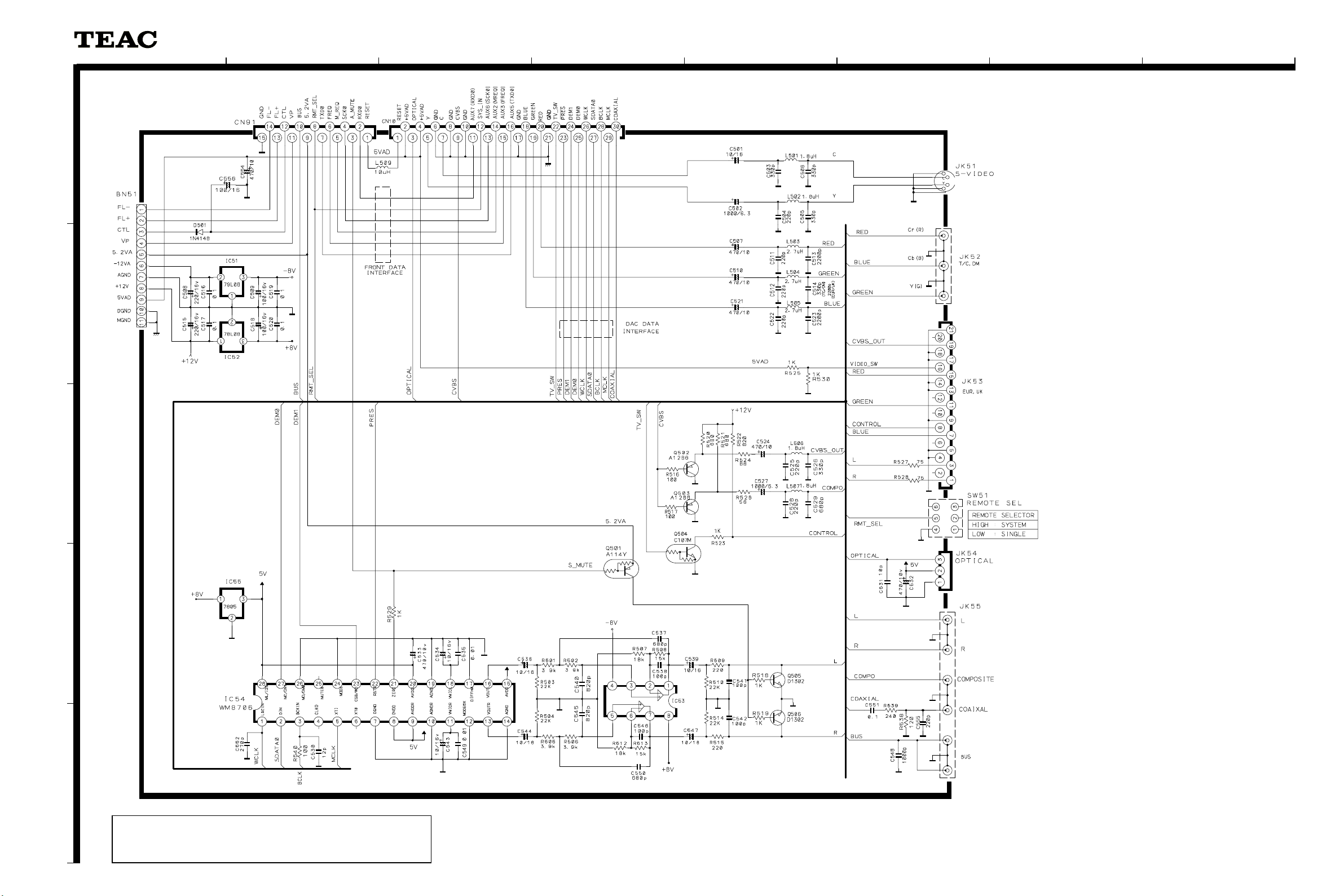

SCHEMATIC DIAGRAM
DV-H550
AV PCB
DVD Player
DDVV--HH555500
1 st Issue; September 2001
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
注意
1.抵抗の単位はΩ（ｋ＝ｋΩ，Ｍ＝ＭΩ）です。
2.コンデンサの単位はμＦ（ｐ＝ｐＦ）です。
3.£マークのある部品は安全規格重要部品です。
交換するときは必ずティアック指定の部品を使用してください。

86745231
E
D
C
B
A
SCHEMATIC DIAGRAM
DV-H550
FRONT PCB
DVD Player
DDVV--HH555500
1 st Issue; September 2001
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
注意
1.抵抗の単位はΩ（ｋ＝ｋΩ，Ｍ＝ＭΩ）です。
2.コンデンサの単位はμＦ（ｐ＝ｐＦ）です。
3.£マークのある部品は安全規格重要部品です。
交換するときは必ずティアック指定の部品を使用してください。
