TECEone – Introduction
TECEone
Introduction
TECEone is a wall-mounted toilet ceramic with a shower
function, intended for washing your backside and intimate
areas. It can also be used as an ordinary toilet ceramic
without the shower function.
TECEone not only shines with inner values — it looks pretty
good too! Thanks to its timeless, elegant design, it inte-
grates into any bathroom ambience, and combines well
with existing bathroom furnishings.
Toilet ceramic with a shower function — what sounds like
twice the fitting work is actually really easy: TECEone is a
new product solution but features technology with which
the fitter is already familiar from the shower fitting, and
which does not require any electricity:
1 Hot and cold water connection, angle valves
2 Temperature setting rotary knob, thermostat valve
3 Water volume rotary knob
4 Shower unit with shower arm
5 Standardised protective device according to DIN EN 1717
1
2
354
1

10-5
TECEone – System description
TECEone
System description
Functions
Rotary knobs for controlling the volume of water and reg-
ulating the temperature
The rotary knobs for controlling the volume of water (left)
and regulating the temperature (right) are located on the
side of the ceramic. Operation is intuitive. TECE relies on
proven technology in this area.
The EN1717-compliant safeguard is integrated into the
TECEone, which means that the product does not have to
beseparately equipped with safety fittings.
Shower arm
By turning the rotary knob, the shower arm automatically
extends, regulating the quantity of water by increasing the
water pressure applied. Gently turning the volume control-
ler allows cooled water to run out first. Following a warm
water shower, the shower arm retracts, cleaning itself
automatically in the process. (The shower arm also cleans
itself when extending.)
The shower nozzle cap can be replaced — various ver-
sions are available with dierently angled jets and intensi-
ties.
Toilet seat
The ergonomically-shaped toilet seat and lid with
soft-close function have been developed specially for
TECEone. The attachment is already installed and immova-
bly cast with the ceramic.
Technical data
Temperature range 10-38 °C
Water pressure min. 1 bar (0.1 MPa)
max. 10 bar (1 MPa)
Water consumption up to 5.6 l/min.

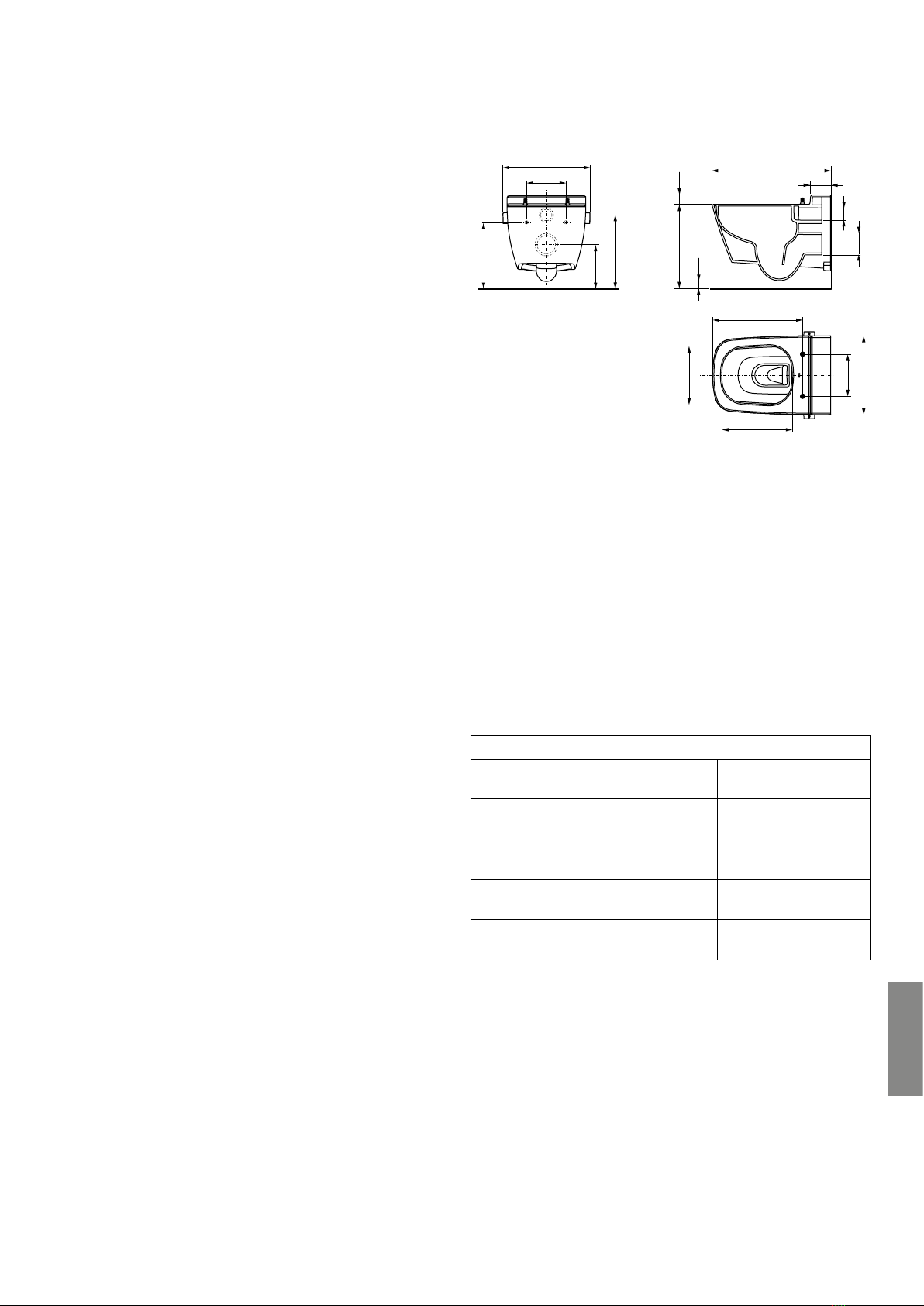

Dimensions
Approval and certificates
TECEone complies with all relevant standards and guide-
lines. The DVGW W540 mark of conformity confirms that
TECEone is equipped with the required protective device
in accordance with DIN EN 1717 for the protection of pota-
ble water, and thus fulfils the appropriate requirements.
The toilet ceramic also satisfies the requirements of
DINEN997 (European standard for toilet bowls and toilet
systems), while the toilet seat fulfils the requirements of
DIN19516 (Toilet seats requirements and test methods).
Standards/guidelines
Protection against pollution of potable water
in water installations
DIN EN 1717
Intrinsically safe equipment for connection to
potable water installations
DVGW worksheet W 540
Protective devices for protecting potable
water
DIN EN 13079
Toilet bowls and toilet systems with a pre-
formed odour trap
DIN EN 997
Toilet seats – Requirements and test meth-
ods
DIN 19516
Current approvals and certificates can be found at
www.tece.com.
320
220
355
180
400
358
191
321
410
250
400 42
50
90
540
Ø102
Ø55

10-6
TECEone – Operation
TECEone
• Fully turn the right rotary knob: The shower arm now
extends completely and you can start washing with water
(pictured right).
• You can increase or reduce the volume of water by turn-
ing the right rotary knob until you achieve the required
result.
• You can set the required temperature of water by turning
the left rotary knob – including during operation.
• To turn o the shower function, turn the knob back as far
as it will go.

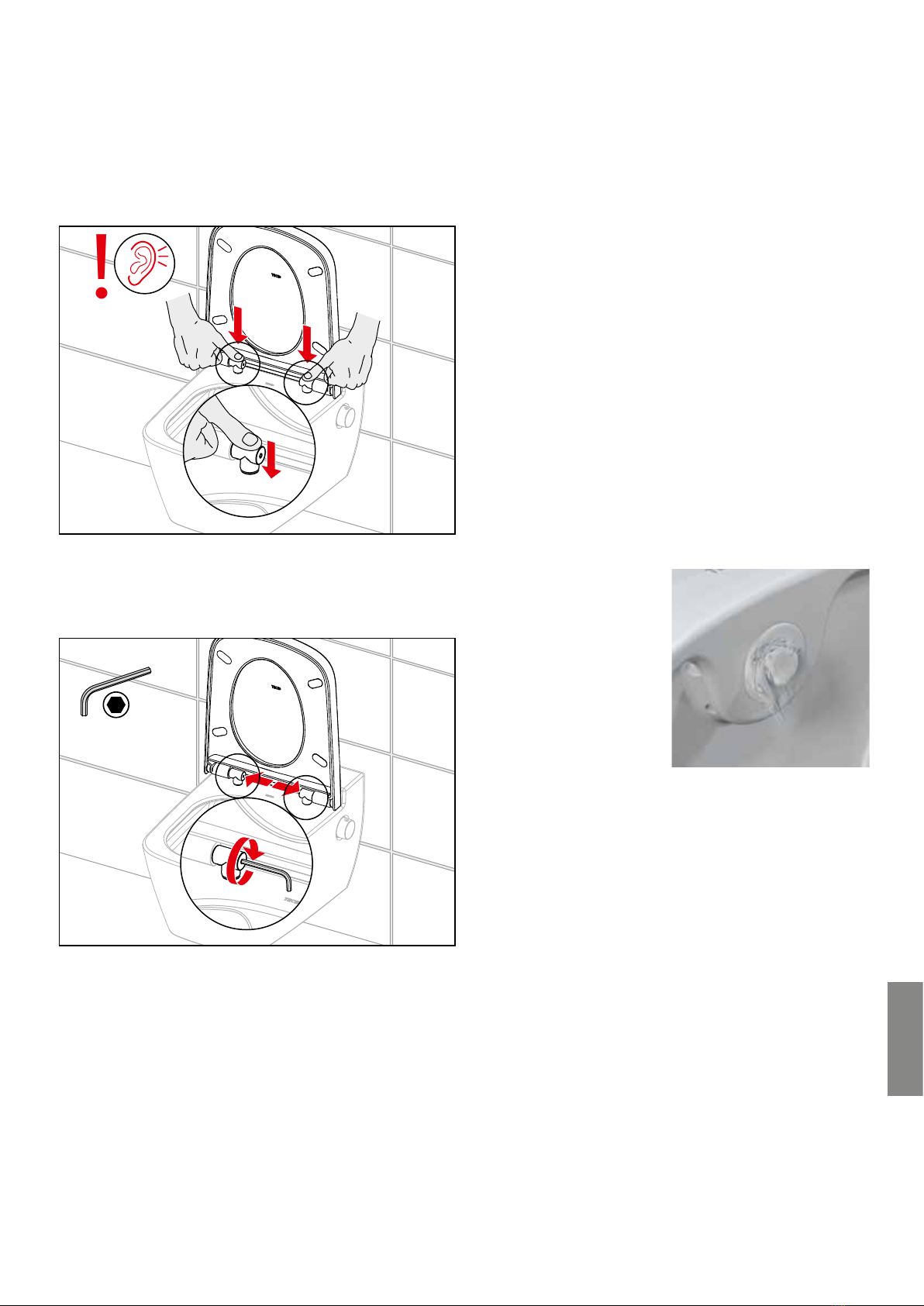

Remove the toilet lid.
• Lift up the toilet lid and toilet seat.
• Remove the two set screws from the hinges using an
Allen key (2.5mm).
• Hold the toilet lid and seat with both hands and pull them
gently upwards.
Note: During assembly, after mounting both hinges, press
down on the attachment bolts – at the same time, applying
slight pressure.
Replacing the shower nozzle caps
The scope of delivery also includes three shower nozzle
caps (standard 75°).
To replace them, proceed as follows:
• Turn the right rotary knob until the shower arm extends
a little.
• Pull out the shower arm with your hand and turn o the
water supply (pictured left).
• Hold the shower arm firmly with one hand and with the
other, pull the cap forwards until it comes o the shower
arm (pictured right).
• Then push your chosen shower cap – with the opening
pointing upwards – onto the shower arm until it gently
locks into position.
As an option, additional shower caps can be ordered
which dier from each other in terms of the intensity and
position of the shower spray (see “Replacement parts”
section).
Operation
Operating elements
TECEone is operated intuitively using the right and left
rotary knobs:
• “Water regulation” right rotary knob (pictured left): use
this knob to open the water supply to the shower nozzle
and to regulate the intensity of the water jet. After a
certain volume of water starts to flow, the shower arm
extends “automatically” outwards.
• “Temperature setting” left rotary knob (pictured right):
use this knob to set the temperature of the water for
washing your backside and intimate areas.
Testing the temperature of the water when using for the
first time
• Turn the temperature regulator as far as it will go to the
highest possible temperature.
• Hold a suitable container (e.g. cup) in front of the shower
arm.
• Turn the right knob and test the water to check the tem-
perature. If the temperature is higher than 38°C, it must
be reset. The corresponding procedure can be found
in the Installation and Assembly/Temperature setting
chapter.
• Turn the left rotary knob to the required temperature or
to the middle position.
• Turn the right rotary knob as far as it will go to turn o
the water supply.
Starting the shower function
• If necessary, turn the right rotary knob only slightly: the
shower arm does not yet extend and cooled water may
run into the ceramic, at the same time the shower nozzle
is rinsed and washed with water (pictured left).

10-7
TECEone – Planning and assembly
TECEone
Planning and assembly
Water connection device
TECEone is operated with fresh hot and cold water from
the pipe. Corresponding upgrade kits are available for
installing and precisely positioning the water connections
for the dierent TECE modules:
Dry-wall upgrade kit Brick wall upgrade kit
Order number 9880046 Order number 9880047
You can find the information required for using a TECElux
module in connection with a TECE in the “TECElux” techni-
cal information.
For the water connection, we recommend connecting the
shortest possible stub line to the circulating hot water pipe.
This will take the requirements for comfort and hygiene
into account in the best possible way.
Dry-wall connection and dimensions
70 70
159 61
OKFF
220
320
PWC
kalt
cold
froid
frio
freddo
zimna
холодный
PWH
warm
hot
chaud
caliente
caldo
ciepła
теплый
Brick wall connection and dimensions
Mounting the toilet ceramic
Refer to the installation instructions provided with the
product for a detailed depiction of the individual steps.
Here, we would just like to draw your attention to a few
points which should be taken into account when mounting
a TECEone:
The threaded rods should be screwed in or cut o so that
the distance between the groove of the knurled nut and
the wall is 70 mm. The threaded rod should not protrude
out of the knurled rod.
PWC
kalt
cold
froid
frio
freddo
zimna
холодный
PWH
warm
hot
chaud
caliente
caldo
ciepła
теплый
70 70
159 61
OKFF
220
320
70 mm
> 0 mm
= 0 mm
X

10-8
TECEone – Planning and assembly
TECEone

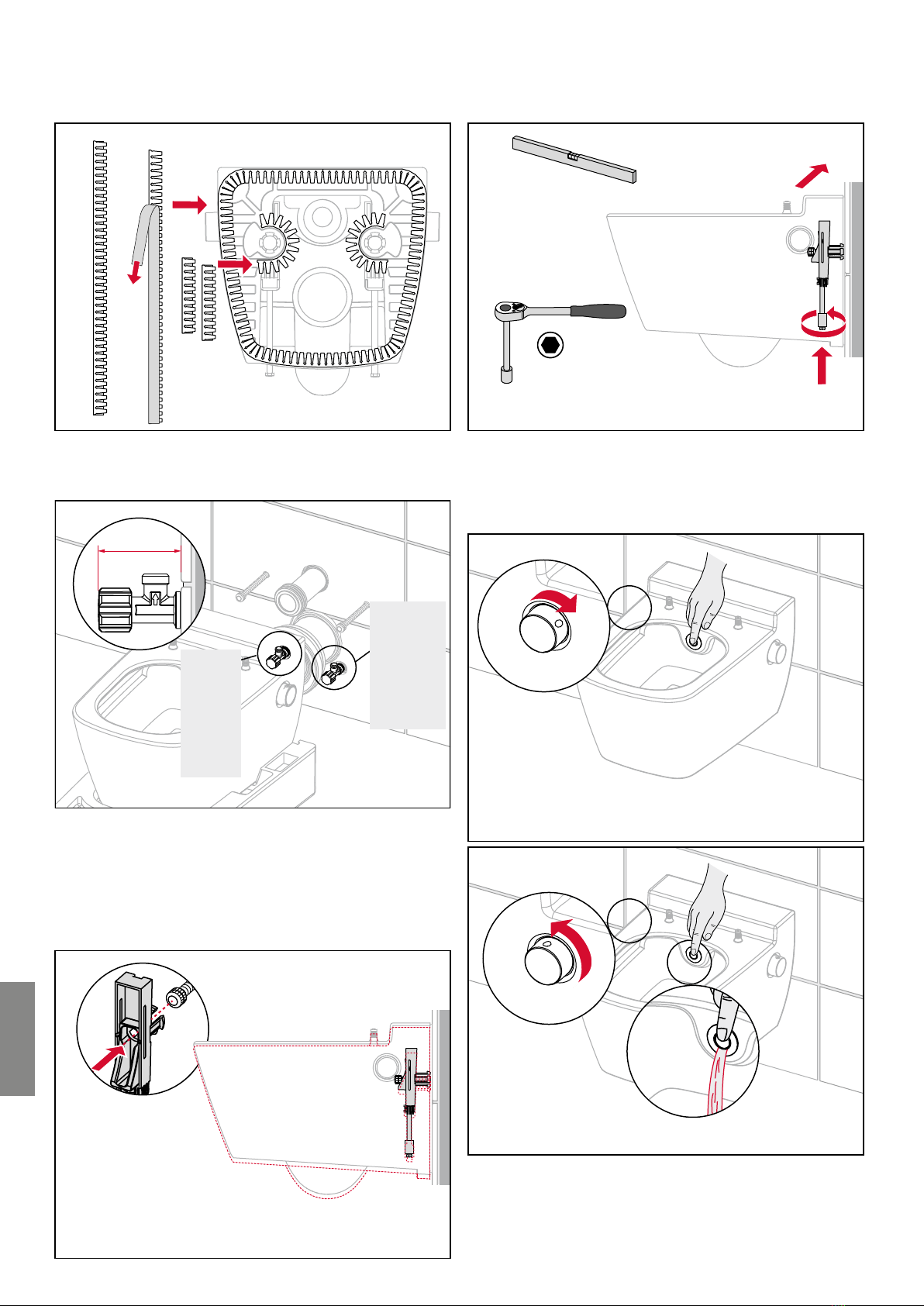

Attach the sound insulation strips to the back of the
ceramic.
Combine the colour-coded reinforced hoses with the
appropriate corner valves. Use conventional corner valves
with a maximum length of 85mm. Push the ceramic
against the wall with the aid of the mounting accessory
(packaging).
PWC
kalt
cold
froid
frio
freddo
zimna
холодный
PWH
warm
hot
chaud
caliente
caldo
ciepła
теплый
< 85 mm
A
Secure it with the concealed fitting (13mm ratchet) from
the underside of the toilet ceramic. Observe the maximum
torque of 10 Nm.
To flush the protective device through, put your hand in
front of the shower nozzle and, at the same time, press the
water volume control knob. Allow the water to run into the
ceramic for 10 seconds.
13 mm
max. 7 Nm!
1.
2.
4.
3.
10 s

10-9
TECEone
Temperature adjustment
After installing the toilet ceramic, check the hot water
temperature, as is the customary procedure when using
thermostatic cartridges.
To do this, turn the temperature controller to the maximum
temperature, then open the water volume control knob
and measure the temperature.
If the measured temperature is not higher than 38°C, you
do not need to do anything else and can use the TECEone
immediately.
However, if the measured water temperature is higher than
38°C, follow the steps below to adjust the temperature.
1.
3.
2.
max
≤38 °C > 38 °C

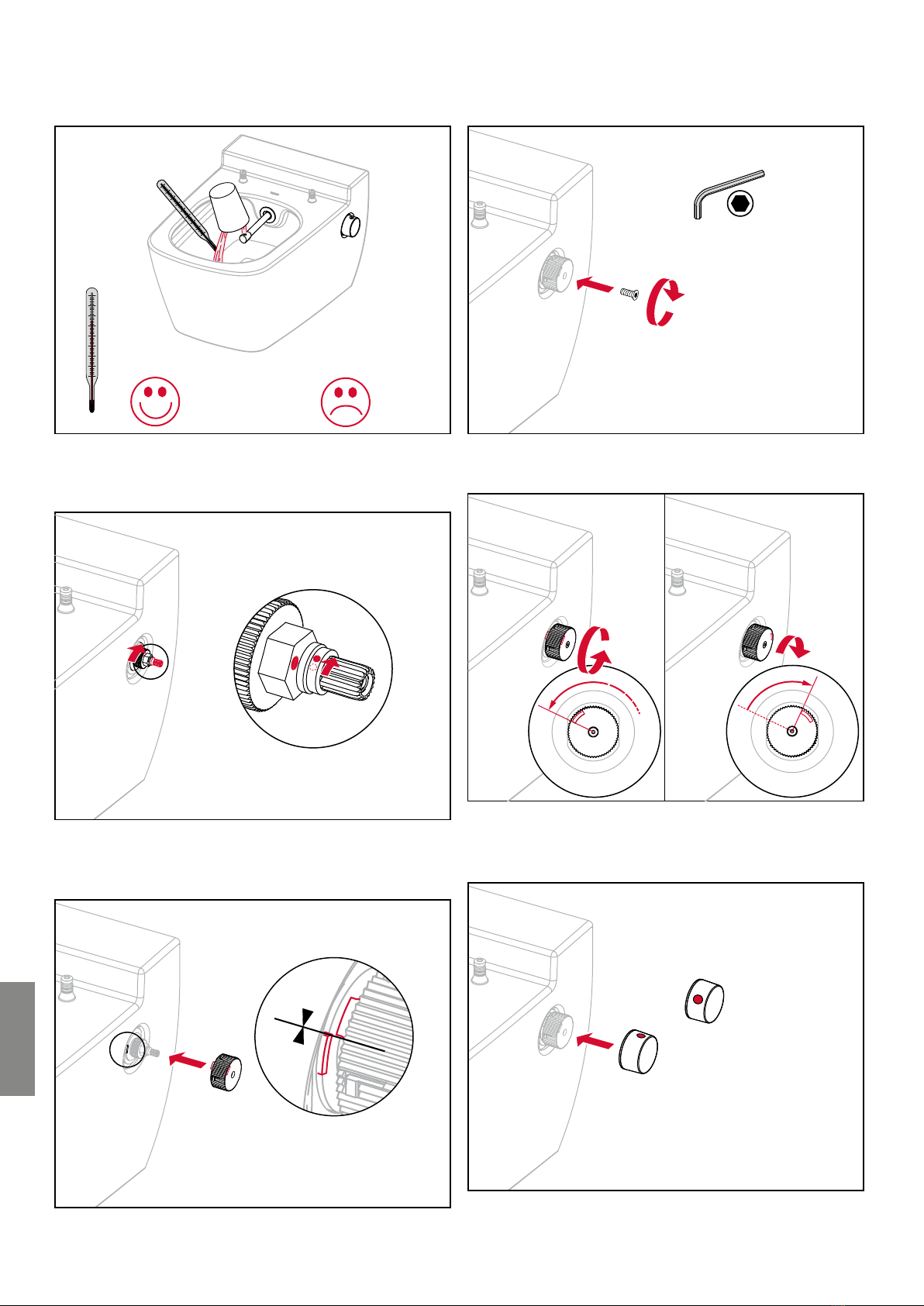

First, remove the cap from the rotary knob.
Then remove the cap holding fixture — the screw is
secured with a seal.
Turn the toothed shaft until the two red marks are aligned.
2,5 mm
X

10-10
TECEone – Planning and assembly
TECEone
Now open the water volume control knob and measure the
temperature again.
If the temperature is still too high, turn the marking on the
toothed shaft slightly to the right.
Fit the cap holding fixture onto the toothed shaft until it
reaches the stop (scald protection).
≤38 °C > 38 °C
0
Tighten the screw.
Turn the cap holding fixture up to the left stop, then turn it
90° to the right.
Place the rotary knob cap on the fixture so that the mark-
ing is pointing upwards.
2,5 mm
10
1. 2.
90°
X

10-11
TECEone – Cleaning and maintenance
TECEone
Mounting the toilet seat
TECEone should always be used in combination with the
TECEone set with lid . The toilet seat and lid fixings are
already in place and immovably cast with the ceramic.
When installing the seat, gently apply pressure to push the
hinges (pictured left) onto the attachment bolts until they
click into place.
Finally, secure the seat using the set screws.
!
2,5 mm
Cleaning and maintenance
Lid and toilet seat, control knobs
Clean the lid, toilet seat and control knobs every day using
a soft cloth and warm water with a mild household cleaner.
Do not use abrasive, chlorine-based or acidic cleaning
products.
When cleaning the ceramic, always open the lid or remove
it completely so that any rising vapours cannot damage the
plastic.
WC ceramic
Clean the ceramic regularly or as soon as it gets dirty.
Use a commercial sanitary cleaner to regularly clean the
ceramic. To remove limescale, use a commercial limescale
remover or a vinegar-based cleaner. Always follow the
manufacturer's instructions when using a cleaning product.
Avoid any contact with hard or metal objects which could
damage or mark the surface.
Shower arm
• Slightly turn the right rotary
knob to the self-cleaning
position: The showerarm
does not extend and the
water rinses the shower
nozzle, cleaning it in this
position.
• In the event of stubborn
soiling, turn the right rotary
knob until the showerarm
extends with a small jet of water. Remove the dirt with
the aid of a suitable brush or a soft cloth. Only use a mild
cleaning detergent when doing so.
If using water with a very high lime content, lime deposit
can build up on the shower cap, shower arm, the protec-
tive device and the hygiene system. This can be removed
using a commercial limescale remover or a vinegar-based
cleaner. In the event of stubborn limescale, these compo-
nents can be replaced.

10-12
TECEone – Servicing and replacement parts
TECEone
Faults
The TECEone has been built in such a way that problems
are extremely unlikely and may only occur in very few
cases. However, if a fault should occur, it is generally best
to contact a suitable specialist (i.e. fitter).
Problem Possible cause Solution
Water is running/
dripping out of the
ceramic.
Close the corner valve or
the main valve and call
the fitter.
The shower arm
does not extend.
The water pressure is
too low.
Call the fitter.
The shower jet is
too weak.
The water supply hose
is bent.
Call the fitter.
The shower nozzleor
shower cap is blocked/
calcified.
Clean the shower cap
orthe shower arm with a
suitable brush or replace
it in the same way as
when removing limescale.
No water comes
out of the shower
nozzle.
The water supply has
been switched o.
Check whether or not the
corner valves are turned
or check the central water
feed supply.
The temperature
of the water is
suddenly too high or
too low.
The temperature
cartridge is faulty.
Call the fitter.
Servicing and replacement parts
TECE trusts in proven technology, however, should any
components need to be replaced or serviced, TECEone
replacement parts are listed below.
No. Order no. Designation
1 9820356 Concealed mounting
2 9820357 Knurled nut (x 2) for concealed mounting
3 9820362 Operating knob water volume
4 9820358 Ceramic cartridge
5 9820359 Protective device to DIN EN 1717
6 9820361 Temperature control knob
7 9820360 Thermostatic cartridge
8 9820365 Reinforced hoses, hot and cold
9 9820364 Rosette
10 9820403 Shower nozzle cap (x 3) “standard” 75°
11 9820404 Shower nozzle cap (x 3) “standard” 90°
12 9820405 Shower nozzle cap (x 3) “medium” 90°
13 9820406 Shower nozzle cap (x 3) “small” 90°
14 9820363 Shower arm
15 9820367 Fittings (x 2)
16 9820366 Damper for seat and lid (x 2)
The required installation information is included in the
scope of delivery for the replacement parts (thermostatic
cartridge, ceramic cartridge, protective device, shower
arm, shower nozzle cap). Corresponding videos can also
be found on the Internet at www.tece.com.
1
2
3
45
6
7
8
9
14
10, 11, 12, 13
15
16

10-13
TECEone
Shower nozzle caps
TECEone shower nozzle caps come in four versions which
dier from each other in terms of intensity and position of
the shower spray:
The as-delivered state of the TECEone includes three
“standard” 75° caps.
„standard“ 75°
75° 90°
90° 90°
„standard“ 90°
„medium“ 90° „small“ 90°

10-14
TECEone

All data contained in the Technical Guidelines has been compiled with the utmost care. The correctness
of the data presented cannot be guaranteed, however. TECE assumes no liability for damages resulting
from the use of this information. Text and images are protected by copyright law.
© Copyright 2018, TECE GmbH, Hollefeldstraße 57, 48282 Emsdetten, Germany

TECE GmbH
P + 49 25 72 / 9 28 999
[email protected]
www.tece.com
More information on
www.tece.com
04 / 2018
