Contents
Contents
Introduction ...................................................................................................... 6
IMPORTANT SAFETY INSTRUCTIONS ............................................................... 7
1 Manufacturer and equipment identification .......................................... 10
2 Description of the equipment................................................................. 11
3 Technical data........................................................................................ 12
4 Accessories ........................................................................................... 14
5 Safety devices and notices .................................................................... 15
6 Place of installation ................................................................................ 17
7 Unpacking.............................................................................................. 18
8 Moving the equipment ........................................................................... 19
9 Levelling ................................................................................................. 20
10 Electrical connection.............................................................................. 21
11 Grounding instructions........................................................................... 22
12 Connection to another device................................................................ 23
13 Routine maintenance ............................................................................. 24
14 Adjusting the play on the saddle support tube......................................... 25
15 Changing the fuses ................................................................................ 26
16 Troubleshooting ..................................................................................... 27
17 Technical assistance.............................................................................. 29
18 Storage................................................................................................... 30
19 Disposing of the equipment ................................................................... 31
20 Switching on and off .............................................................................. 32
21 Using Bike.............................................................................................. 34
22 Monitoring the heart rate ....................................................................... 36
23 User settings .......................................................................................... 39

6
Uk It Fr De Nl Es Br
日本語
中文
Introduction
The User Manual has been written in the manufacturer’s original language and
translated into the language of the country in which the equipment is used. It forms
an integral part of the equipment, with which it should always be kept. The User
Manual should always accompany the equipment even in the event of relocation
or sale The manual must be kept in a known, accessible place, protected against
dampness and heat.
The manual describes transport and maintenance procedures and contains valuable
information and useful suggestions about workout methods; it is therefore a guide
for both professional users and beginners.
A number of symbols are used as a guide to reading the manual:
Warning
Points out important information that must not be ignored.
Danger
Points out rules that must be strictly followed to avoid creating hazardous
situations for people or the equipment.
IntroduCtIon

7
中文
日本語
Br Es Nl De Fr It Uk
IMPORTANT SAFETY INSTRUCTIONS
Please read all instructions before using Bike. These instructions were written to
ensure your safety and to protect the equipment.
BIKE MED is intended for medical use and has been designed and built for use in
outpatient clinics, hospitals, clinics and sport centres, for muscular therapy and
rehabilitation.
When using an electrical appliance, basic precautions should be always followed,
including the following.
DANGER
To reduce the risk of electric shocks, always unplug the unit from the
electrical outlet immediately after using and before cleaning or performing any
maintenance tasks.
WARNING
To reduce the risk of burns, fire, electric shock or injury to person, take the
following precautions.
- Never leave Bike unattended when plugged in. Unplug from outlet when not in
use, before cleaning it, and before putting on or taking off electrical parts.
- Bike can be used by or close to children, invalids, disabled persons or people
with evident physical problems only under close supervision of a doctor or a
qualified professional.
- Use Bike only for its intended use as described in the user manual; only perform
the exercises for which the equipment has been designed, following the
instructions given in the manual. Do not use attachments not recommended by
Technogym.
- Workouts controlled by an external device must be performed only with a
continuous supervision of a doctor or qualified professional.
- Never operate Bike, if it has a damaged cord or plug, if they are not working
properly, if they have been dropped or damaged, or dropped into water. In this
case, contact the Technogym Technical Support service.
- Do not pull Bike by supply cord or use cord as handle.
Important safety InstruCtIons

8
Uk It Fr De Nl Es Br
日本語
中文
- Keep the cord away from heated surfaces.
- Keep hands away from moving parts.
- Never drop or insert any object into any opening.
- Do not use outdoors. Do not leave the equipment outdoors, exposed to the elements.
Do not expose the equipment to water jets.
- Do not operate where aerosol (spray) products are being used or where oxygen
is being administered.
- To disconnect, turn all controls to the off position, then remove plug from
outlet.
WARNING
Connect Bike to a properly grounded outlet only. Read the grounding
instructions.
SAVE THESE INSTRUCTIONS
Important safety InstruCtIons

9
中文
日本語
Br Es Nl De Fr It Uk
Personal safety
Check the equipment before each use. Do not continue to operate Bike when it is
not working properly.
Position and operate Bike on a solid, level surface.
Keep all electrical components, such as the power cable and ON/OFF (I/0) switch,
away from liquids to prevent shock.
Do not set anything on the frame or control panel.
Do not use accessory attachments that are not recommended by Technogym; such
attachments might cause injury.
Maintain the equipment in good working condition. If there are signs of wear, contact
the Technogym Technical Support service.
Do not attempt to service the equipment yourself other than the maintenance
instructions found in the user manual.
Before starting an exercise, make sure your position on the equipment is correct,
and be careful with any components that might constitute an obstruction.
Wear proper exercise clothing and shoes during a workout, no loose clothing. Tie
long hair back. Keep garments or towels away from moving parts.
Choose suitable exercises for your physical characteristics and state of health,
starting out with light loads.
Do not overexert yourself or work to exhaustion. If you feel any pain or abnormal
symptoms, stop your workout immediately and consult your physician.
Important safety InstruCtIons

10
03218020
E
I
BA
C
D
H
G
C
F
03218001 L
Uk It Fr De Nl Es Br
日本語
中文
A- Manufacturer’s name and address
B- Description of product
C- Electrical specifications and type
of fuses
D- Equipment classification
E- CE Mark
F- Indicates to consult the user
manual
G- Serial number and date
of manufacture
H- Certification mark for the USA
and Canada
I- Product code
L- Product mark
The values stated in the illustration are purely indicative; refer to the label attached
to the equipment or the data in Technical data section for the correct information.
1 Manufacturer and equipment identification
1 manufaCturer and equIpment IdentIfICatIon

11
B A
E
C
F
D
G
03218002
H
03218003
I L
L
I
I
中文
日本語
Br Es Nl De Fr It Uk
2 Description of the equipment

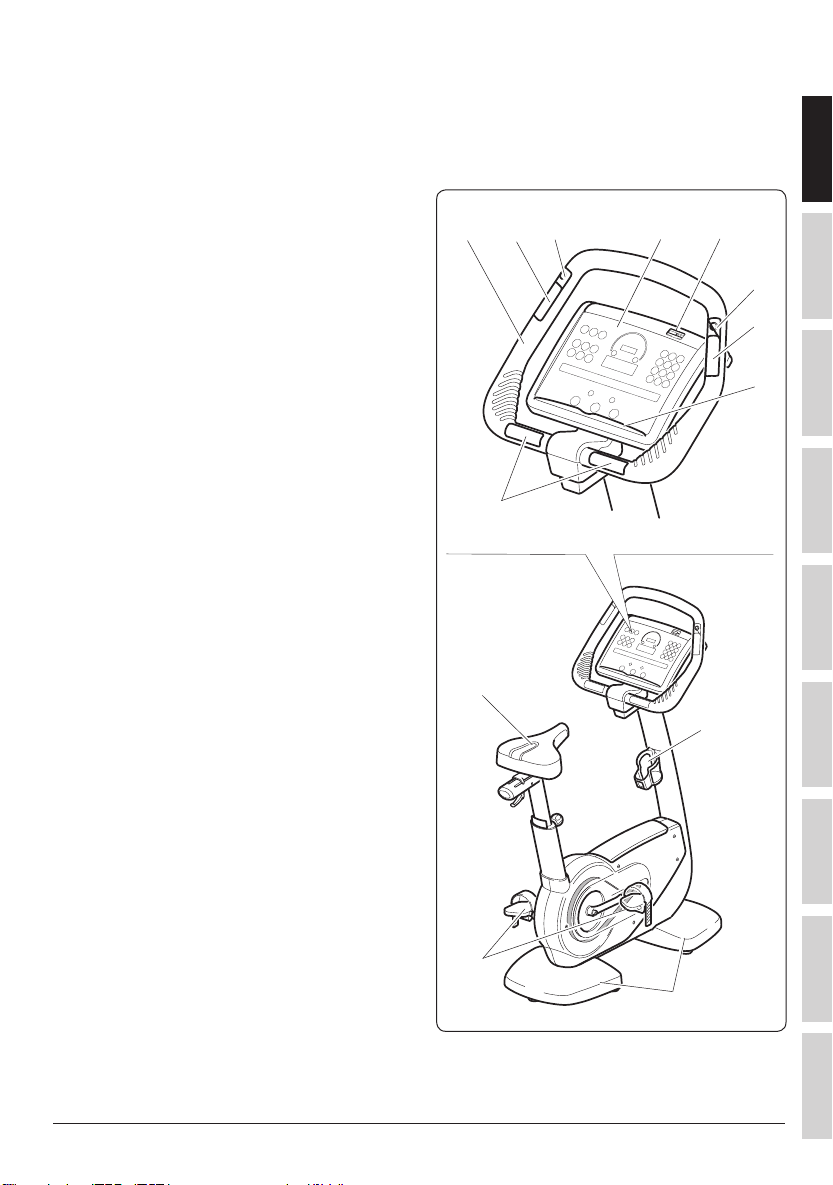

A Control panel: controls all available
functions, from setting up workout
programs to viewing messages and
related workout information.
B Handlebar: this can be held by the
user during the workout. It contains
the sensors (I) to monitor the heart
rate (hand sensor), and the Fast
Track Control (L) to change the effort
level.
C Saddle, adjustable height.
D Pedals: with adjustable straps for a
more stable foot position.
E Bases: support the equipment frame
and components.
F Reading stand: for standing
magazines or books on.
G Tray: for standing the water bottle
or other useful items on during the
workout.
H TGS key reader: for the TGS key
(optional).
2 desCrIptIon of the equIpment

12
03218004
1200 520
1500
Uk It Fr De Nl Es Br
日本語
中文
Europe - Asia USA - Canada
Power supply 100÷240 Vac 50/60 Hz
Mains power input 0.5A max 0.5A max
Fuses 2 x 3,15A (F) 2 x 3,15A (F)
Weight of equipment 67 kg 147 lb
Maximum user weight 120 kg 264 lb
Time 0÷999 min ± 1% 0÷999 min ± 1%
Distance 0÷99,99 km ± 5% 0÷99,99 mls ± 5%
Braking power 10÷1000 W ± 10% 40÷500 W ± 10%
Protection grade IP 20 IP 20
European Directives 93/42/CE
Part applied Type B Type B
Operating temperature from +5 to +30 °C from +5 to +30 °C
Standards conformed to EN 957-1 class IA
EN 957-5
EN 60601-1
EN 60601-1-2
UL60601-1
Electric isolation class Class I
Marks and Certificates CE - GM (TUV) UL
3 Technical data
3 teChnICal data

13
中文
日本語
Br Es Nl De Fr It Uk
Torque (Nm)
Level 1 50
Level 2 70
Level 3 90
Level 4 110
Level 5 130
Level 6 150
Level 7 170
Level 8 190
Level 9 210
Level 10 230
Level 11 250
Level 12 270
Level 13 290
Level 14 310
Level 15 330
Level 16 350
Level 17 370
Level 18 390
Level 19 410
Level 20 430
Level 21 450
Level 22 470
Level 23 490
Level 24 510
Level 25 530
Level 26 550
Level 27 570
Level 28 590
Level 29 610
Level 30 630
3 teChnICal data

14
E
D
F
C
G
H
A
B
03218005
I
L L
Uk It Fr De Nl Es Br
日本語
中文
4 Accessories
The equipment’s standard outfit comprises:
ASet of wrenches
BUser manual
CWarranty certificate
DCEE Power supply cable with SH type socket
ECEE Mains cable (extension)
FCloth for cleaning
G10A German adaptor
HSpare fuses (2 x 3.15A (F)
IChest band with transmitter for heart rate monitor
LCable guard
4 aCCessorIes

15
A
CD
B
中文
日本語
Br Es Nl De Fr It Uk
5 Safety devices and notices

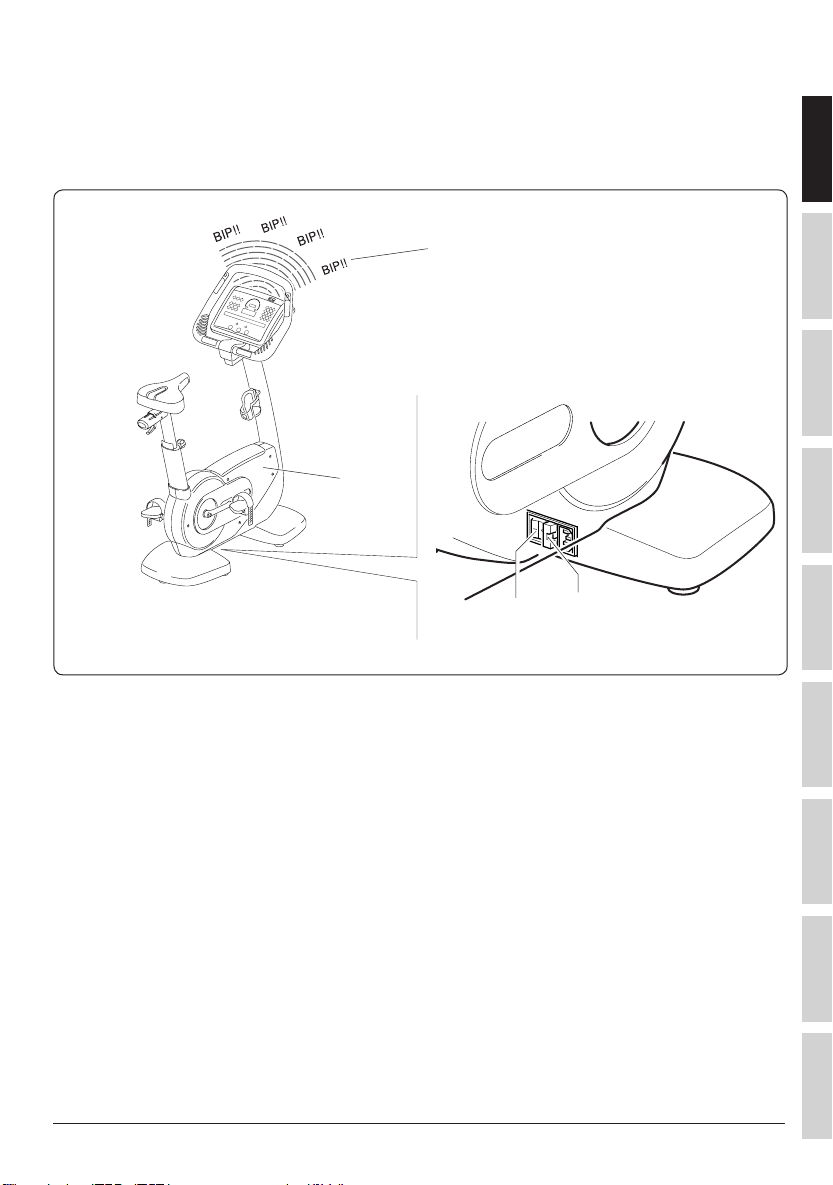

A Fixed guard: guards against access to the inside of the equipment.
B Beep: warns the user when the equipment is switched on, when the exercise
starts or finishes or if the heart rate is high.
C Main switch: turns the equipment’s power on and off
D Fuses: protect the equipment’s electrical parts. When the current reaches an
excessive value, the fuses melt thus protecting the internal electronics.
5 safety devICes and notICes

16
03218003
03218020
F
02082062
E
03218008
Uk It Fr De Nl Es Br
日本語
中文
Warning
Please read the adhesive labels on the equipment, which provide
information about possible risks and hazards.
EThe label affixed to the frame under the control panel states the electrical
specifications.
FThe label for attachment to the power supply cable states the electrical
specifications for the cable.
5 safety devICes and notICes

17
中文
日本語
Br Es Nl De Fr It Uk
6 Place of installation
To make workouts on Bike pleasant, productive and safe, the training space must
satisfy certain specific requirements. In particular, before deciding where to install
the equipment, we recommend ensuring that:
- the temperature is between +10°C and +25°C;
- enough air is circulating to keep humidity during exercise to between 20% and
90%;
- the lighting is good enough to make the area safe and relaxing place to exercise
in;
- there is a safety area of free space of at least 80 cm around every equipment;
- that the floor is flat, stable and vibration-free, and strong enough to bear the
weight of the equipment plus user.
Equipment not suitable for use in the presence of anaesthetic mixtures inflammable
in air, oxygen or nitrous oxide.
In order to guarantee the performance indicated by the manufacturer, you are advised
against using the equipment in zones with high short-wave presence or similar.
6 plaCe of InstallatIon

18
00350034
Uk It Fr De Nl Es Br
日本語
中文
7 Unpacking
Bike comes assembled in a special pack
inside a transparent plastic wrapping
or in a cardboard pack fastened on a
pallet.
The packed material can be lifted and
carried with normal lifting equipment.
The instructions are printed directly on
the pack.
In order to ensure the safety of persons
and property, you should think carefully
about what lifting and transport
equipment to use, in relation to the
equipment’s place of destination.
As stated in the instructions on the
pack, to unpack equipment delivered
in a cardboard pack, remove the staples
that attach the external packaging to the
pallet, and then lift up the pack.
Check the pack visually to make sure it
is in a good, complete state.
Remove the fasteners and place the
contents of the pack on the ground. The
items are:
- the equipment unit;
- the service box containing the
supplied accessories.
Warning
Observe the legally stated urban
waste disposal procedures when
disposing of the packaging
material.
7 unpaCkIng

19
02258012
03218009
中文
日本語
Br Es Nl De Fr It Uk

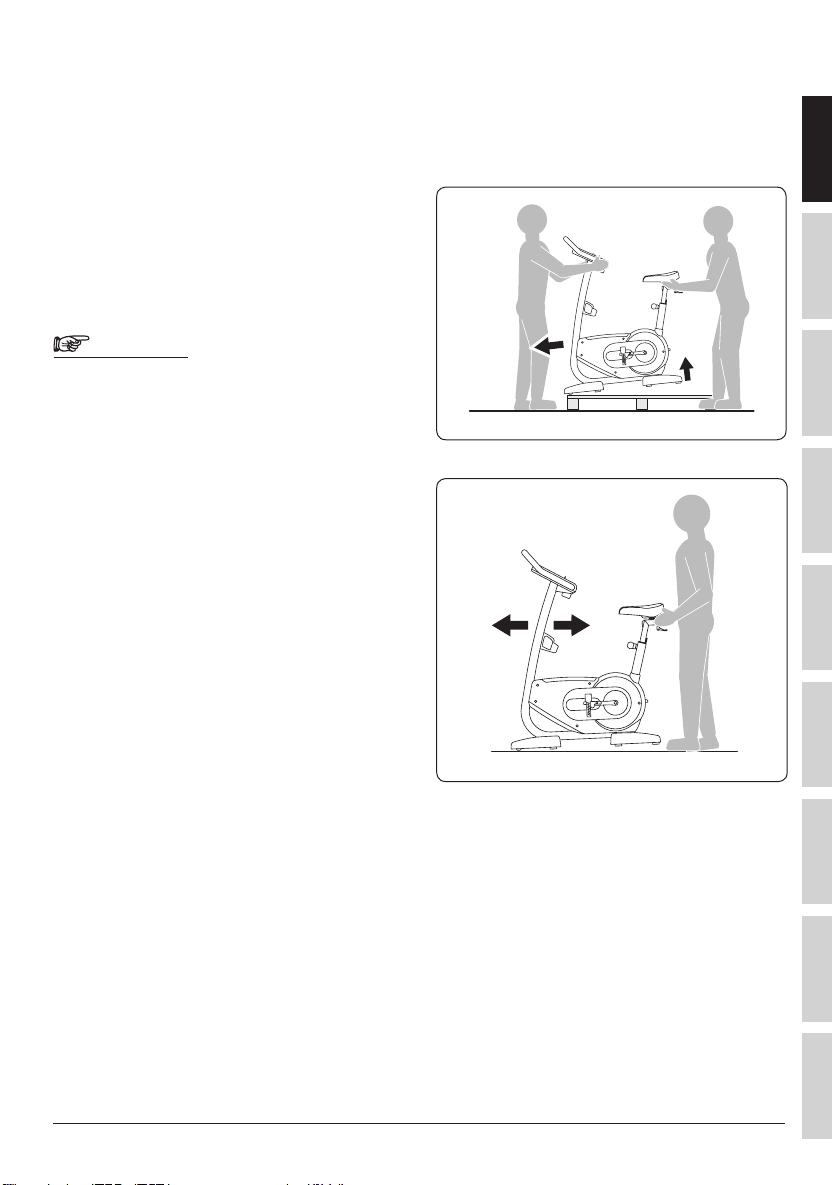

8 Moving the equipment
To move the equipment from the
packing pallet to the floor, lift as shown
in the picture and then slide it on to the
floor. This must be done by at least two
people.
Warning
Take great care when moving
the equipment and positioning
it on the ground, as it may
overbalance.
The equipment has two fixed front
wheels. To move the equipment, lift it up
slightly, as shown in the illustration, and
push it forwards and backwards.
If wheels cannot be used on the floor,
move the equipment with normal lifting
and transport methods.
8 movIng the equIpment

20
Uk It Fr De Nl Es Br
日本語
中文
9 Levelling
Use the front and rear feet to level the
equipment:
- screw the foot in or out until the frame
is in a stable position;
- tighten up the lock nut after
adjusting.
9 levellIng

21
中文
日本語
Br Es Nl De Fr It Uk

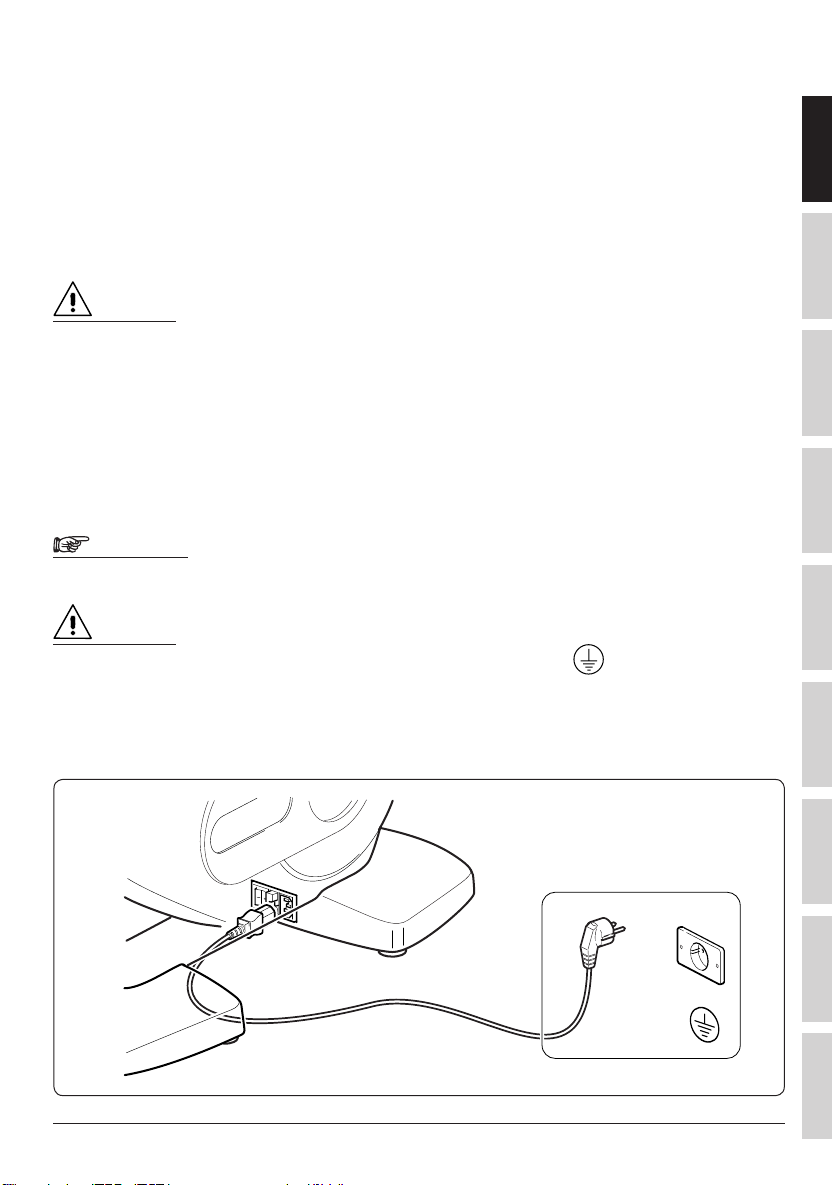

10 Electrical connection
Before connecting the equipment to the mains power supply, ensure that the electrical
system specifications comply to binding regulations. Check the mains power supply
specifications on the label applied to the frame under the control panel.
Danger
The wall socket must be located in a place where the plugging and
unplugging can be done easily and safely.
When plugging in, the switch on the equipment must be in the 0 position
(i.e. the equipment must be switched off).
Plug the power cable first into the equipment socket and then into the wall
socket.
Warning
Check the state of the power supply cable periodically.
Danger
The power supply socket must be grounded . If not, a ground
connection must be installed by a qualified electrician before connecting
the equipment to the electricity mains.
10 eleCtrICal ConneCtIon

22
Uk It Fr De Nl Es Br
日本語
中文
11 Grounding instructions
The product must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric
shock. The product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
DANGER
Improper connection of the equipment-grounding conductor can result in a
risk of electrical shock. Check with a qualified electrician or serviceman if you
are in doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product; if it will not fit in the outlet, have a proper
outlet installed by a qualified electrician.
11 groundIng InstruCtIons

23
中文
日本語
Br Es Nl De Fr It Uk
12 Connection to another device
The equipment can be connected to
other devices conforming to the CSAFE
protocol, as shown in the figure.
The additional equipment connected to
the analogical and digital interfaces must
conform to the applicable standards.
12 ConneCtIon to another devICe

24
Uk It Fr De Nl Es Br
日本語
中文
13 Routine maintenance
Warning
The safety of the equipment is assured only on the condition that it is
carefully inspected every two weeks for any signs of damage and/or
wear.
Health personnel must employ all hygiene and sanitary rules required in
accordance to the use and the type of users.
To clean the control panel, proceed as follows:
- turn the equipment off by switching the switch to “0”;
- unplug the equipment power cable from the wall socket;
- clean the control panel with a damp, but not wet, cloth.
Every week, clean the equipment completely:
- with the equipment turned off, clean the external parts with a damp sponge;
- move the equipment to one side so that you can vacuum clean underneath it.
Do not use chemical products or solvents.
Warning
Do not rub too hard on the control panel and diagrams, or on the written
instructions on the stickers.
For maintenance actions not described in this manual, call in the Technogym
Technical Service.
Danger
The routine maintenance, adjustment and lubrication jobs must be
performed by the Technogym Technical Support Service.
Before starting any job, turn the equipment off by switching the switch to
the 0 position and unplug the power cable from the wall socket.
Every six months check on the state of the wear of the transmission belts and
check for play on the pedals.
13 routIne maIntenanCe
