Technogym SKILLBIKE User manual

TM
SKILLBIKE
USER MANUAL

2
SKILLBIKE
CONTENTS
Contents..............................................................................................................2
Important safety instruction............................................................................3
Personal safety ..................................................................................................5
Identication of the manufacturer and the product ......................................7
Description of the product ................................................................................8
Using the product...............................................................................................9
Gear levers........................................................................................................13
Technical characteristics ................................................................................14
Place of usage ..................................................................................................15
Moving the product..........................................................................................16
Levelling the product.......................................................................................17
Electrical connection.......................................................................................18
Maintenance ....................................................................................................19
Adjusting the play of the saddle.....................................................................22
Adjusting the play of the handlebar...............................................................24
Technical assistance.......................................................................................25
Storing the product..........................................................................................26
Disposing of the product.................................................................................27

3
SKILLBIKE
IMPORTANT SAFETY INSTRUCTION
You should always consult with a qualied and licensed medical professional or healthcare practitioner before starting any nutritional, diet, stretching
or exercise program. You are advised to investigate and inform yourself about any health related actions and choices you make.
Please read all instructions before using the product. These instructions were written to ensure the safety of the user and to protect the product.
When using an electrical appliance, basic precautions should be always followed, including those listed below.
D
To reduce the risk of electric shock, always remove the plug from the electrical socket immediately after using and before cleaning or
performing any maintenance procedures.
W
To reduce the risk of burns, re, electric shock or injury to persons, take the following precautions.
The product should never be left unattended when plugged in. Unplug the product from the power socket when not in use, before cleaning it, and before
installing or removing electrical parts.
Do not allow children to have unsupervised access to the product.
Close supervision by qualied personnel is necessary when the product is being used by or near children, invalids or disabled persons.
Use the product exclusively for the purposes described in the user manual; only perform the exercises for which the equipment has been designed,
following the instructions provided in the manual. Any other use should be considered incorrect and therefore dangerous.
Do not use any accessories other than those recommended by Technogym.
Never turn on the product if it has a damaged cable or plug, if it is not working correctly, if it has been knocked over or damaged, or if it has fallen into
water. In these circumstances, contact the Technogym Technical Support Service.
Do not pull the product by the power cable or use the cable as a handle.

4
SKILLBIKE
IMPORTANT SAFETY INSTRUCTION
Keep the power cable away from heated surfaces.
Keep your hands away from moving parts.
Never drop or insert any object into any opening.
To disconnect the power, remove the plug from the socket.
SAVE THESE INSTRUCTIONS
W
Risk Of Electric Shock. Do Not Disconnect Under Load.
Do not connect to a circuit operating at more than 150V to Ground.

5
SKILLBIKE
PERSONAL SAFETY
Use of the product is subject to a medical examination to assess your suitability to the type of workout exercise you intend to perform, and in compliance
with the conditions for use laid down by Technogym.
Persons suering from certain physical conditions may only use the product under the strict supervision of a doctor with specic qualications.
Before starting any workout, make sure your position on the product is correct, paying attention to any components that may obstruct use.
Plan the workout according to your physical characteristics and state of health, beginning with less demanding workloads.
Do not overexert yourself or work to exhaustion. Incorrect or excessive exercise may cause physical harm or sudden death. If you feel any pain or abnormal
symptoms, stop your workout immediately and consult your physician.
Wear proper workout clothing and shoes during training; do not wear garments that block perspiration; do not wear loose clothing. Tie long hair back. Keep
garments or towels away from moving parts.
When using the product, other people must remain at a safe distance.
Do not use the product when children or pets are present.
The person in charge of the gym must explain proper and improper use of the equipment to users.
Fully assemble the product before using it. Check the product before each use. Do not continue to use the product if it is not working properly.
Assemble and use the product only on a solid and at surface.
Keep all of the components (such as the power cable) away from liquids in order to prevent electric shocks.
Keep the product in good working condition. If you see signs of wear, contact Technogym's technical support service.
Do not attempt any maintenance work on the product other than the operations described in the user manual.
The installation, maintenance and setting operations must be carried out by qualied Technogym sta or persons authorised by Technogym.
The electrical system must conform to the standards and legal requirements in the country of use.
Do not place anything on the frame or the display.

6
SKILLBIKE
PERSONAL SAFETY
Technogym is not responsible for any harm due to any failures or damage caused by unauthorised maintenance, misuse, accident, negligence, improper
assembly or installation, debris resulting from any construction activities in the area where the product is used, rust or corrosion as a result of the
product’s location, alterations or modications without Technogym’s written authorisation or for failure on your part to use, operate and maintain the
product as set out in this User Manual.
W
High voltage is present inside the product, and as such, the guard must be only be removed by authorised personnel.

7
SKILLBIKE
Made in Italy
Technogym S.p.A.via Calcinaro 2861, Cesena (FC)
SKILLBIKE Model no. DJC03C
Maximum User’s Weight: 160 kg
Class: SA ISO EN20957-1 EN957-5
Massage and exercise machines: 2AD3
S/N DJC03C19000141 01/19
100-240 Vac 50/60 Hz 0,2 A
FCC ID: Z64 - WL18DBMOD,XZRBRDO1793
F
C B A G
E
D
IDENTIFICATION OF THE MANUFACTURER AND THE PRODUCT
A- Manufacturer’s name and address
B- Place of manufacture
C- Description of product
D- Electrical specications
E- Tells you to consult the User manual
F- Serial number and date of manufacture
G- Product model
The SKILLBIKE is a commercial device, designed for use in residential and professional environments.
It is classied as a class SA device according to ISO EN 20957-1.

8
SKILLBIKE
G
M
N
G
B
F
A
D
E
H
C
L
DESCRIPTION OF THE PRODUCT
AHandlebar
BHandgrips for time trial simulation training
CSaddle
DPedals
EPedal cranks
FGear levers
GLevers for adjusting the saddle
HLever for adjusting the handlebar
LWater bottle holder
M Display
N Telephone holder
The receiver for the ANT+ chest strap can be installed in the time
trial handgrips.
The product cannot receive heart rate signals from analogue
straps.

9
SKILLBIKE
C
A
B
USING THE PRODUCT
To move the saddle horizontally, use the adjustment lever (A).
- Turn the lever (A).
- Move the saddle horizontally.
- Put the lever (A) back in its original position.
To raise the saddle, simply lift it. To lower the saddle, move the lever (B).
To adjust the height of the handlebar, use
the adjustment lever (C).
- Stand alongside the handlebar.
- Lift up the lever (C).
- Move the handlebar to the right height.
- Lock the lever (C) at the bottom, in its
original position.

10
SKILLBIKE
USING THE PRODUCT
Adjust the toe clip straps.
- Put your toes in the clips and make sure the front parts of your feet are in front of the pedal axles.
- Tighten the strap buckles, thus ensuring that your feet are tted in properly and securely fastened.
Sit on the saddle and grasp the handlebar. From that position, ensure that you can almost fully extend
your legs when the pedals are at their lowest point.
Sit on the saddle with your torso bent forward and your back straight. Put your hands on the ends of
the handlebar, with your arms slightly bent. Try not to sway sideways.
Keep your feet lined up properly so that they do not scrape against the covers of the product.
The SKILLBIKE must only be used for the purpose for which it was designed and made: as a cycle
ergometer. Any other use must be considered inappropriate and therefore dangerous.
During the exercise, you may hear a continuous ticking sound, caused by the braking system control.
When you nish the exercise, you may hear a noise coming from inside, which is caused by the
automatic resetting procedure.

11
SKILLBIKE
USING THE PRODUCT
Make sure you do not have any loose clothing or laces that could get caught in the product.
Do not store the product in a vertical position. It may
be unstable and it could fall over.

12
SKILLBIKE
Before using the product, read all the warnings on
the label.
USING THE PRODUCT
Do not seat, step on or do stretching exercises on the rear protection.

13
SKILLBIKE
GEAR LEVERS
The right lever changes up through the gears.
The left lever changes down through the gears.
Once you have moved the gear lever, the gear shown on the console will be updated after a
few pedal strokes.
During exercise, the noise level will vary as the gear ratio changes. It will also depend on the
number of pedal revolutions and the current gear.
When you stop pedalling, the noise level will be dierent from when you are exercising.
When you pedal backwards, the noise level will be dierent from when you pedal forwards.
Gear number I II III IV V VI VII VIII
Sprocket ratio* 36/28 36/23 36/19 36/17 52/21 52/17 52/15 52/13
Metres of development (m)** 2.85 3.48 4.04 4.60 5.41 6.61 7. 67 8.73
* Approximate equivalence.
** The measurements refer to 28” wheels.

14
SKILLBIKE

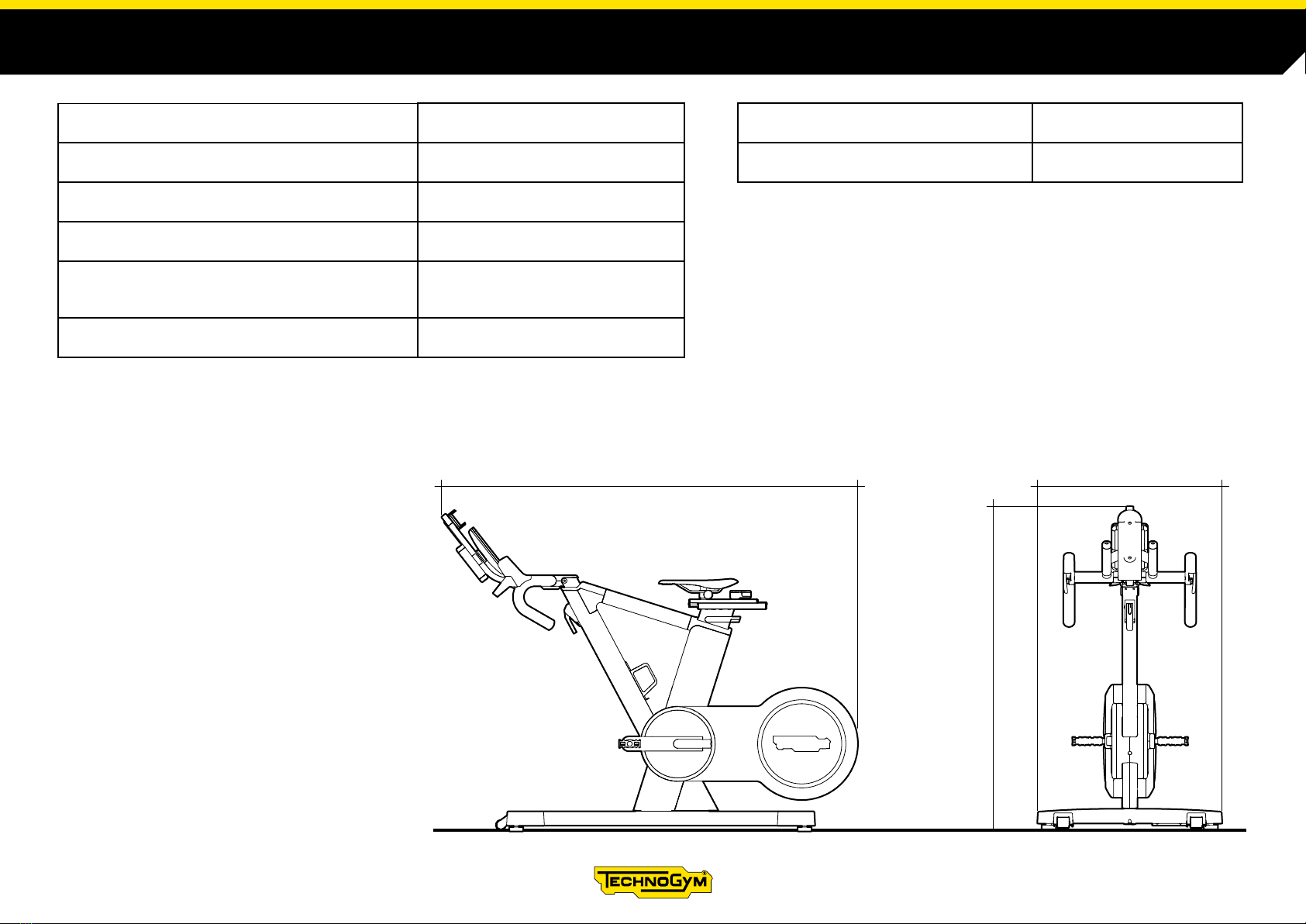

1542 mm 638 mm
1300 mm
TECHNICAL CHARACTERISTICS
Power supply 100÷240 Vac 50/60 Hz
Weight of the product 55 kg (121 lb)
Noise level Less than 70 dB
Protection rating IP 20
Operating temperature from +5°C to +30°C
(from +41°F to +86°F)
Maximum capacity of water bottle-holder 1.5 kg (3.4 lb)
Maximum weight of user 160 kg (353 lb)
User height 155 - 205 cm (61" - 81")

15
SKILLBIKE
60 cm
PLACE OF USAGE
In order to ensure that activities with the products are easy and risk-free for people, the area in which they take place must meet a number of specic
requirements. In particular, when deciding where to install the product, make sure that the location satises the following requirements.
The product must be installed in a setting that meets all of the requirements of the relevant laws in force.
Do not expose the product to direct sunlight.
Do not use the product outside. Do not use the product outdoors, where it is exposed to the elements. Ensure that the product does not get splashed by
water.
Do not place the product in locations with high moisture levels, such as swimming pools, whirlpool tubs and saunas.
- Temperature of between +10°C and +25°C.
- Sucient air circulation, with the capacity to keep humidity levels
between 20% and 90% during exercise.
- Sucient lighting, sothatphysical exercise can bedone inpleasant,
relaxing conditions.
- An empty space at least 60 cm wide all around every product.
- A at, stable and vibration-free surface that is capable of supporting
the weight of both the product and the user.

16
SKILLBIKE
MOVING THE PRODUCT
The product has two xed front wheels. To move it, lift it up slightly as
shown in the illustrations, then push it forwards or backwards.
Before you lift the product, ensure that the handlebar is securely fastened.

17
SKILLBIKE
A
B
LEVELLING THE PRODUCT
The product must be level for proper operation.
Loosen the locknut (B).
Screw or unscrew the foot (A) until the frame is in a stable position.
After adjusting, tighten the lock nut (B).

18
SKILLBIKE
ELECTRICAL CONNECTION
Before connecting the product to the mains power supply, ensure that the electrical system specications comply with current regulations. Check the
mains power supply specications on the identication label.
Plug the power cable into the product socket rst and then into the wall socket.
Run the cable through the special ties.
When you connect the product to the electricity supply, you may hear a noise coming from inside, which is caused by the automatic resetting procedure.
W
Check the state of the power cable periodically.
The wall socket must be located in a place where the unit may be easily and safely plugged in and unplugged.

19
SKILLBIKE
B
MAINTENANCE
The product should always be kept clean and free of dust, in compliance with common health and
hygiene standards.
After every use, clean the product with a damp sponge and neutral soap to remove moisture and
perspiration, then dry it well.
Clean and dry the whole product every day. Put the saddle and the handlebar into their highest
positions so that you can clean the full length of the post and stem respectively. Remove dust from
the grill (A) carefully.
Do not use chemical products or solvents.
Contact the Technogym Technical Support Service for information about any maintenance operations
not described in this manual.
The safety of the product is assured only on the condition that it is carefully inspected once a week
for any signs of damage and/or wear. Either replace defective or worn components immediately, or
remove the equipment from service.
Ensure that you remove the power plug from the socket before carrying out any maintenance
procedures.
If you suspect that the watt power you are producing does not correspond to the measurement on the
console, proceed to calibrate the torque ange and the belt. See the console manual for calibration
instructions.

20
SKILLBIKE
MAINTENANCE
Description Type of check Regularity of
action Type of action
Cleaning Check that the product is clean. Every day
After every use, clean the product with a damp sponge and neutral soap to
remove moisture and perspiration, then dry it well.
Remove dust from the grill carefully.
Pedals
Check the level of wear and tear on the
pedals and ensure that they are securely
fastened to the pedal cranks.
Every 6 months In the event of faults, contact the Technogym Technical Support
Service.
Saddle Check that the saddle is stable. Every 6 months Tighten the two saddle attachment nuts with a 25 Nm torque wrench.
Displayed
watts
Ensure the wattage displayed on the
console matches your perceived exertion. Every 6 months Calibrate the torque ange and belt. See the console manual for
calibration instructions.
Gear unit Ensure the gears engage correctly with
the handlebar in two dierent positions. Every 6 months In the event of faults, contact the Technogym Technical Support
Service.
