Technoline WS 9130 User manual

30
LCD Display
FEATURES:
The Weather station
Function keys
Foldout stand
Battery
compartment
cover
Hanging hole

31
• DCF-77 Radio controlled time function with manual time setting options
• DCF time reception ON/OFF
• 24 hour display
• Alarm function with snooze
• Temperature display in degree Celsius (°C)
• Indoor and outdor temperature with MIN/MAX records
• Manual reset of MIN/MAX records
• 4 weather forecast symbols with 2 weather tendency indicator arrows
• Wireless transmission at 433 MHz
• Signal reception intervals at 60 seconds
• Low battery indicator
• Wall mounting or table standing (foldout stand)
The Outdoor Temperature Transmitter
• Remote transmission of outdoor temperature to Temperature Station by 433
MHz signals
• Shower proof casing
• Wall mounting and table-standing

32
SETTING UP:
Note: This weather station receives only one outdoor transmitter.
1. First, insert the batteries into the Temperature transmitter. (see “Install and replace batteries in
the Temperature transmitter“).
2. Immediately after and within 30 seconds, insert the batteries into Weather station (see “Install and
replace batteries in the Weather station”). Once the batteries are in place, all segments of the
LCD will light up briefly. Following the time as 0:00 and the weather icon will be displayed. If these
are not displayed after 60 seconds, remove the batteries and wait for at least 10 seconds before
reinserting them.
3. After inserting the batteries, the Weather station will start receiving data from the transmitter. The
outdoor temperature and the signal reception icon should then be displayed on the Weather station.
If this does not happen after 3 minutes, the batteries will need to be removed from both units and
reset from step 1.
4. In order to ensure sufficient 433 MHz transmission however, this should under good conditions be a
distance no more than 100 meters between the final position of the Weather Station and the
transmitter (see notes on “Mounting ” and “433 MHz Reception ”).
5. Once the remote temperature has been received and displayed on the Weather station, the DCF
time (radio controlled time) code reception is automatically started. This takes typically between 3-5
minutes in good conditions.

33
Note:
Daily DCF reception is done at 01:00, 02:00 and 03:00 every day. If the reception at 03:00 is not successful,
then at 04:00 and 05:00 there are other tries, until one is successful. If the reception at 05:00 is still
not successful, then the next try takes place at 01:00 next day.
If reception is successful, the received time will override the manually set time. (Please refer also to notes
on “DCF-77 Radio Controlled Time ” and “Manual Time Setting ”)
HOW TO INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION
The Weather Station uses 2 x AAA, IEC LR3, 1.5V batteries. When batteries
will need to be replaced, the low battery icon will appear on the LCD. To
install and replace the batteries, please follow the steps below:
1. Lift up the battery compartment cover.
2. Insert batteries observing the correct polarity (see marking).
3. Replace compartment cover.

34

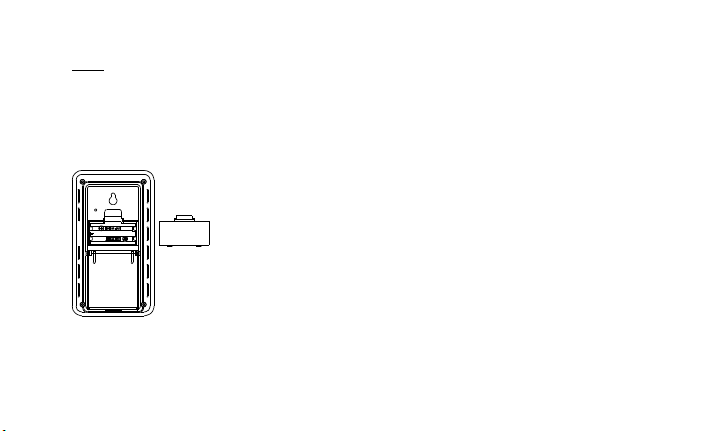

HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER
The Temperature Transmitter uses 2 x AAA, IEC LR03, 1.5V battery. To install and
replace the batteries, please follow the steps below:
1. Remove the battery compartment cover at the back of the transmitter.
2. Insert the batteries, observing the correct polarity (see marking).
3. Replace the battery compartment cover on the unit.
Note:
In the event of changing batteries in any of the units, all units need to be reset by
following the setting up procedures. This is because a security code is assigned by
the transmitter at start-up and this code must be received and stored by the Weather
station in the first 3 minutes of power being supplied to it.
BATTERY CHANGE:
It is recommended to replace the batteries in all units regularly to ensure optimum accuracy of these units
(Battery life See Specifications below).
Please participate in the preservation of the environment. Return used batteries to an
authorised depot.

35
FUNCTION KEYS:
Weather station:
The weather station has four easy to use function keys.
SET key
• Press the key to enter manual setting modes: Time zone, Time reception ON/OFF and Manual time
• Stop the alarm
+ key
• To make adjustment for various settings
• Stop the alarm
SET key MIN/MAX RESET key
ALARM key
+ key

36
ALARM key
• Enter the alarm setting mode
• Switch the alarm ON/ OFF
• Stop the alarm
MIN/MAX RESET key
• Press and hold to reset the MIN/MAX temperature records
• Activate the snooze
• Exit manual setting modes

37
Outdoor Reception
Signal icon*
MIN/MAX indoor
temperature
MIN/MAX outdoor
temperature
LCD SCREEN AND SETTINGS:
Time
Indoor
Temperature in °C
Outdoor
Temperature in °C
Weather tendency
indicator
Weather
forecast icon
Low battery indicator
(weather station)
Low battery indicator
(transmitter)
Radio controlled time
reception icon
Alarm icon

38
* When the outdoor signal is successfully received by the Weather Station, this icon will be switched on.
(If not successful, the icon will not be shown in LCD) So user can easily see whether the last reception
was successful (icon on) or not (icon off).
For a better display clarity, the LCD screen is split into 4 sections.
Section 1 - TIME AND ALARM
• In normal mode display of radio controlled time
• A reception tower symbol will be shown indicating that the DCF-77 time signal is scanned for
(flashing) or received (steady).
Note: The symbol will not be shown when radio time reception is not successful or when time
reception function is turned off.
• In normal display, the alarm icon will be shown when the alarm is turned on. Or when the snooze
function is activated, the alarm icon will be flashing.
Section 2 - INDOOR TEMPERATURE
• Display the current indoor temperature and indoor MIN/MAX records
• Display of low battery indicator (weather station)

39
Section 3 - WEATHER FORECAST AND WEATHER TENDENCY ICONS
• Display of the weather to be expected in form of four weather symbols and two weather tendency
indicators in form of an arrow, which change their appearance depending on the air pressure
development
Section 4 - OUTDOOR TEMPERATURE
• Display the current outdoor temperature and outdoor MIN/MAX records
• A signal reception symbol will be shown indicating that receiver is receiving outdoor temperature
• Display of low battery indicator (transmitter)
MANUAL SETTINGS:
The following manual settings can be done in the setting mode:
• Time zone
• Time reception DCF ON/OFF
• Manual time
Press and hold the SET key for about 3 seconds to advance to the setting mode:

40
TIME ZONE SETTING:
The time zone default is "0" hour. To set a different time zone:
1. The current time zone value starts flashing.
2. Use the + key to set the time zone. The range runs from 0, 1, 2…12, -12, -11, -10… -2, -1, 0, in
consecutive 1-hour intervals.
3. Confirm with the SET key and enter the Time reception On/Off setting.
TIME RECEPTION ON/OFF SETTING:
Time zone (flashing)
flashing

41
Minutes (flashing)
Hours (flashing)
In area where reception of the radio-controlled time (DCF time) is not possible, the time reception function
can be turned OFF. The clock will then work as a normal Quartz clock. (Default setting is ON).
1. The digit “ON” digit will start flashing on the LCD.
2. Use the + key to turn OFF the time reception function if necessary.
3. Confirm with the SET key and enter the Manual time setting .
Note:
If the Time Reception function is turned OFF manually, the clock will not attempt any reception of
the radio-controlled time (DCF time) as long as the Time Reception OFF function is activated. The
Time Reception icon and the DCF icon will not be displayed on the LCD.
MANUAL TIME SETTING:
In case the Weather station is not able to detect the radio-controlled time (DCF time) signal (disturbances,
transmitting distance, etc.), the time can be manually set. The clock will then work as a normal Quartz
clock.

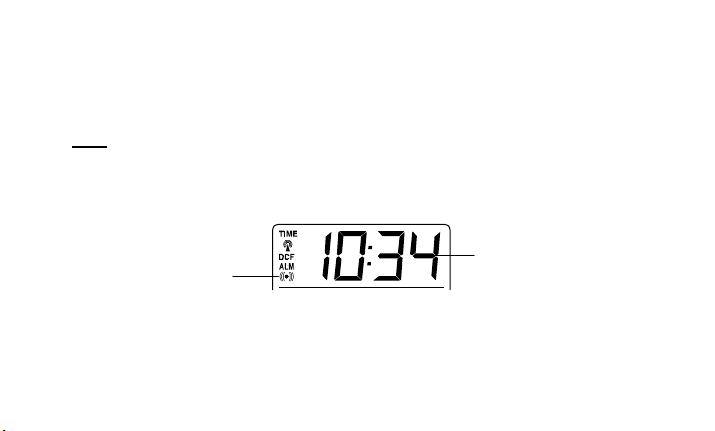

42
Alarm icon (ON)
Alarm time
To set the clock:
1. The hour digits start flashing in the time display section.
2. Use the + key to adjust the hours and then press SET key to go to the minute setting.
3. The minute will be flashing. Press the + key to just the minutes.
4. Confirm with the SET key and exit the setting mode.
Note :
The unit will still try to receive the signal despite a manual setting. When the signal is received, the
manually set time will automatically be replaced by the received time. During reception attempts, the DCF
tower icon will flash. If reception has been unsuccessful, the DCF tower icon will not appear but reception
will still be attempted.
ALARM SETTING:
To set alarm:
1. Press and hold ALARM for about 3 seconds until the alarm time display flashes.
2. The hour digit and the alarm icon will be flashing. Press the + key to adjust the hour.

43
3. Press ALARM button once and minute digit will be flashing. User shall then press + button to set
the minute.
4. Press ALARM button once to confirm the setting.
5. To activate/ deactivate the alarm function, press the ALARM button once. The display of the alarm
icon represents that the alarm is "ON".
Note: The duration of alarm sounding is 85 seconds
TO ACTIVATE THE SNOOZE FUNCTION AND STOPPING THE AL ARM:
1. When the alarm is sounding, press the MIN/MAX RESET key to activate the snooze function. The
alarm will stop and re-activate after the snooze interval of 10 minutes.
2. To stop the alarm completely, press any keys other than the MIN/MAX RESET key.
WEATHER FORECAST AND TENDENCY
THE WEATHER FORECASTING ICONS :
There are 4 weather icons in the third section of LCD which can be displayed in any of the following
combinations :

44
For every sudden or significant change in the air pressure, the weather icons will update accordingly to
represent the change in weather. If the icons do not change, then it means either the air pressure has not
changed or the change has been too slow for the Weather station to register. However, if the icon
displayed is a sun or raining cloud, there will be no change of icon if the weather gets any better (with
sunny icon) or worse (with rainy icon) since the icons are already at their extremes.
The icons display weather forecasts in terms of getting better or worse, and not necessarily sunny or rainy
as each icon indicates. For example, if the current weather is cloudy and the rainy icon is displayed, it
does not mean that the product is faulty because it is not raining. It simply means that the air pressure has
dropped and the weather is expected to get worse but not necessarily rainy.
Rainy
Cloudy with
sunny intervals
Sunny
Cloudy

45
Note :
After setting up, readings for weather forecasts should be disregarded for the next 12-24 hours. This will
allow sufficient time for the Weather Station to collect air pressure data at a constant altitude and therefore
result in a more accurate forecast.
Common to weather forecasting, absolute accuracy cannot be guaranteed. The weather forecasting
feature is estimated to have an accuracy level of about 75% due to the varying areas the Weather Station
has been designed for use in. In areas that experience sudden changes in weather (for example from
sunny to rain), the Weather Station will be more accurate compared to use in areas where the weather is
stagnant most of the time (for example mostly sunny).
If the Weather Station is moved to another location significantly higher or lower than its initial standing
point (for example from the ground floor to the upper floors of a house), remove the batteries and re-insert
them after about 30 seconds. By doing this, the Weather Station will not mistake the new location as being
a possible change in air-pressure when really it is due to the slight change of altitude. Again, disregard
weather forecasts for the next 12 to 24 hours as this will allow time for operation at a constant altitude.
THE WEATHER TENDENCY INDICATOR:
Working together with the weather icons are the weather tendency indicators (located on the left and right
hand side of the weather icons). When the indicator points upwards, it means that the air-pressure is

46
increasing and the weather is expected to improve, but when indicator points downwards, the air-pressure
is dropping and the weather is expected to become worse.
Taking this into account, you will see how the weather has changed and how it is expected to change. For
example, if the indicator is pointing downwards together with cloud and sun icons, then the last noticeable
change in the weather was when it was sunny (sun icon only). Therefore, the next change in the weather
will be the cloud with rain icons since the indicator is pointing downwards.
Note :
Once the weather tendency indicator has registered a change in the air pressure, it will remain
permanently visualized on the LCD.

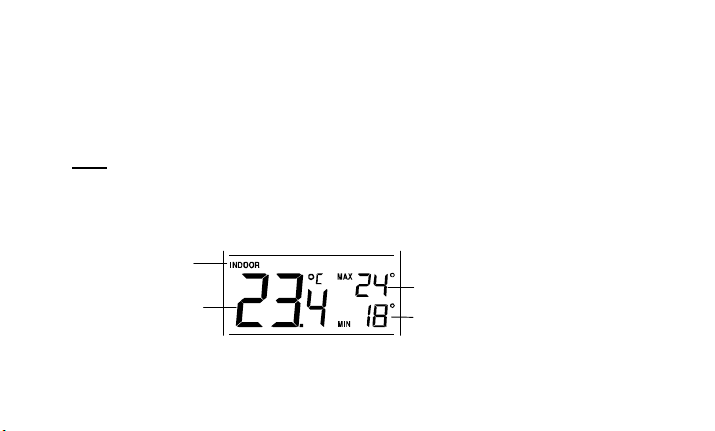

INDOOR TEMPERATURE AND MIN/MAX RECORDS
The indoor temperature and indoor MIN/MAX records are displayed on the second section of the LCD.
Indoor
Temperature MIN indoor temperature record
Indoor icon
MAX indoor temperature record

47
Outdoor reception signal icon
Note: The MIN/MAX indoor temperature range is -10ºC to + 50ºC with 1°C resolution.

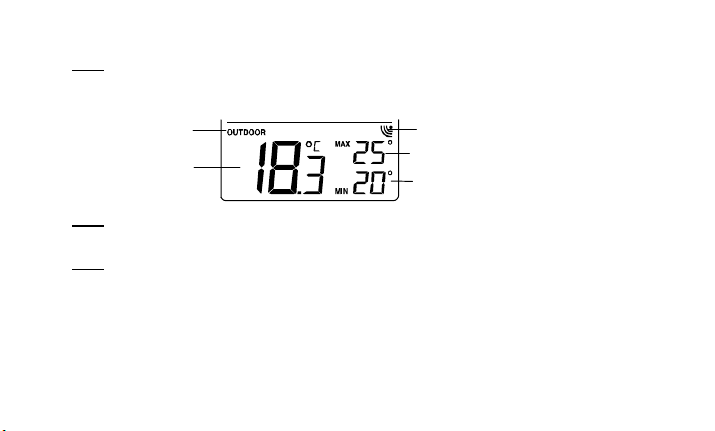

OUTDOOR TEMPERATURE AND MIN/MAX RECORDS
The outdoor temperature and outdoor MIN/MAX records are displayed on the last section of the LCD.
Note: The MIN/MAX outdoor temperature resolution is range -50ºC to +70ºC with 1°C resolution.
RESETTING THE INDOOR AND OUTDDOR MIN/MAX RECORDS
Note: All the MIN/MAX records will be reset at the same time.
1. In normal display mode, press and hold the MIN/MAX RESET key for 3 seconds. This will reset the
indoor and outdoor MIN/MAX temperatures.
Outdoor
Temperature MIN outdoor temperature record
Outdoor icon
MAX outdoor temperature record

48
LOW BATTERY INDICATOR
Low battery indicator is displayed on the LCD when the batteries require changing.
433 MHz RECEPTION CHECK
The Weather station should receive the temperature data within 3 minutes after set-up. If the temperature
data is not received 3 minutes after setting up (not successfully continuously, the outdoor display shows “-
- -” ), please check the following points:
1. The distance of the Weather station or transmitter should be at least 1.5 to 2 meters away from any
interfering sources such as computer monitors or TV sets.
2. Avoid positioning the Weather station onto or in the immediate proximity of metal window frames.
3. Using other electrical products such as headphones or speakers operating on the same signal
frequency (433MHz) may prevent correct signal transmission and reception.
4. Neighbours using electrical devices operating on the 433MHz signal frequency can also cause
interference.
Note:
When the 433MHz signal is received correctly, do not re-open the battery cover of either the transmitter or
Weather station, as the batteries may spring free from the contacts and force a false reset. Should this
happen accidentally then reset all units (see Setting up above) otherwise transmission problems may
occur.

49
The transmission range is about 100 m from the transmitter to the Weather station (in open space).
However, this depends on the surrounding environment and interference levels. If no reception is possible
despite the observation of these factors, all system units have to be reset (see Setting up ).
POSITIONING THE TEMPERATURE STATION:
The Weather Station may be hung onto wall easily or free standing.

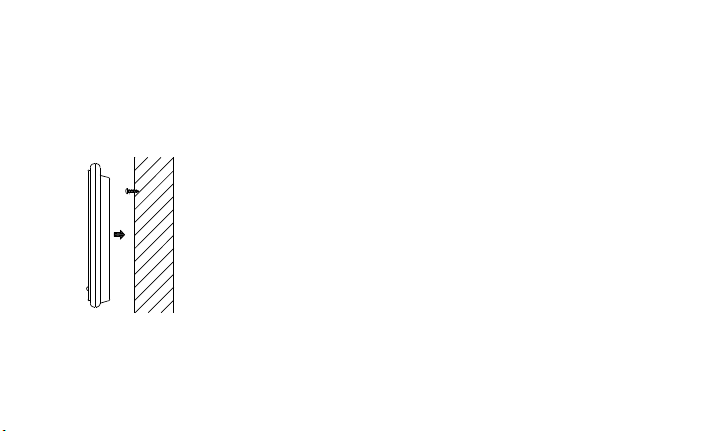

To wall mount
Choose a sheltered place. Avoid direct rain and sunshine.
Before wall mounting, please check that the outdoor temperature values can be
received from the desired locations.
1. Fix a screw (not supplied) into the desired wall, leaving the head extended
out the by about 5mm.
2. Remove the stand from the Weather Station by pulling it away from the base
and hang the station onto the screw. Remember to ensure that it locks into
place before releasing.
