Tektronix AMM768 User manual

Instructions
AMM7UP Upgrades
AMM768 Audio Multi-Channel Monitor
075-0936-00
*P075093600*
075093600
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com

Copyright ©Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or
suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
HIn North America, call 1-800-833-9200.
HWorldwide, visit www.tektronix.com to find contacts in your area.

AMM7UP Upgrades i
Table of Contents
General Safety Summary iii...................................
Service Safety Summary v....................................
Kit Description 1............................................
Products 1.......................................................
Required Tools 2..................................................
Kit Parts Lists 2...................................................
Upgrade Installation 5.......................................
Verify the Currently Installed Options 5................................
How to Prevent Electrostatic Discharge 5...............................
Install the Software Upgrade 6.......................................
Install the Hardware Upgrade 10.......................................
Install the Software Option Key 15.....................................
Apply the Option Label 16..........................................
Verify the Upgrade 17.........................................

Table of Contents
ii AMM7UP Upgrades

AMM7UP Upgrades iii
General Safety Summary
Review the following safety precautions to avoid injury and prevent damage to
this product or any products connected to it.
To avoid potential hazards, use this product only as specified.
Only qualified personnel should perform service procedures.
While using this product, you may need to access other parts of a larger system.
Read the safety sections of the other component manuals for warnings and
cautions related to operating the system.
Use Proper Power Cord. Use only the power cord specified for this product and
certified for the country of use.
Connect and Disconnect Properly. Do not connect or disconnect probes or test
leads while they are connected to a voltage source.
Ground the Product. This product is grounded through the grounding conductor
of the power cord. To avoid electric shock, the grounding conductor must be
connected to earth ground. Before making connections to the input or output
terminals of the product, ensure that the product is properly grounded.
Observe All Terminal Ratings. To avoid fire or shock hazard, observe all ratings
and markings on the product. Consult the product manual for further ratings
information before making connections to the product.
Power Disconnect. The power cord disconnects the product from the power
source. Do not block the power cord; it must remain accessible to the user at all
times.
Do Not Operate Without Covers. Do not operate this product with covers or panels
removed.
Do Not Operate With Suspected Failures. If you suspect there is damage to this
product, have it inspected by qualified service personnel.
Avoid Exposed Circuitry. Do not touch exposed connections and components
when power is present.
Do Not Operate in Wet/Damp Conditions.
Do Not Operate in an Explosive Atmosphere.
Keep Product Surfaces Clean and Dry.
Provide Proper Ventilation. Refer to the manual’s installation instructions for
details on installing the product so it has proper ventilation.
ToAvoidFireor
Personal Injury

General Safety Summary
iv AMM7UP Upgrades
These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result
in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in
damage to this product or other property.
These terms may appear on the product:
HDANGER indicates an injury hazard immediately accessible as you read the
marking.
HWARNING indicates an injury hazard not immediately accessible as you
read the marking.
HCAUTION indicates a hazard to property including the product.
The following symbol(s) may appear on the product:
CAUTION
Refer to Manual
Protective Ground
(Earth) Terminal
Terms in this Manual
Symbols and Terms
on the Product

AMM7UP Upgrades v
Service Safety Summary
Only qualified personnel should perform service procedures. Read this Service
Safety Summary and the General Safety Summary before performing any service
procedures.
Do Not Service Alone. Do not perform internal service or adjustments of this
product unless another person capable of rendering first aid and resuscitation is
present.
Disconnect Power. To avoid electric shock, disconnect the power cord from the
mains power.
Use Care When Servicing With Power On. Dangerous voltages or currents may
exist in this product. Disconnect power, remove battery (if applicable), and
disconnect test leads before removing protective panels, soldering, or replacing
components.
To avoid electric shock, do not touch exposed connections.

Service Safety Summary
vi AMM7UP Upgrades

AMM7UP Upgrades 1
Kit Description
This document provides instructions for installing the audio and video upgrades
listed below into an existing Tektronix AMM768 Audio Multi-Channel Monitor.
Table 1: Supported upgrades
Upgrade options Description
Option AD Adds support for analog audio monitoring and digital audio monitoring (embedded and AES/EBU inputs).
Option DD Adds support for decoding Dolby Digital (AC-3), digital audio monitoring (embedded and AES/EBU
inputs), and for analog audio monitoring.
Option DDE Adds support for decoding Dolby E and Dobly Digital (AC-3), and for digital (embedded and AES/EBU
inputs) and analog audio monitoring. Supports digital ASUI formats with up to eight channels.
Option SDI Provides audio de-embedding and Tektronix exclusive HD/SD picture, closed caption, and video session
displays.
Products
The following Tektronix products are supported by this kit:
AMM768 All instruments

Kit Description
2AMM7UP Upgrades
Required Tools
The following table listed the tools required to install the upgrade:
Table 2: Required tools
Name Description
TORX screwdriver handle Accepts TORX-driver bits
T-10 and T-15 TORX tips TORX-driver bit for T-10 and T-15 screw heads
Anti-static wrist strap
AMM768 Audio Multi-Channel Monitor
Specifications and Performance Verification
Technical Reference and appropriate test
equipment listed in the recommended test
equipment tables
071-2174-xx
Available from the Tektronix Web site
Kit Parts Lists
The following tables list the parts supplied with each upgrade kit. Before you
start the upgrade, verify that you received all of the parts for the upgrade kit you
ordered.

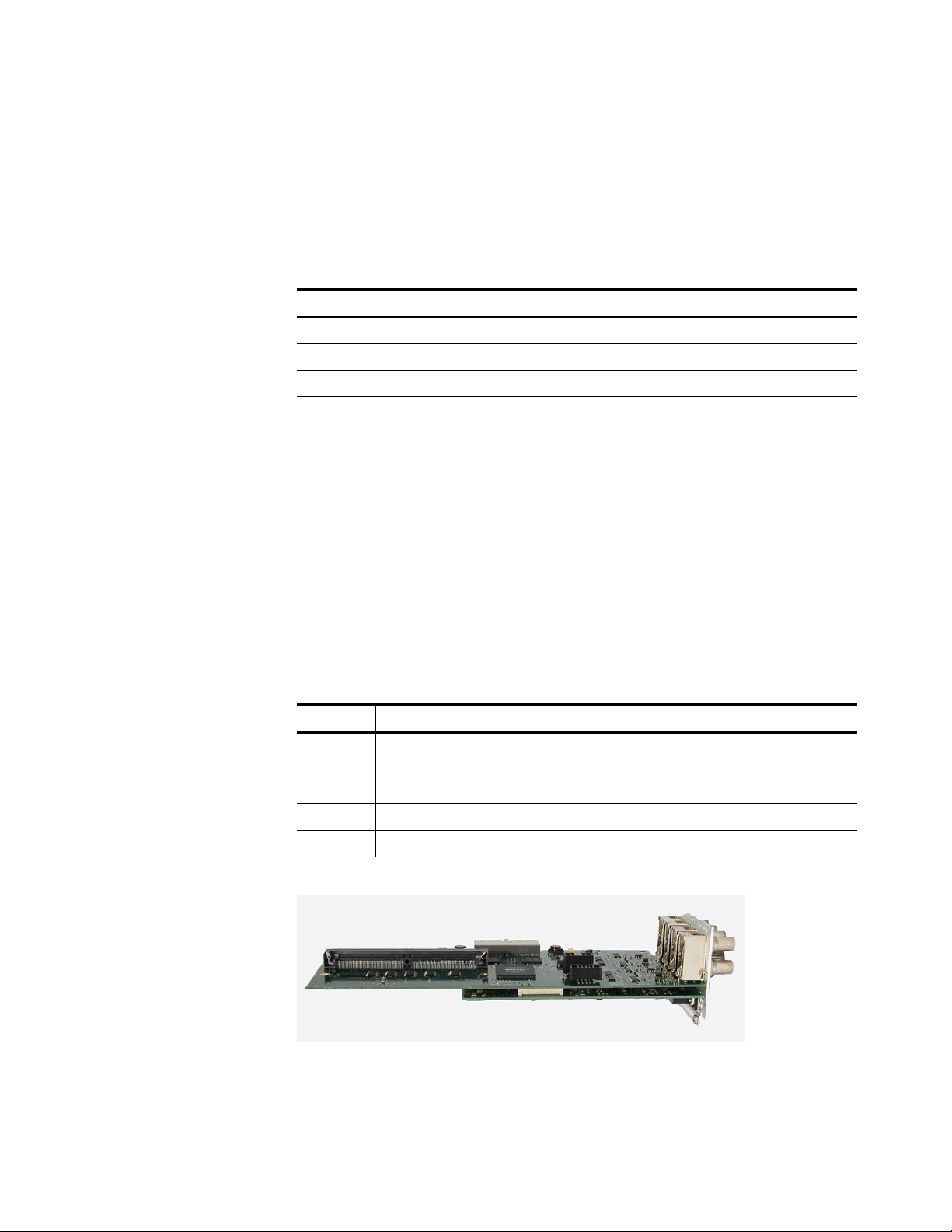

Table 3: Option AD parts list
Quantity Part number Description
1EA -- -- -- -- -- -- ENVELOPE, IMPORTANT DOCUMENTS; CONTAINS
SOFTWARE OPTION KEY
1EA 075-0936-00 INSTRUCTIONS; AMM7UP UPGRADES
1EA 131-7430-XX CONN, DSUB; SLDR CUP, MALE, STR, 62 POS
1EA 672-6307-XX CIRCUIT BD SUBASSY; DIGITAL AND ANALOG AUDIO
Figure 1: Option AD module
AMM7UP AD

Kit Description
AMM7UP Upgrades 3

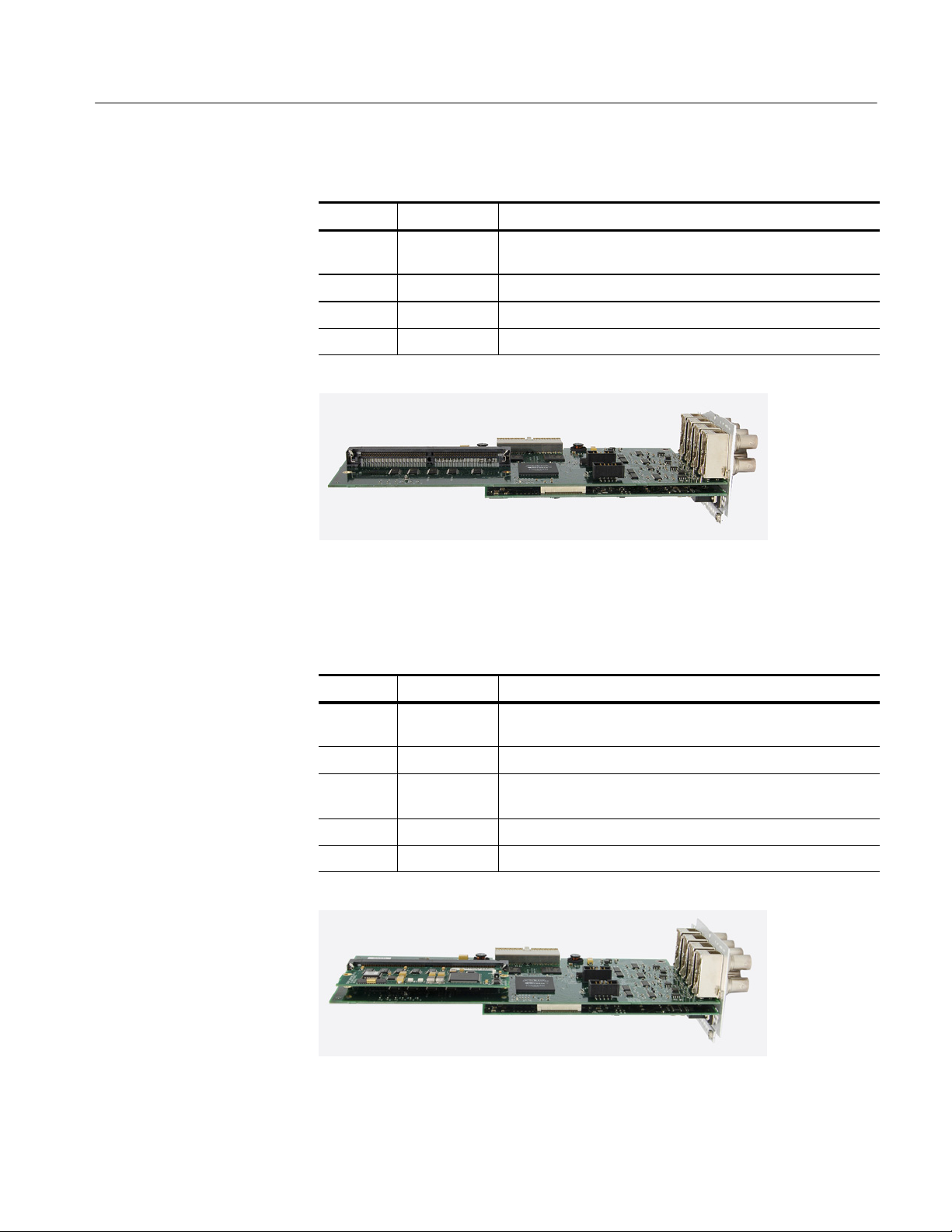

Table 4: Option DD parts list
Quantity Part number Description
1EA -- -- -- -- -- -- ENVELOPE, IMPORTANT DOCUMENTS; CONTAINS
SOFTWARE OPTION KEY
1EA 075-0936-00 INSTRUCTIONS; AMM7UP UPGRADES
1EA 131-7430-XX CONN, DSUB; SLDR CUP, MALE, STR, 62 POS
1EA 672-6308-XX CIRCUIT BD SUBASSY; DIGITAL AND ANALOG AUDIO
Figure 2: Option DD module
Table 5: Option DDE parts list
Quantity Part number Description
1EA -- -- -- -- -- -- ENVELOPE, IMPORTANT DOCUMENTS; CONTAINS
SOFTWARE OPTION KEY
1EA 075-0936-00 INSTRUCTIONS; AMM7UP UPGRADES
1EA 119-7167-XX CIRCUIT BD ASSY; CAT552 DOLBY E/DIGITAL DECODER
MODULE; 72 PIN SIMM
1EA 131-7430-XX CONN, DSUB; SLDR CUP, MALE, STR, 62 POS
1EA 672-6309-XX CIRCUIT BD SUBASSY; DIGITAL AND ANALOG AUDIO
Figure 3: Option DDE module
AMM7UP DD
AMM7UP DDE

Kit Description
4AMM7UP Upgrades
Table 6: Option SDI parts list
Quantity Part number Description
1EA -- -- -- -- -- -- ENVELOPE, IMPORTANT DOCUMENTS; CONTAINS
SOFTWARE OPTION KEY
1EA 075-0936-00 INSTRUCTIONS; AMM7UP UPGRADES
AMM7UP SDI

AMM7UP Upgrades 5
Upgrade Installation
This section provides instructions for the following:
HVerifying the currently installed options
HPreventing electrostatic discharge
HInstalling the software upgrade
HInstalling the hardware upgrade
HInstalling the software option key
Verify the Currently Installed Options
The software option key supplied in this kit is based on the serial number you
supplied when you ordered the upgrade for the audio monitor. The new software
option key enables the new option(s) you ordered, and also preserve your
previously purchased options.
Before you install the upgrade, perform the following steps to verify which
options are currently installed in your waveform monitor. After you install the
upgrade, you will verify that the new options are installed and that any previous-
ly installed options are still enabled.
1. Power on the instrument you are upgrading.
2. Press the MAIN button on the front panel.
3. Touch the Config soft key, and then touch the Utilities soft key.
4. Touch the View Instmt Options soft key.
5. Make a note of which options are installed.
How to Prevent Electrostatic Discharge
When you perform any service that requires internal access to the instrument,
adhere to the following precautions to avoid damage due to electrostatic
discharge (ESD):
1. Minimize handling of static-sensitive circuit boards and components.
2. Transport and store static-sensitive boards or modules in static protected
containers.

Upgrade Installation
6AMM7UP Upgrades
3. Discharge the static voltage from your body by wearing a grounded antistatic
wrist strap while handling these modules.
4. Service static-sensitive modules only at a static-free work station.
5. Do not allow anything capable of generating or holding a static charge on the
work surface.
6. Handle circuit boards by the edges or hold onto grounded shields when
possible.
7. Do not slide circuit boards over any surface.
Install the Software Upgrade
CAUTION. To prevent upgrade failure, if your instrument does not have the latest
version of software installed, you must upgrade the software to the latest version
before you install the hardware upgrade and before you install the software
option key.
You do not need to perform the software upgrade if your instrument already has
the latest version of software installed. Perform the following steps to determine
if the software on your instrument needs to be upgraded:
1. Power on the instrument.
2. Verify the installed software version:
a. Press the MAIN button on the front panel.
b. Touch the Config softkey, touch the Utilities soft key, and then touch the
View Hw/Sw Version soft key.
c. In the Hardware and Software Versions display window, note the
software version number.
3. Verify the latest version of software at the Tektronix Web site:
a. Use the Web browser on a PC to navigate to the following Tektronix
Web site:
http://www.tek.com/products/video_test
b. On the Video Test Web page, click the link Software and Firmware
under Product Resources.
Before You Begin

Upgrade Installation
AMM7UP Upgrades 7
c. On the Software and Firmware Finder Web page, search by model
number (i.e.: AMM768) or use the keyword AMM to locate the
software-upgrade package for your instrument.
d. Note the latest version number of the software-upgrade package(s).
NOTE. If the search for your product produces no results, there are no upgrades
available.
4. If the latest software version at the Web site is newer than the version on
your instrument, you need to upgrade the firmware.
To perform the upgrade, you will use a PC to transfer the new software to the
instrument using your local Ethernet network or using an Ethernet cross-over
cable. Read the entire procedure before starting the software upgrade. The time
required to complete the upgrade is about 25 minutes.
CAUTION. Once the instrument has started to erase internal flash, DO NOT
remove power from the instrument. If you do so, the instrument flash will be
corrupted. The instrument will have to be sent to a Tektronix factory service
center to have the system software restored.
NOTE. If power to the instrument is lost before it begins erasing the internal
flash, you can restart the software upgrade after the instrument reboots.
PC System Requirements. The data-transfer utility used to upgrade the waveform
monitor runs on the following PC systems: Windows 98, Windows NT 4.0,
Windows ME, Windows 2000, and Windows XP. The utility also requires an
Ethernet interface and 128 MB of free disk space on the PC system.
After you have verified that your instrument needs to have the software
upgraded, perform the following procedure:
1. If you are connecting your PC directly to the instrument, connect the
Ethernet cross-over cable between the Ethernet ports on the PC and
instrument, otherwise proceed to step 2.
2. Connect the instrument and PC to your local Ethernet network.
3. Power on the instrument.
Upgrade the Software

Upgrade Installation
8AMM7UP Upgrades
4. Assign the instrument an IP address:
NOTE. The data-transfer utility requires that the instrument be assigned a valid
IP address for your network. Network addresses can be assigned either manually
or automatically using DHCP. If your network does not use DHCP, you will have
to manually enter the address for the instrument. To get a valid IP address,
contact your local LAN administrator.
Alternatively, if you connect the PC directly to the instrument using an Ethernet
cross-over cable .You can assign the instrument any IP address that is compat-
ible with the IP address of the PC.
a. Press the MAIN button on the front panel.
b. Touch the Config soft key, touch the Utilities soft key, and then touch
the Communications soft key.
c. Touch the Config Mode soft key, and then touch either the Manual or
DHCP soft key as directed by your LAN administrator. Select Manual if
you are using an Ethernet cross-over cable to connect the PC directly to
the instrument. Touch the Close Config Mode soft key to exit the
Config mode.
d. If you selected Manual mode, touch the Network Setup soft key. Enter
the IP address, subnet mask, and gateway address as directed by your
LAN administrator. You need to enter only an IP address if you are using
an Ethernet cross-over cable connection. Touch OK to close the Network
Setup dialog box.
NOTE. If you selected DHCP mode, the network will automatically assign the
instrument an IP address.
5. Download the latest version of software at the Tektronix Web site:
a. Use the Web browser on the PC to navigate to the Tektronix Software
and Firmware Finder Web site:
http://www.tektronix.com/software
b. On the Software and Firmware Finder Web page, search by model
number (i.e.: AMM768) to locate the latest software-upgrade package
for the instrument.
c. Download the latest version to your PC.
d. After the software package is downloaded, click on the self-extracting
archive to extract the following files into the directory of your choice:
transfer.exe and firmware.pkg. There may also be a readme.txt file.

Upgrade Installation
AMM7UP Upgrades 9
6. Prepare the instrument for the software upgrade:
a. Press the front panel MAIN button.
b. Touch the Config soft key, and then touch the Utilities soft key.
c. Touch the System Upgrade soft key. This displays a dialog box that
asks you to confirm that you want to shutdown to upgrade the system.
d. Touch Yes to confirm you want to upgrade the system. The instrument
display will go to black and will display a screen stating that it is waiting
for data transfers from the network.
e. Note the IP address displayed on the screen of the instrument.
7. Perform the software upgrade:
a. On the PC, double-click the transfer.exe file to launch the transfer
program.
b. Type the IP address or DNS name of the instrument you are upgrading,
andthenpressEnter. This starts the software upgrade process.
CAUTION. To prevent upgrade failure, do not close the transfer.exe window until
the transfer utility asks for another IP address. When the software upgrade
completes, the instrument may reboot.
c. When the software upgrade is complete, the transfer utility asks you to
enter another IP address. Press Enter to exit the transfer utility.
8. If the instrument did not reboot at the completion of the software upgrade,
remove and then reapply power to the instrument to cause it to reboot.
9. During the reboot, you are forced to recalibrate the touchscreen. On-screen
instructions direct you to touch crosshairs in five locations: top left, top
right, bottom right, bottom left, and then center. After you recalibrate the
touchscreen, the instrument completes the reboot.
10. Verify the software upgrade:
NOTE. If the software-upgrade package includes a Readme.txt file, read this file
to determine whether all of the Configuration menu and instrument-mode
settings from the previous software version are preserved in the new version you
just installed.
a. Press the MAIN button on the front panel.

Upgrade Installation
10 AMM7UP Upgrades
b. Touch the Config soft key, touch the Utilities soft key, and then touch
the View Hw/Sw Version soft key.
c. In the Hardware and Software Versions display window, verify that the
software version number matches the version of the software-upgrade
package you installed.
Install the Hardware Upgrade
CAUTION. To prevent upgrade failure, if your instrument does not have the latest
version of software installed, you must upgrade the software to the latest version
before you install the hardware upgrade. Refer to Install the Software Upgrade
on page 6.
The procedures in this section are only for upgrades that include the installation
of hardware modules. For software-only upgrades, you do not need to remove
the instrument cover since these upgrades are enabled by the new software key
you received with this kit.
If you are installing a software-only upgrade (Option SDI), proceed to Install the
Software Option Key on page 15.
The hardware installation procedure consists of the following steps:
HRemoving the instrument cover and the module guide brackets
HInstalling the new hardware
HReinstalling the module guide brackets and the instrument cover

Upgrade Installation
AMM7UP Upgrades 11
The modules for the hardware options can be installed only in the specific
location shown in Figure 4.
Module with analog audio installed
Figure 4: Rear panel showing the location of the optional modules
If you are installing an upgrade option that includes hardware installation,
perform the following steps to remove the instrument cover and module guide
brackets.
WARNING. Disconnect the power source from the instrument before beginning
this or any procedure requiring you to remove the cover from the instrument
chassis. Fan blades and other components inside the instrument could cause
serious injury if power is on while the instrument chassis is open.
1. If necessary, remove the instrument from the portable cabinet or rack adapter
sleeve. Refer to the WFM7F05 Instruction manual for complete details if
needed.
2. Place the instrument on a static-safe work surface. Be sure to follow safe
handling procedures to avoid electrostatic damage to the instrument or
module (refer to How to Prevent Electrostatic Discharge on page 5).
3. Remove the six screws from the chassis cover as shown in Figure 5. Save the
screws for reinstallation.
Locations of the Optional
Hardware Modules
Remove the Instrument
Cover and Module
Guide Brackets

Upgrade Installation
12 AMM7UP Upgrades
Figure 5: Removing the chassis cover
4. Slide the chassis cover toward the back of the instrument, and then lift and
remove the chassis cover from the instrument.
5. Remove the four screws from the module guide brackets as shown in
Figure 6. Remove the brackets and save the screws for reinstallation. Note
that the brackets are keyed to the fit on the chassis in only one direction.
Figure 6: Removing the module guide brackets
